14 x HP Agilent Keysight E5346A 34 channels High Density Probe Adapter ex VAT

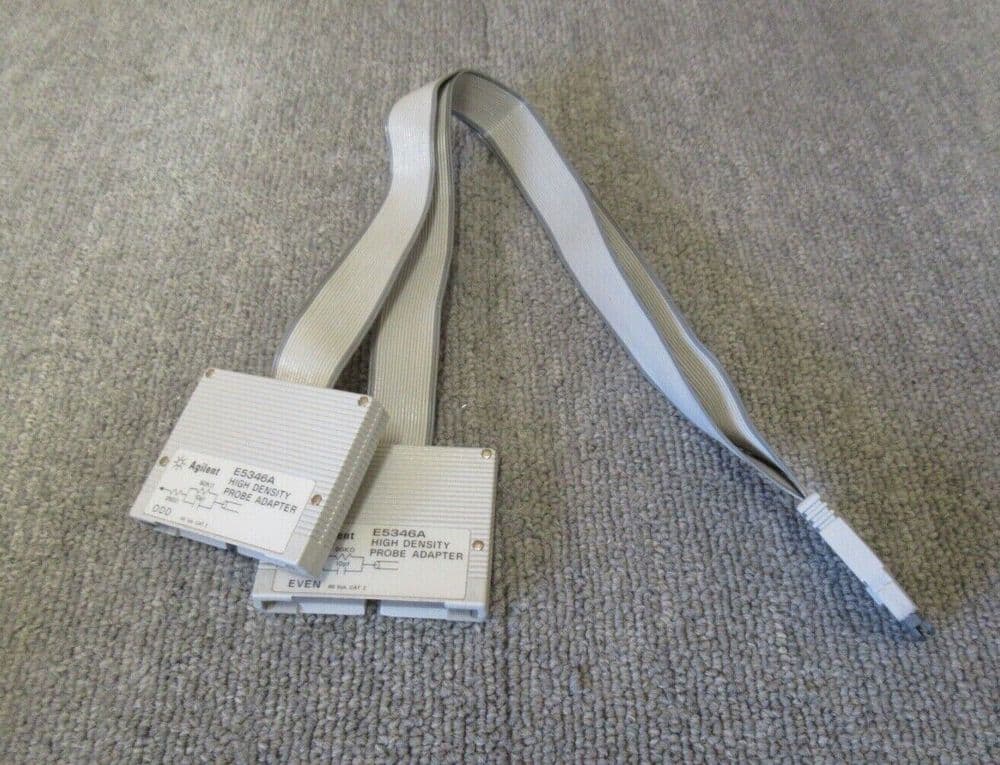

The Agilent E5346A Mictor probe conveniently connects to a target through a Mictor connector designed into the target. The E5346A probe includes the required isolation networks for the logic analyzer at the probe tip, close to the target.

Route your signals to the location containing the Mictor connector and when you are ready to measure these signals simply plug-in the Mictor probe. These probes can be used with a support shroud in environments where accidental unplugging of the probe is a concern. This probe can be used with any Agilent logic analyzer with a 40-pin cable connector. The E5346A is designed to acquire signals with peak-to-peak amplitude as low as 500 mV.

• 34 channels: 32 single-ended data, 2 single-ended clock
• 3.0 pF equivalent load capacitance
• Measure signals with as little as 500 mVp-p signal amplitude
• Provides convenient, reliable connection to target through a Mictor connector, which is easy to incorporate into your design
• Support shrouds available for board thickness to 0.12 inches38-pin Mictor footprint
• Compatible with logic analyzers with 40-pin cable connectors
• Characteristics when combined with any compatible Agilent state and timing analysis module
• Minimum voltage swing: 500 mVp-p
• Minimum input overdrive: 250 mV
• Threshold range: -6 V to +6 V in 10 mV increments
• Input dynamic range: ±10 V about threshold
• Maximum input voltage: ±40 V peak
