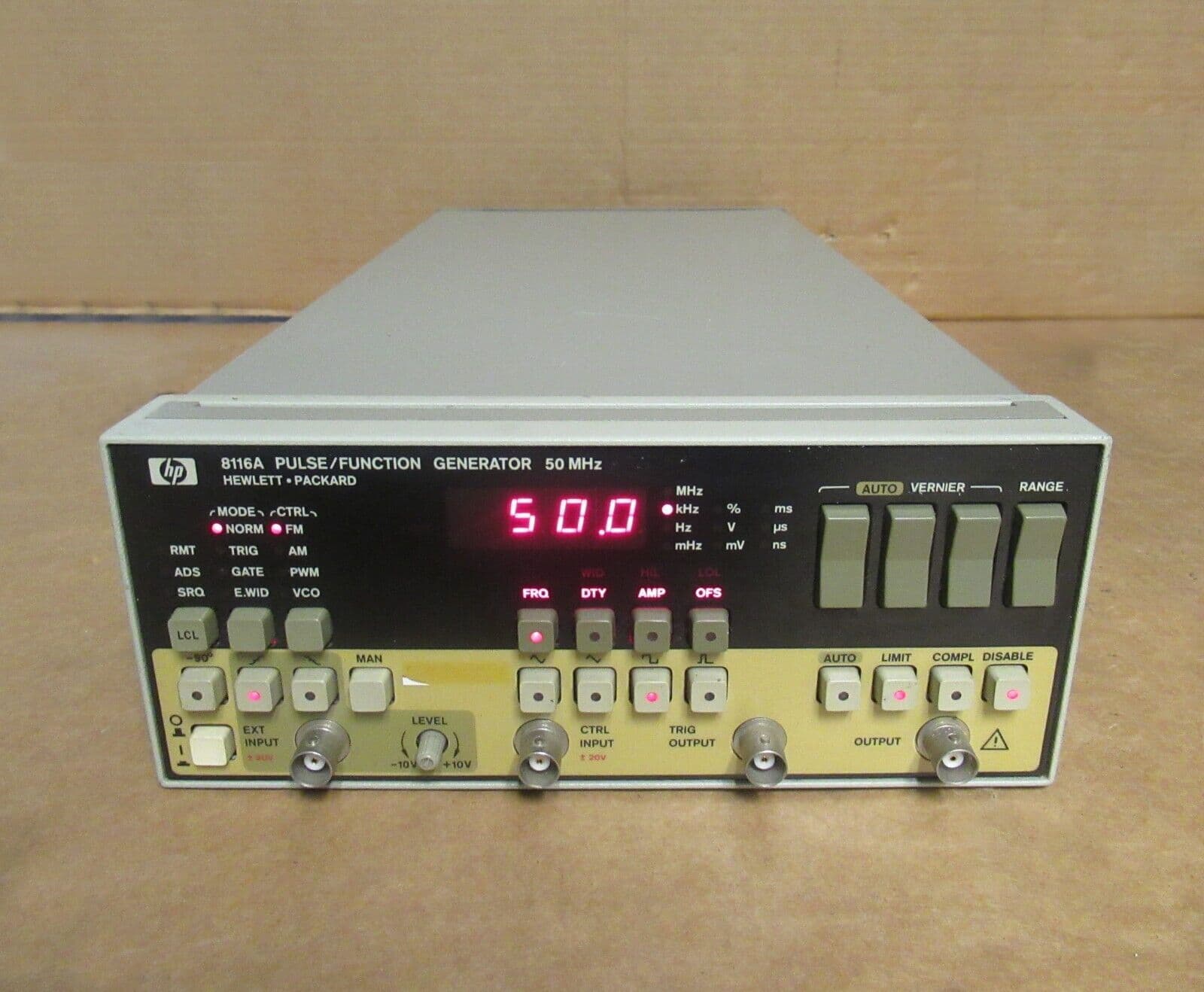

Agilent/ HP 8116A Pulse/Function Generator 1MHz - 50MHz 240V
In Good Condition
Full Working Order
- 1 x Agilent/ HP 8116A Pulse/Function Generator 1MHz - 50MHz 240V
The fully programmable HP 8116A features pulse as well as function generator capabilities in one small unit. A broad 1 mHz-50 MHz
band for all waveforms and a wide choice of operating and modulating modes assure high flexibility. These factors, plus good repeatability, make the HP 8116A a sound, long-term investment
HP's custom IC's have made it feasible to put the many HP 8116A capabilities into such a small volume. Handling is simplified by a unique, microprocessor-controlled, operating concept that ensures a clear overview of the compact front panel at all times. When the mode and waveform have been selected, illuminated labels show which parameters must be set. There is no clutter, and no confusion.
Auto-vernier. In normal mode, the HP 8116A's auto-vernier increments any desired parameter continuously until a stop signal is applied. This means that thresholds can be measured automatically, without a controller.
Level or amplitude programming. The HP 8116A's output can be programmed in terms of high and low levels or in terms of amplitude and offset. Consequently, a direct, automatic, conversion is always feasible, so that the HP 8116A can be programmed in the same terms as the device is specified.
- Sine, triangle, square, and haverfunctions
- 1 MHz to 50 MHz, 32 Vpp for all waveforms
- Variable (10 ns min) pulse width, 6 ns transitions
- Self-prompting operating concept
- Error recognition and self test
