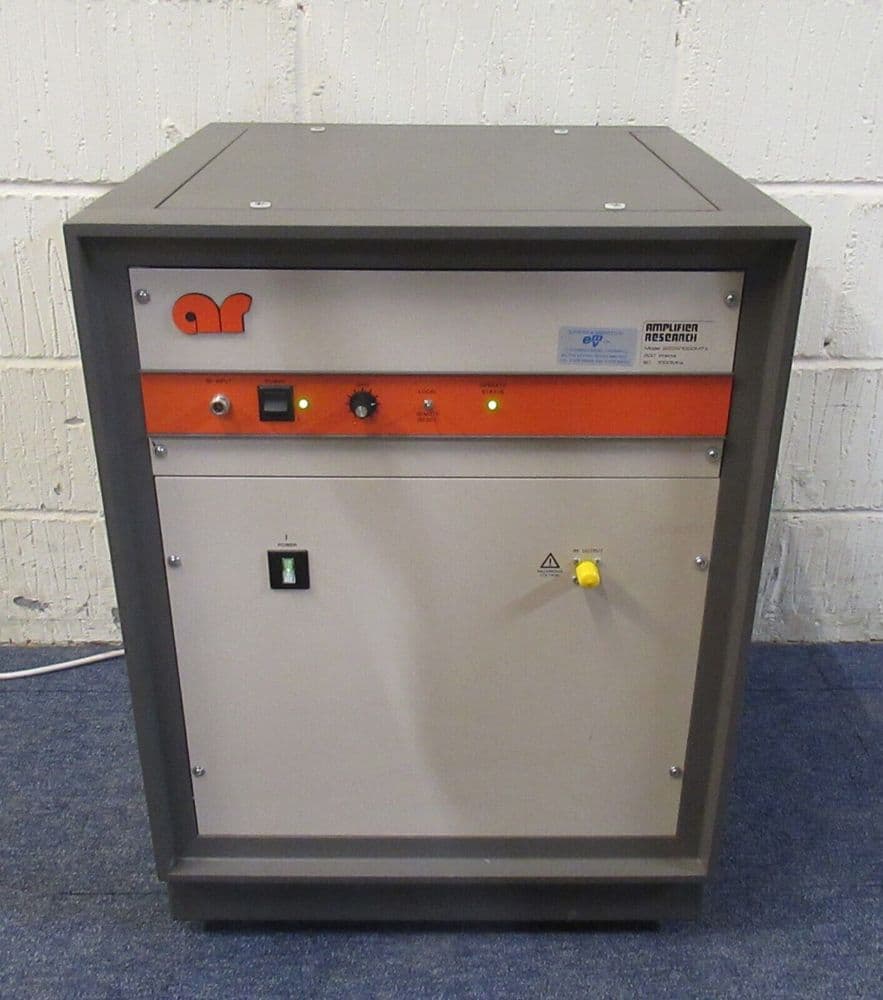

Amplifier Research 200W1000M7A 200 Watts 80-1000MHz Solid State Amplifier

MPN: 200W1000M7A
Product Brand: Amplifier Research
Product Condition: Used
Excluding VAT: £12,350.02
Including VAT: £14,820.02
Amplifier Research 200W1000M7A 200 Watts 80-1000MHz Solid State Amplifier
P/N: 200W1000M7A

In Good Condition
In Full Working Order

Included :

1 x Amplifier Research 200W1000M7A 200 Watts 80-1000MHz Solid Sta...
Information

Amplifier Research 200W1000M7A 200 Watts 80-1000MHz Solid State Amplifier

P/N: 200W1000M7A

In Good Condition

In Full Working Order

Included:

  • 1 x Amplifier Research 200W1000M7A 200 Watts 80-1000MHz Solid State Amplifier
The Model 200W1000M7 is a self-contained, air cooled, broadband, completely solid-state amplifier designed for applications where instantaneous bandwidth and high gain are required. Push-pull circuitry is utilized in all high power stages in the interest of lowering distortion and improving stability. The Model 200W1000M7, when used with an RF sweep generator, will provide a minimum of 200 watts of swept power.
The Model 200W1000M7 can be remotely controlled via the Amplifier Research CP2001 or CP3000 controller/interface unit. Both units have a control panel with switches for remote operation of the major amplifier functions. In addition the CP2001 provides a TTL level controller interface connector and the CP3000 has an IEEE 488 interface.
Housed in a stylish, contemporary equipment rack the Model 200W1000M7 provides readily available RF power for typical applications such as RF susceptibility testing, antenna and component testing, watt meter calibration, and use as a driver for higher power amplifiers

Specification

  • Power Output, CW
  • Typical: 265 watts
  • Minimum: 200 watts
  • Linear @ 1dB compression: 140 watts minimum
  • Flatness:
  • ± 2.0 dB maximum
  • ± 1.5 dB typical
  • Frequency Response: 80 - 1000 MHz instantaneously
  • Input For Rated Output: 1.0 milliwatt maximum
  • Gain: 53 dB minimum
  • Input Impedance: 50 ohms, VSWR 2.0:1 maximum
  • Output Impedance: 50 ohms, VSWR 2.0:1 typical
  • Harmonic Distortion: Minus 20 dBc maximum at 200 watts
  • Third Order Intercept Point: 62 dBm typical
  • Primary Power:
  • 100/110/120/200/208/220/240 VAC ± 5%
  • 50/60 Hz, single phase
  • 3000 KVA maximum
  • Connectors:
  • RF Input: Type N female on front panel
  • RF Output: Type N female on front panel
  • Remote Control: 25 pin female subminiature D
  • Cooling Options: Forced air (self contained fans)



SA 288685

Specifications
  • MPN:
    200W1000M7A
