CBS Hydraulic Reel Duct Rod Pusher C-1270-001-04 + JCB Beaver Petrol Power Pack
£5,700.00
£4,750.00 ex VAT
Unit price
/
Unavailable
CBS Hydraulic Reel Duct Rod Pusher C-1270-001-04 + JCB Beaver Petrol Power Pack is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product overview
Product overview
Brand: CBS
Type: Duct Rod Pusher
Year Of Manufacture: 2022
Model: C-1270-001-04
MPN: C-1270-001-04 929/16400
Unit Quantity: 1
Country of Origin: United Kingdom

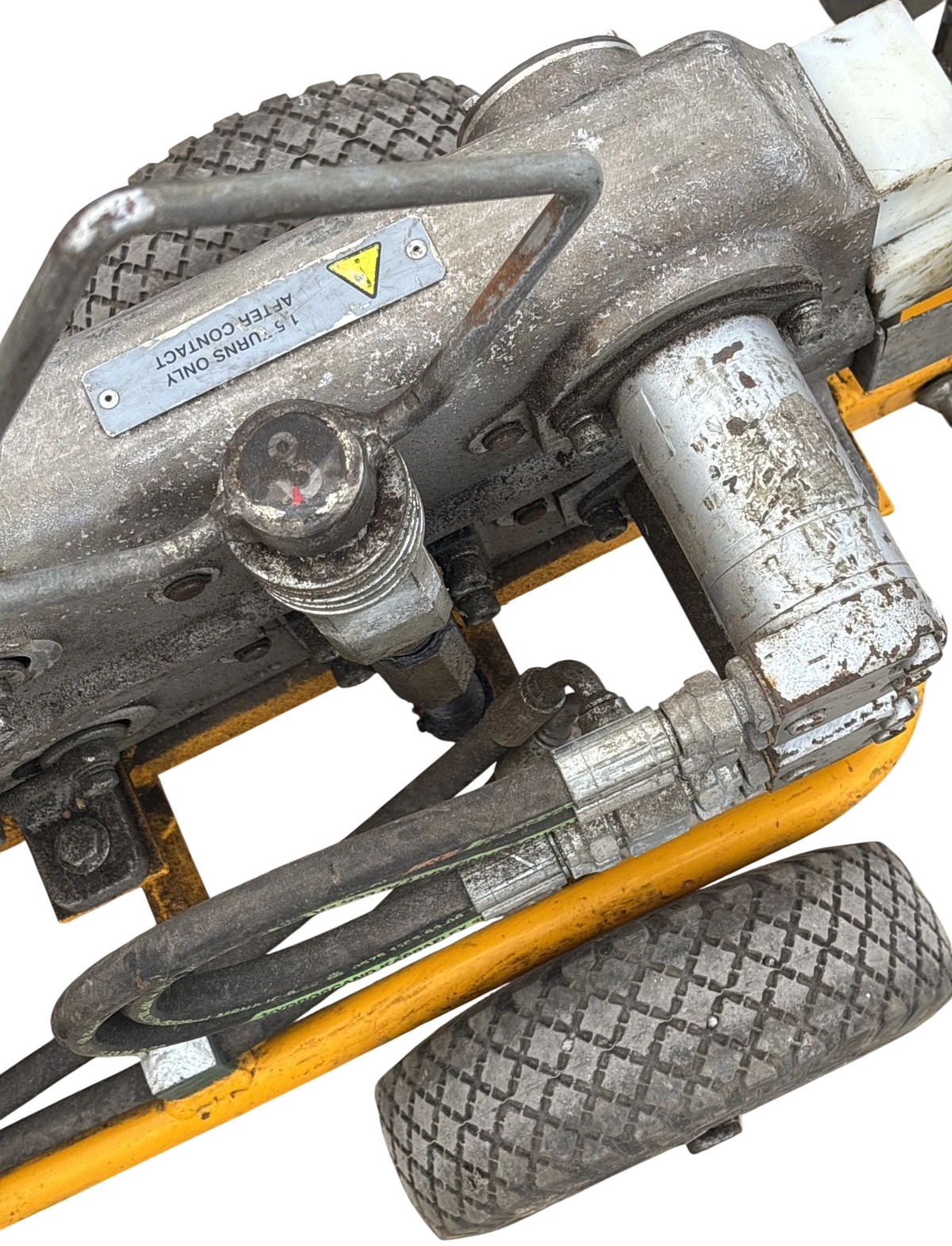

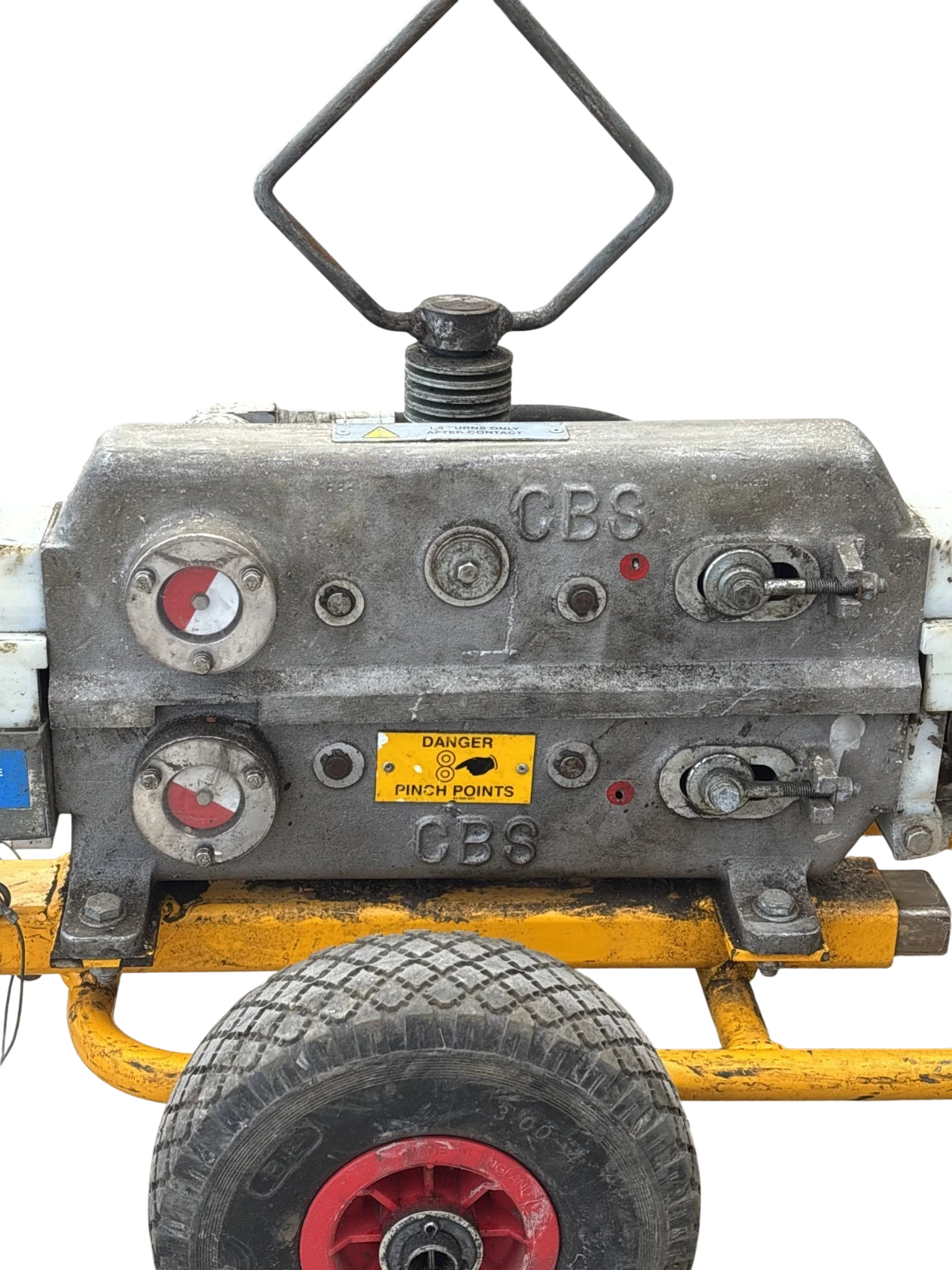

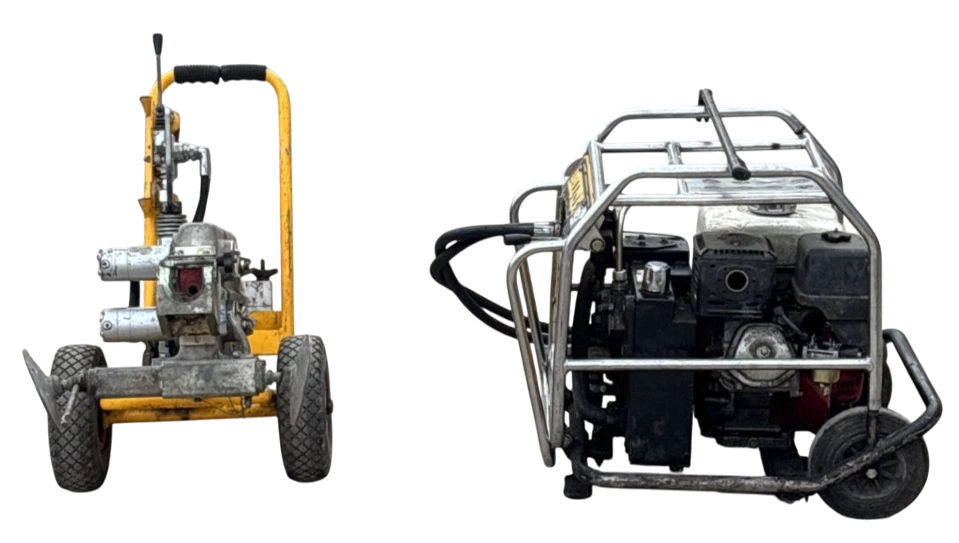

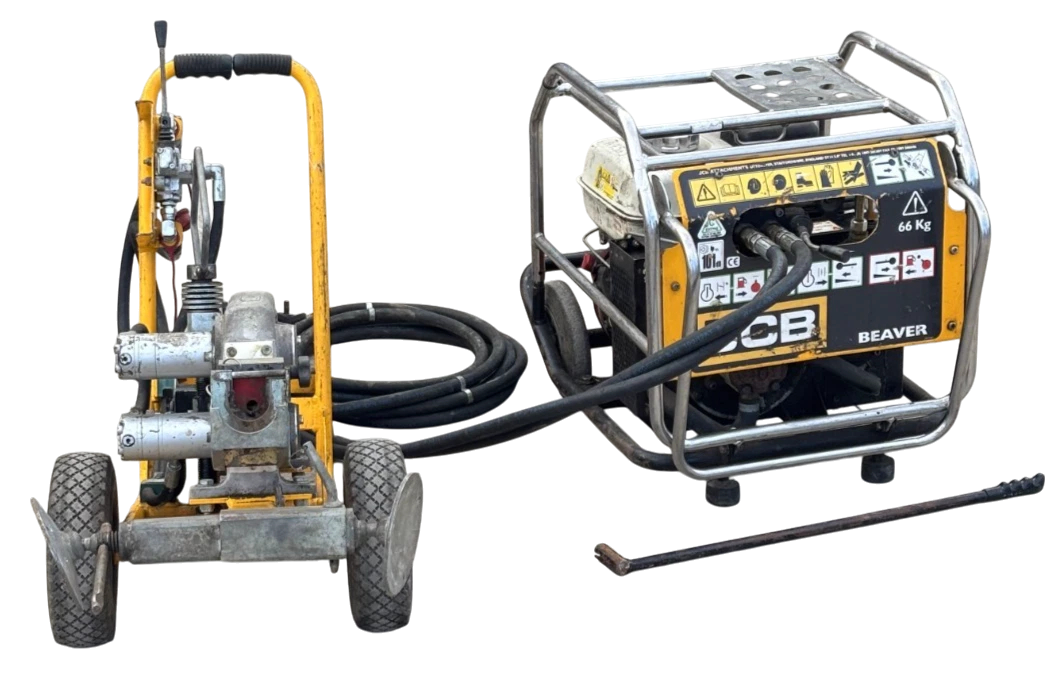

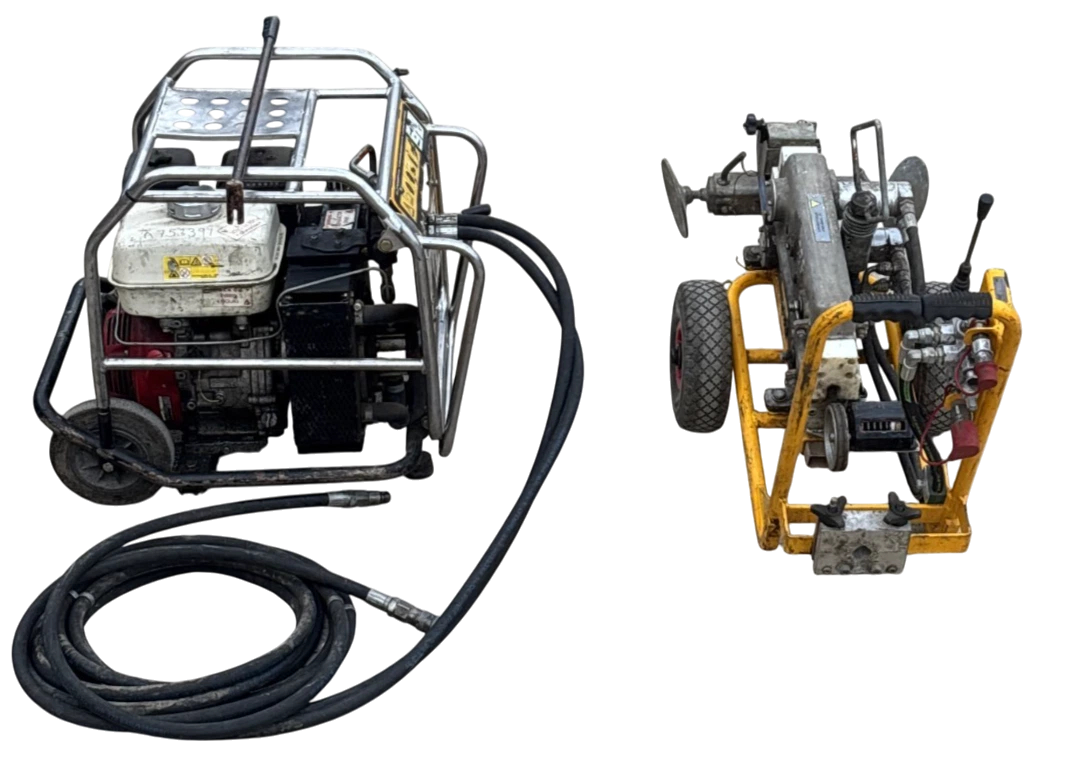

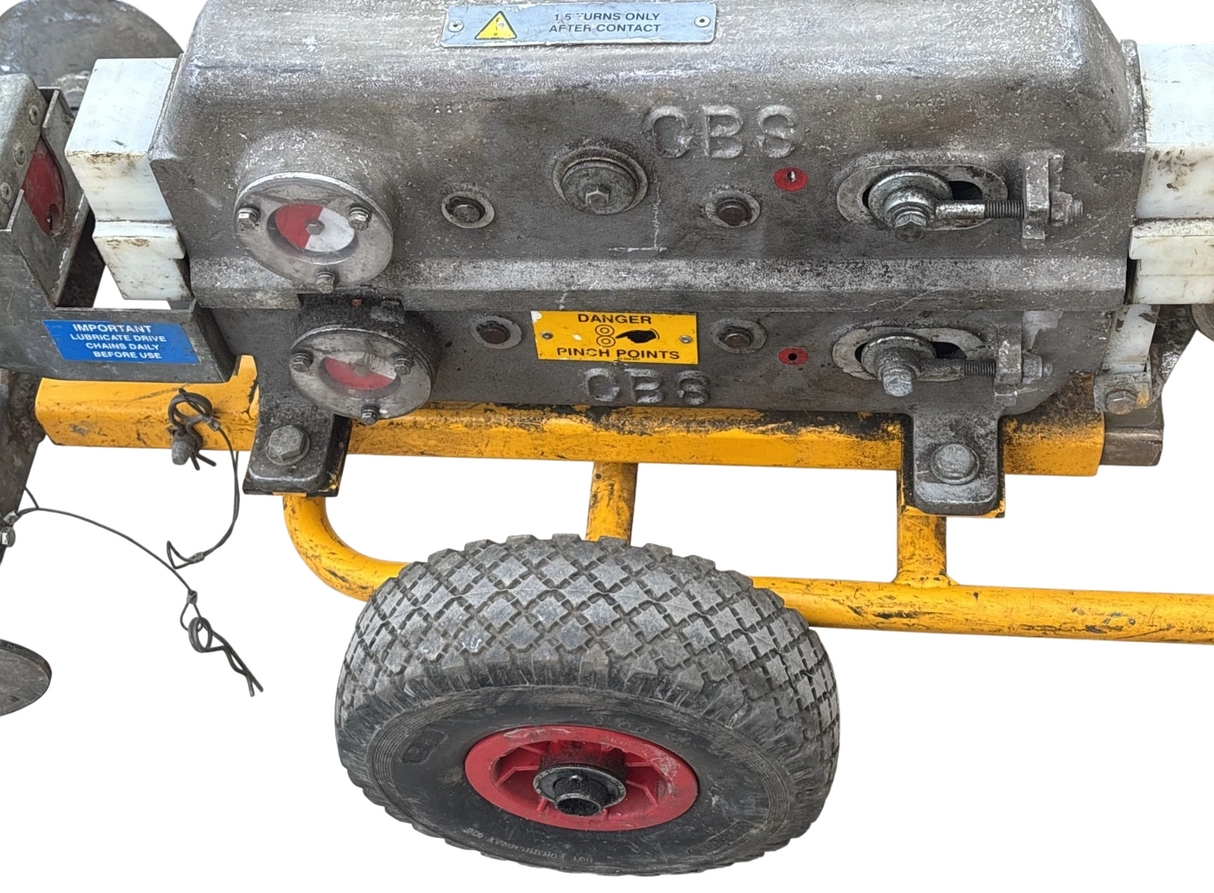

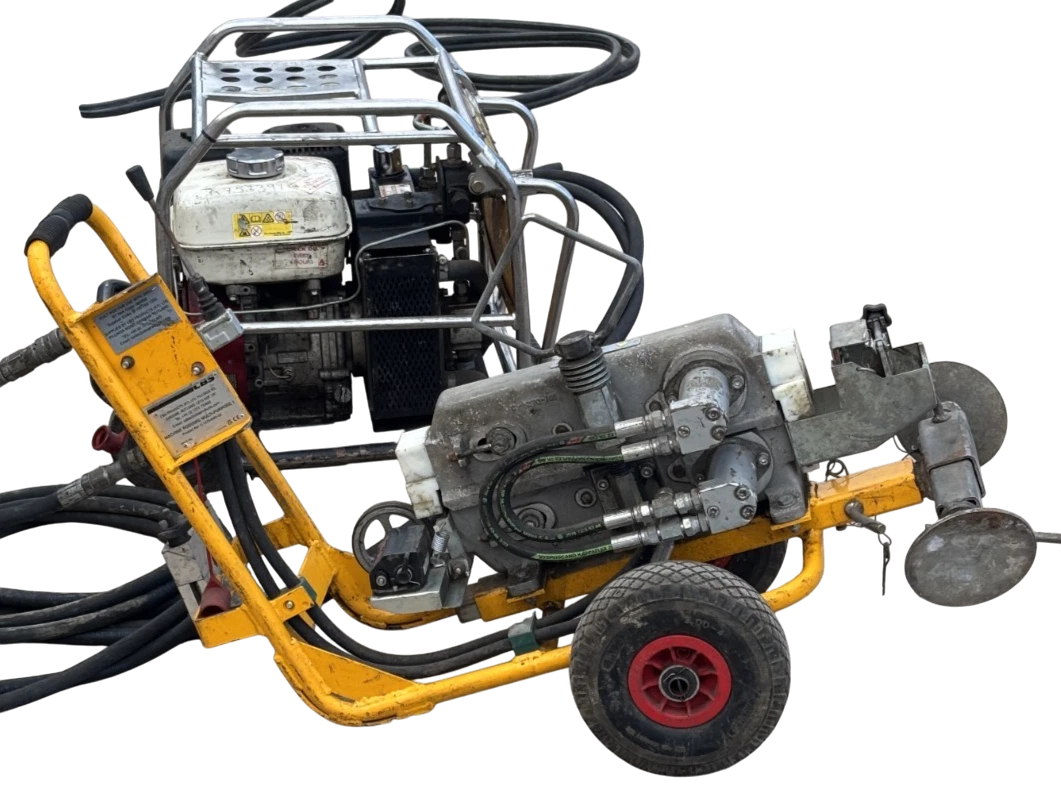

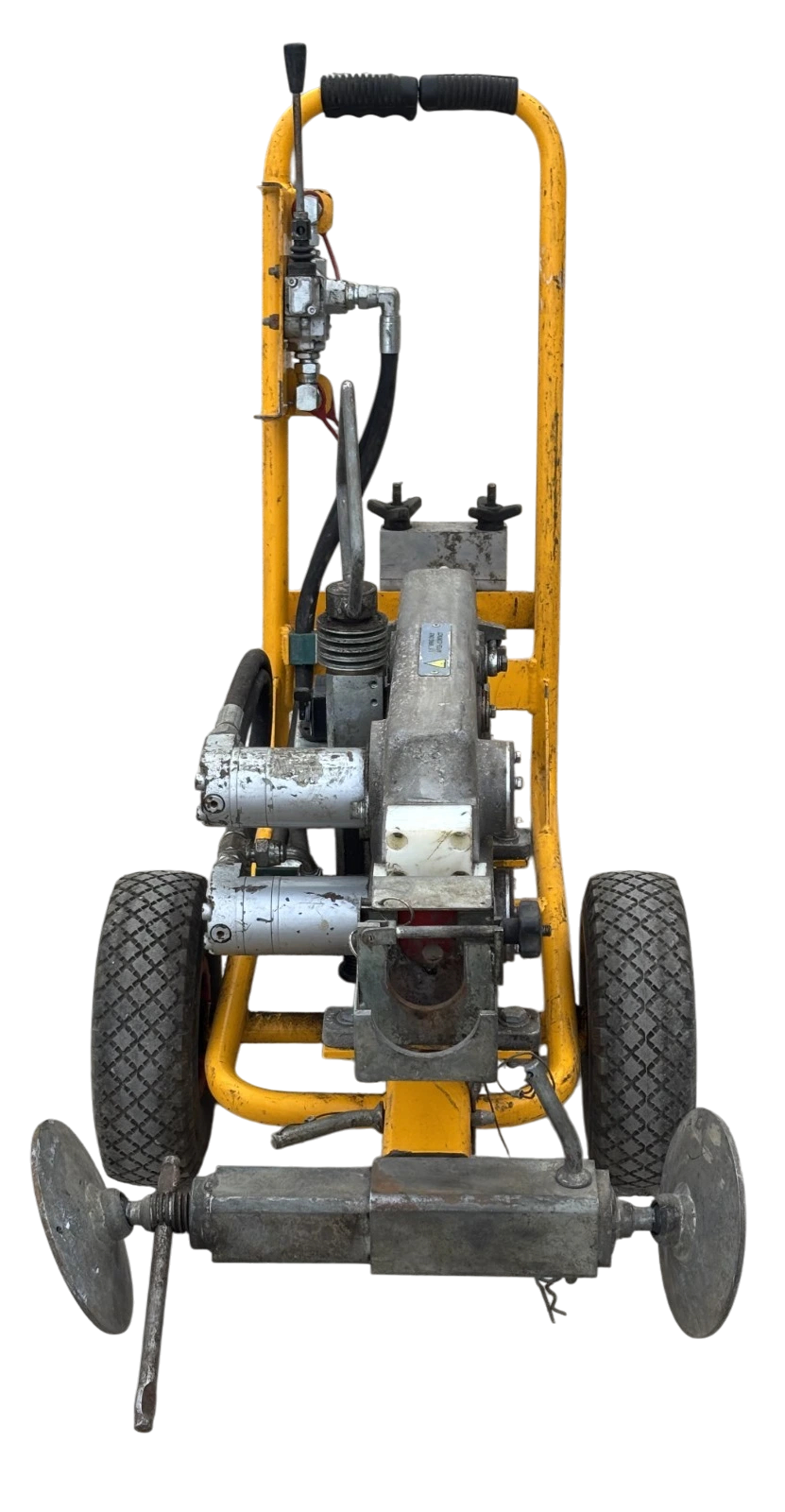

CBS Hydraulic Reel Duct Rod Pusher + JCB Beaver Power Pack
Model: C-1270-001-04
JCB P/N: 929/16400
In Good Condition
Full Working Order
Tested
Supplied New In 2022
Included:

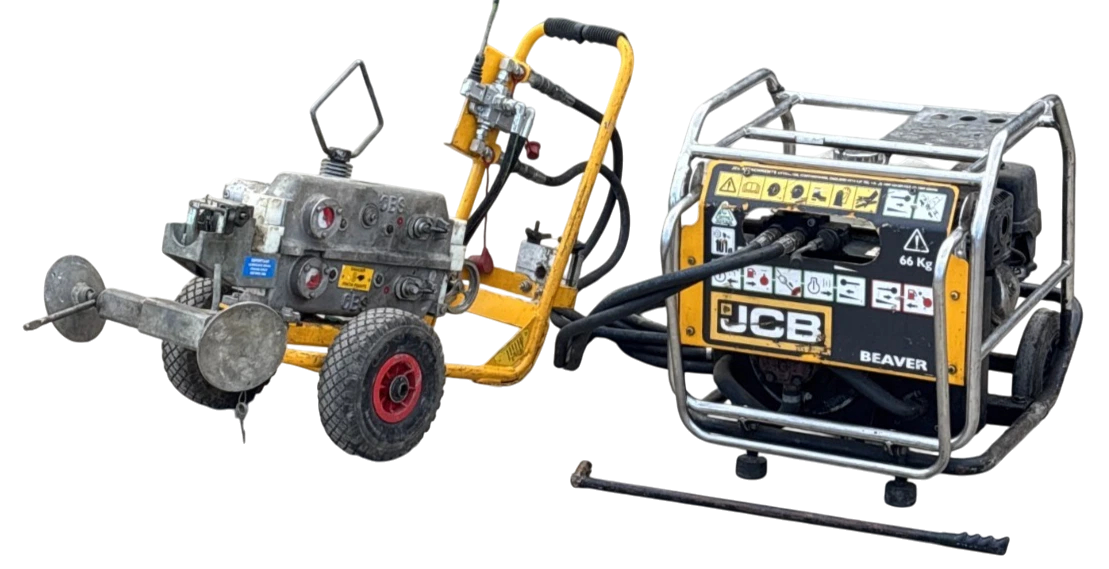

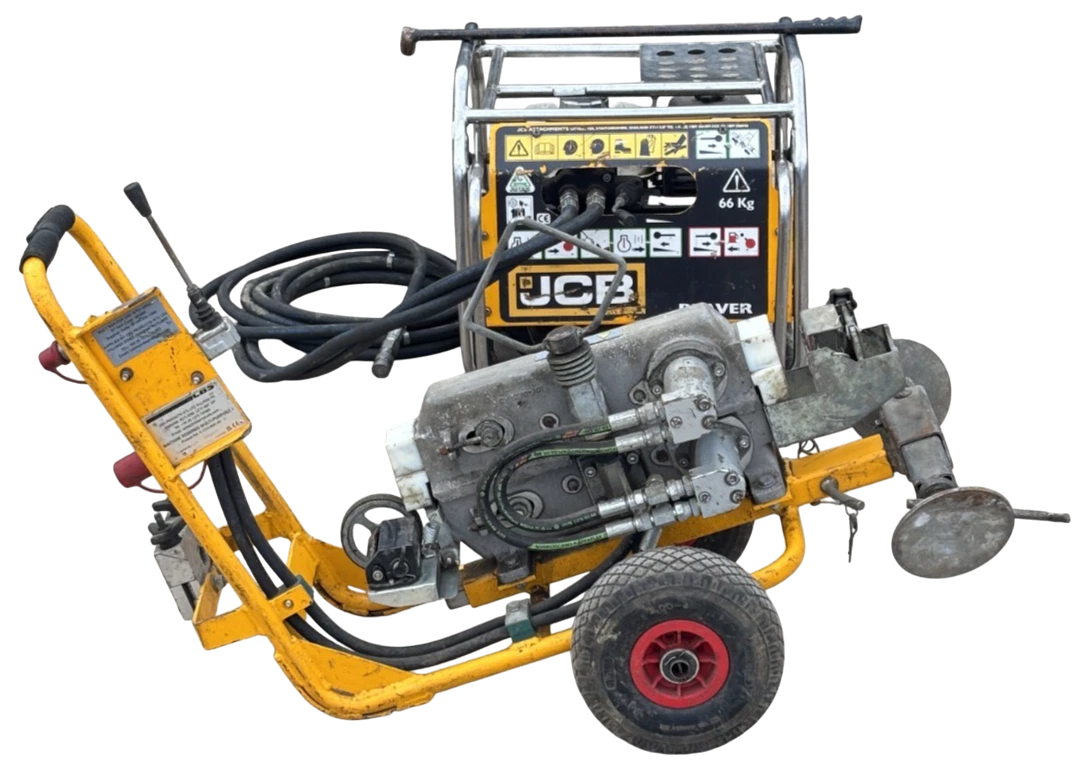

- 1 x CBS Hydraulic Reel Duct Rod Pusher + JCB Beaver Power Pack
- 1 x JCB Beaver Hydraulic Power Pack - Petrol

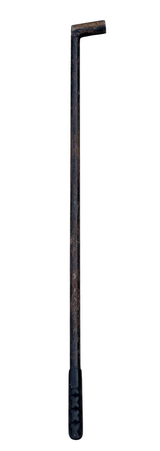

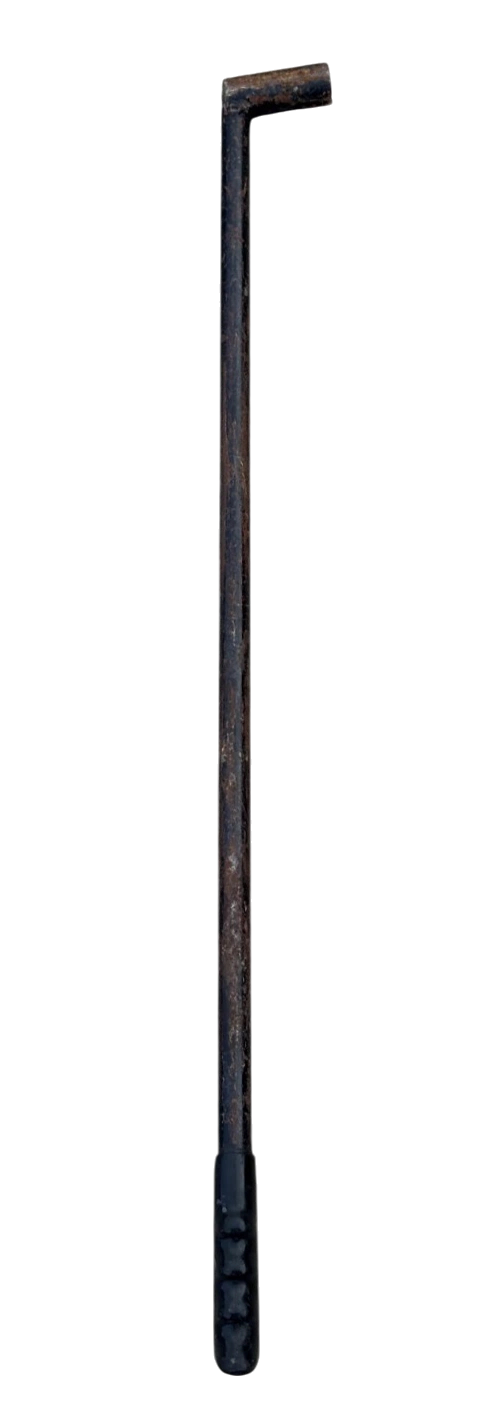

- 1 x Metal Operating Lever
CBS Duct Rod Pusher Specification:
- Diameter Range: 14mm
- Installation speed: 0-30m/min*
- Pushing/Pulling capacity: 220kgs at 60bar
- Length: 1050mm
- Width: 700mm
- Height: 760mm
- Weight: 53kg
CBS Duct Rod Pusher Features
- Spring loaded self-centring fail safe operating lever.
- Measuring counter with reset lever.
- Front boom extending to 1 metre with angle facility dropping into underground chamber.
- Extendable chamber clamp for attaching to sidewalls. Range 400 – 800mm.
- Angle of operation 0-45º.
- Lifting eye.
- Split pusher body which lifts and rotates to allow removal of duct rod.
- Anti crush control to prevent damage to rod.
- Disc spring controlled screw clamp to engage drive belts onto the rod.
- Cast aluminium body.
- Moulded profiled drive belts.
The duct rod pushers are designed to assist in rodding
operations. The units are mounted on sturdy, anti
corrosion treated tubular steel frame, and fitted with
gel filled puncture proof tyres, with hydraulic controls
mounted on the frame for ease of transportation. The
pushers are fitted with a tilting extendable boom, and
chamber clamp for use in underground structures.

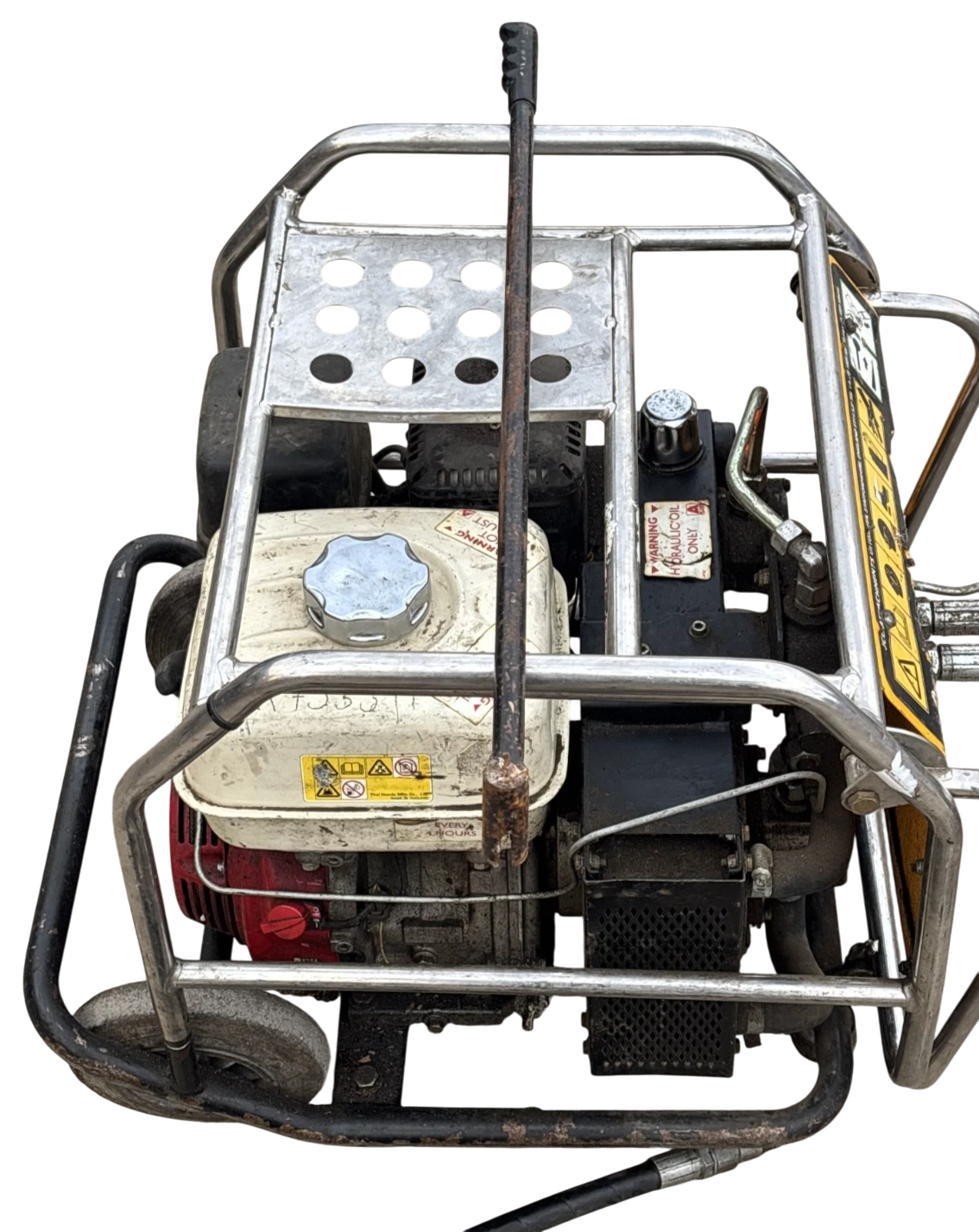

JCB Beaver Hydraulic Power Pack Specification:
- Model name - Beaver
- Model number - 929/16400
- Engine - Honda GX240
- Fuel - Petrol
- Power kW (hp) - 6 / 8
- EHTMA category - C
- Hydraulic flow l/min (gal/min) - 0-20 (0-5)
- Max pressure Bar (psi) - 138 (2000)
- Weight kg (lb) - 66 (145)
- Height x width x length mm (in) - 615 x 530 x 720 (24.2 x 20.8 x 28.3)
- Hydraulic oil capacity l (gal) - 5 (1.1)
- Fuel capacity l (gal) - 6 (1.3)
- Main hoses m (ft) - 7 (23)
