Furness Controls

Furness Controls Continuous Flow Gas Leak Tester FCO754 + Wilkerson M08-C2-CS00

£1,368.00
£1,140.00 ex VAT

Pre-owned

  • Precise Gas Leak Detection
  • Continuous Flow Testing Mode
  • Automatic Pressure & Temperature Compensation
  • Tests to European Standards

Product overview

Brand: Furness Controls

Type: Continuous Flow Leak Tester

MPN: FCO754, FC0754

Country/Region of Manufacture: United Kingdom

Furness Controls Continuous Flow Gas Leak Tester FCO754 + Wilkerson M08-C2-CS00


Cycle Count: 22233

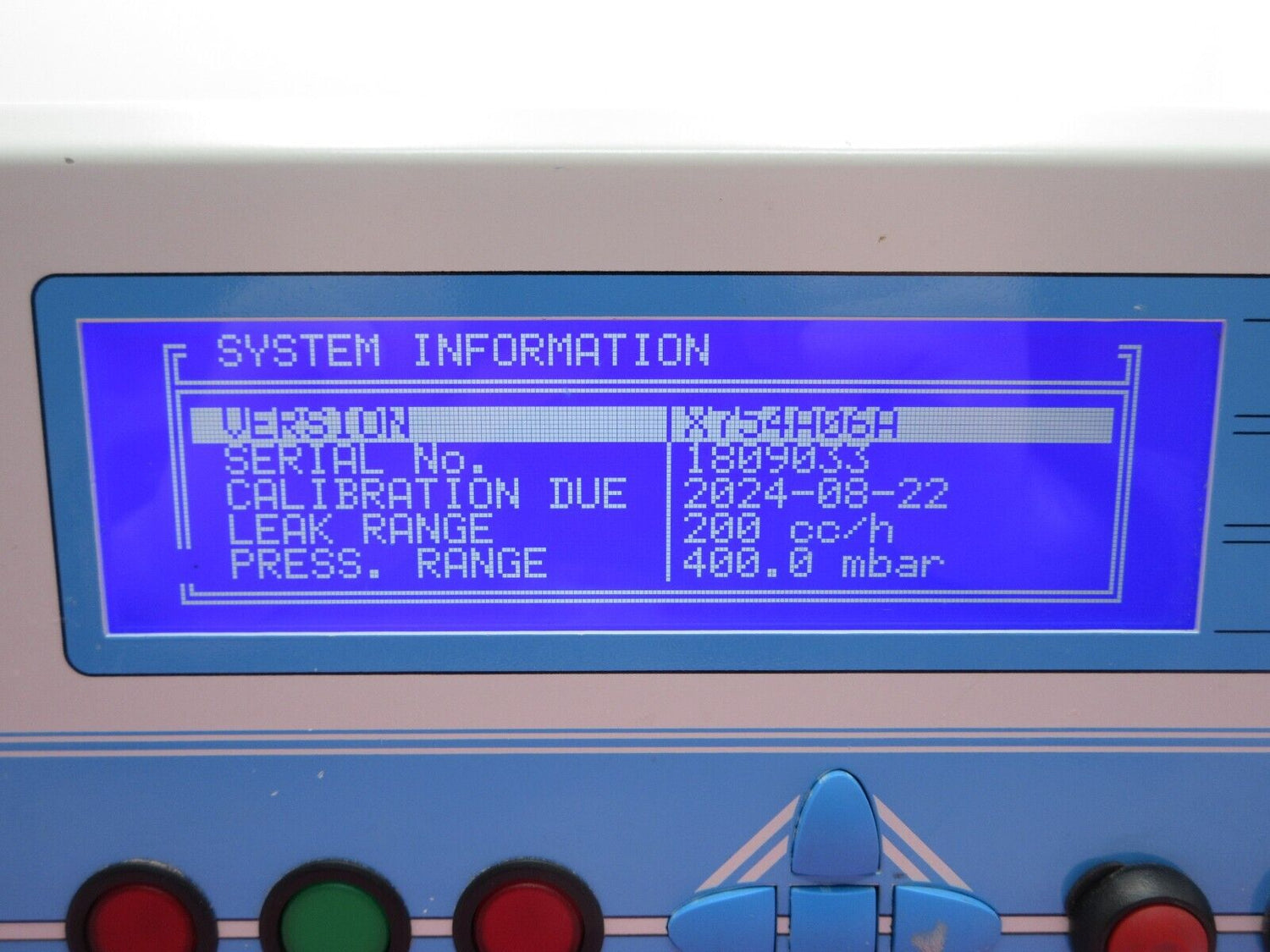

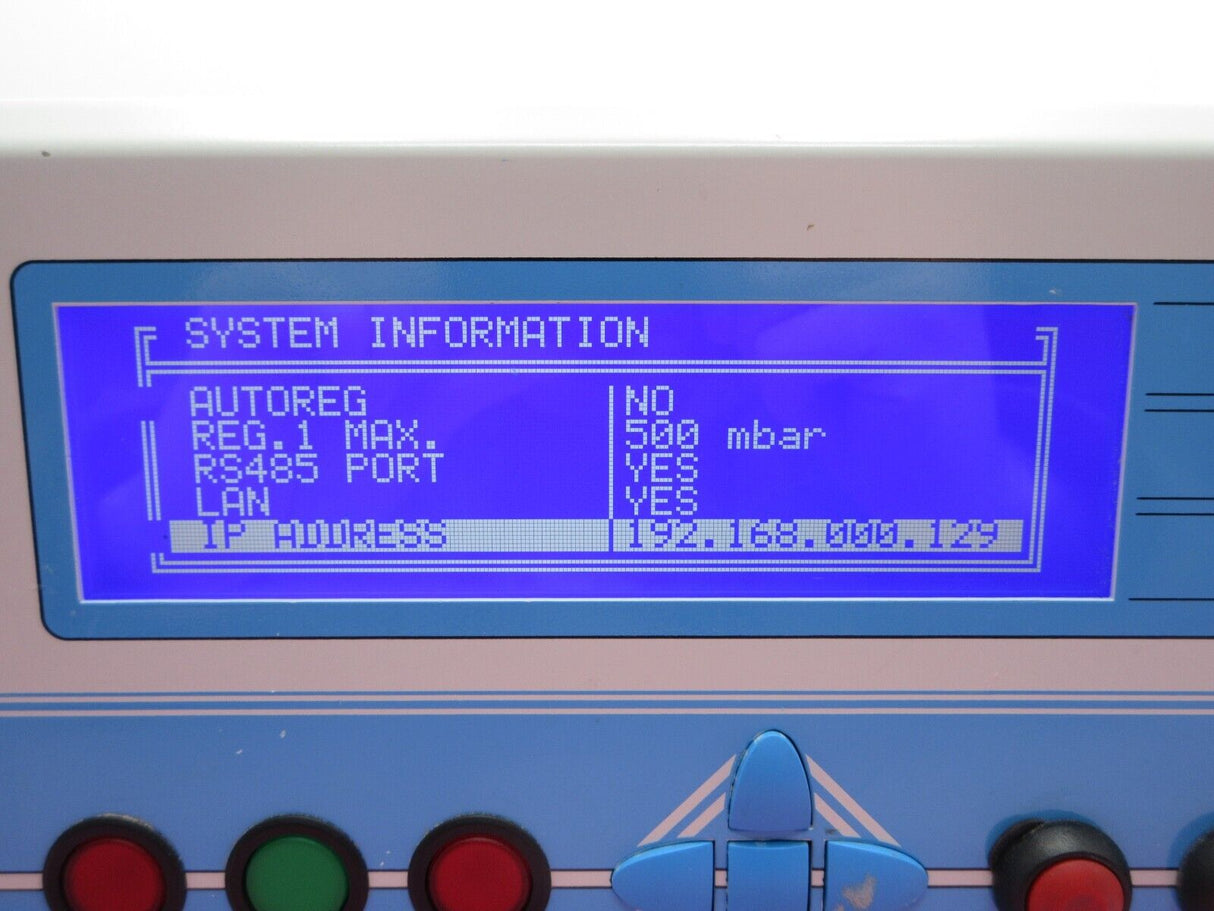

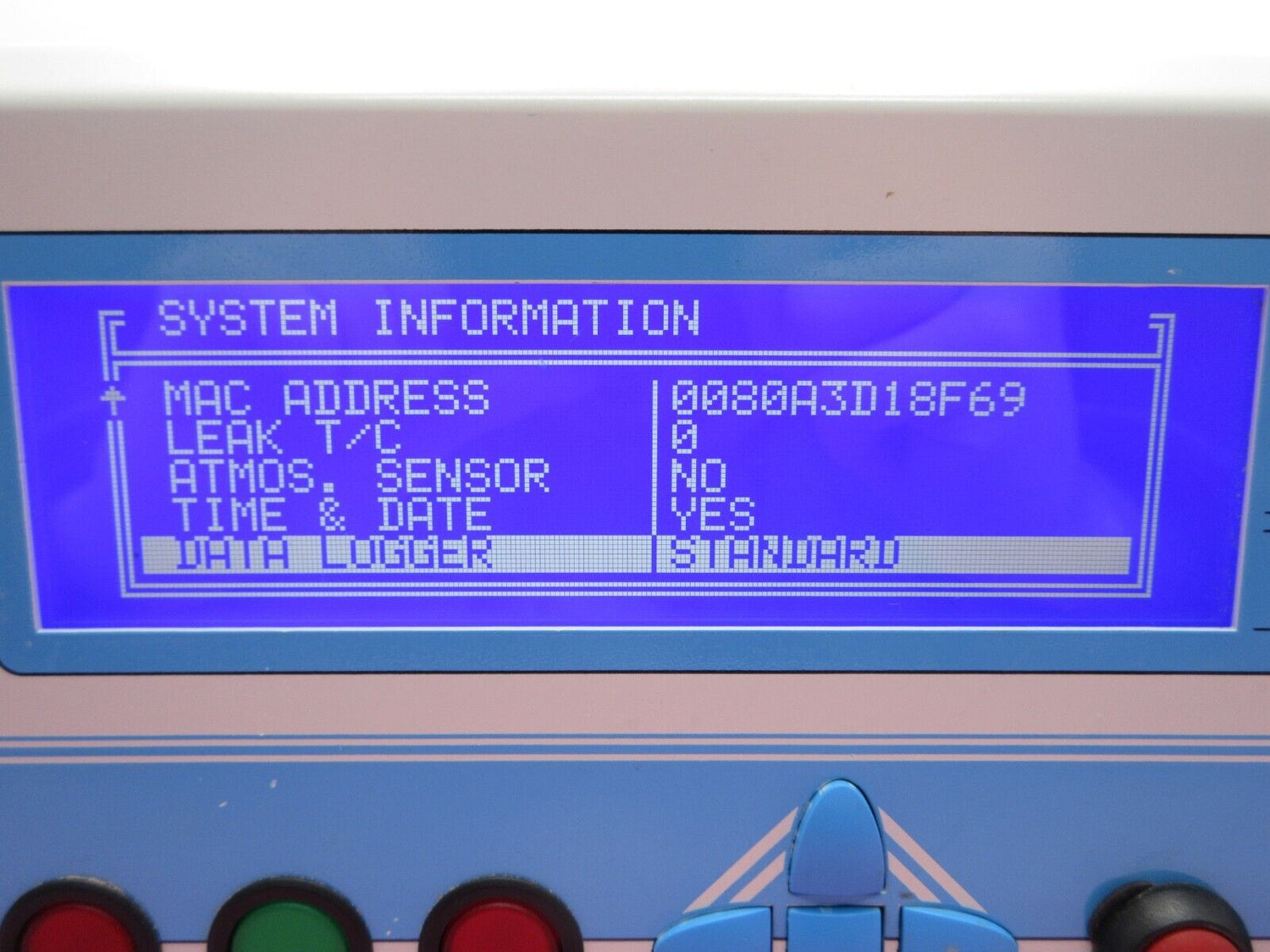

Powers On And Menus Navigate As Expected

In good condition and full working order

Manufacturer Description:

The FCO754 flow-leak tester has set the standard for testing gas appliances and gas appliance sub-assemblies to all relevant European Standards. Designed specifically to meet the requirements of the gas appliance industry, the FCO754 combines accuracy, reliability and ease of use. Ideally suited for use in the gas industry, the FCO754 is also highly suitable for testing many other product types such as filters, heat exchangers and large vessels. So, if you are looking for a versatile leak tester that allows product fault rectification while live-testing, you've found the market leader, the FCO754.

Continuous leak mode
The FCO754 can be switched to run in "continuous flow" mode. This allows for a product under test to be repaired while still being tested negating the need for a full re-test on the product. The operator can easily see if the rectification work is successful or not.

Automatic pressure & temperature compensation
The FCO754 features pressure and temperature compensation giving automatic correction to the leak reading regardless of the actual test pressure and temperature. The leak reading displayed is the equivalent leak that would occur at the pressure and temperature entered in the test data. This negates the need to constantly monitor the set test pressure.

Multiple test parameters
The FCO754 can store300 test parameter sets allowing different product types to be tested at differing test pressures. Tests can also be recalled in a sequence of up to 16 steps for complex component testing.

Clear pass & fail indication
The FCO754's front panel indicates the status of the product tested, clearly displaying a pass or fail result at the end of the test. The "PASS" & "FAIL" indication can be enhanced by coupling a light stack to the instruments electronic status outputs. This feature makes it nice and easy for the operator to determine the product's result.

Technical Spec

Leak Measurement
Leak ranges
0 to 60.00 cc/h (1.000 cc/min)
0 to 200.0 cc/h (3.333 cc/min)
0 to 600.0 cc/h (10.00 cc/min)
0 to 2000 cc/h (33.33 cc/min)
Accuracy @ 20°C: 10% to 100% range: < 1% reading + 1 digit, 0 to 10% range: < 0.1% FSD + 1 digit
Resolution: 4 digit display
Temperature Coefficients: Zero: Automatic, Span: < ± 0.15% per °C
Long Term Drift (span): < ± 1% per year
Pressure Measurement
Pressure Ranges
5 to 99.99 mbar
20 to 400.0 mbar
50 to 999.9 mbar
0.2 to 2.000 bar
1 to 4.000 bar
3 to 8.000 bar
Accuracy @ 20°C: 10% to 100% range: < ± (1% reading + 1 digit), 0 to 10% range: < ± (0.1% range + 1 digit)
Resolution: 4 digit display
Temperature Coefficients: Zero: < ± 0.05% per °C, Span: < ± 0.1% per °C
Long Term Drift (span): < ± 1% per year

Electrical
Supply Voltage: 24 VDC ± 10% < 500mA

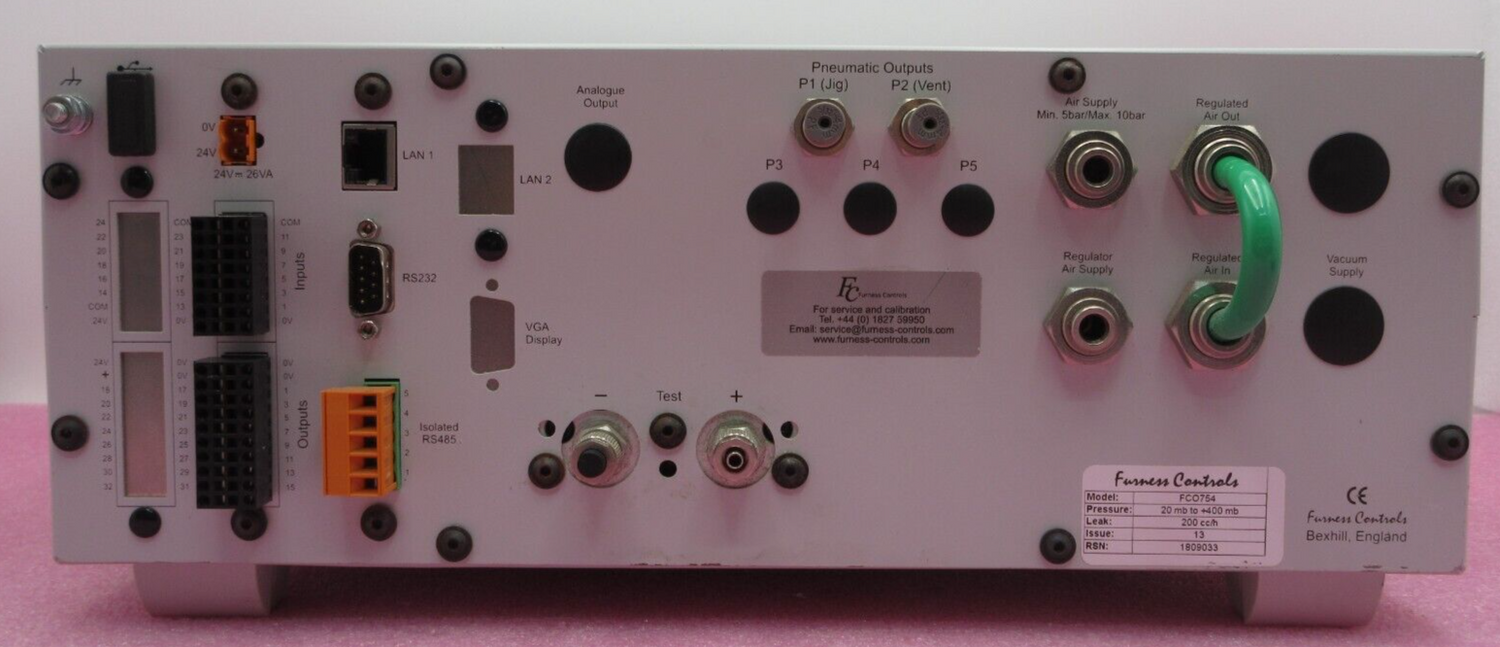

Electrical connections
Power: 2 way detachable screw terminal
Outputs: 20 way detachable screw terminal
Inputs: 16 way detachable screw terminal
RS232: 9 pin D plug
RS485: 5 pin detachable screw terminal
LAN: RJ45 connector, 10base-T/100base-TX Ethernet
USB: Type B connector
Control Inputs: Up to 24 Opto-isolated, active high or active low. 5 VDC to 24 VDC into 10 K
Control Outputs: Up to 32 Active High transistor output (PNP). 12 VDC to 45 VDC, 120 mA (per channel)


Pneumatic
Media Compatibility: Clean dry air or non corrosive gas
Air Supply Pressure: Maximum 10 bar gauge, Minimum 5 bar gauge
Regulator Supply Pressure: Maximum 16 bar gauge or 35 bar for 30 bar option
Pneumatic Connections
Air supply – 6 mm push-in tube connector
Regulator supply and output – 8 mm push-in tube connector
Test/Reference 1/8” BSPF with adaptation for 6mm O/D push-on tubing.
Up to 5 programmable pneumatic outputs - 4 mm push-in tube connectors
Leak Tightness: < 0.2cc/Hour

Construction
Enclosure: Steel construction enclosure with paint finish. Suitable for 19” 3U rack mounting.
Dimensions: Bench Case 366 x 147 x 296 mm (W x H x D)
Weight: 8.5 kg ± 0.5 kg

What's Included

1 x Furness Controls Continuous Flow Gas Leak Tester FCO754 +

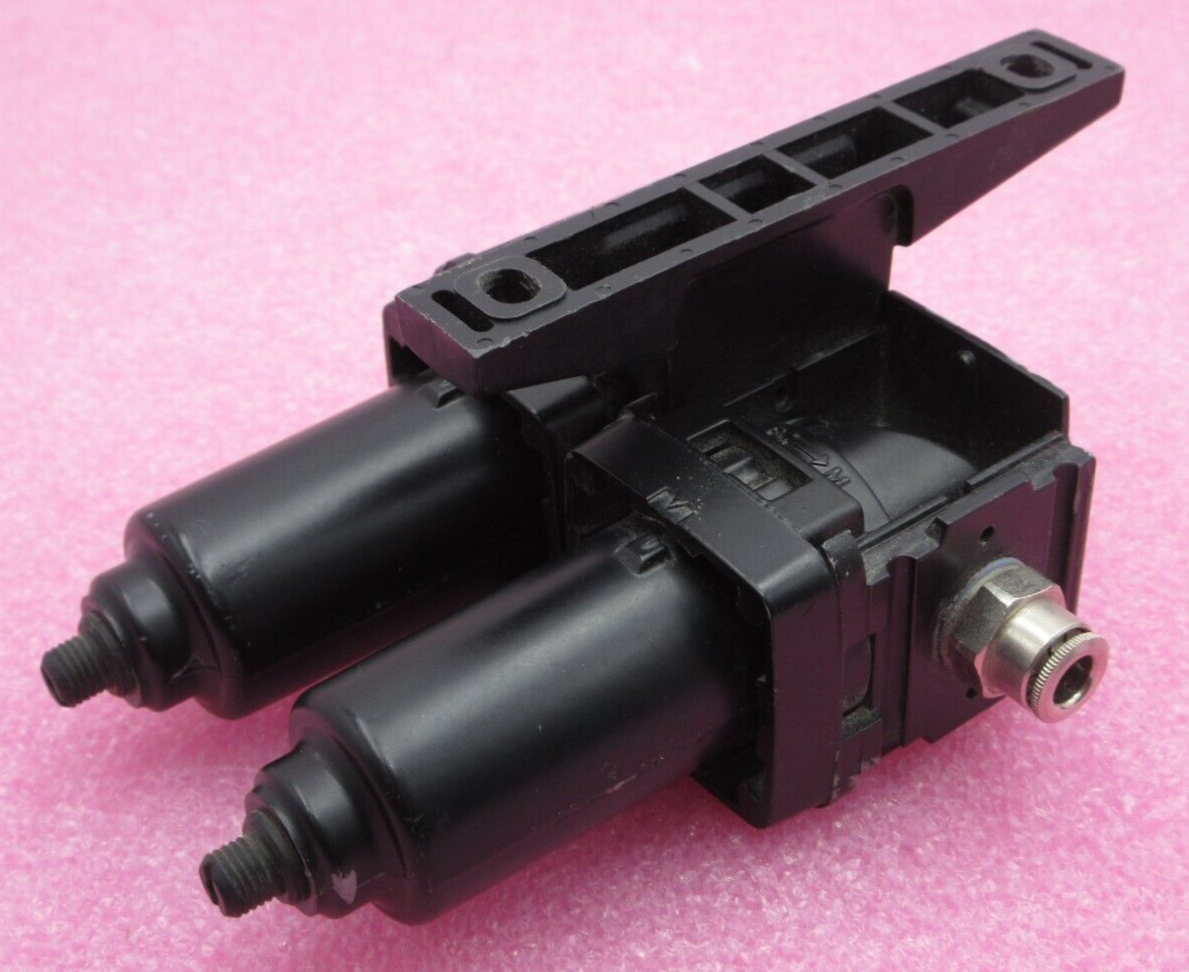

1 x Wilkerson M08-C2-CS00 Coalescing Filter
