Product Brand: SUMITOMO
Product Condition: Used
Excluding VAT: £1,140.00
Including VAT: £1,368.00
SUMITOMO Direct Core Monitoring Fusion Splicer Type-37SE /
FC-6S+FC-6S-C Cleaver Model No: Type-37SE Model No: FC-6S Model No: FC-6S-C

In Good Condition In Full Working Order Total Count: 4013 Comes In Carry Case
Has Input Pass C...
Information
SUMITOMO Direct Core Monitoring Fusion Splicer Type-37SE /
FC-6S+FC-6S-C Cleaver
Model No: Type-37SE
Model No: FC-6S
Model No: FC-6S-C

In Good Condition
In Full Working Order
Total Count: 4013
Comes In Carry Case
Has Input Pass Code Required to Adjust Settings Or Information Access
Included

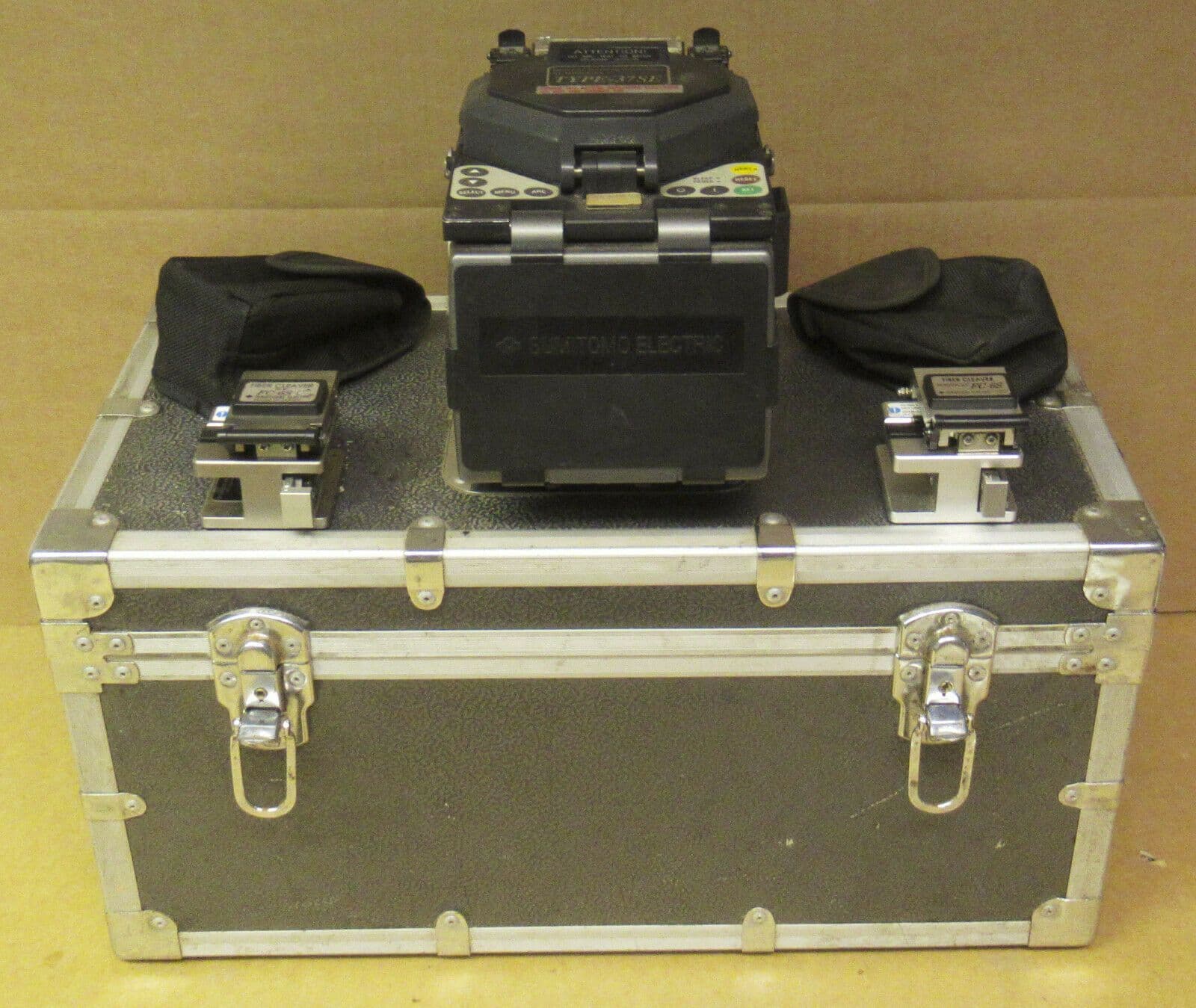

  • 1 x SUMITOMO Micro Core DCM Fusion Splicer Type-37SE
  • 1 x Fiber Cleaver FC-6S Machine
  • 1 x Fiber Cleaver FC-6S-C Machine
Sumitomo Fusion Splicer - Type-37SE - Direct Core Monitoring Fusion Splicer
The Type-37SE Micro-CoreTM is a lightweight, portable, fully automatic, self-contained instrument for creating low-loss optical fiber splices. This full-featured splicer features a user-friendly software package with on-screen operation instructions that help simplify training requirements. It is highly portable at only 9.0 lbs and can receive power via an internal AC power module or internal 12V DC battery module.

The splicer automatically aligns a pair of optical fibers in both the X and Y (horizontal and vertical) planes and then fuses them together with heat from an electric arc to form a low-loss splice. HDCM (High-resolution Direct Core Monitoring) image processing software in the splicer is used to perform core alignment and estimates the splice loss. The operation can be performed in as little as 11 seconds with a typical splice loss of 0.02 decibels(dB) for identical single-mode fibers.

Features
  • Core Alignment (High-Resolution Direct Core Monitoring)
  • On Board Splice Protection Heater
  • 5.6" Color LCD Monitor
  • 340x Fiber Magnification
  • 30 mph Wind Protection
  • User Friendly Software With Help Features
  • Operation By AC Power or 12V Li-ion Battery
  • Tool-free Maintenance for Changing Electrodes
  • Back mount Monitor Option Available
  • Fast Fiber Protection Sleeve Heater

Specification
Applicable Fiber
  • Material: Silica glass
  • Fiber Type: SMF, MMF, DSF, NZDSF, CSF, EDF, PSCF, EPSC
  • Fiber diameter: 80~150μm
  • Coating diameter: 0.1~1.0mm
  • Cleaver length: 8~16mm
Standard performance
  • Splice loss(Typical) SMF 0.02dB, MMF 0.01dB, DSF 0.04dB, NZDSF 0.04dB
  • Splice cycle time: 11seconds (Quick mode)
  • Heat shrink oven cycle time: 50 seconds (40mm sleeve)
  • Return loss(Typical): More than 80dB
Functions
  • Splice data storage: 2400 splices
  • Splice data description: 18 characters
  • Tension test: 1.96N (200gf) / 4.41N (450gf) (option)
  • Splice loss estimation: HDCM (High-resolution Direct Core Monitoring) system
  • Fiber magnification: 340x
Dimensions
  • Size: 150W x 150D x 176H
  • Weight: 4kg
  • Monitor display: 5.6inch TFT color
  • Monitor position: Front
Environmental Conditions
  • Operating temperature: -10~50°C
  • Operating humidity: Up to 95%RH (non-condensing)
  • Altitude: Up to 4000m
  • Storage temperature: -40~70°C
  • Wind protection: Up to 15m/s
Power Supply
  • AC power supply unit PS-65: 100~240V 50/60Hz
  • DC battery BU-65(option): 10.5 - 14V approx.40 splice cycles
  • DC adaptor DC-65 + PC-V (option): 10.5~14V
