Home / Test Equipment  /  Tektronik TDR/Sampling Module 80E08 Dual Channel 50 ±1.0 Ω S-Parameters 2.92 mm

Tektronik TDR/Sampling Module 80E08 Dual Channel 50 ±1.0 Ω S-Parameters 2.92 mm

MPN: 80E08
Product Brand: Tektronik
Product Condition: Used
Excluding VAT: £4,750.01
Including VAT: £5,700.01
Tektronik TDR/Sampling Module 80E08 Dual Channel 50 ±1.0 Ω S-Parameters 2.92 mm
In Good Condition And In Full Working Order Everything Included Is As Per Photos
Included 1 x Tektronik TDR/Sampling Module 80E08 Dual Channel 50 ±1.0...
Information
Tektronik TDR/Sampling Module 80E08 Dual Channel 50 ±1.0 Ω S-Parameters 2.92 mm
In Good Condition And In Full Working Order
Everything Included Is As Per Photos
Included
  • 1 x Tektronik TDR/Sampling Module 80E08 Dual Channel 50 ±1.0 Ω S-Parameters 2.92 mm

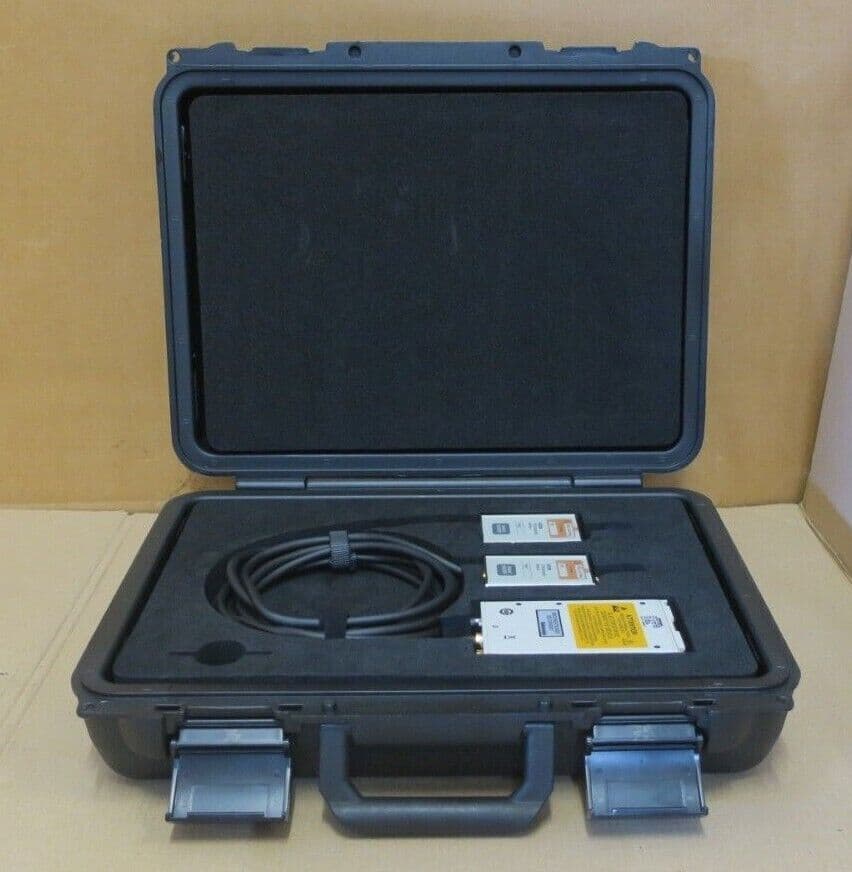

  • 1 x Protective Carry Case
80E08Dual-channel, 30 GHz True Differential TDR Sampling Module with RemoteSamplers.
Application Type - True differential TDR and S-parameters
Channels - 2
Input Impedance - 50 ±1.0 Ω
Bandwidth - 30 GHz
Selectable bandwidths - 20 GHz, 30 GHz
Vertical sensitivity, full scale - 1 mV per div (min), 100 mV per div (max)
Signal Connectors - 2.92 mm (K) female
Can be installed in the following instruments (that have product software version 2.5 or greater):
  • DSA8200 Digital Serial Analyzer
  • CSA8000, CSA800B, and CSA8200 Communications Signal Analyzers
  • TDS8000, TDS8000B, and TDS8200 Digital Sampling Oscilloscopes

SL 282870
SL 282871
Specifications
  • MPN:
    80E08
