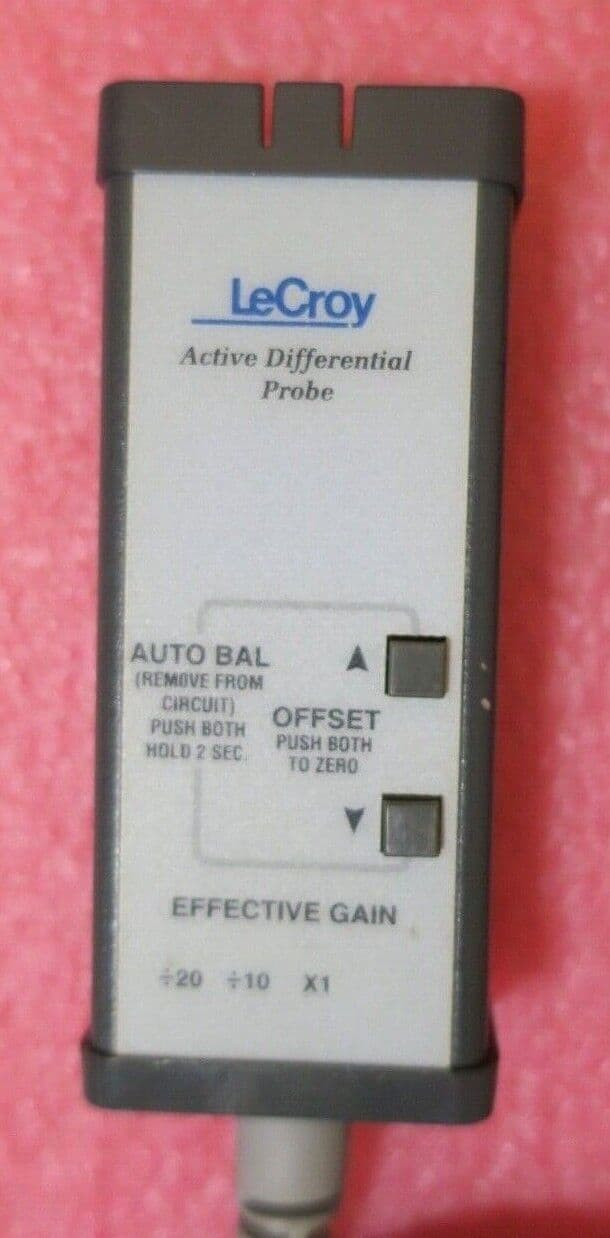

Teledyne LeCroy AP034 Oscilloscope Active Differential Probe 1GHz 1x ±16V Max

Bandwidth, probe only (-3 dB): DC to 1 GHz

Output Zero: < 3 mV within 30 minutes of autobalance

Residual Autobalance Offset: ≤ 100 μV referred to input with X1 effective gain

Differential Offset Range: ≥1.6 V (÷1 Attenuation)

≥ 16 V (÷10 Attenuation)

≥ 42 V (÷20 Attenuation)

CMRR: See Figure 1.

Input Resistance (each side to Ground): 1 M_

Input Capacitance (between inputs): < 0.85 pF (See Figure 2.)

Input Capacitance (each side to Ground): < 1.5 pF (See Figure 2.)

Noise (referred to input, 10 to 1000 MHz): 35 nV/√Hz (÷1 Attenuation)

350 nV/√Hz (÷10 Attenuation)

700 nV/√Hz (÷20 Attenuation)

Output Impedance: 50 Ω nominal intended to drive 50 Ω

Harmonic Distortion (3rd order distortion): -60 dB below fundamental (200 mVp-p outputat 100 MHz)

(3rd order intercept): +20 dBm (at 100 MHz at output)

AC Coupling LF Cutoff (-3 dB): 16 Hz (using plug-on AC Coupler)
