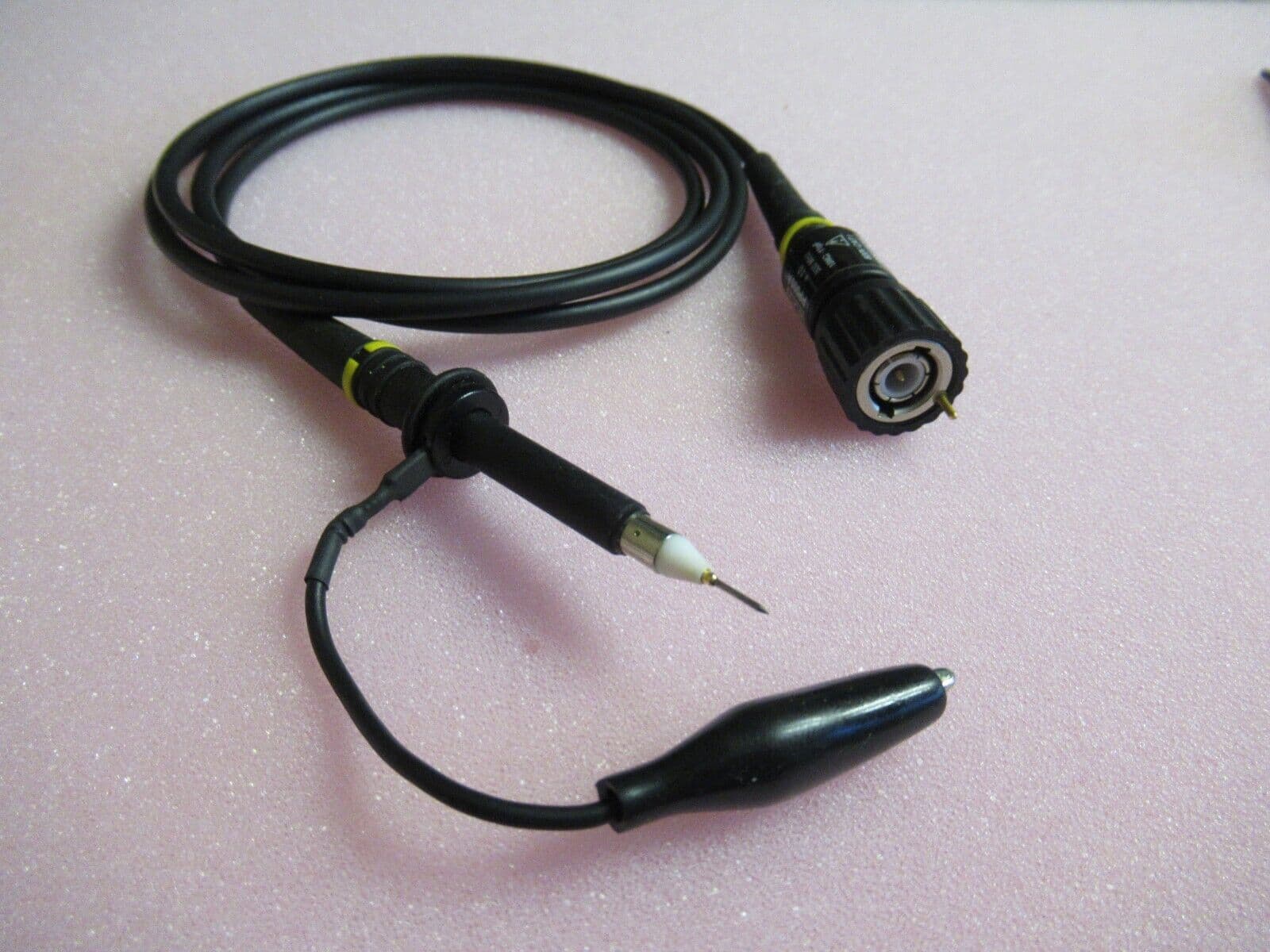

Teledyne LeCroy PP005A 10:1 500 MHz 10 MOhms Oscilloscope
Passive Probe
In Good Condition
In Full Working Order
Included
- 1 x Teledyne LeCroy PP005A 10:1 500 MHz 10 MOhms Oscilloscope Passive Probe
The PP005A is a high impedance passive probe with a range of probing accessories. The Micro-fine tip of all PP005A probes is spring-loaded, reducing the chance of "skipping" the circuit once contact is established. Mechanical pressure is therefore reduced and probe life is enhanced. The micro-fine tip contributes to contact stability, in addition to making it easier t reach tightly placed circuitry.
Passive probes are the standard probe provided with most oscilloscopes. Typical passive probes provide a 10:1 attenuation and feature a high input resistance of 10 MO. This high input resistance means that passive probes are the ideal tool for low frequency signals since circuit loading at these frequencies is minimized. Passive probes are designed to handle voltages of at least 400V, some as high as 600V. Teledyne LeCroy passive probes feature an attenuation sense pin which tells the oscilloscope to scale the waveforms automatically requiring no user input.
Specifications
Bandwidth (Probe Only) - 500 MHz
Input Resistance - 10 MΩ
Input Capacitance - 11 pF
Maximum Input Voltage - 500 V
Attenuation - 10:1
Coupling - AC 1 MΩ, DC 1MΩ, GND
Environmental and Safety
Operating Temperature - 0 °C to 50 °C (32 °F to 122 °F)
Humidity - 80% Max up to 31 °C 40 % Max at 50 °C
Max Altitude - 2000 m (6562 ft)
Physical Dimensions
Probe Diameter - 5 mm
Cable Length - 1.2 m (3.94 ft)
General Characteristics
Interface - BNC
Attenuation Sense Pin - Yes
Recommended Oscilloscope - 9300, WavePro 900, WavePro 7000(A)
Parts Included
- 2 x Trimming Tool
- 2 x IC Insulating Tip
- 2 x Tip Protector
- 2 x BNC Adapter
- 2 x Probe Tip
- 1 x Spring Contact Tip
- 1 x Ground Lead
- 1 x Sprung Hook
- 1 x Ground Lead Short On Probe Tip
SA 286825
Specifications
-
MPN:PP005A
