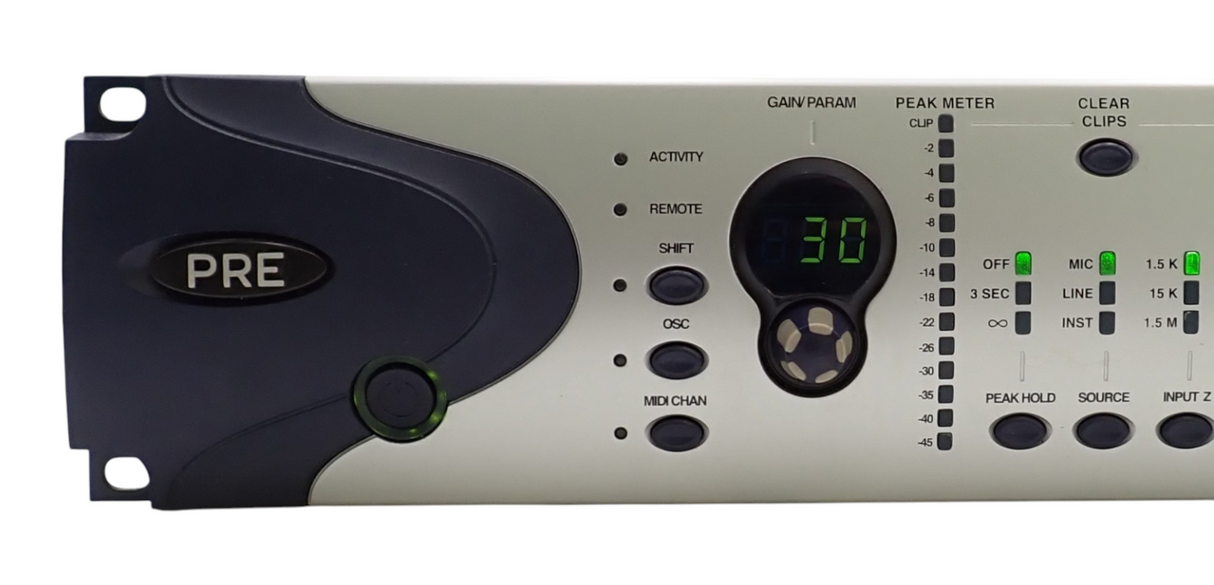

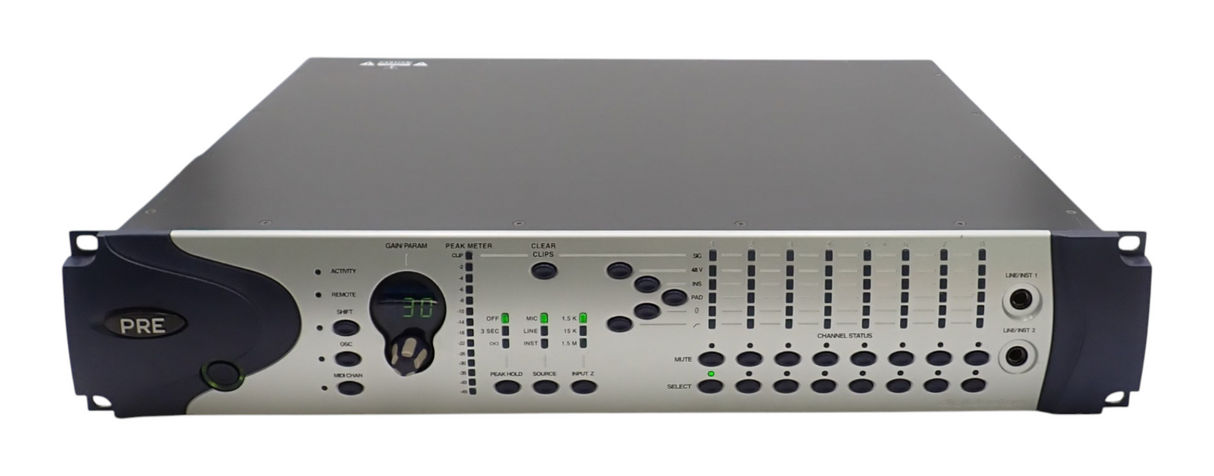

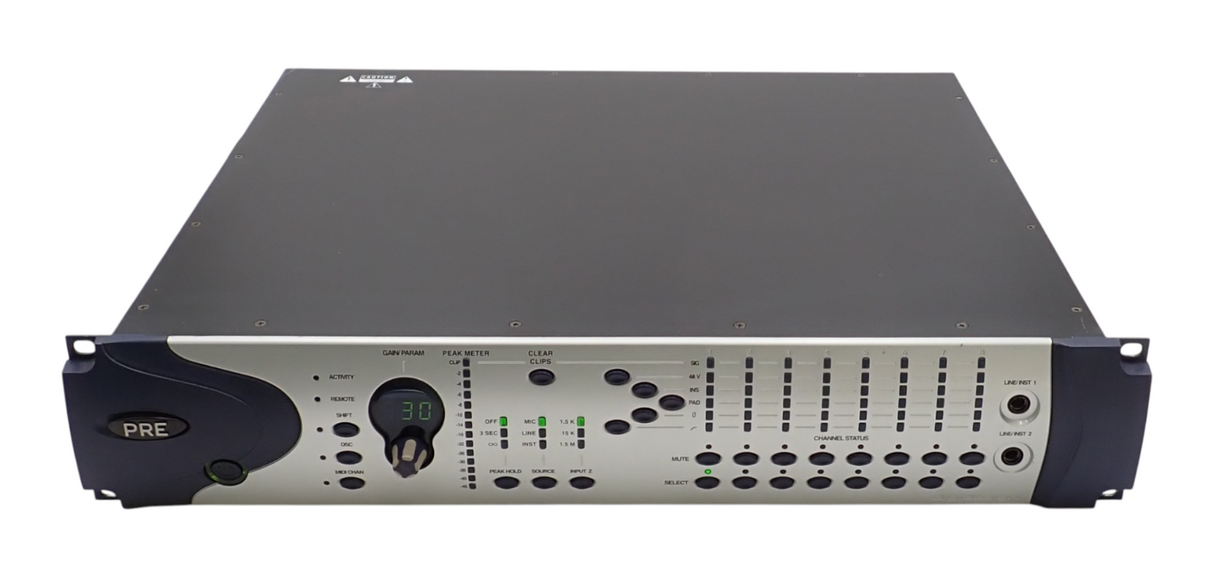

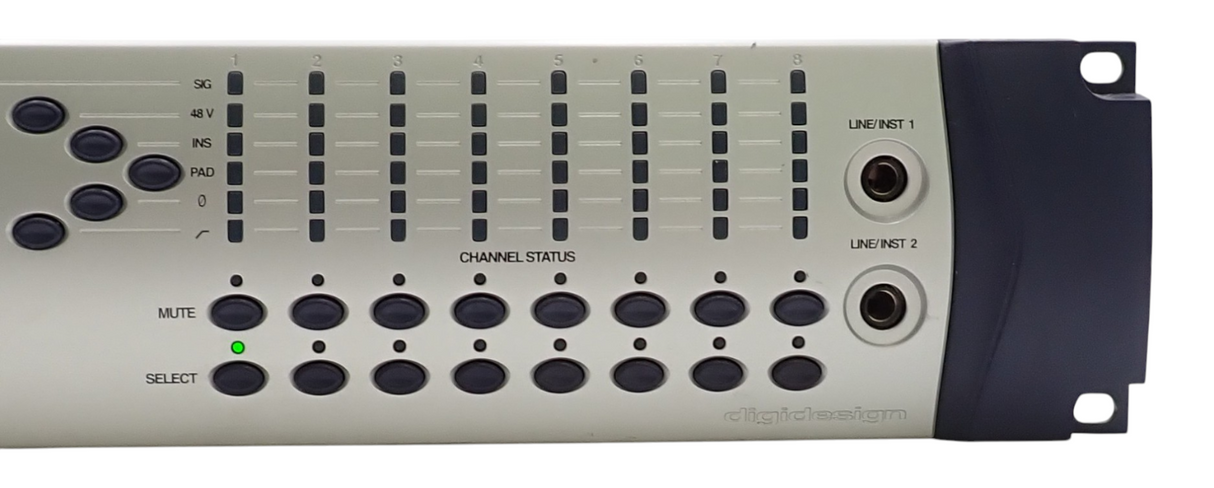

Avid Digidesign PRE MP008 8-Channel Remote Controlled Mic Preamp Silver / Blue

Avid Digidesign PRE MP008 8-Channel Remote Controlled Mic Preamp Silver / Blue

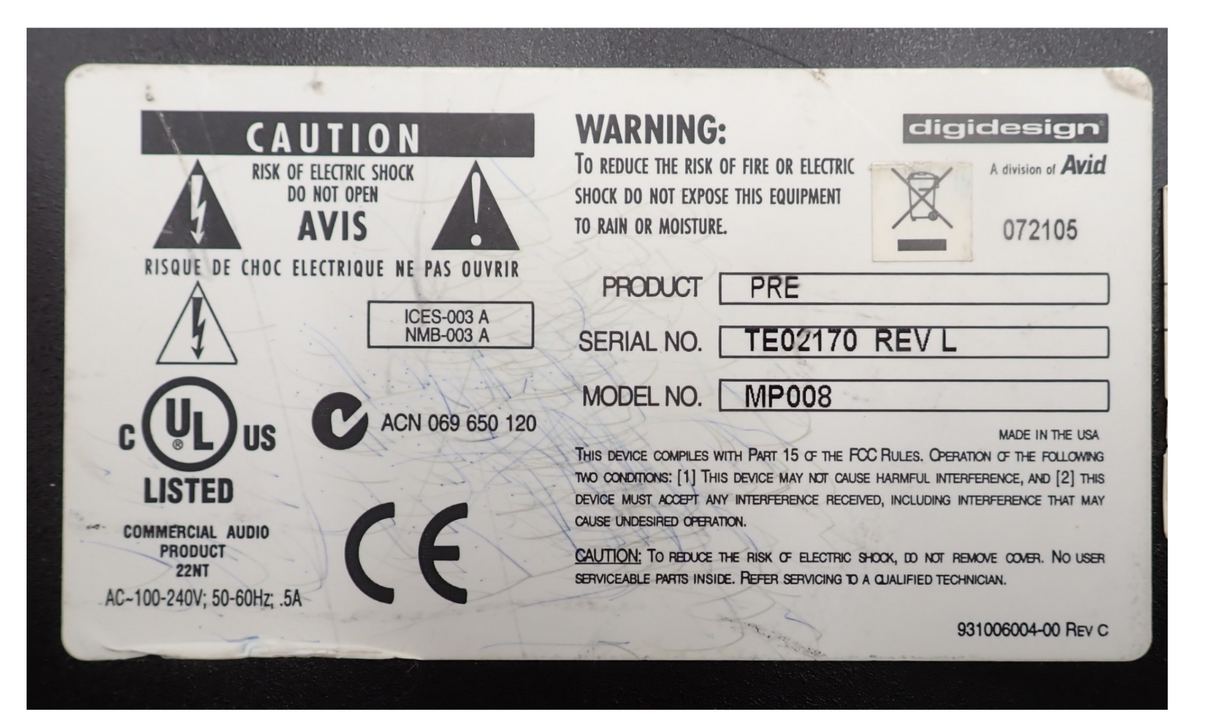

P/N: MP008
Model: PRE

In good condition and In full working order
Tested

Included:
1 x Avid Digidesign PRE MP008 8-Channel Remote Controlled Mic Preamp Silver / Blue

Description
Avid HD Pre Remote Controllable 8-Channel PRE Interface
Capture pristine, high-quality sound with Avid HD PRE. Featuring eight discrete, matched-transistor, hybrid mic preamp circuits, Avid Pro Tools Remote Controllable 8-Channel PRE Interface provides a transparent signal path, and easily accommodates your mic, line, and direct instrument (DI) level inputs on all eight channels. Plus, you can place PRE anywhere in your studio, thanks to its remote-controllable operation, which you can access through Pro Tools HD software or an Avid control surface. And because PRE also functions as a standalone device, you can get the same sonic quality when working with any application and outboard sound module.

Features:
Eight high-performance, discrete, matched-transistor hybrid microphone pre-amplification circuits

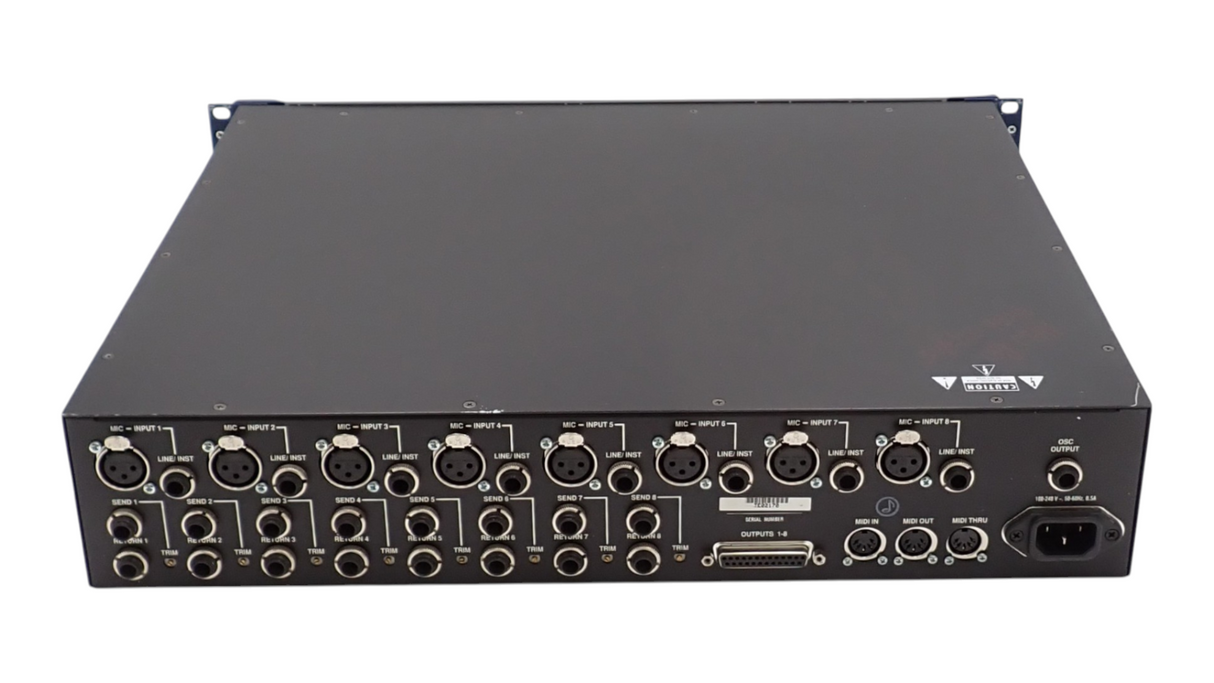

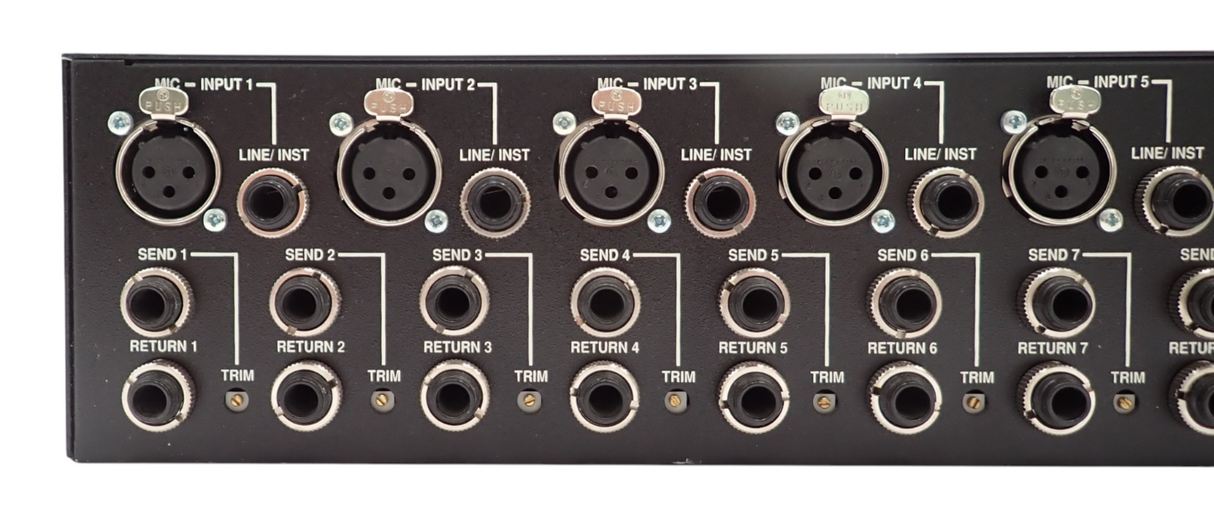

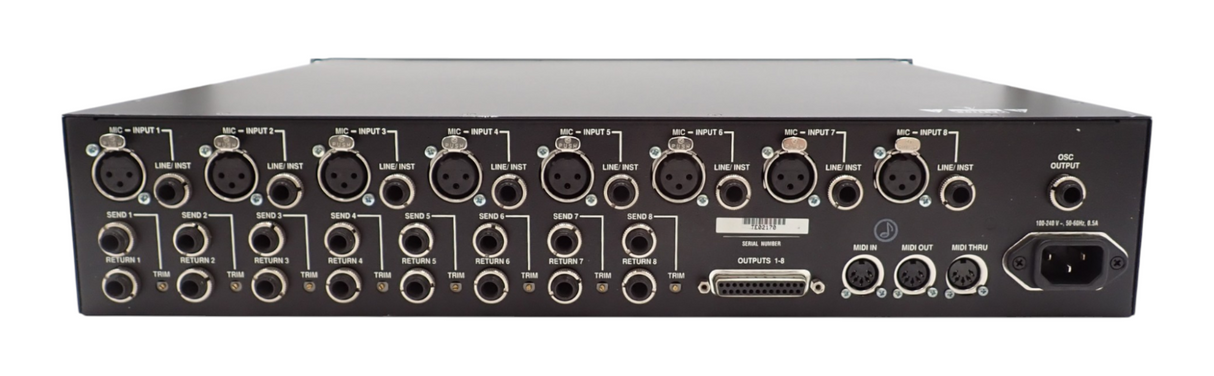

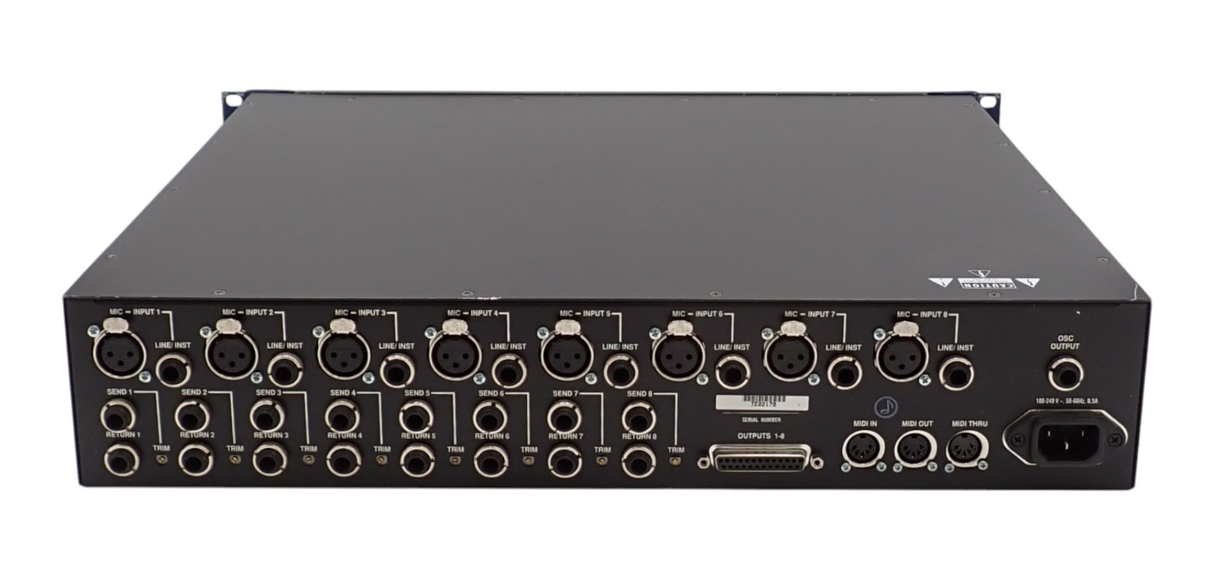

Support for mic (XLR), direct instrument (DI), and line level inputs (1/4″)
Each channel includes a high pass filter, phase reverse, 48V (phantom power), and -18 dB pad
Fully remote-controllable via Pro Tools software and Avid control surfaces; allows for the highest fidelity by keeping low-level signals close to the source
Selectable impedance matching for mic, line, or instrument inputs

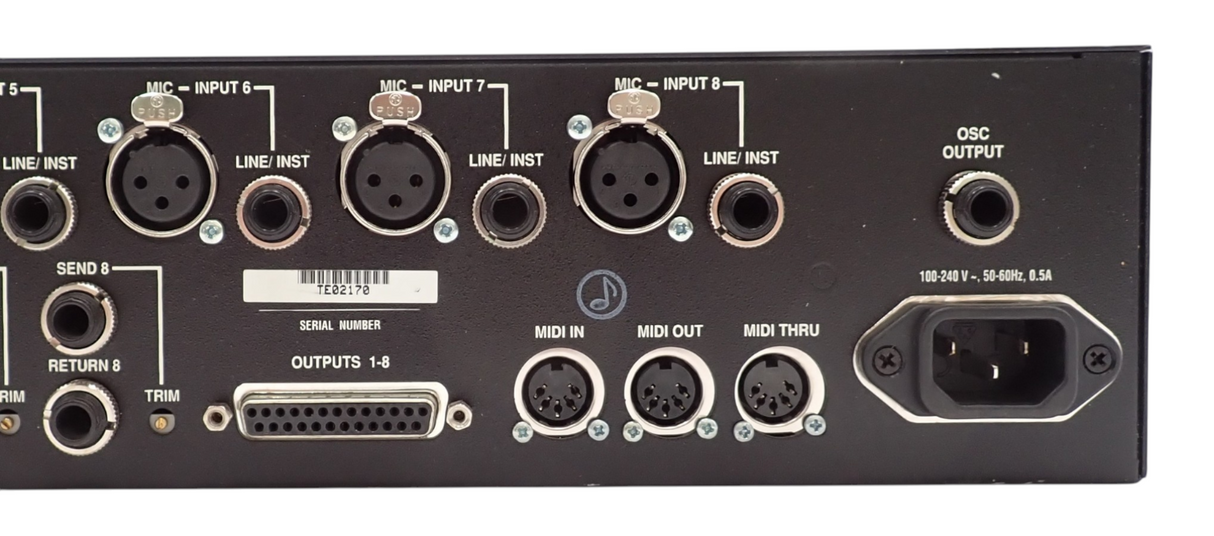

MIDI IN/OUT/THu ports for remote operation
All features supported in stand-alone mode, making Avid Pro Tools Remote Controllable 8-Channel PRE Interface an ideal analog front end for any recording system

Dimensions:
Width: 19 in / 48.26 cm
Height 3.5 in / 8.89 cm
Depth: 15.63 in / 39.69 cm
Weight: 14.53 lbs / 6.59 kg

Input Stage:
Circuit Topology: Discrete Matched Transistor Hybrid
Input Gain: 0 dB to +69 dB in ~3 dB steps, with -18 dB pad engaged; -18 dB to +51 dB
Maximum Input Level: +47 dBu, pad in, @ 1 kHz, < 0.1% THD
Mic E.I.N (unweighted): -128 dB @ 66 dB gain (20 Hz to 20 kHz) 150 ohm
THD+N: < 0.0005% @ 1 kHz, 0 dB gain @ 20 dB signal; < 0.001% (20 Hz to 20 kHz), 0 dB gain @ 0 dB signal
CMMRR: < -75 dB @ 1 kHz, 140 mVcm, +6 dB gain
Crosstalk: < -90 dB (20 Hz – 20 kHz)
Frequency Response: ±0.1 dB; 20 Hz to 20 kHz, @ +48 dB gain
Input Impedance (Input Z): 1.5 kohm (low); 15 kohm (mid); 1.5 Mohm (high)
Phantom Power: 48V +/- 1V
High Pass Filter: -3 dB @ 85 Hz, 18 dB/octave
Maximum Output Level: +29 dBu, balanced, @ 1 kHz, < 0.1% THD

Output Stage:
Maximum Output: +26 dBu, balanced; 600 ohms, DC-coupled
Output Impedance: ~50 ohms
Nominal Level: +4 dBu
Trim level: -10 dB
Remote Mode: MIDI, IN/OUT/THu+
