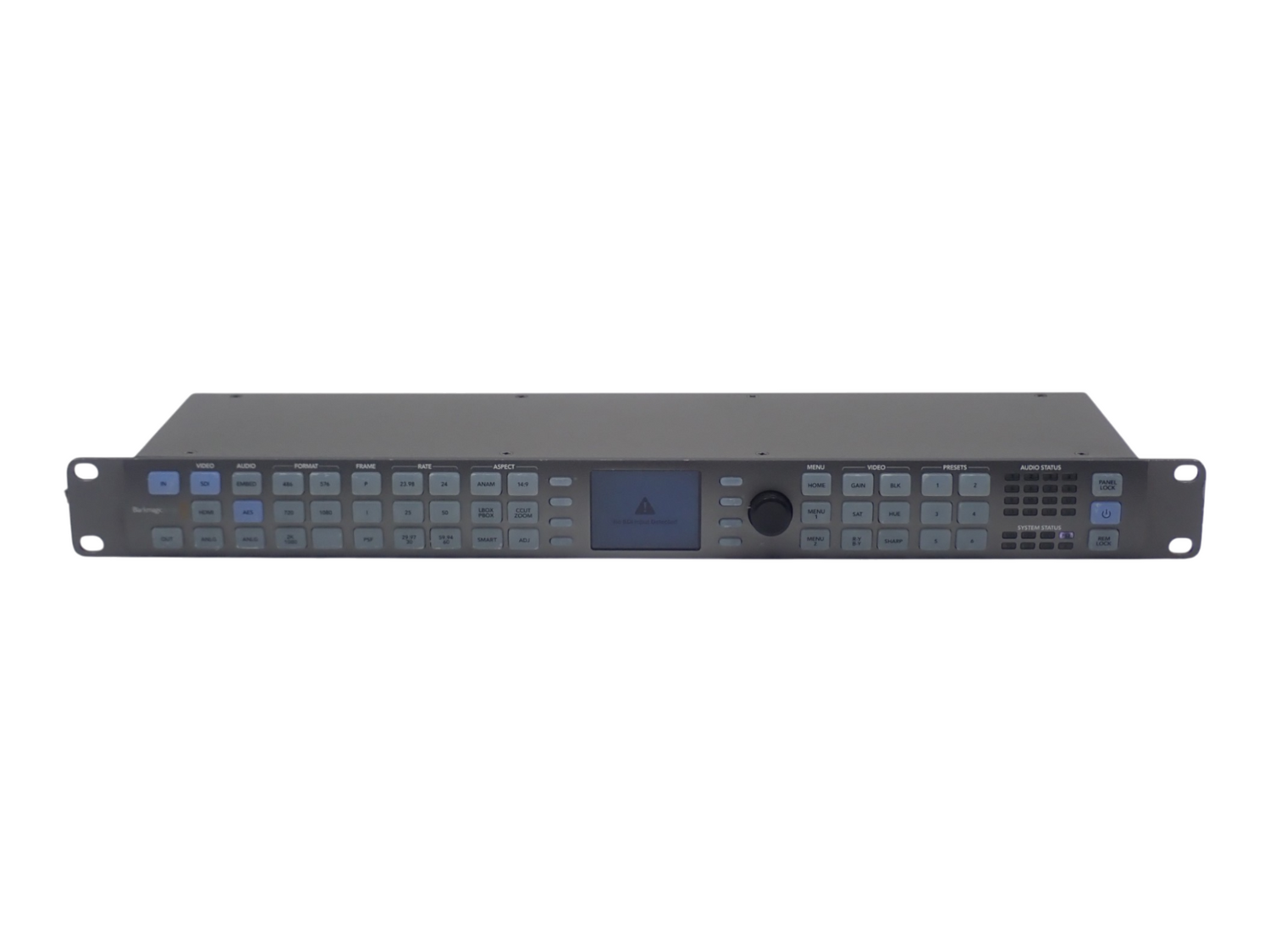

Blackmagic Design Teranex 2D Processor HDMI 3GSDI 1U Rack Standards Converter

Brand: Blackmagic Design
Form Factor: Rack-Mountable
Signal Format Type: Digital Format
Type: Standards Converter
Output Interfaces: HDMI,SDI,3G-SDI,Analog I/O,Stereo,RS-232,Thunderbolt (DP),Ethernet
Number of Inputs: 8
Model: 2D Processor
Connectivity: 3G-SDI,Ethernet,HDMI,SDI,Analog I/O,Stereo LR,Thunderbolt (DP),RS-232
Input Interfaces: 3G-SDI,HDMI,SDI,Analog I/O,Stereo,RS-232,Thunderbolt (DP),Ethernet
Country of Origin: China
Number of Outputs: 7

Included:
1 x Blackmagic Design Teranex 2D Processor HDMI 3G-SDI 1U Rack Standards Converter

Description:
The Teranex 2D Processor is suited for regular conversions as well as capture and playback. It provides SD/HD and 3 Gb/s SDI connections, in addition to HDMI and analogue in and out, 8 channel AES/EBU, 4 channel balanced analogue input and output and consumer HiFi audio input connections. A Thunderbolt port is offered for computer capture and playback, as well as a RS-422 deck control, a reference input and an Ethernet are included for remote configuration.

Features:
Convert, capture and playback full quality video
Built-in Thunderbolt port
Broadcast quality processing includes:
De-interlacing
Up conversion / down conversion
SD and HD cross/standards conversion
Automatic cadence detection and removal even with edited content

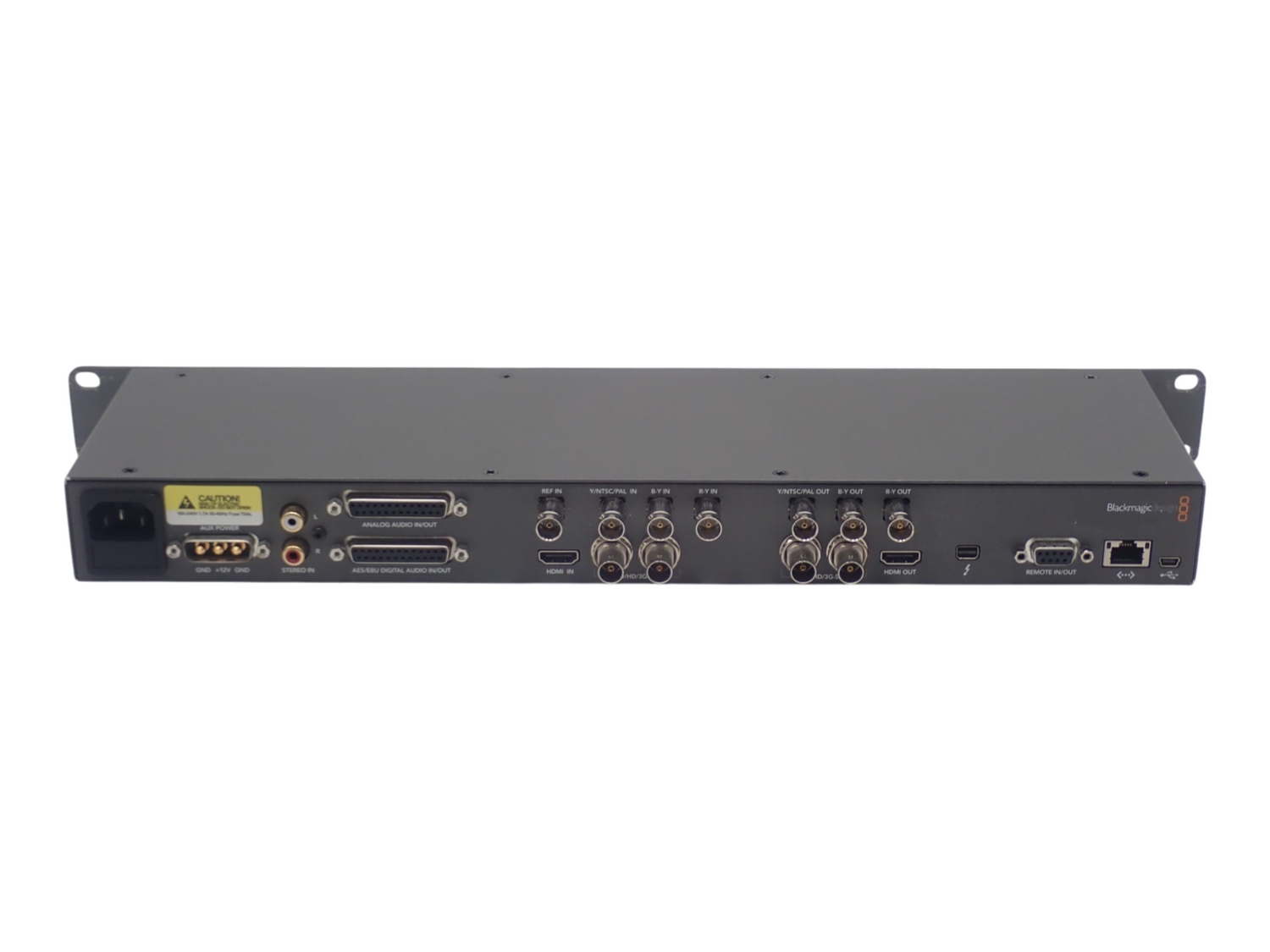

Connections

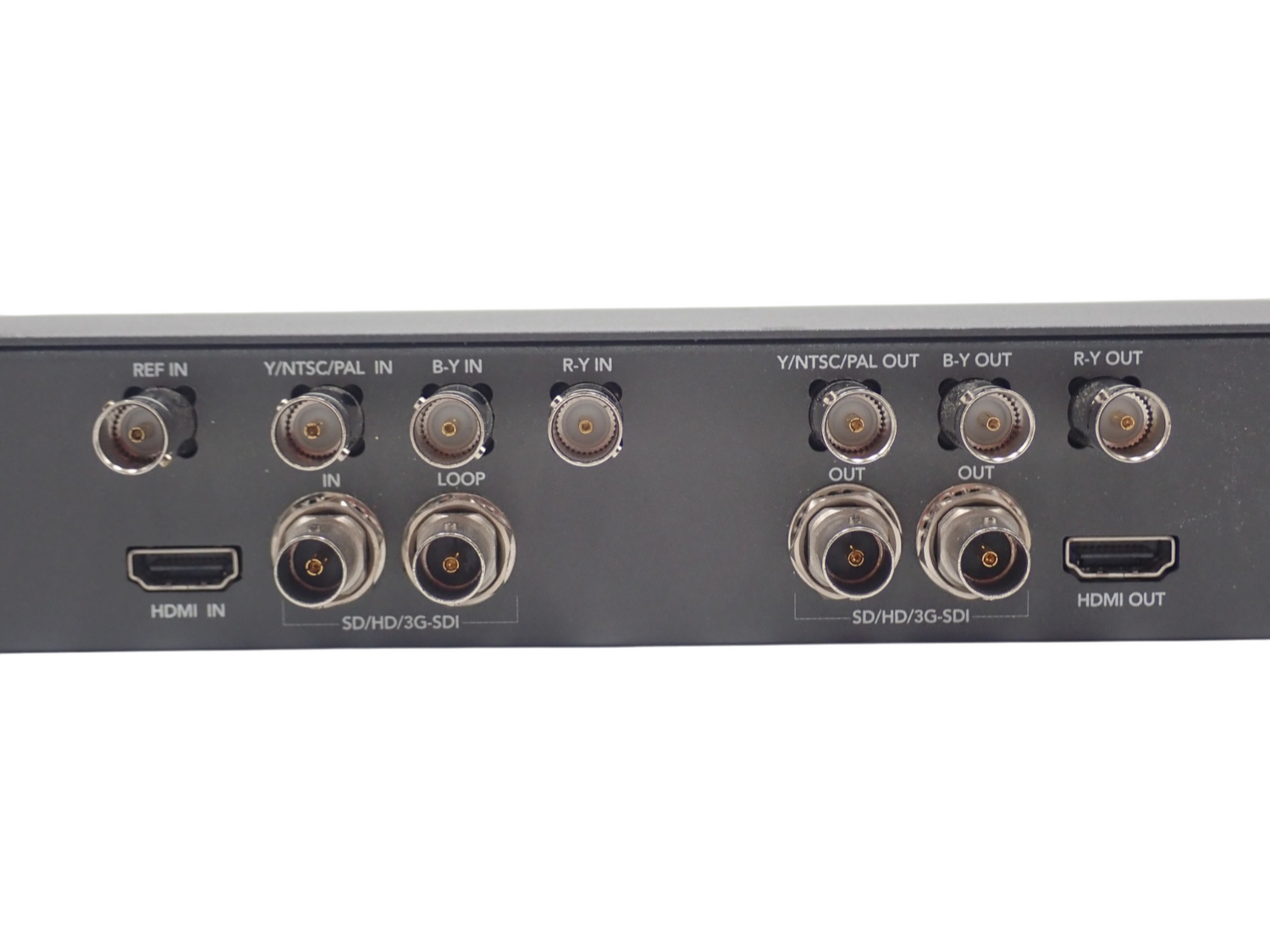

SDI Video Input - 1 x 10-bit SD, HD, 3Gb/s HD and 2K switchable.
SDI Video Loop - 1 x reclocked 10-bit SD, HD, 3Gb/s HD and 2K switchable.
SDI Video Output - 2 x 10-bit SD, HD, 3Gb/s HD and 2K switchable.
Analogue Video Input - 1 x Component YUV on 3 BNCs switchable to Composite. Component supports HD and SD.
Analogue Video Output - 1 x Component YUV on 3 BNCs switchable to Composite. Component supports HD and SD.
HDMI Video Input - 1 x HDMI type A connector
HDMI Video Output - 1 x HDMI type A connector

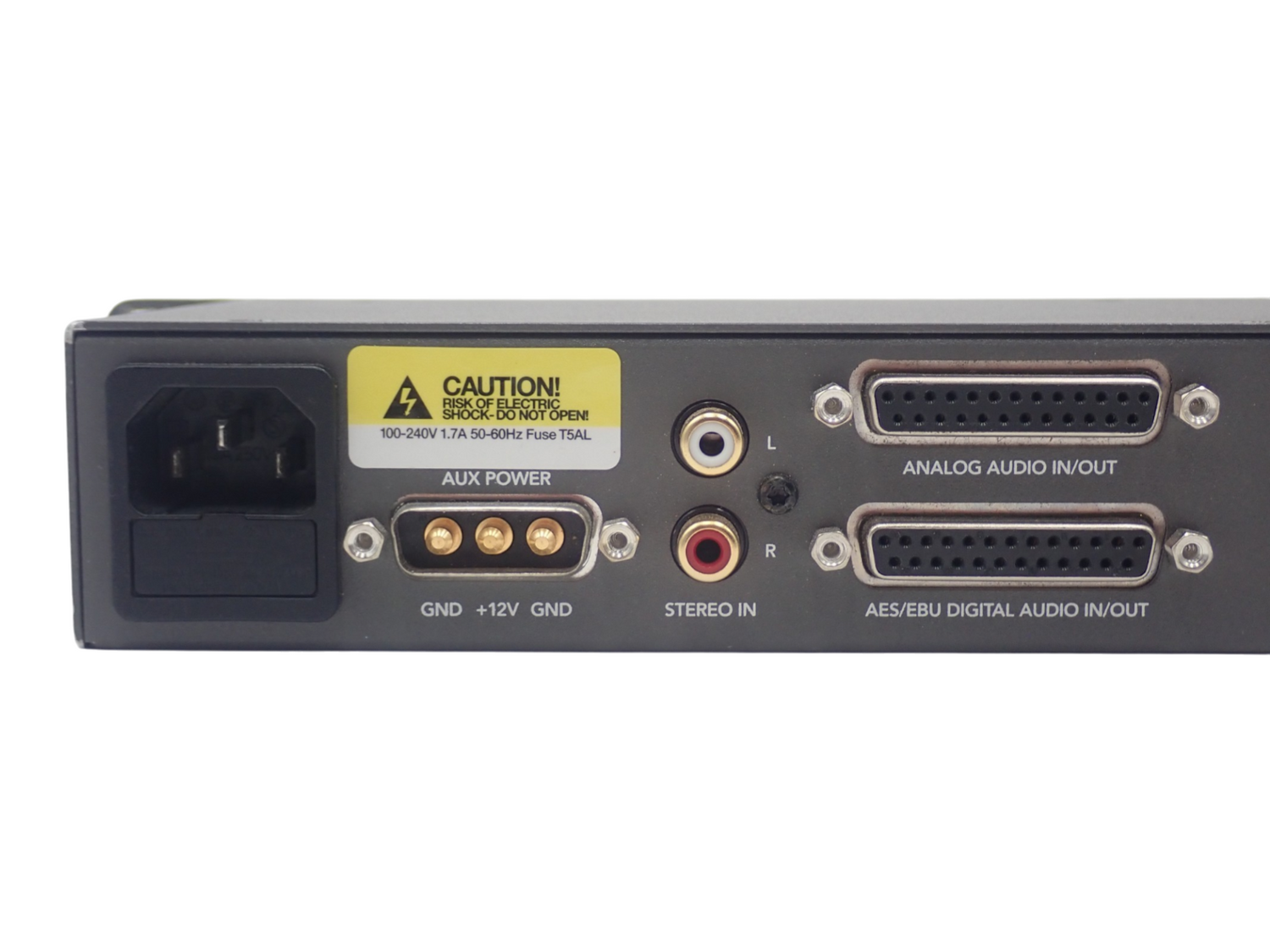

Analogue Audio Input - 4 x inputs of professional balanced analogue audio on DB-25 for 4 audio channels. Pinout compatible with Yamaha, Mackie, Sony and Apogee connectors.
2 x inputs of unbalanced analogue audio on RCA connectors for consumer equipment.
Analogue Audio Output - 4 x outputs of professional balanced analogue audio on DB-25 for 4 audio channels. Pinout compatible with Yamaha, Mackie, Sony and Apogee connectors.
AES/EBU Audio Input - 8 x inputs on DB-25 for 8 audio channels. Sample rate converted. Pinout compatible with Yamaha, Mackie, Sony and Apogee connectors
AES/EBU Audio Output - 8 x outputs on DB-25 for 8 audio channels. Pinout compatible with Yamaha, Mackie, Sony and Apogee connectors
SDI Audio Input - 16 channels in SD, HD and 2K. (16 channels in HD and 2K, and 8 channels in SD for capture via Thunderbolt port)
SDI Audio Output - 16 channels in SD, HD and 2K. (16 channels in HD and 2K, and 8 channels in SD for playback via Thunderbolt port)
HDMI Audio Input - 8 Channels
HDMI Audio Output - 8 Channels
Dolby Support Built-In - Dolby® E/AC-3 pass through with same frame rates
Dolby Support Optional - None
Multi Rate Support - SDI, HDMI and component analogue video connections are switchable between standard definition and high definition. SDI switches between 270 Mb/s standard definition SDI, 1.5 Gb/s HD-SDI and 3 Gb/s HD and 2K SDI.
Sync Input - Blackburst in SD or TriSync HD.

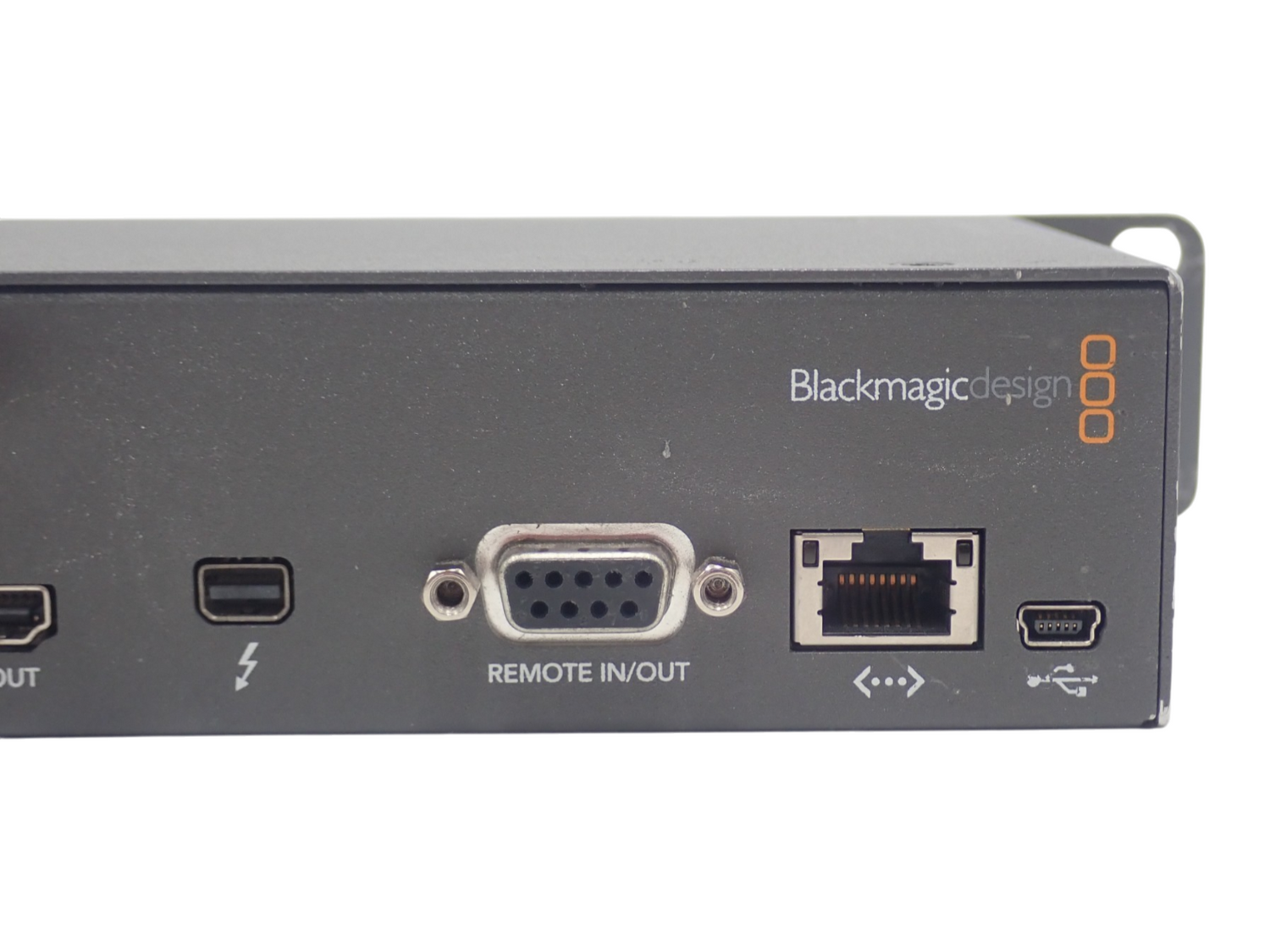

Device Control - Sony compatible RS-422 deck control port. Serial ports TxRx direction-reversible under software control.
Computer Interface - Thunderbolt port for capture and playback of video and audio.
USB 2.0 mini B port for software updates and configuration.

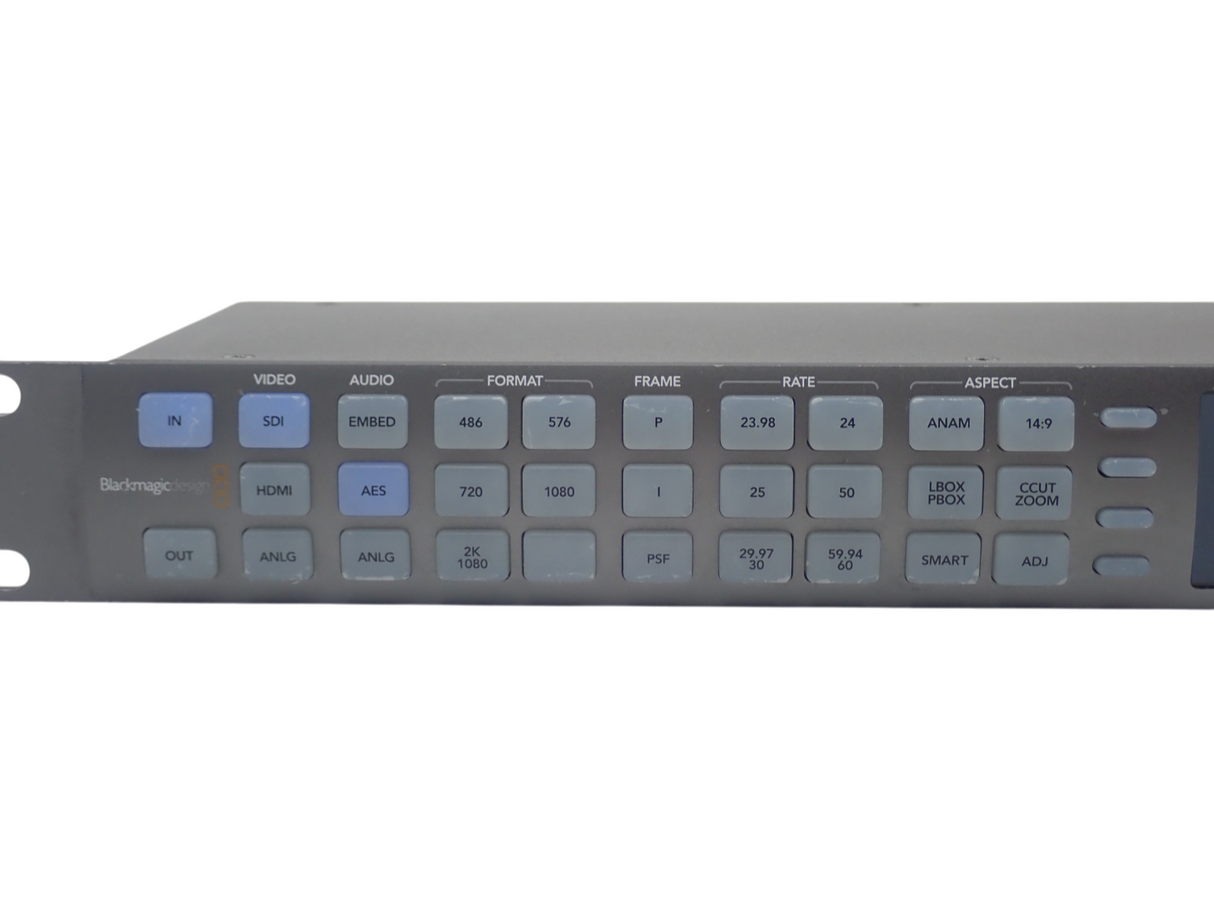

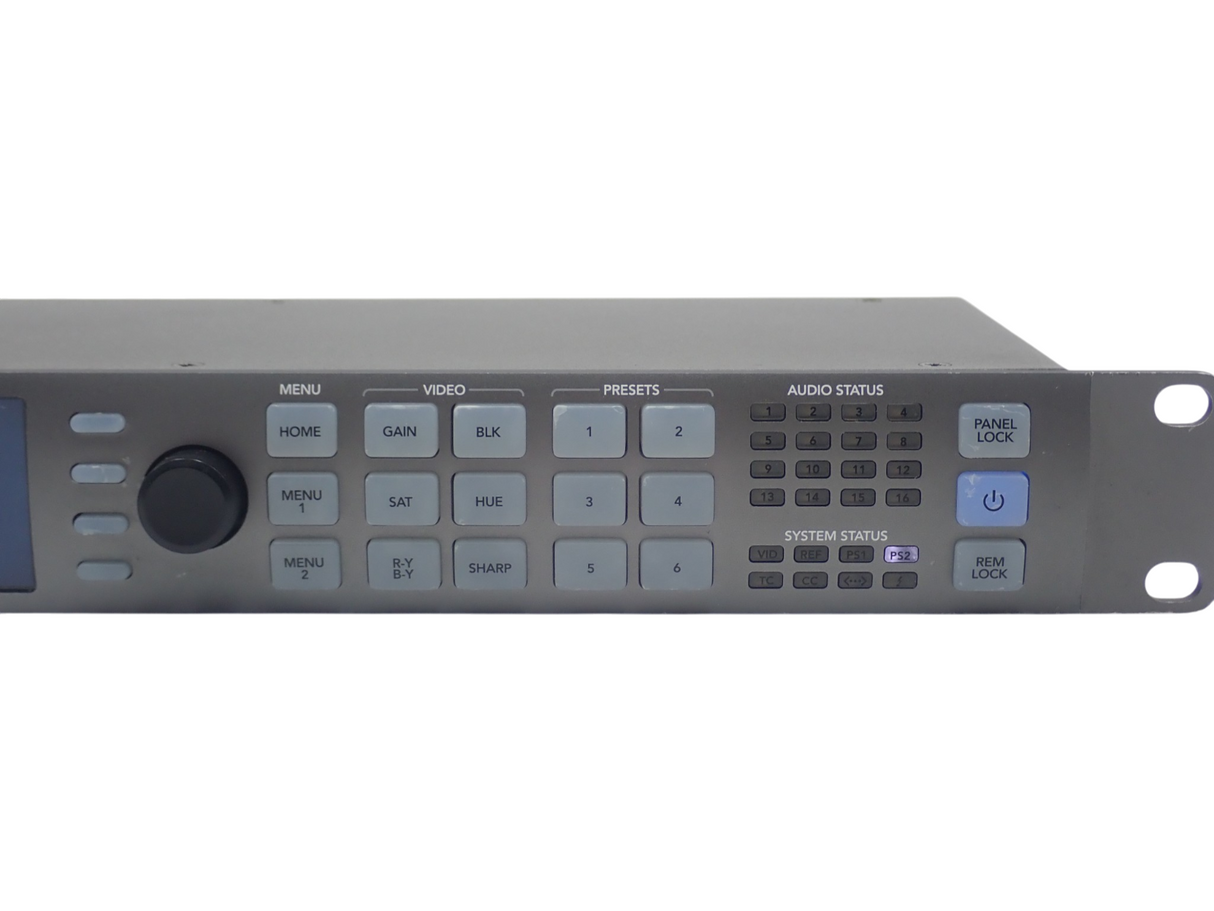

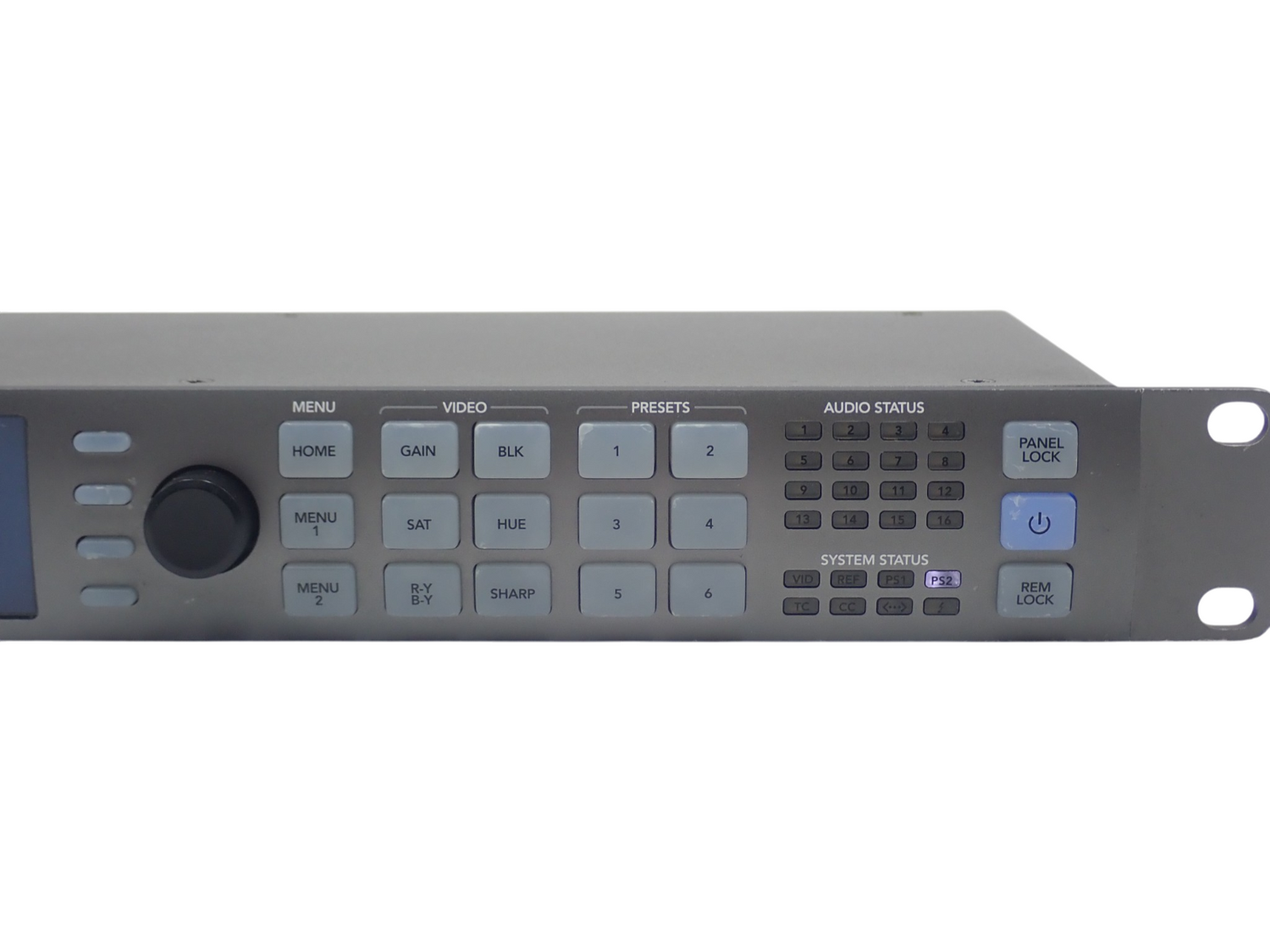

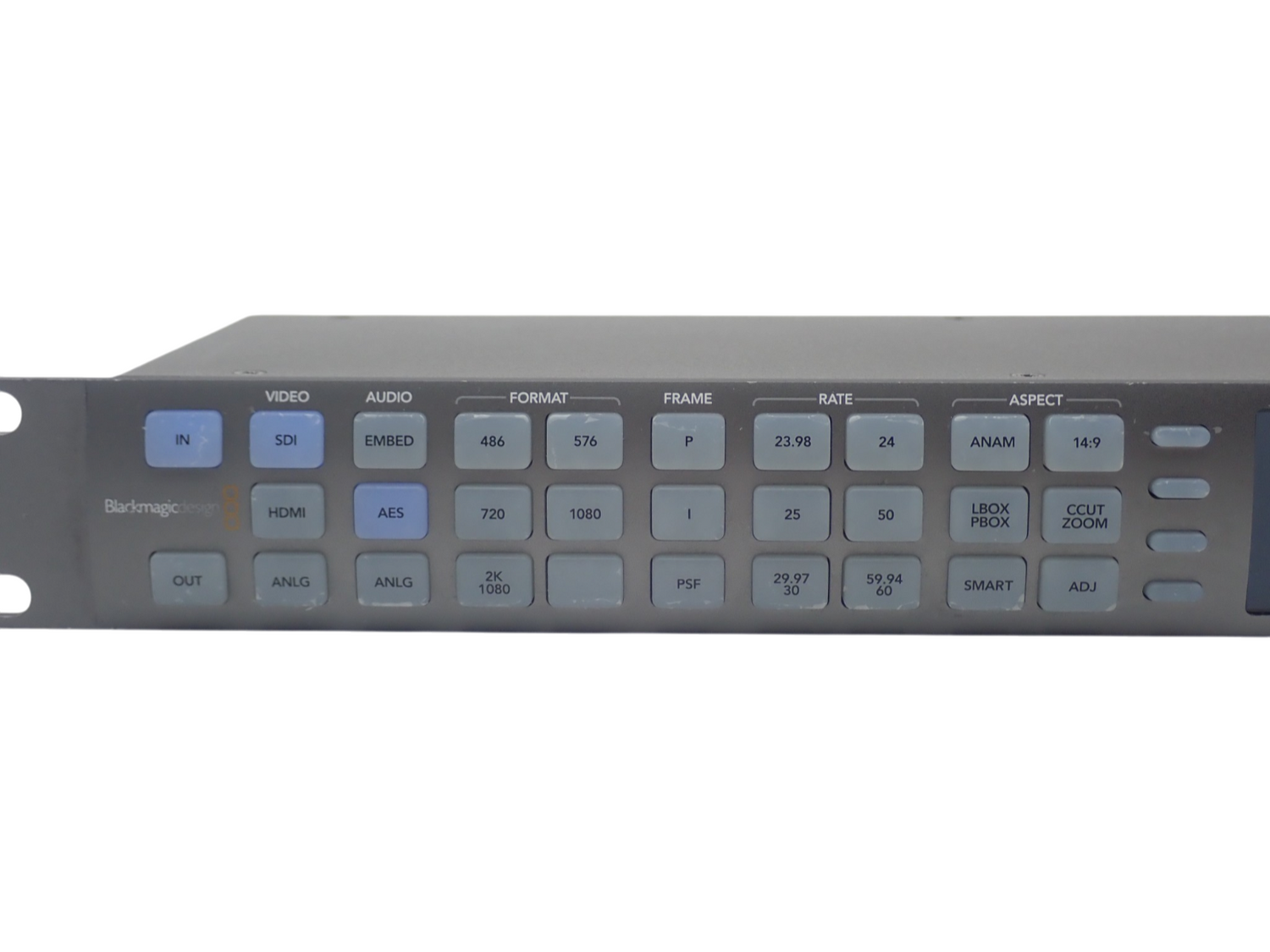

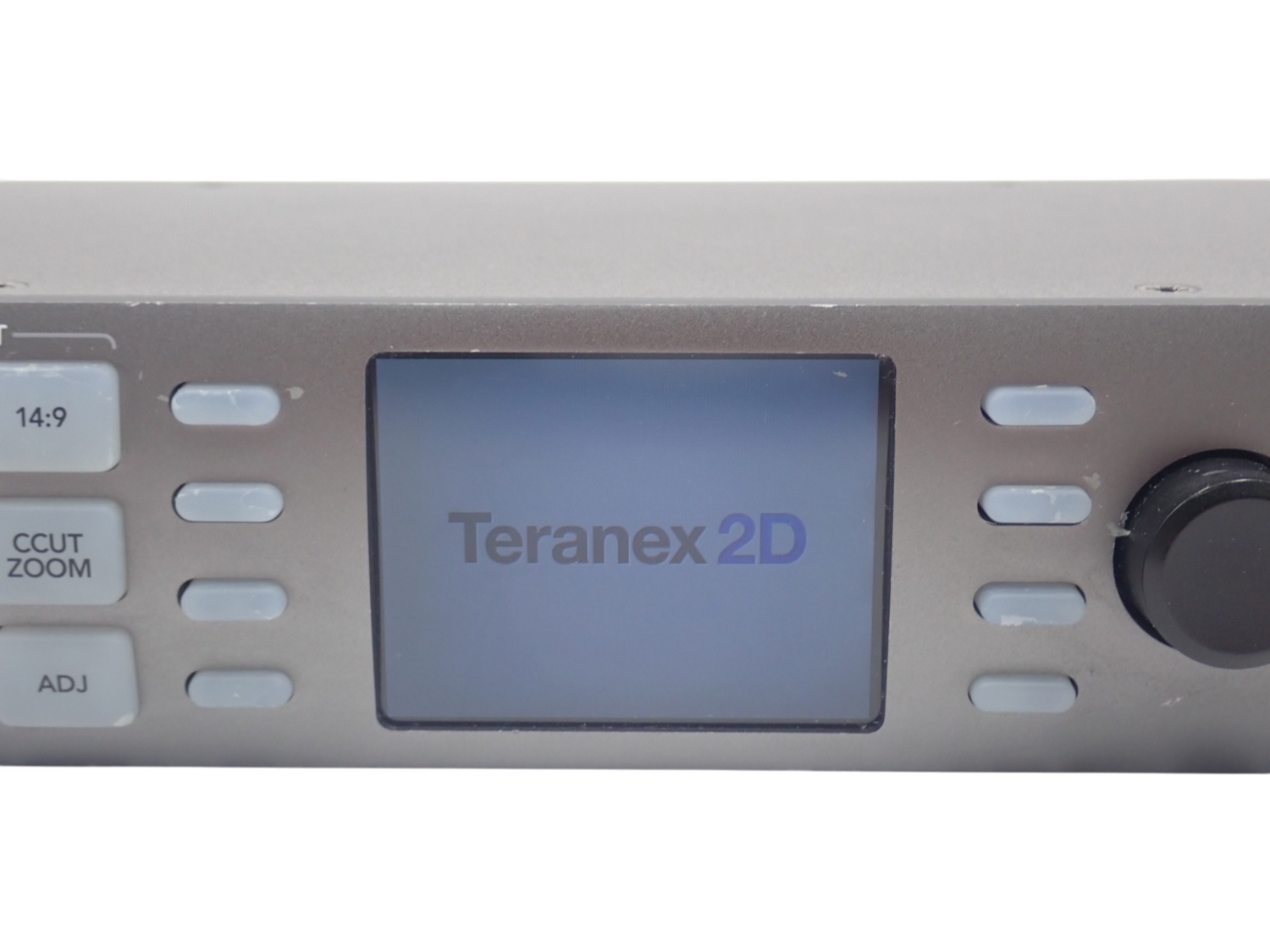

Processor Interface - Illuminated pushbuttons, status LEDs and LCD with easy onscreen menus.
Power - 1 x built-in international AC power supply with IEC C14 inlet. 120-240V, 50-60Hz.

Processing
Colourspace Conversion - Hardware based real time.
Format Conversion - Real time up conversion, down conversion, cross conversion and SD/HD standards conversion on capture.
Aspect Ratio Conversion - Real time variable and fixed aspect ratio conversion including proprietary “SMART” aspect.
Real Time Video Processing - Includes noise reduction, cadence detection with insertion/removal and cadence correction, scene cut detection, colour correction, and proc amp control
Real Time 3D Processing - None
Real Time Effects during playback on a computer with Thunderbolt technology - Apple Final Cut Pro internal effects. Adobe Premiere Pro Mercury Playback Engine effects. Avid Media Composer 6 internal effects.
