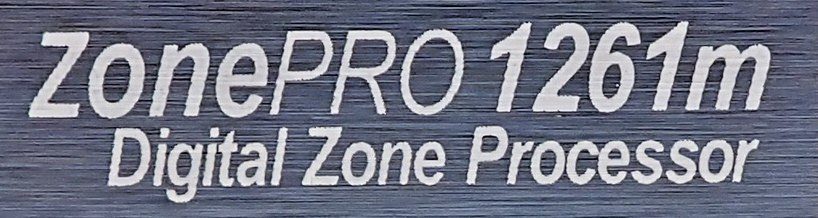

DBX ZonePRO 1261m DBX1261MV-EU 12x6 Digital Zone Processor 1U 19" Rackmount

DBX ZonePRO 1261m DBX1261MV-EU 12x6 Digital Zone Processor 1U 19" Rackmount
P/N: DBX1261MV-EU
Model: ZonePRO 1261m

In Good Condition, Full Working Order
Tested

Included:
1 x DBX ZonePRO 1261m DBX1261MV-EU 12x6 Digital Zone Processor 1U 19" Rackmount

Description
The DBX ZonePro 1261M 12 x 6 Digital Zone Processor offers fixed I/O, pre-configured architecture, configurable insert processing and optional duplication of audio channels to another ZonePRO device via a link bus.

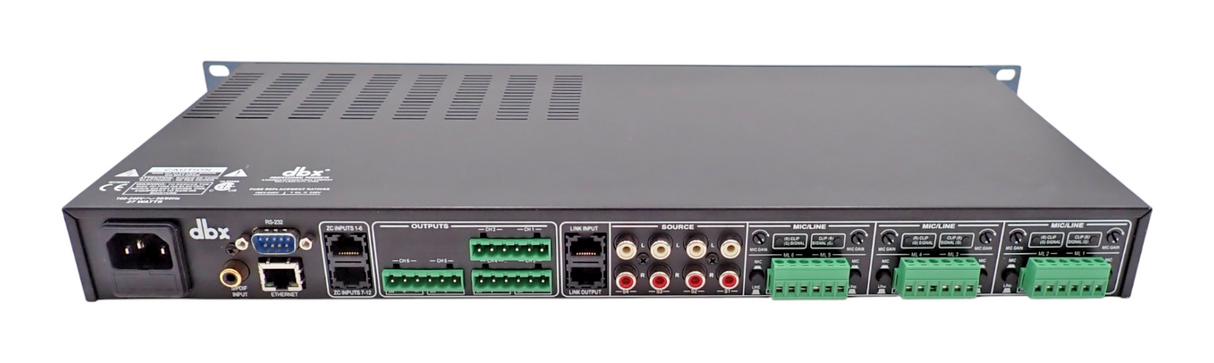

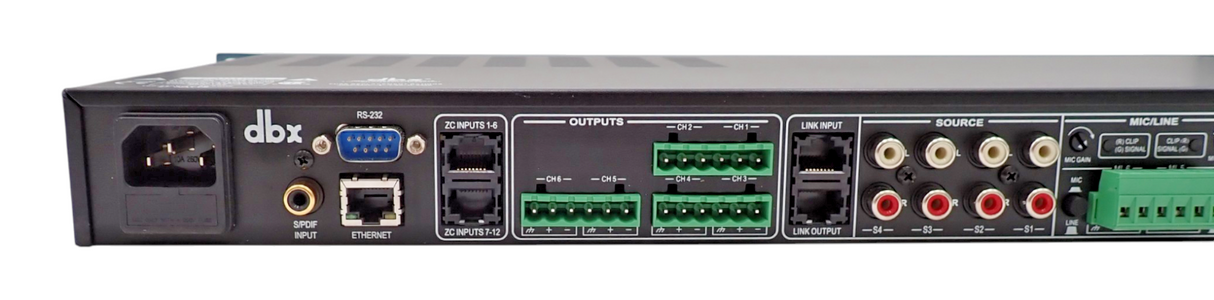

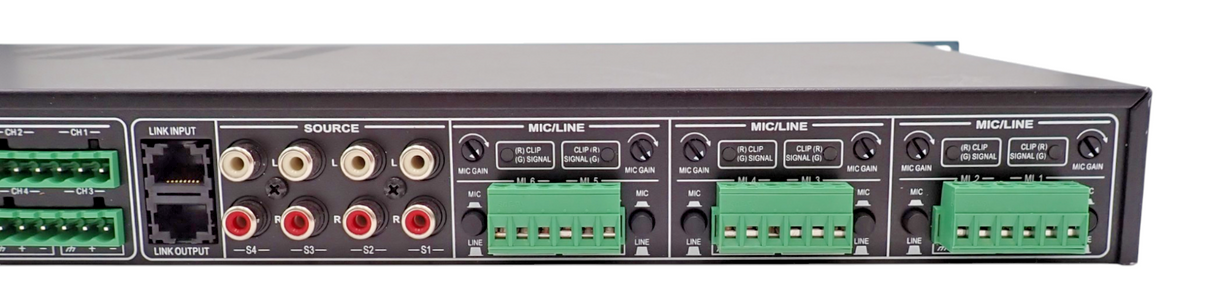

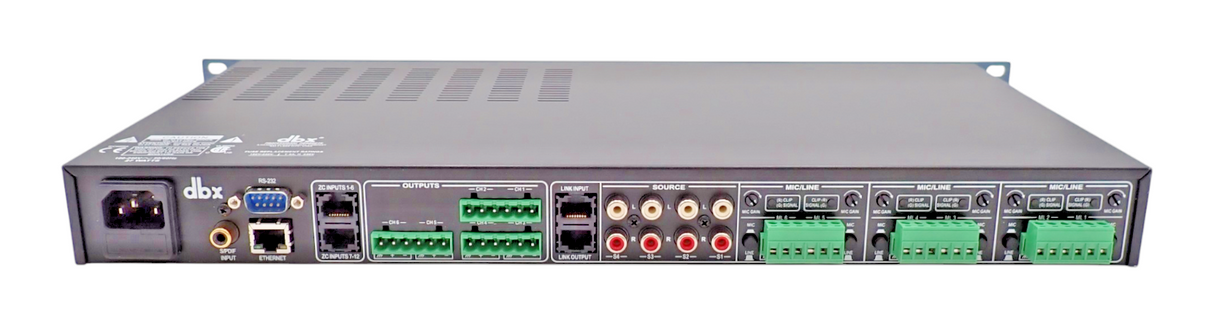

The 1261m features a total of 12 inputs and six outputs. Inputs include six balanced mic/line switchable terminal block inputs, four mono-summed pairs of unbalanced RCA inputs and one S/PDIF input for up to two digital channels. Hardware-controlled microphone gain allows adjustment of microphone gain per channel.
The 1261m device has a pre-configured architecture with input processing, a central matrix and output processing. Two input insert positions and one output insert position allow channel-specific insert processing to be configured. AutoWarmth, a psychoacoustic function that maintains full frequency bandwidth even when the signal level has dropped, is permanently available on each output zone.
A link bus allows duplication of the first six audio channels to another ZonePRO device in applications where additional output zones are required.

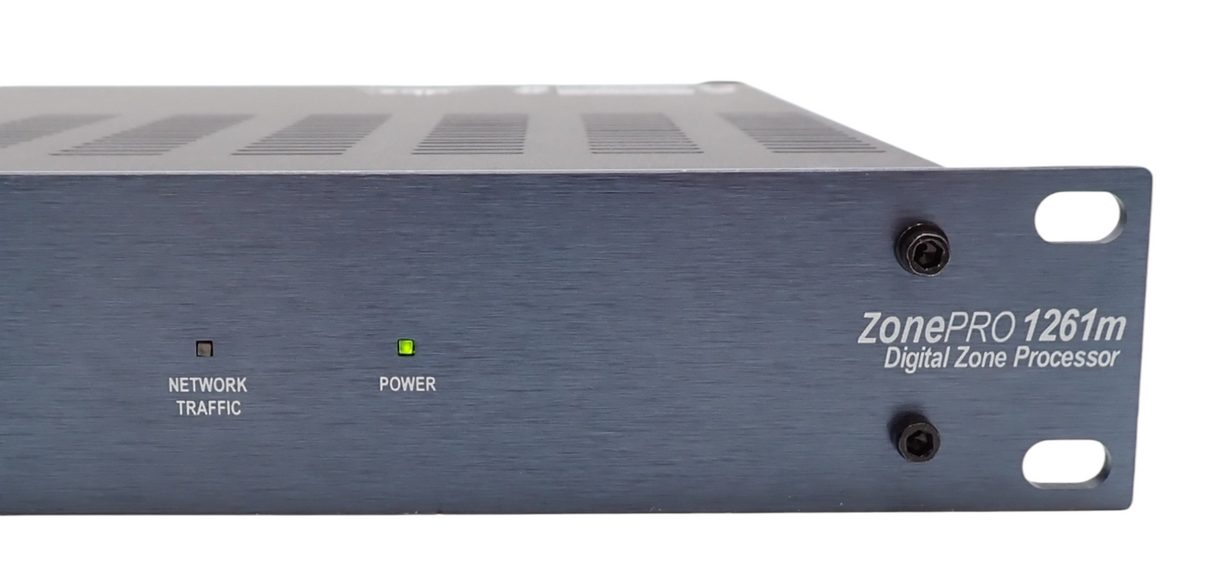

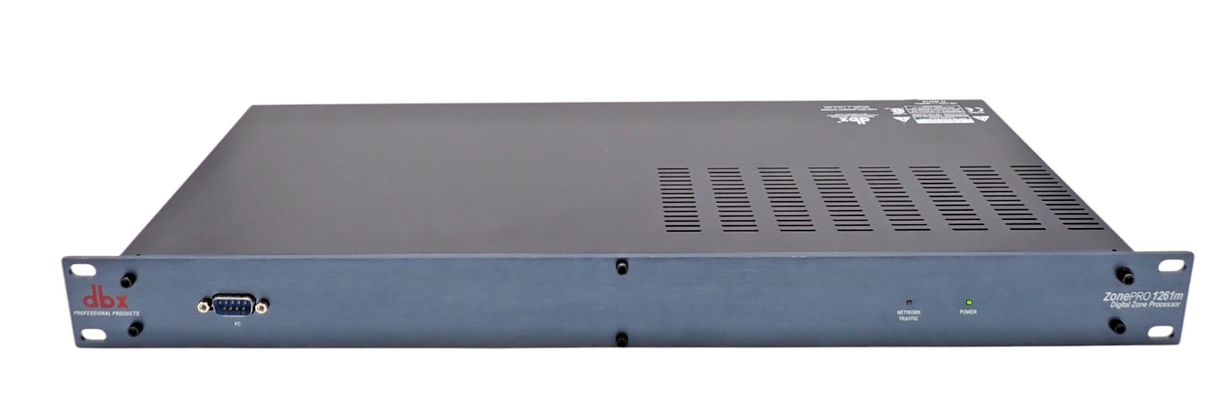

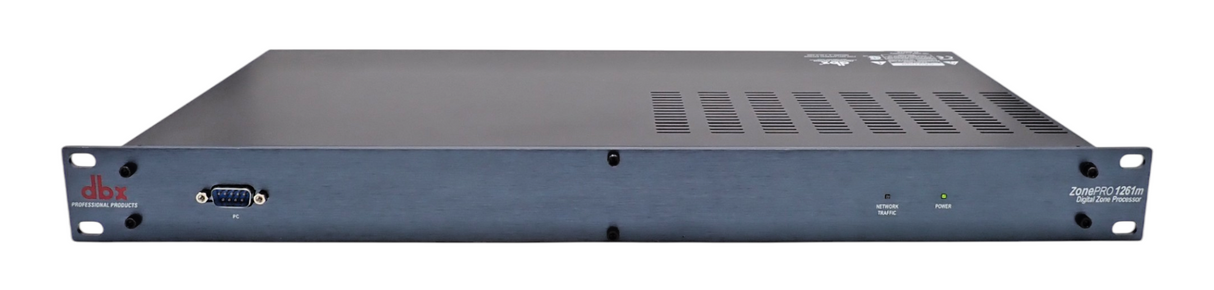

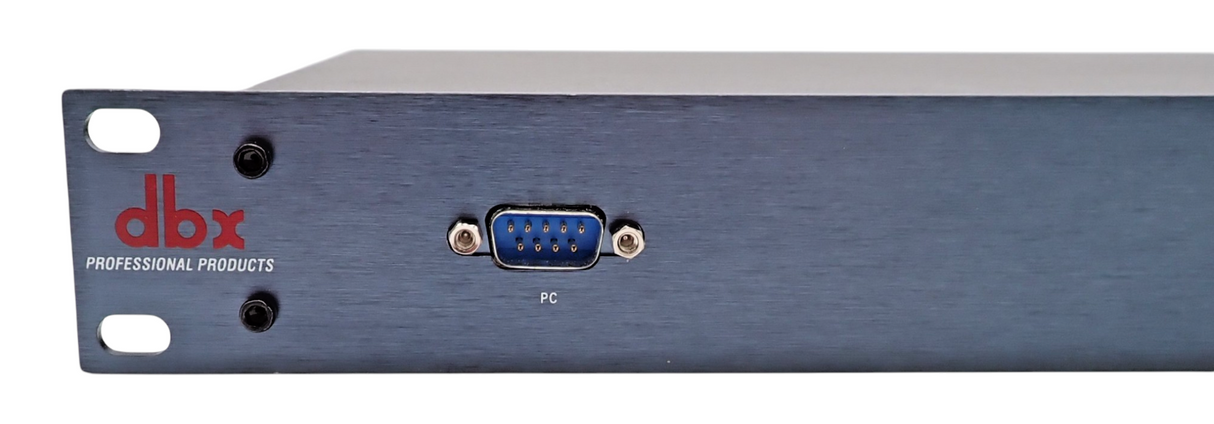

The front panel of the 1261m features a power status LED, a network traffic LED, and an RS-232 control port.
Additional system control is offered in the form of optional Zone Controllers. This collection of hardware wall-controllers represents a series of simple, elegant user interfaces for functions such as volume, source and preset control.
All ZonePRO devices can be controlled by third party control systems via RS-232 or Ethernet as applicable (see table for further information).
ZonePRO Designer-the configuration, control and monitoring software for the ZonePRO family of devices-offers control of the ZonePRO 1261m via Ethernet or RS-232. The Configuration Wizard within ZonePRO Designer guides users through the step-bystep configuration process of the 1261m.

Features
12 Inputs / 6 Outputs
 Balanced Mic/Line Inputs
4 Unbalanced, Mono-Summed RCA Input Pairs
S/PDIF Input
Microphone Gain per Channel
Pre-Configured Architecture
Two Configurable Input Insert Positions
One Configurable Output Insert Position
AutoWarmth per Output Zone
Link Bus
Optional ZC Controllers
Ethernet Control
Serial Control
Third Party Control
Wizard-Driven Configuration

Specifications
Analog Inputs:
- 6x Balanced Mic/Line Inputs
- 4x Unbalanced
- Mono-Summed RCA Input Pairs
- S/PDIF Input
- Type:
  - Mic/Line: Euroblock
  - Source: RCA
- Impedance, RF Filtered (Euroblock):
  - Balanced: >50 kΩ
  - Unbalanced: >25 kΩ
- Impedance (RCA): >25 kΩ Unbalanced, RF Filtered
- Max. Input Line Level:
  - Mic/Line: +20 dBu
  - RCA: +12 dBu RCA
- CMRR: > 40 dB, typically >55db @ 1kHz
- Mic Pre Gain: 30 to 60 dB
- Mic Input Noise (E.I.N.): < -118 dBu, 22Hz-22kHz, 150Ω Source Impedance
- Mic Phantom Power: +15VDC

Analog Outputs:
- Number of Outputs: 6 Total
- Type: Electronically Balanced, RF Filtered Euroblock
- Impedance:
  - Balanced: 120 Ω
  - Unbalanced: 60 Ω
- Max. Output Level: +20 dBu

A/D Performance:
- Type: dbx Type IV Conversion System
- Dynamic Range line:
  - A-weighted: >113 dB
  - Unweighted: >110 dB
- Type IV dynamic range (22kHz BW):
  - A-weighted: >119 dB
  - Unweighted: >117 dB
- Sample Rate: 48kHz

D/A Performance:
- Dynamic Range (22kHz BW):
  - A-weighted: 112 dB
  - Unweighted: 109 dB

System Performance:
- Dynamic Range: >110 dB A-weighted, >107 dB unweighted, 22kHz BW
- THD+N: 0.003% typical at +4 dBu, 1kHz, 0 dB gain
- Frequency Response: 20Hz - 20kHz, ± 0.5 dB
- Interchannel Crosstalk: >80 dB typical
- Crosstalk input to output: >80 dB
- Propagation Delay: 0.8 msec

Electrical:
- Operating Voltage: 100-240 VAC, 50/60Hz
- Power Consumption: 27 Watts
- BTU: <92.13

Physical:
- Dimensions (W x H x D): 483 x 45 x 197 mm / 19 x 1.75 x 7.75 inches
- Weight: 2.81 kg / 6.2 lbs
