Faro

Faro Focus 3D 120 Terrestrial Surveying Laser Scanner Set With Reference Spheres

  • Pre-owned

£8,550.00
£7,125.00 ex VAT

Beschreibung

Faro Focus 3D 120 Terrestrial Surveying Laser Scanner Set With Reference Spheres
Model: Faro Focus 3D 120

In Good Condition
Full Working Order
Tested

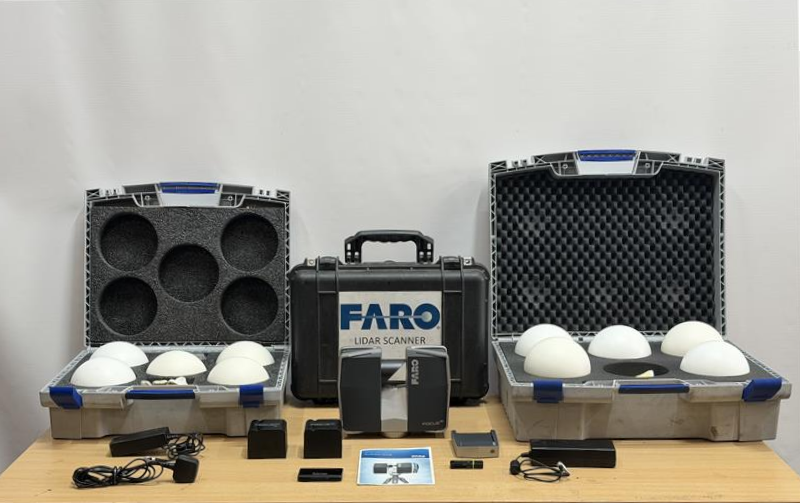

Included:

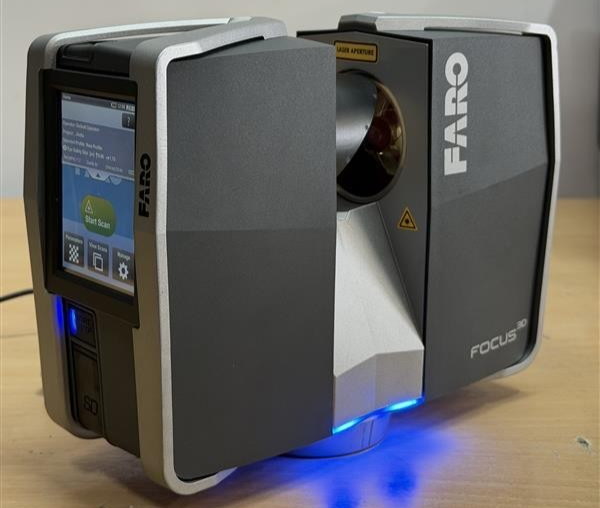

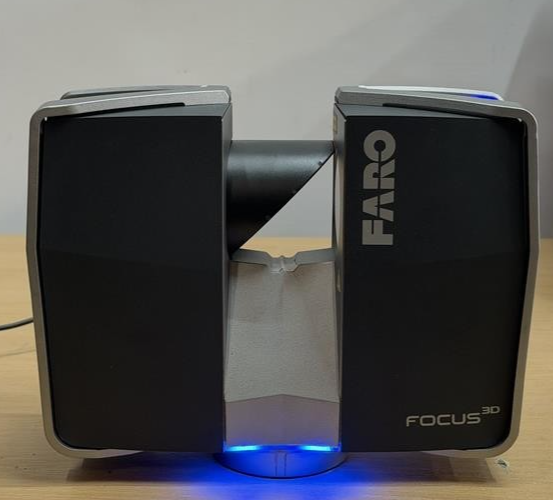

  • 1 x Faro Focus 3D 120 Terrestrial Surveying Laser Scanner
  • 1 x Faro Laser Scanner Power Dock - ACCSS6002
  • 1 x Faro Focus 3d Laser Scanner Power Block - ACCSS6001

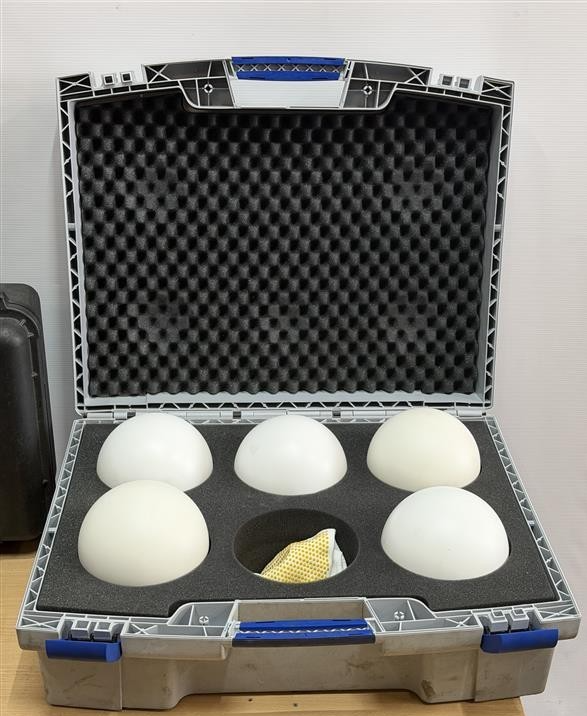

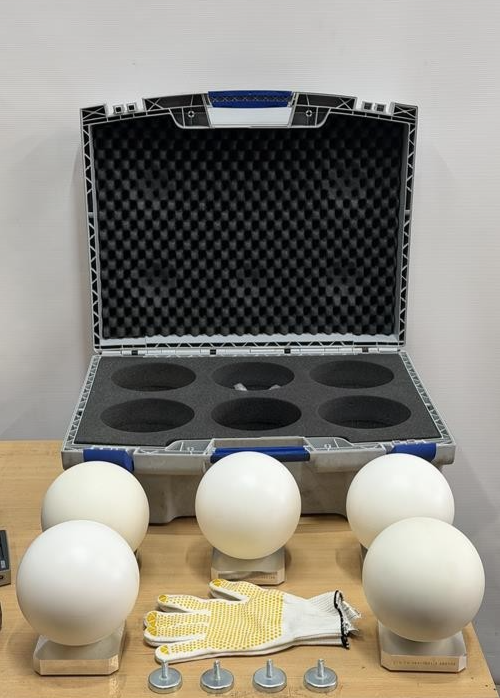

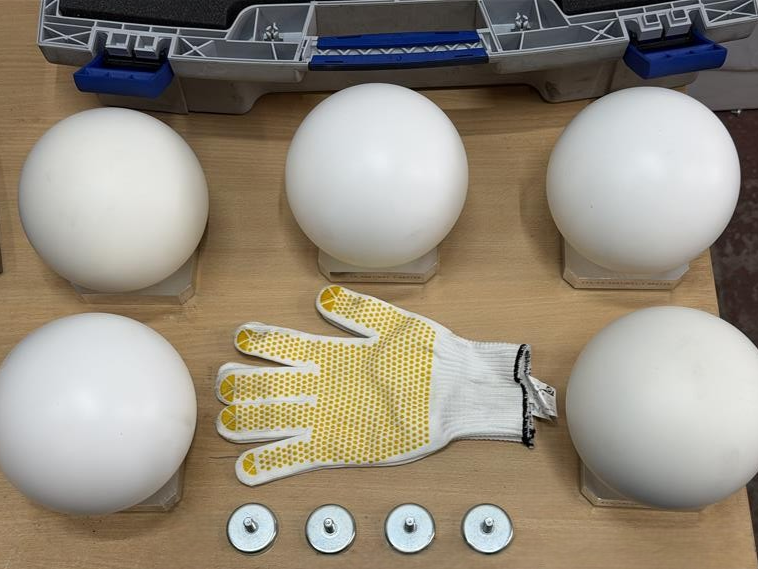

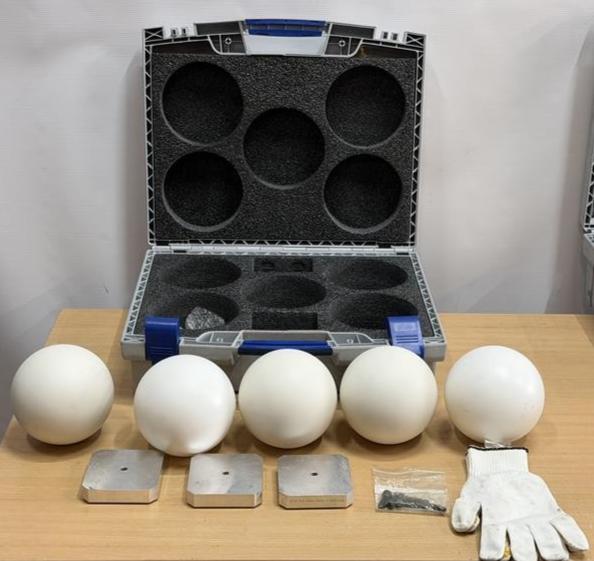

  • 10 x Laser Reference Super Spheres Inc Mounts + 2x Gloves
  • 1 x Focus 3D USB
  • 1 x 32GB Transcend SD Card
  • 1 x Faro Focus 3D Start Guide

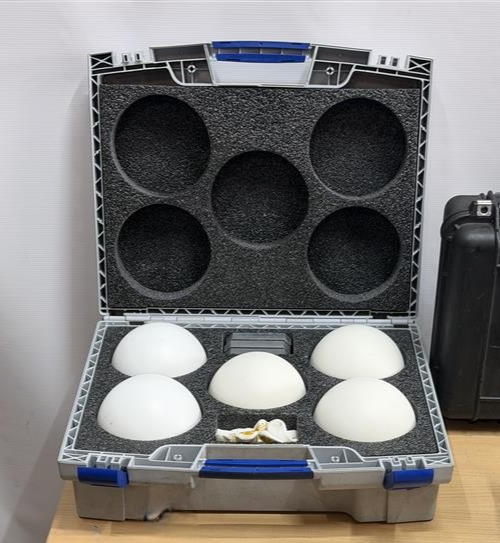

  • 2 x Reference Sphere Carry Cases

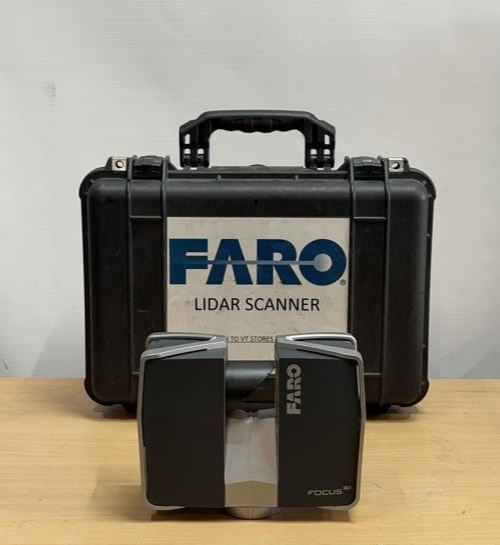

  • 1 x Scanner Carry Case
  • 2 x PSU For Focus 3D Scanner + Power Dock
Features:

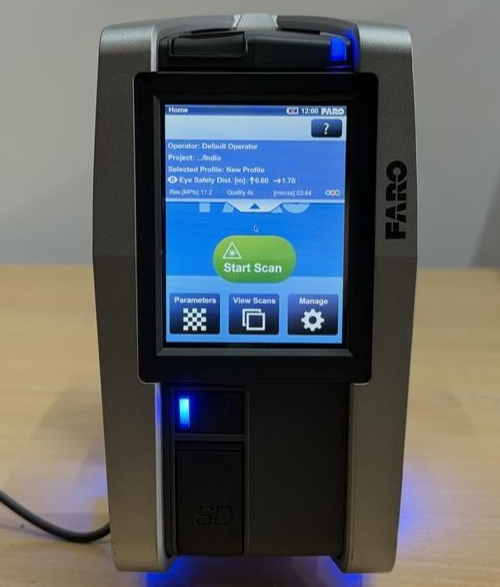

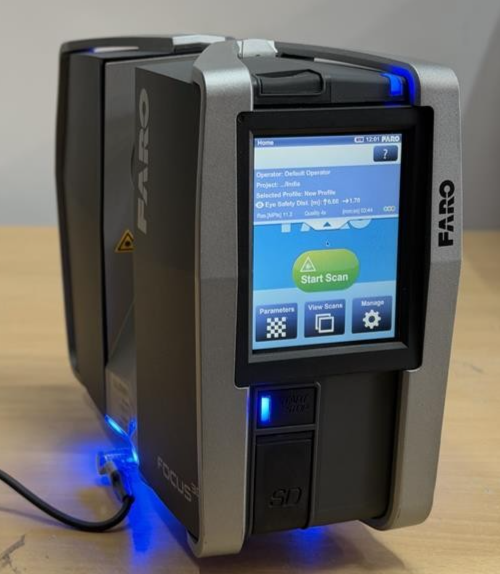

  • Intuitive Touch Screen Display
  • Small & Compact
  • Integrated Colour Camera
  • High Performance Battery
  • Data Management
  • Compass
  • Height Sensor (Altimeter)
  • Dual Axis Compensator
  • WLAN (WIFI)
Technical Specification:
Ranging Unit
  • Unambiguity interval: 153.49m (503.58ft)
  • Range Focus3D 120^1: 0.6m - 120m indoor or outdoor with low ambient light and normal incidence to a 90% reflective surface
  • Range Focus3D 20: 0.6m - 20m at normal incidence on >10% matte reflective surface*
  • Measurement speed: 122,000 / 244,000 / 488,000 / 976,000 points/sec
  • Ranging error^2: +2mm
Color Unit
  • Resolution: Up to 70 megapixel color
  • Dynamic color feature: Automatic adaption of brightness
Deflection unit
  • Vertical field of view (vertical/horizontal): 305° / 360°
  • Step size (vertical/horizontal): 0.009° (40,960 3D pixels on 360°) / 0.009° (40,960 3D pixels on 360°)
  • Max. vertical scan speed: 5,820rpm or 97Hz
Laser (Optical transmitter)

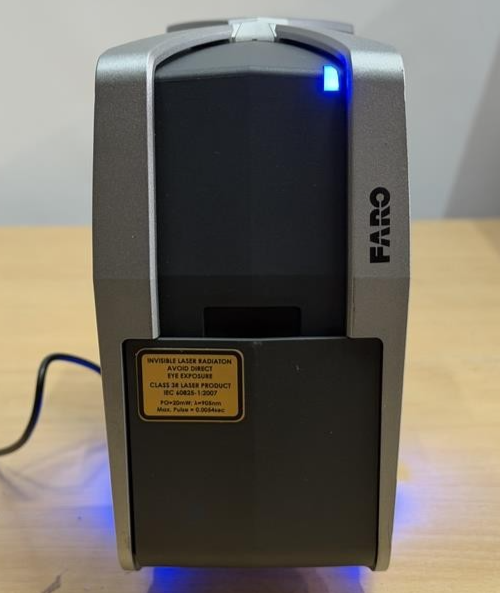

  • Laser power (cw Ø): 20mW (Laser class 3R)
  • Wavelength: 905nm
  • Beam divergence: Typical 0.19mrad (0.011°)
  • Beam diameter at exit: 3.0mm, circular
Data handling and control
  • Data storage: SD, SDHC™, SDXC™; 32GB card included

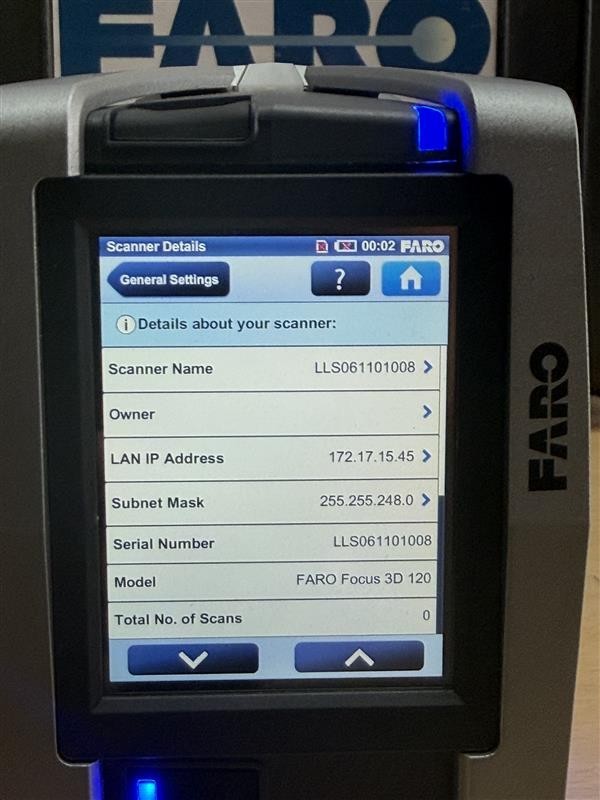

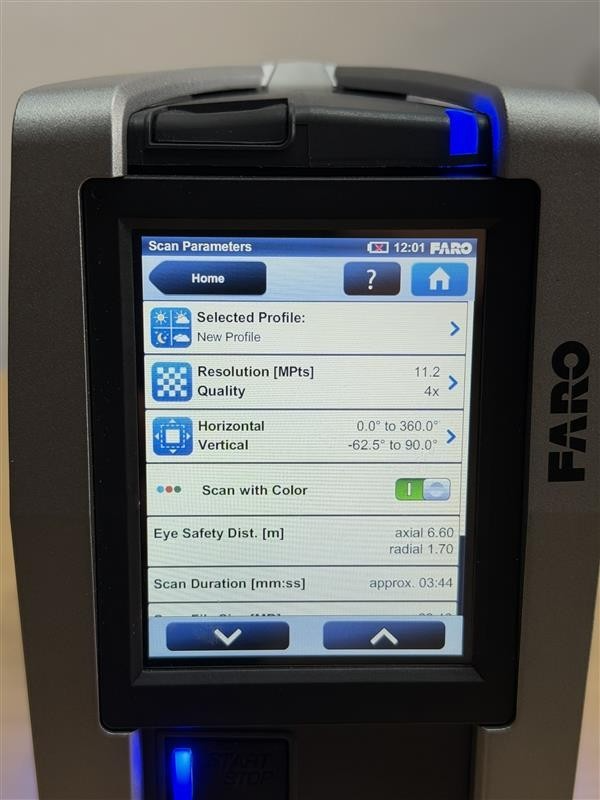

  • Scanner control: Via touch-screen display
  • New WiFi(WLAN) access: Remote control, Scan Visualization and download
  • are possible on mobile devices with Flash®
Multi-Sensor
  • Dual axis compensator: Levels each scan with an accuracy of 0.015° and a range of ±5°
  • Height sensor: Detects the height relative to a fixed point via an electronic barometer
  •  and adds it to the scan
  • Compass: Electronic compass gives the scan an orientation. A calibration feature is included.
VAT @ 20% INCLUDED IN PRICE - VAT INVOICE PROVIDED
£7500 excluding VAT

VAT IS NOT PAYABLE BY PURCHASERS OUTSIDE OF THE UK

DJ FOCUS3D-120/REF - 1 LLS061101008
