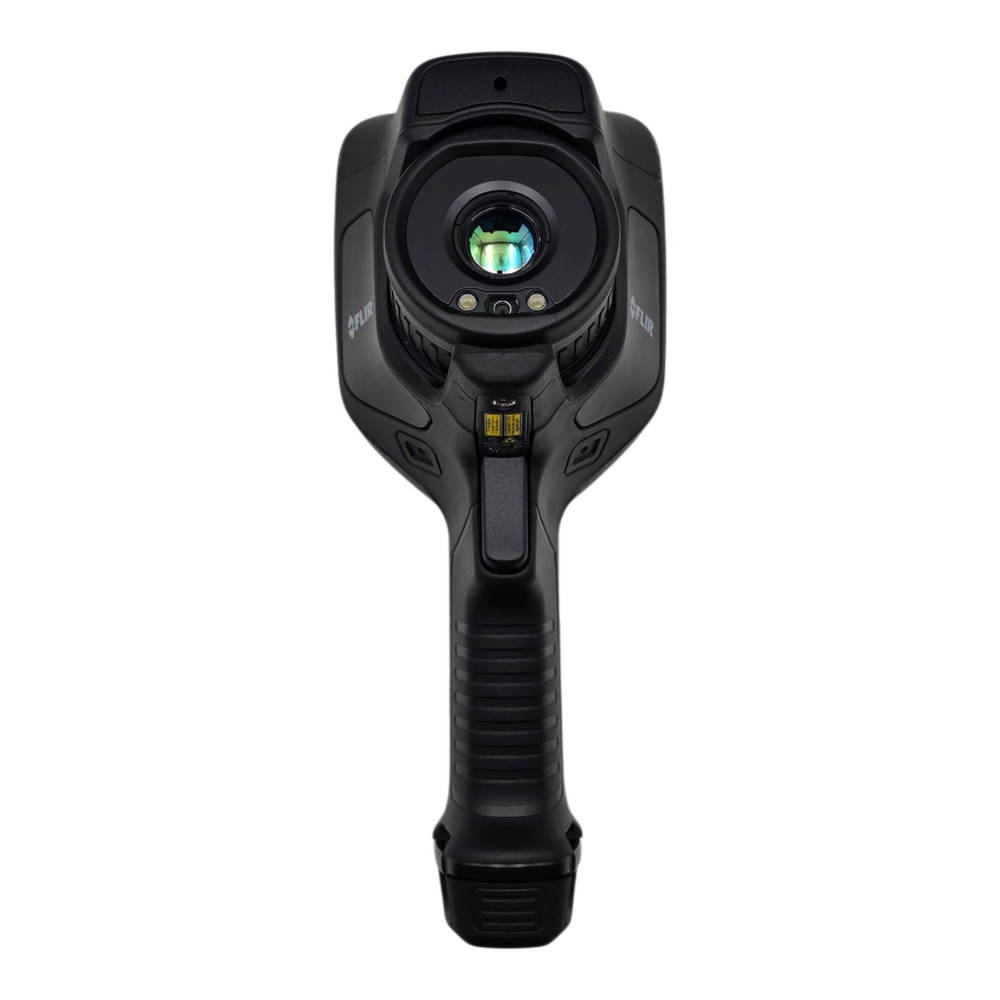

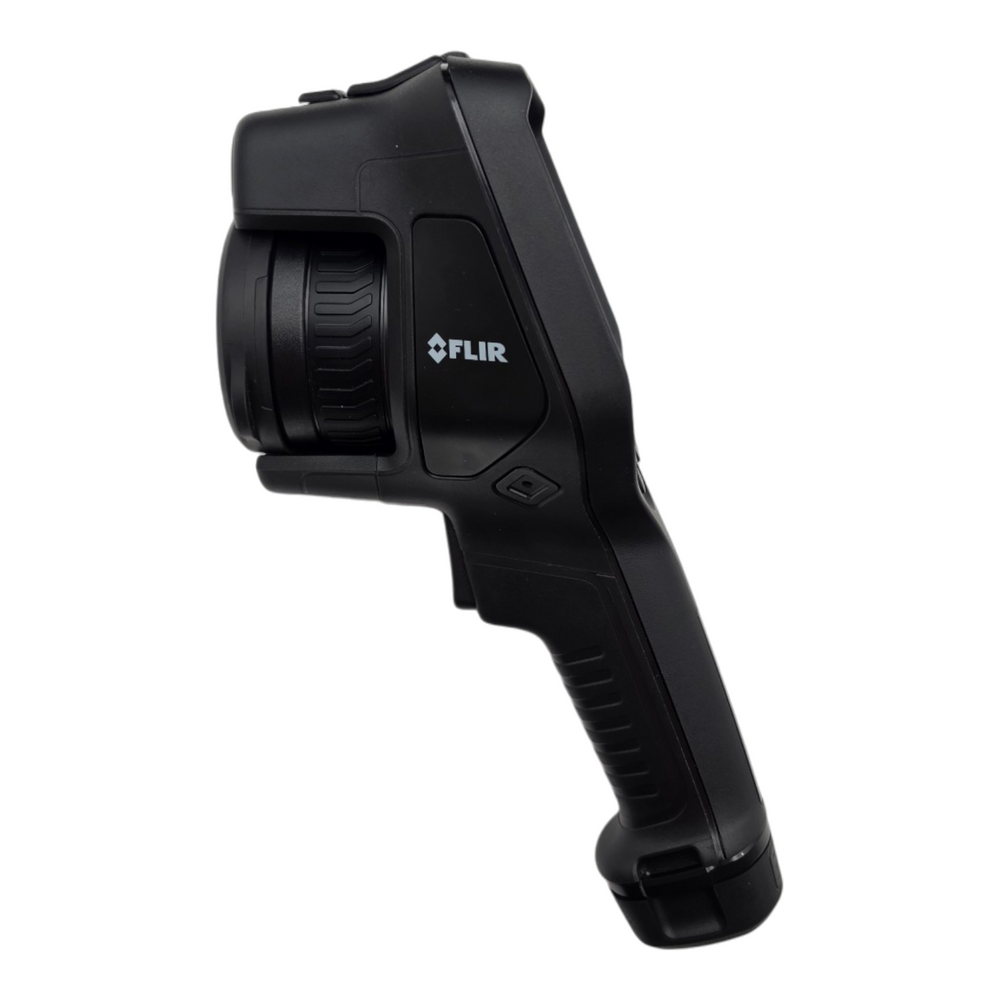

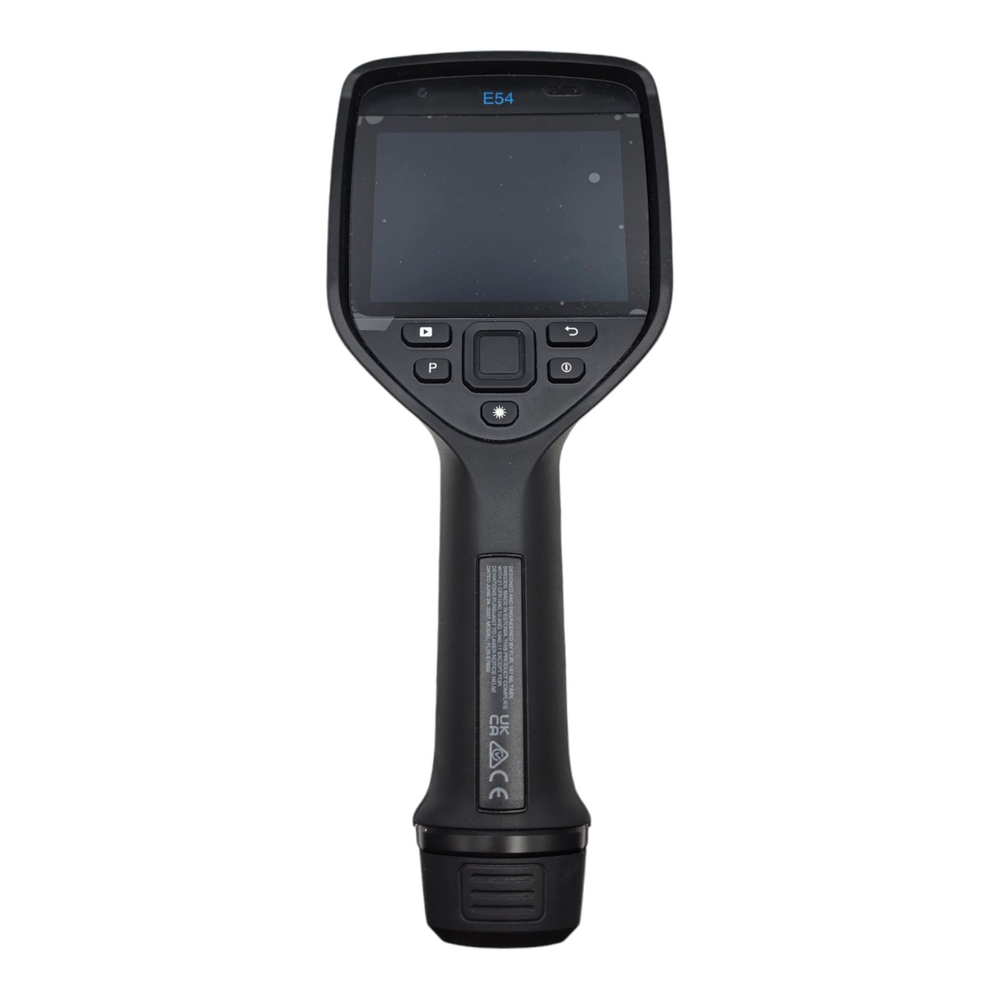

FLIR E54 Advanced Thermal Imaging Camera 320x240 Exx Series with Transport Case

Brand: Flir
Thermal Sensitivity: 40 mK (0.04°C)
Display Resolution: 640 x 480 Pixels
IR Sensor Resolution: 320 x 240 Pixels
Product: Handheld Thermal Camera
Temperature Range: -20°C to 650°C (-4°F to 1202°F)
Distance to Spot Ratio: 504:1
MPN: 845121201
Field of View: 24° x 18°
FLIR E54 Advanced Thermal Imaging Camera 320x240 Exx-Series Infrared IR w/ Case
P/N: 84512-1201

In Good Condition and Full Working Order
Tested

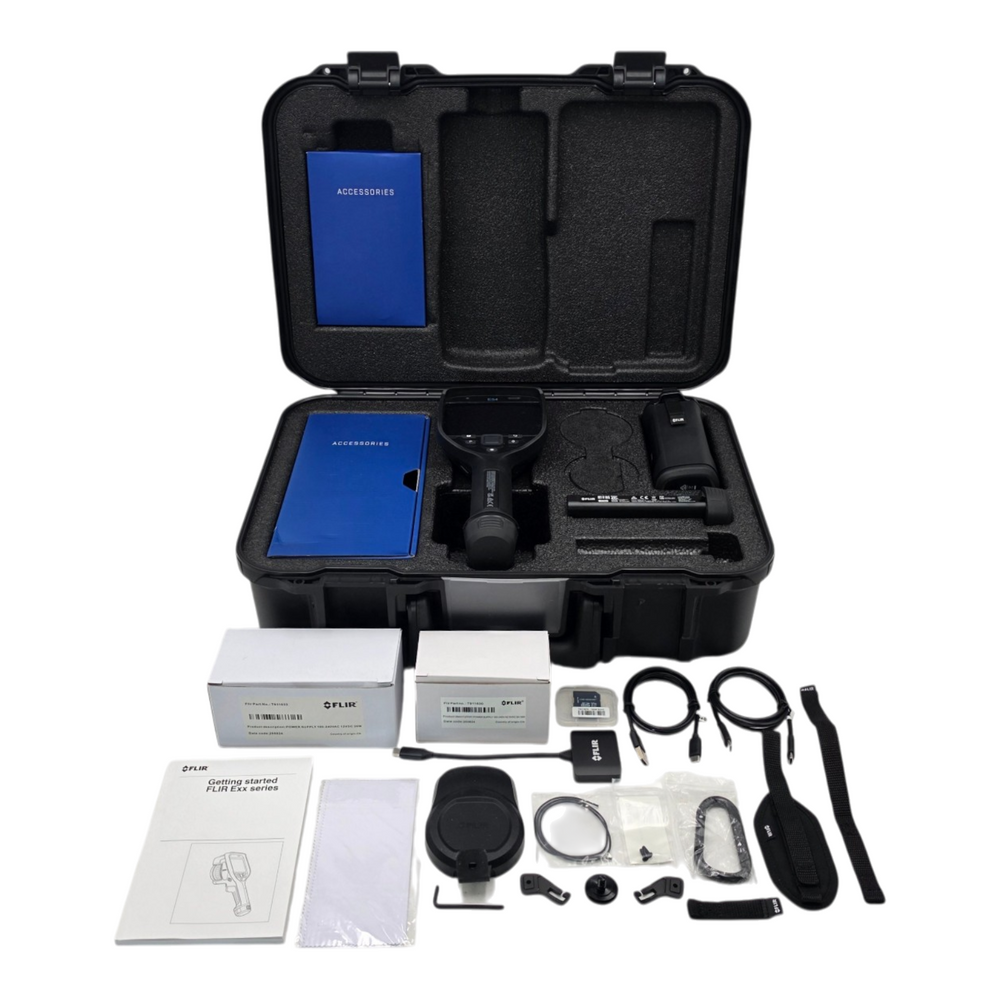

Included Items:

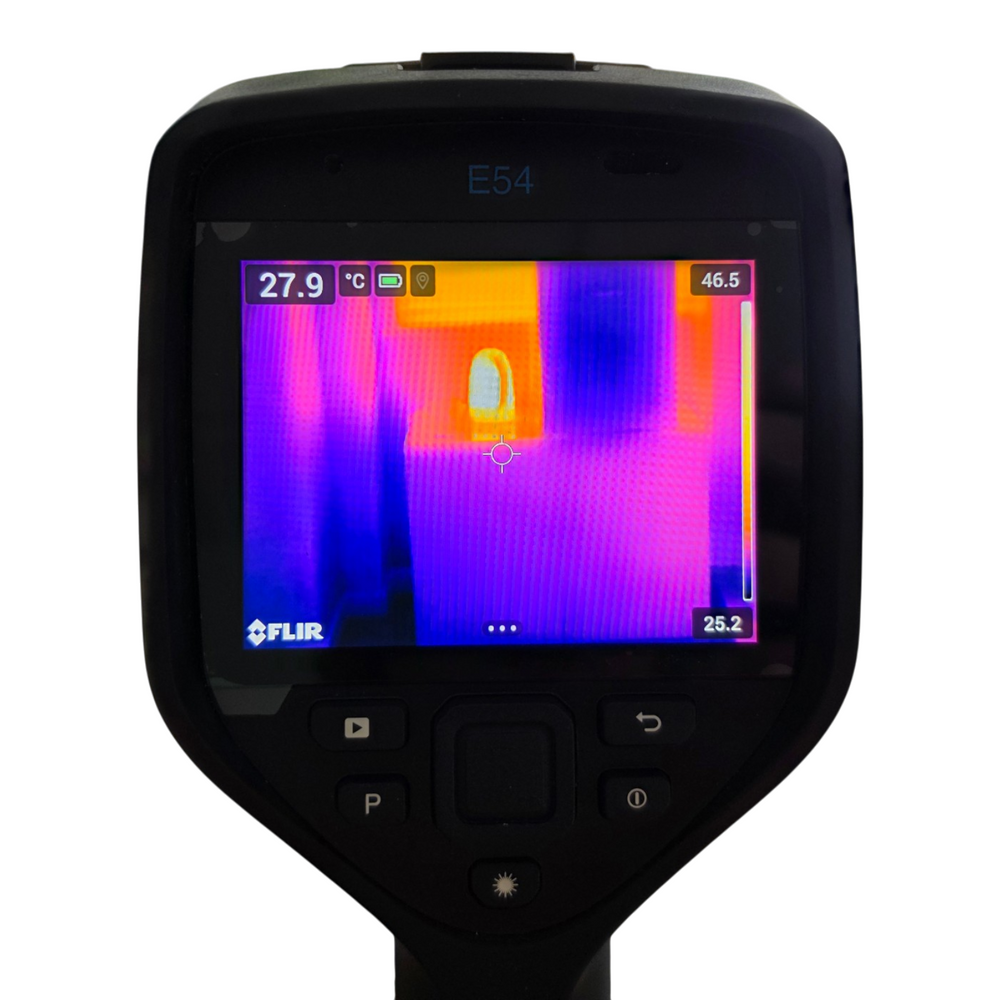

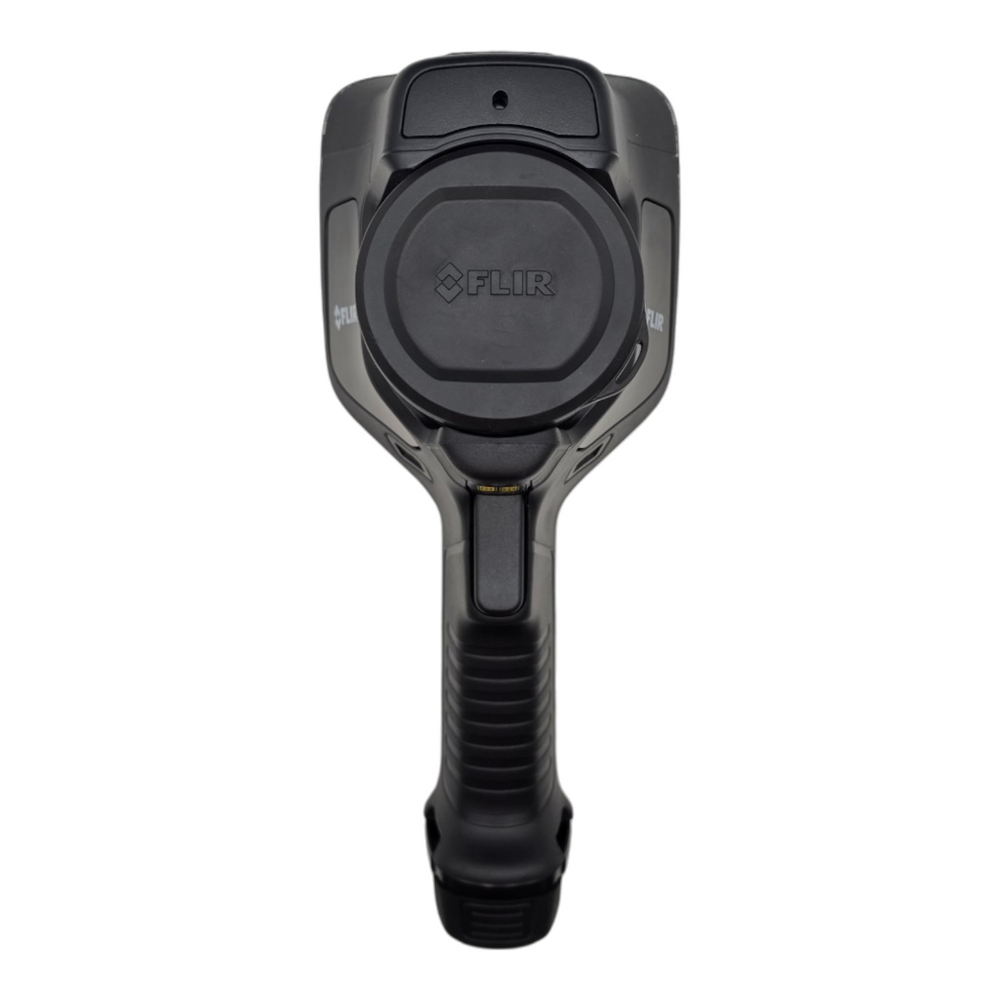

1 x FLIR E54 Advance Thermal Imagining Camera
2 x Battery for iXX-, Exx-, and VS290-Series (T301002ACC)

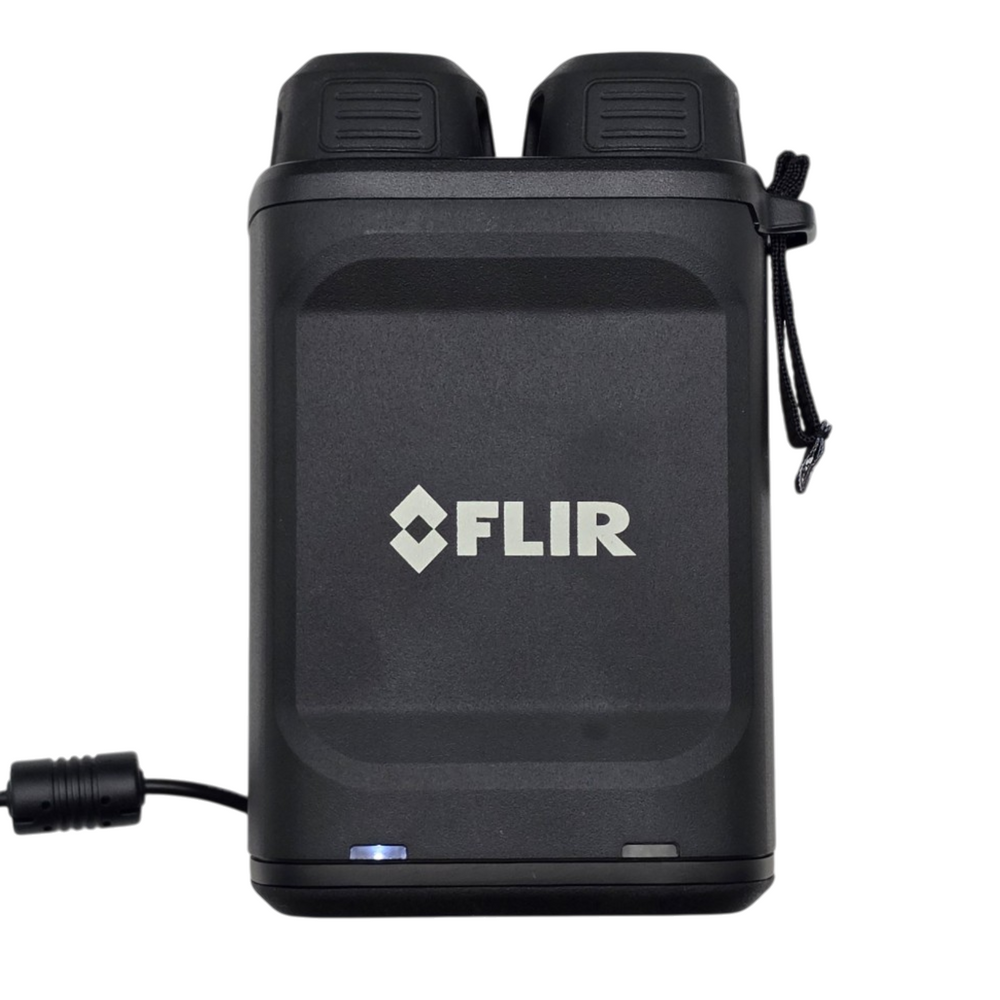

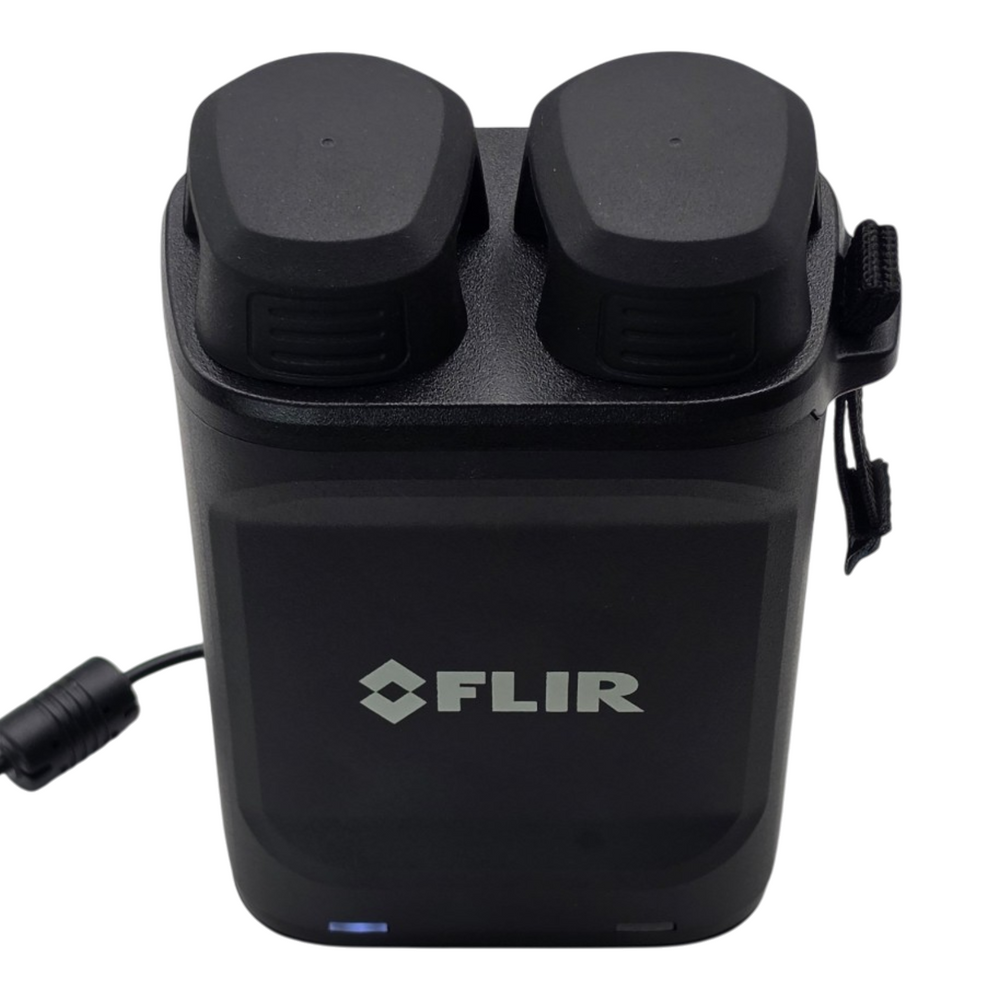

1 x Battery Charger (T199425ACC)

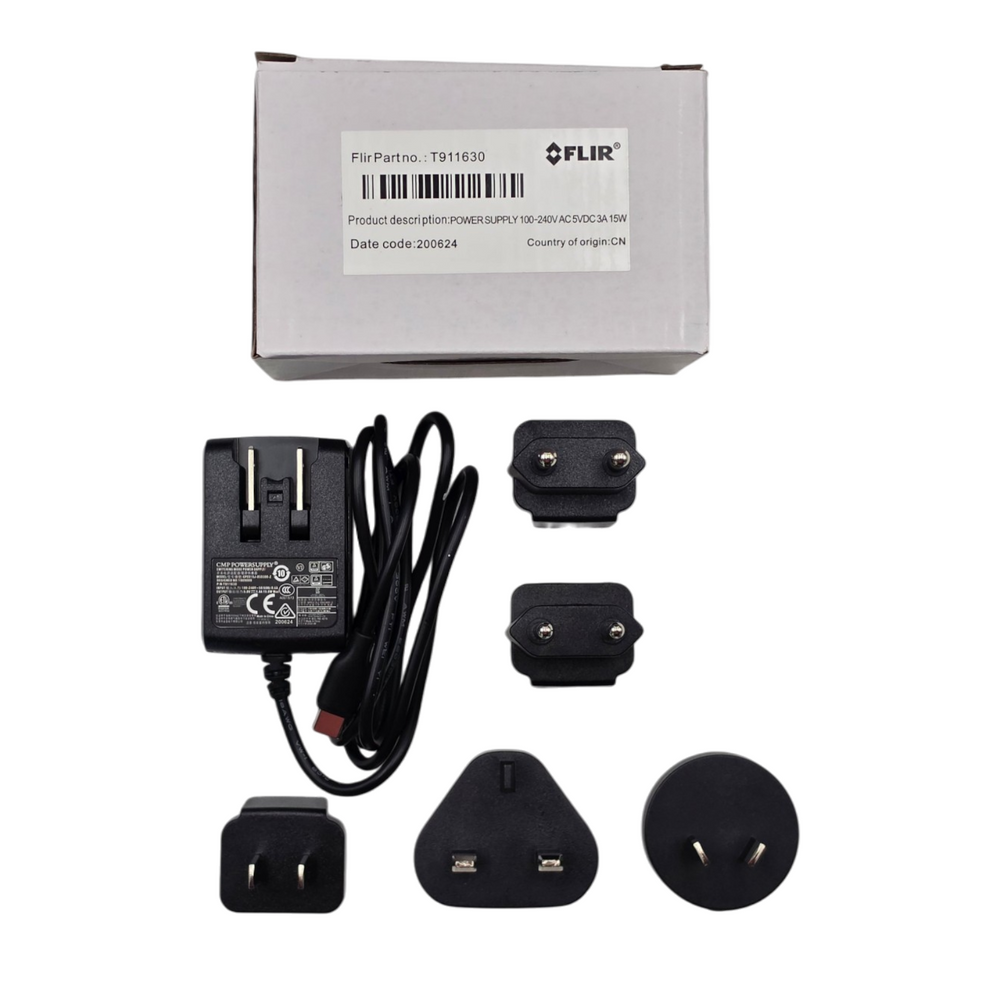

1 x Power Supply, 15 W/3 A (T911630ACC)

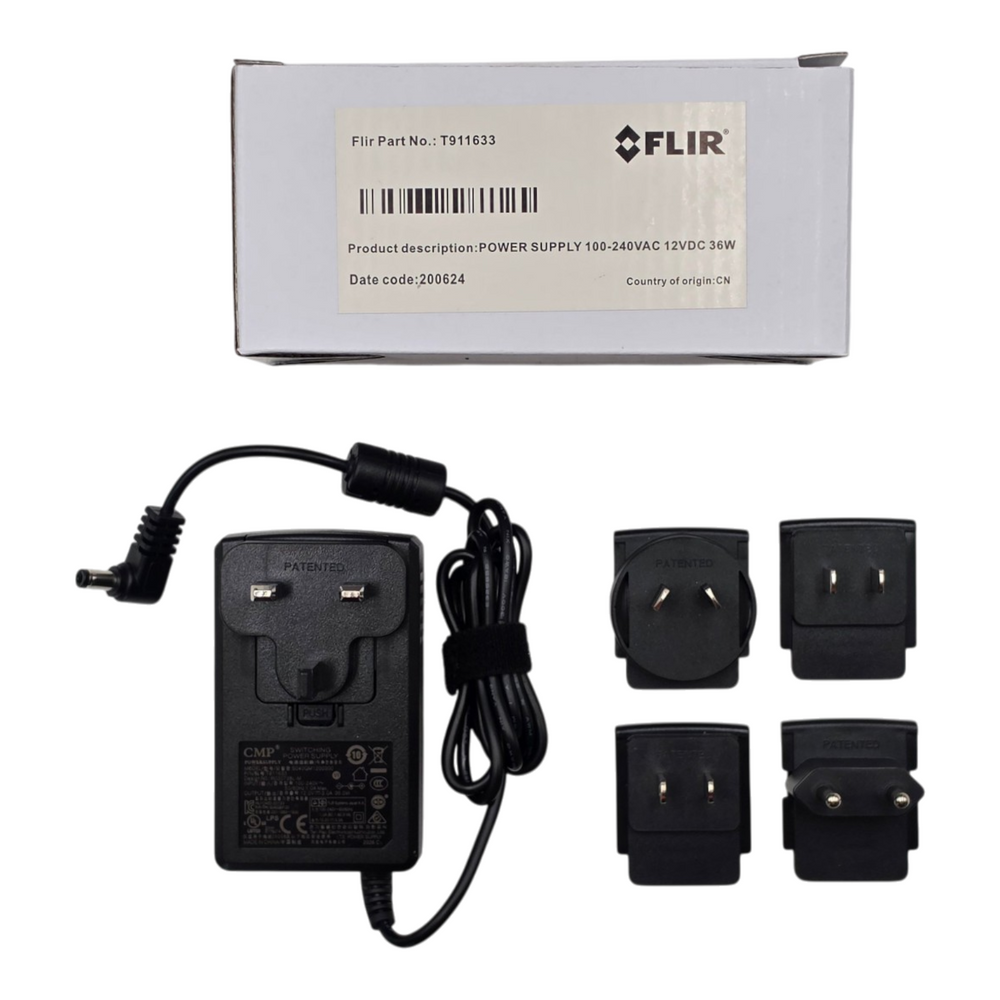

1 x Power Supply for Battery Charger (T911633ACC)

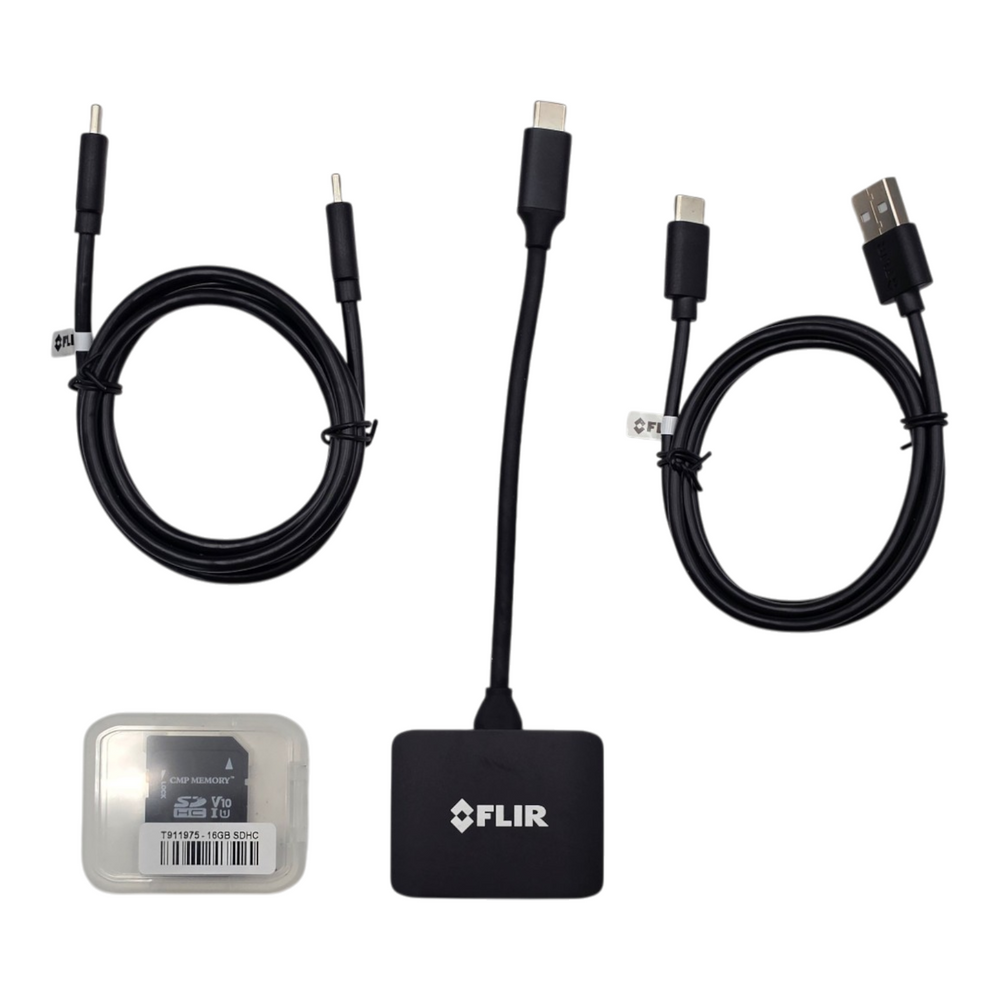

1 x USB Type-C to HDMI and PD adapter (T911845ACC)
1 x Cable USB 2.0 Type A - Type C 1.0 m Black (T911940ACC)
1 x USB Type-C to USB Type-C Cable (T911705ACC)

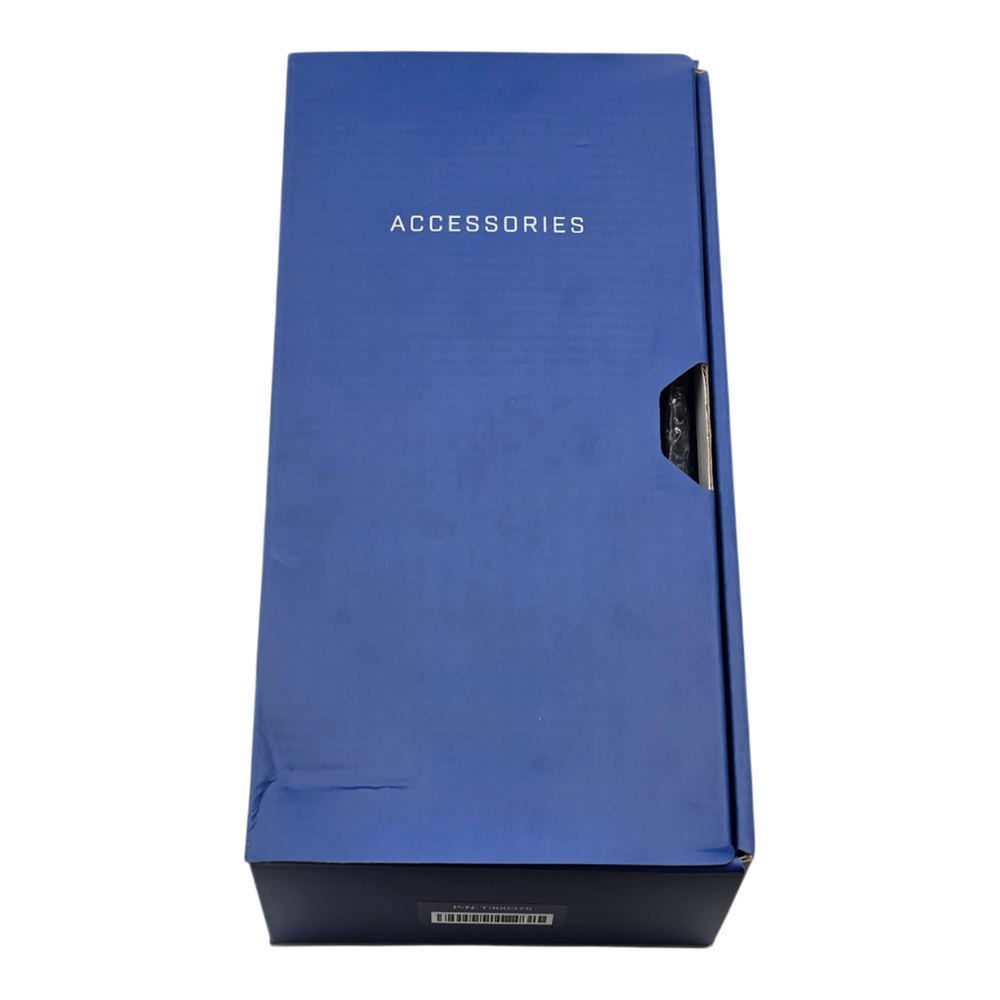

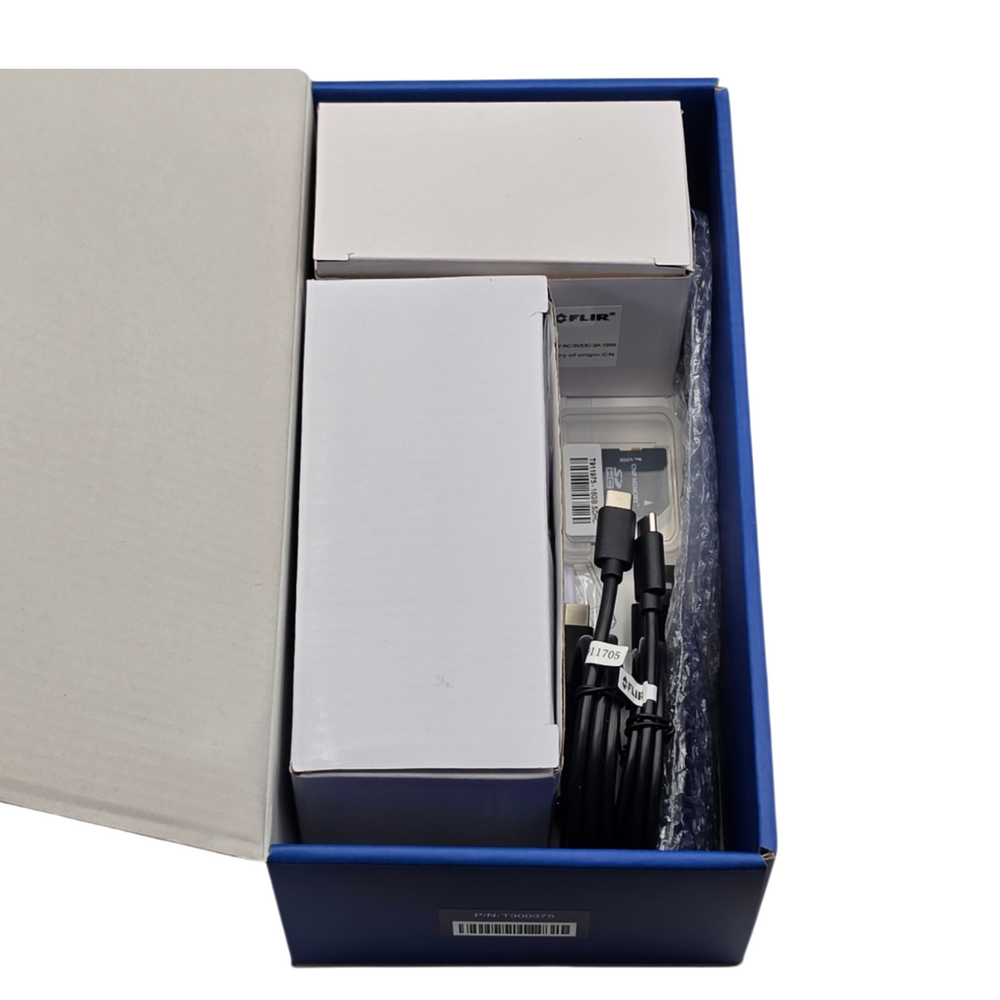

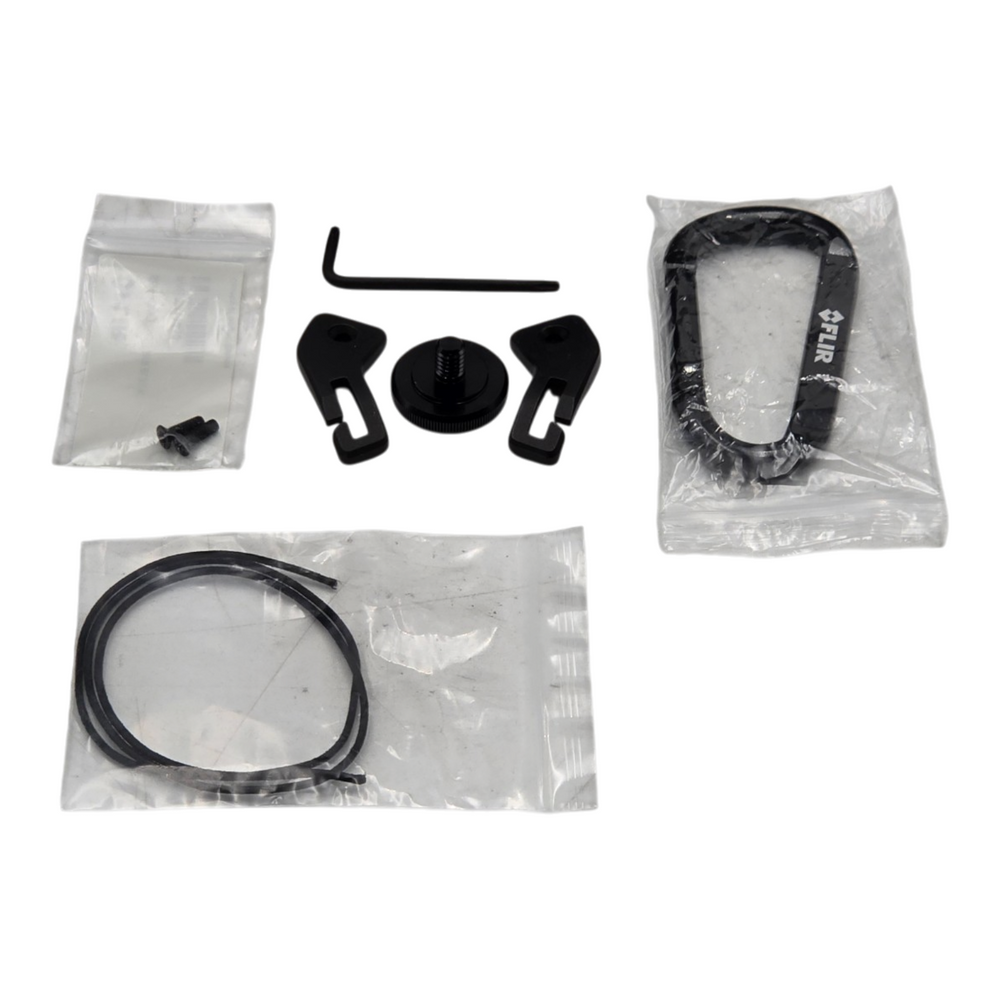

1 x Accessory Box II for Exx-Series (T199557ACC)

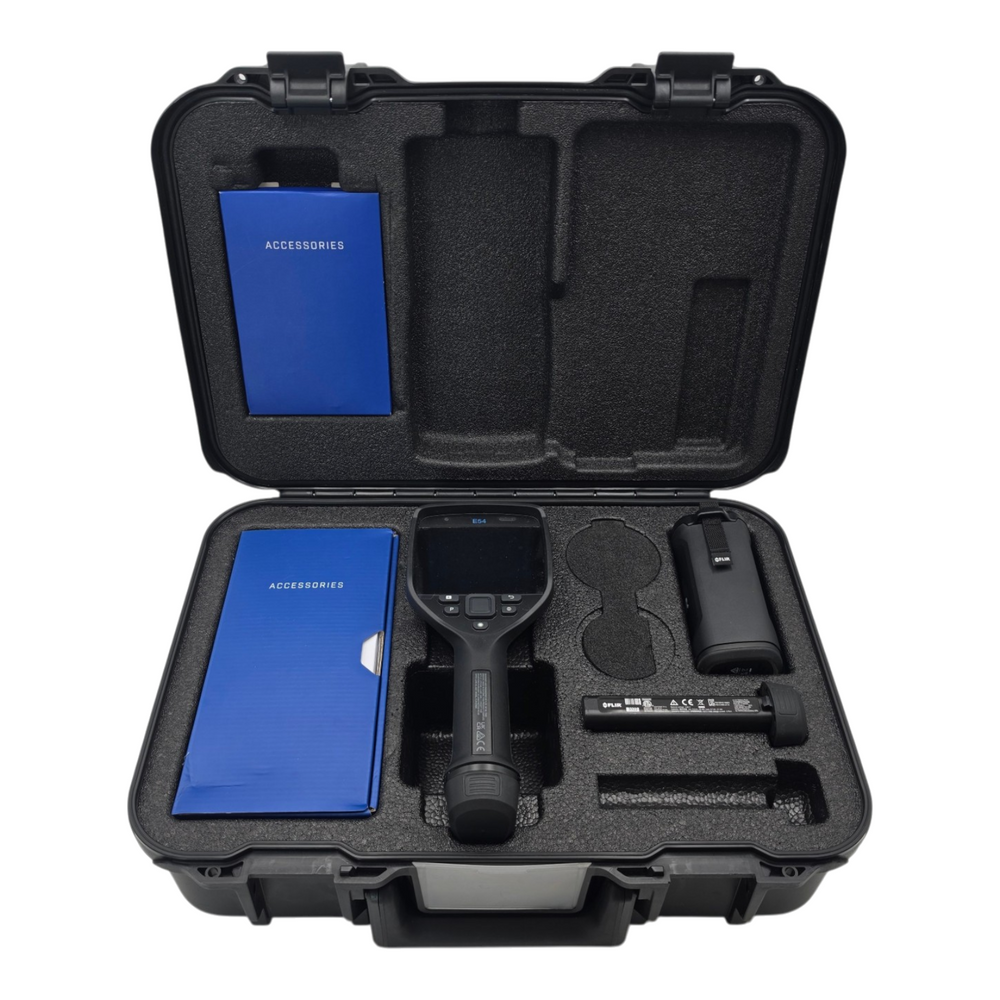

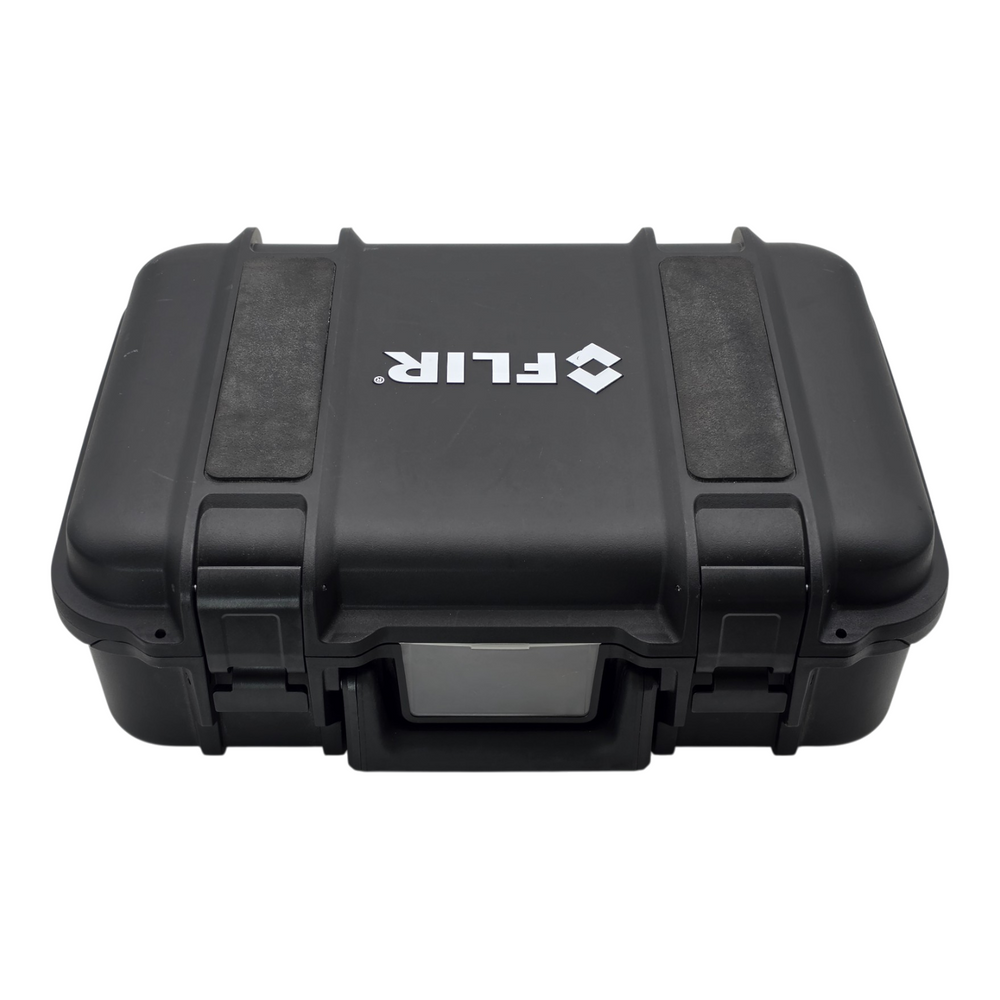

1 x Hard Transport Case (T199346ACC)

Specifications
IR Resolution: 320 × 240 pixels
Thermal Sensitivity/NETD: <40 mK at 30°C (86°F)
Accuracy: ±2°C (±3.6°F) or ±2% of the reading
Digital Camera: 5 MP, with built-in LED photo/video lamp
Display: 4", 640 × 480 pixel touchscreen LCD with auto-rotation

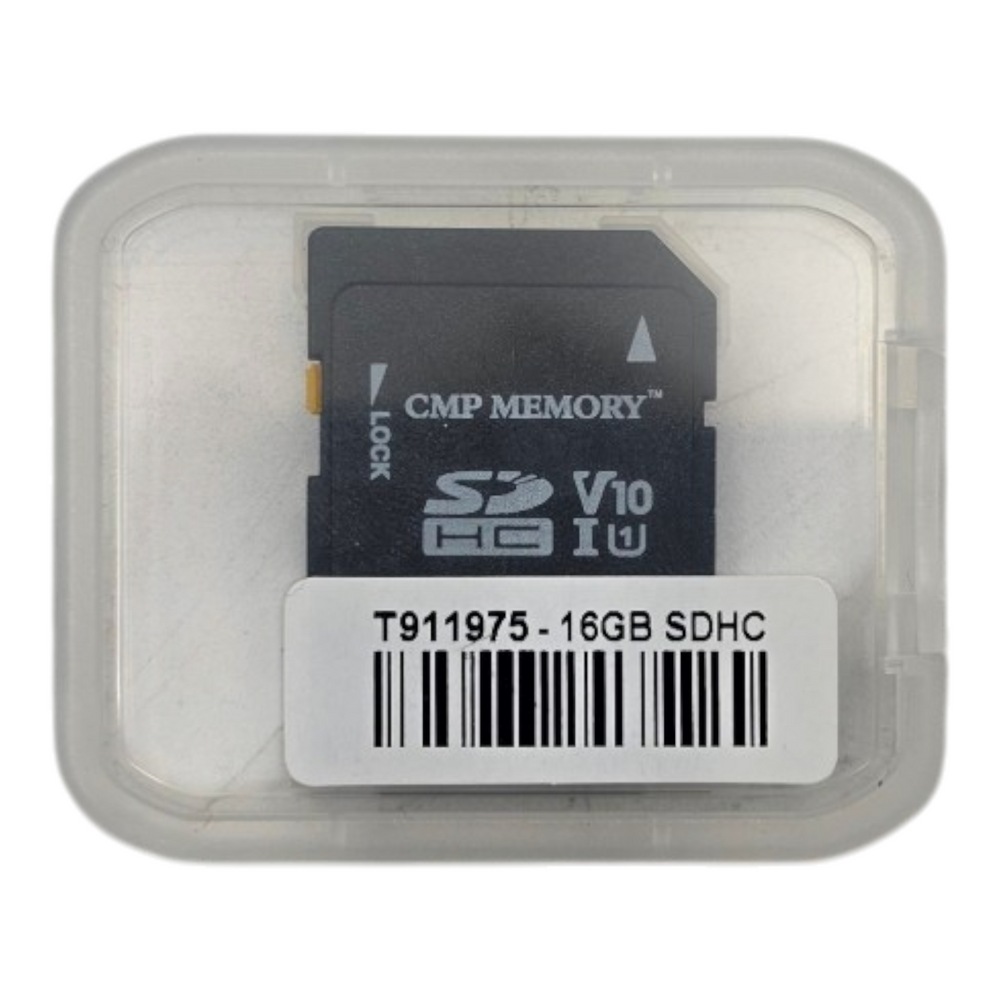

Storage Media: Removable SD card

Imaging & Optical
Color Palettes: Iron, Rainbow, Rainbow HC, White hot, Black hot, Arctic, Lava
Detector Type and Pitch: Uncooled microbolometer, 17 µm
Digital Camera: 5 MP, with built-in LED photo/video lamp
Digital Zoom: 1-4× continuous
f-number: 1.3
Focus: Manual
Image Frequency: 30 Hz
IR Resolution: 320 × 240 pixels
Lens Identification: NA
Minimum Focus Distance: 0.15 m
Non-radiometric IR video streaming: H.264 or MPEG-4 over Wi-Fi MJPEG over UVC or Wi-Fi
Picture-in-Picture: Centered infrared area on the visual image
Radiometric IR video recording: Real-time radiometric recording (.csq)
Radiometric IR video streaming: Yes, over UVC
Spectral Range: 7.5–14 µm
Thermal Sensitivity/NETD: <40 mK at 30°C (86°F)
UltraMax: No
Viewfinder: No

Measurement & Analysis
Accuracy: ±2°C (±3.6°F) or ±2% of the reading
Measurement Presets: No measurements, Center spot, Hot spot, Cold spot, 3 spots, Hot spot–Spot
Object Temperature Range: 20 to 120°C (-4 to 248°F); 0 to 650°C (32 to 1202°F)
Spot Meter: 3 ea. in live mode
User Interface
Display: 4", 640 × 480 pixel touchscreen LCD with auto-rotation
Text: Predefined list or touchscreen keyboard
Voice: 60 sec. recording added to still images or video via built-in mic (has speaker) or via Bluetooth

Communication & Data Storage
Communication Interfaces: USB 2.0, Bluetooth®, Wi-Fi, DisplayPort
Image File Format: Standard JPEG with measurement data included. Infrared-only mode
Image Storage Mode: Infrared, Visual, MSX®, Picture-in-Picture, Gallery
METERLiNK: Yes
Storage Media: Removable SD card
Time Lapse: NA
Video Out: DisplayPort over USB Type-C
Power
Battery operating time: >2.5 hours at 25°C (68°F) and typical use
Battery type: Rechargeable Li-ion battery

Environmental & Certifications
Operating Temperature Range: 15 to 50°C (5 to 122°F)
Safety: EN/UL/CSA/PSE 60950-1
Storage Temperature Range: 40 to 70°C (-40 to 158°F)
General
FLIR Inspection Route: Enabled in camera
Laser Pointer: Yes
