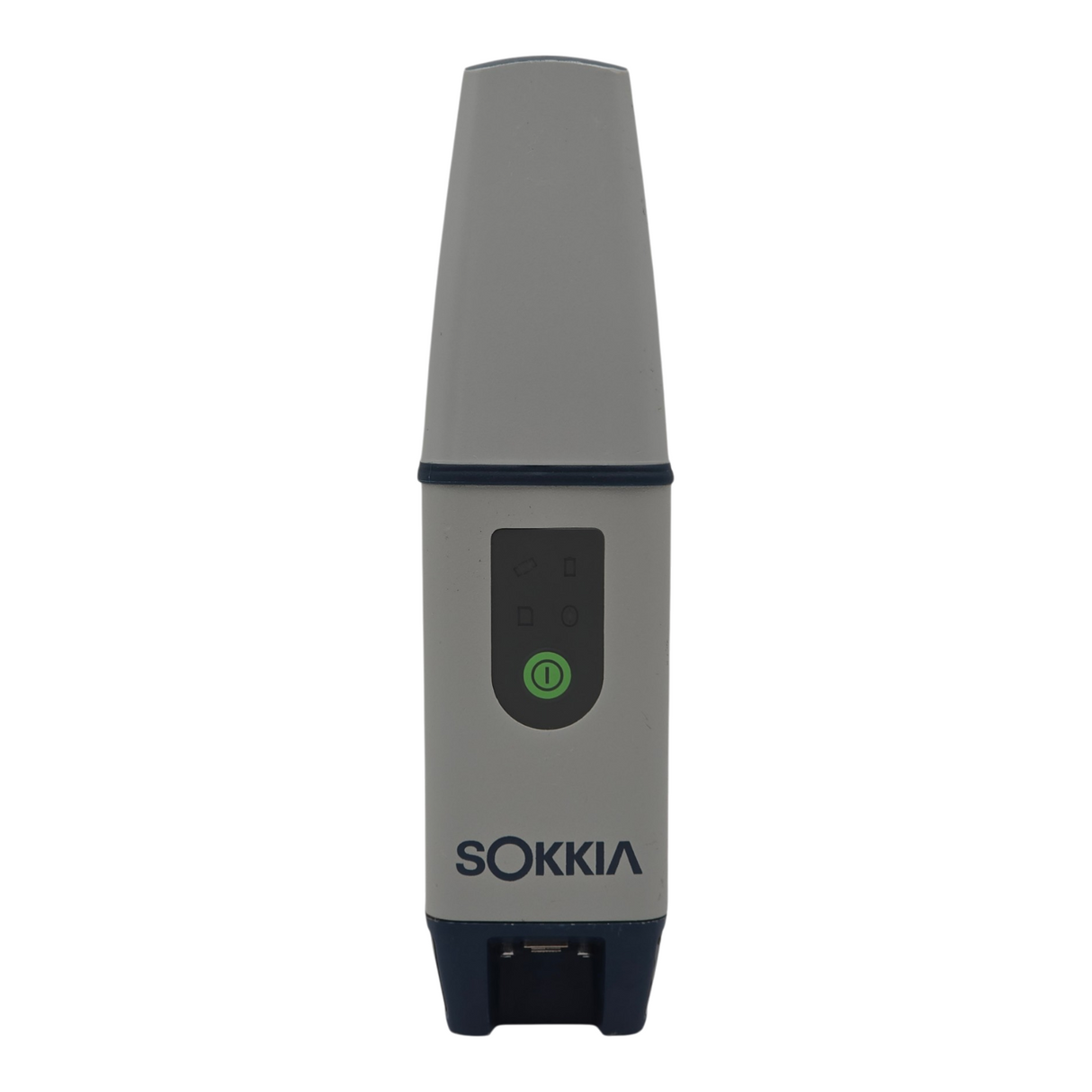

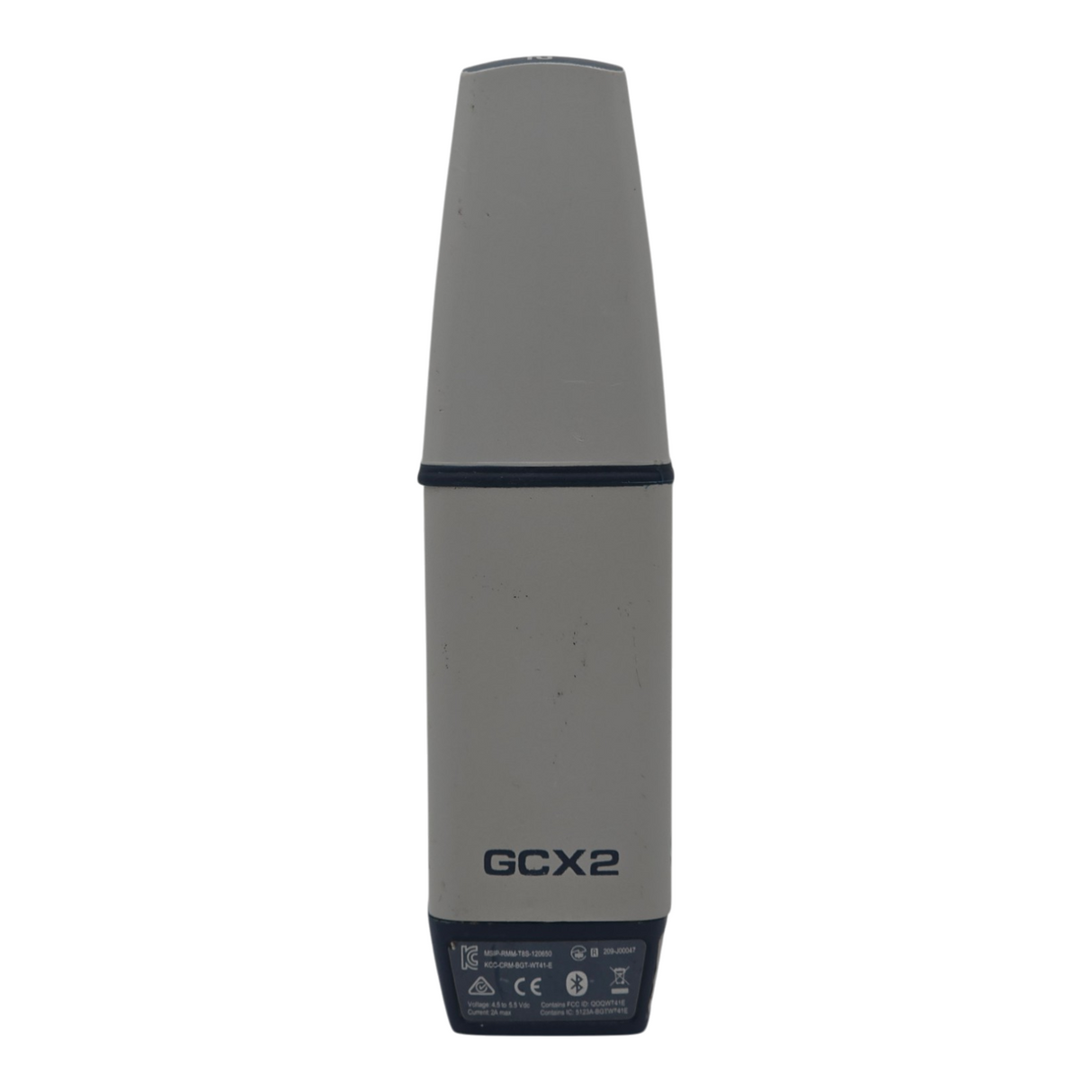

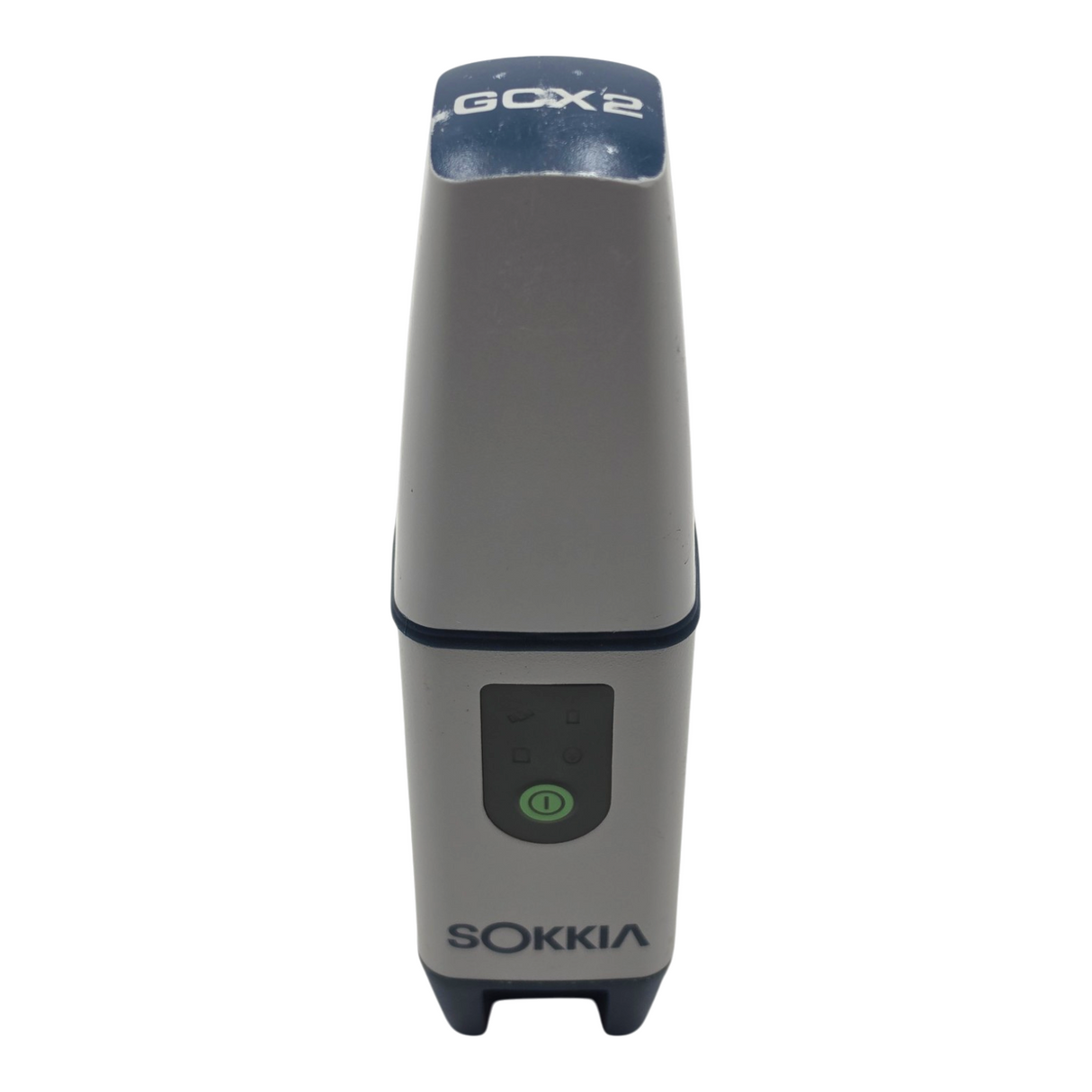

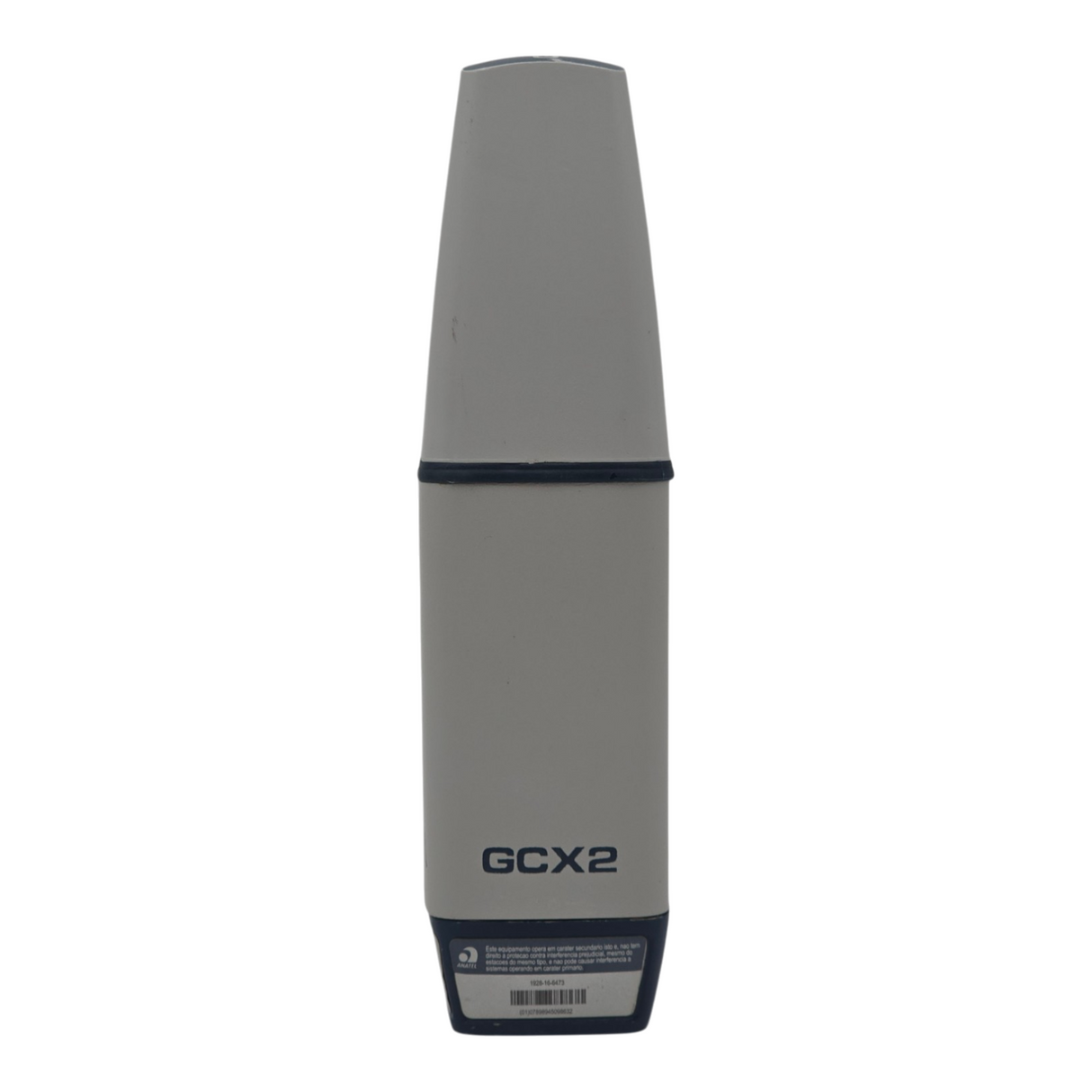

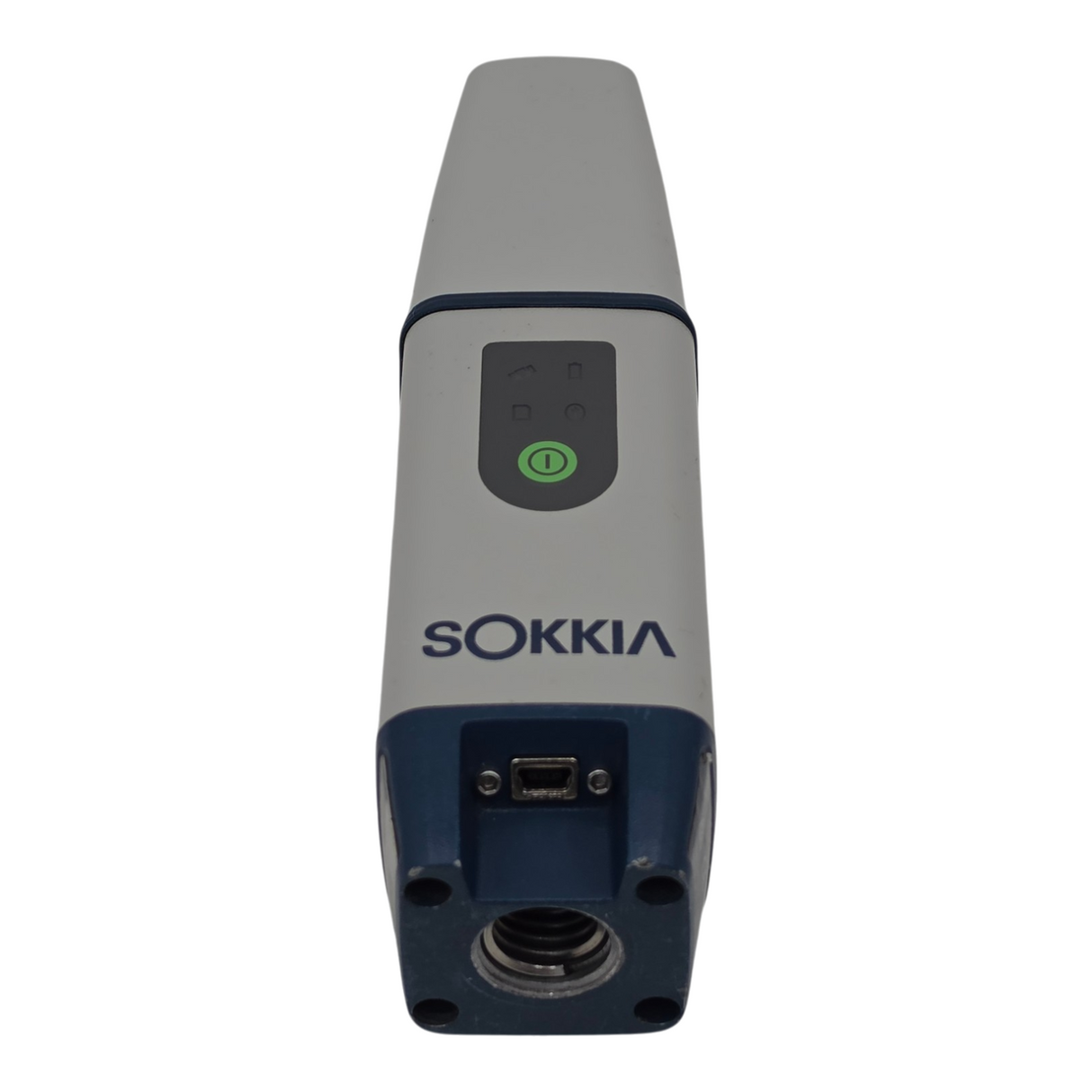

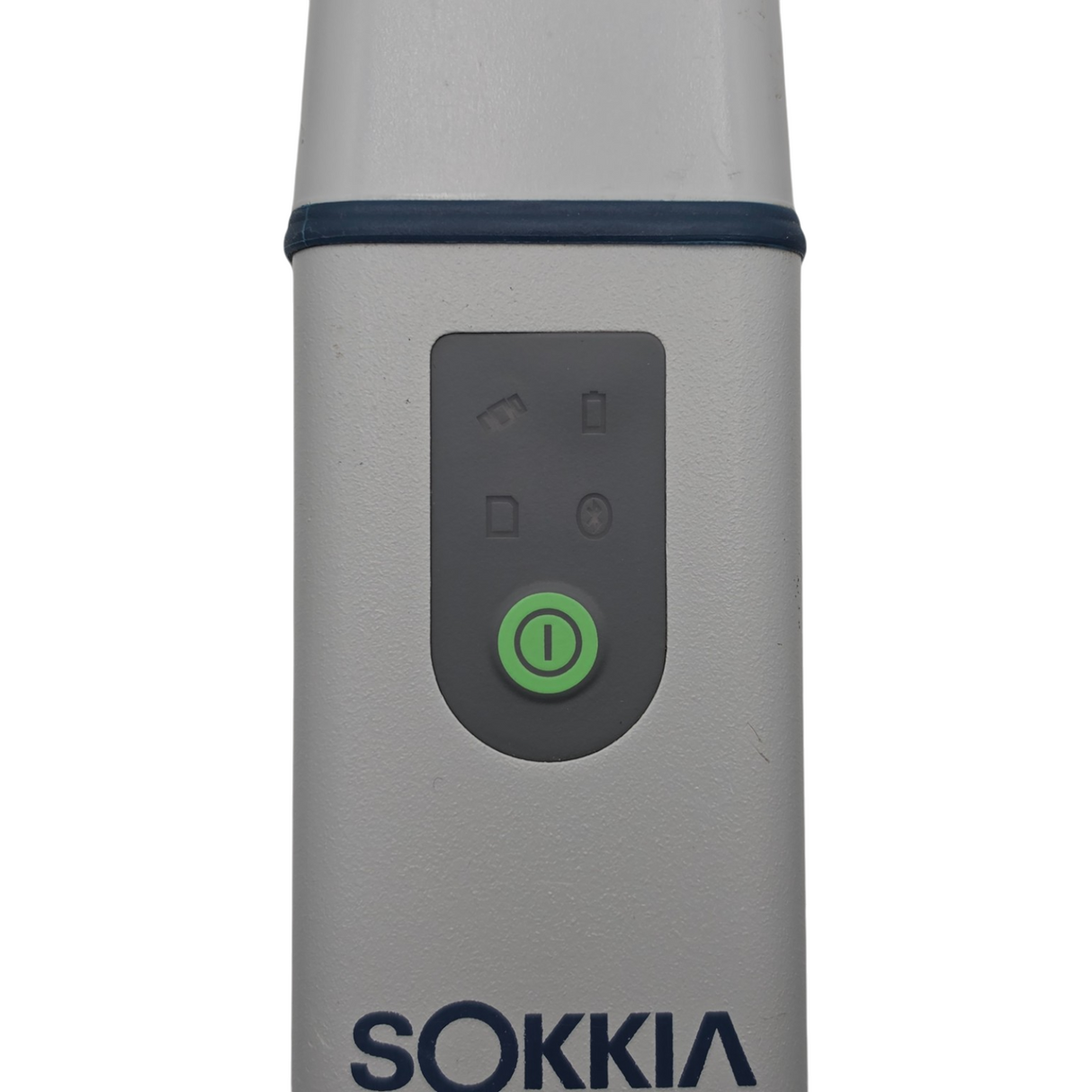

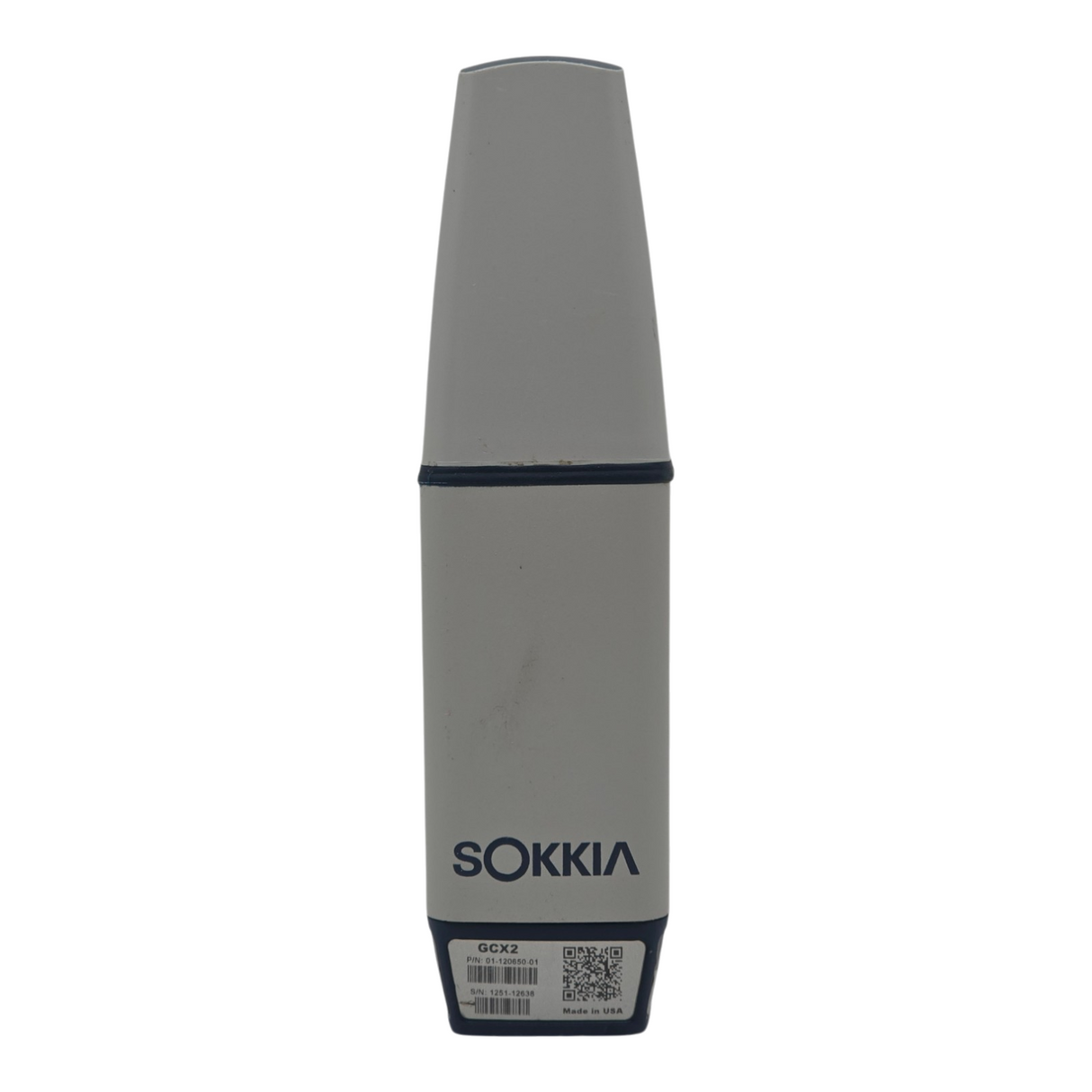

Sokkia GCX2 GNSS Receiver POST2 Centimetre Topcon RTK Land Survey Construction
Sokkia GCX2 GNSS Receiver POST2 Centimetre Topcon RTK Land Survey Construction ist auf Lager und wird versandt, sobald es wieder verfügbar ist
Verfügbarkeit für Abholungen konnte nicht geladen werden
Beschreibung
Beschreibung
Memory: 2 GB Internal Flash Storage
Horizontal Static Accuracy: 3 mm + 0.5 ppm
MPN: 01-120650-01
Channels: 226
Brand: SOKKIA
Antenna Type: POST2 (Precision Orbital Satellite Technology)
Operating Time: Up to 12 Hours
Vertical RTK Accuracy: 15 mm + 1 ppm
Product Type: GNSS RTK Receiver
IP Rating: IP67
Horizontal RTK Accuracy: 10 mm + 1 ppm
Model: GCX2
Frequency: Dual (L1, L2)
Connectivity: Bluetooth
Vertical Static Accuracy: 5 mm + 0.5 ppm
Signals Tracked: GPS, GLONASS, SBAS, QZSS, GAGAN
Country of Origin: United States

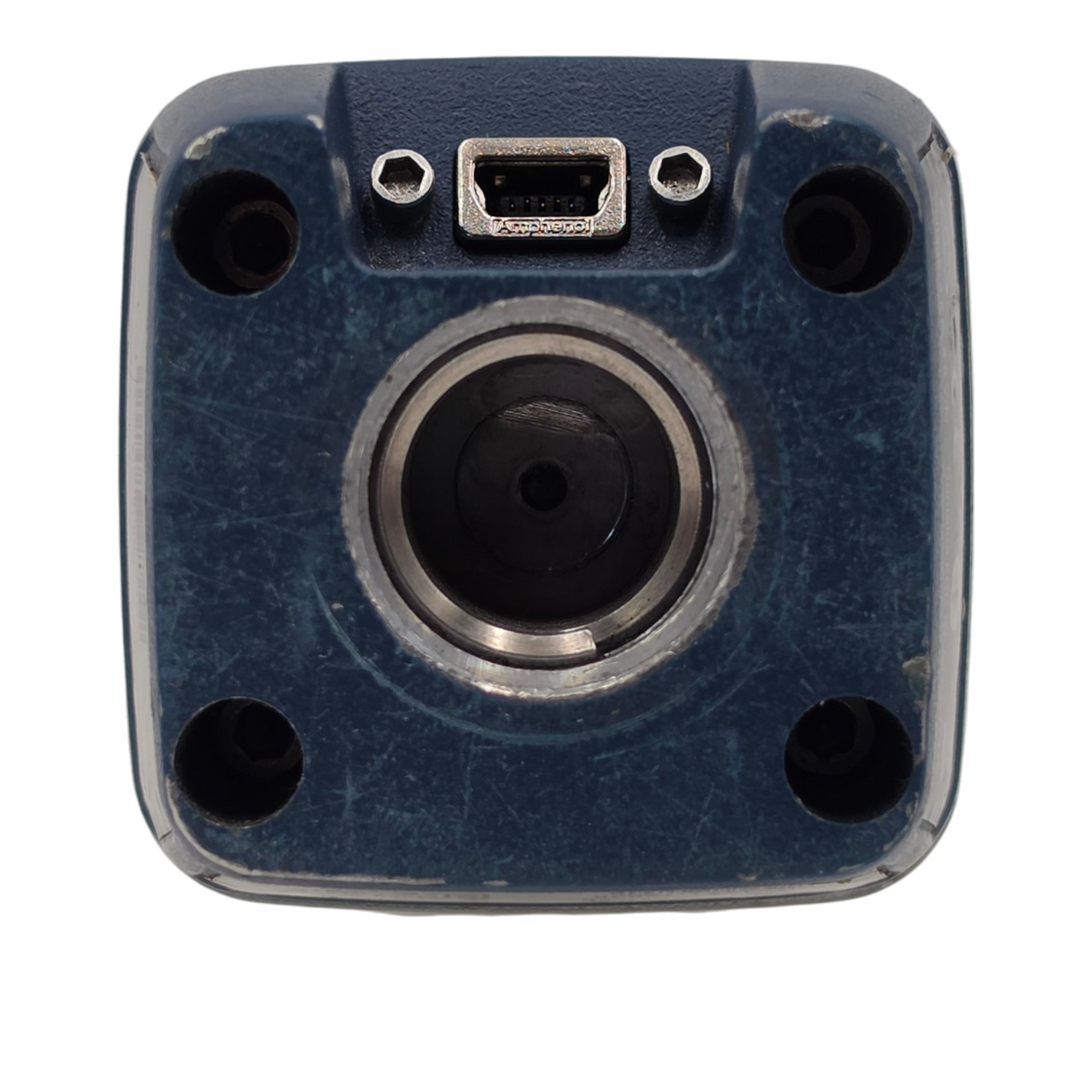

Interface: Micro-B USB for Data Transfer and Charging
- 1 x Sokkia GCX2 GNSS Receiver
- Dust/Water Protection: IP67
- Humidity: 100%, Condensing
- Operating Temperature: -40ºF to 185ºF (-40°C to 85°C)
- Display Type: LED User Interface (Minimal Interface)
- Dimensions (w x h x l): 1.9” x 7.3” x 1.9” (47 x 184.5 x 47 mm)
- Weight (including batteries): 13 oz. (375 g)
Tracking Capability:
- Number of Channels: 226 Channels
- Tracked Signals: GPS L1 C/A, L1C, L2P, L2C
- GLONASS: L1 C/A, L1P, L2 C/A, L2P
- SBAS: L1 C/A WAAS/MSAS/EGNOS
- QZSS: L1 C/A, L1C, L2C
- GAGAN: Tracked
- Antenna Type: Integrated Antenna
Positioning Accuracy:
- Static (L1 + L2): H: 4 mm + 0.5 ppm V: 6 mm + 0.5 ppm
- RTK (L1 + L2): H: 12 mm + 1.0 ppm V: 18 mm + 1.0 ppm
- DGPS: 0.5 m
- SBAS: 1 m
- Maximum Data Rate: 10 Hz
Data Management:
- Memory: Internal Non-Removable Memory up to 8GB
- Real Time Data Output: TPS; RTCM SC104 v 2.x and 3.x; CMR/CMR+
- ASCII Output: NMEA 0183 v 2.x and 3.0
- Communication Ports: Bluetooth; USB 2.0 High Speed Device
Wireless Communication:
- Bluetooth Modem: v2.1 + EDR
- RTK Communication: Over 1150 ft. (300+ m) with up to 3 Simultaneous Rovers or through Cell Enabled S-10 Data Collector - (Long Range Bluetooth)
Power Supply:
- Battery Type: Internal Non-Removable
- Operating Time: All Day Operation in any Configuration (Up to 12 Hours)
- External Power Connector: Service Port (Shared with USB 2.0 Communication)
