Topcon

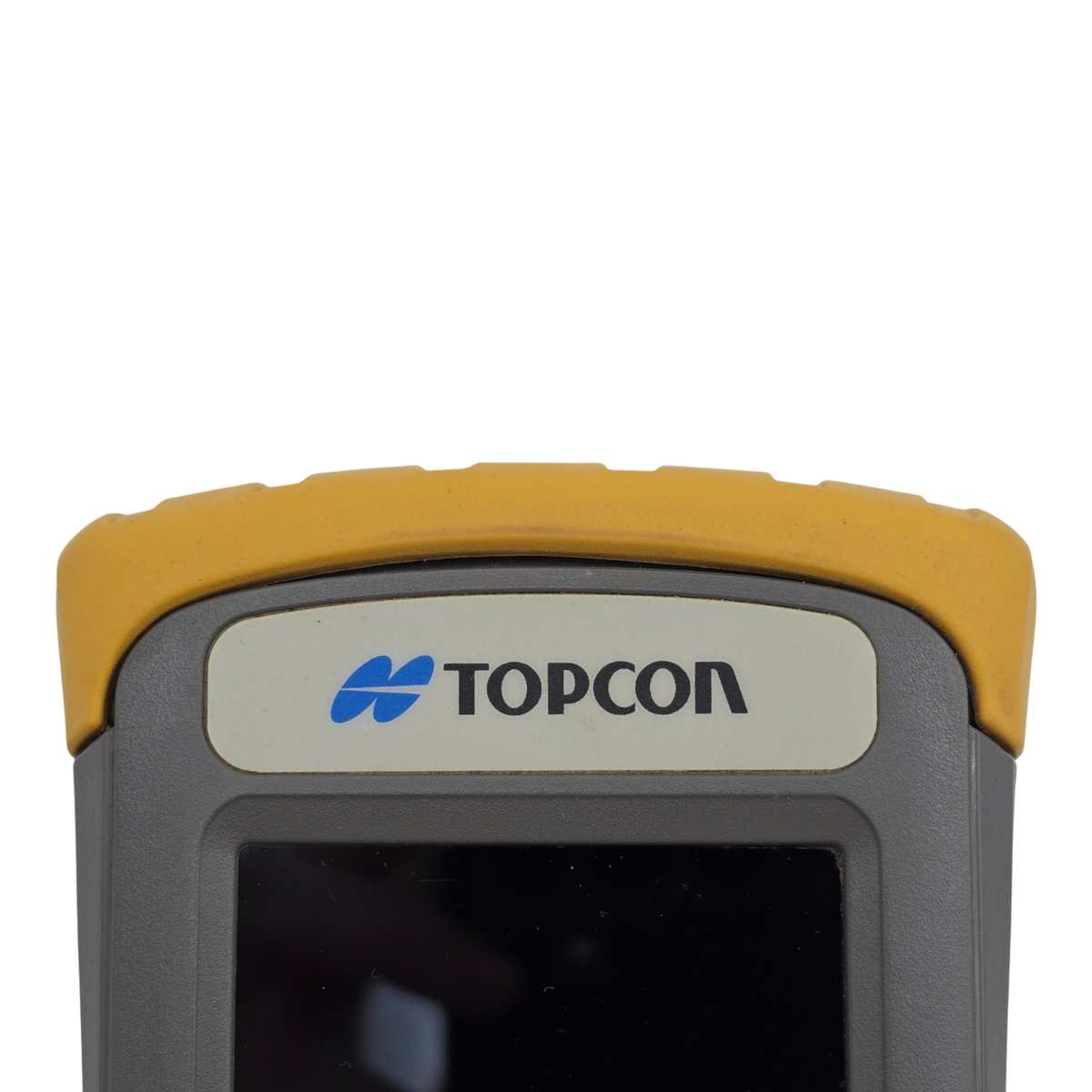

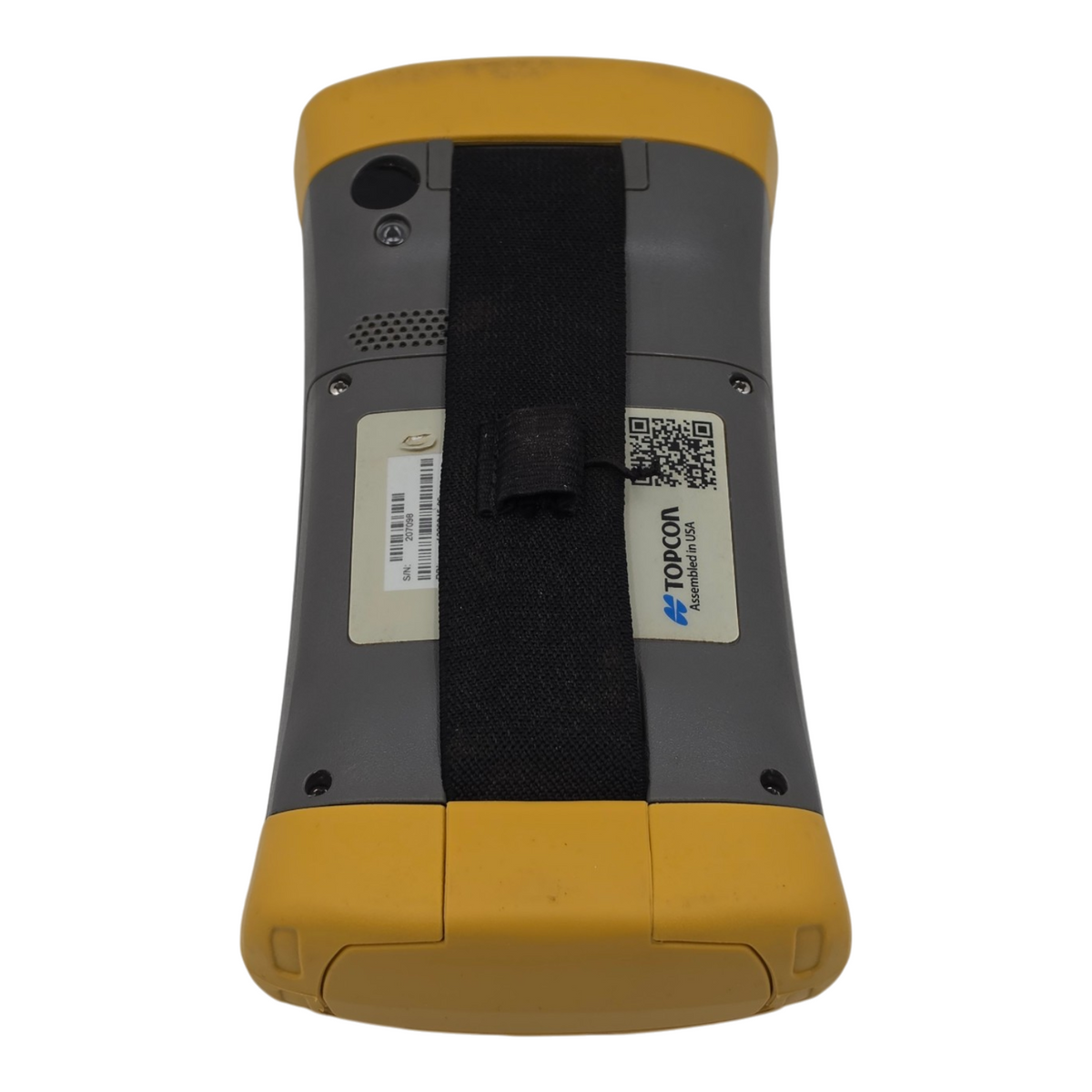

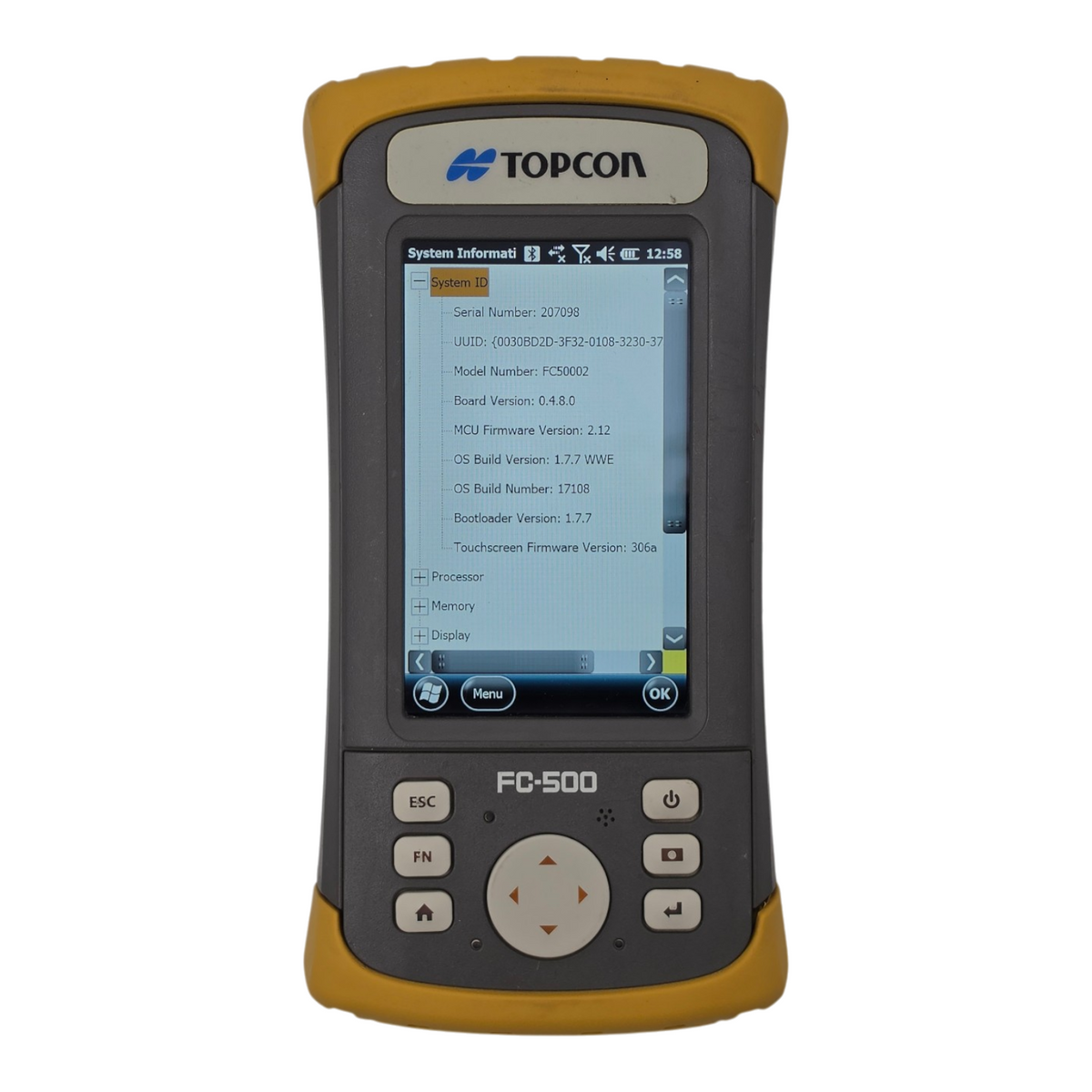

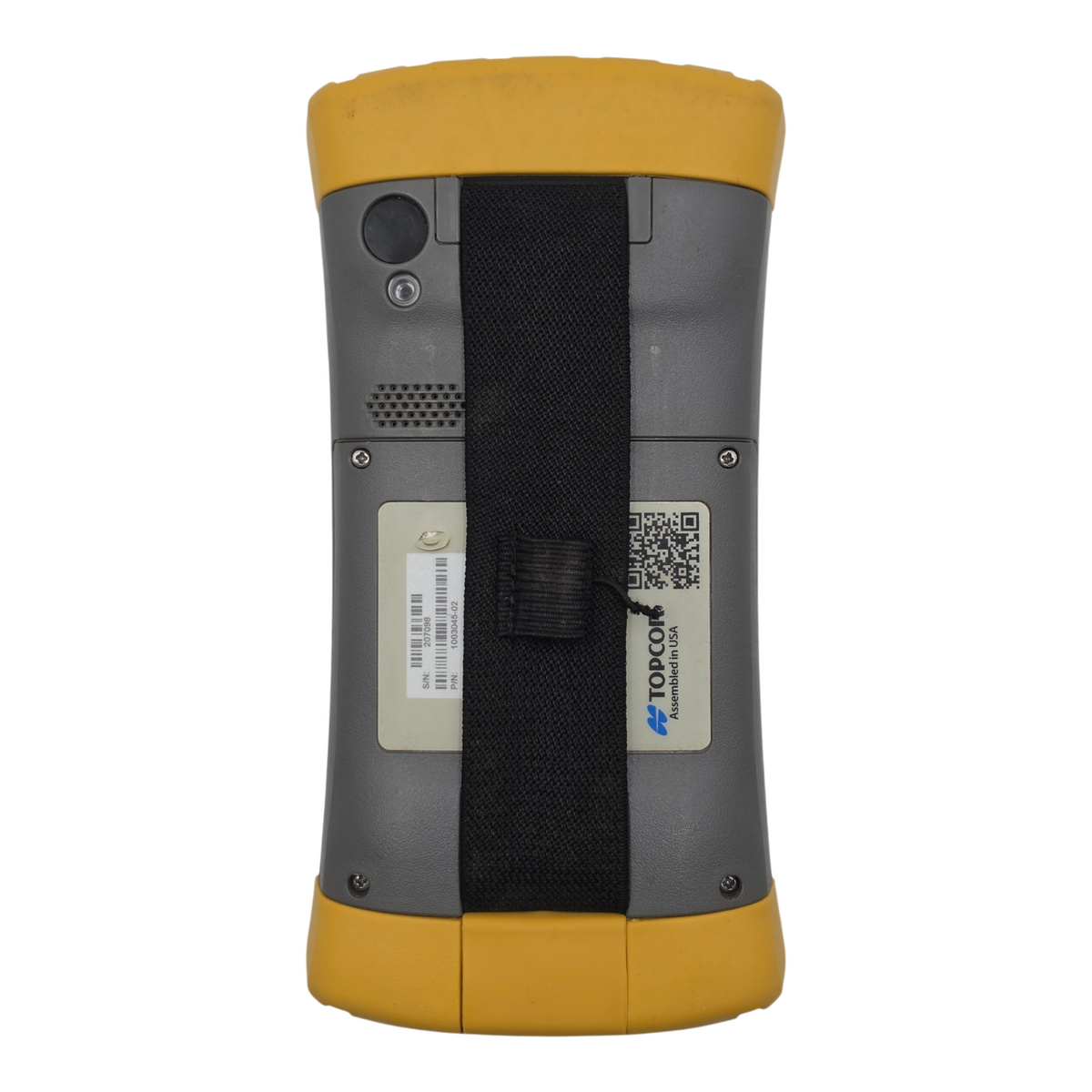

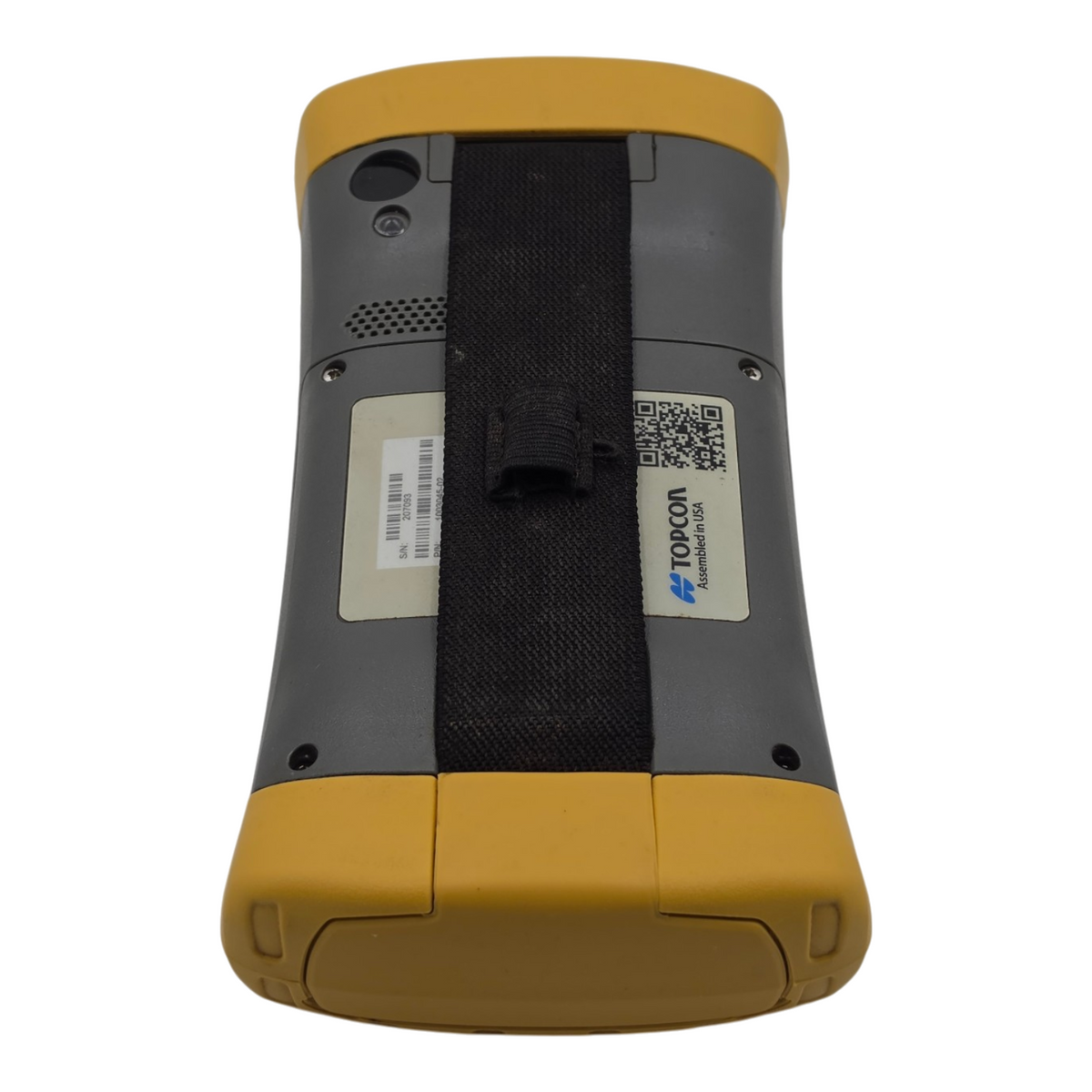

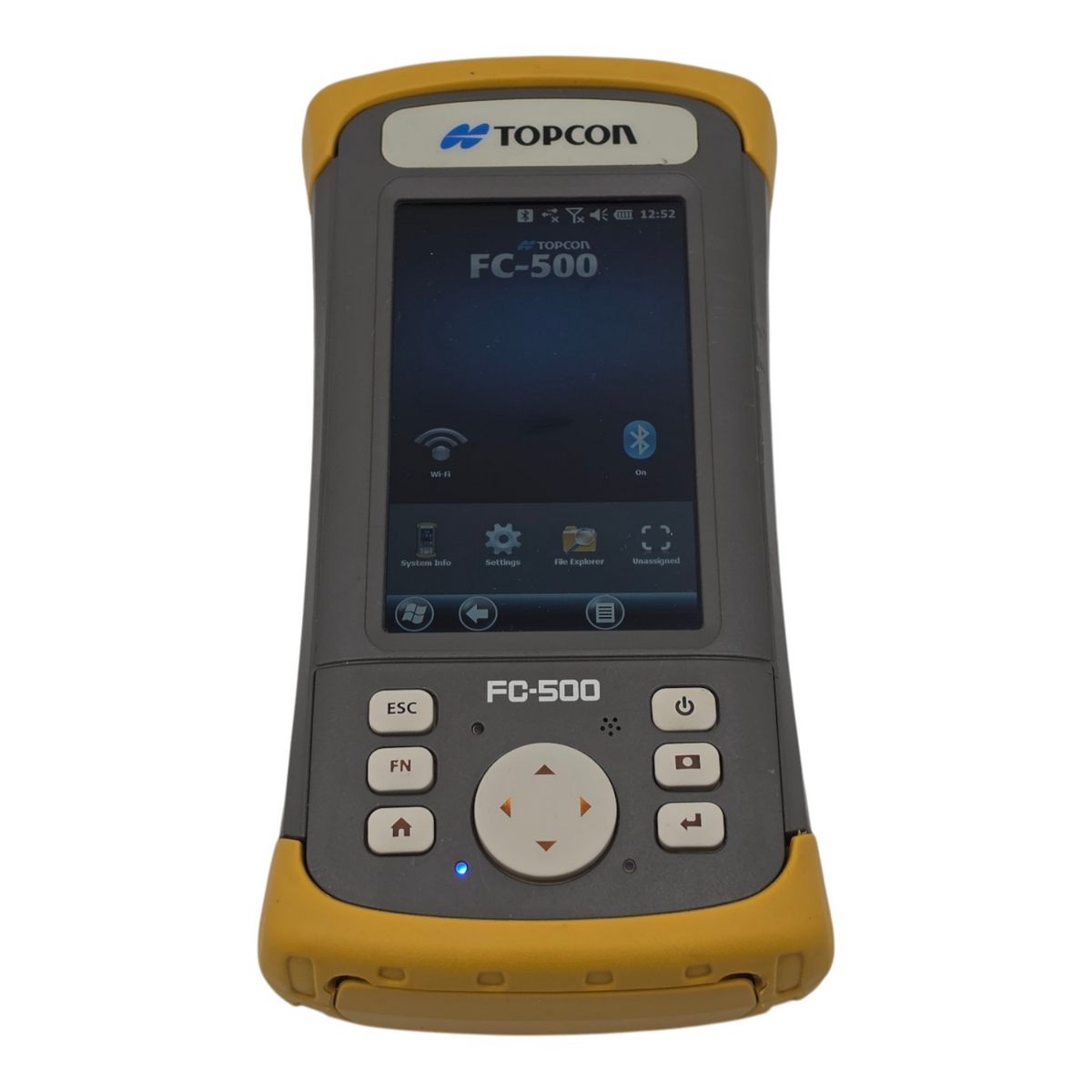

Topcon FC 500 Field Controller Surveying Mapping Data Collector Bluetooth WiFi

£356.25 Ex. VAT
£427.50 Inc. VAT @ 20%

Pre-owned

Beschreibung

Serial Interface Port: 1 x RS-232C 9-Pin D-Sub Connector (Configurable Powered Pin 9)
Processor: 1GHz ARM Cortex A8 i.MX53
Memory: 512MB DDR2 RAM
Storage Expansion: Micro SD / SDHC Slot
MPN: 1003045-02
Included Software: MAGNET Field
Form Factor: Mobile Handheld
Touchscreen Type: Optically Bonded Capacitive Touch Screen
Display Type: Active Colour WVGA LCD TFT
Operating System: Microsoft Windows Embedded Handheld
Storage Capacity: 8GB Flash Storage
Charger: Not Included
Screen Size: 4.3" (109mm)
Battery Type: Rechargeable Lithium-Ion (Li-Ion) User-Replaceable
Brand: Topcon
Operating Time: Up To 20 Hours
Product Type: Field Controller
Maximum Memory Card Support: Up To 32GB
IP Rating: IP68
Useage: Data Logging
Model: FC-500
Connectivity: Bluetooth, Wi-Fi, RS-232C 9-Pin Serial, USB Type A, USB Micro B
USB Ports: 1 x USB Host (Type A), 1 x USB Client (Micro-B)
Wireless Connectivity: Bluetooth 2.1 +EDR Class 1, Wi-Fi 802.11b/g/n
Battery Power: 3.7V DC, 10600mAh, 38.16Whr
Country of Origin: United States
Resolution: 800 x 480 Pixels

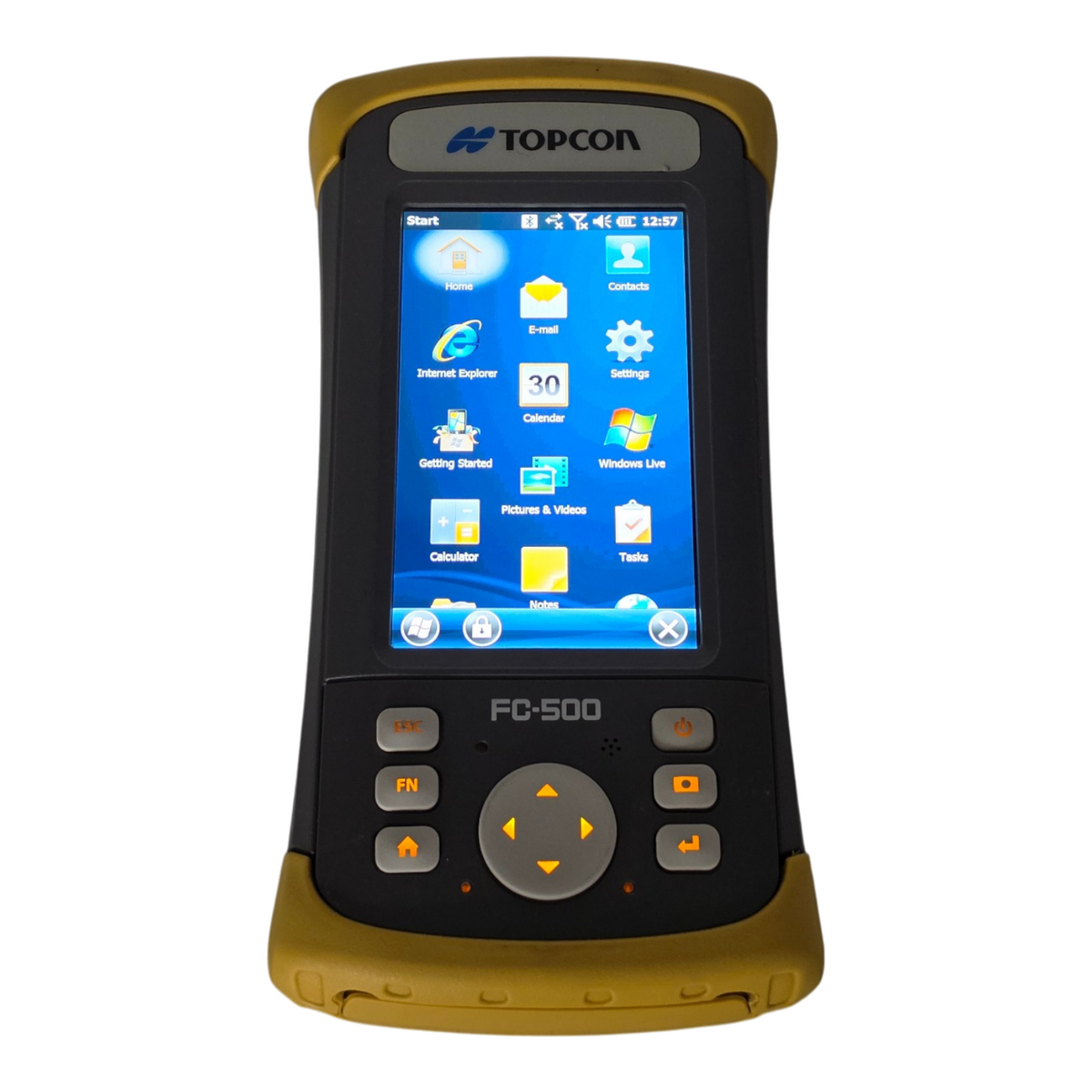

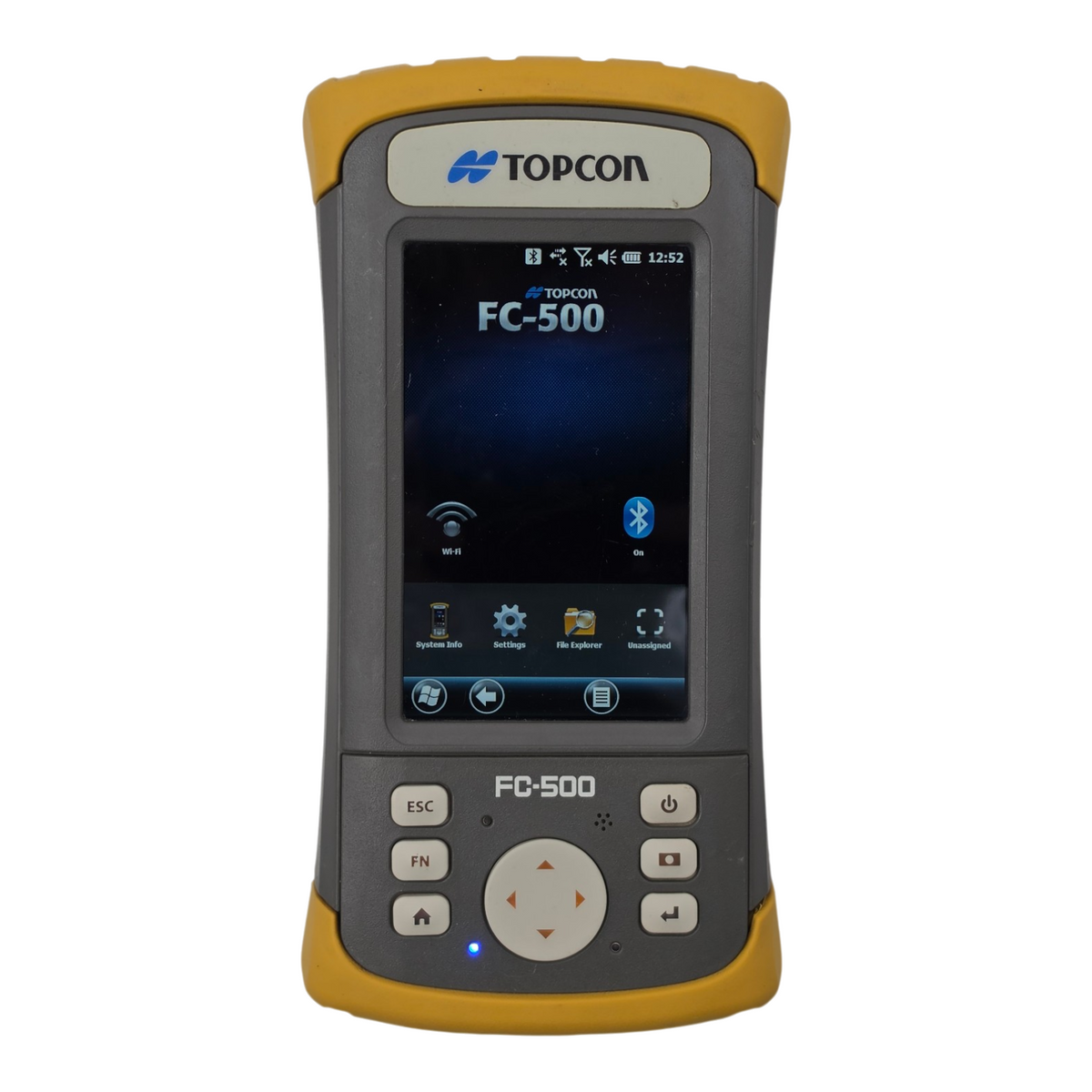

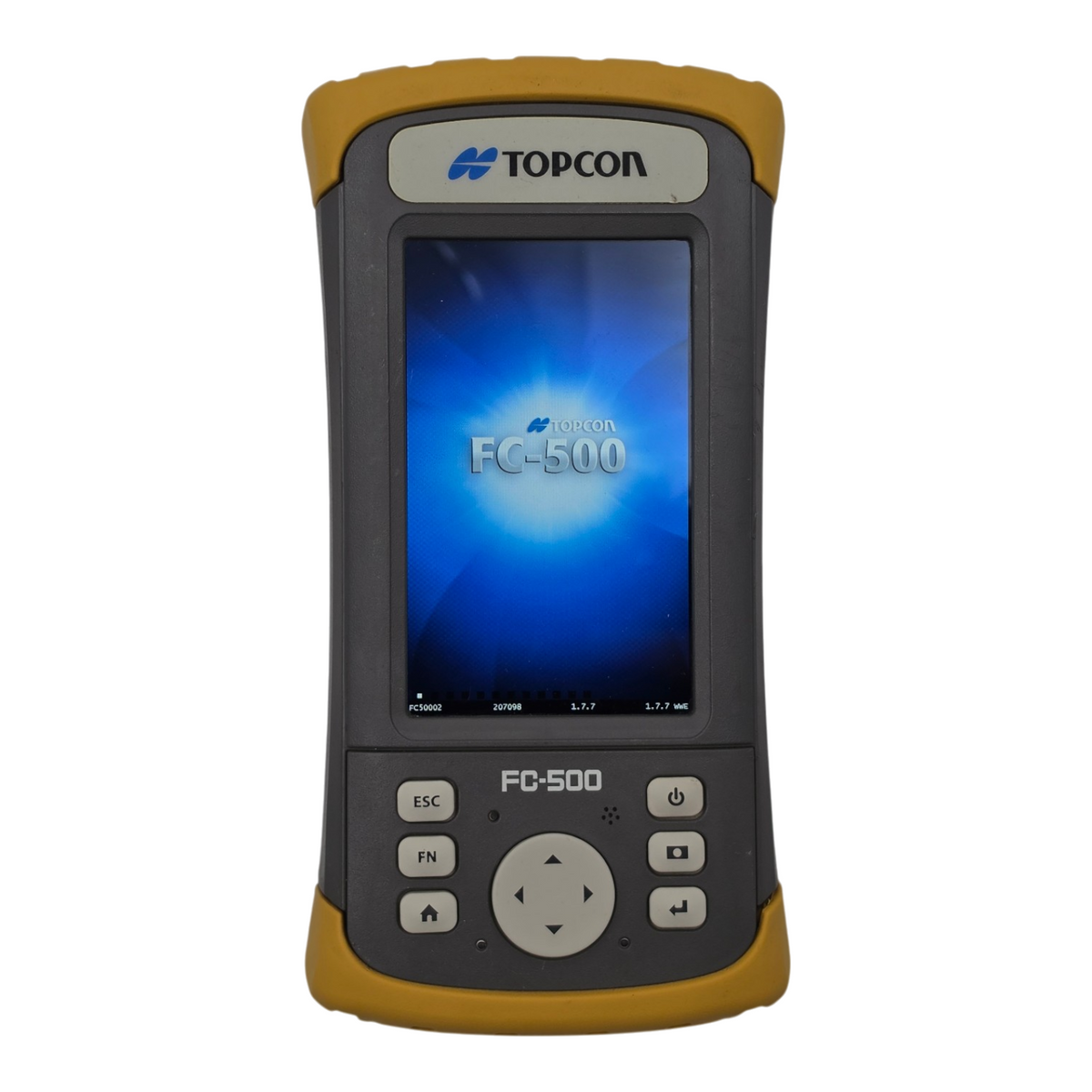

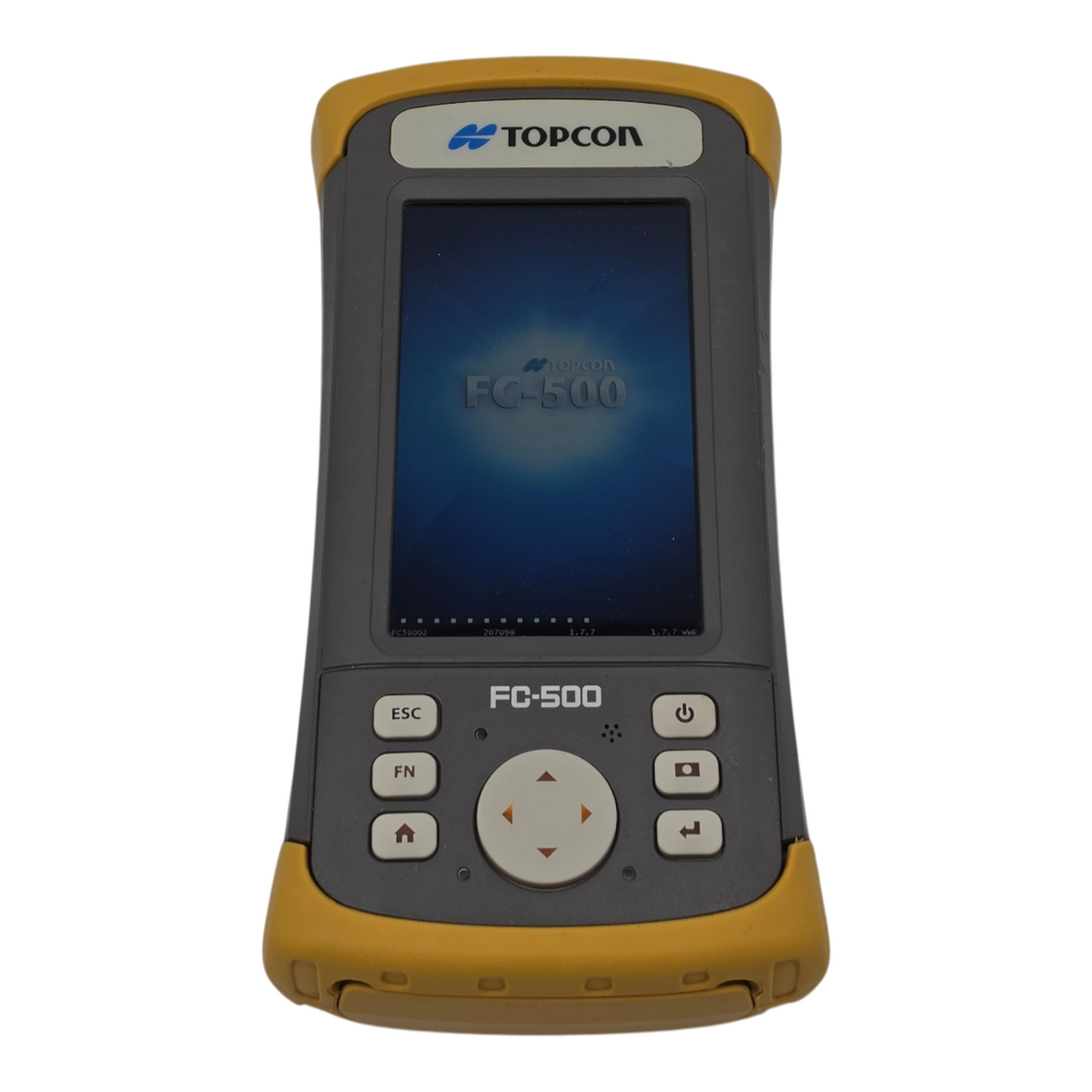

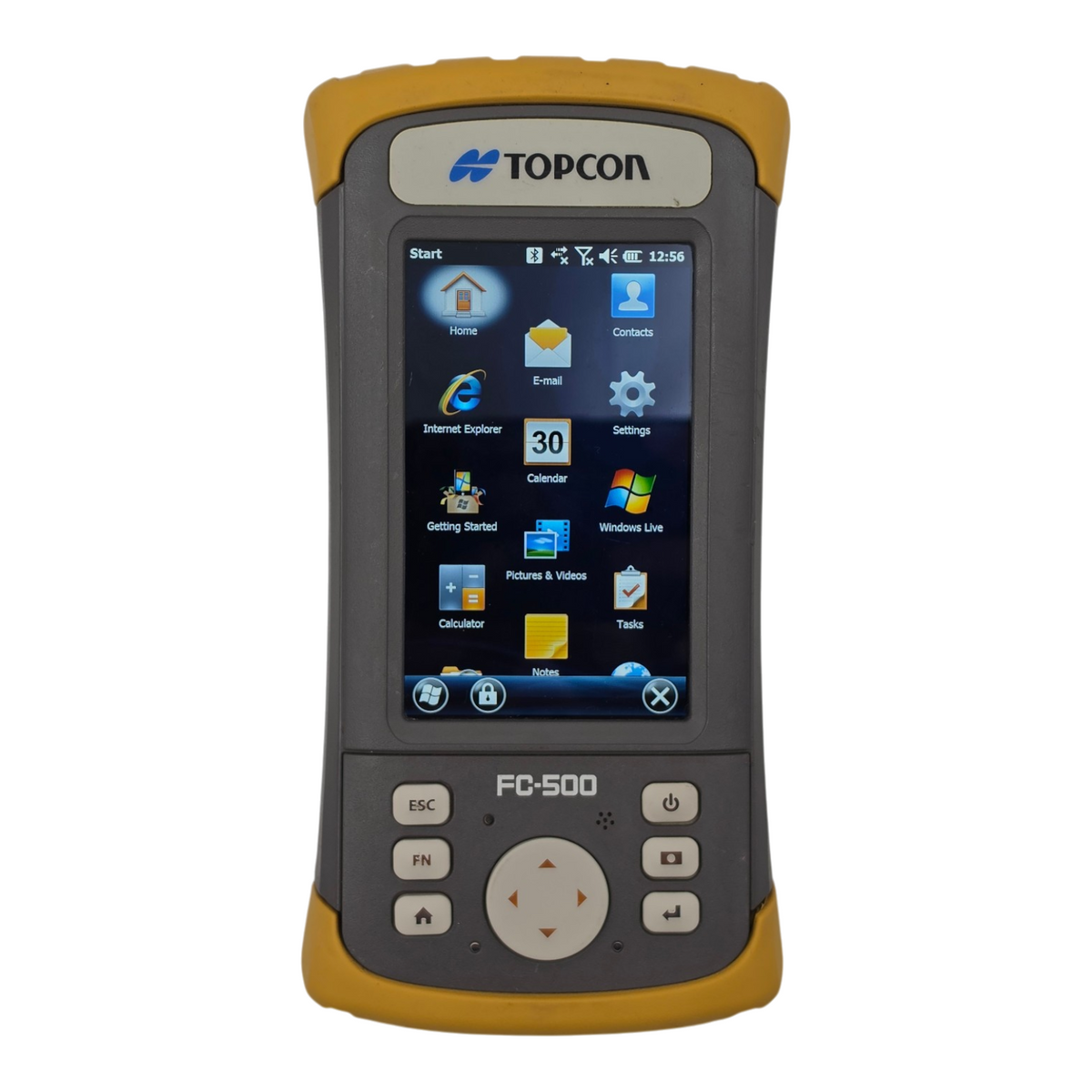

Topcon FC-500 Field Controller Surveying Mapping Data Collector Bluetooth WiFi

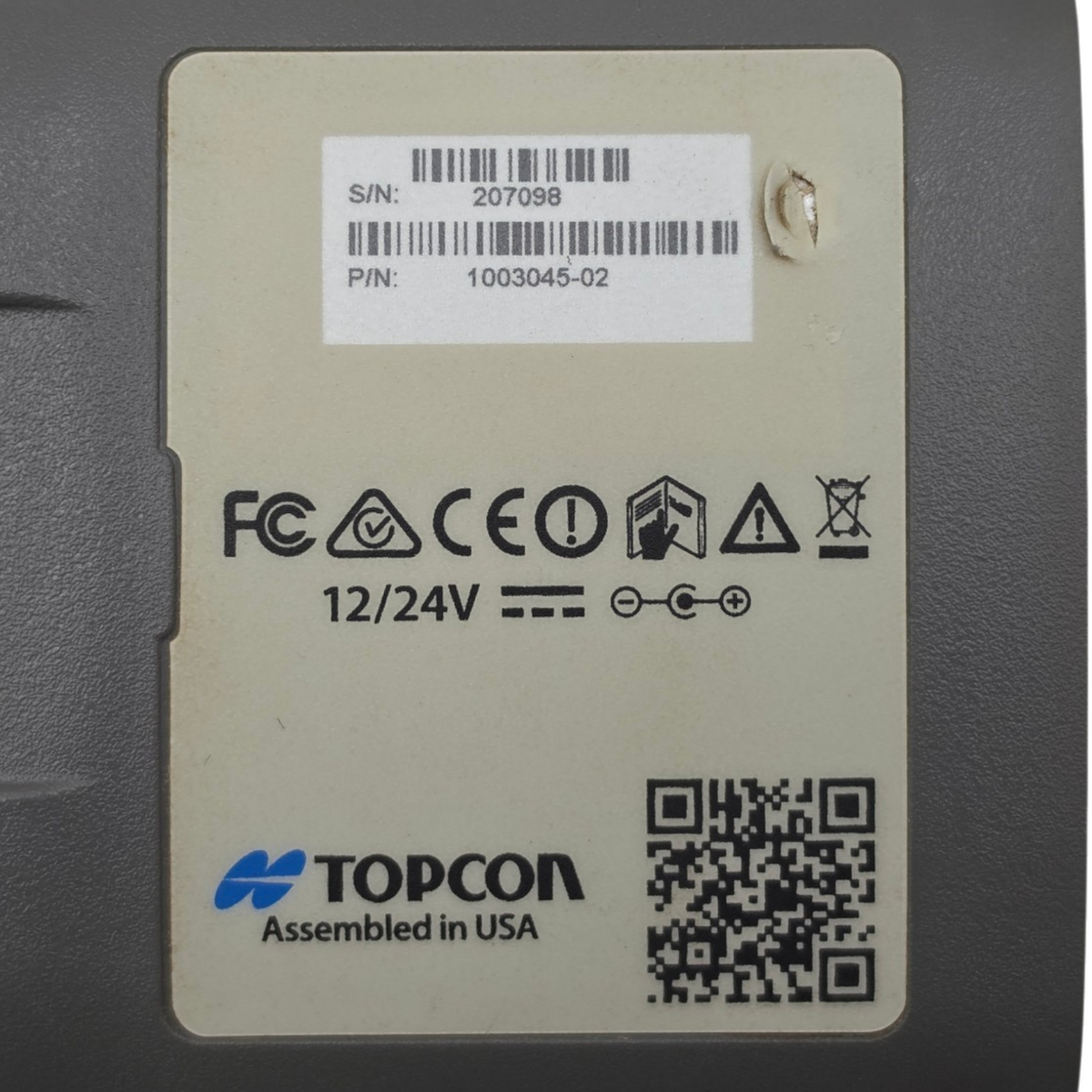

Model: FC-500 / 1003045-02
In Good Condition and Full Working Order
Charger NOT Included

Included Items:
1 x Topcon FC-500 Field Controller

General Information:

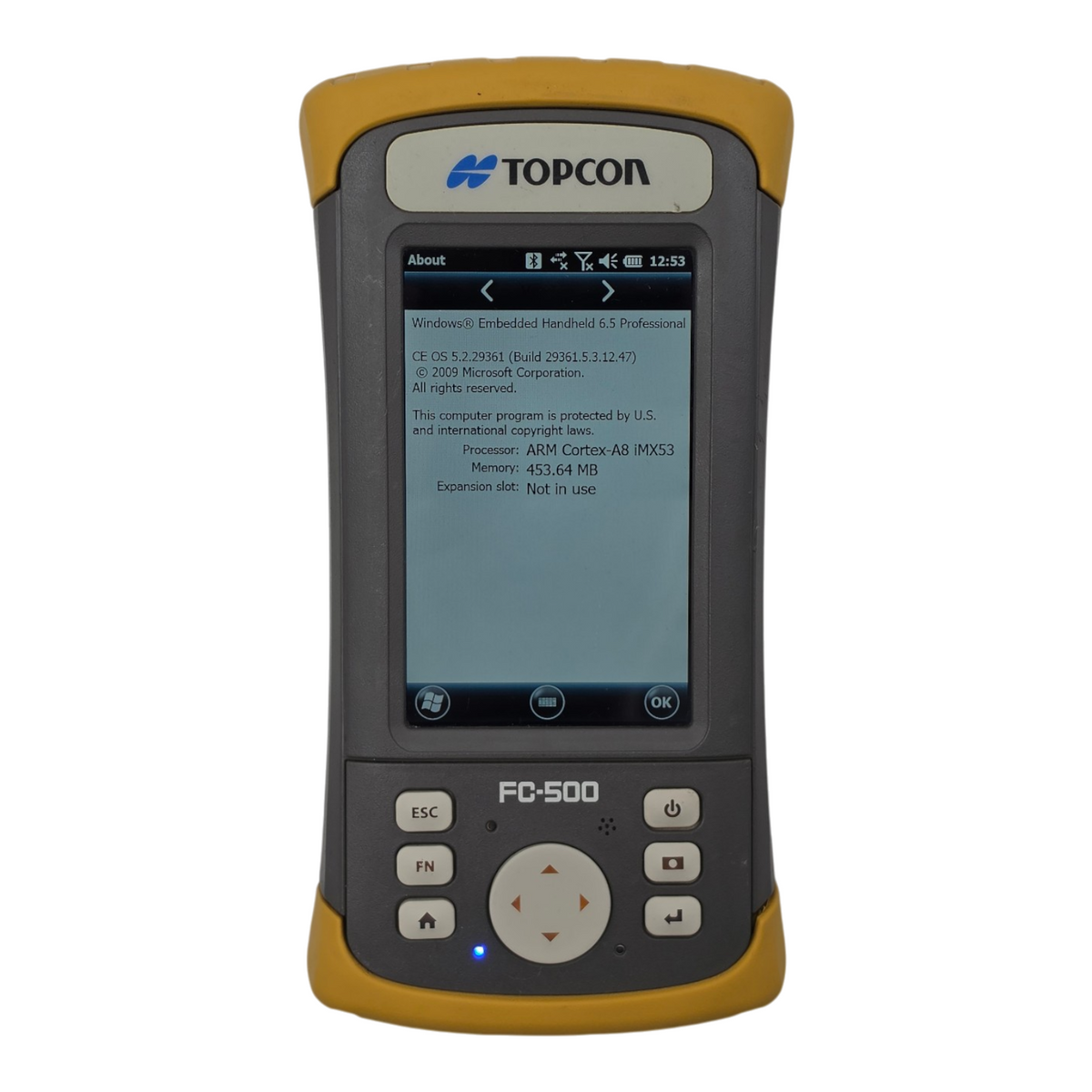

Operating System: Microsoft® Windows Embedded Handheld 6.5.3
OS Language Support: English, French, German, Spanish, Brazilian Portuguese
Processor: 1GHz ARM Cortex A8 i.MX53
Memory: 512 MB DDR2 RAM
Primary Data Storage: 8 GB Flash Storage
Storage Expansion: SD / SDHC Slot supporting up to 32GB

Display & User Interface:
Display: Active viewing area: 4.3" (109 mm) colour WVGA LCD TFT, 800 x 480 pixel resolution, LCD backlight, Outdoor viewable, Portrait (default) or landscape orientation
Touchscreen: Capacitive touch interface optically bonded to display to increase visibility, Chemically strengthened scratch resistant glass, Touchscreen disable function, Touchscreen profile options

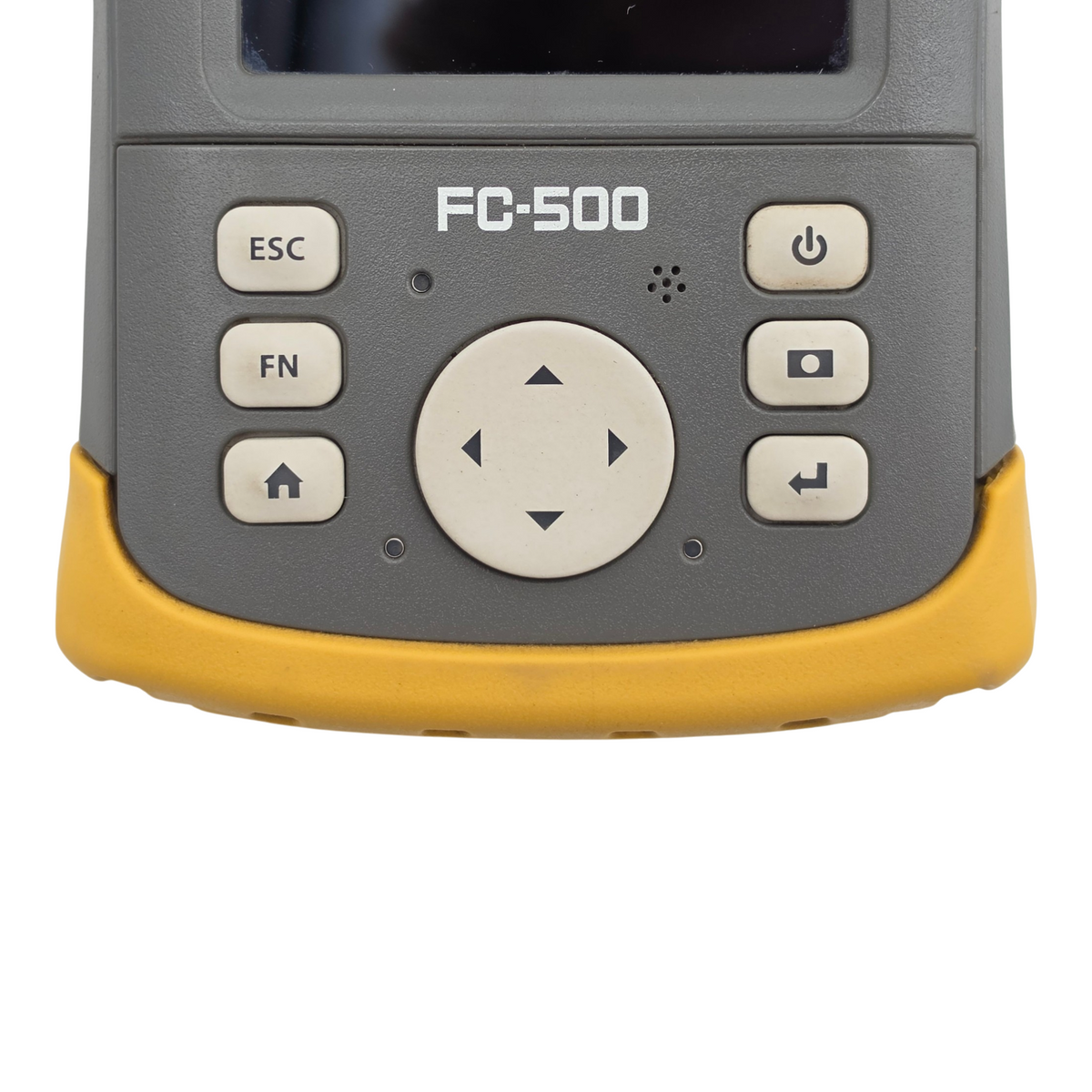

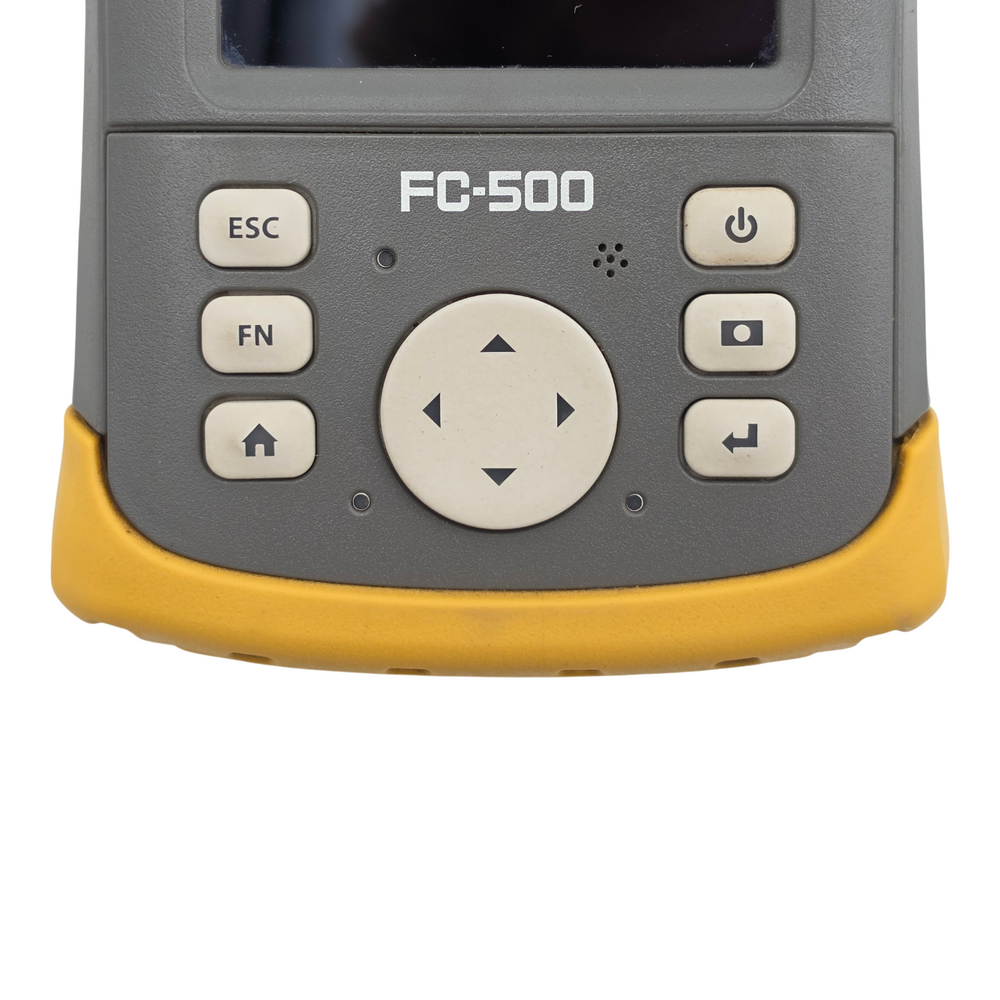

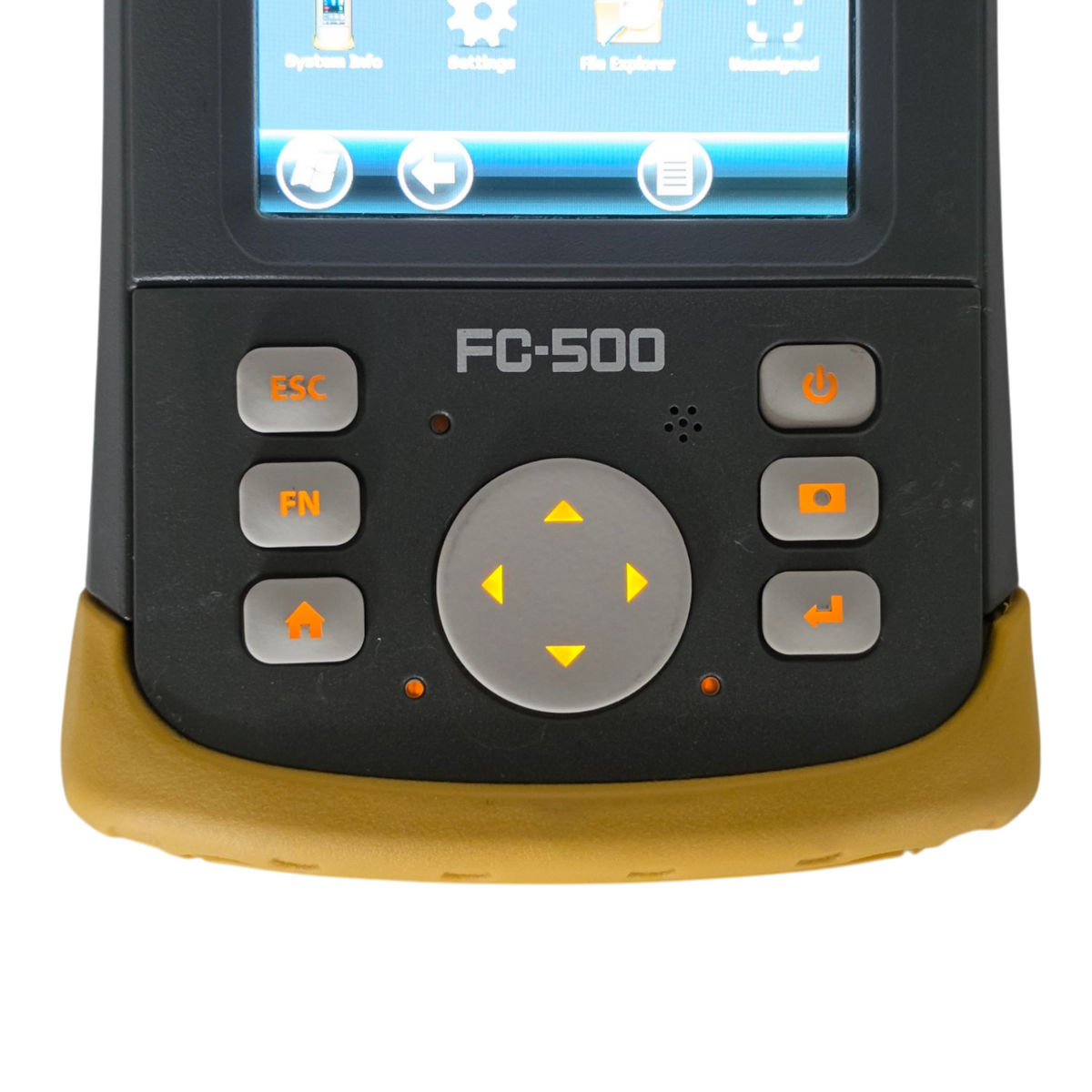

Keyboard: Numeric keypad, Shift functions, Programmable key and LEDs, Backlight, On-screen keyboard
LED Activity Indicators:
Red: Power applied/charging status
Green: Notification, application programmable
Blue: Function key locked or being pressed, application programmable

Interfaces, Connectivity & Audio:

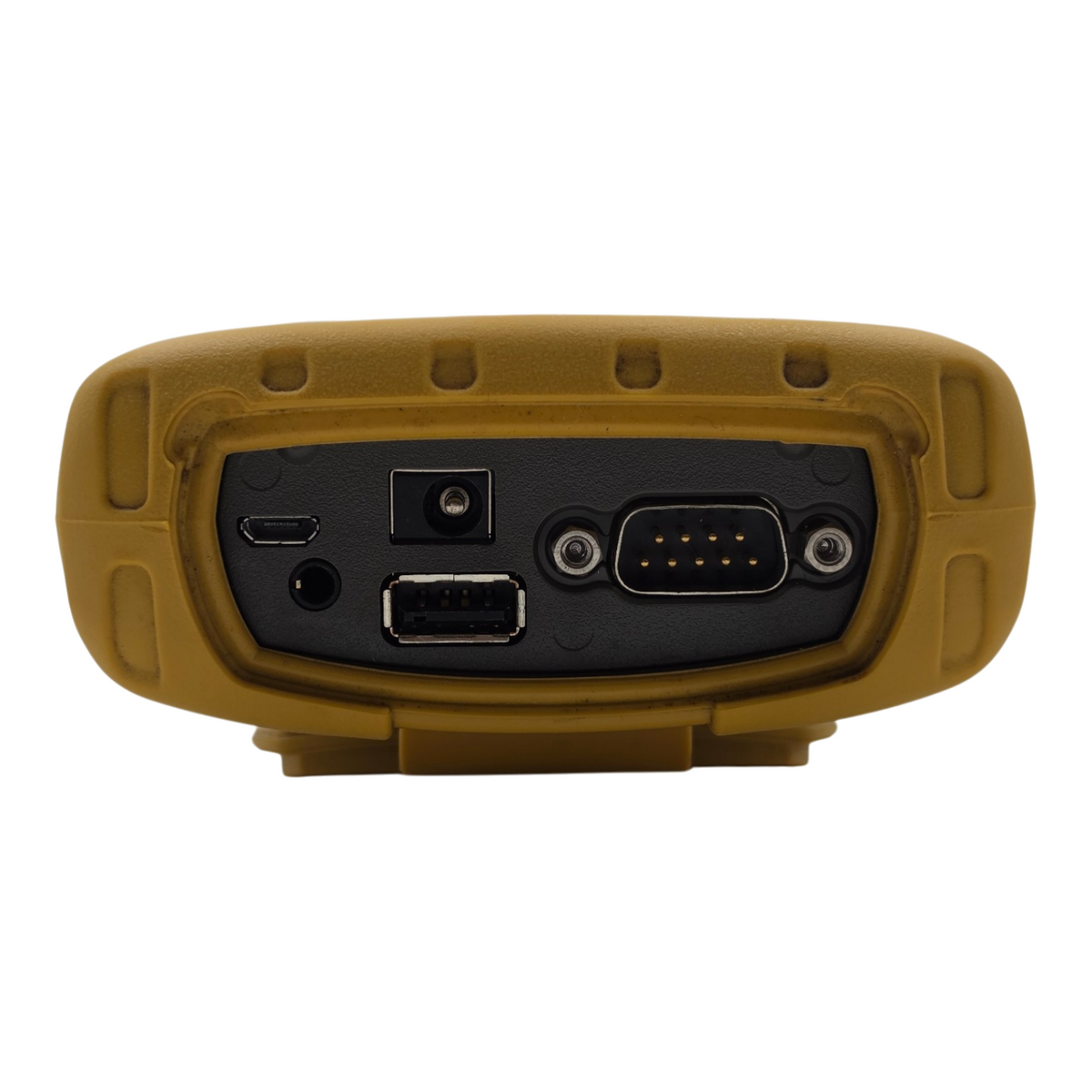

Connector I/O Module: RS-232C 9-pin D-sub connector, +5V @ 500 mA available on ring in pin 9 via software configuration, USB Host (Full A), USB Client (Micro B), 12-24 VDC jack for power input and battery charging, +12V DC 1.67A, 3.5mm audio jack, supports speaker/microphone or stereo output (pin detect)
Wireless Connectivity: Bluetooth® wireless technology 2.1 +EDR Class 1, range 200 feet (30 m), Wi-Fi 802.11b/g/n with extended range, U.S. and international
Audio: Speaker, loud and clear, Microphone, low noise, 3.5mm audio jack, supports stereo headset and microphone at the same time (speaker disable)

Power & Energy Management:

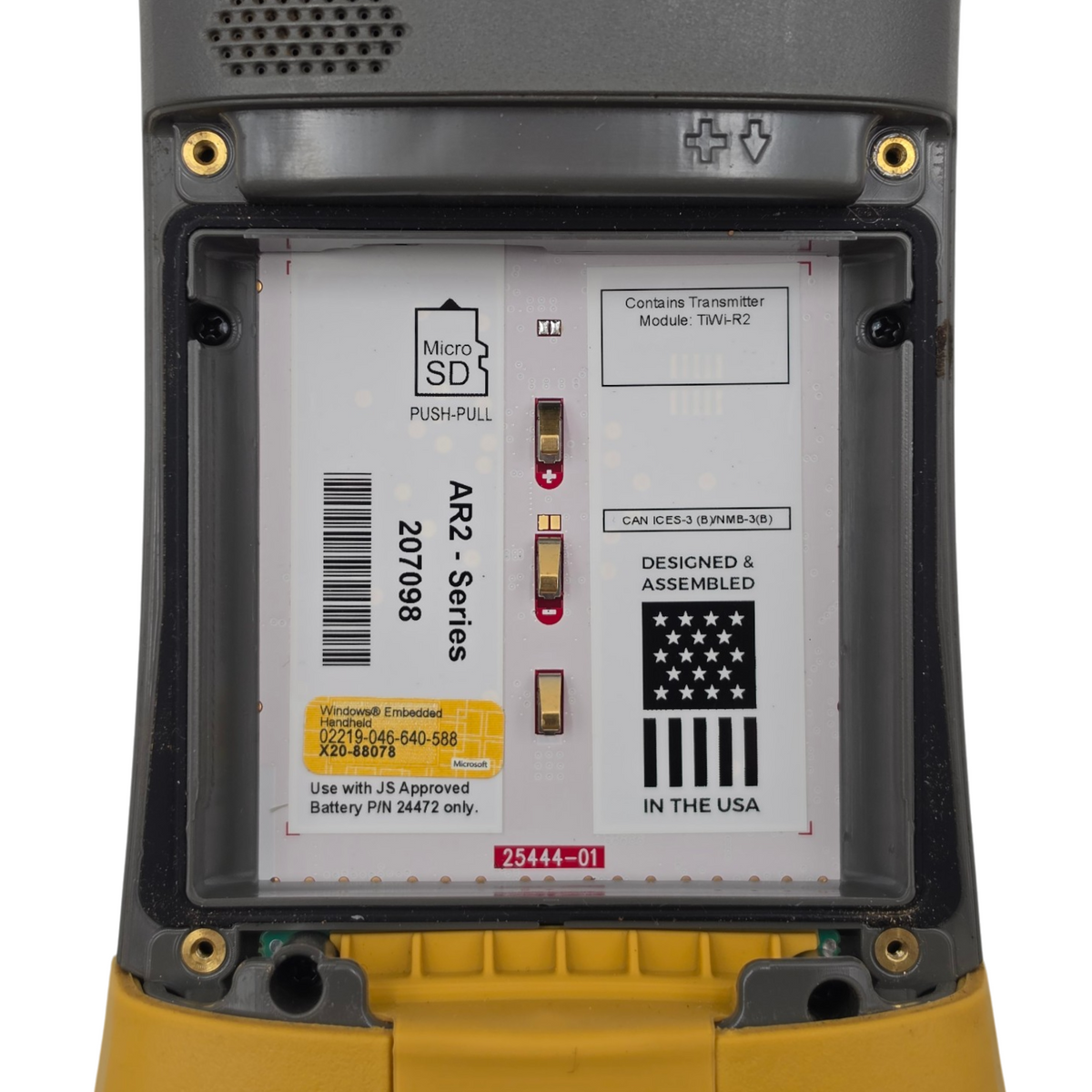

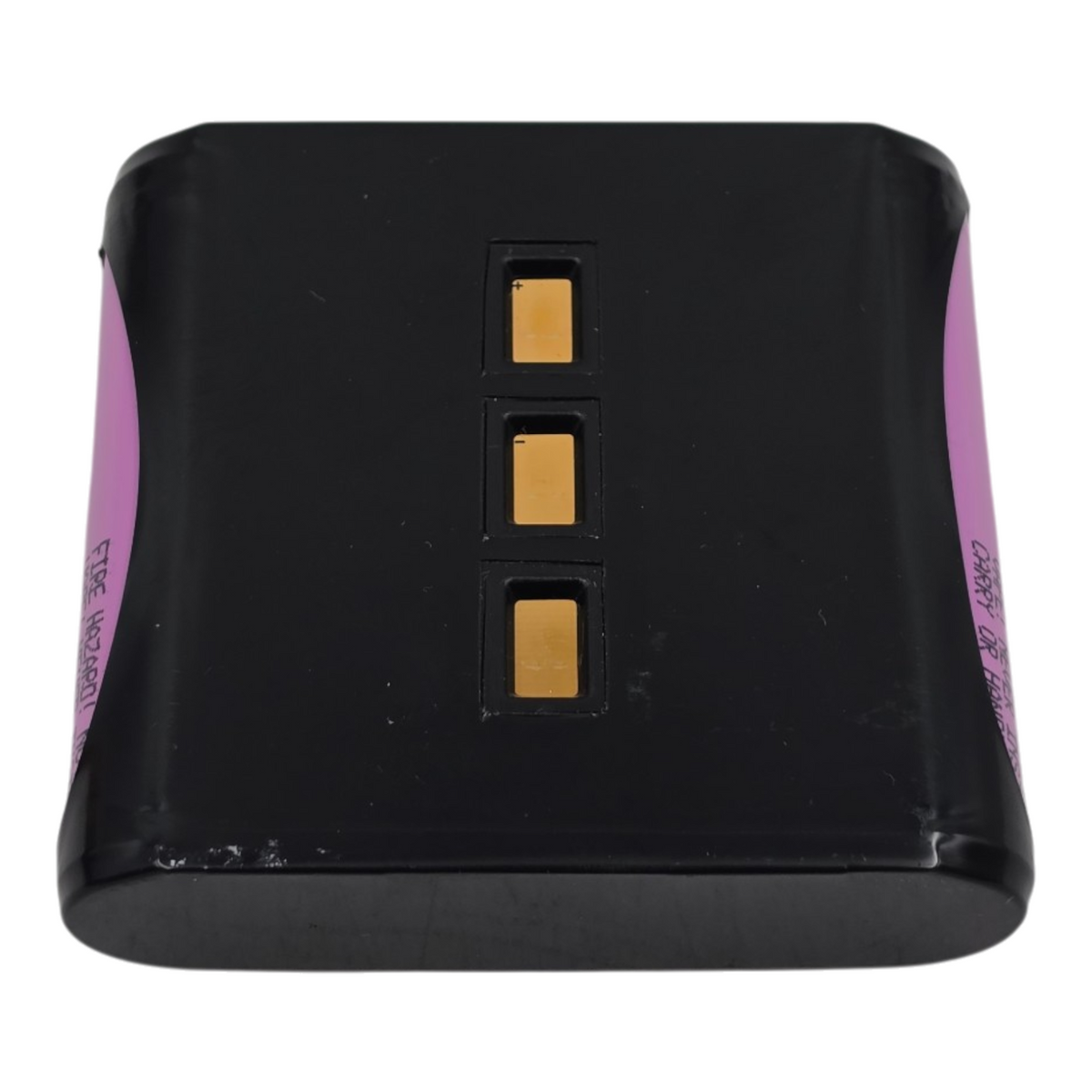

Batteries: Rechargeable Li-Ion battery pack, 3.7VDC 10600mAh, 38.16Whr, Run time of up to 20 hours, Charging time 4 to 5 hours, Quick charge, Built-in battery intelligence, User-replaceable

Design & Environmental:
Dimensions: 91 mm × 184 mm × 38 mm (3.5" × 7.25" × 1.5")
Weight: 590g (1.3 lbs)
Material: Durable hardened plastic in a shear proof, shock resistant design, Shock resistant bumpers, Strong chemical resistance,
Design: Easy to grip ergonomic handheld form factor with hand strap.
Shock Resistance: Withstands multiple 5 foot drops to concrete
Environmental Ratings and Standards: IP68 rating, waterproof and dustproof, MIL-STD810G standard for water, humidity, sand and dust, vibration, altitude, shock, low temperature, high temperature, temperature shock
Temperature Specifications:
Operating Temperature: –22° to 140° F (–30° to 60° C).
Storage Temperature: –22° to 158° F (–30° to 70° C).
Battery Charging Temperature: –4° to 140° F (–20° to 60° C)
Certifications and Standards: FCC Class B, CE Marking (applicable EMC, R&TTE, and LVD directives), Industry Canada, EN60950 Safety, Bluetooth SIG qualification, USB client, IP68 waterproof and dustproof, Designed to MIL-STD 810G
