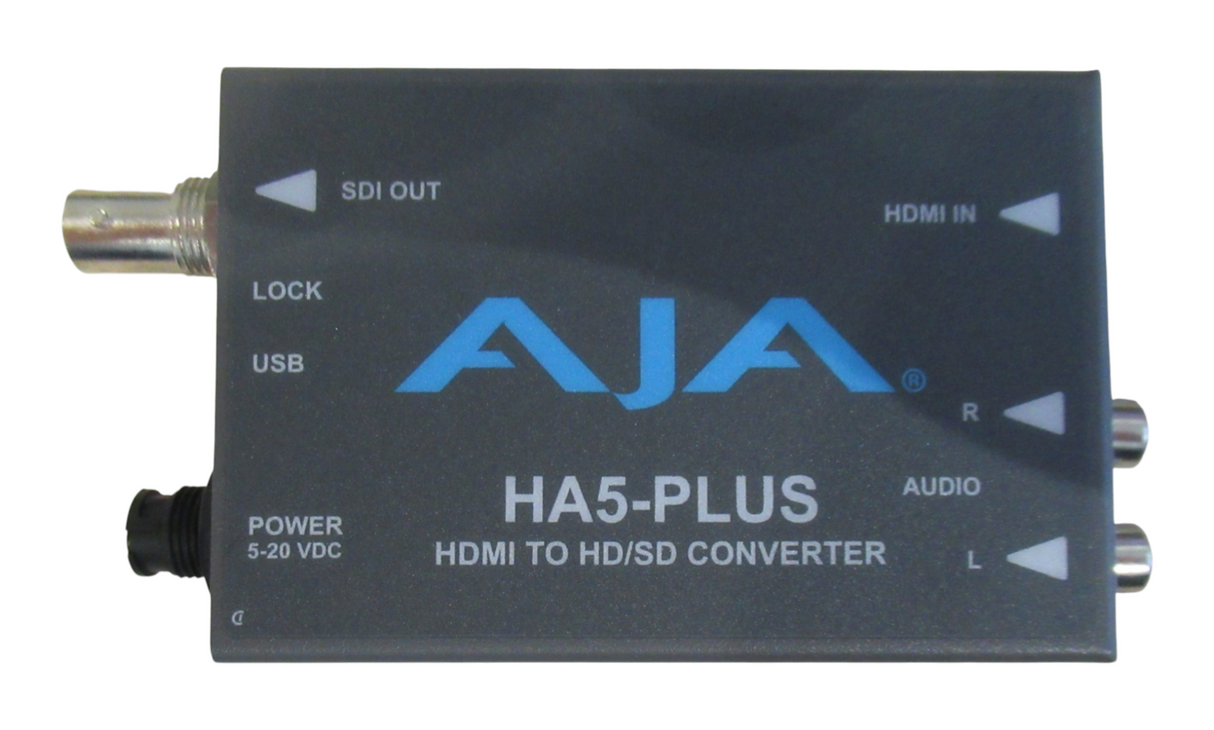

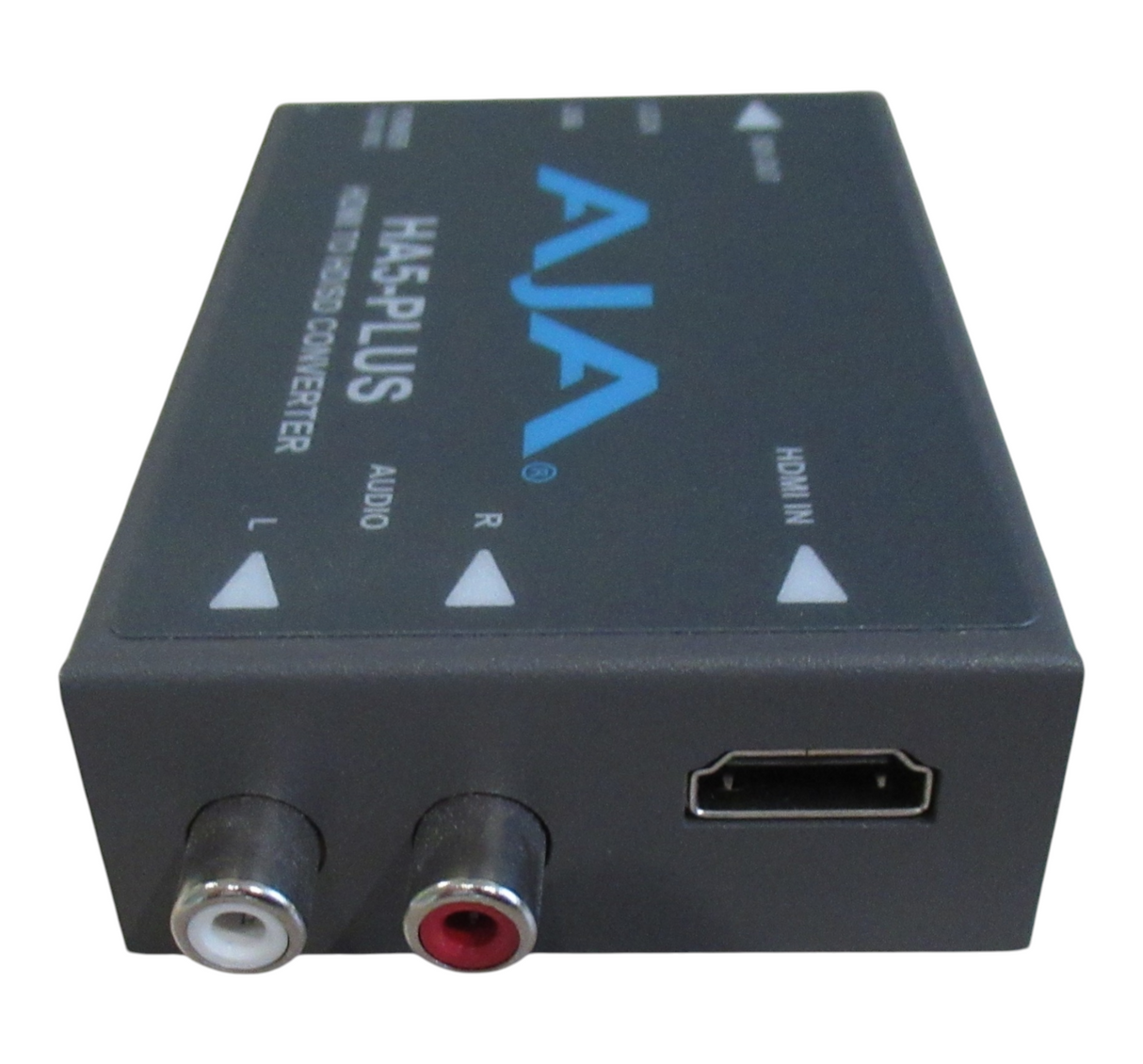

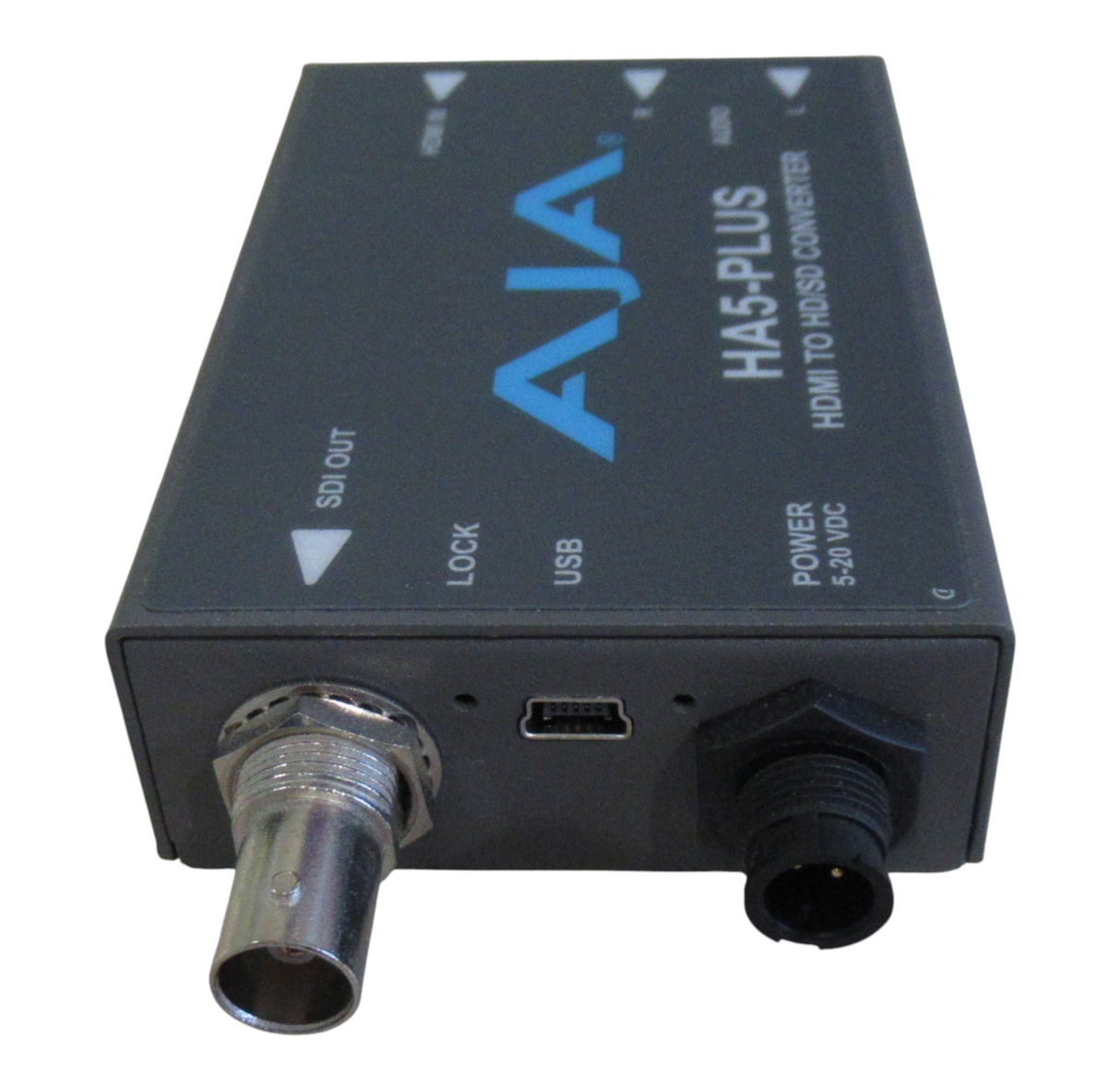

AJA HA5PLUS Integrate HDMI and HDSDI Converter With AC Adapter
Pre-owned
AJA HA5PLUS Integrate HDMI and HDSDI Converter With AC Adapter is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product overview
Product overview
Brand: AJA
Type: Converter
Supplied with: AC Power Adapter
Video Output:: 3G-SDI with embedded audio
Model: HA5-PLUS
MPN: HA5-PLUS
Features: Compact and Portable,HDMI to 3G-SDI Mini-Converter,Full HDMI Support,Prestine Image Quality,Analog audio input,DSLR support
Video Input:: HDMI with embedded audio, up to 8 channels
Country of Origin: United States
AJA HA5-PLUS Integrate HDMI and HD-SDI Converter With AC Adapter
Model: HA5-PLUS
In good condition and In full working order
Tested

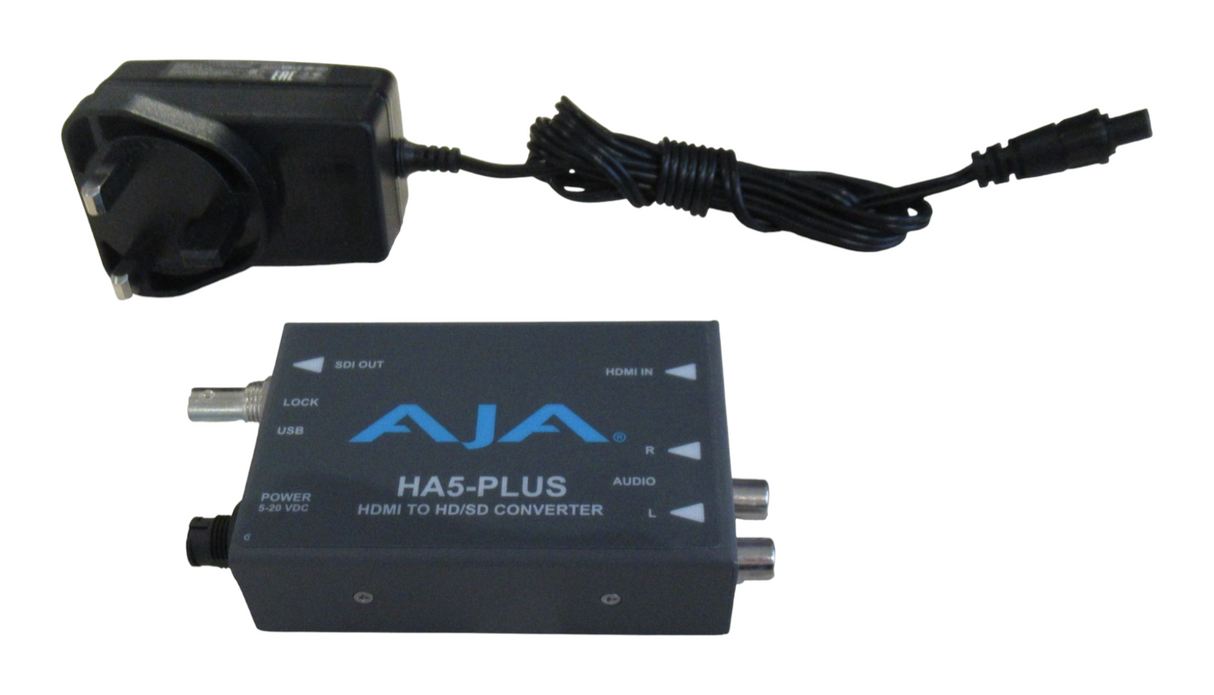

Includes AC Power Adapter
Included:
1 x AJA HA5-PLUS Integrate HDMI and HD-SDI Converter
1 x AC Power Adapter
Overview
Bring HDMI and 3G-SDI devices together for a full range of monitoring and recording solutions in the edit suite, on set or at live events. Convenient USB setup using AJA MiniConfig on Mac or PC for easy remote configuration.
Features
Convert HDMI up to 1080p 60 to 3G-SDI
1x 3G-SDI output
HD resolutions supported
EDID Emulation
Simple Frame Rate Conversion (FRC) from Fractional to Integer rates
Embedded audio can be selected from the HDMI (8 channel) or Unbalanced Analog audio inputs (2 RCA)
Configure via USB port and supplied AJA Mini-Config software
Uses 5-20 VDC power (Universal power supply included)
Specifications
Video Formats
(HD) 1920x1080p
(HD) 1920x1080i
(HD) 1280x720p
(SD) 720x576p
(SD) 720x576i
(SD) 720x480p
(SD) 720x480i
Note: HDCP content not supported
Video Input Digital
1x HDMI Type A connector, HDMI v1.4
YCbCr 4:2:2/4:4:4/4:2:0
8 or 10-bit (HFR 4:2:2 limited to 10-bit)
(HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(HD) 1920x1080i 50, 59.94, 60
(HD) 1280x720p 50, 59.94, 60
(SD) 720x576p 50
(SD) 720x576i 25
(SD) 720x480p 59.94
(SD) 720x480i 29.97
Video Output Digital
1x 3 Gb SDI (Level A or B Dual Link)
(HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(HD) 1920x1080i 50, 59.94, 60
(HD) 1280x720p 50, 59.94, 60
1x 1.5 Gb SDI
(HD) 1920x1080p 23.98, 24, 25, 29.97, 30
(HD) 1920x1080i 50, 59.94, 60
(HD) 1280x720p 50, 59.94, 60
1x 270 Mb SDI
(SD) 625i 50
(SD) 525i 59.94
Audio Output Digital
SDI embedded audio, 24-bit, 8-channel
Size (w x d x h)
4.6” × 2.4” × 1.0” (116.84 × 60.96 × 25.4 mm)
Weight
0.3 lb (0.2 kg)
Power
Universal power supply included
100-240V, 50/60 Hz universal input
+5V DC regulated, 7.5 watt capacity
AJA HA5PLUS Integrate HDMI and HDSDI Converter With AC Adapter
