AJA KONA 4 R0 S01 4K/2K/3G/Dual Link/HD/SD 10 Bit PCIE Card with HDMI Output
Pre-owned
AJA KONA 4 R0 S01 4K/2K/3G/Dual Link/HD/SD 10 Bit PCIE Card with HDMI Output is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product overview
Product overview
Brand: AJA
Type: Capture & Playback Hardware

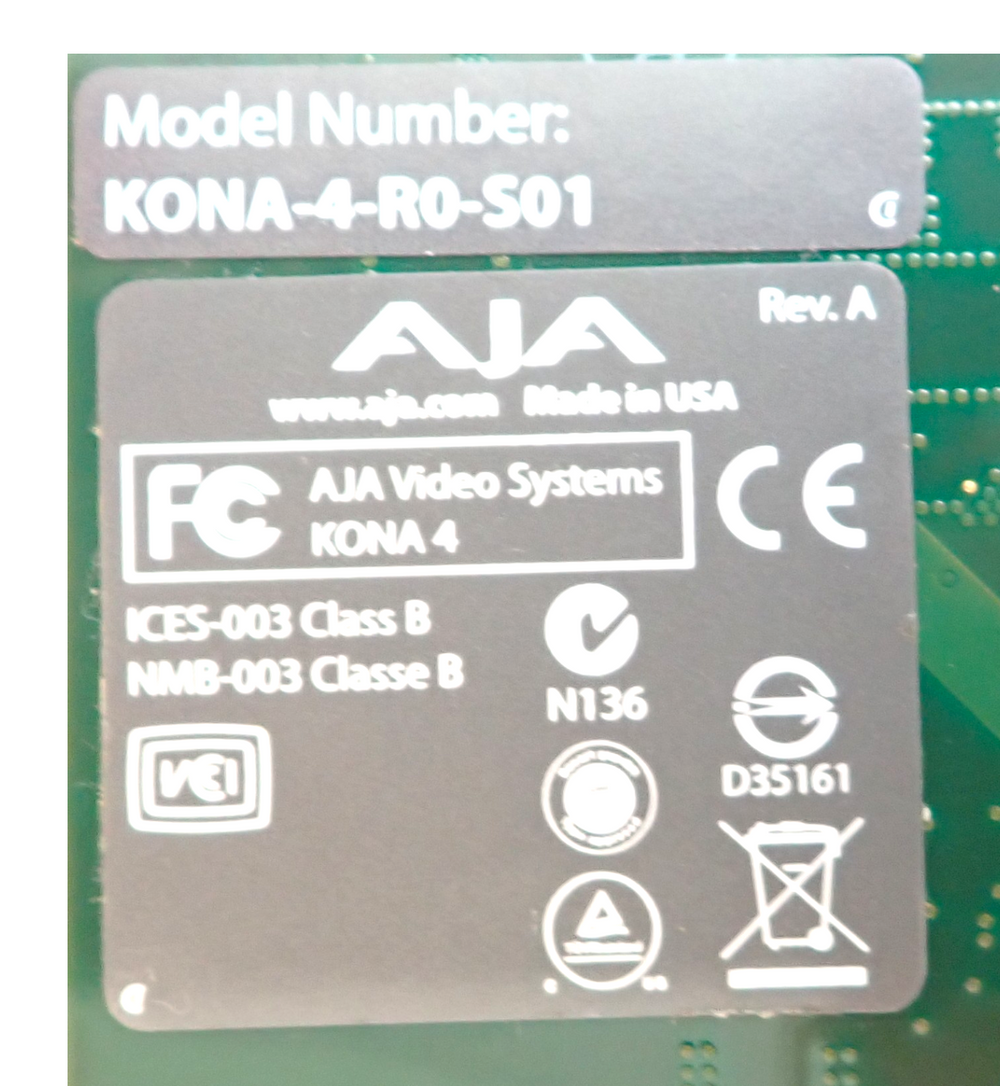

Model: KONA-4-R0-S01
MPN: KONA-4-R0-S01
Compatible Port: SDI,DVI,HDMI
Country of Origin: United States
Includes
1 x AJA KONA 4 (R0-S01) 4K/2K/3G/HD/SD PCIe Video I/O Card with HDMI Output
Overview
The AJA KONA 4 (R0-S01) is a powerful 4-channel video and audio desktop I/O card designed for workflows ranging from SD to HD, 2K and 4K. It supports full 10-bit 4:2:2 and 4:4:4 sampling, with 12-bit capability (application dependent), delivering exceptional image clarity. HDR workflows are supported including HDR10 and HLG for rich color output via both SDI and HDMI.
Key Features
Supports 4K / UltraHD / 2K / HD / SD up to 50/60p
4x bidirectional 3G-SDI ports with 16-channel embedded audio
HDMI 1.4b monitoring with 8-channel audio and 4K to HD downsampling
RGB 4:4:4 (12-bit) and YCbCr 4:2:2 (10-bit) support
Real-time up, down, and cross-conversion
HDR support: PQ, HLG, HDR10, HDR10+, Dolby Vision
Closed caption support (4K)
VPID signaling for HDR/SDR metadata over SDI
Breakout cable included (Ref, LTC, RS-422, AES/EBU)
Expandable via optional K3G-BOX breakout box
Specifications
Video Formats
4K: 4096 x 2160p (23.98 to 60 fps)
UltraHD: 3840 x 2160p (23.98 to 60 fps)
2K: 2048 x 1080p / PsF
HD: 1080p/i, 720p
SD: 525i, 625i
Video I/O
3G-SDI / HD-SDI / SDI (10-bit, 12-bit support)
HDMI 1.4b output
Analog outputs: Component, Composite, S-Video
Audio
Up to 16-channel SDI embedded audio
8-channel HDMI audio
AES/EBU support via breakout / optional box
Additional Features
HDR metadata support (HDR10, HLG)
Downstream keyer support
Timecode (LTC) input/output
Reference input (genlock)
SD aspect ratio conversion (Letterbox, Pillarbox, Crop)
