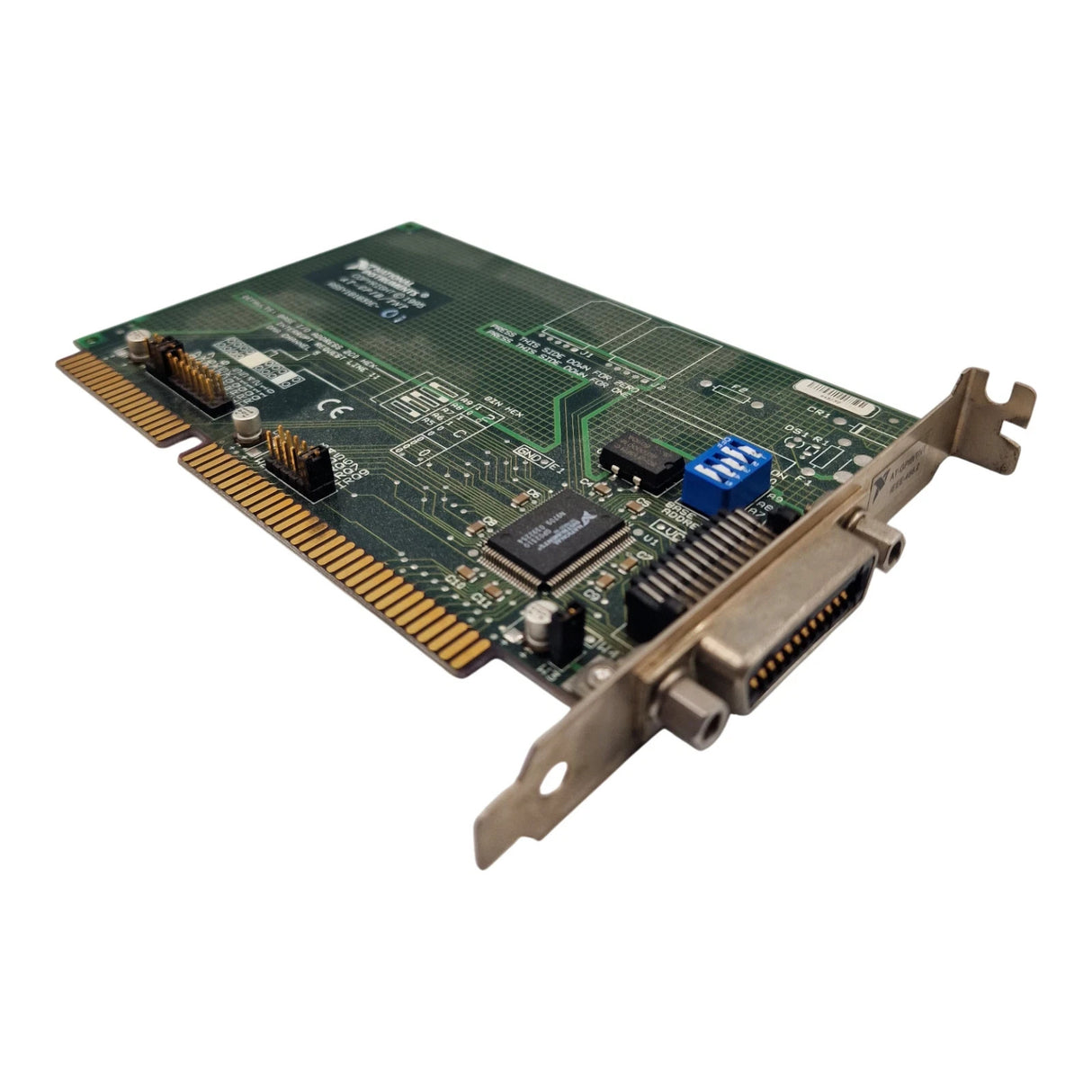

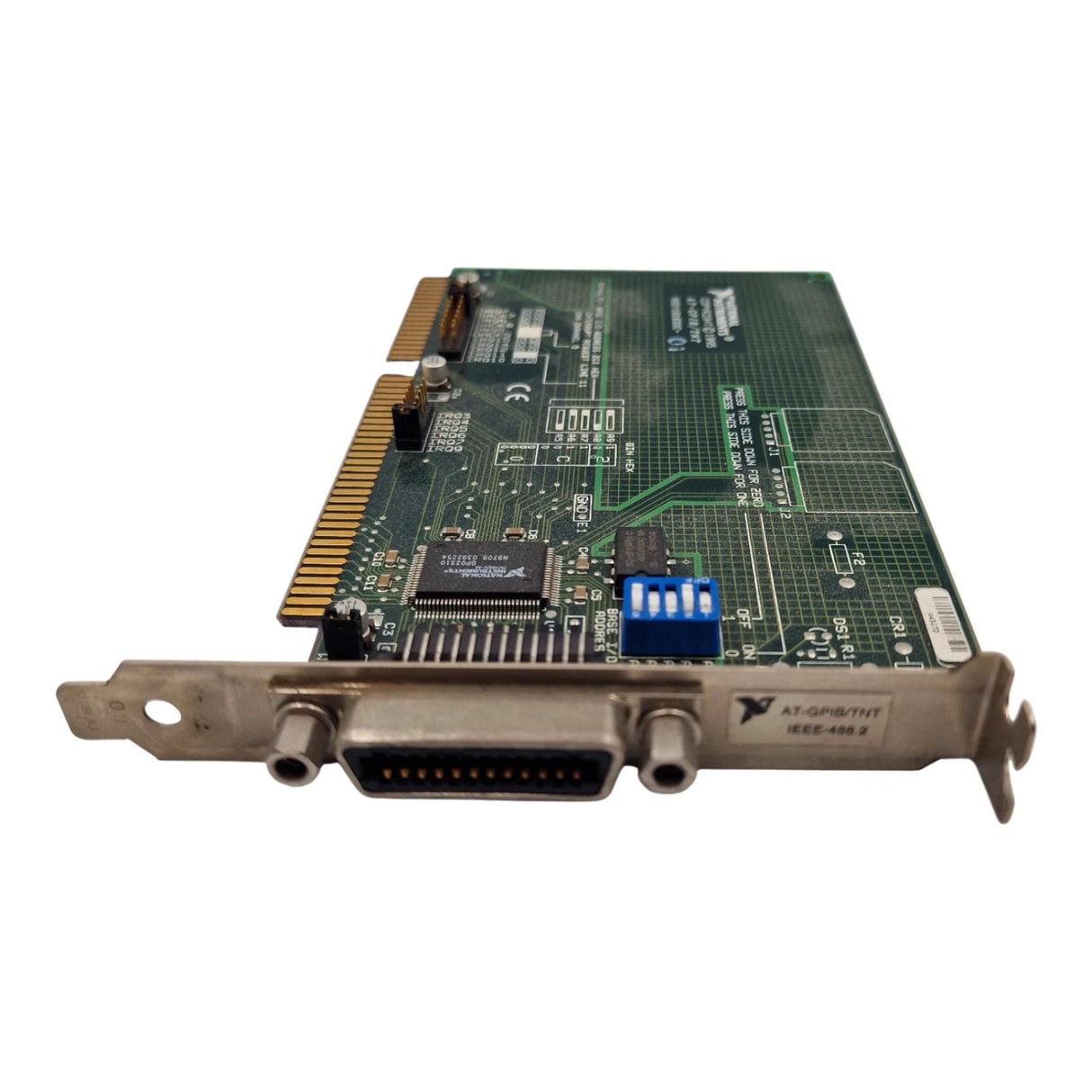

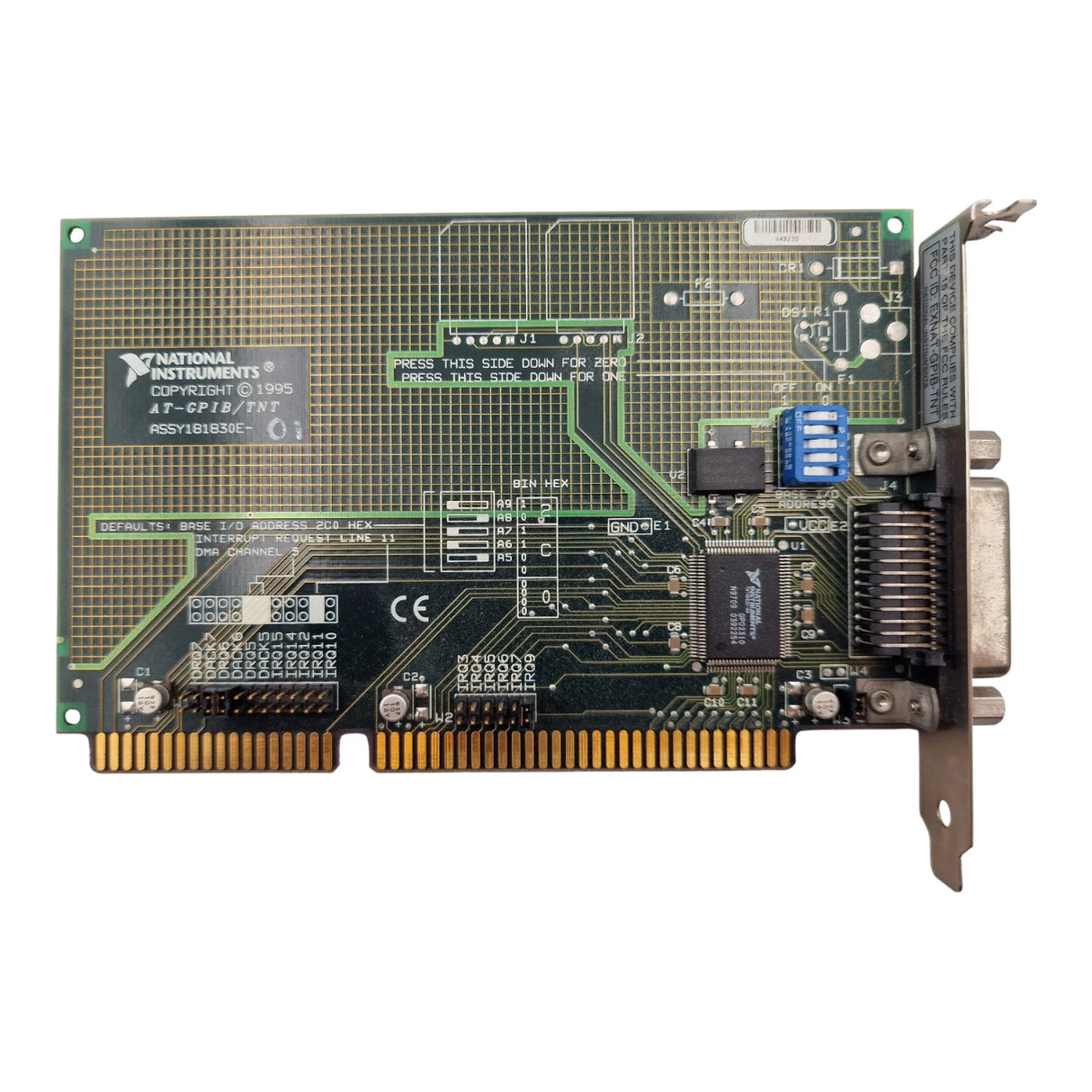

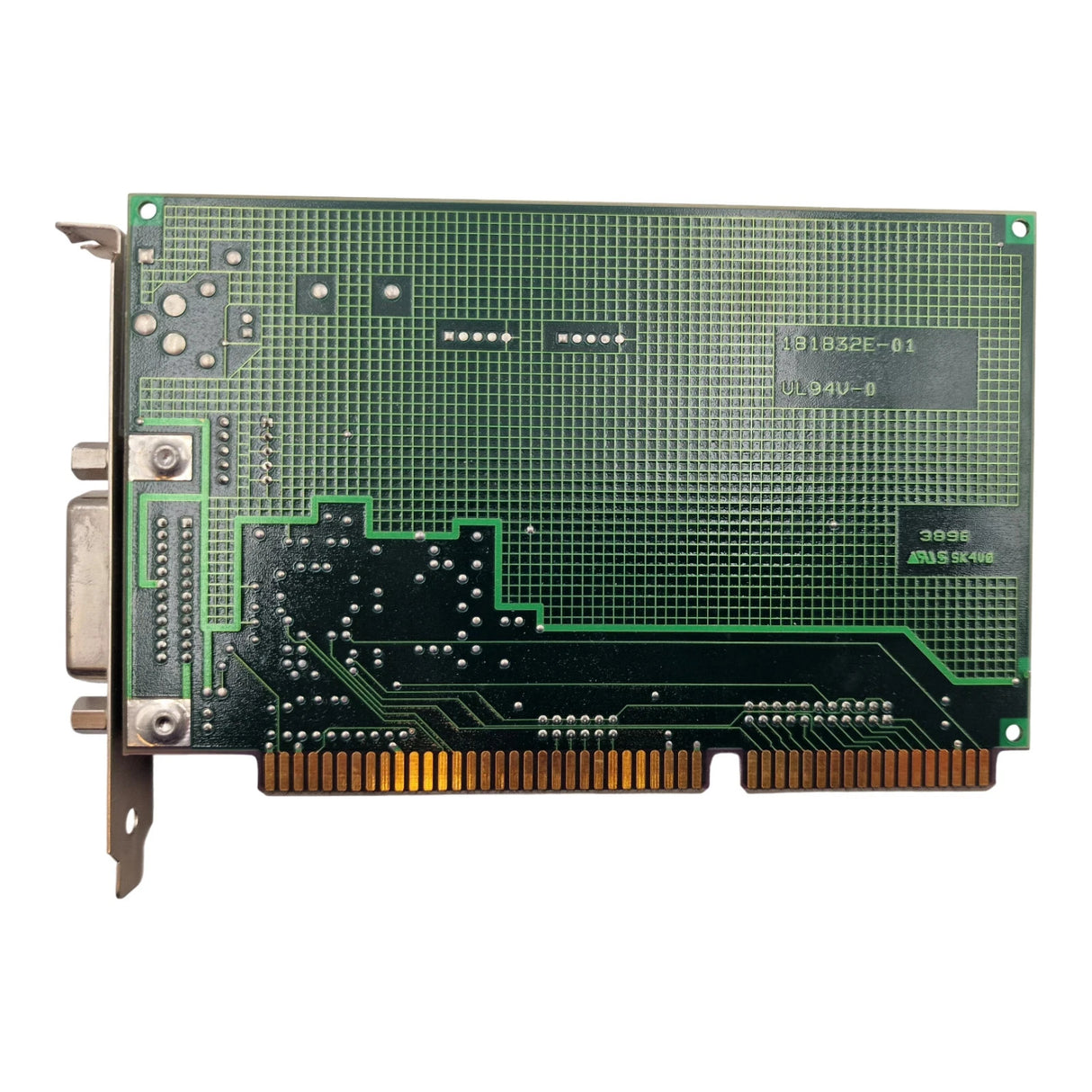

National Instruments AT‑GPIB/TNT ISA IEEE 488.2 GPIB Interface Card
Pre-owned
National Instruments AT‑GPIB/TNT ISA IEEE 488.2 GPIB Interface Card is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product overview
Product overview
National Instruments AT‑GPIB/TNT ISA IEEE 488.2 GPIB Interface Card
P/N: AT‑GPIB/TNT
New Pull From Working Server
2 Year Warranty
Includes:
1 x National Instruments AT‑GPIB/TNT ISA IEEE 488.2 GPIB Interface Card
Specification:
Model: AT-GPIB/TNT
Manufacturer: National Instruments
Interface: 16-bit ISA (PC AT compatible)
GPIB Standard: IEEE 488.1 and IEEE 488.2 compliant
HS488 Protocol: Up to 1.5 MB/s (ISA), up to 3.4 MB/s (EISA systems)
Core Logic: TNT4882C ASIC (integrated GPIB controller and transceiver)
FIFO Buffer: 32-byte FIFO for overlapping ISA and GPIB data transfers

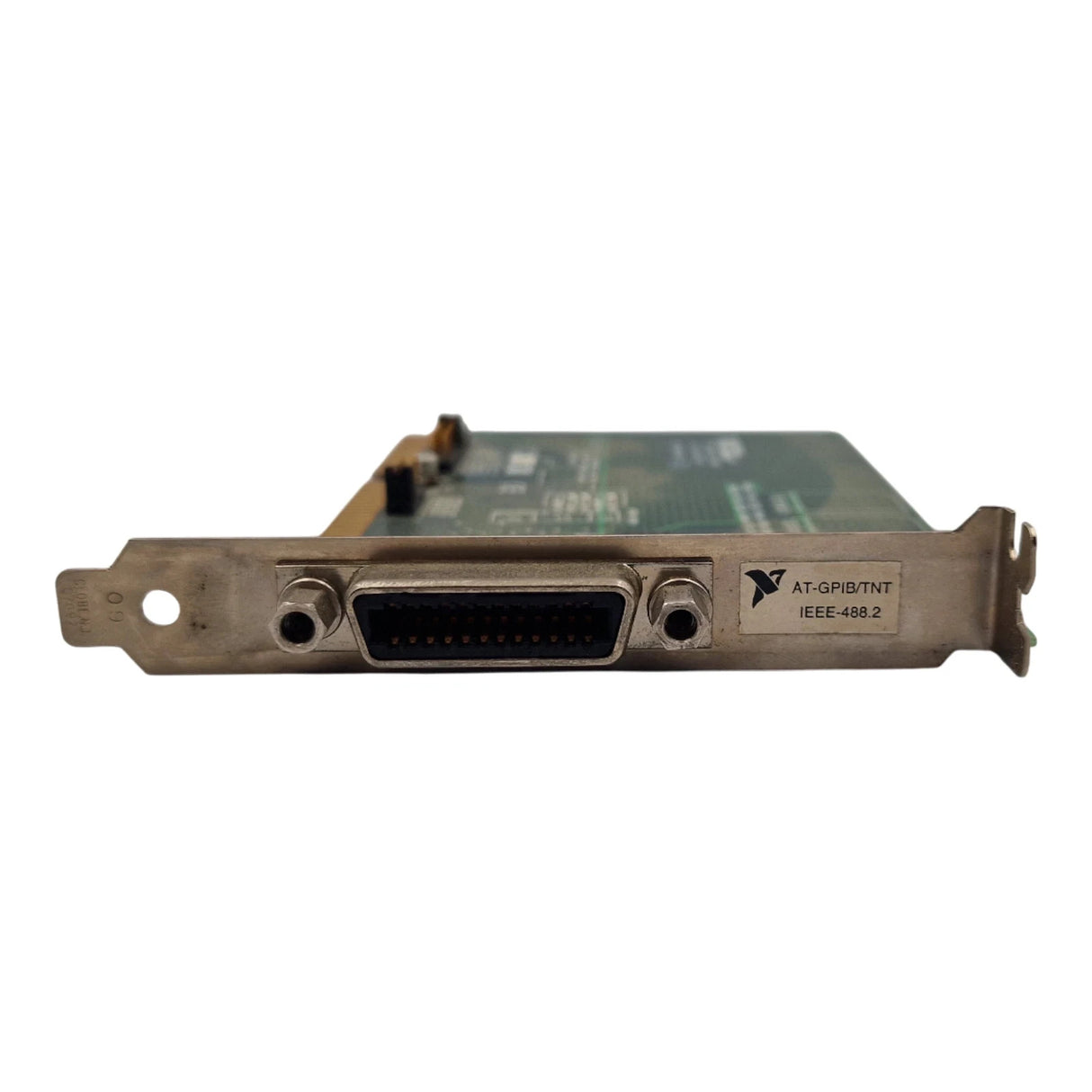

Connector: 24-pin IEEE 488 standard (GPIB) port on rear bracket
Power Requirements: +5VDC from ISA bus, typical 120mA (max 200–240mA)
Form Factor: Full-height ISA card
Dimensions: Approx. 107mm x 165mm (4.2in x 6.5in)
Operating Temperature: 0°C to 40°C
Storage Temperature: -20°C to 70°C
Humidity: 10%–90% RH (non-condensing)
EMI Compliance: FCC Class B certified
National Instruments AT‑GPIB/TNT ISA IEEE 488.2 GPIB Interface Card
