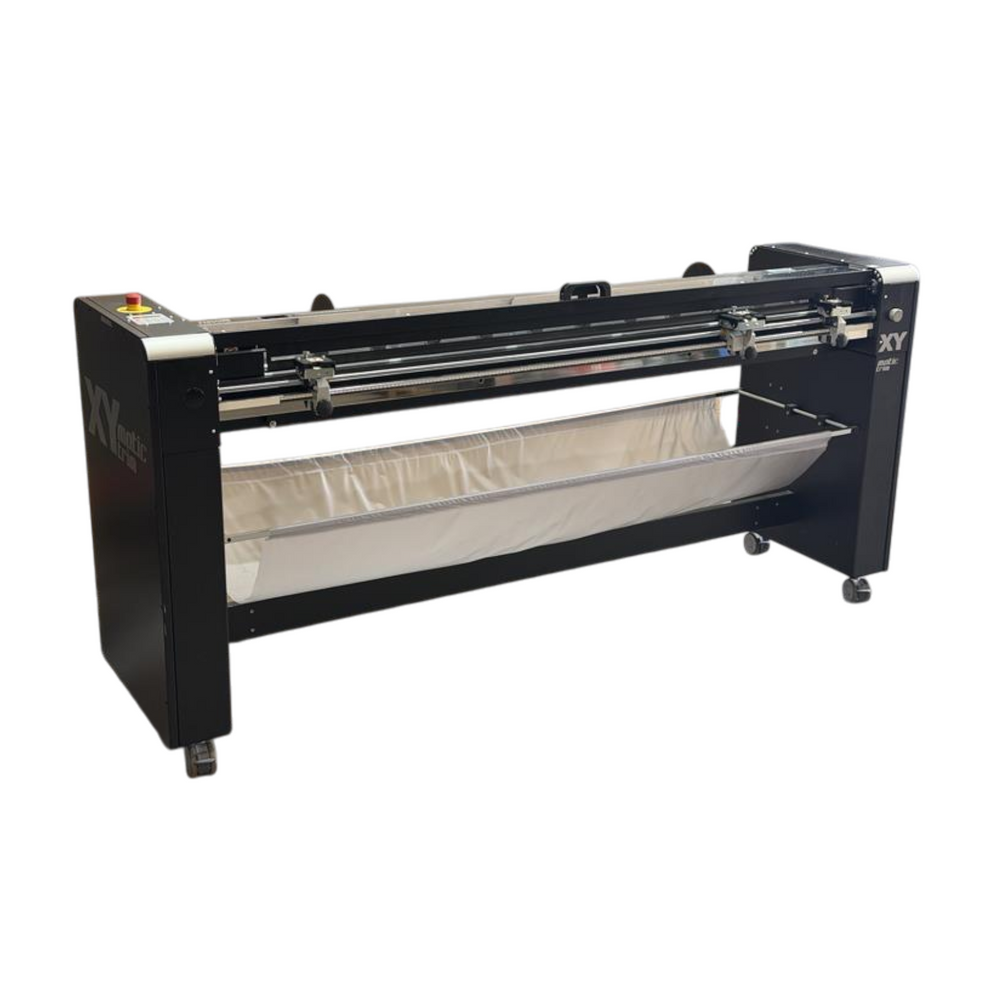

Neolt Factory XY Matic Trim 165 Automatic 4 Side XY 1650mm Wide Format Cutter
Pre-owned
Neolt Factory XY Matic Trim 165 Automatic 4 Side XY 1650mm Wide Format Cutter is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product overview
Product overview
Brand: Neolt
Type: XY Trimmer / Four-Side Trimmer
MPN: XY Matic Trim 165
Maximum Cutting Length: Roll-fed
Country of Origin: Italy
Cutting Speed: 40 m/min horizontal, 12.5 m/min vertical
Maximum Cutting Width: 1650 mm

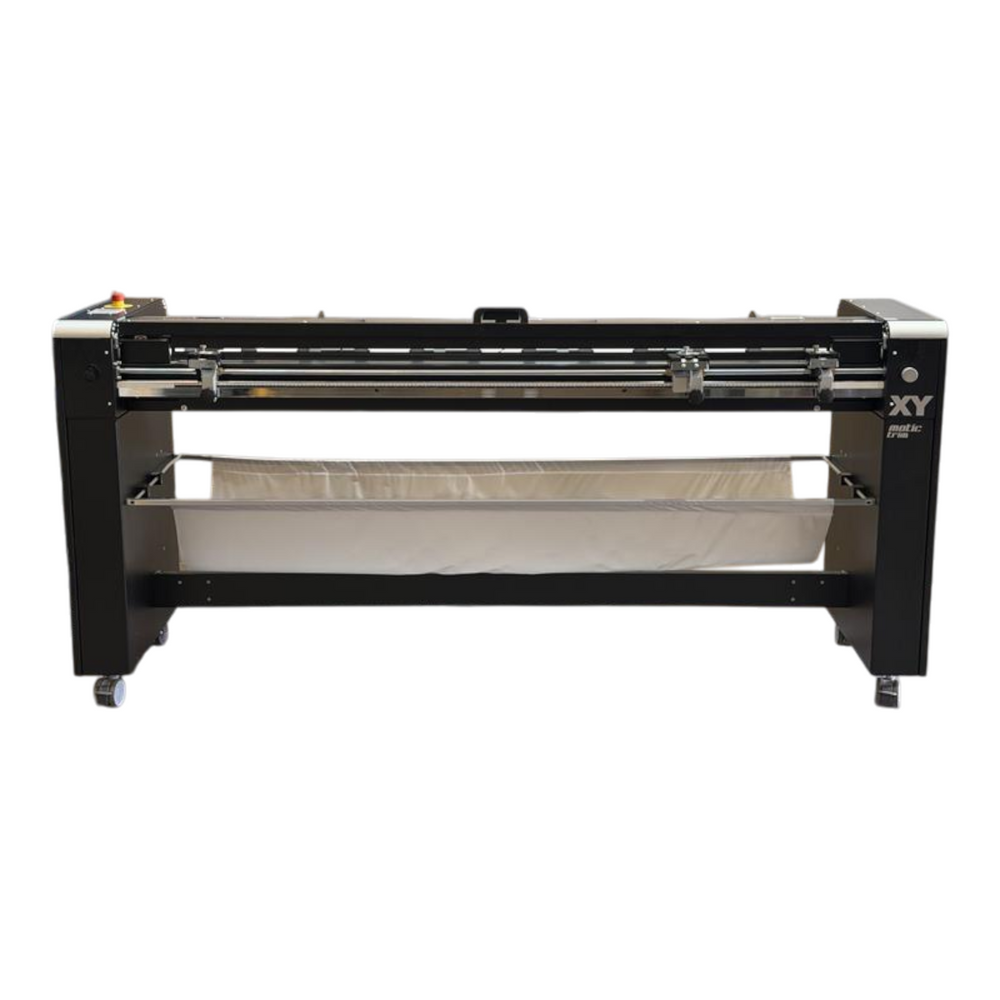

Neolt Factory XY Matic Trim 165 Automatic 4-Side XY 1650mm Wide Format Cutter
Model: XY Matic Trim
In good condition and In full working order
Tested
Supplied New In 2024
Included:
1 x Neolt Factory XY Matic Trim 165 Automatic 4-Side XY 1650mm Wide Format Cutter
Key Features:

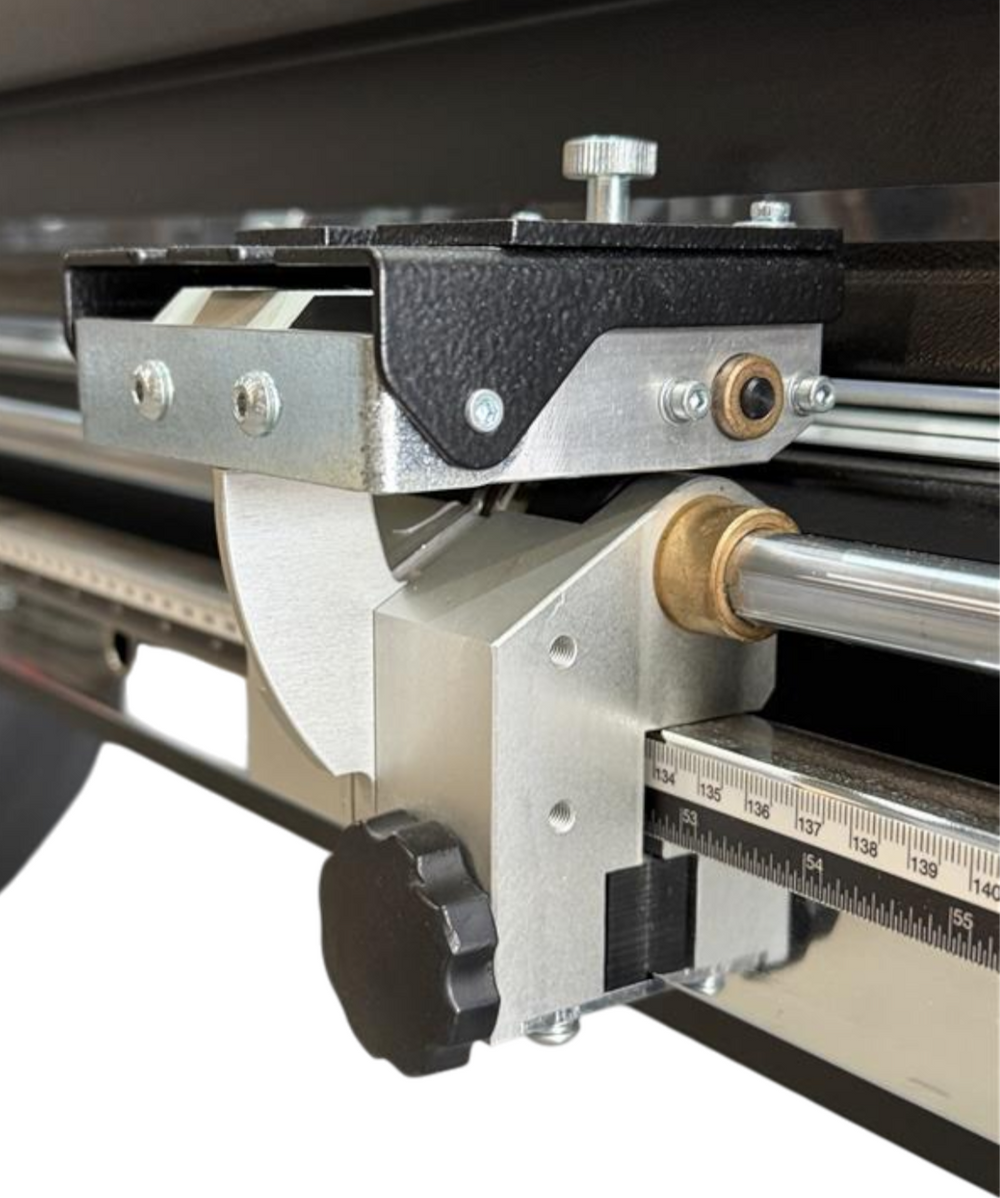

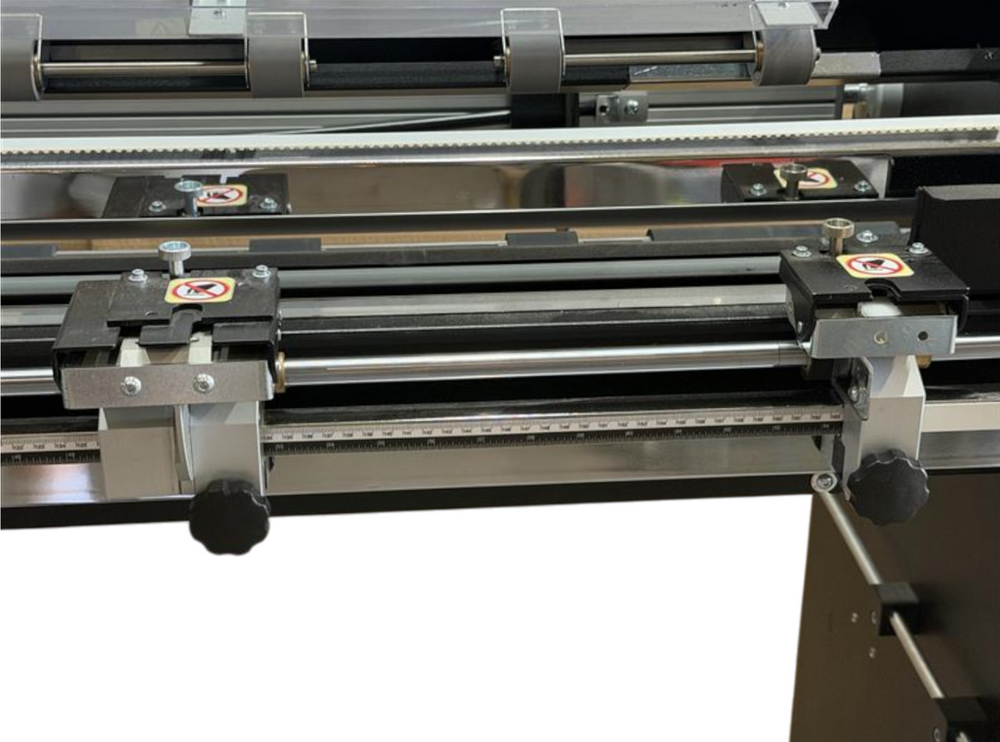

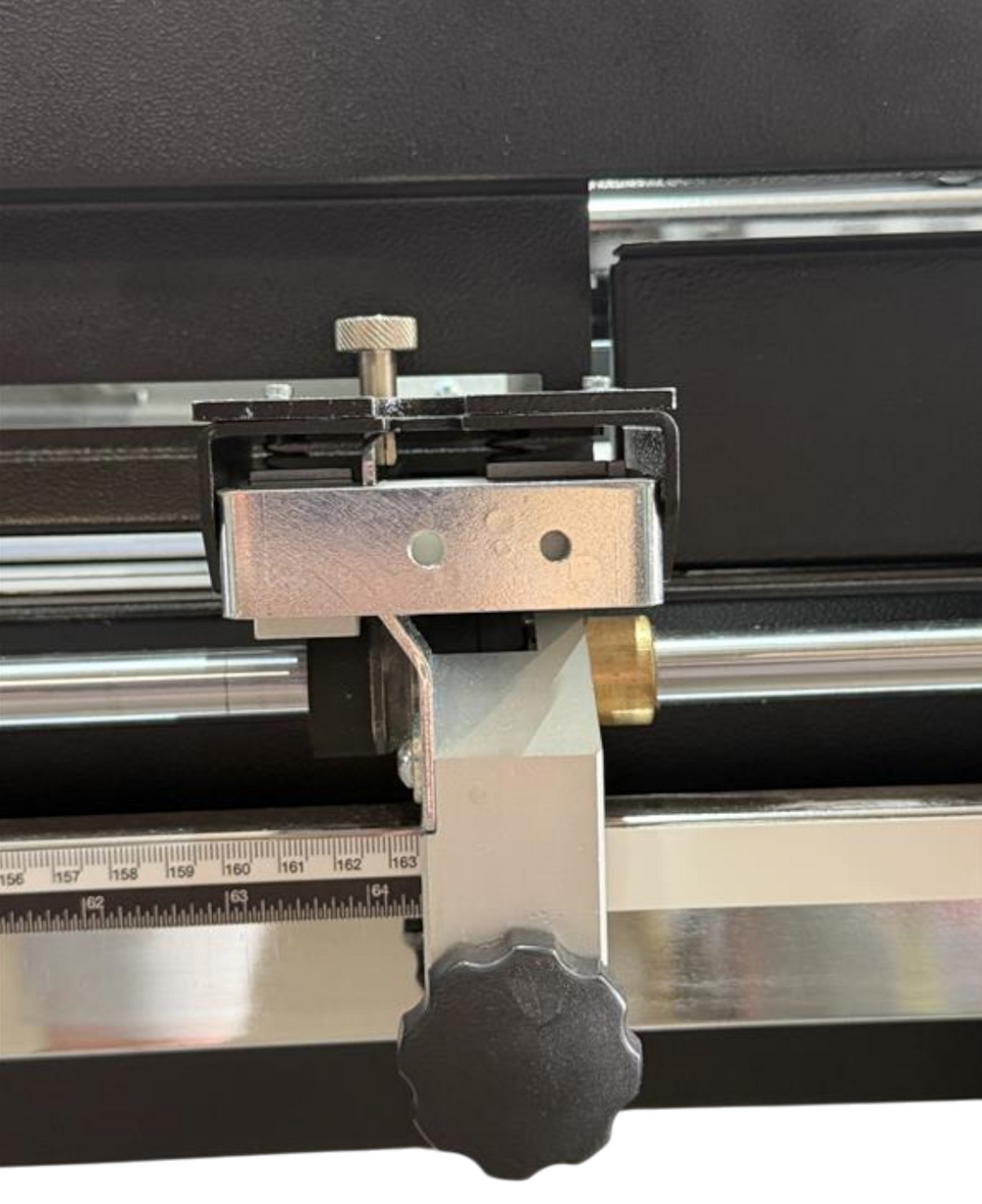

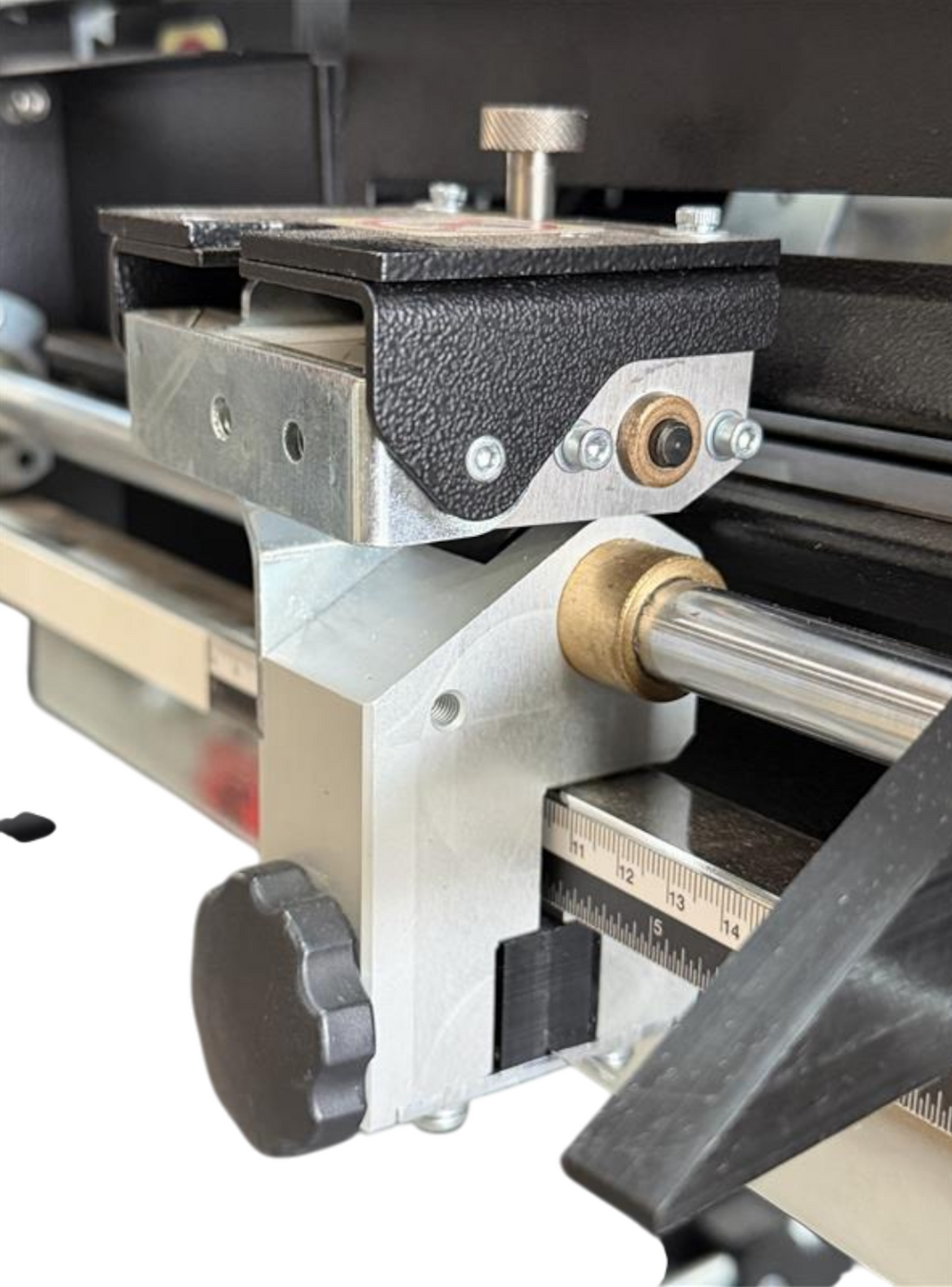

Equipped with multiple cutting units for simultaneous cut on all four sides
A mobile optical sensor reads cut marks to automate

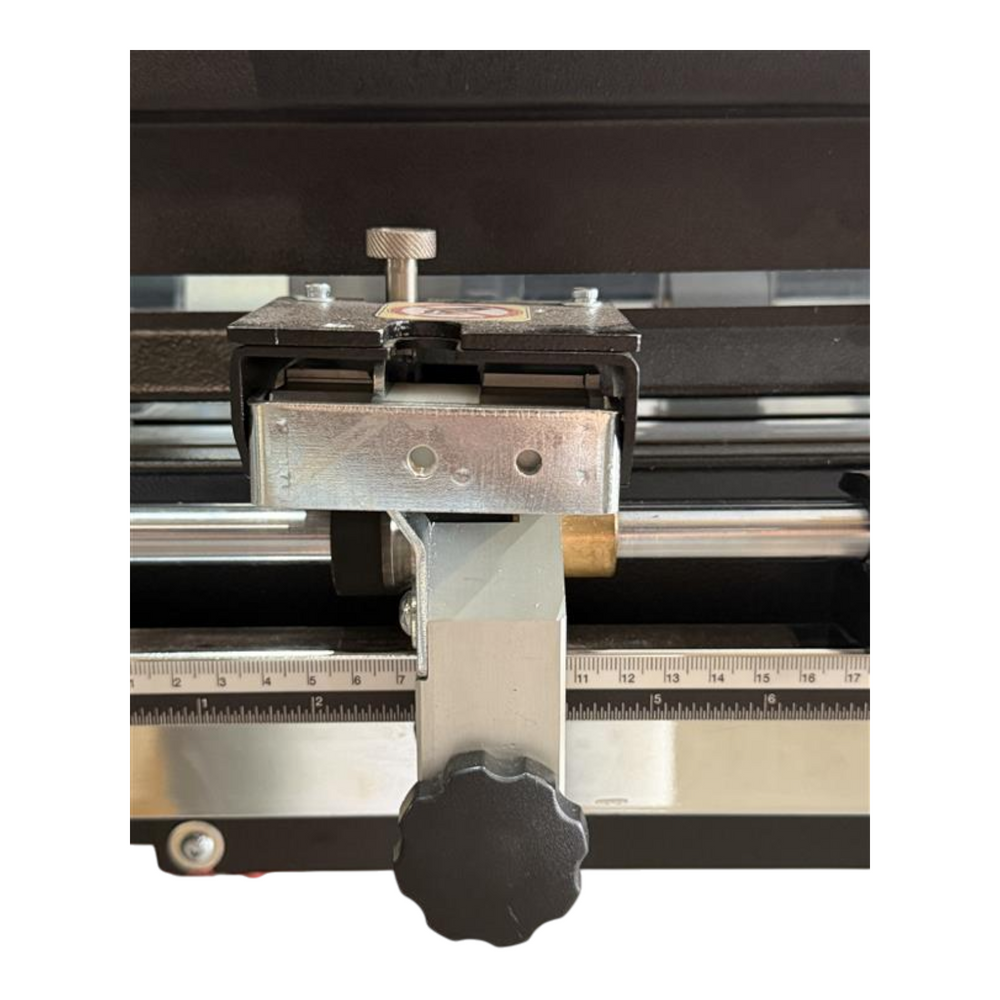

Manual alignment of the prints to be cut in the longitudinal direction, while the vertical cutting units are set manually
Speed 500 linear meters/h
Available for a wide range of materials, including photo papers, vinyl, inkjet printing paper, polyester or polycarbonate films up to a thickness of 0.5 mm

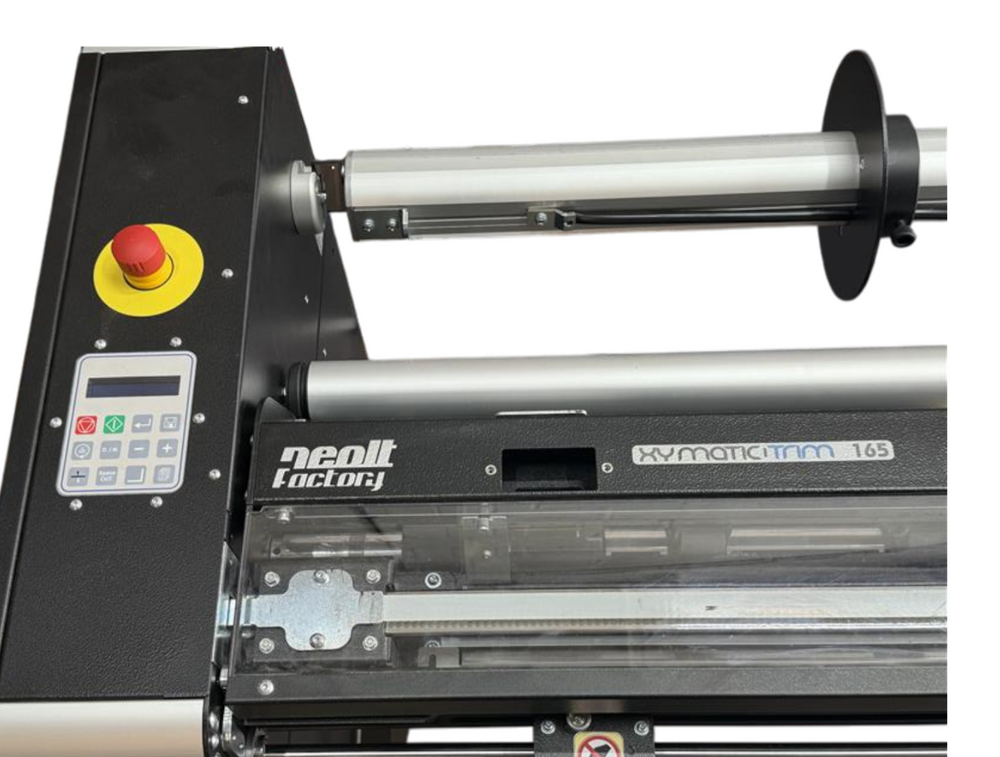

Easy loading of rolls

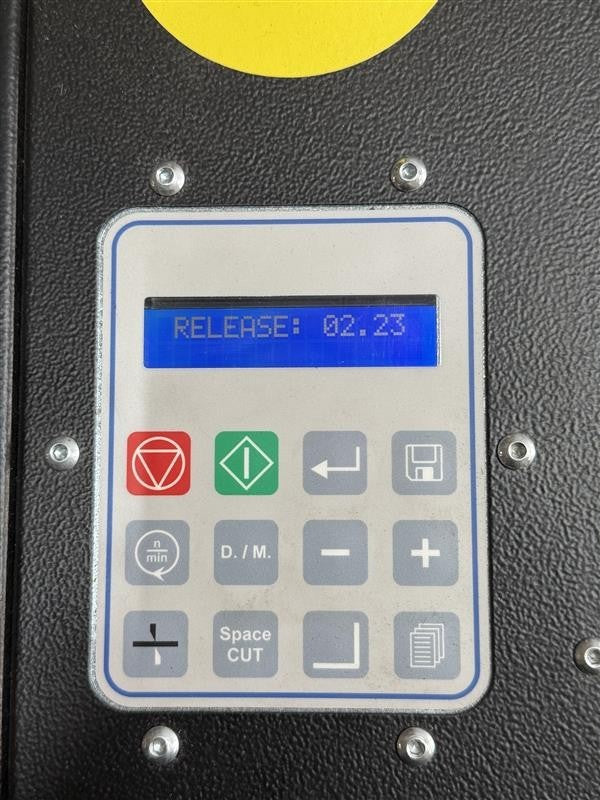

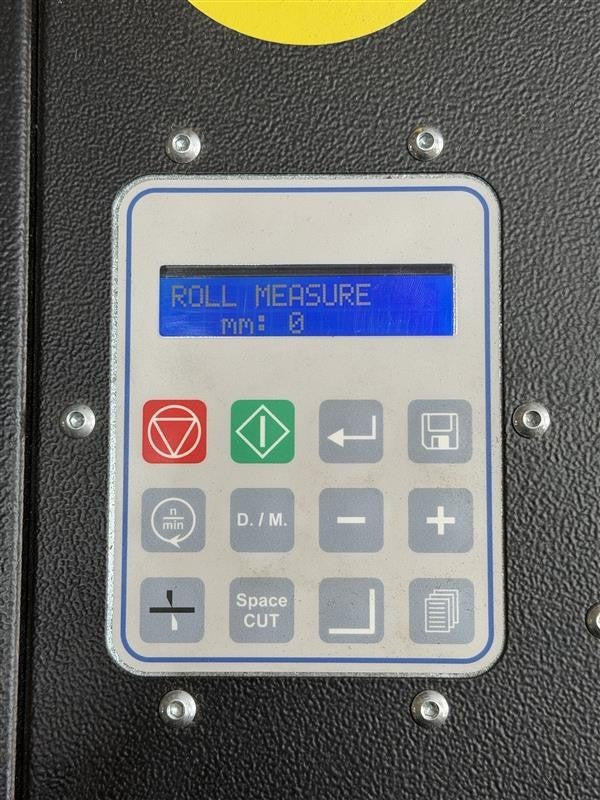

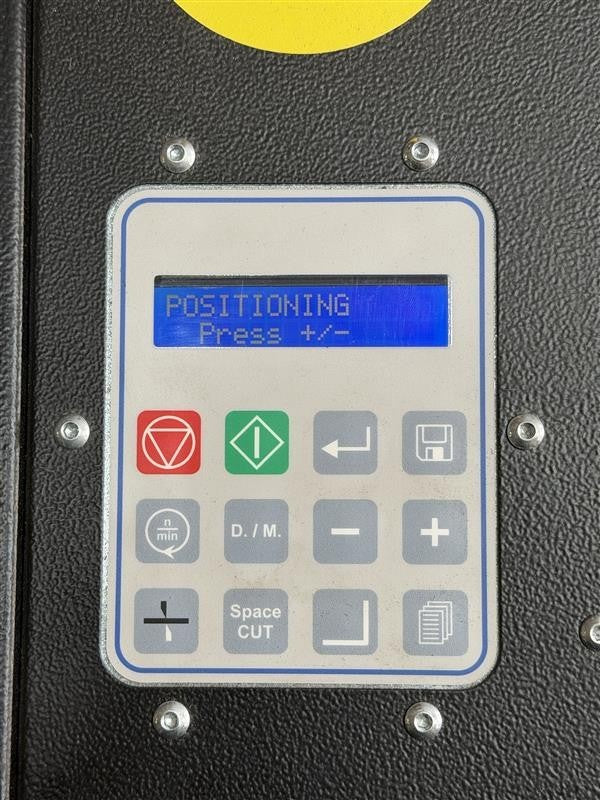

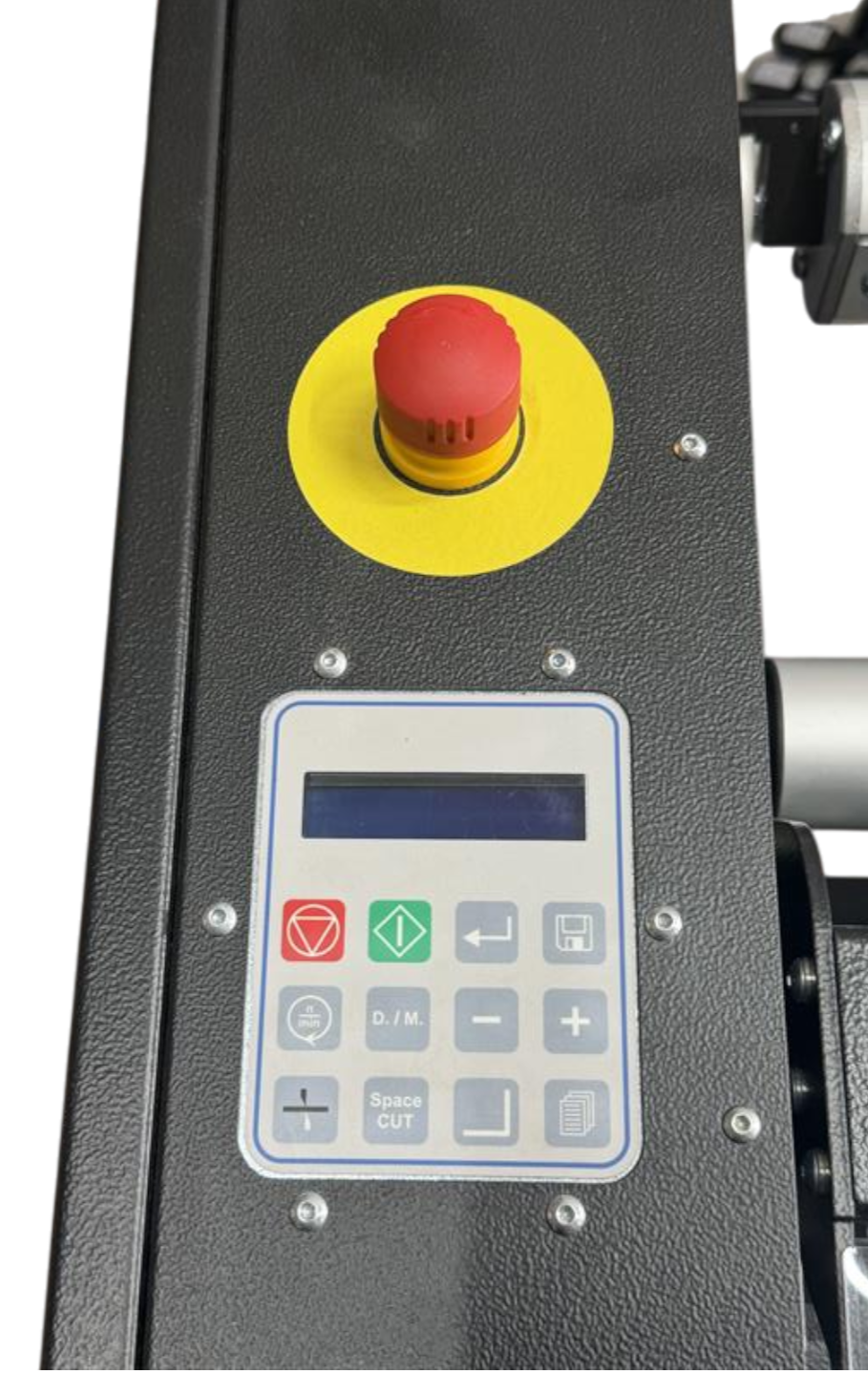

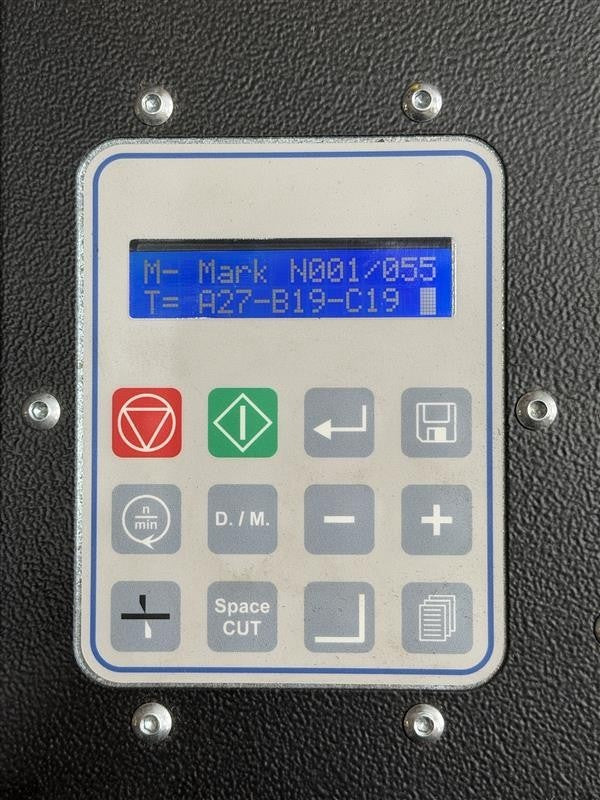

Electronic controls with display allow the operator to easily check any errors or malfunctions
Vertical self-sharpening blade
Horizontal self-sharpening blade
Specification:
Technical Data -
Maximum cutting width: 1650 mm
Dimensions: 165 > 2160x800x1110 mm; 165 on line kit > 1650x1940x350 mm
Weight: 165 > 95 kg; 165 Kit on line > 36 kg
Power consumption: 0,5 A
Horizontal Cut -
Maximum thickness: 1 mm
Speed: 40 m/min (131,24 ft/min.)
Tolerance: ± 1mm. to the mt
Vertical Cutting -
Maximum thickness: 0.5 mm
Speed: 12,5 m/min (41,01 ft/min.)
Tolerance: /
Roll -
Max. roll diameter: Ø 300 mm
Max. Roll Width: 1650 mm
Max. roll weight: 60 kg
Power consumption: 0,5 A
