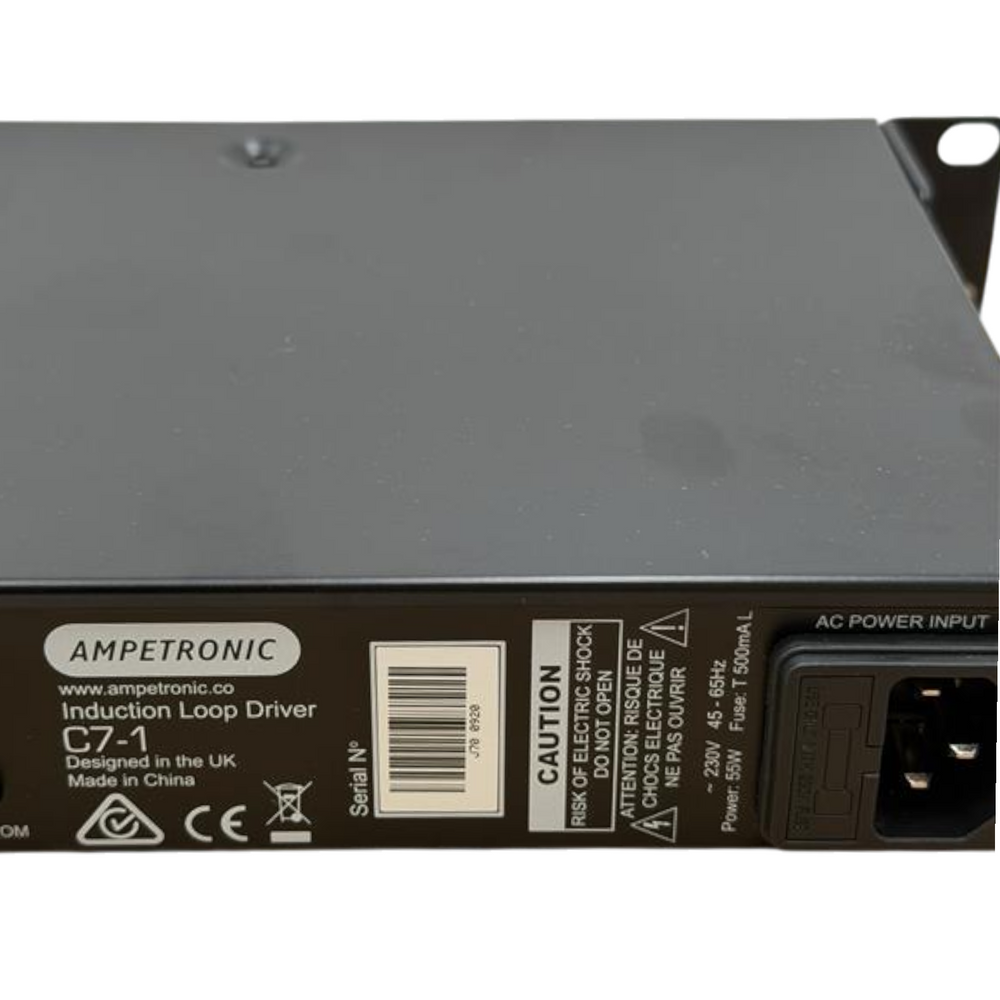

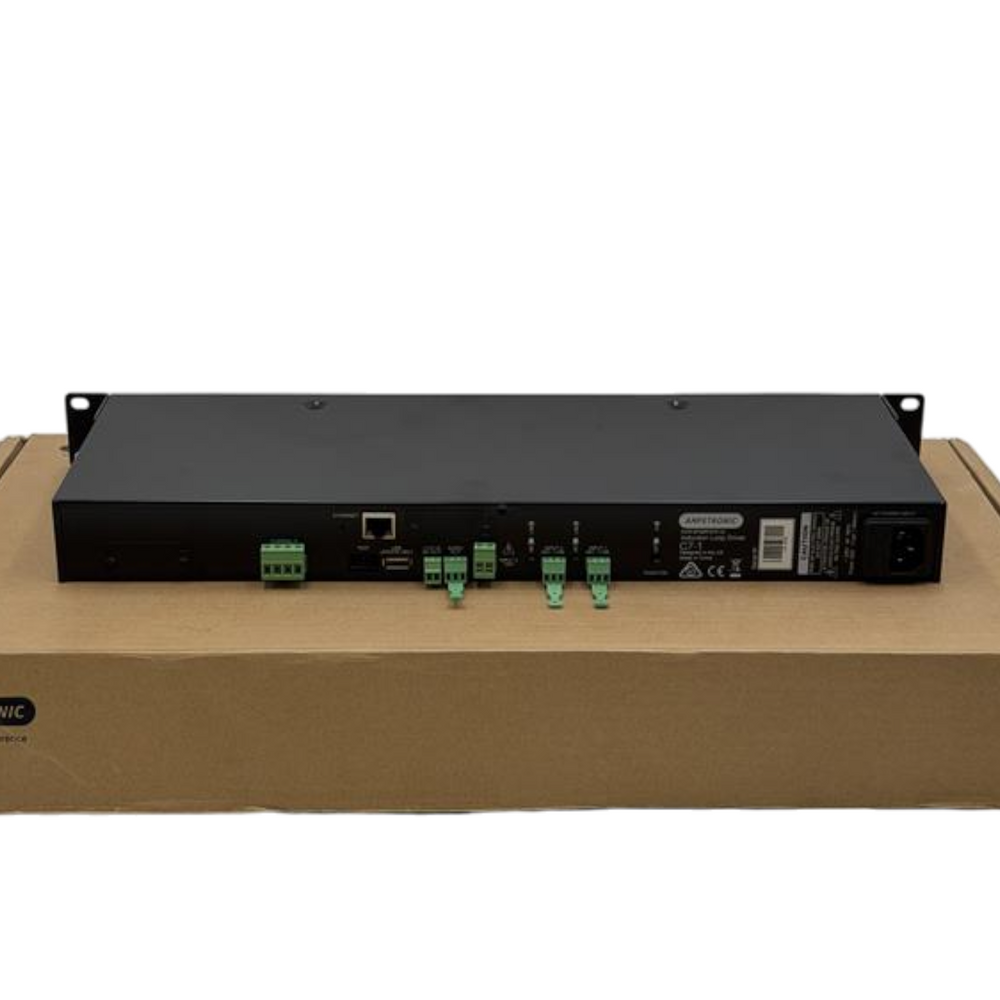

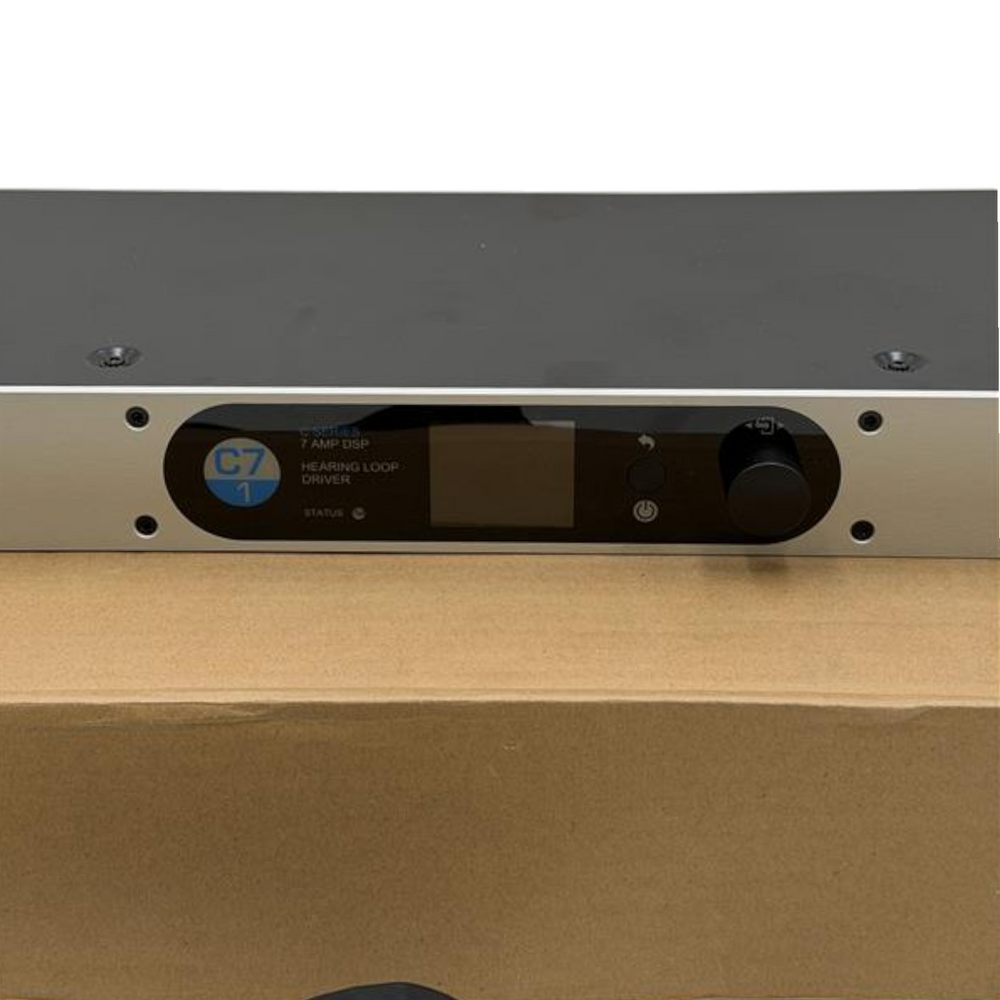

New Ampetronic C7-1N C-Series 1x7A Networked Perimeter Hearing Loop Driver
Pre-owned
New Ampetronic C7-1N C-Series 1x7A Networked Perimeter Hearing Loop Driver is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product overview
Product overview
Brand: Ampetronic
MPN: C7-1N
Country of Origin: China
New Ampetronic C7-1N C-Series 1x7A Networked Perimeter Hearing Loop Driver
Model: C7-1N
New Open Box never used

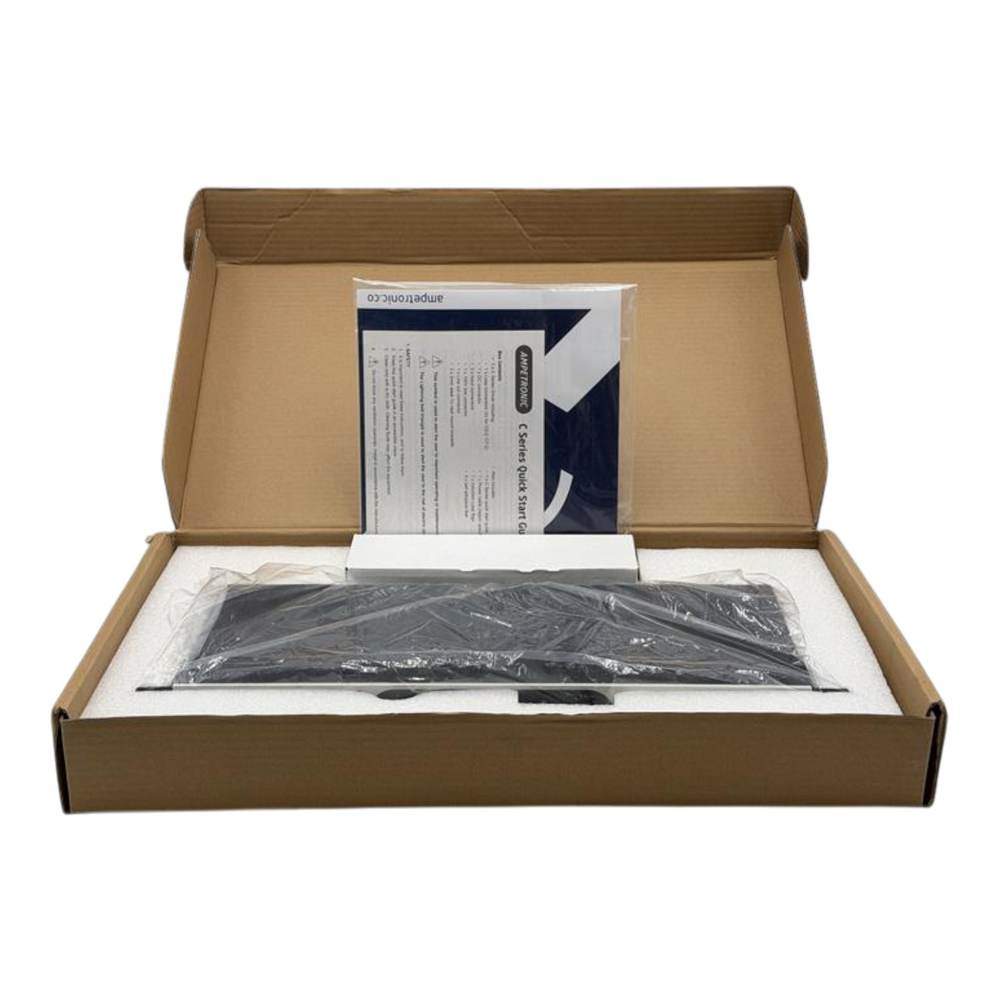

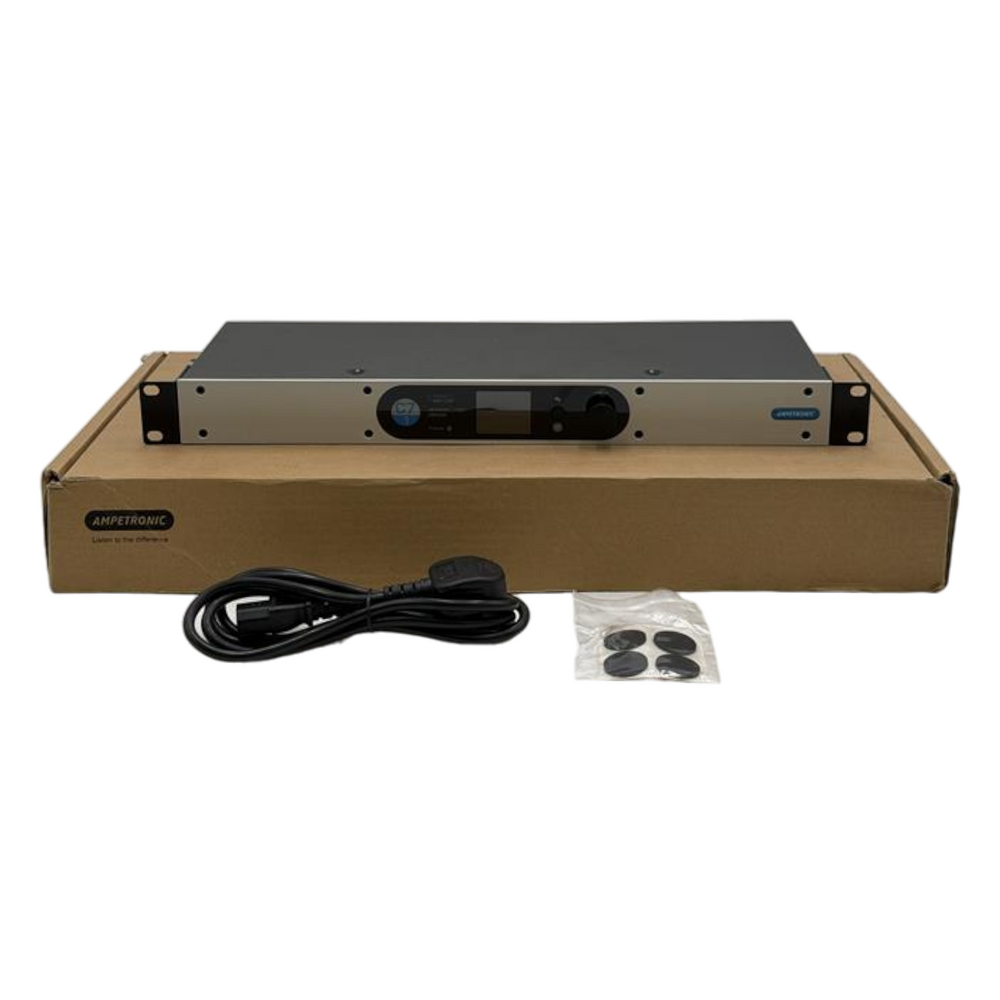

Included:
1 x New Ampetronic C7-1N C-Series 1x7A Networked Perimeter Hearing Loop Driver
Specification:
Inputs
Input 1 & 2: 3 way 3.5mm euroblock screw terminal input (supplied) with a balanced microphone and line level operation, selectable via rear panel switch. Switchable 250Hz low cut filter. Priority input option (network models only).
Microphone / Line: Microphone specification; 200 – 600Ω, sensitivity -67dBu. Selectable 24V phantom power on microphone only Line sensitivity -42dBu. Max line level 17Bu. Max mic level -8dBu.
100V Line (Input 2 only): 2 way 5mm euroblock screw terminal (supplied) Sensitivity +7dBu
Dante (Optional C5/C7): RJ45 Ethernet, control and monitoring. Hosted web server, Telnet & SNMP.
Outputs
Loop Connectors: 4 way 5mm euroblock screw terminal (supplied) for each output, for twisted pair or star-quad configured feed cables
DC Output: 2 way 3.5mm euroblock screw terminal (supplied). Re-settable, fuse protected 12V 0.1A. Controllable to reflect amplifier status (network models only)
Status Relay (C10 and C14): 2 way 3.5mm euroblock screw terminal (supplied). Normally closed isolated relay contacts, open in fault conditions. Rated load 0.5A at 125VAC, 2A at 30VDC.
Line Output: 3 way 3.5mm euroblock screw terminal (supplied) post AGC balanced output
USB: Firmware updates or power for wireless router (200mA max).
Power
Current: 7ARMS (9.9 Apk) 1kHz sine 3.3ARMS pink
Voltage: 20VRMS (28.3Vpk)
Power Consumption: 55W
Weight: 2.8kg
