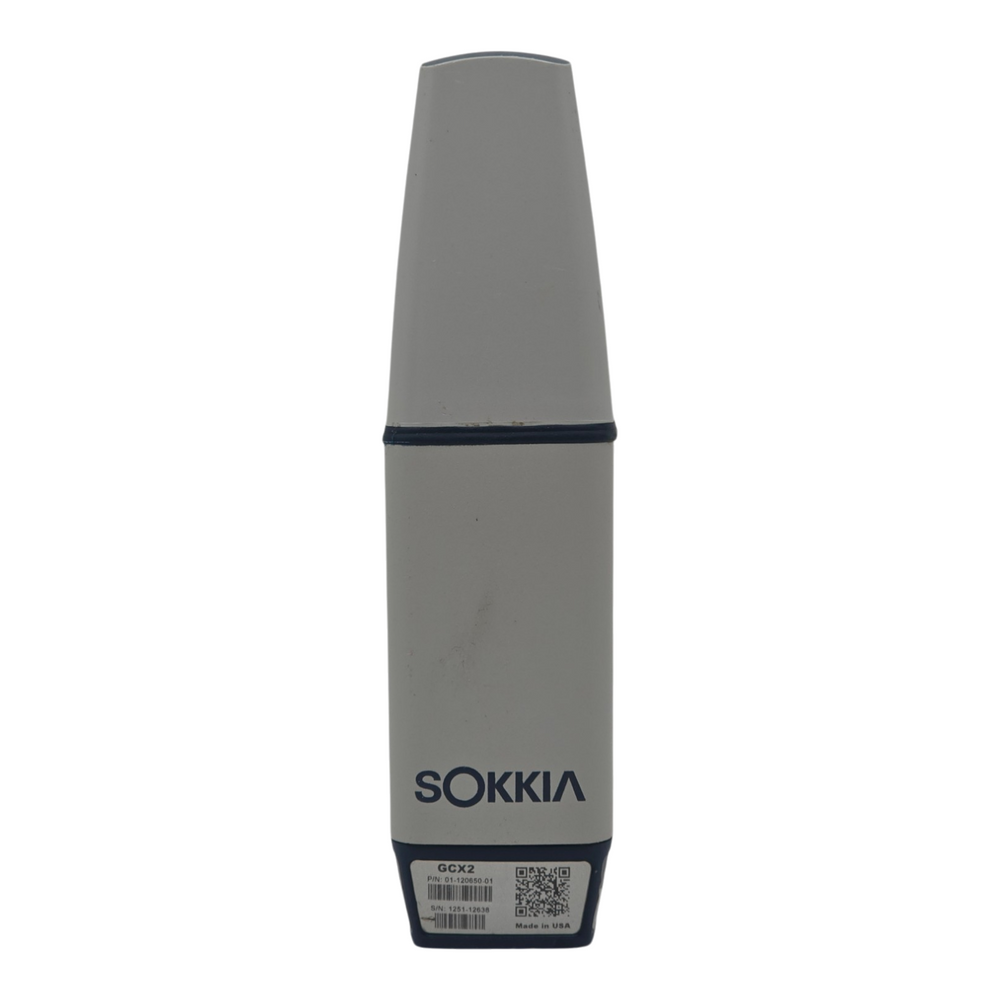

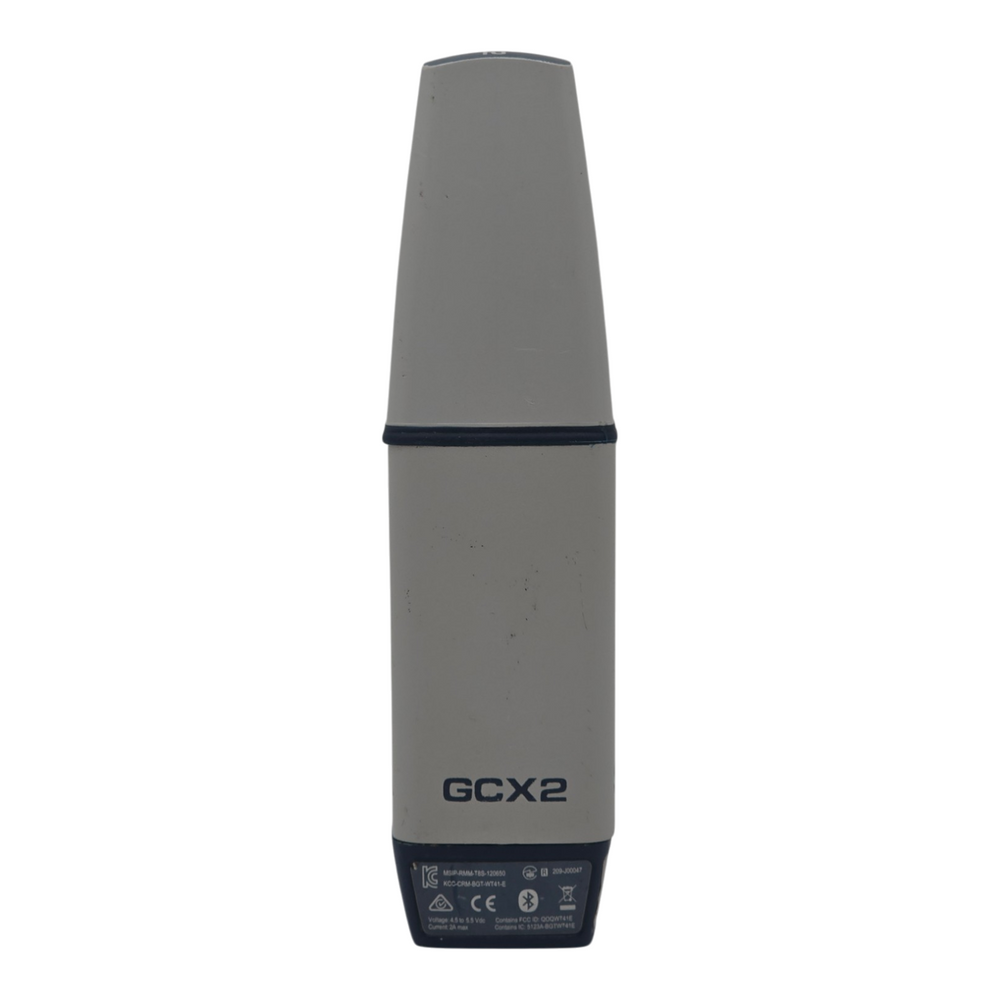

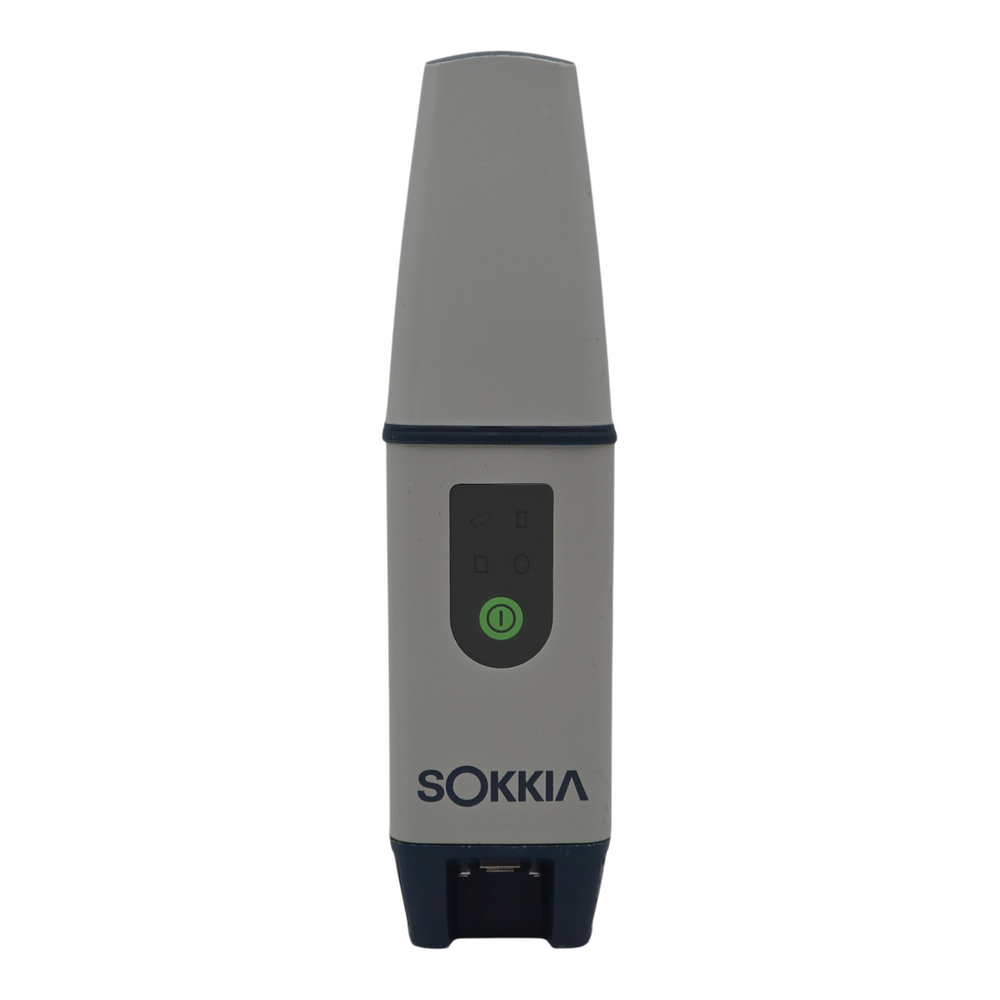

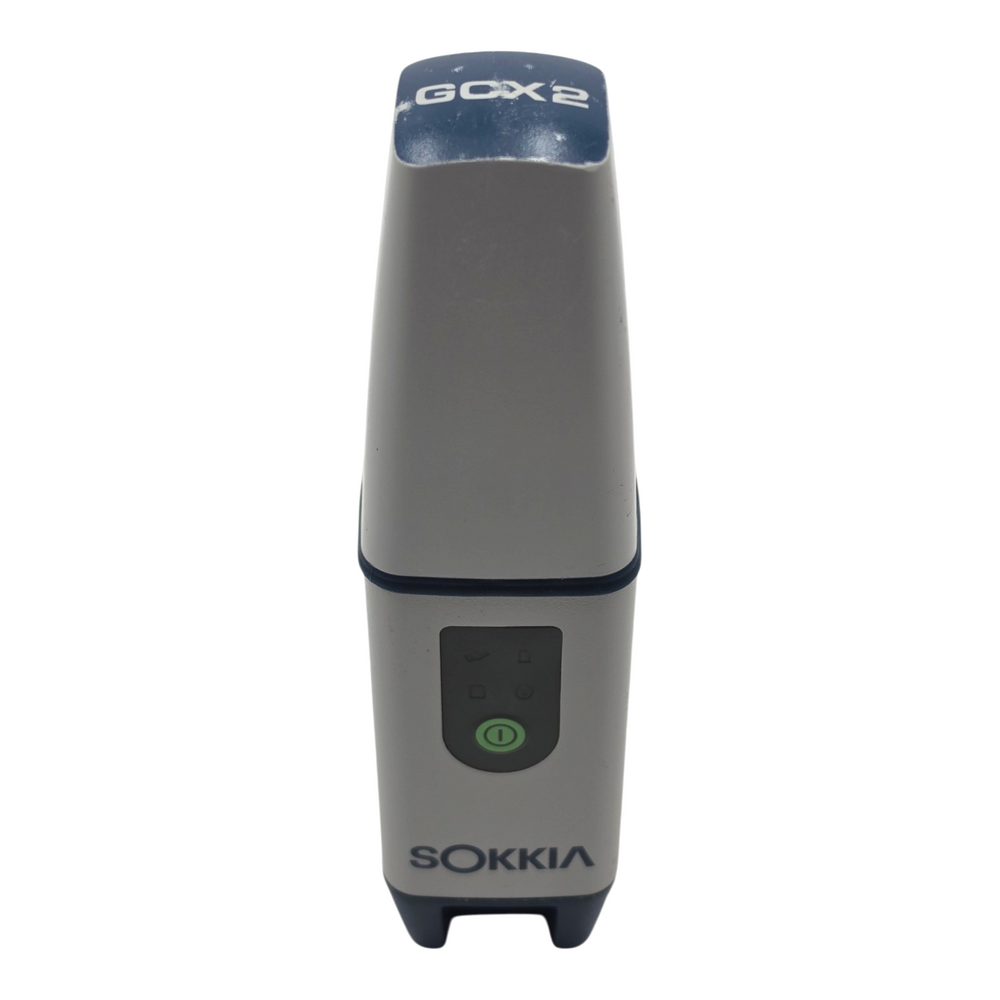

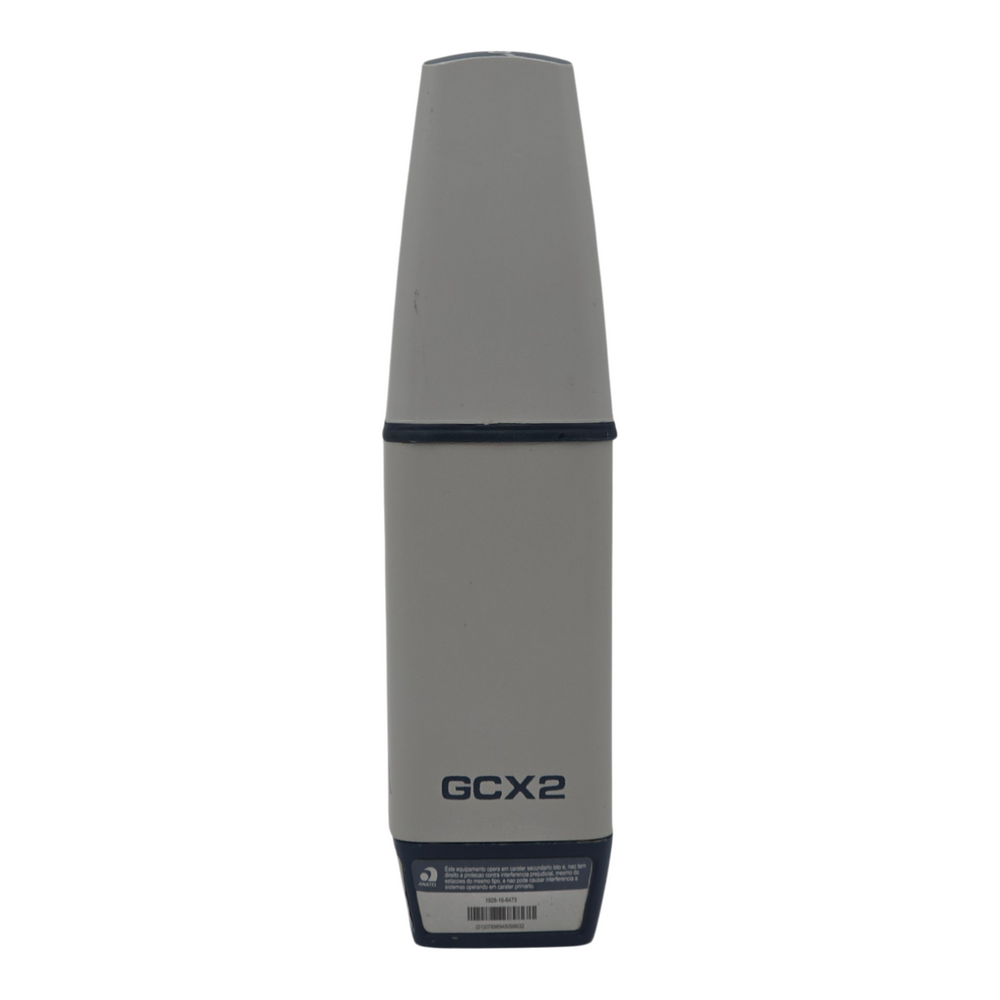

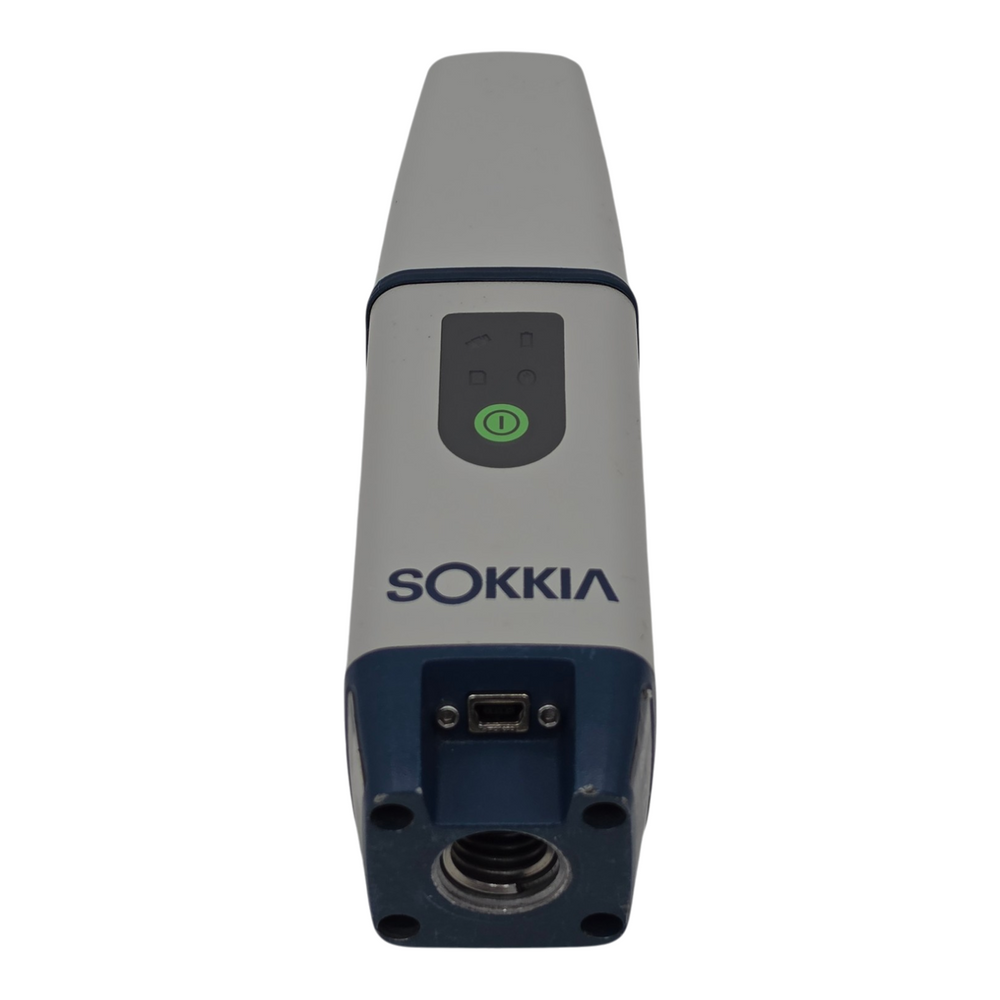

Sokkia GCX2 GNSS Receiver POST2 Centimetre Topcon RTK Land Survey Construction
Pre-owned
Sokkia GCX2 GNSS Receiver POST2 Centimetre Topcon RTK Land Survey Construction is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product overview
Product overview
Memory: 2 GB Internal Flash Storage
Horizontal Static Accuracy: 3 mm + 0.5 ppm
MPN: 01-120650-01
Channels: 226
Brand: SOKKIA
Antenna Type: POST2 (Precision Orbital Satellite Technology)
Operating Time: Up to 12 Hours
Vertical RTK Accuracy: 15 mm + 1 ppm
Product Type: GNSS RTK Receiver
IP Rating: IP67
Horizontal RTK Accuracy: 10 mm + 1 ppm
Model: GCX2
Frequency: Dual (L1, L2)
Connectivity: Bluetooth
Vertical Static Accuracy: 5 mm + 0.5 ppm
Signals Tracked: GPS, GLONASS, SBAS, QZSS, GAGAN
Country of Origin: United States

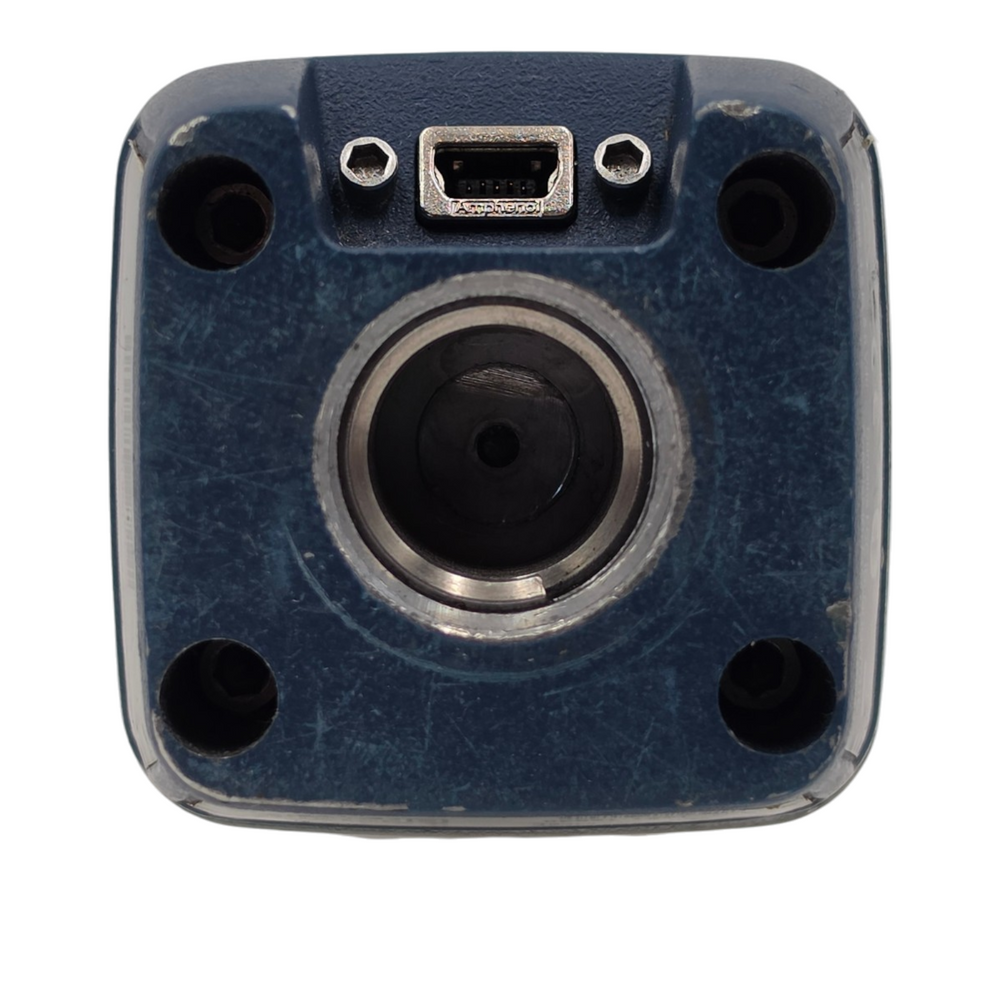

Interface: Micro-B USB for Data Transfer and Charging
Sokkia GCX2 GNSS Receiver POST2 Centimetre Topcon RTK Land Survey Construction
P/N: 01-120650-01
In Good Condition and Full Working Order
Tested
Included Items:
1 x Sokkia GCX2 GNSS Receiver
General:
Dust/Water Protection: IP67
Humidity: 100%, Condensing
Operating Temperature: -40ºF to 185ºF (-40°C to 85°C)

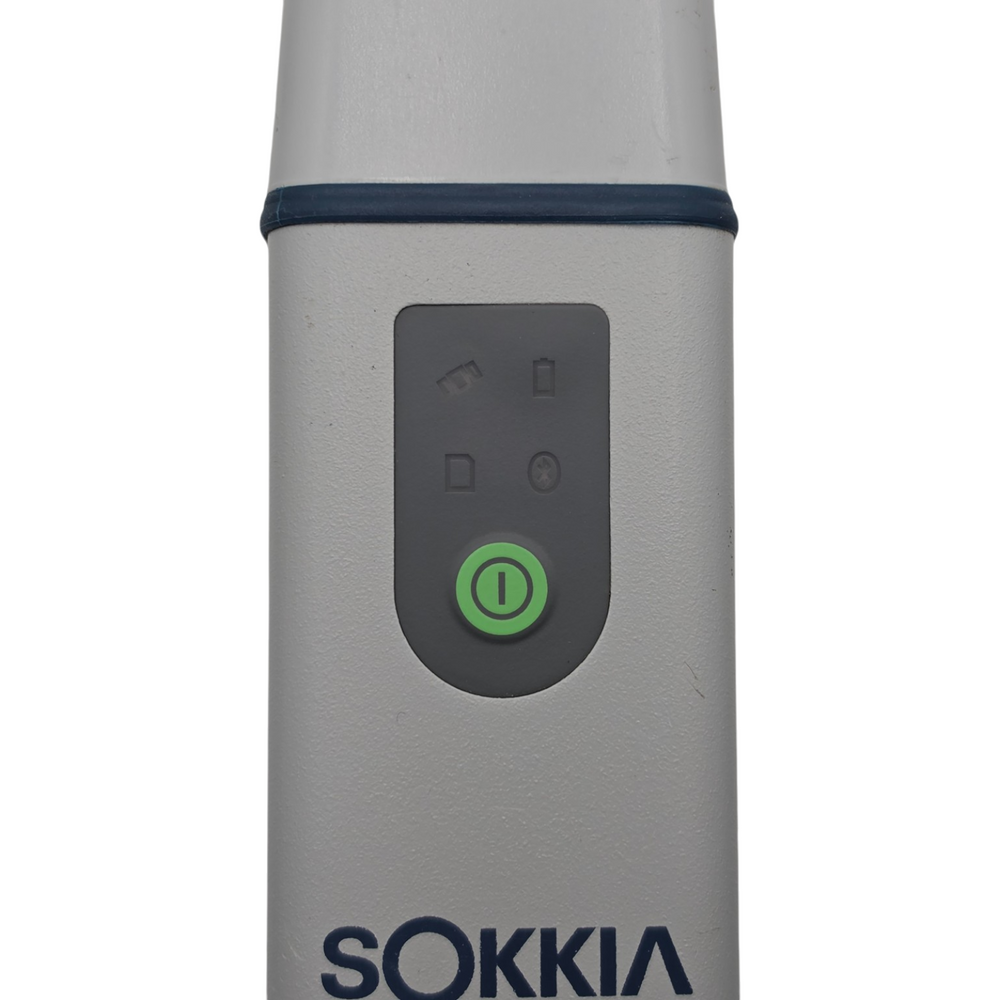

Display Type: LED User Interface (Minimal Interface)
Dimensions (w x h x l): 1.9” x 7.3” x 1.9” (47 x 184.5 x 47 mm)
Weight (including batteries): 13 oz. (375 g)
Tracking Capability:
Number of Channels: 226 Channels
Tracked Signals: GPS L1 C/A, L1C, L2P, L2C
GLONASS: L1 C/A, L1P, L2 C/A, L2P
SBAS: L1 C/A WAAS/MSAS/EGNOS
QZSS: L1 C/A, L1C, L2C
GAGAN: Tracked
Antenna Type: Integrated Antenna
Positioning Accuracy:
Static (L1 + L2): H: 4 mm + 0.5 ppm V: 6 mm + 0.5 ppm
RTK (L1 + L2): H: 12 mm + 1.0 ppm V: 18 mm + 1.0 ppm
DGPS: 0.5 m
SBAS: 1 m
Maximum Data Rate: 10 Hz
Data Management:
Memory: Internal Non-Removable Memory up to 8GB
Real Time Data Output: TPS; RTCM SC104 v 2.x and 3.x; CMR/CMR+
ASCII Output: NMEA 0183 v 2.x and 3.0
Communication Ports: Bluetooth; USB 2.0 High Speed Device
Wireless Communication:
Bluetooth Modem: v2.1 + EDR
RTK Communication: Over 1150 ft. (300+ m) with up to 3 Simultaneous Rovers or through Cell Enabled S-10 Data Collector - (Long Range Bluetooth)
Power Supply:
Battery Type: Internal Non-Removable
Operating Time: All Day Operation in any Configuration (Up to 12 Hours)
External Power Connector: Service Port (Shared with USB 2.0 Communication)
