YAMAHA PM5D 48CH Digital Mixing Console Desk 48CH Mono 8CH Stereo + 2x PW800W

YAMAHA PM5D 48CH Digital Mixing Console Desk 48CH Mono 8CH Stereo + 2x PW800W

Full Working Order
Tested

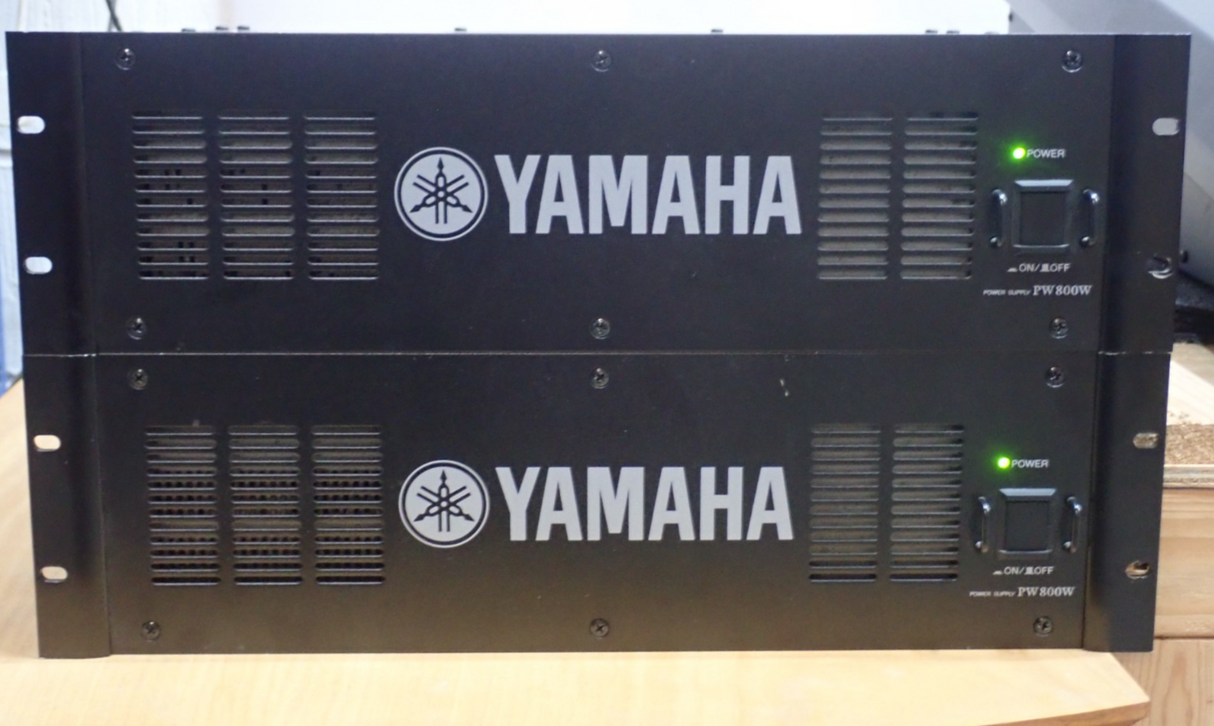

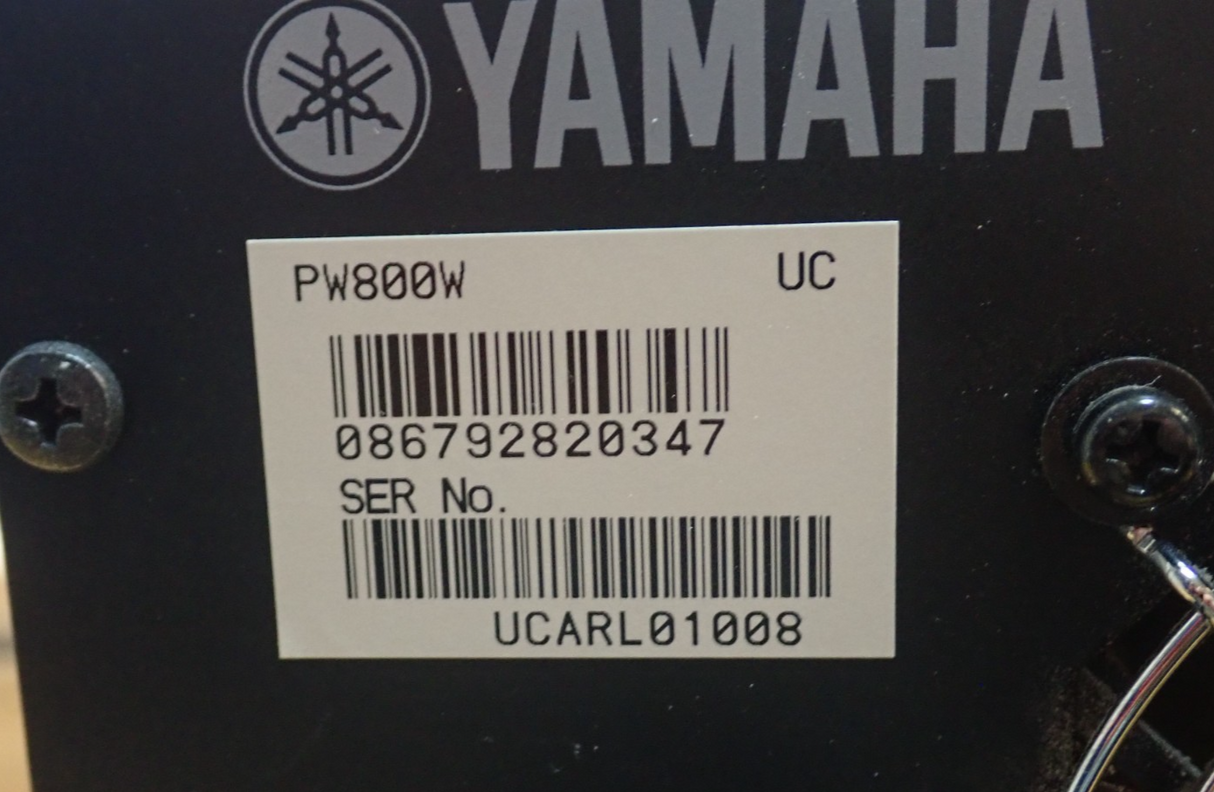

Power Supply Details:

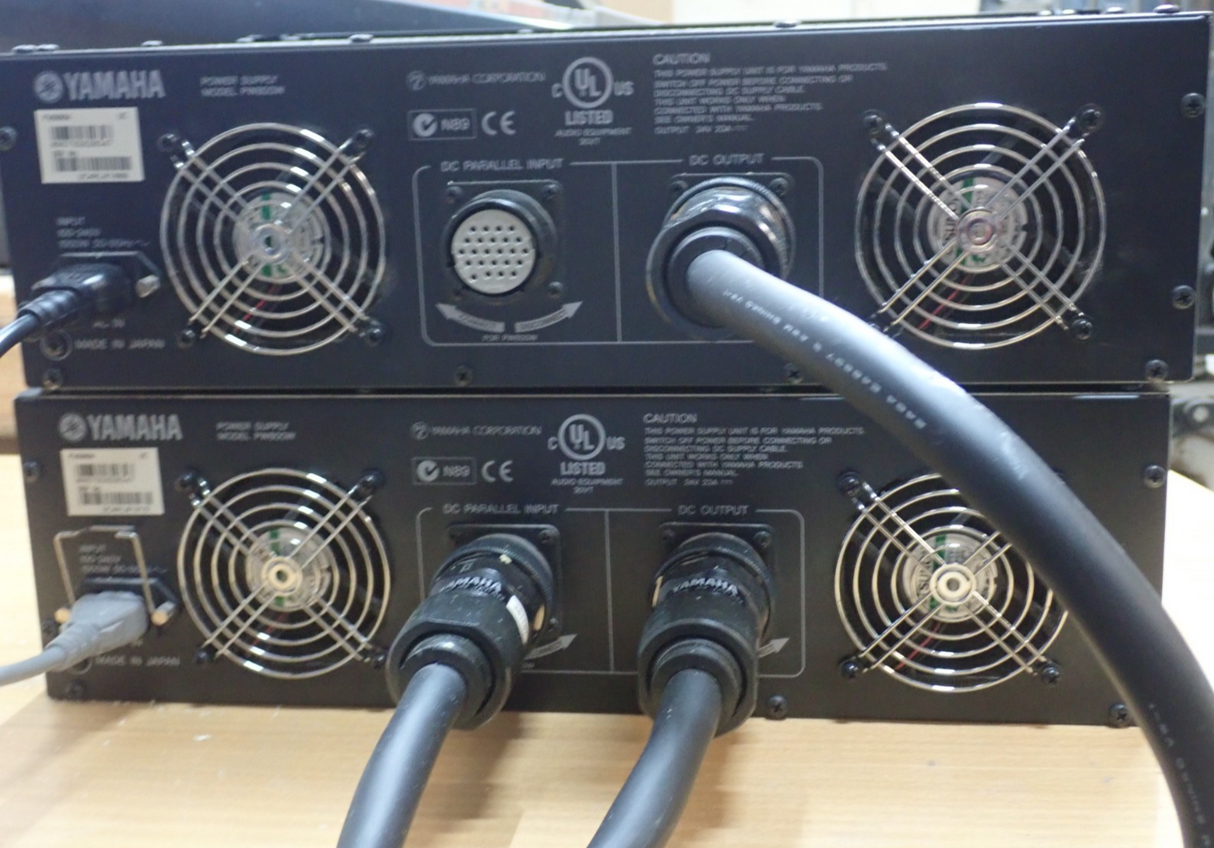

The PW800W is extremely compact and lightweight (3U, 10kg). Thanks to its high efficiency, the low speed cooling fans are extremely quiet. PW800W can be added as a redundant power supply for CL Series or M7CL. When using with PM5D, two units can be serially connected to achieve failsafe operation. PW800W accepts 100 - 240 volts so it can be used anywhere.

Mixer Details:
Since it's release the PM5D has become a standard for digital live mixing, and the first choice of legions of discerning engineers and sound companies throughout the world. Why? Simply because it offers extraordinary sound and versatility in a relatively small, lightweight system that is intuitive to use and delivers unmatched sound, control, and reliably without the need for additional outboard processing gear. Of course programmability and recall capability are of monumental importance in today's live sound scene as well. It's no exaggeration to state that the PM5D Digital Mixing Console took the digital revolution to a new level. What's more, it offers a system solution that can enhance the entire sound production process from input to output through seamless integration with digital systems including Yamaha's DME series digital mixing engines and AD8HR 8-channel A/D converters with remote controllable preamps. But for applications that require serious I/O capacity there's the PM5D-EX: a PM5D console plus a DSP5D Digital Mixing System that gives you the I/O and processing capacity of two PM5D consoles controlled from a single control surface, plus the added advantages of digital cabling over long distances when necessary. There's virtually no limit to the possible configurations and applications, thanks to open architecture with the flexibility and expandability you need to handle just about any live sound and recording application.

48 mono and 4 stereo inputs, 24 mix buses and 2 stereo outputs, and 8 matrix outputs.
Custom "DSP7" LSI for ultra-high-speed 96-kHz/32-bit processing.
I/O capacity and functionality can be doubled or tripled by adding one or two rack-mountable DSP5D Digital Mixing Systems.
Easy "virtual soundcheck" with individually assignable channels does not require complex re-patching.
Built-in VCM (Virtual Circuit Modeling) effects offer impeccable simulations of classic signal processing gear.
8 high-performance multi-effect processors and 12 graphic equalizers built in.
Enhanced security features keep the system operating flawlessly in any application.
Dimensions: 155.1 × 28.3 × 95 cm
Weight: 98kg

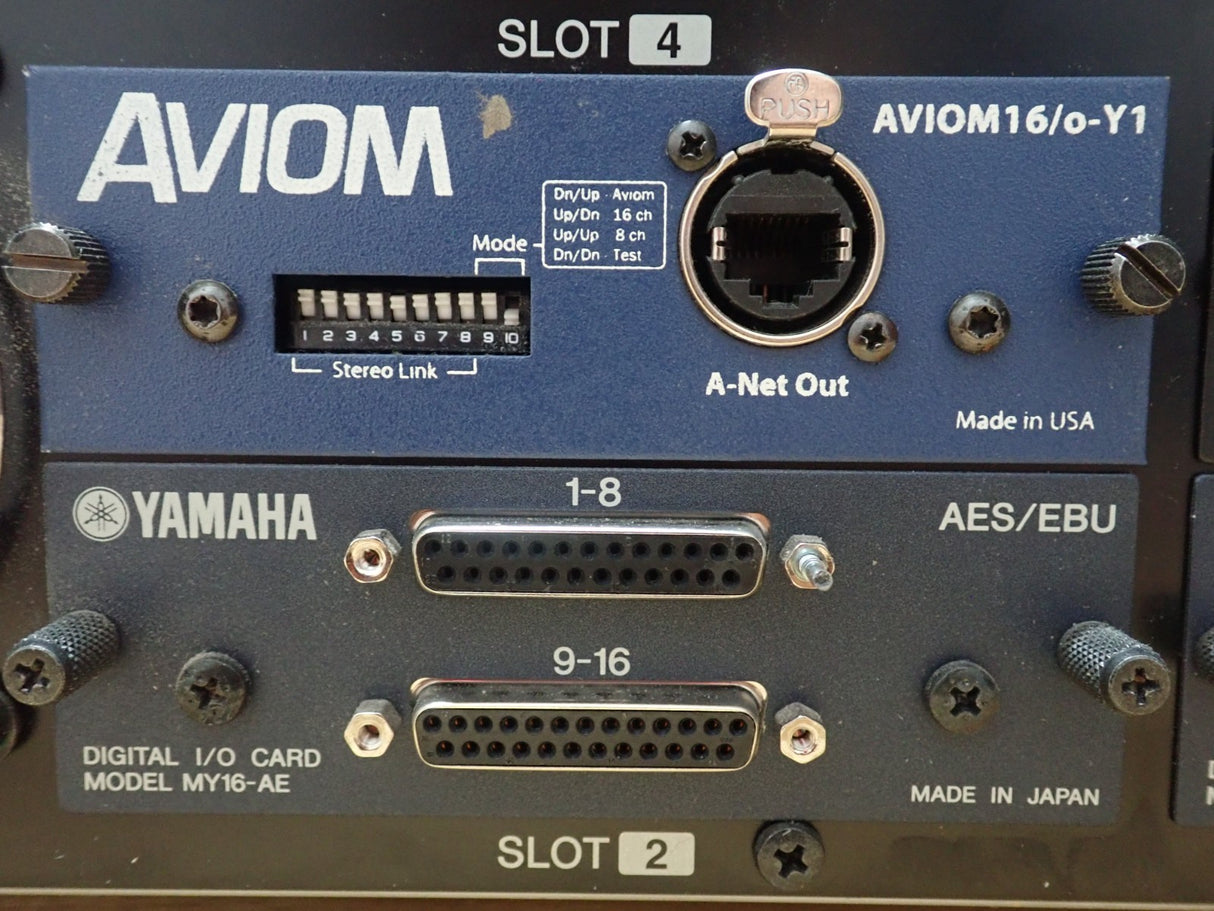

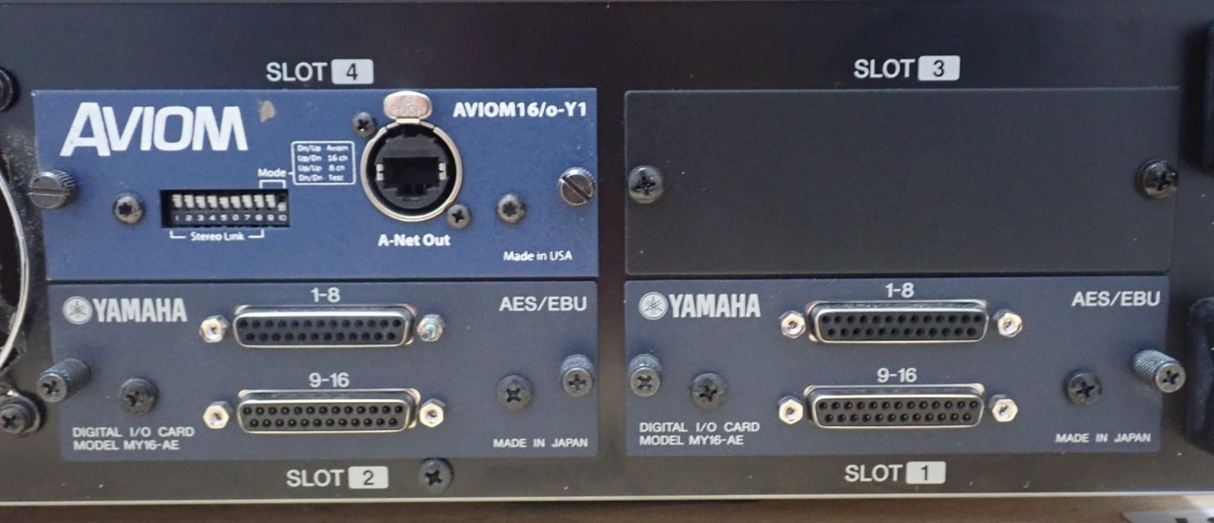

Aviom Aviom16/o-Y1 A-Net Card
The Aviom16/o-Y1 card provides a direct digital interface between Yamaha digital products that use the MY-format expansion slots and Aviom's Personal Mixers. The Y1 card becomes the head end to the monitoring system, simplifying system setup. Just connect a Cat-5e cable from the card to an A-Net Distributor and some Personal Mixer and you've created a monitor system that can be expanded as needed with additional personal mixers, output modules, and A-Net distributors.
YAMAHA MY16-AE 16ch AES/EBU I/O card
The Yamaha MY16-AE is a Mini-YGDAI Digital I/O card for use with Yamaha's DM2000, 02R96, DM1000 and future digital consoles to provide up to 16 channels of simultaneous AES/EBU-format (D-sub 25 pin) I/O via a single expansion slot. All 16 channels can be used independently at sample rates up to 48-kHz, or the MY16AE card can be used for "double channel" connection to 96-kHz recorders providing 8 channels of I/O at 88.2 or 96-kHz.
I/O: Input x 16, Output x 16
Format: AES/EBU
Connector: D-sub 25 pin x 2
Resolution: up to 24 bit

Outline
Mixing capability
Mixing channels: 48 Mono + 8 Stereo
GROUP: 24 Mix (Group/AUX) busses
AUX: 24 Mix (Group/AUX) busses
MAIN: Stereo A, Stereo B
MATRIX: 8
DCA/VCA: 8 (Output grouping also available at Group 7 and 8)
Input channel functions: Delay, HPF, Attenuator, 4-band PEQ, 2x Dynamics
Output channel functions: 8-band PEQ, Dynamics
On-board processors: 8x SPX multi effectors, 12x 31-band GEQ

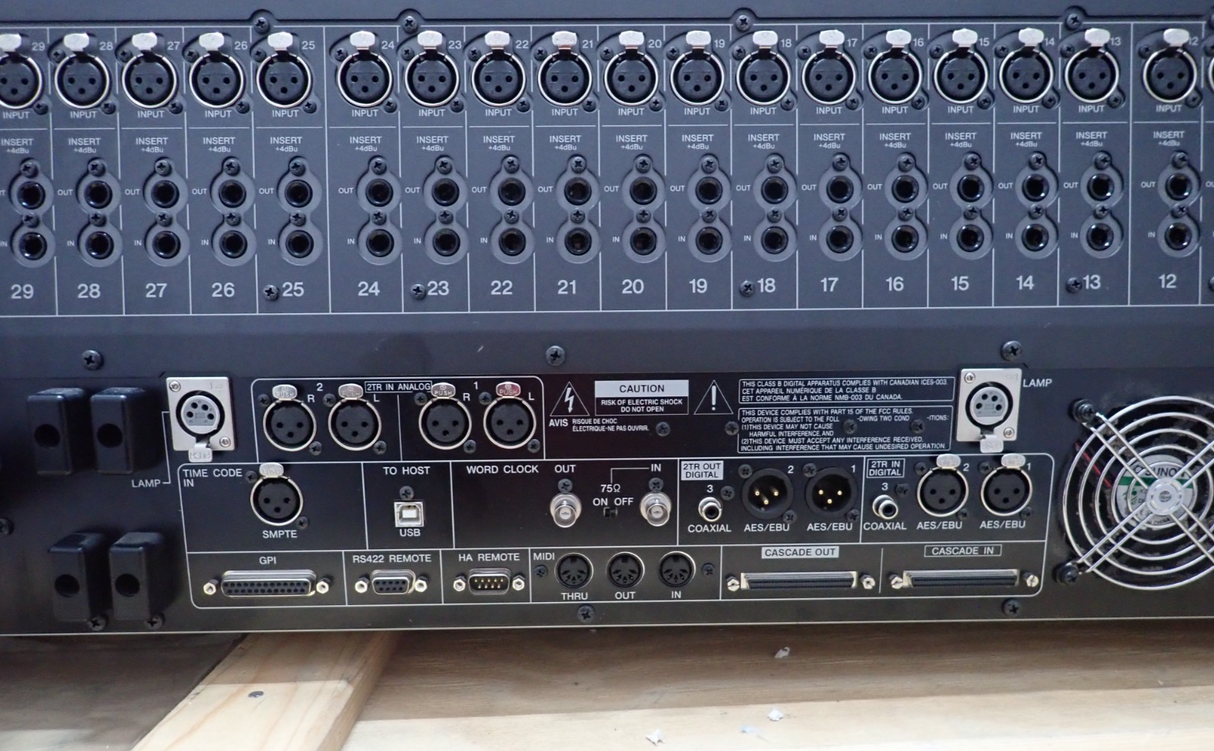

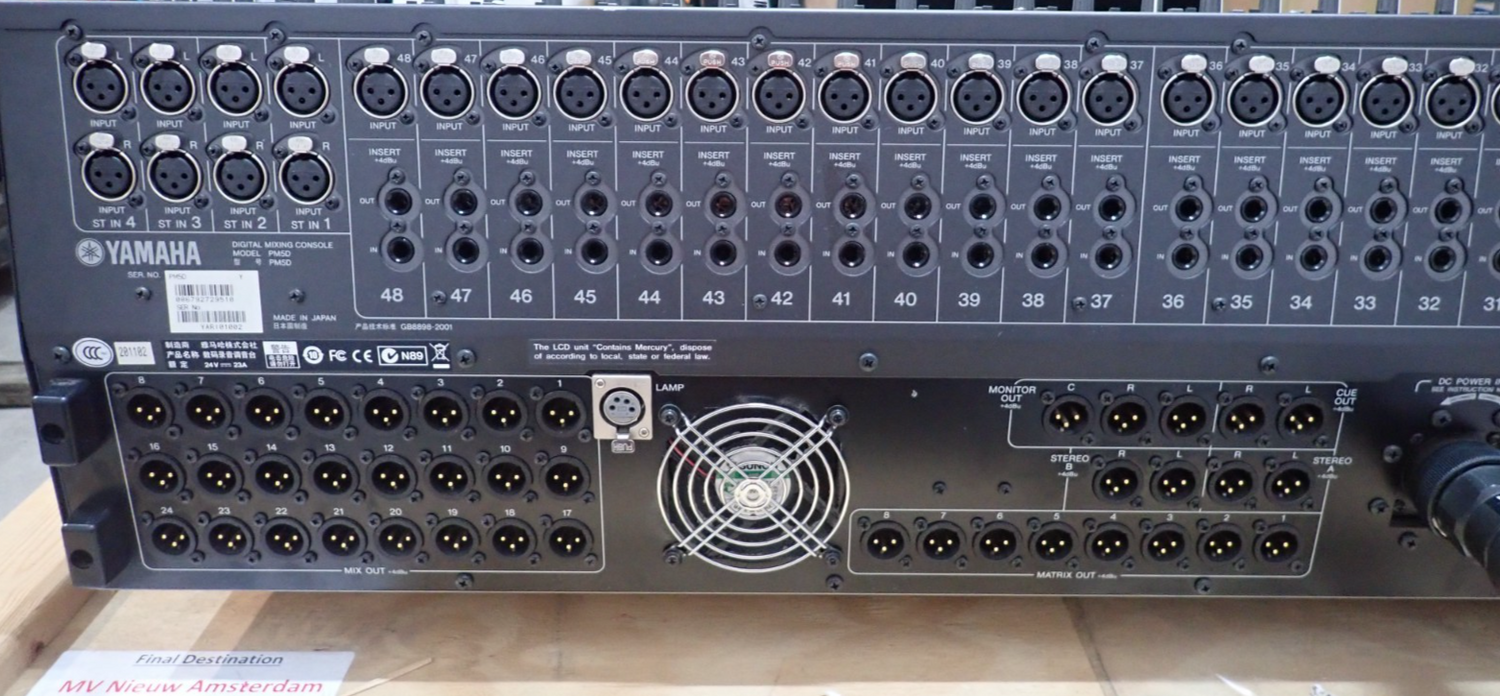

I/O
Mic inputs: 48
Phantom power: +48V DC; ON/OFF per channel
Line inputs: 4x Stereo, 2x 2tr in
AD converter: 24-bit; 128-time over sampling
Line outputs: 36 Omni output, Monitor out and Cue output
DA converter: 24-bit; 128-time over sampling
Digital I/O 3x 2tr in/out, Cascade in/out
Expansion slots: 4x Mini-YGDAI (16-in/16-out)
Control and others: To Host(USB), GPI, HA remote, RS422 remote, Time code in, Word clock I/O, 3x Lamp, PCMCIA slot
Internal processing: 32bit, Accumulator: 58bit
Sampling frequency rate - Internal: 44.1kHz, 48kHz, 88.2kHz, 96kHz - External: 44.1kHz/88.2kHz (-10%) - 48kHz/96kHz (+6%)
Signal delay: Less than 2.5ms (@48kHz), Less than 1.25ms (@96kHz)
Total harmonic distortion: Less than 0.05% (20Hz-40kHz)
Frequency response: 0, +0.5, -1.5dB 20Hz-40kHz
Dynamic range: DA: 110dB; AD+DA: 108dB
Hum & noise level - Equivalent input noise: -128dBu - Residual output noise: -86dBu
Crosstalk: -80 dB Adjacent Input Channels (INPUT1-48)
Power requirements: Use PW800W
Power consumption: 600W (when use with PW800W)
Dimensions: W 1551mm, H 283mm, D 950mm
Net weight: 98kg; 216.1lb

1 x YAMAHA PM5D 48CH Digital Mixing Console Desk 48CH Mono 8CH Stereo
1 x AVIOM Aviom16/o-Y1 A-Net Card
2 x YAMAHA MY16-AE 16ch AES/EBU I/O card
2 x YAMAHA PW800W Power Supplies
1 x YAMAHA Power Supply Link Cable 1.2m Cable
1 x YAMAHA Power Supply Link Cable 3m Cable
