NEW ELO ET1502L HD Touch Screen Monitor 15.6" LCD TFT ET1502L-2UWB-1-G E318746

£288.00
£240.00 ex VAT

Product overview

NEW ELO ET1502L HD Touch Screen Monitor 15.6" LCD TFT ET1502L-2UWB-1-G E318746

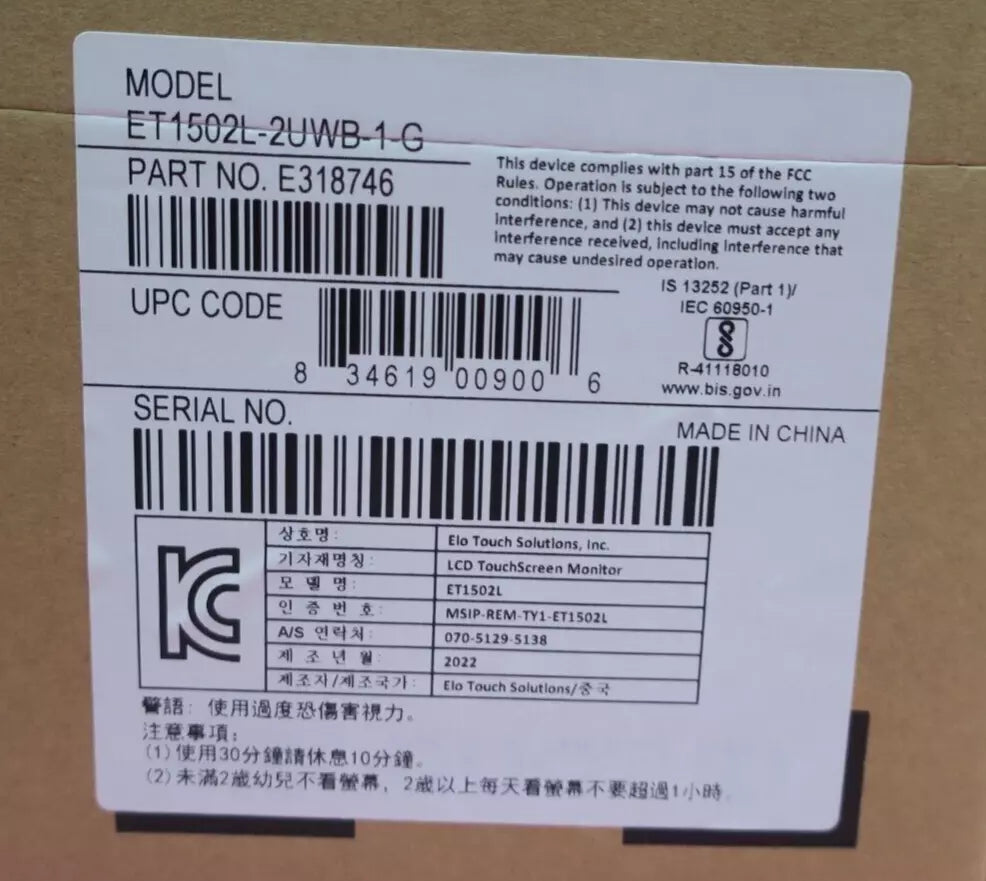

Model No: ET1502L-2UWB-1-G
P/N: E318746

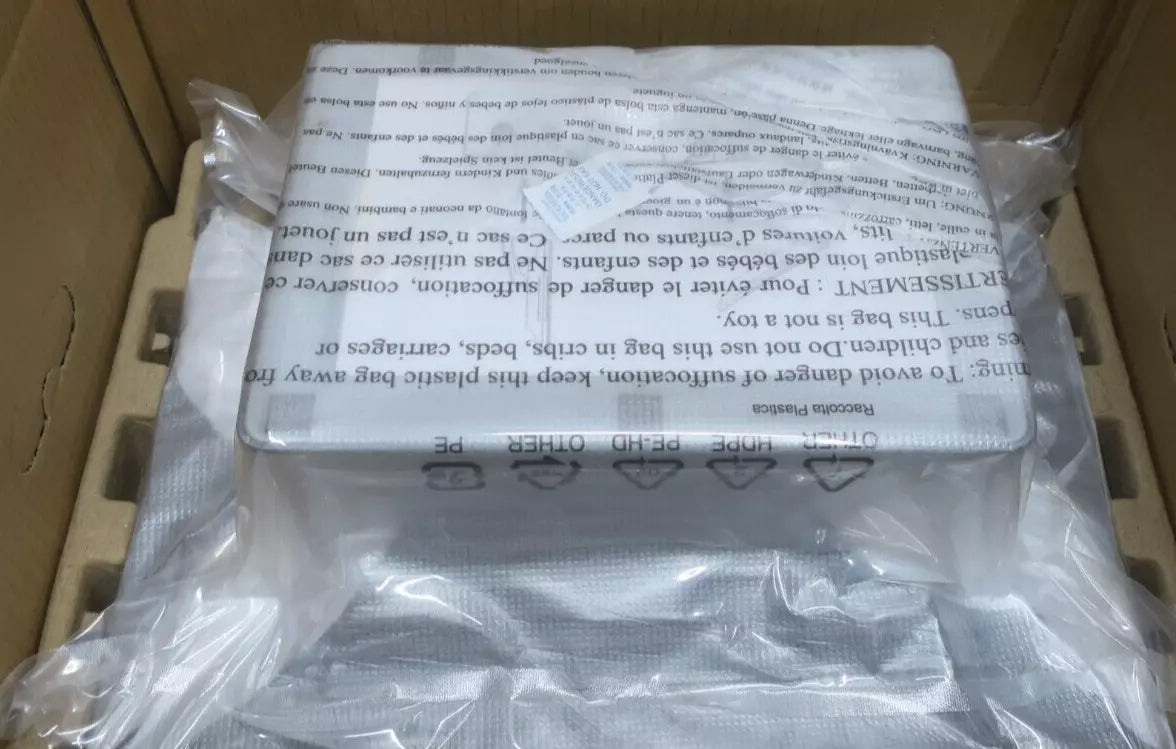

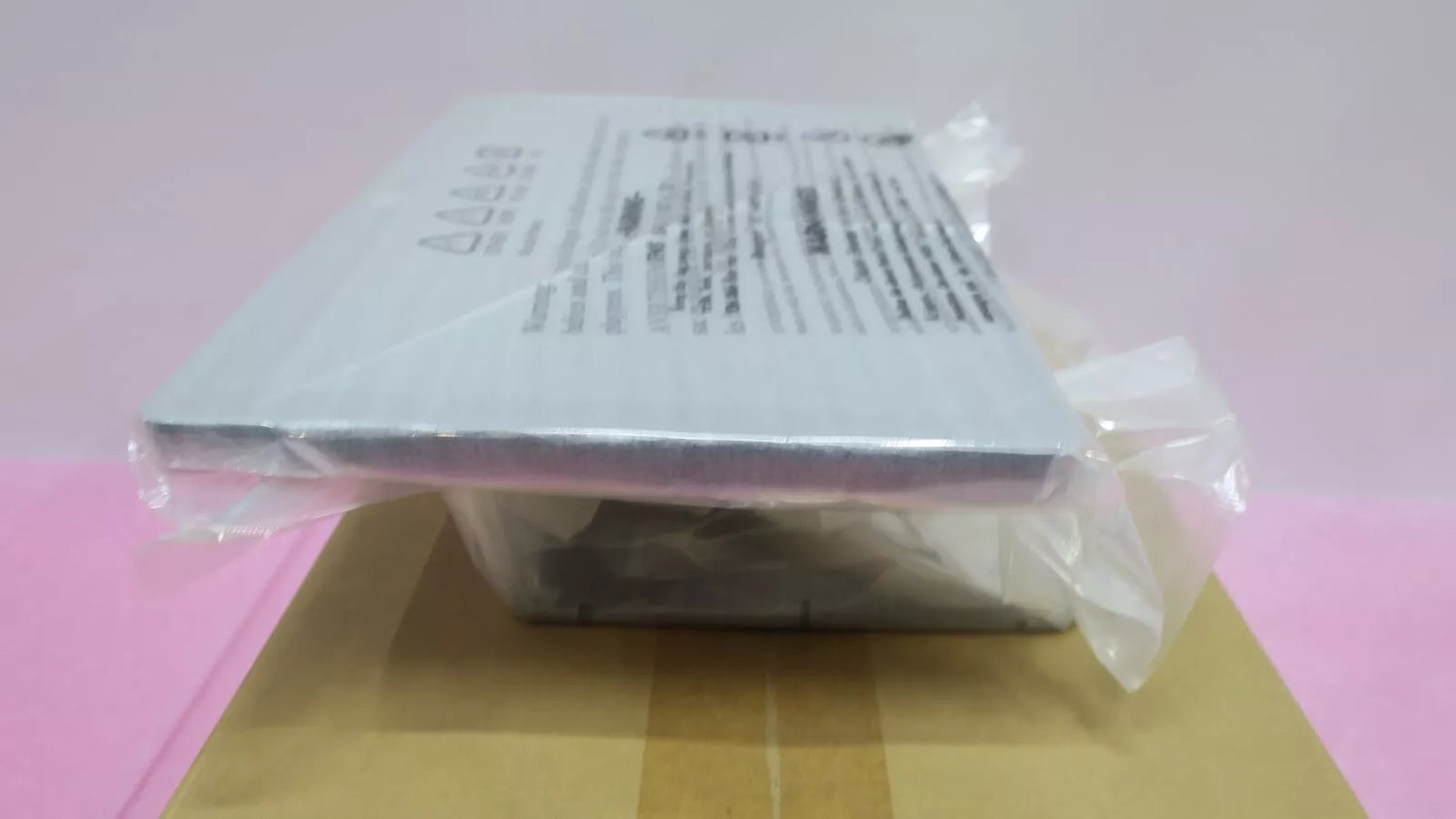

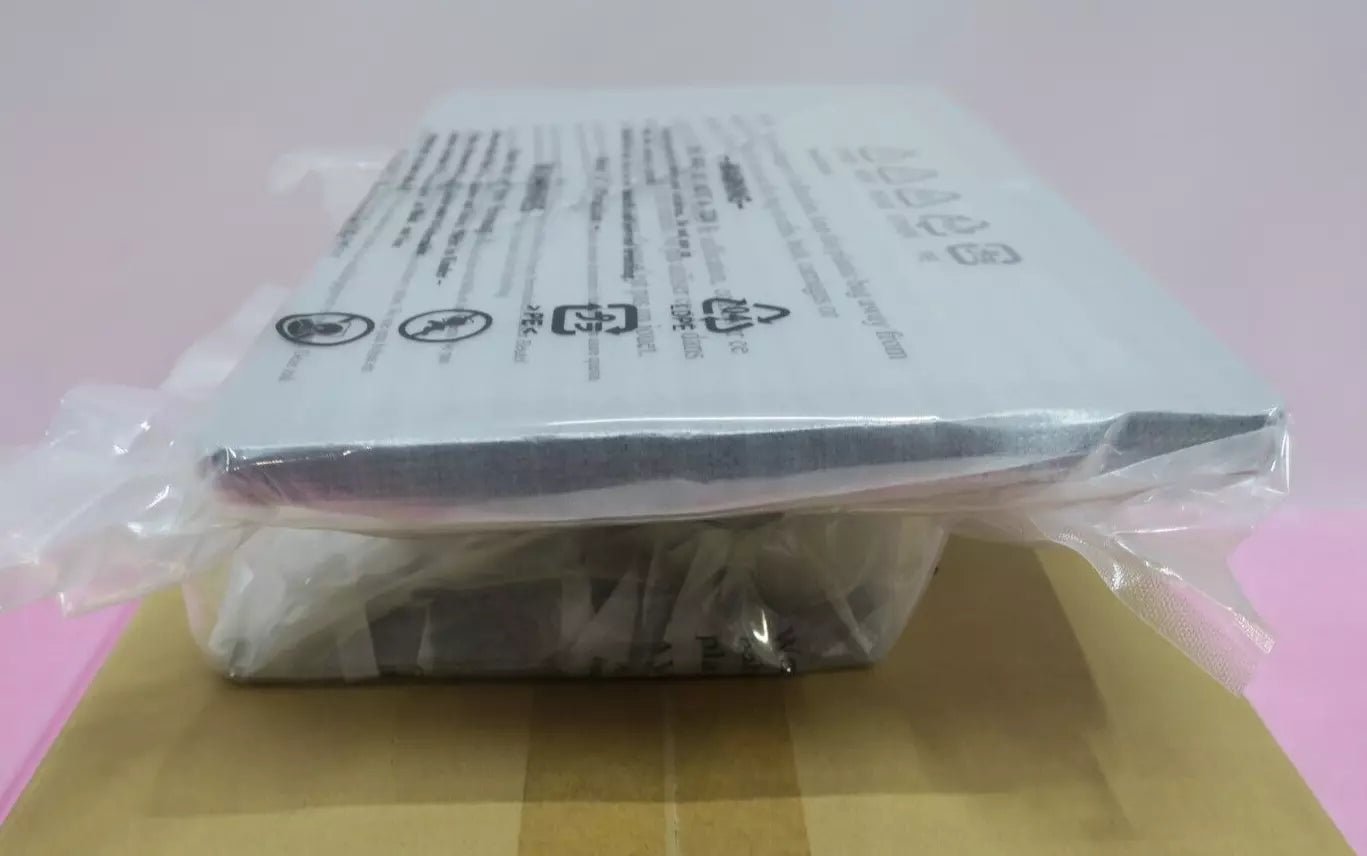

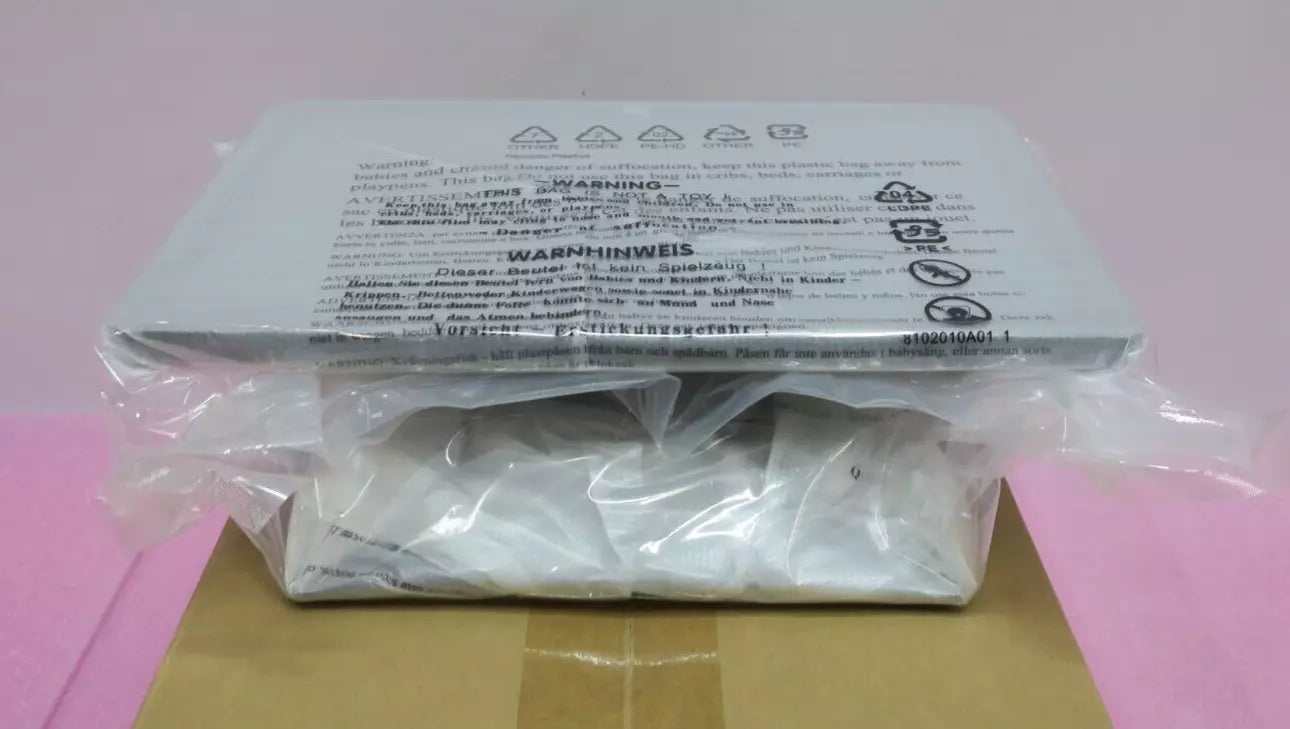

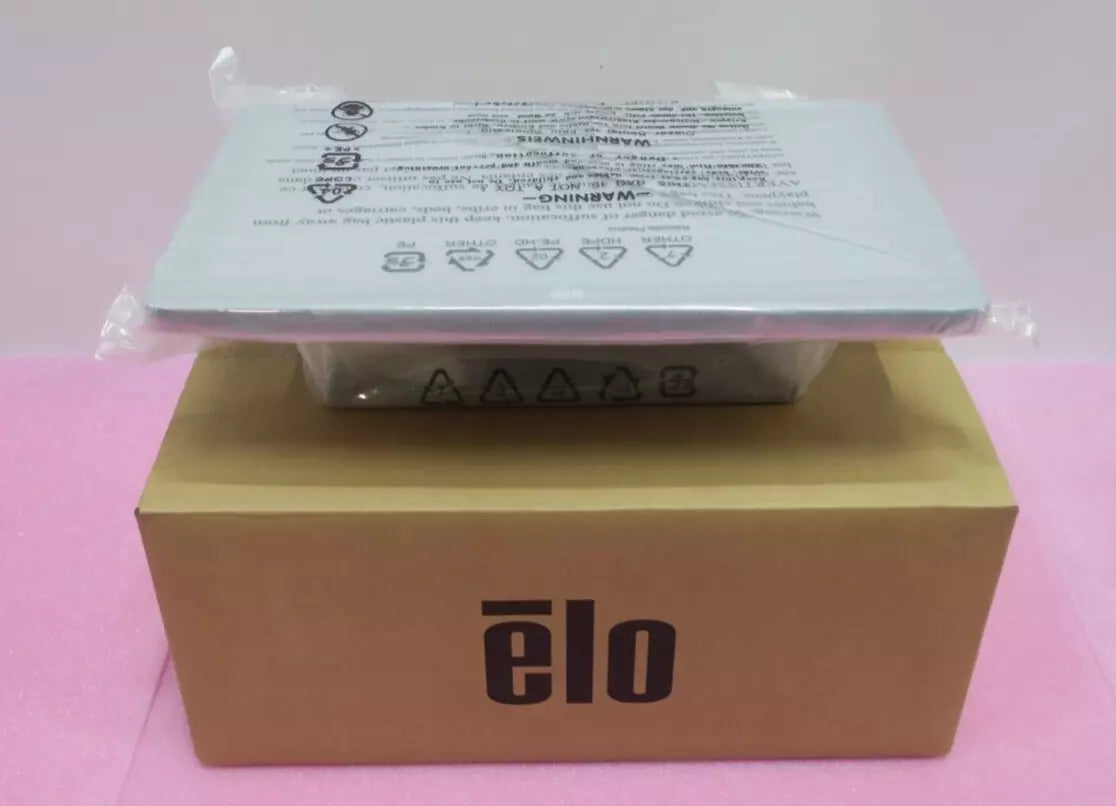

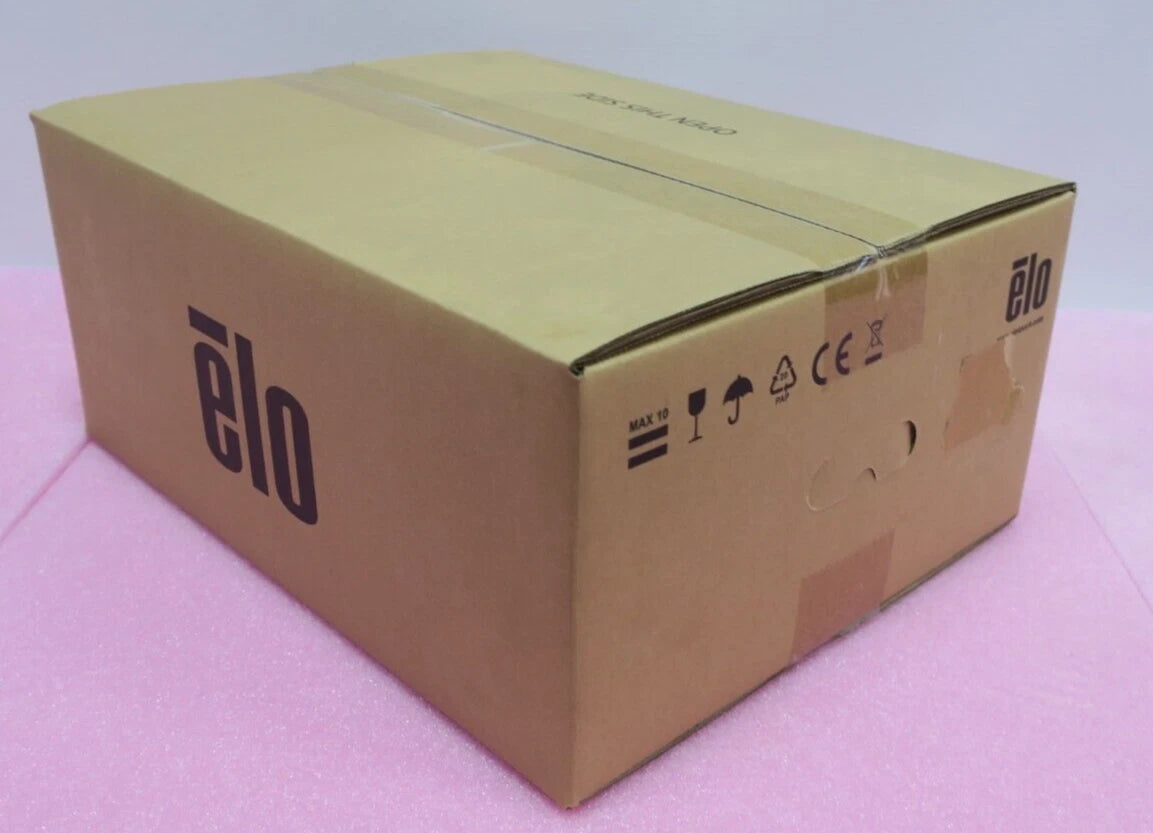

NEW MANUFACTURER SEALED

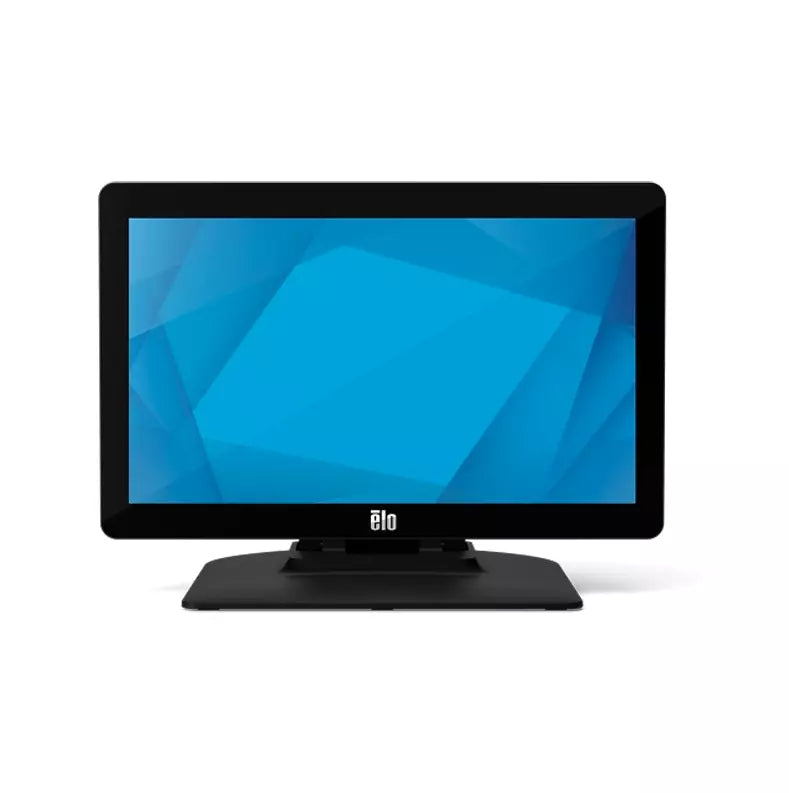

The Elo 1502L Touchscreen Monitor is designed with the same seamless style that spans across the entire line up of 02-Series Monitors. With a compact form factor and clean design for easy integration, the 1502L offers the flexibility to install as a traditional POS terminal or a customer facing point of interaction - making it well-suited for point-of-sale, self-service, signage and hospitality applications.
Single Cable Connection
The 1502L provides a USB Type-C interface that provides touch, video and power. By reducing the number of cables required for any set up from 3 to 1, installation and servicing is a breeze. In case your PC isn’t equipped with USB Type-C yet, you can still use traditional HDMI or VGA to connect to your PC.

Technical Spec


Enclosure Color - Black
Touch Technology Capacity - PCAP (Projected Capacitive) - 10 Touch
Diagonal Size - 15.6" diagonal, Active matrix TFT LCD (LED)
Monitor Thickness - 1.28" / 32.4 mm panel depth
Aspect Ratio - 16:9
Active Area - 13.55" x 7.62" / 344.16 mm x 193.5 mm
Resolution - HD model: 1366 x 768
Other Supported Resolutions - 640 x 480 60Hz
640 x 400 70Hz
720 x 400 70Hz
800 x 600 56, 60Hz
1024 x 768 60Hz
1280 x 720 50, 60Hz
1360 x 768 60Hz
Viewing Angle - Horizontal: ±45° / 90° total; Vertical: -35°/ +15° / 50° total
Number of Colors - 16.7 million
Brightness (typical) - LCD Panel: 220 nits;PCAP + DC power: 198 nits
Response Time-total (typical) - 10 ms
Touch Interface - USB
Surface Treatment - Anti-glare
On Screen Display - Accessible through switches along the bottom:
Controls: Menu, Up, Down, Select
Languages - English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese
Lockouts - OSD, Power
I/O Ports - 1 x USB Type-B
x Audio jack (Line-in)
1 x VGA (Mini-VGA female connecter)
1 x HDMI
1 x 12V D/C input
3 x Micro-USB ports (Top, Left, Right) to support Elo Edge Connect peripherals
Speakers - 2 x 2W internal speakers
Monitor Dimensions (with Stand) - 284.65 mm x 386.96 mm x 199.12 mm / 11.21" x 15.23" x 7.84"

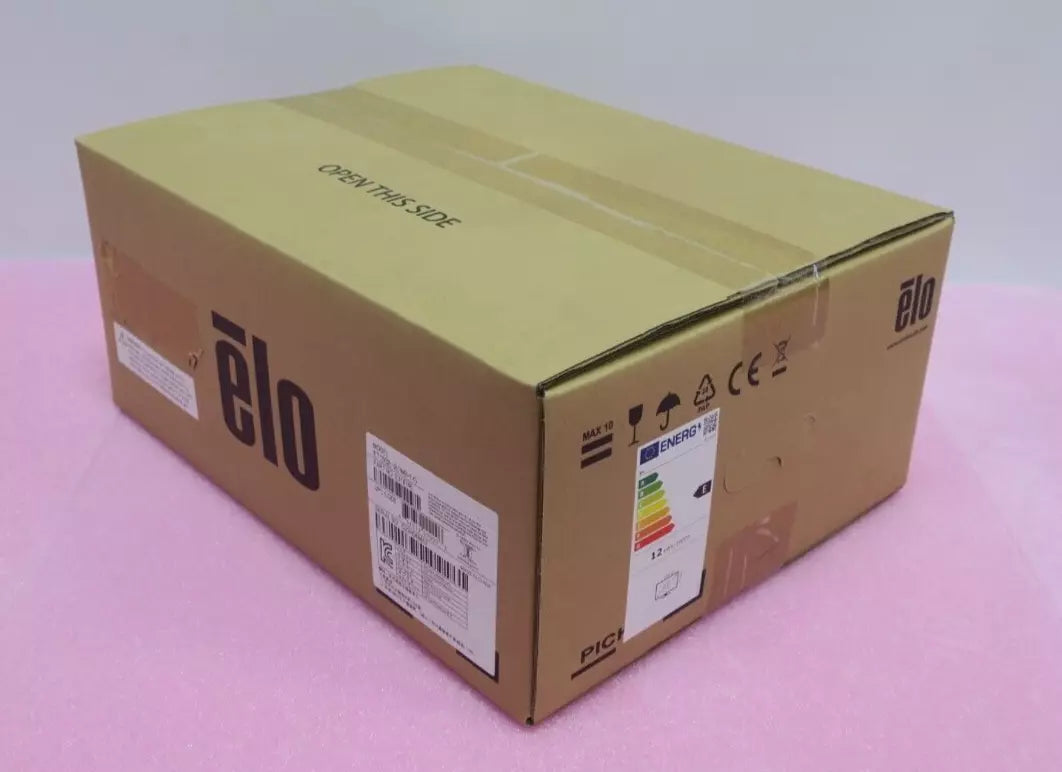

Shipping Box Dimensions - With Stand: 204 mm x 451 mm x 344 mm / 8.03" x 17.76" x 13.54"
Weight (Unpackaged) - With Stand: 5.01 kg / 11.05
Mounting Options - VESA 4-hole 75mm and 100mm mounting interface on rear of unit

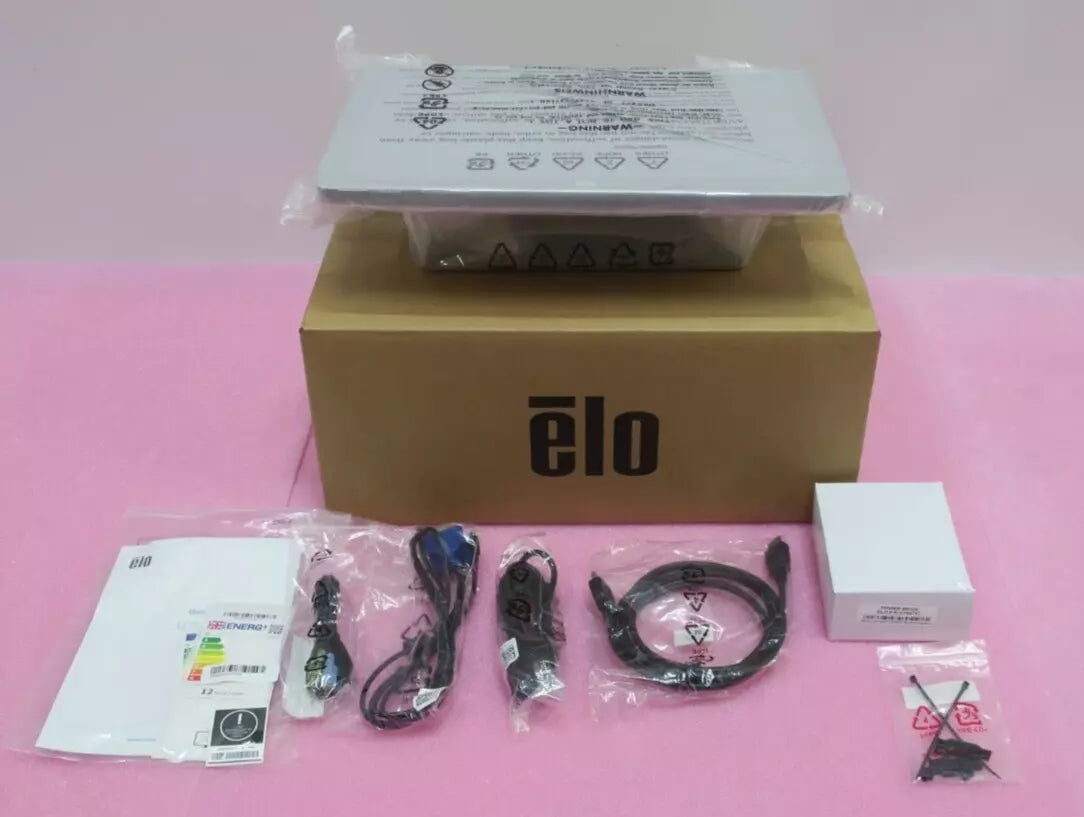

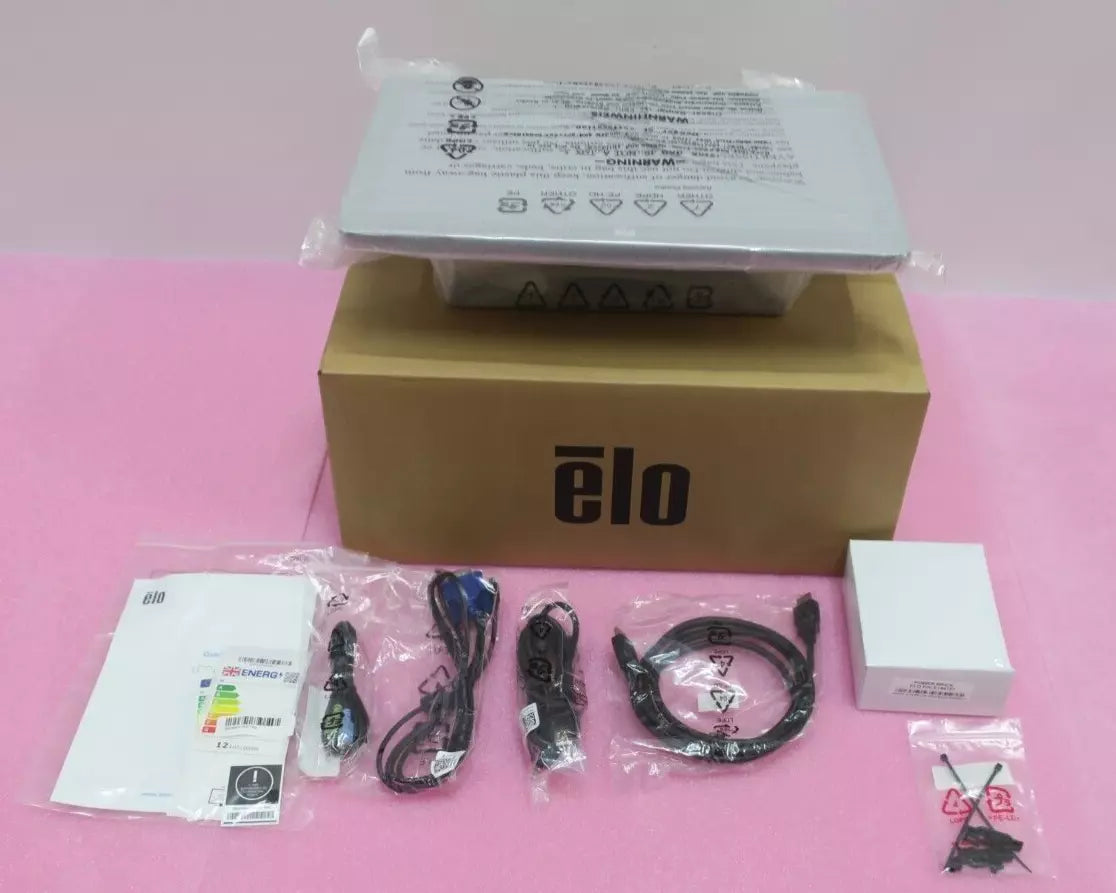

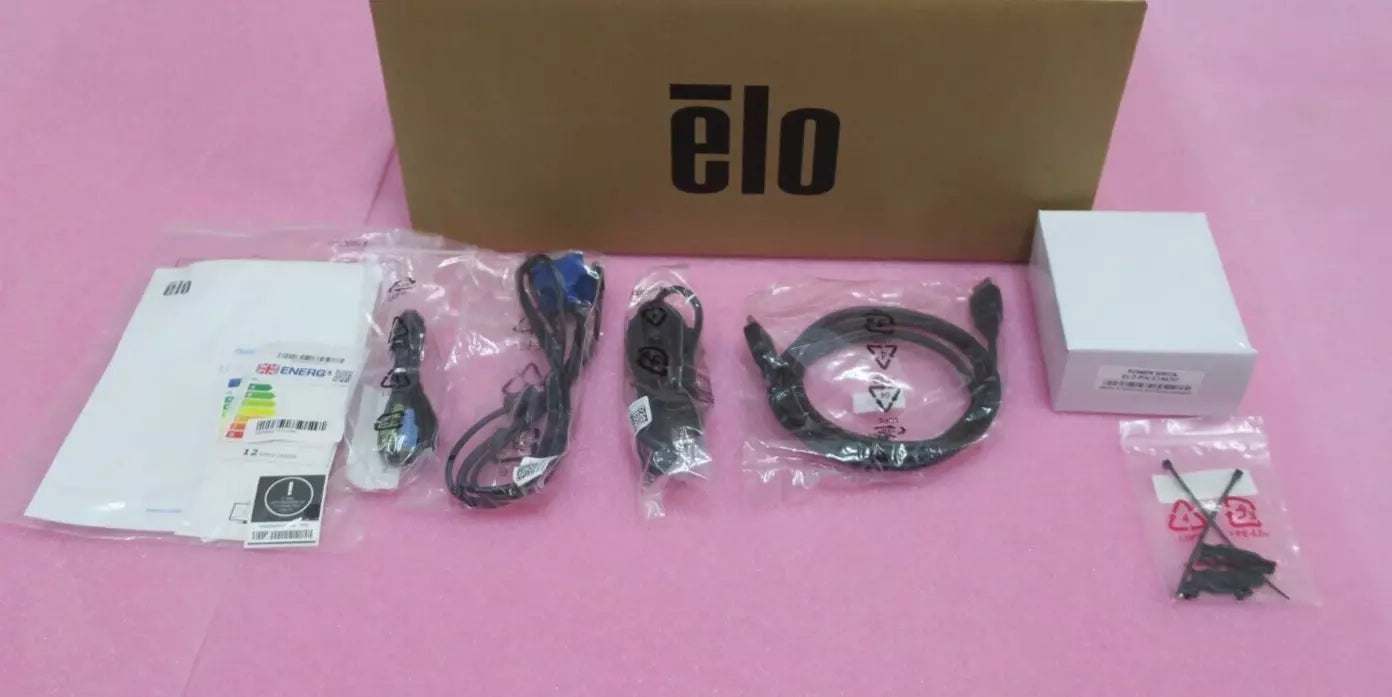

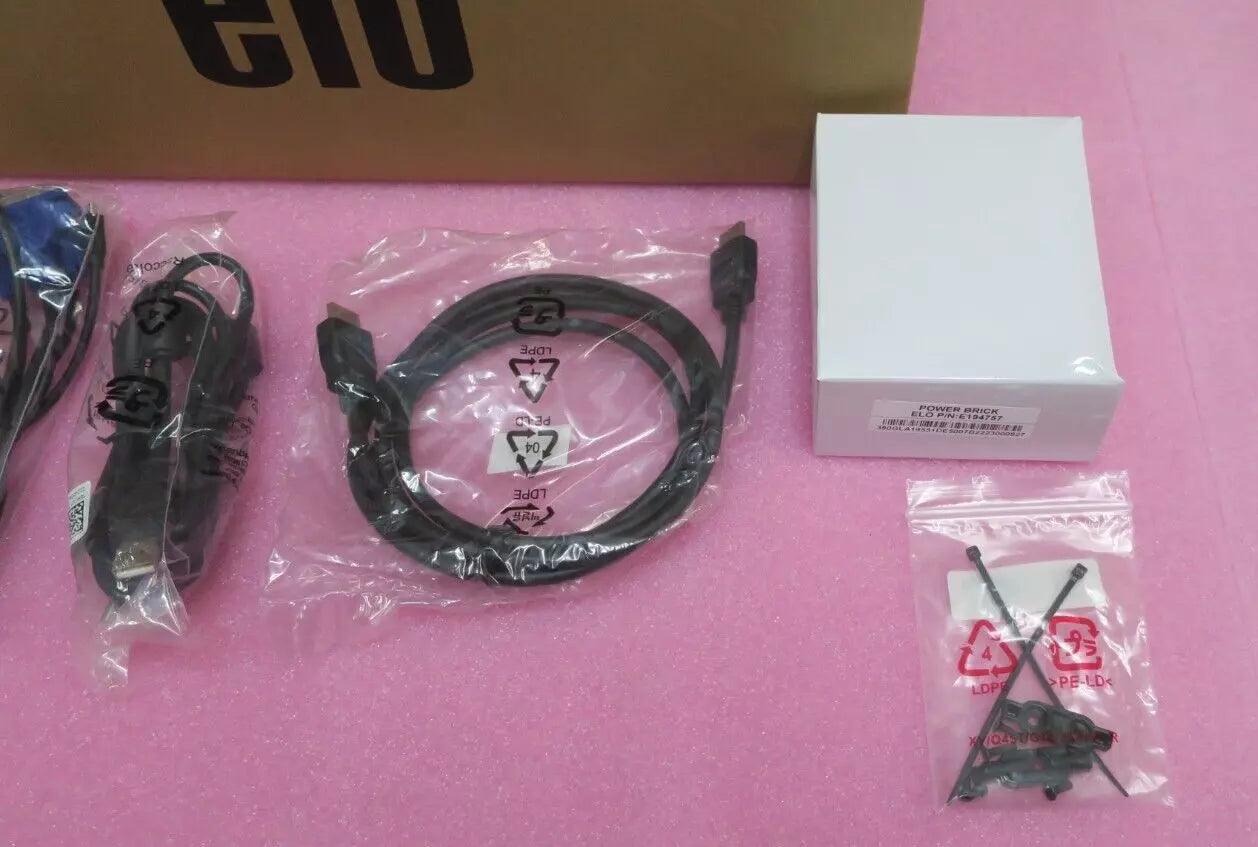

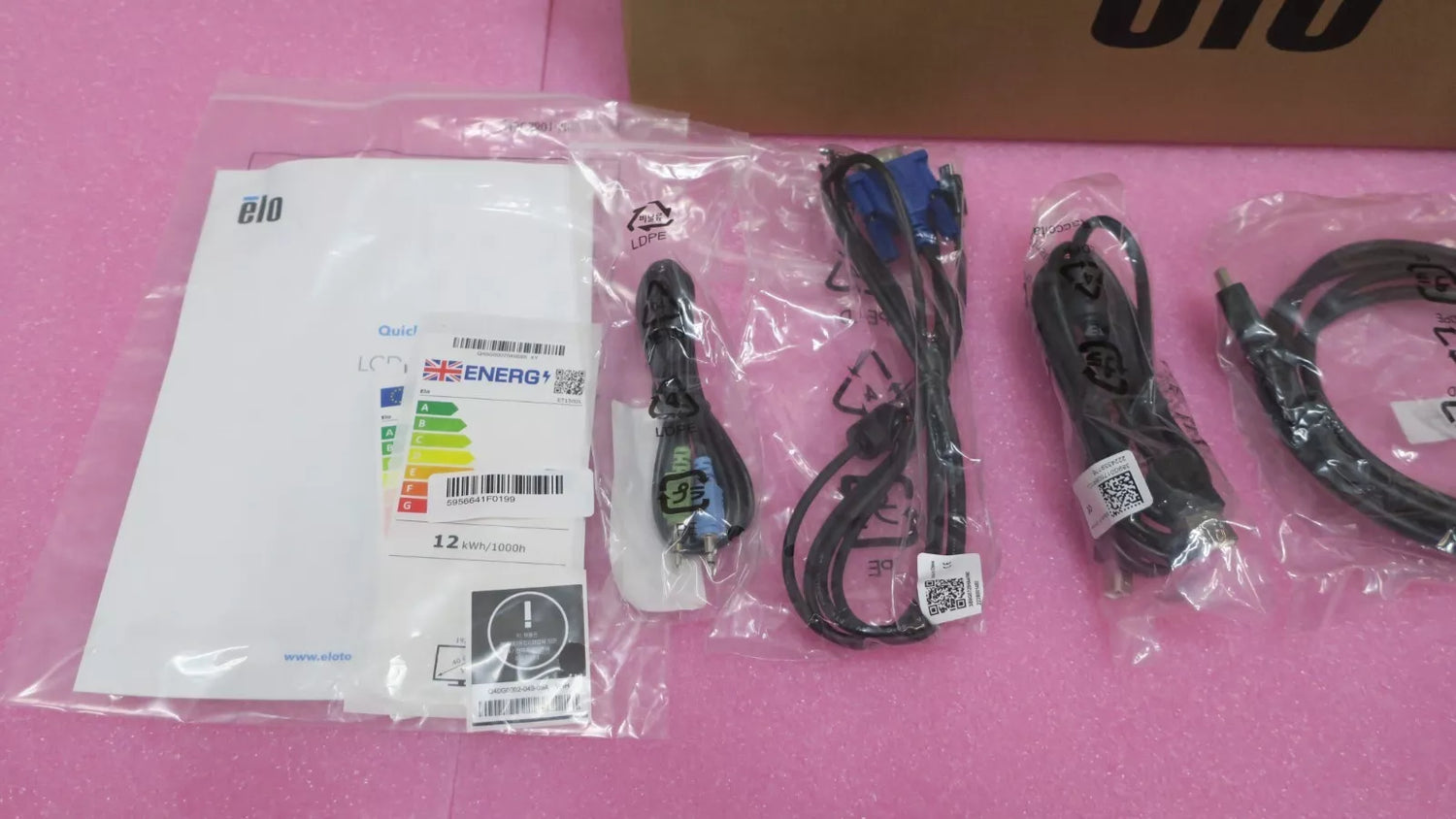

What's Included

1x NEW ELO ET1502L HD Touch Screen Monitor 15.6" LCD TFT ET1502L-2UWB-1-G E318746
