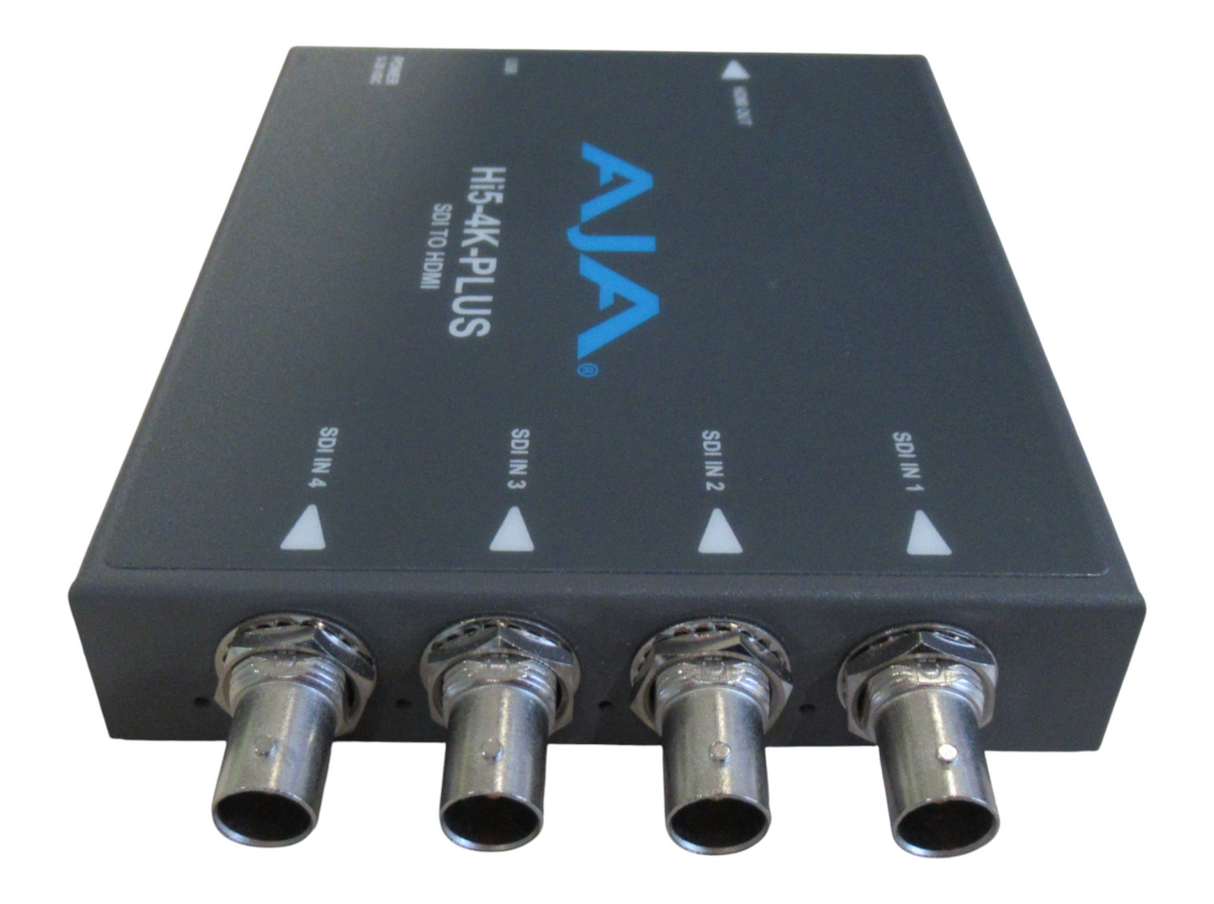

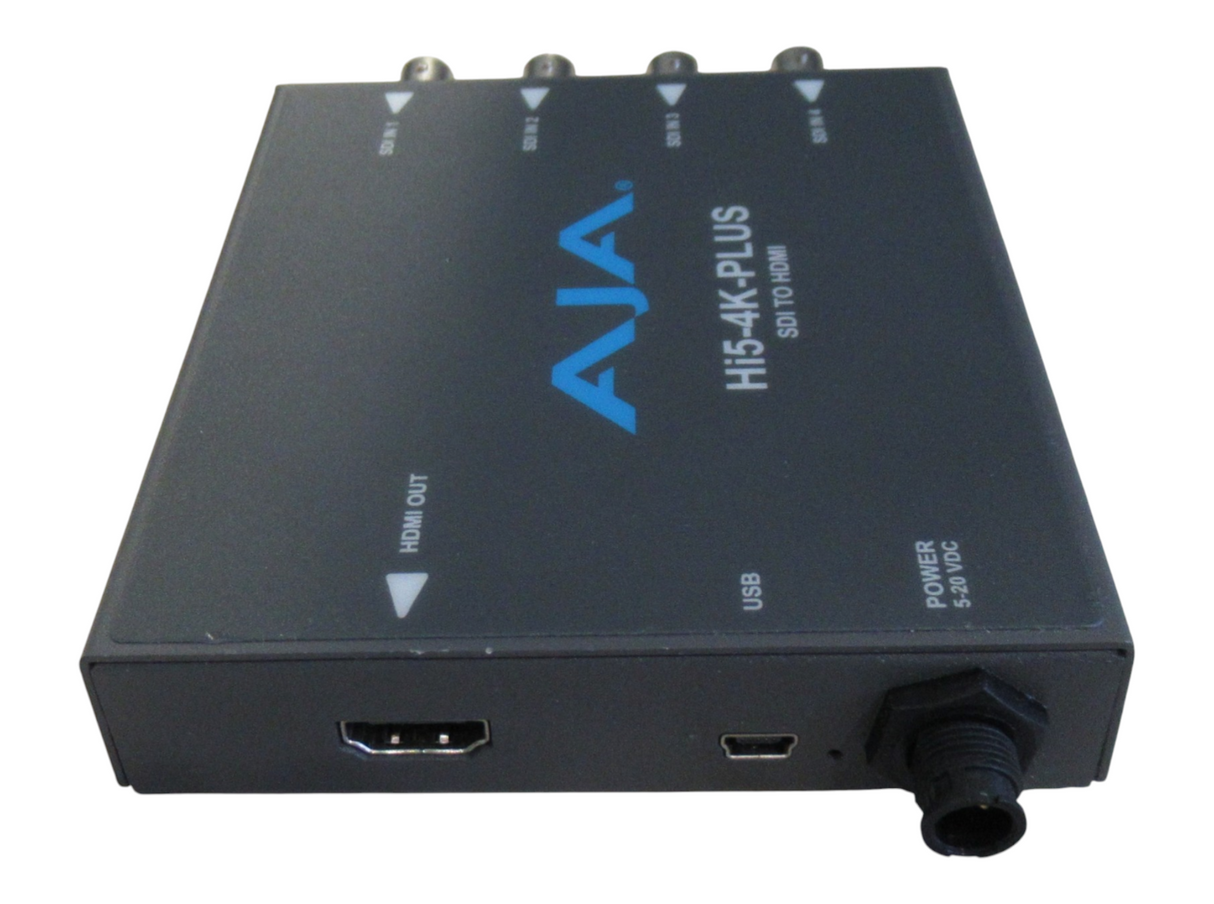

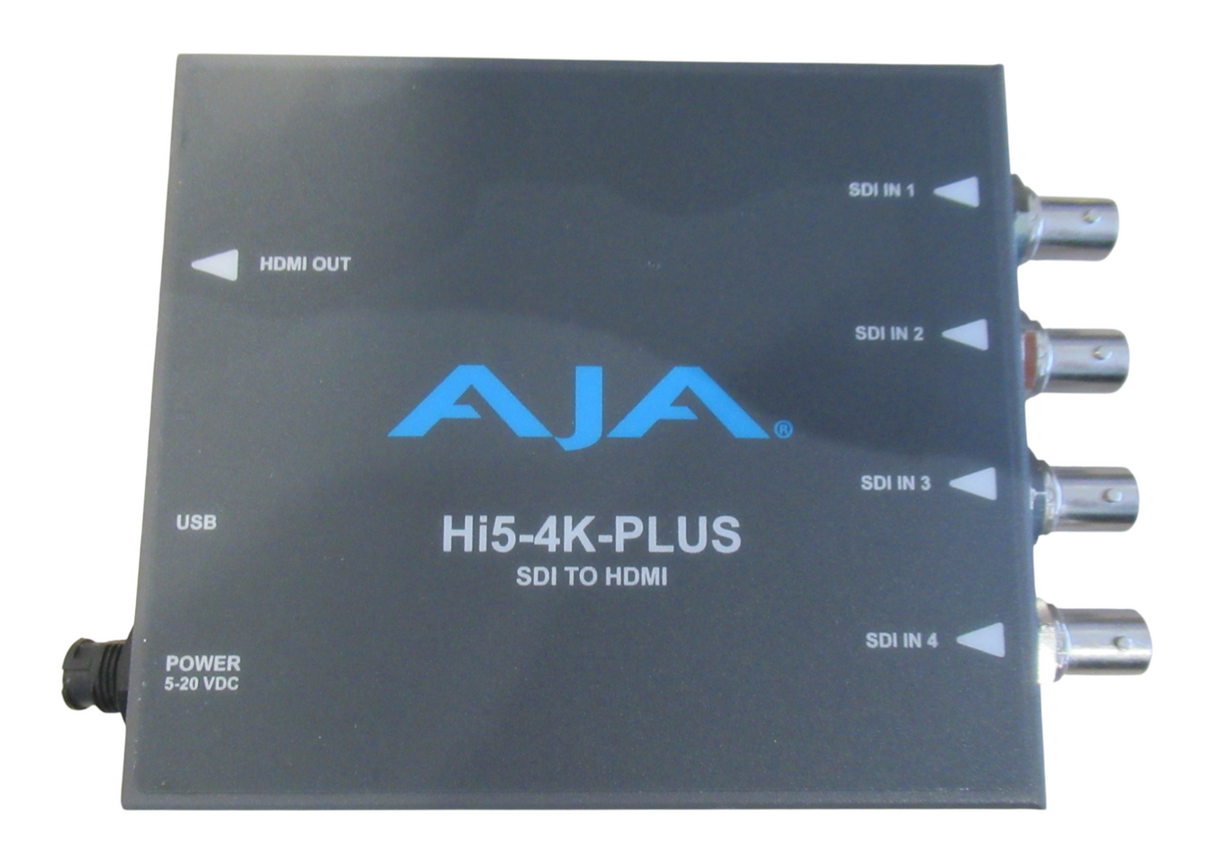

AJA Hi54KPlus 3GSDI to HDMI v2.0 Video And Audio Converter With AC Adapter
Pre-owned
AJA Hi54KPlus 3GSDI to HDMI v2.0 Video And Audio Converter With AC Adapter is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product overview
Product overview
Brand: AJA
Supplied with: AC Power Adapter
Type: Converter
Dimensions:: Compact form factor
Model: HI5-4K-PLUS
MPN: HI5-4K-PLUS
Features: Convert Quad-3G-SDI to HDMI 2.0b at up to 4K 60p,Support for 4:4:4/4:2:2/4:2:0 HDMI 2.0b output,Supports 12-bit workflows,HDR signaling metadata pass-through and optional override,HDR support for HDR10 and HLG,Embedded audio support 8-channel 24-bit,Embedded audio pass-through of AC-3 (Dolby Digital) and E-AC-3 (D,Configure via USB port and supplied Mini-Config software,Uses 5-20VDC power (Universal power supply included)
Weight:: Lightweight for portable use
Country of Origin: United States
Power: 5V DC
Included:

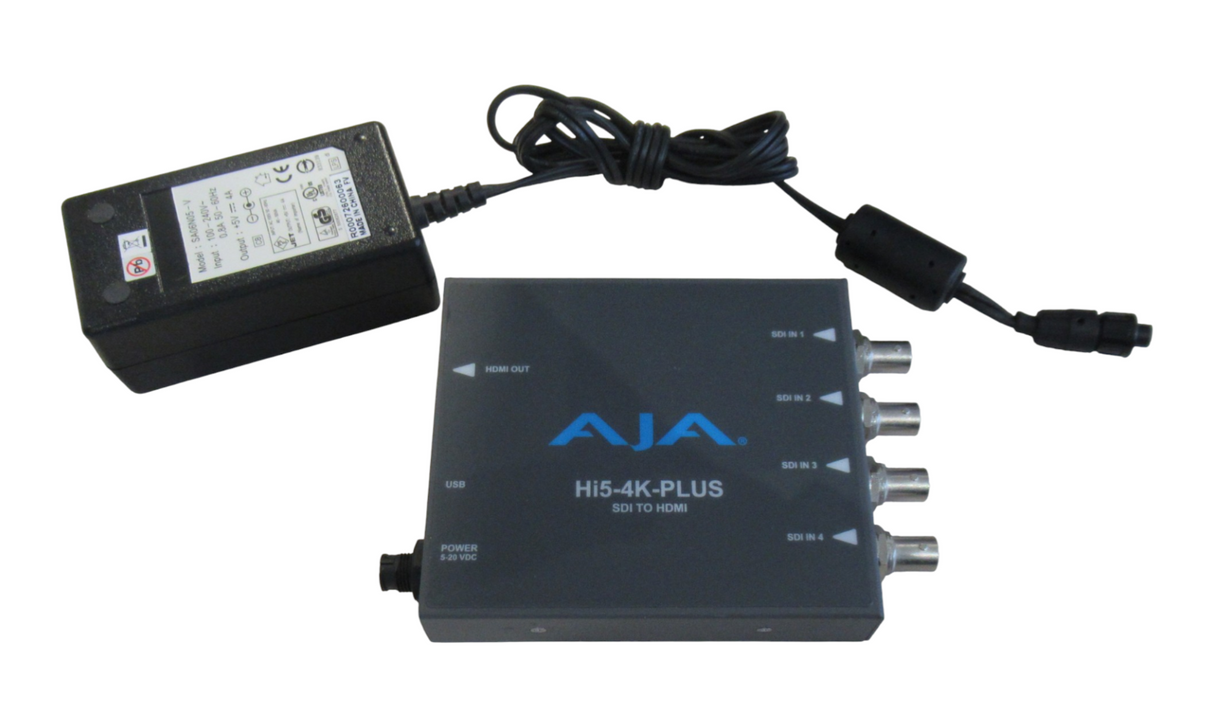

1 x AJA Hi5-4K-Plus 3G-SDI to HDMI v2.0 Video And Audio Converter With AC Adapter
1 x AC Power Adapter
Overview
AJA’s Hi5-4K-Plus preserves your vision with pristine image fidelity and HFR support up to 60p for 4K/UltraHD SDI to HDMI 2.0 conversion needs. The Hi5-4K-Plus can also generate HDR metadata in accordance with HDMI v2.0a/CTA-861.3 and includes HLG support.
Hi5-4K-Plus provides a simple monitoring connection from professional 4K devices using Quad 3G-SDI, Quad 1.5G-SDI, or Dual 3G-SDI outputs to new displays with HDMI 2.0 inputs, for cost-effective monitoring for 4:4:4/4:2:2 60p professional workflows.
Features
Convert Quad-3G-SDI to HDMI 2.0b at up to 4K 60p
Support for 4:4:4/4:2:2/4:2:0 HDMI 2.0b output
Supports 12-bit workflows
HDR signaling metadata pass-through and optional override
HDR support for HDR10 and HLG
Embedded audio support 8-channel 24-bit
Embedded audio pass-through of AC-3 (Dolby Digital) and E-AC-3 (Dolby Digital Plus) compressed audio, including DD+ Atmos (aka DD+ JOC)
Configure via USB port and supplied Mini-Config software
Uses 5-20VDC power (Universal power supply included)
Specifications
Video Formats
(4K) 4096x2160p
(UltraHD) 3840x2160p
(2K) 2048x1080p
(HD) 1920x1080p
(HD) 1920x1080i
(HD) 1280x720p
(SD) 720x576i
(SD) 720x480i
Video Input Digital
4x 3G-SDI BNC, SMPTE-259/292/424
YCbCr 4:2:2/4:4:4
RGB 4:4:4, SMPTE or Full level
8, 10, 12-bit
Two Sample Interleave (2SI) or Square Division (Quadrant) pixel mapping
4x 3 Gb SDI (Level A or B Dual Link)
(4K) 4096x2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
(4K) 4096x2160PsF* 23.98, 24, 25, 29.97, 30
(UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(Ultra HD) 3840x2160PsF* 23.98, 24, 25, 29.97, 30
4x 1.5 Gb SDI
(4K) 4096x2160p 23.98, 24, 25, 29.97, 30
(4K) 4096x2160PsF 23.98, 24, 25, 29.97, 30
(UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30
(UltraHD) 3840x2160PsF 23.98, 24, 25, 29.97, 30
2x 3 Gb SDI (Level B Dual Stream)
(4K) 4096x2160p 23.98, 24, 25, 29.97, 30
(4K) 4096x2160PsF 23.98, 24, 25, 29.97, 30
(UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30
(UltraHD) 3840x2160PsF 23.98, 24, 25, 29.97, 30
1x 3 Gb SDI (Level A or B Dual Link)
(2K) 2048x1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
(2K) 2048x1080PsF 23.98, 24, 25, 29.97, 30
(HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(HD) 1920x1080PsF 23.98, 24, 25, 29.97, 30
(HD) 1920x1080i 50, 59.94, 60
(HD) 1280x720p** 50, 59.94, 60
2x 1.5 Gb SDI (Dual Link HD-SDI), SMPTE-372
(HD) 1920x1080p 50, 59.94, 60
1x 1.5 Gb SDI
(2K) 2048x1080p 23.98, 24, 25, 29.97, 30
(2K) 2048x1080PsF 23.98, 24, 25, 29.97, 30
(HD) 1920x1080p 23.98, 24, 25, 29.97, 30
(HD) 1920x1080PsF 23.98, 24, 25, 29.97, 30
(HD) 1920x1080i 50, 59.94, 60
(HD) 1280x720p 50, 59.94, 60
1x 270 Mb SDI
(SD) 625i 50
(SD) 525i 59.94
Video Output Digital
1x HDMI Type A connector*, HDMI v2.0b
HDR infoframe generation with pass-through or override for Colorimetry and Transfer Characteristic
YCbCr 4:2:2/4:4:4/4:2:0
RGB 4:4:4, SMPTE or Full level
24, 30, or 36 Bits Per Pixel (HFR 4K/UltraHD 4:4:4 limited to 24 BPP)
(4K) 4096x2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
(UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(2K) 2048x1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
(HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(HD) 1920x1080i 50, 59.94, 60
(HD) 1280x720p 50, 59.94, 60
(SD) 720x576i 50
(SD) 720x480i 59.94
Audio Pass-Through Formats
PCM
Dolby Digital (AC-3)
Dolby Digital Plus (E-AC-3), including Atmos Immersive Sound (JOC)
Audio Input Digital
SDI embedded audio, 24-bit (SD limited to 20-bit), 16-channel
Audio Output Digital
HDMI embedded audio, 24-bit, 8-channel
User Interface
USB port used with supplied cable and Mini-Config software application to configure the device via Mac or Windows.
Size (w x d x h)
5.76" x 4.02" x 0.90" (146.31 x 102.11 x 22.86 mm)
Weight
0.6 lb (0.3 kg)
Power
5-20VDC regulated, 12 watts, power supply required, included with purchase
AC Adapter: 100-240VAC, 50/60 Hz, universal input
Environment
Safe Operating Temperature: 0 to 40 C (32 to 104 F)
Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
Operating Relative Humidity: 10-90% noncondensing
Operating Altitude: <3,000 meters (<10,000 feet)
