Argosy BP-00-001 BES 1U 2x24 Way UHD MUdigSA HD Video Patch Panel + 24x Ulink
Pre-owned
Argosy BP-00-001 BES 1U 2x24 Way UHD MUdigSA HD Video Patch Panel + 24x Ulink is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product overview
Product overview
Brand: Argosy
Includes: 24x Ulinks
Type: HD Video Patch Panel
Model: BP-00-001
Connectivity: MUdigSA Style Connectors
MPN: BP-00-001
Features: Meets and Exceeds SMPTE® ST 2082-1,MUdigSA Style Connectors,Future Proof,High Density up to 2 x 24 connectors
Country of Origin: China
Product Line: MUdigSA
Colour: Black
Included:

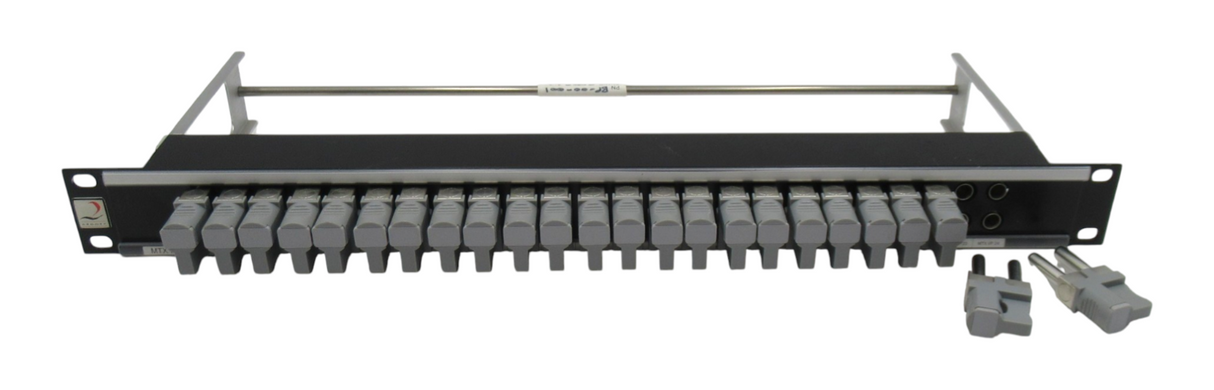

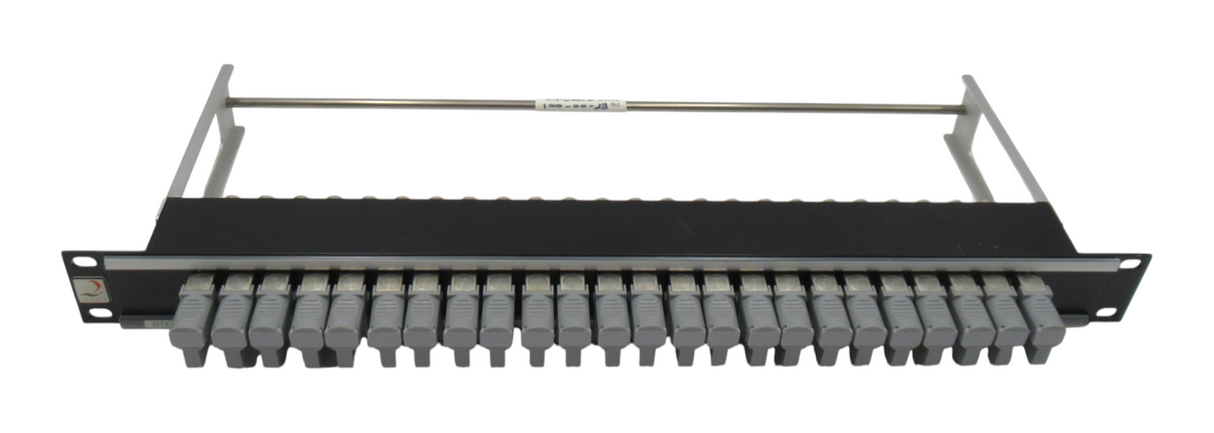

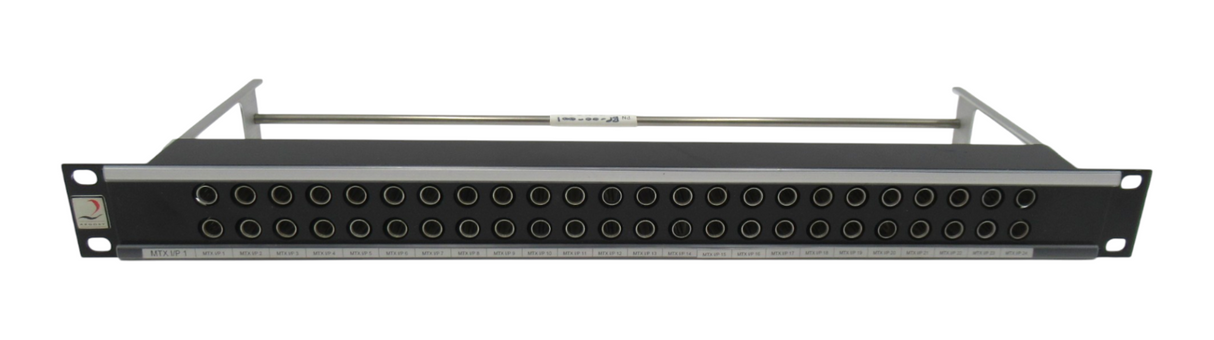

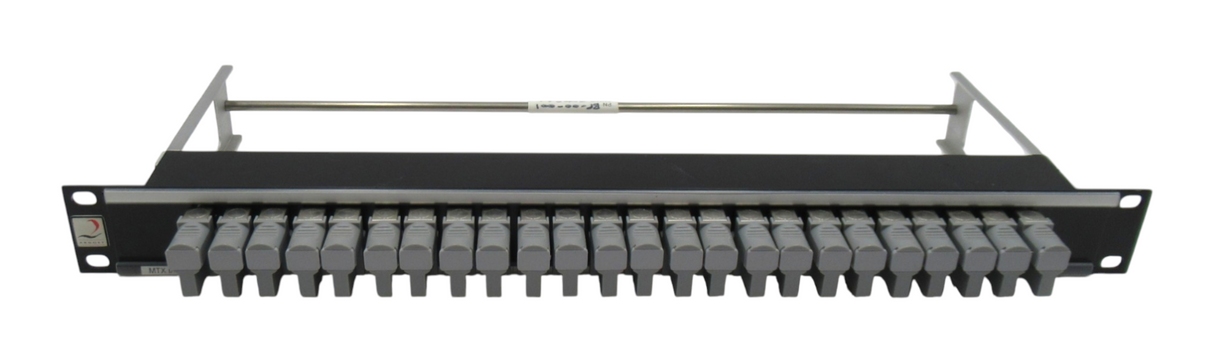

1 x Argosy BP-00-001 BES 1U 2x24 Way UHD MUdigSA HD Video Patch Panel

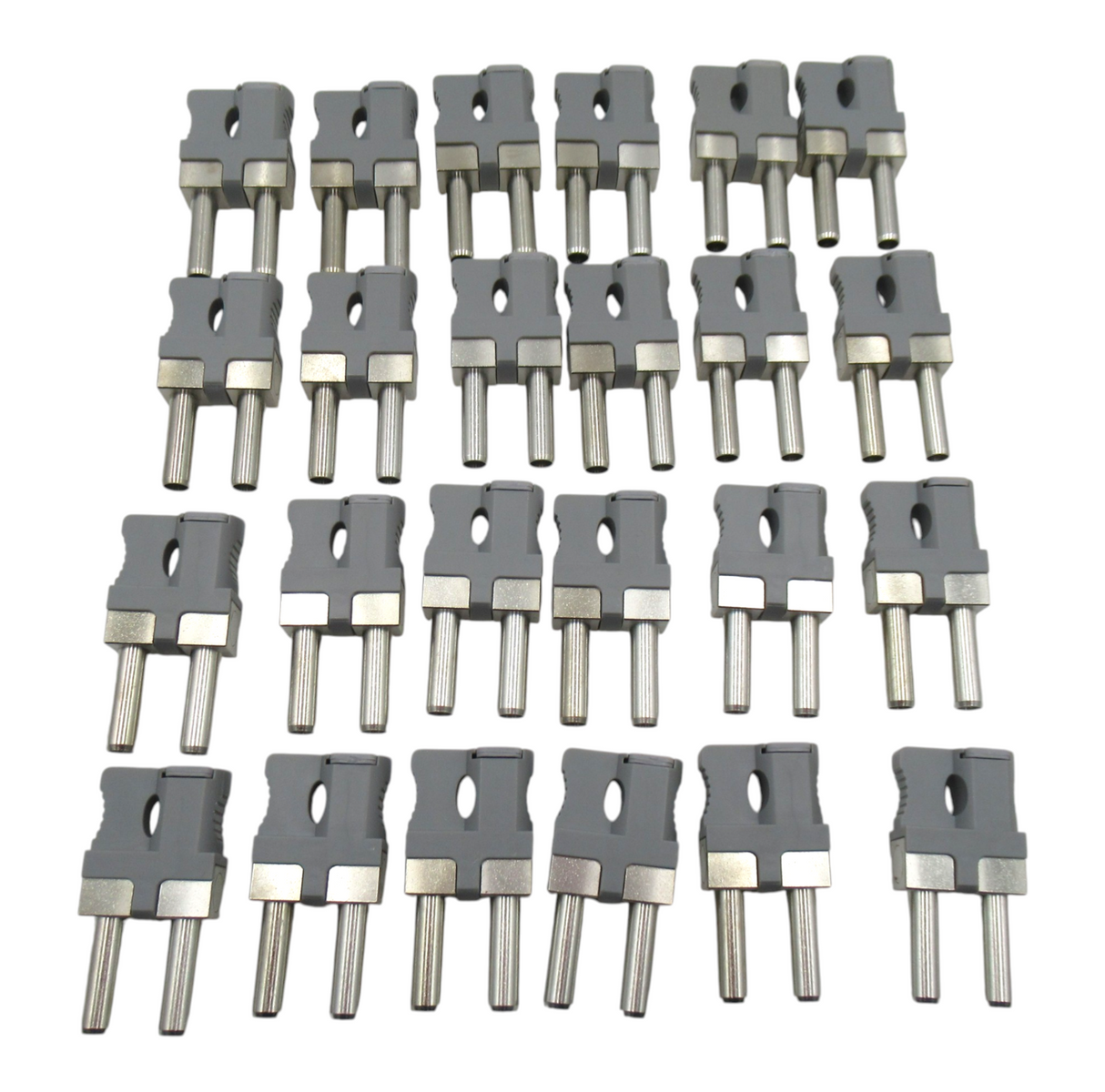

24 x Argosy MUdigSA U-Link
Overview:
Complies with and exceeds the requirements of SMPTE® ST 2082-1 (Society of Motion Picture and Television Engineers® – 12 Gb/s Serial Digital Interface, Electrical Specification).
Engineered to meet the most demanding broadcast standards, this panel fully complies with – and surpasses – the electrical and mechanical performance criteria set out in SMPTE® ST 2082-1. This ensures optimal signal integrity and reliability for 12 Gb/s single-link UHD applications, providing outstanding performance in both HD and Ultra HD-SDI environments.
Precision Engineering: A milled 1U extruded aluminium front panel provides exceptional rigidity and high packing density, allowing for configurations with a large number of outputs.
Reliable Connectivity: Sockets are mounted in injection-moulded blocks, allowing slight movement for easy alignment and complete isolation of connectors.
Improved Usability: Enhanced designation strips maximise the visible labelling area, while clip-on clear plastic covers ensure quick and secure assembly.

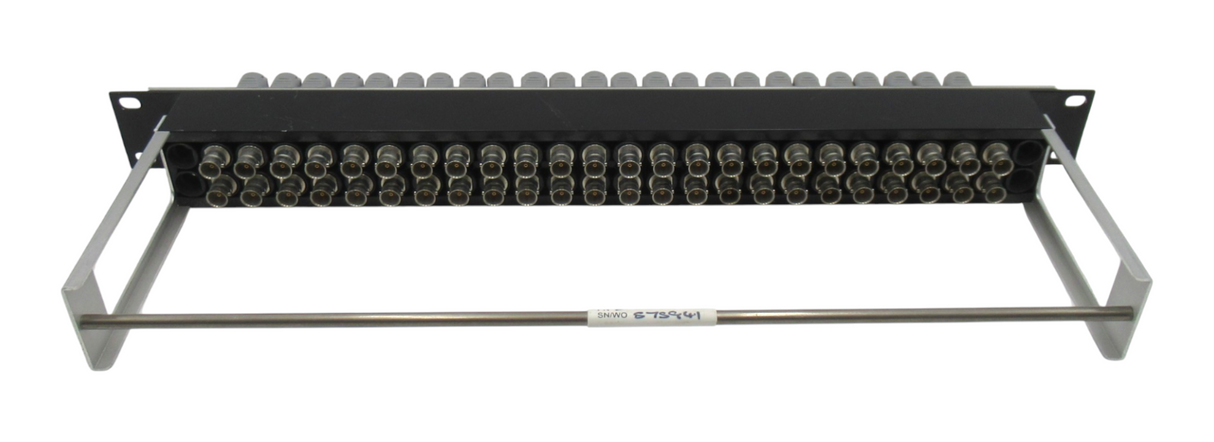

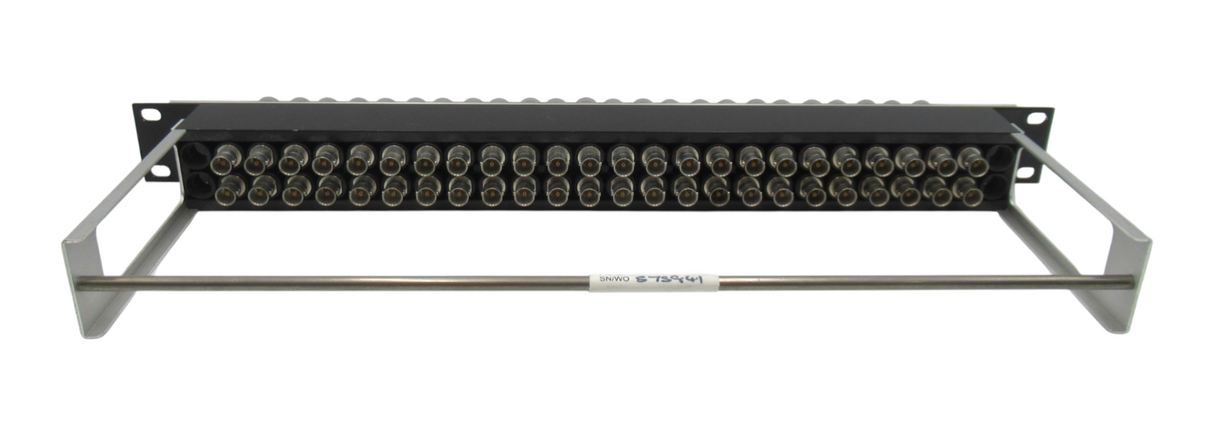

Efficient Cable Management: An integrated rear lacing bar supports neat and secure cable routing.
Finish: Black powder-coated finish delivers a durable, professional appearance and excellent resistance to wear.
Key Benefits:
Meets and Exceeds SMPTE® ST 2082-1
MUdigSA Style Connectors
Future Proof
High Density up to 2 x 24 connectors
Specifications
Contact Resistance: Inner Conductor ≤5mΩ, Outer Conductor ≤3mΩ
Insulation Resistance: ≥10GΩ
Voltage Proof: 1KVeff/5OHz
Impedance (BNC): 75Ω
Return Loss: >15dB/6GHz >10dB/12GHz+
Mating Cycles: ≥25000
Force to Engage: U-link 15 N Straight Plug 10 N
Thermal and Climatic Characteristics (According to DIN IEC 68-1 40/155/21):
Storage and Operating Temperature –40°C up to +65°C, Moisture resistance according to MIL Spec. 202
