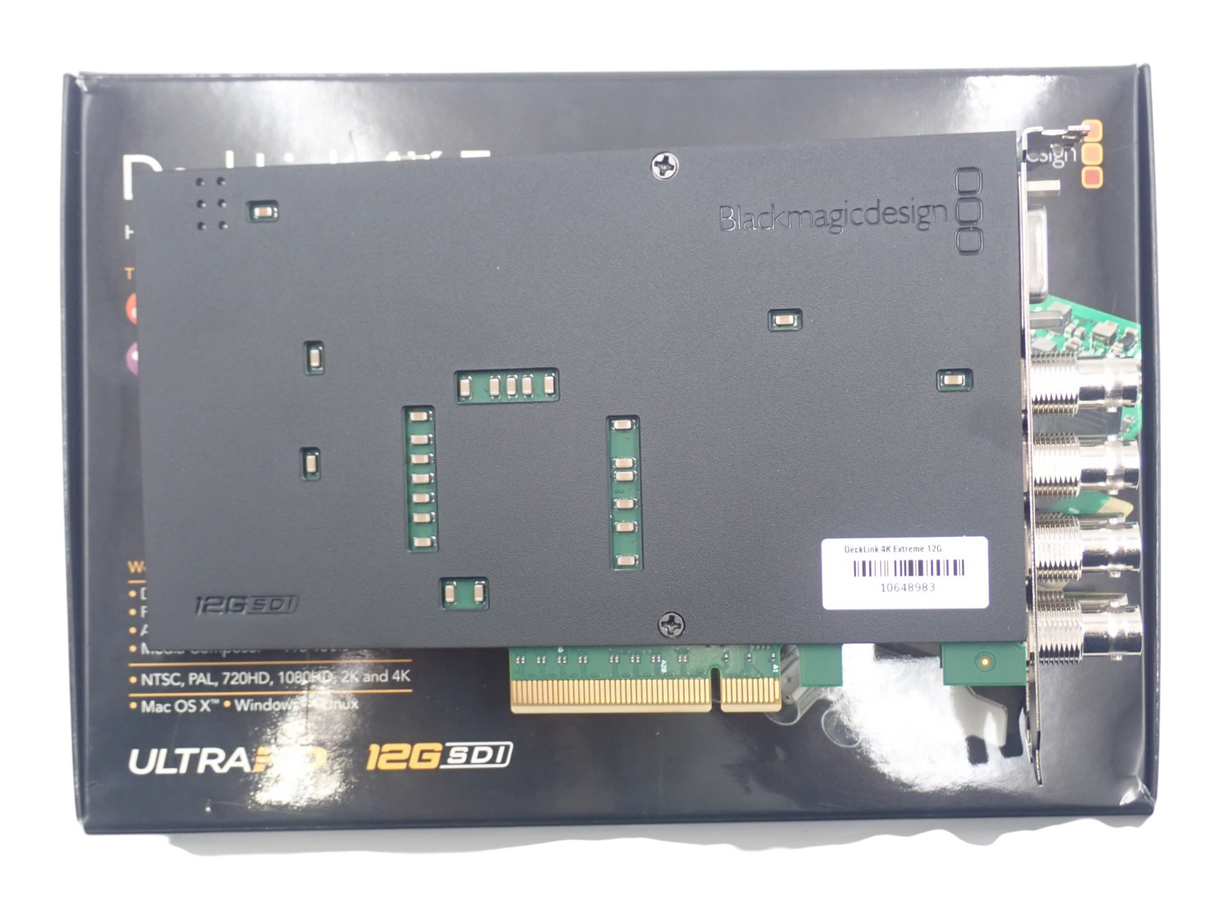

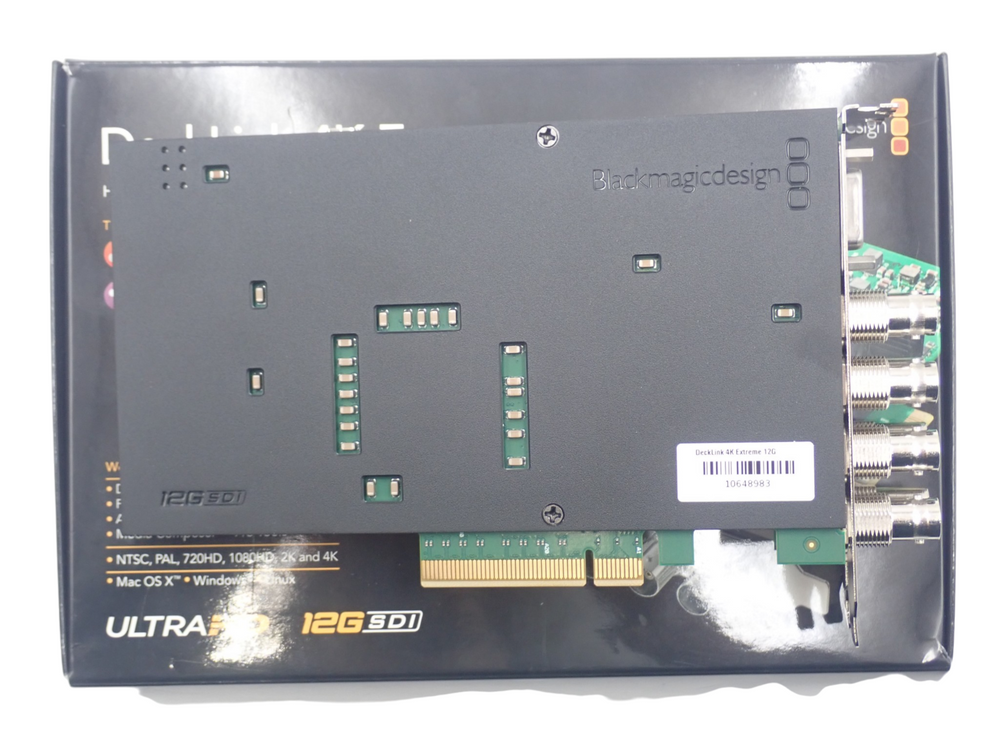

NEW Blackmagic Design DeckLink 4K Extreme 12G HDMI 2x 12G-SDI 3x BNC 2CH AES/EBU
Pre-owned
NEW Blackmagic Design DeckLink 4K Extreme 12G HDMI 2x 12G-SDI 3x BNC 2CH AES/EBU is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product overview
Product overview
Brand: Blackmagic Design
Type: Video Capture & Editing
External Interfaces: SFP,12G-SDI,HDMI,Optical Fiber,#,Analog Breakout Connector
MPN: BDLKHDEXTR4K12G,DeckLink 4k Extreme 12G,Blackmagic DeckLink 4k Extreme 12G,Blackmagic Design DeckLink 4k Extreme 12G
Compatible Port: PCI Express x8,PCI Express x16
Country of Origin: China

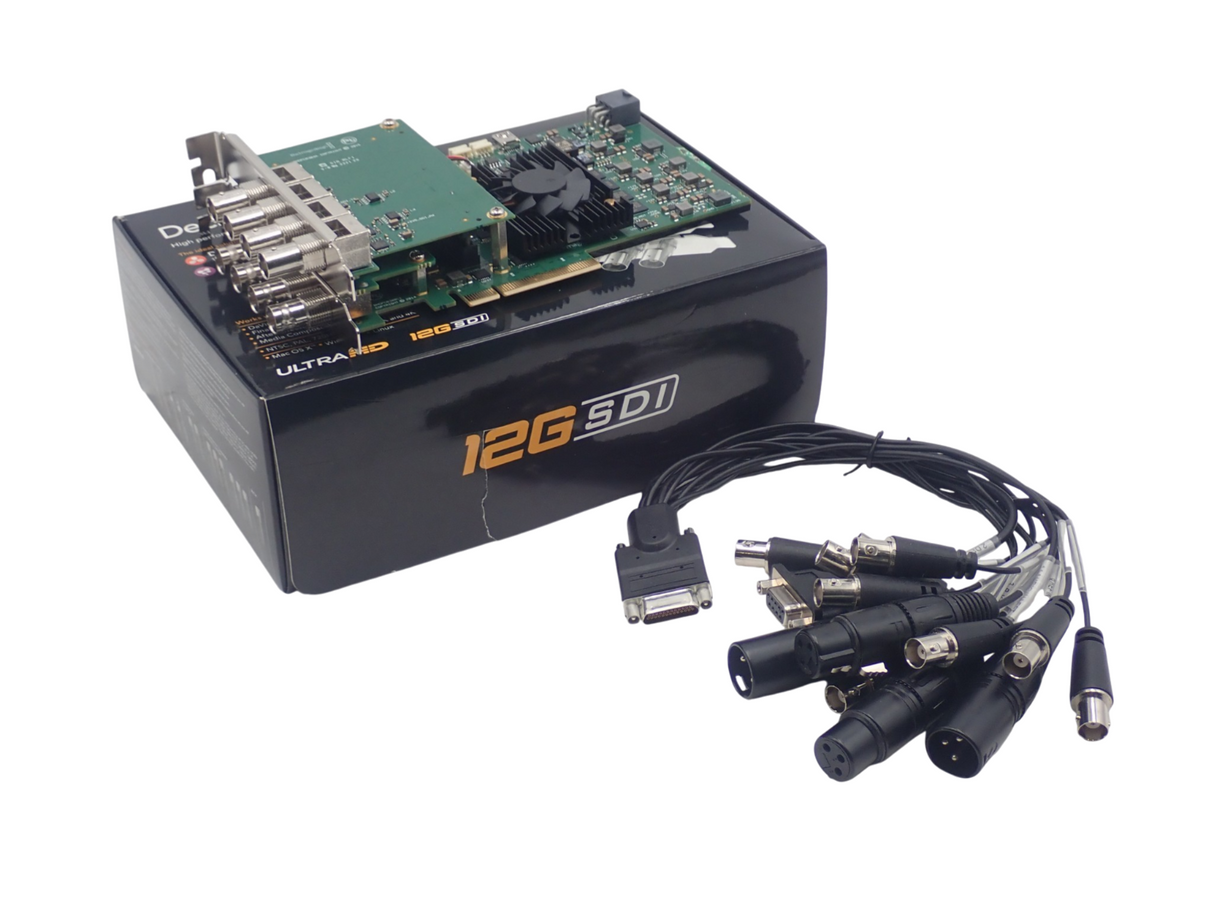

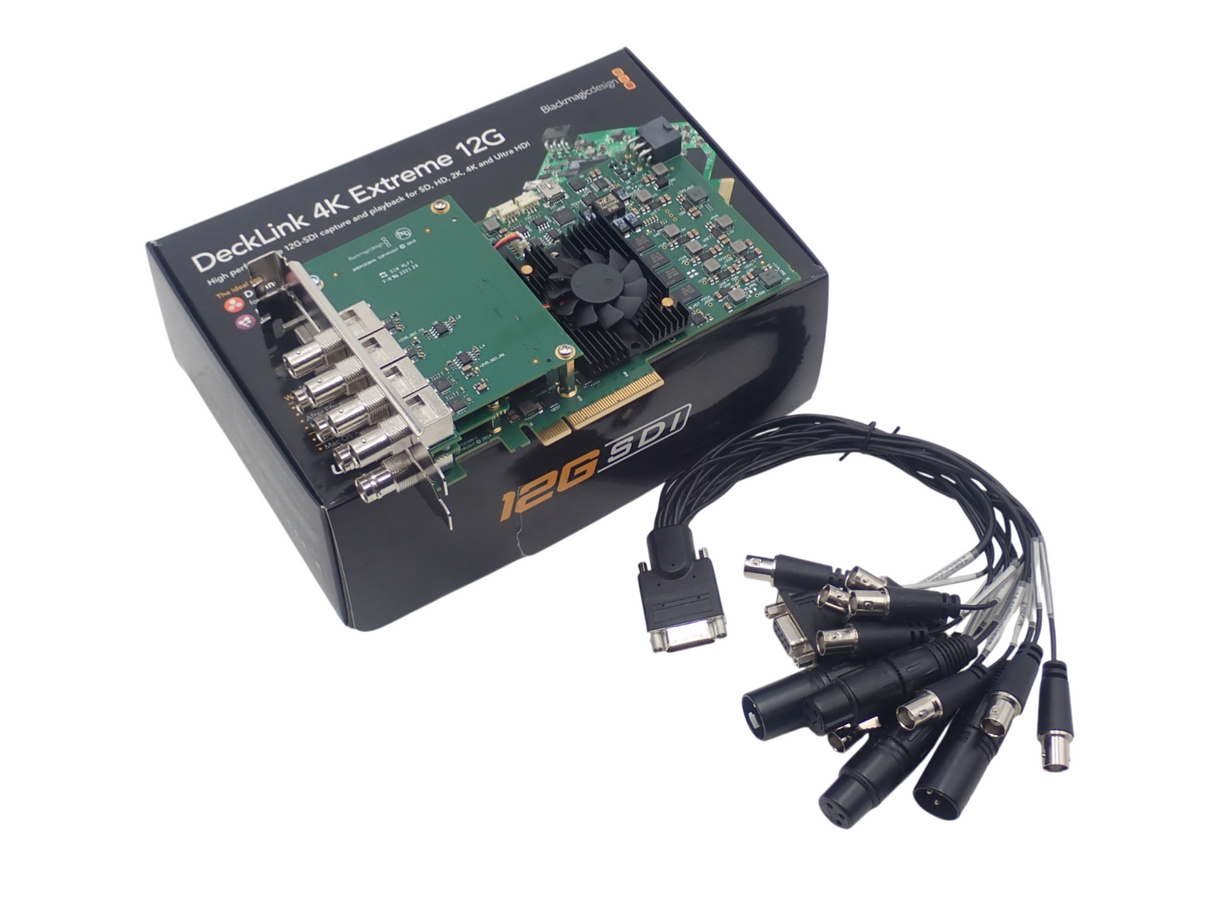

Included:
1 x NEW Blackmagic Design DeckLink 4K Extreme 12G HDMI 2x 12G-SDI 3x BNC 2CH AES/EBU
1 x Breakout cable for analog and RS-422 control
More Info:
Advanced digital cinema capture card featuring full frame DCI 4K input and output via 12G‑SDI! You get dual link multi rate 12G‑SDI connections that work with SD, HD and Ultra HD even in Ultra HD 60p, as well as full frame DCI 4K at 4096 x 2160 resolution up to 25p! Capture 10‑bit YUV or full color bandwidth 12-bit RGB. Includes AES/EBU audio, up, down and cross conversion, plus built in 3D stereoscopic output at full bandwidth 4:4:4:4 RGB! No other capture and playback card supports more video formats and video connections!

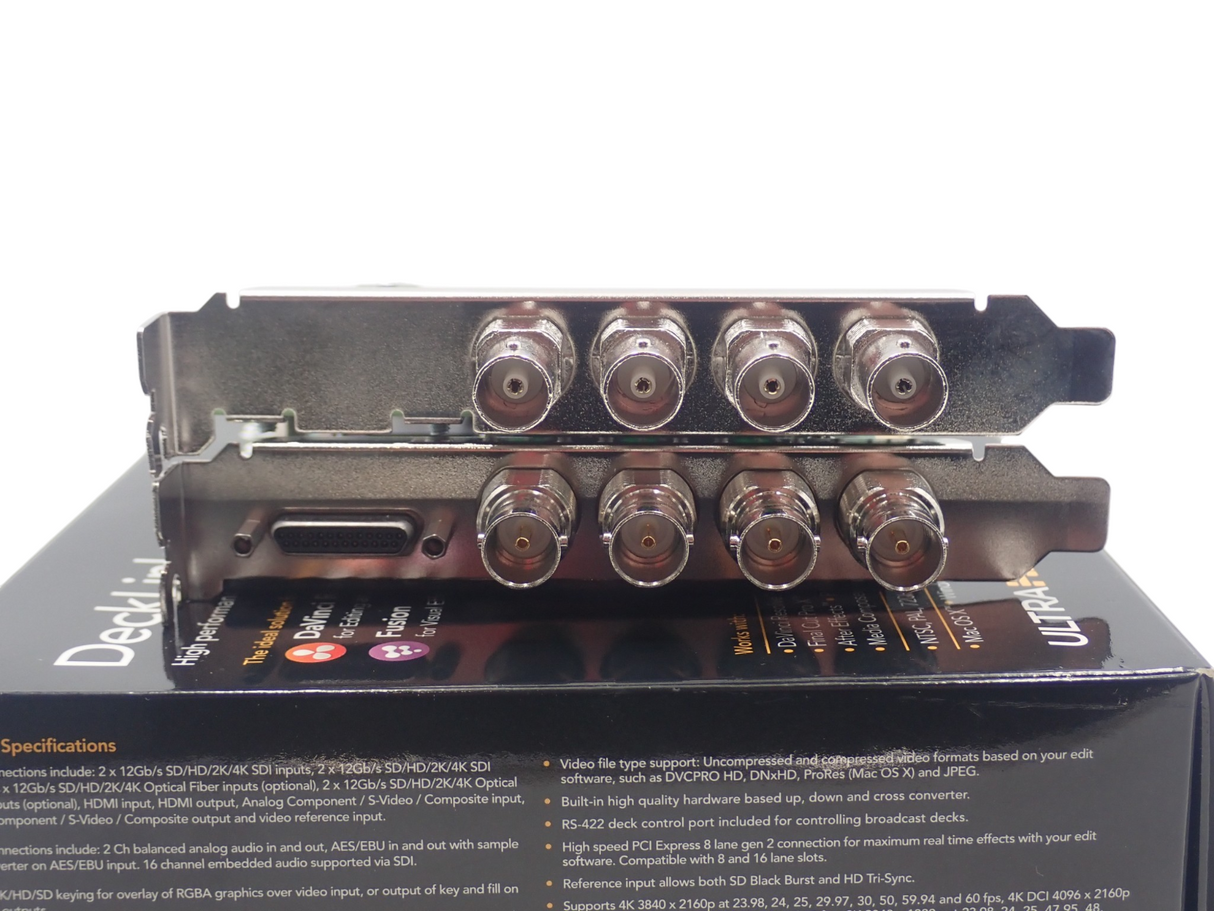

Connections
SDI Video Inputs: 2 x 12Gb/s SD/HD/2K/4K. Supports single/dual link 4:2:2/4:4:4. 2D/3D switchable.
SDI Video Outputs: 2 x 12Gb/s SD/HD/2K/4K. Supports single/dual link 4:2:2/4:4:4. 2D/3D switchable.
Analog Video Inputs: 1 x Component YUV on 3 BNCs switchable to S-Video or Composite. Component supports HD and SD.
Analog Video Outputs: 1 x Component YUV on 3 BNCs switchable to S-Video and Composite. Component supports HD and SD.
Analog Audio Inputs: 2 Channels of professional balanced analog audio via XLR connectors.
Analog Audio Outputs: 2 Channels of professional balanced analog audio via XLR connectors.
Optical Fiber Inputs/Outputs (Optional): 2 x 12Gb/s Optical Fiber.
AES/EBU Audio Inputs: 2 Channels unbalanced with sample rate converter.
AES/EBU Audio Outputs: 2 Channels unbalanced.
SDI Audio Inputs: 16 Channels embedded in SD/HD/2K/4K.
SDI Audio Outputs: 16 Channels embedded in SD/HD/2K/4K.
HDMI Video Inputs: HDMI type A connector with support for 2160p60.
HDMI Video Outputs: HDMI type A connector with support for 2160p60.
HDMI Audio Inputs: 8 Channels embedded in SD/HD/4K
HDMI Audio Outputs: 8 Channels embedded in SD/HD/4K.
Sync Input: Tri-Sync or Black Burst.
Device Control: Sony compatible RS422 deck control port. Serial ports TxRx direction reversible under software control.

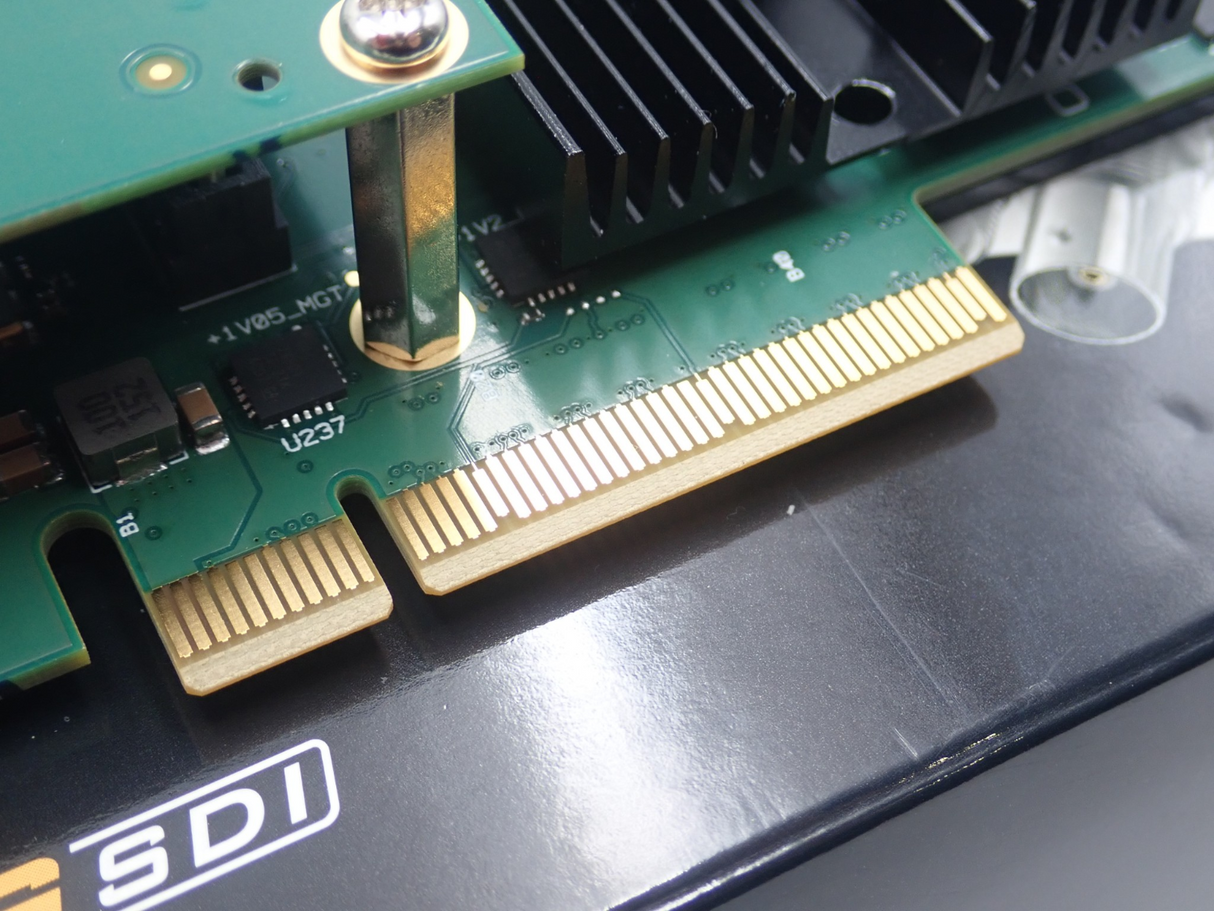

Computer Interface: PCI Express 8 lane generation 2, compatible with 8 and 16 lane PCI Express slots with HDMI or SDI mezzanine card.
Supported Codecs
AVC-Intra, AVCHD, Canon XF MPEG2,
Digital SLR, DV-NTSC, DV-PAL,
DVCPRO50, DVCPROHD, DPX, HDV,
XDCAM EX, XDCAM HD, XDCAM
HD422, DNxHR & DNxHD, Apple
ProRes 4444, Apple ProRes 422 HQ,
Apple ProRes 422, Apple ProRes LT,
Apple ProRes 422 Proxy,
Uncompressed 8-bit 4:2:2,
Uncompressed 10-bit 4:2:2,
Uncompressed 10‑bit 4:4:4.
SD Video Standards
525i59.94 NTSC, 625i50 PAL
HD Video Standards
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95*, 1080p48*, 1080p50, 1080p59.94,
1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60
2K Video Standards (SDI Only)
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95
DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94
DCI, 2Kp60 DCI
2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI
Ultra HD Video Standards
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95*, 2160p48*, 2160p50, 2160p59.94, 2160p60
4K Video Standards
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95
DCI*, 4Kp48 DCI*, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI
3D SDI Video Standards
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95
DCI, 2Kp48 DCI
2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI, 2KPsF47.95 DCI, 2KPsF48 DCI
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI
*SDI only
3D HDMI Video Standards
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080i50, 1080i59.94, 1080i60
SDI Compliance
SMPTE 259M, SMPTE 292M, SMPTE
296M, SMPTE 372M, SMPTE 425M, SMPTE 435, SMPTE 2081, SMPTE
2082, SMPTE 2082-10, SMPTE 2108-1, ITU-R BT.656 and ITU‑R BT.601.
SDI Metadata Support
RP 188/SMPTE 12M-2 and closed captioning.
Audio Sampling
Television standard sample rate of 48 kHz at 24‑bit.
SDI Video Sampling
4:2:2, 4:4:4
SDI Color Precision
8, 10, 12-bit RGB 4:4:4 in all modes up to UHD 30p, and 8, 10-bit YUV 4:2:2 in all modes
Color Space
REC 601, REC 709, REC 2020
HDR Support
HDR metadata packing, HLG and PQ transfer characteristics. (HDMI supports static HDR metadata only)
HDMI Video Sampling
4:4:4, 4:2:2 and 4:2:0
HDMI Color Precision
8, 10 and 12-bit (Deep Color).
HDMI Configuration
HDMI 2.0b supports Deep Color and HDR. Automatically configures to connected display.
Multiple Rate Support
HDMI and SDI video connections are switchable between SD/HD/2K and 4K. Component analog video connections are switchable between SD and HD.
Copy Protection
HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content
Ultra HD Down Conversion
Built in, high quality hardware down converter outputs Ultra HD to HD with down converted signal on SDI outputs C & D and HDMI output when connected to an HD only TV.
HD to SD Down Conversion
HD to SD with down converted signal on SDI output B, Component and Composite NTSC/PAL. SD output selectable between letterbox, anamorphic 16:9 and center cut 4:3.
HD Up Conversion
Built in, high quality software up converter from SD to HD on input. Selectable between 16:9 Zoom or anamorphic.
HD Cross Conversion
Built in, high quality hardware cross conversion from 720HD to 1080HD, 1080HD to 720HD on playback.
Real Time Effects
DaVinci Resolve, Final Cut Pro X internal effects. Premiere Pro CC Mercury Playback Engine effects.
Avid Media Composer internal effects.
Colorspace Conversion Hardware based real time on output.
3D Processing
Dual stream and frame packed capture and playback
