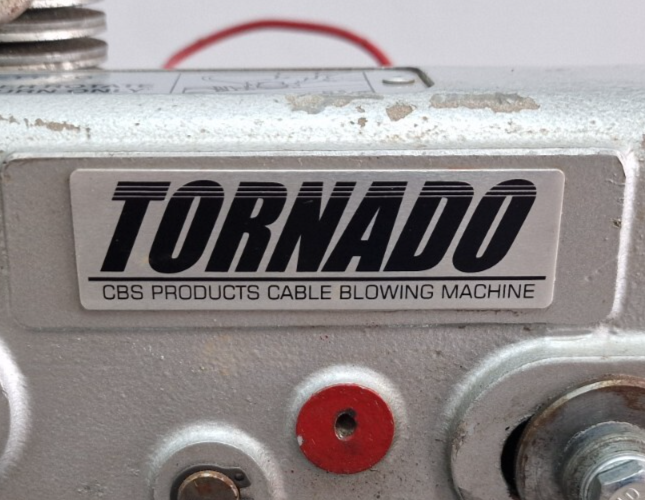

CBS Tornado Plus Cable Blowing Machine High-Performance Fibre Optic Installation Tool
In good condition and In full working order
Product Overview:

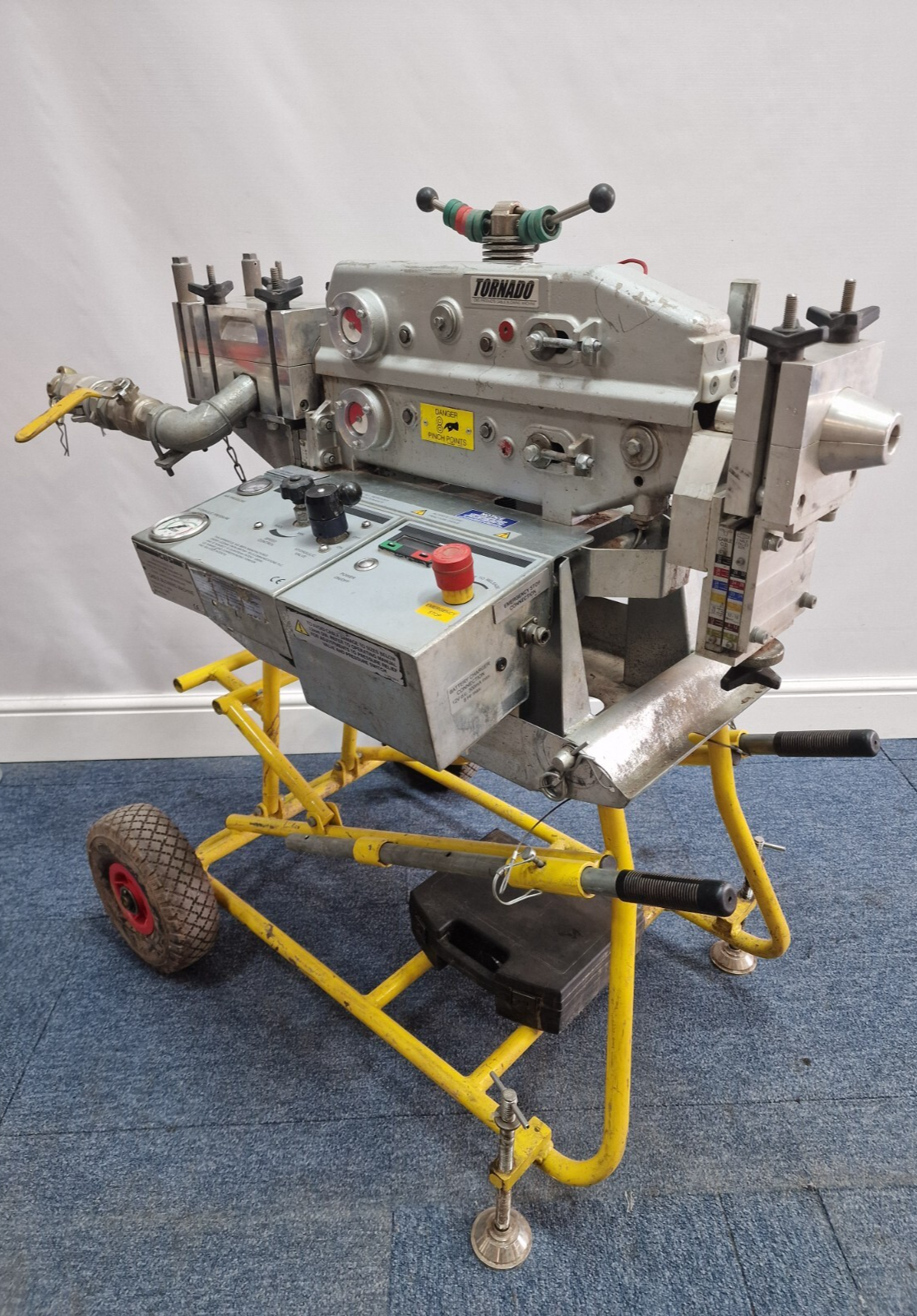

The CBS Tornado Plus is a heavy-duty, modular cable blowing system capable of handling fiber‑optic cables from 6 mm to 32 mm into ducts from 25 mm to 63 mm. It delivers up to 100 kg of pushing force and 300 ft/min cable speed using combined pneumatic and hydraulic power. Fully portable, it includes precision controls, emergency safeguards, and a full accessory kit, making it suitable for robust telecom deployment environments.
Capacities & Performance:
Cable diameter range: 6 mm – 32 mm (0.24”–1.34”)
Duct/inner‑duct size: 25 – 63 mm OD (approx. 1″–2″ SDR)
Pushing force: 0 – 100 kgf (0–220 lbf)
Max speed: 90 m/min (300 ft/min)
Pneumatic System:
Air hose min bore: 32 mm (1¼″)
Operating pressure: 12 bar (175 psi)
Required airflow @12 bar:
Up to 25 mm ID: 150 CFM (4 m³/min)
26–30 mm: 185 CFM (5 m³/min)
31–35 mm: 250 CFM (7 m³/min)
36–40 mm: 375 CFM (10 m³/min)
41–44 mm: 450 CFM (12 m³/min)
44–51 mm: 700 CFM (19 m³/min)
Hydraulic Drive System:
Max operating pressure: up to 115 bar (1670 psi)
Flow rate: approx. 15 L/min (4 gpm)
Pressure switch setpoint:
100 bar (1450 psi) for cables 12–34 mm
60 bar (870 psi) for cables 6–12 mm
Safety relief valves & check:
Relief at 110 bar (1600 psi) for larger cables
70 bar (1015 psi) for smaller cables
Initial start-up pressure range 20–40 bar (290–580 psi)
Hardware & Controls:

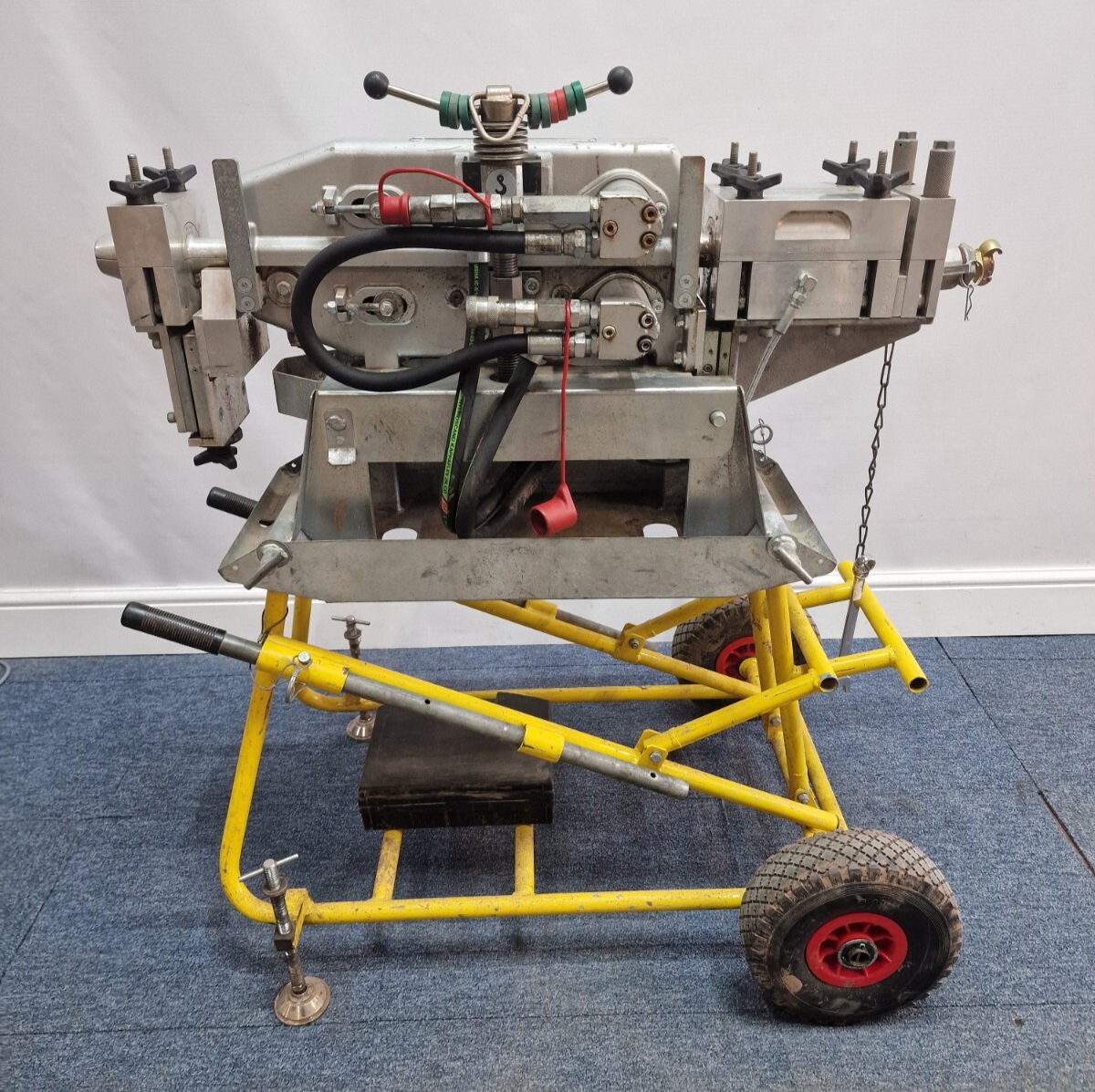

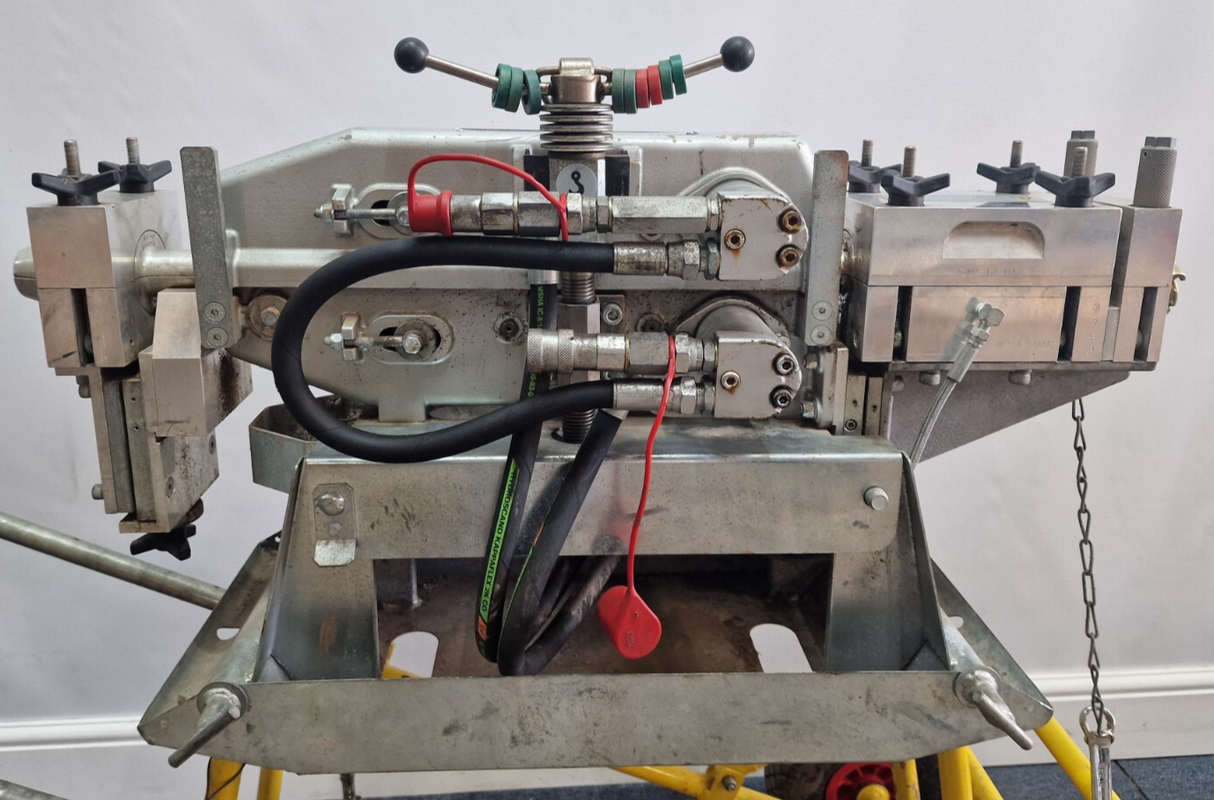

Air box & cable pusher: aluminium air‑box; hydraulically driven belt feeder

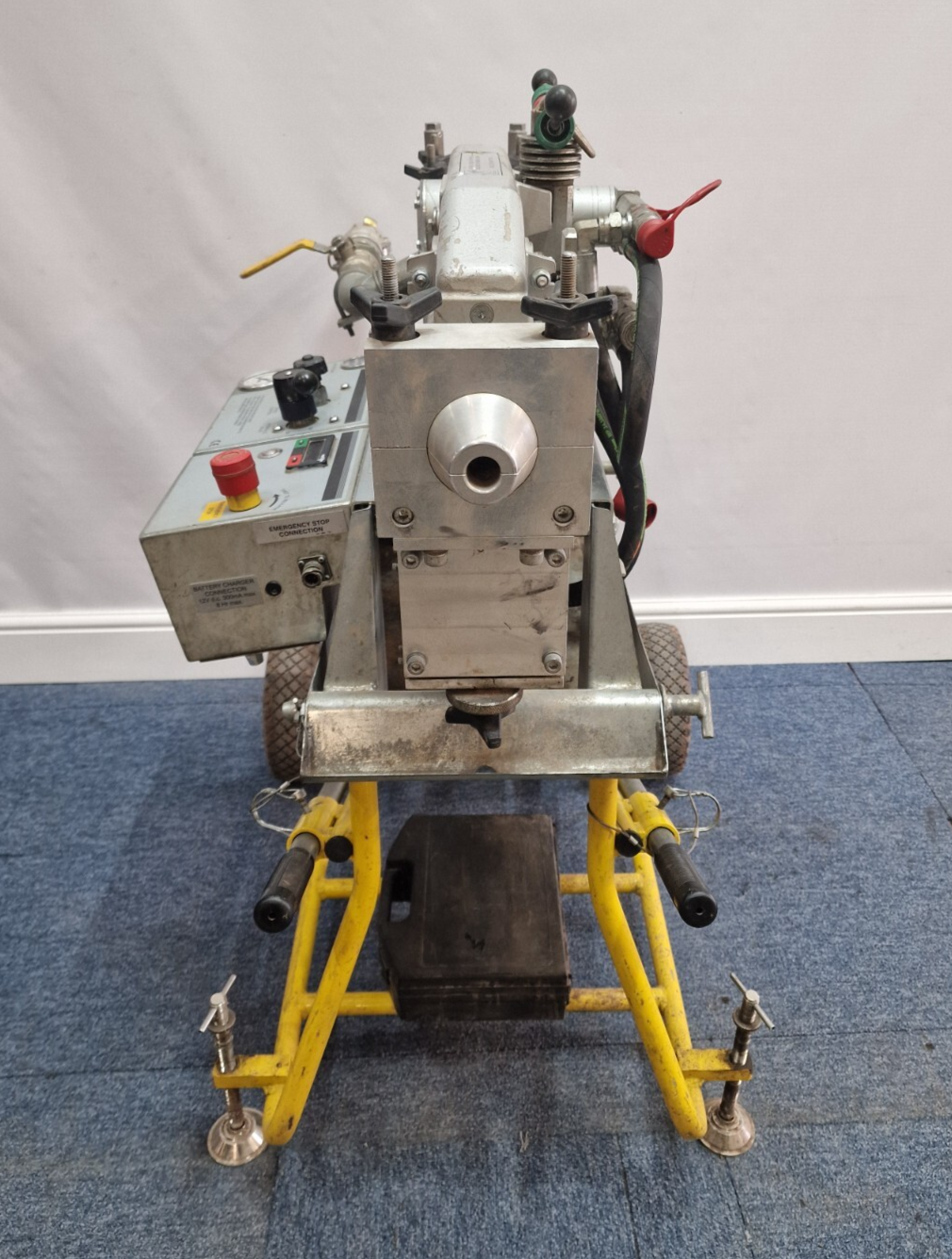

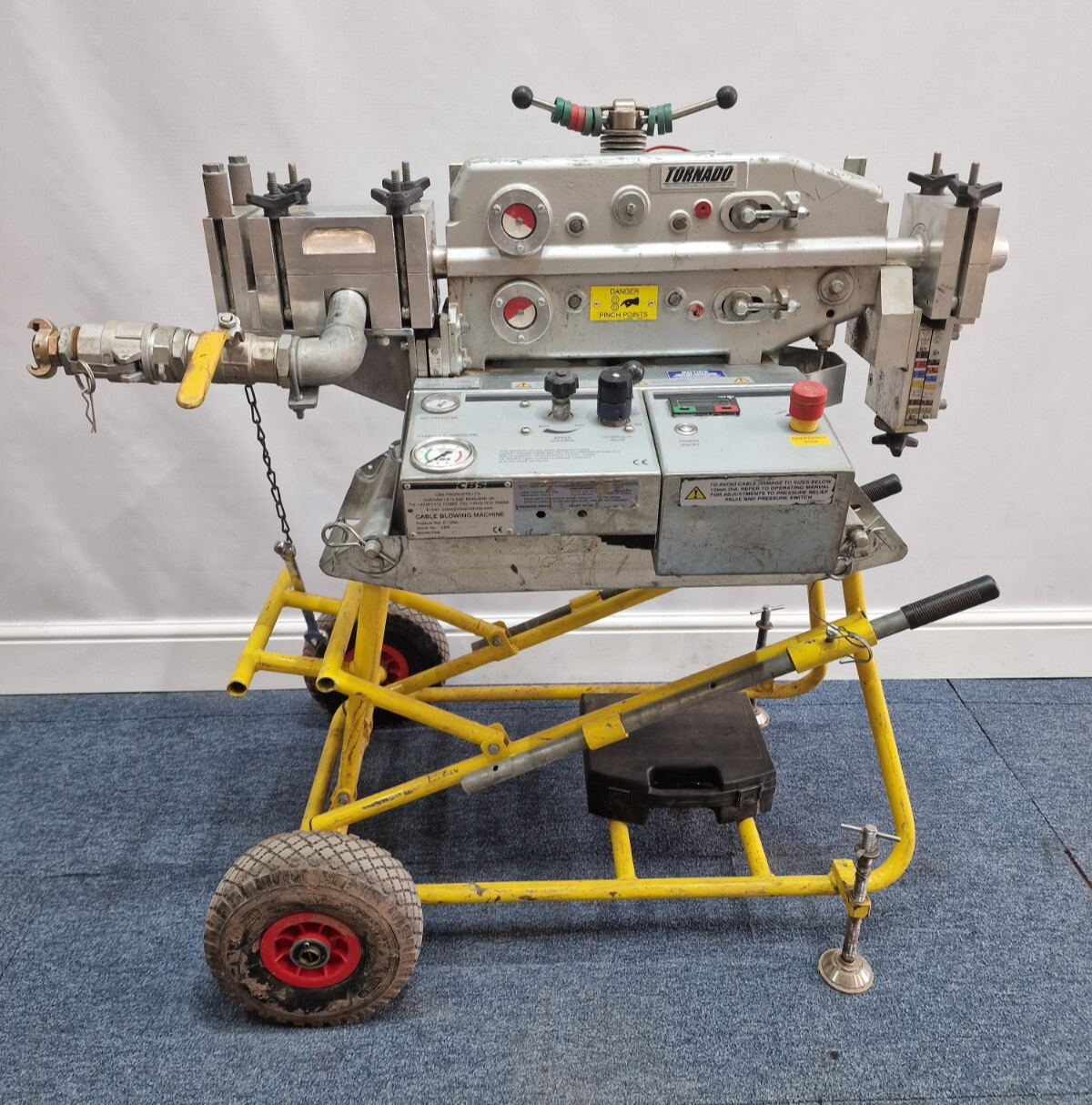

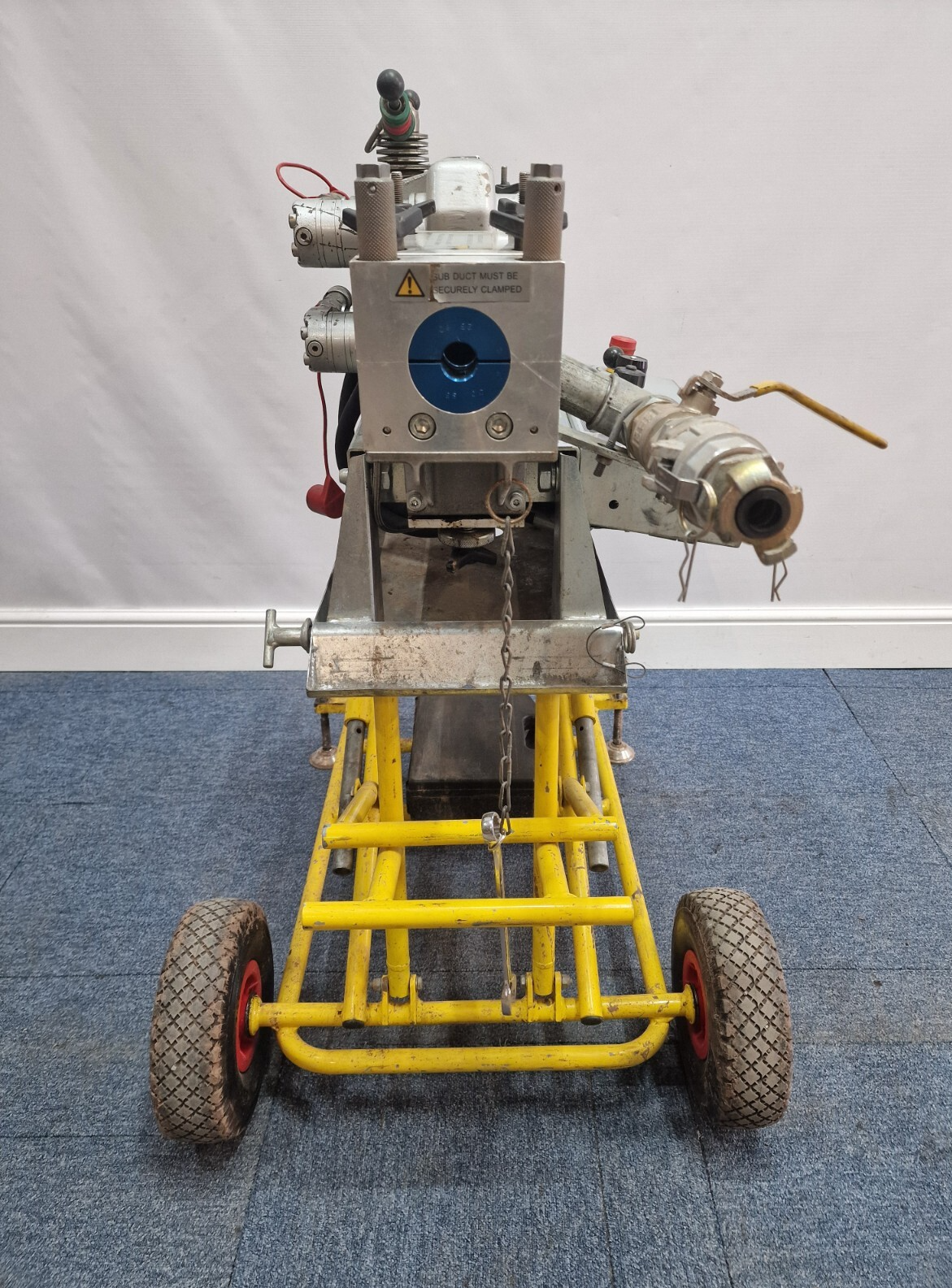

Frame: tubular‑steel, with adjustable legs, tilt up to 30° to reduce bending; wheels & handles for mobility

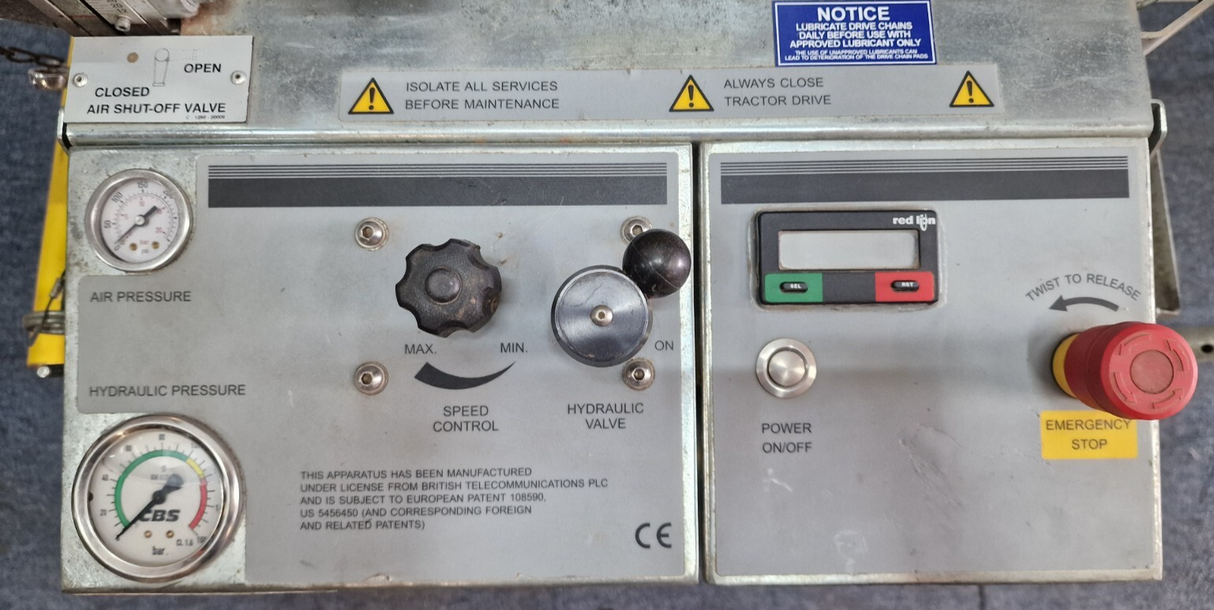

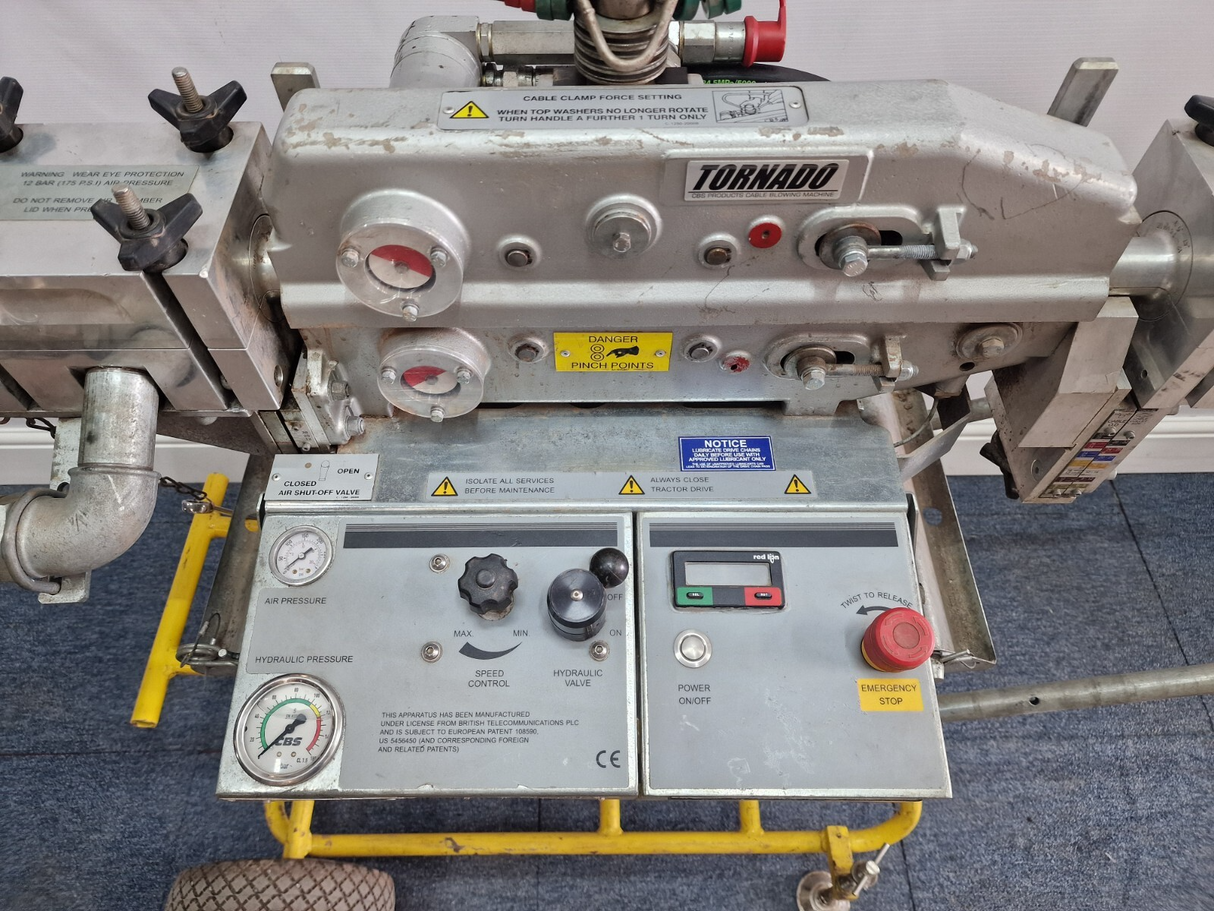

Control panel includes:
Power on/off, emergency‑stop, reset

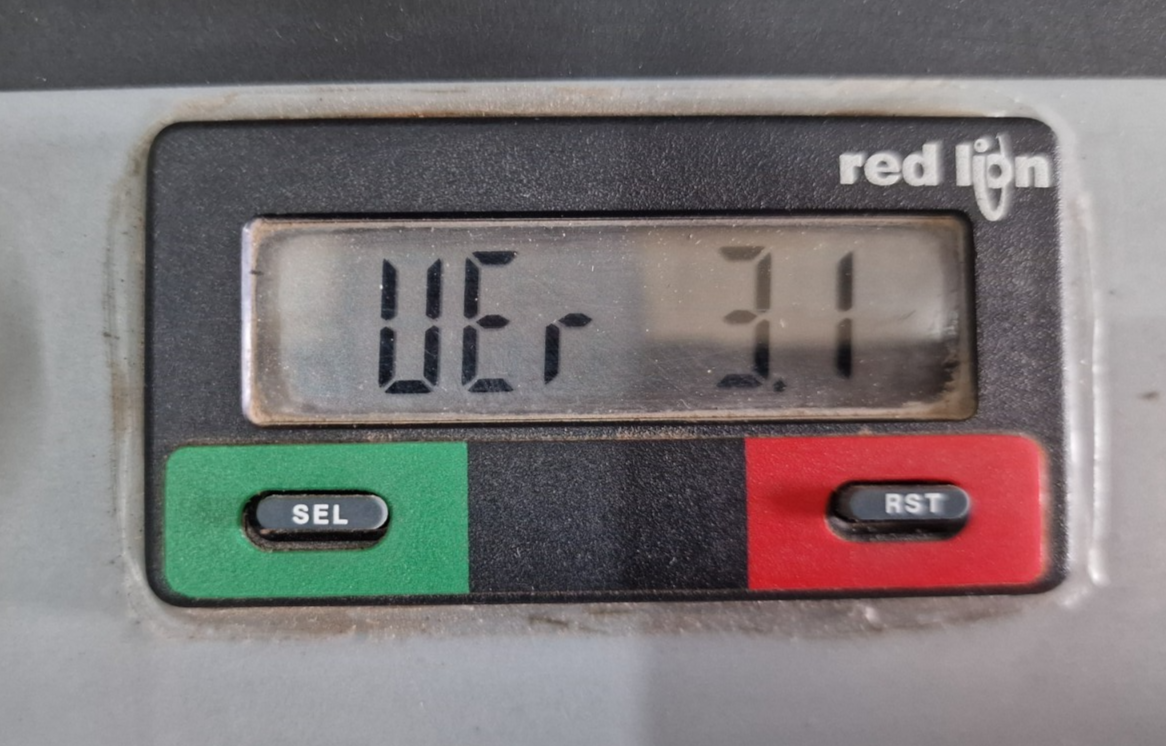

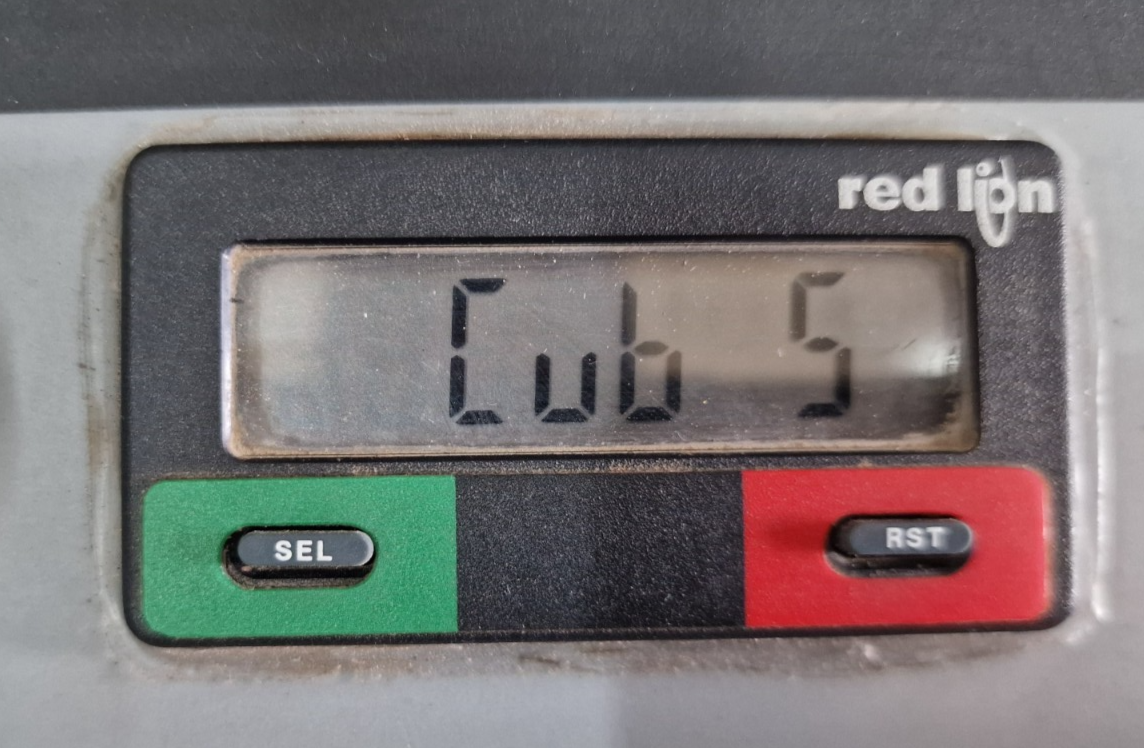

Counters for length & speed (m/ft, m/min & ft/min)
Hydraulic & air‑pressure dials, air‑valve, hydraulic‑valve
Adjustable belt‑drive speed control
Monitoring: real‑time display, obstruction protection
Why Choose the CBS Tornado Plus?
Efficiency: Achieve rapid cable installations, reducing project timelines.
Versatility: Compatible with a wide range of cable and duct sizes.
Safety: Features protective systems to prevent damage during operation.
Durability: Built to withstand demanding environments and heavy-duty use
