EXFO MaxTester MAX730CSM3EA RF MAX730C 1310/1150/1625 nm SM Dedicated OTDR

£4,332.00
£3,610.00 ex VAT

Pre-owned


Product overview

Brand: EXFO
Optical Interface(s): OTDR
Attenuation Dead Zone: 2.5m
Form Factor: Handheld
Testing Distance: 0.1 to 400 km
Optical Fibre Type: Single-mode
Output Power: -2.5
Event Dead Zone: 0.5 m
MPN: MAX-730C-SM3-EA, MAX-730C, 730C, FIP-430B
Dynamic Range: 39 dB for up to 132 km point-to-point (P2P)
Model: MAX 730C

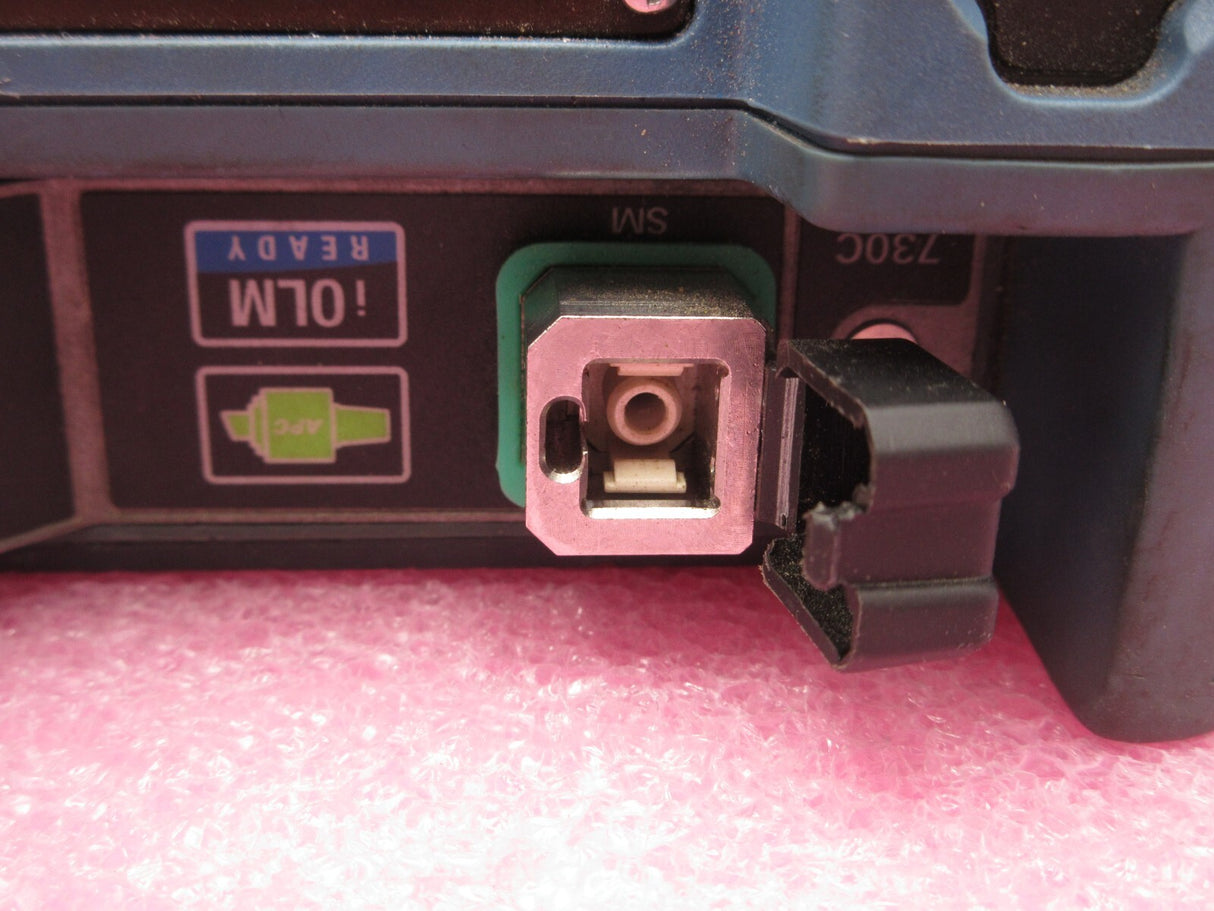

Everything Included Is As Per Photos

Description:
The MaxTester 700B/C Series is the first tablet-inspired OTDR line that is handy, lightweight and rugged enough for any outside plant environment. With a 7-inch, outdoor-enhanced touchscreen–the most efficient handheld display in the industry–it delivers an unprecedented user experience. Its intuitive Windows-like GUI ensures a fast learning curve. Plus, its new and improved OTDR 2 environment offers icon-based functions, instant boot-up, automatic macrobend finders as well as improved auto and real‑time modes.
The MaxTester 700B/C Series is a line of genuine high-performance OTDRs from the world’s leading manufacturer. It delivers EXFO’s tried and true OTDR quality and accuracy along with the best optical performance for right-first-time results, every time.
The amazing 12-hour battery life will never let a technician down, and the plug-and-play hardware options, like the VFL, power meter and USB tools, make every technician’s job easier.
Most importantly, the MaxTester 700B/C Series is finally bringing the intelligent Optical Link Mapper (iOLM), an intelligent OTDR-based application, to the handheld market. This advanced software turns even the most complex trace analysis into a simple, one-touch task.
Ultimately, the MaxTester 700B/C Series is small enough to fit in your hand and big enough to fit all your needs!
Key Features:
Handy, lightweight, powerful, tablet-inspired design
Rugged design built for outside plant
7-inch, outdoor-enhanced touchscreen–the biggest in
the handheld industry
12-hour battery life
Tamper-proof password protection
Dynamic range up to 39 dB for up to 132 km point-to-point (P2P)
Short dead zones: event dead zone (EDZ) = 0.5 m; attenuation dead
zone (ADZ) = 2.5 m; PON dead zone = 30 m
Single port for in-service troubleshooting with in-line
1490/1550 nm PON power meter (optional)
Supports high port count PON splitters (up to 1x128)
iOLM-ready: one-touch multiple acquisitions, with clear go/no-go
results presented in a straightforward visual format
Market-leading onboard PDF reporting solution and essential
PC-based post-processing included for all users
Live fiber testing at 1625 nm or 1650 nm

Applications
FTTx/PON testing through splitters
Access network testing (P2P)
Metro links testing (P2P)
Live fiber troubleshooting
Passive optical LAN (POL)

Specifications:

Display: 7-in (178-mm) outdoor-enhanced touchscreen, 800 × 480 TFT

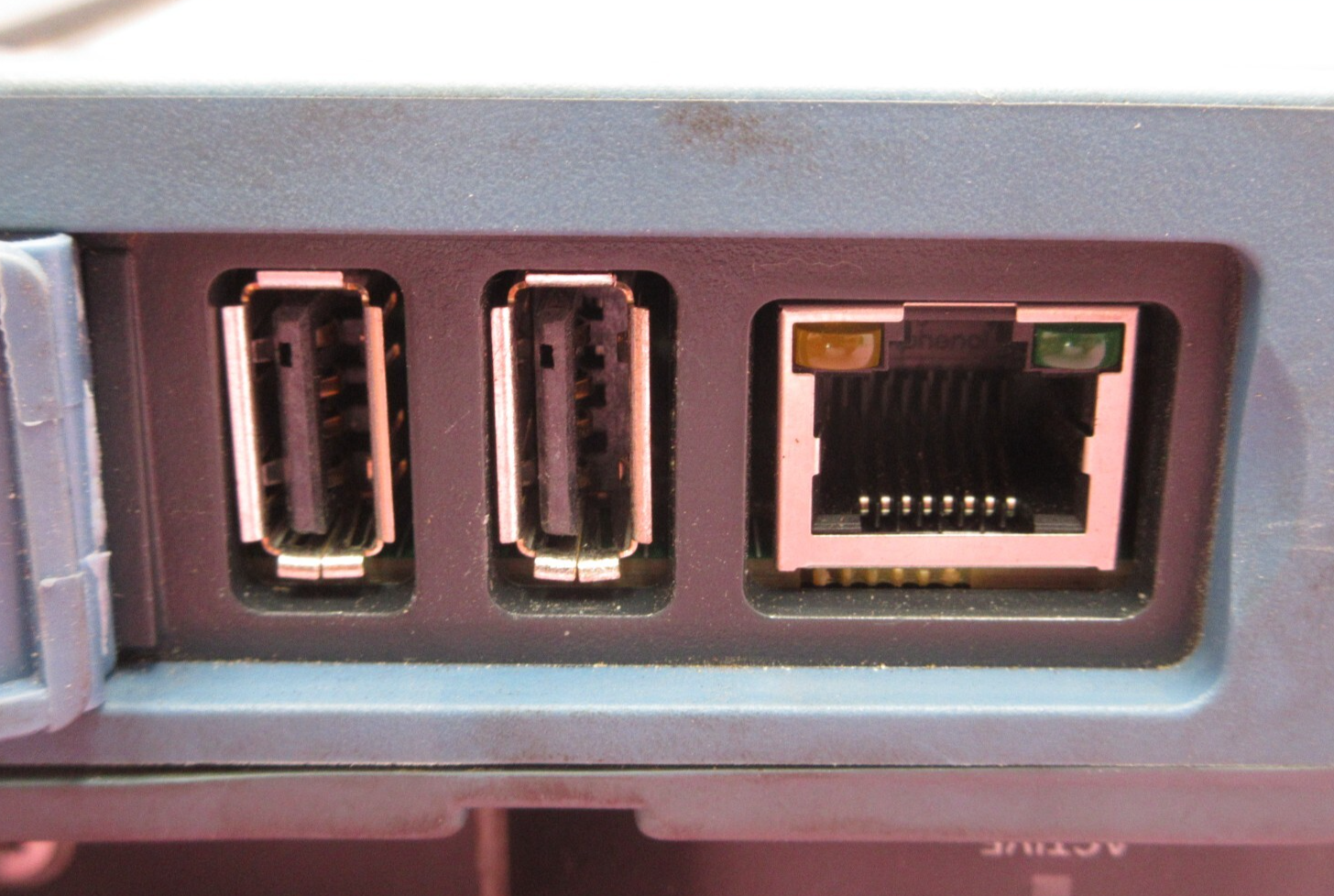

Interfaces
Two USB 2.0 ports
RJ45 LAN 10/100 Mbit/s
Storage: 2 GB internal memory (20 000 OTDR traces, typical)
Batteries: Rechargeable lithium-polymer battery, 12 hours of operation as per Telcordia (Bellcore) TR-NWT-001138

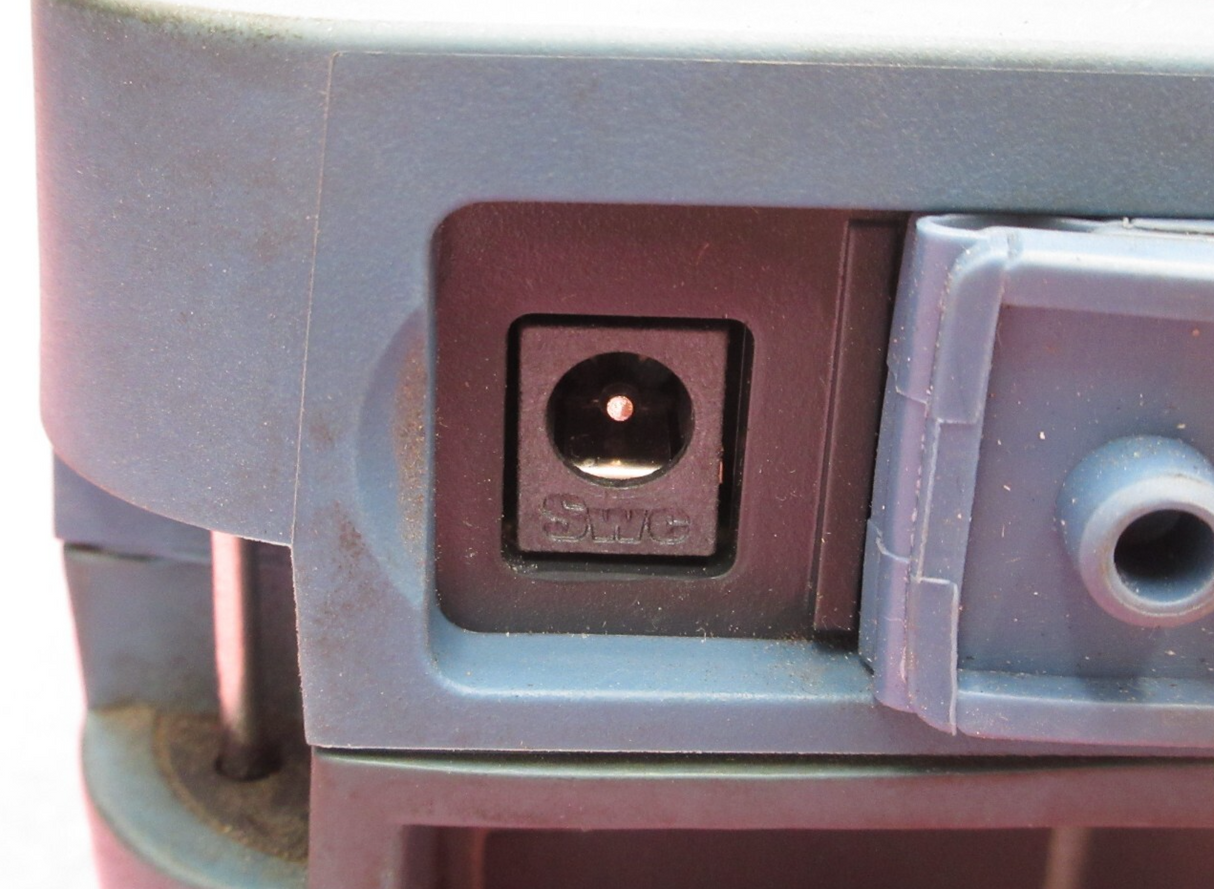

Power supply: Power supply AC/DC adapter, input 100-240 VAC, 50-60 Hz
Wavelength (nm): 1310 ± 20/1550 ± 20/1625 ± 10/1650 ± 5
SM live port built-in filter
1625 nm: highpass >1595 nm - isolation >50 dB from 1270 nm to 1585 nm
1650 nm: bandpass 1650 nm ± 7 nm - isolation >50 dB out of 1650 nm ± 10 nm
Dynamic range (dB): 39/38/39/39
Event dead zone (m): 0.5
Attenuation dead zone (m): 2.5
PON dead zone (m): 30
Distance range (km): 0.1 to 400
Pulse width (ns): 3 to 20 000
Linearity (dB/dB): ±0.03
Loss threshold (dB): 0.01
Loss resolution (dB): 0.001
Sampling resolution (m): 0.04 to 10
Sampling points: Up to 256 000
Distance uncertainty (m): ±(0.75 + 0.0025 % × distance + sampling resolution)
Measurement time: User-defined
Reflectance accuracy (dB): ±2
Typical real-time refresh (Hz): 4

In-Line Power Meter
Input power range (dBm)
1490 nm: –65 to 18
1550 or 1577 nm: –50 to 28
PON power meter (nm): Two channels: 1490/1550
Broadband power meter (nm): One channel: 1270 to 1625
Power uncertainty (dB): ±0.2
Calibrated wavelengths (nm): 1310, 1490, 1550 and 1625
PON power meter spectral band (nm): 1450 to 1530
Broadband power meter spectral band (nm): 1270 to 1625
PON power meter selectable wavelengths (nm): 1490, 1550, 1490/1550
Broadband power meter selectable wavelengths (nm): 1270, 1290, 1310, 1330, 1350, 1370, 1390, 1410, 1430, 1450, 1470, 1490, 1510, 1530, 1550, 1570, 1577, 1590, 1610,1625
Display resolution (dB): 0.1
PON power meter ORL (dB): –55
Broadband power meter ORL (dB): –50

General Specifications
Size (H × W × D): 166 mm × 200 mm × 68 mm (6 9/16 in × 7 7/8 in × 2 ¾ in)
Weight (with battery): 1.5 kg (3.3 lb)
Temperature
Operating - 10 °C to 50 °C (14 °F to 122 °F)
Storage - 40 °C to 70 °C (–40 °F to 158 °F) a
Relative humidity: 0 % to 95 % non-condensing

Source
Output power (dBm): –2.5
Modulation: CW, 330 Hz, 1 kHz, 2 kHz, 1 kHz + blink, 2 kHz + blink

What's Included

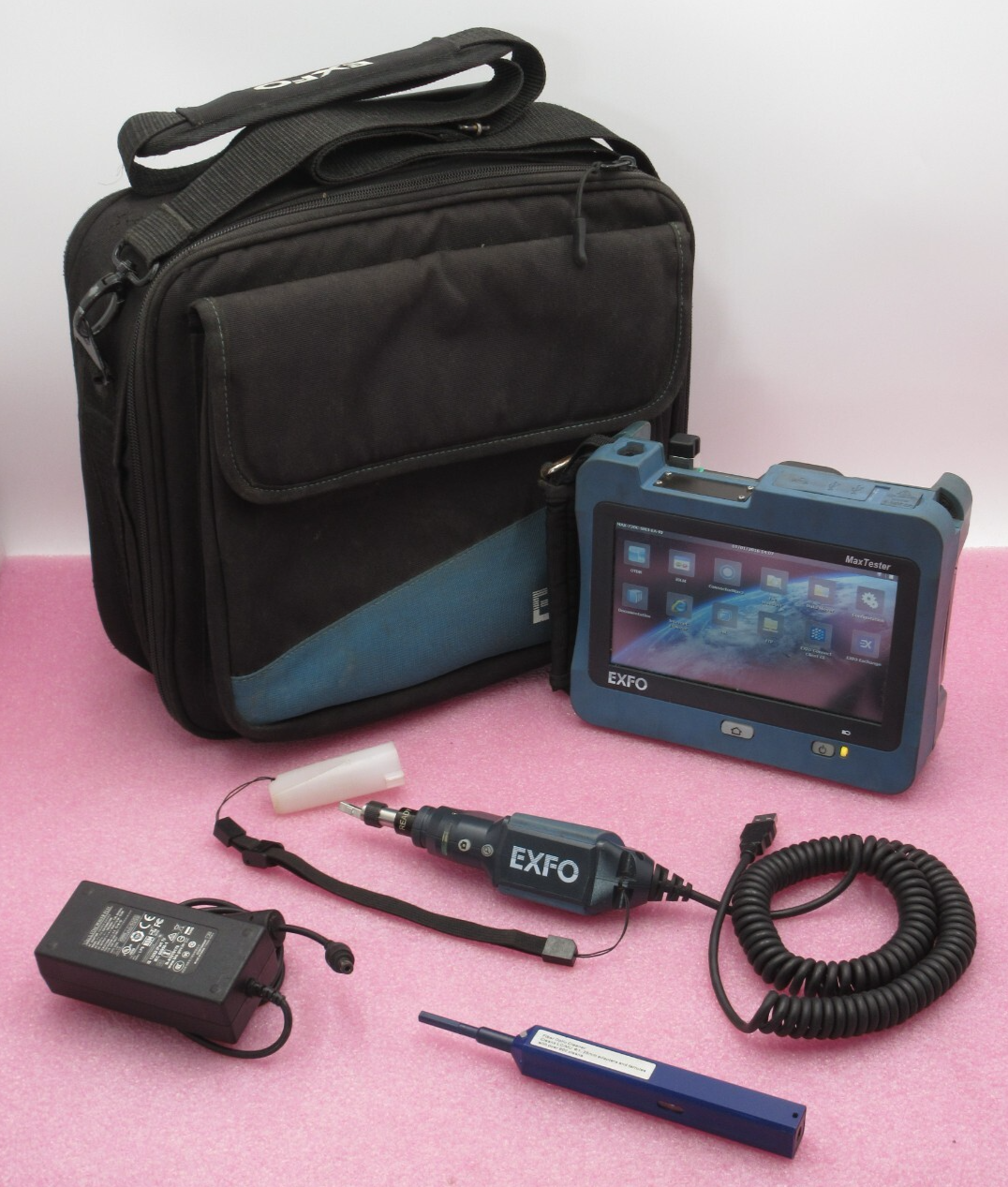

Included:

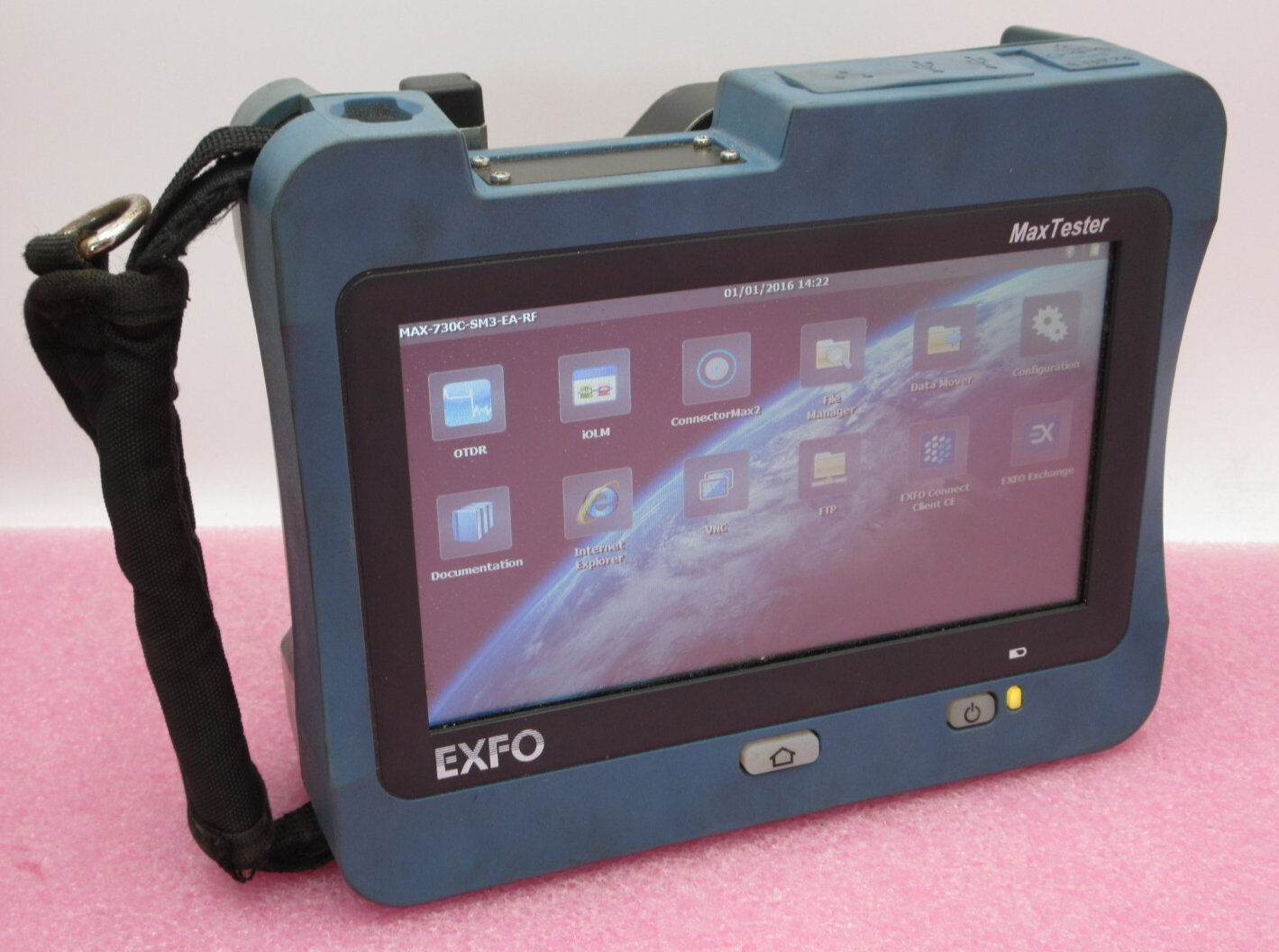

1 x EXFO MaxTester MAX-730C-SM3-EA RF MAX-730C 1310/1150/1625 nm SM Dedicated OTDR

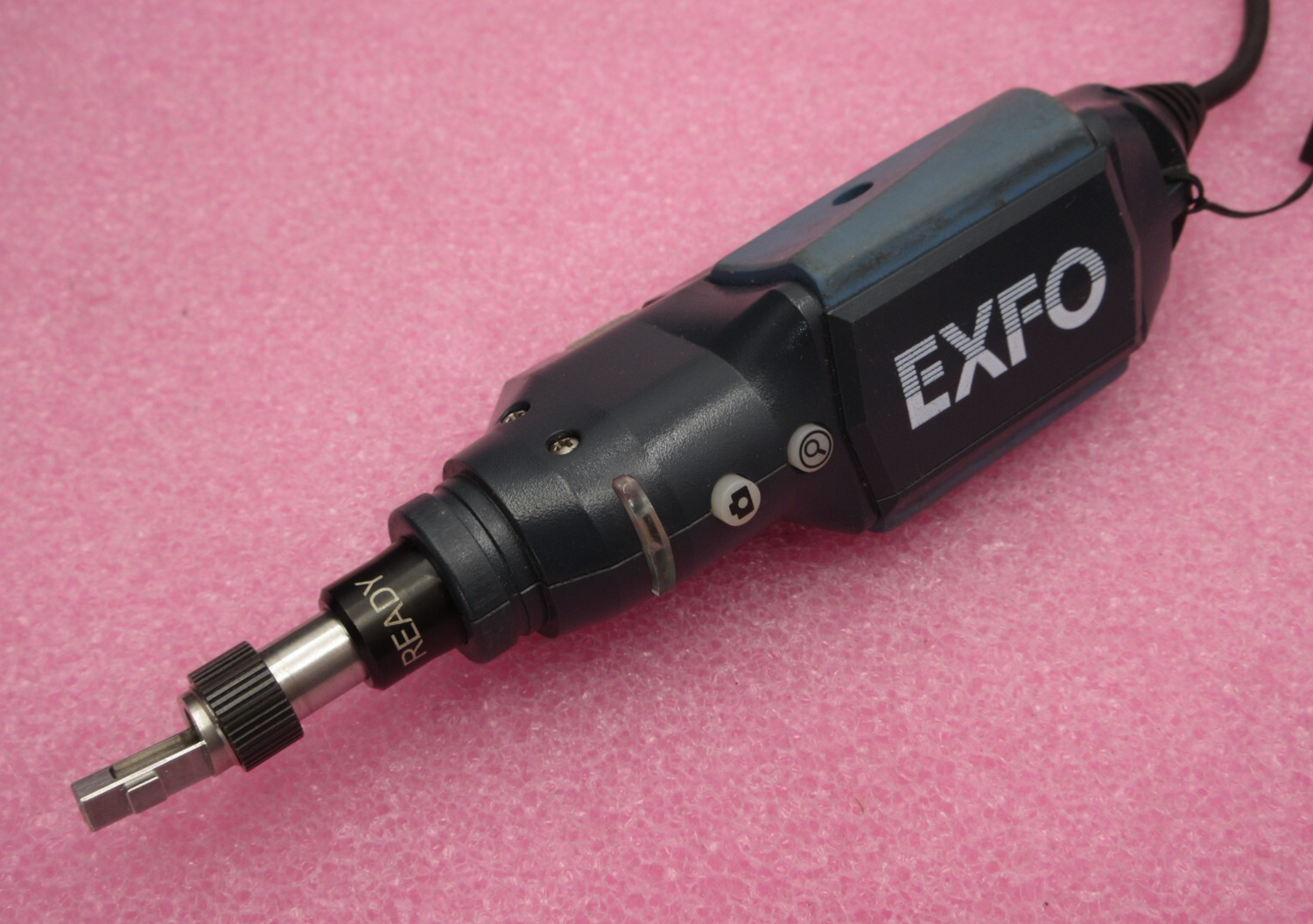

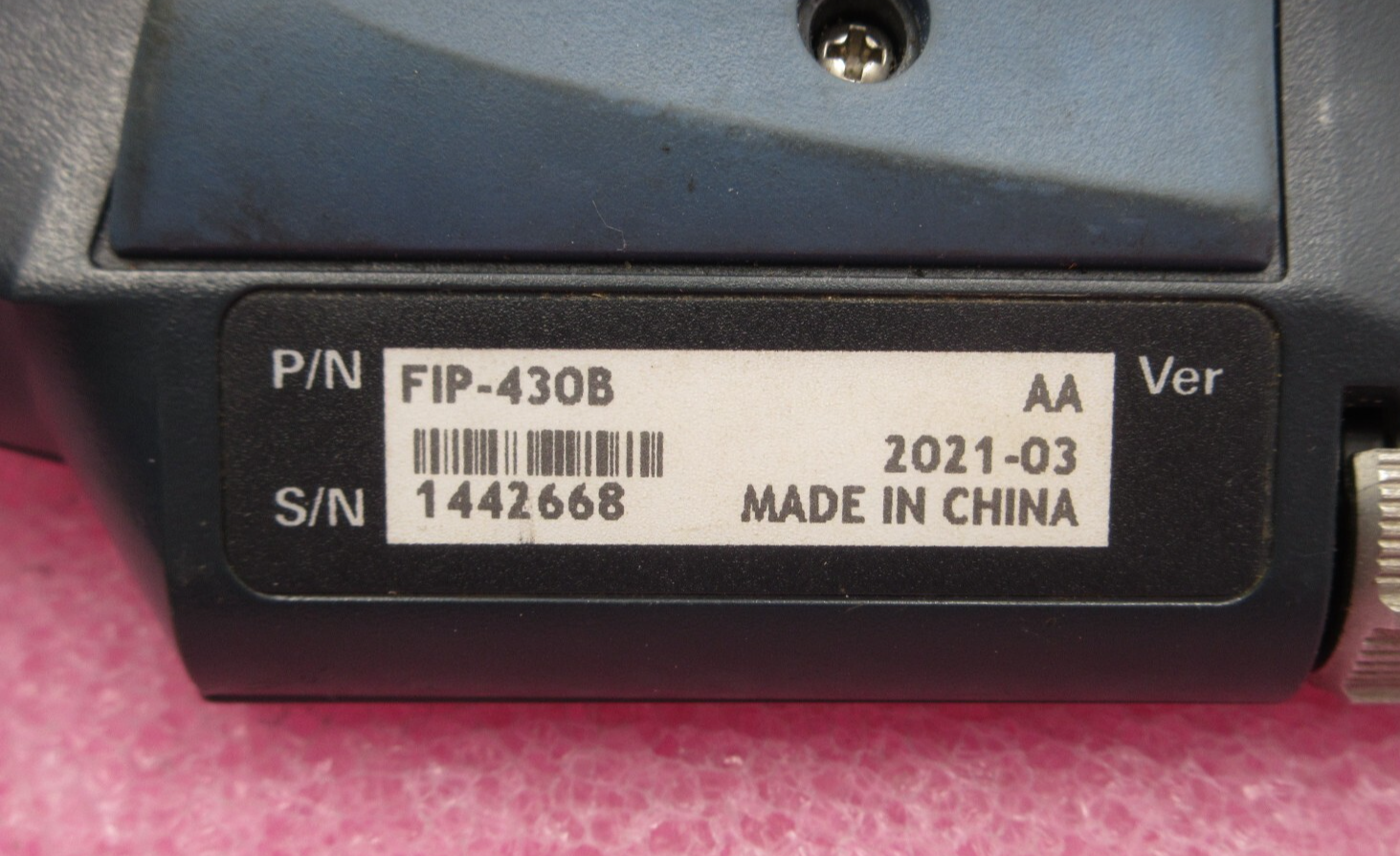

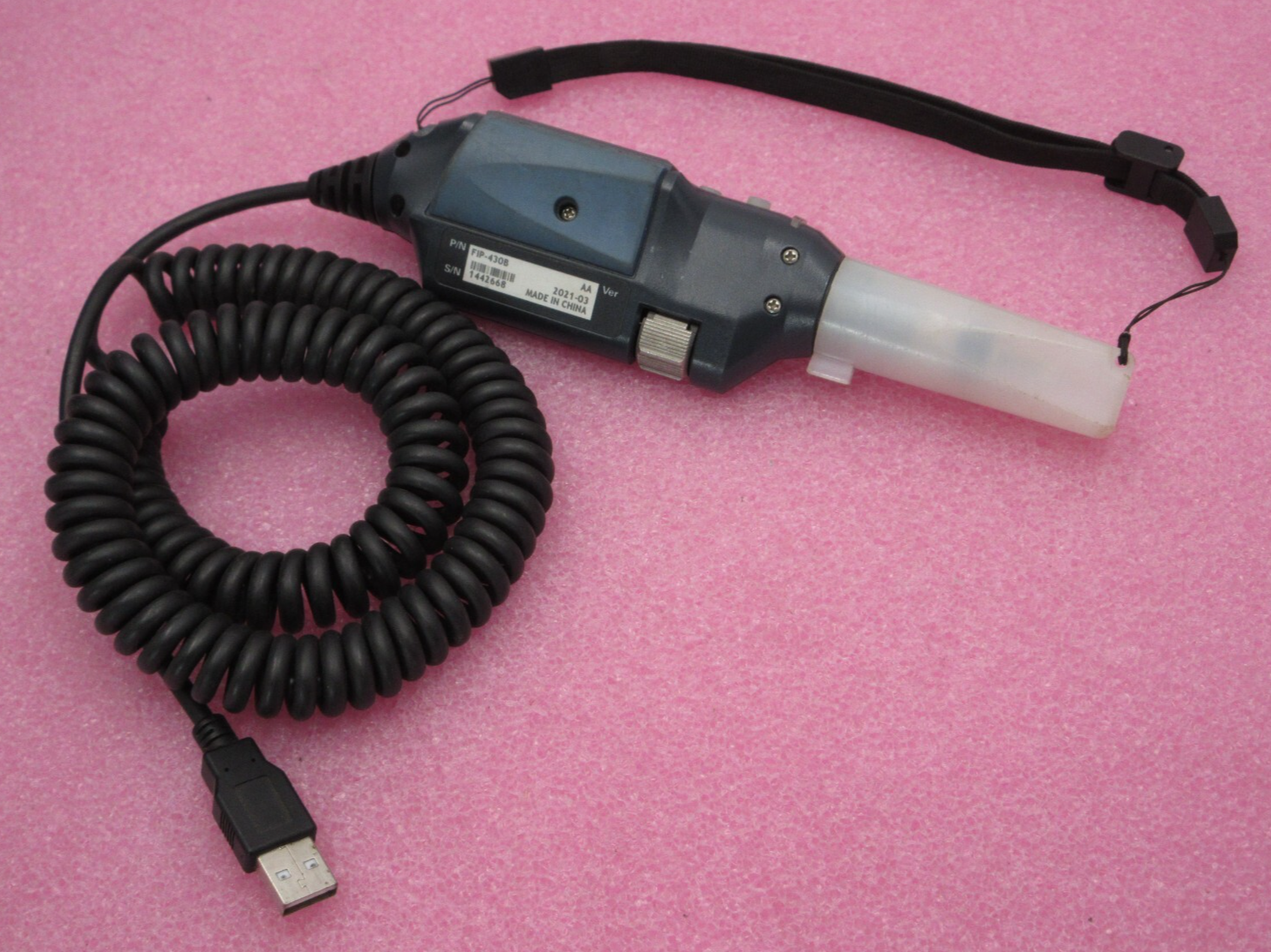

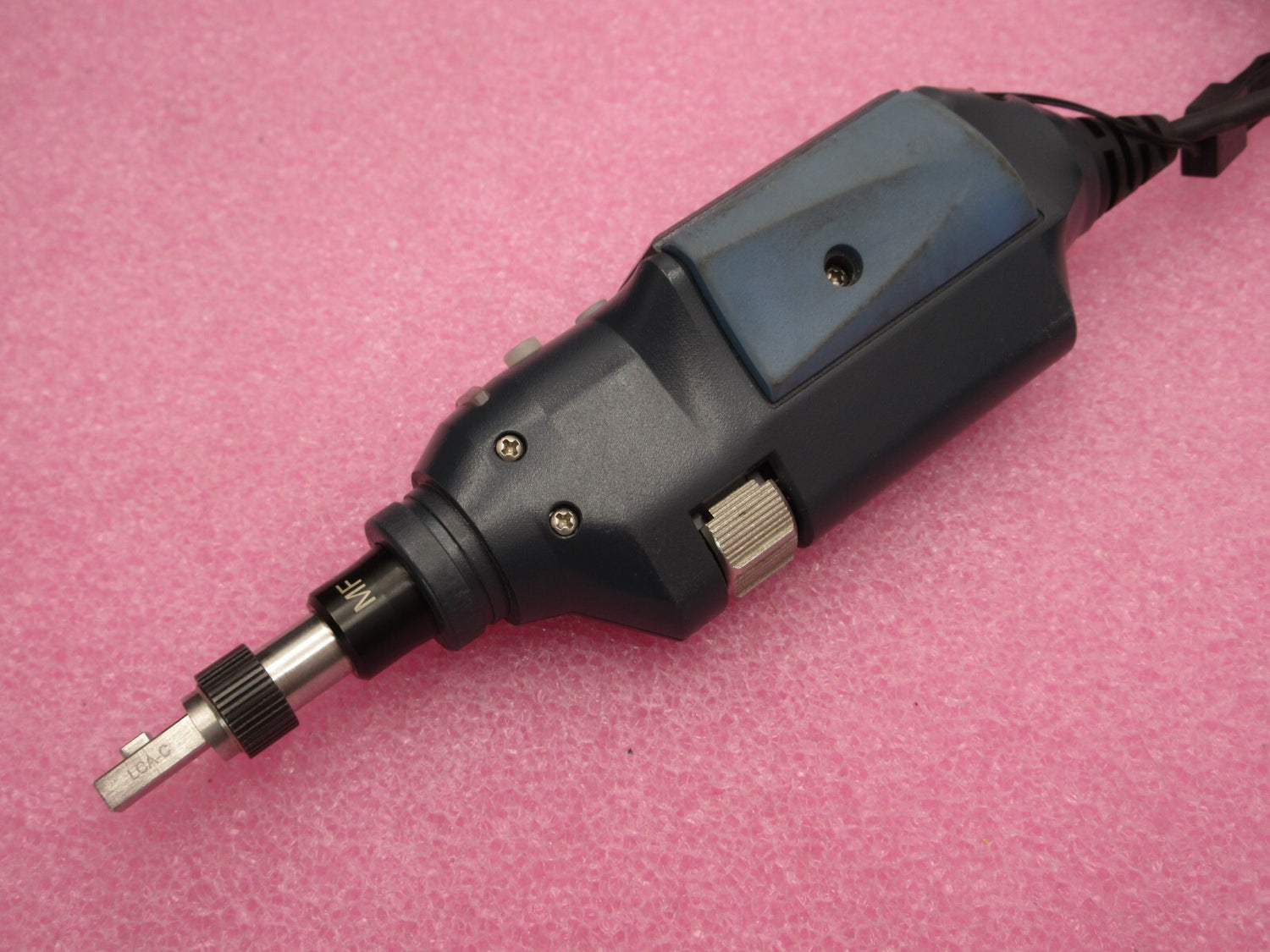

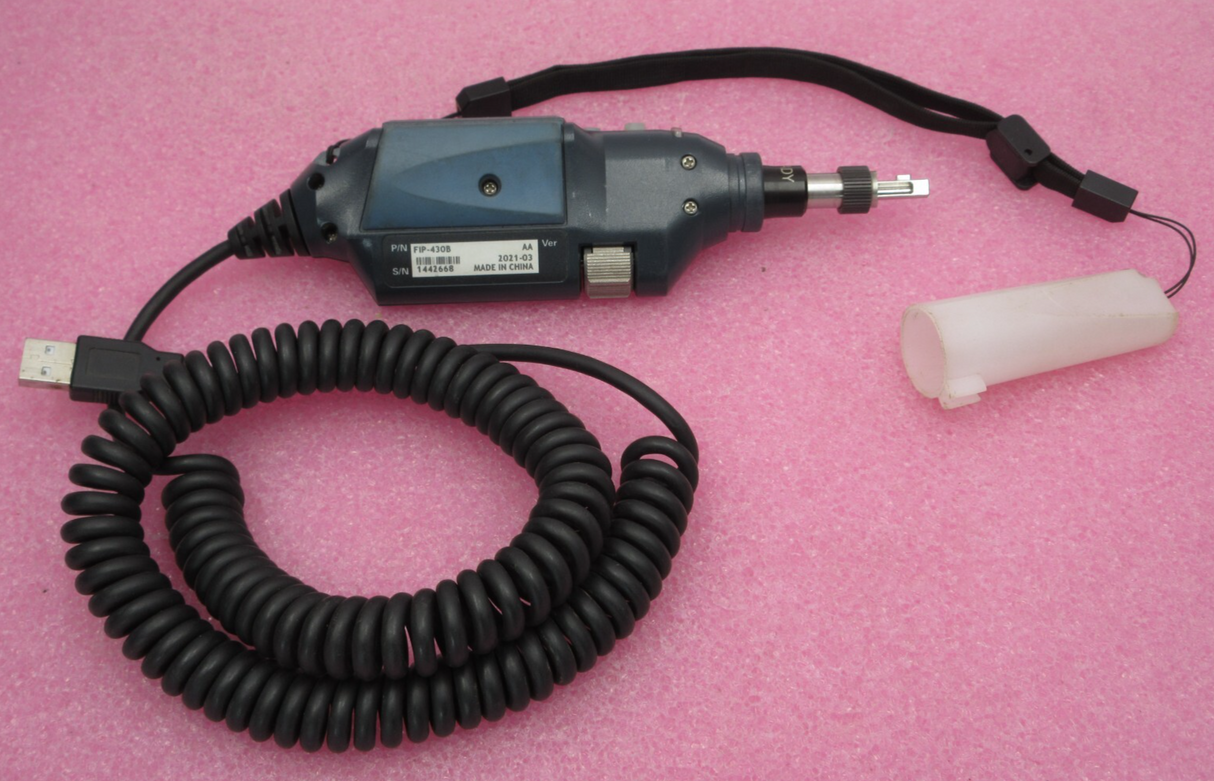

1 x FIP-430B Fiber Inspection Probe

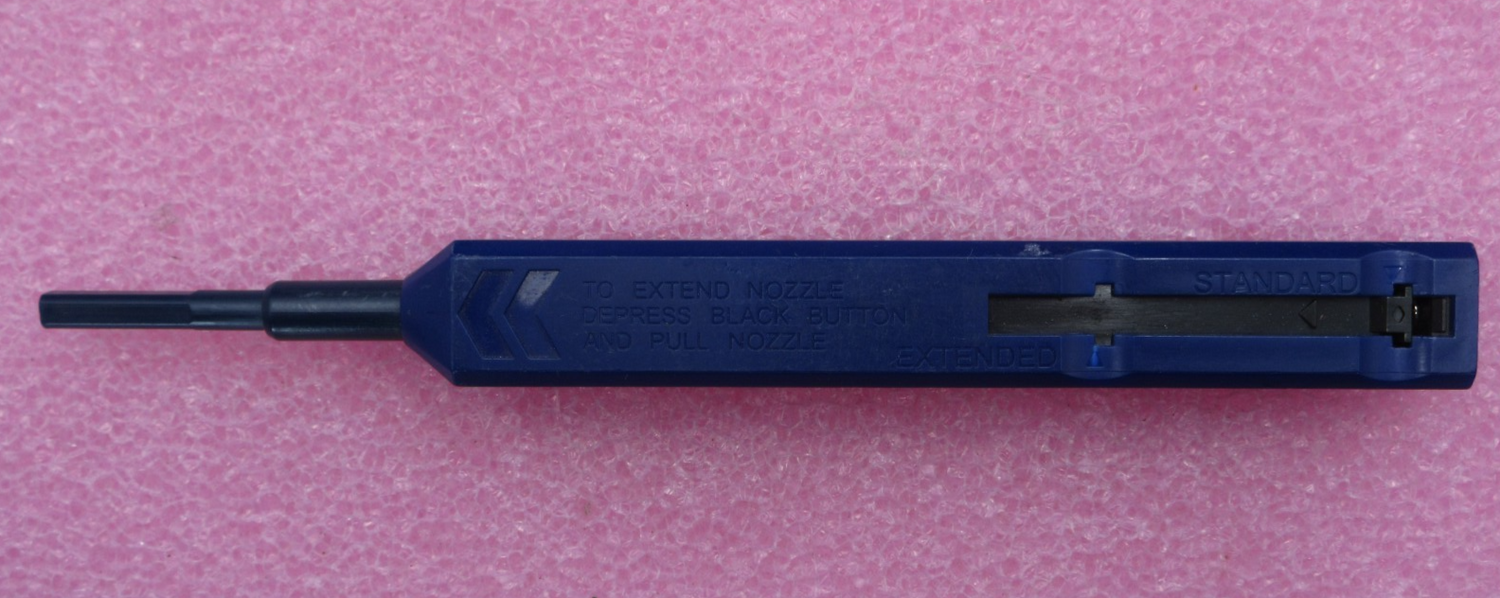

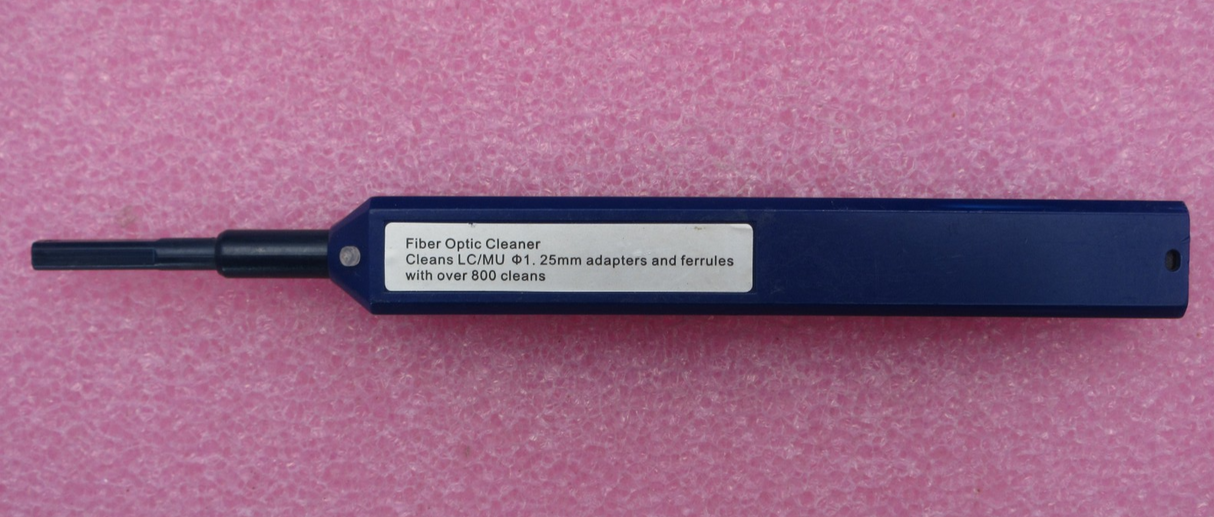

1 x Fiber Optic Cleaner Tool

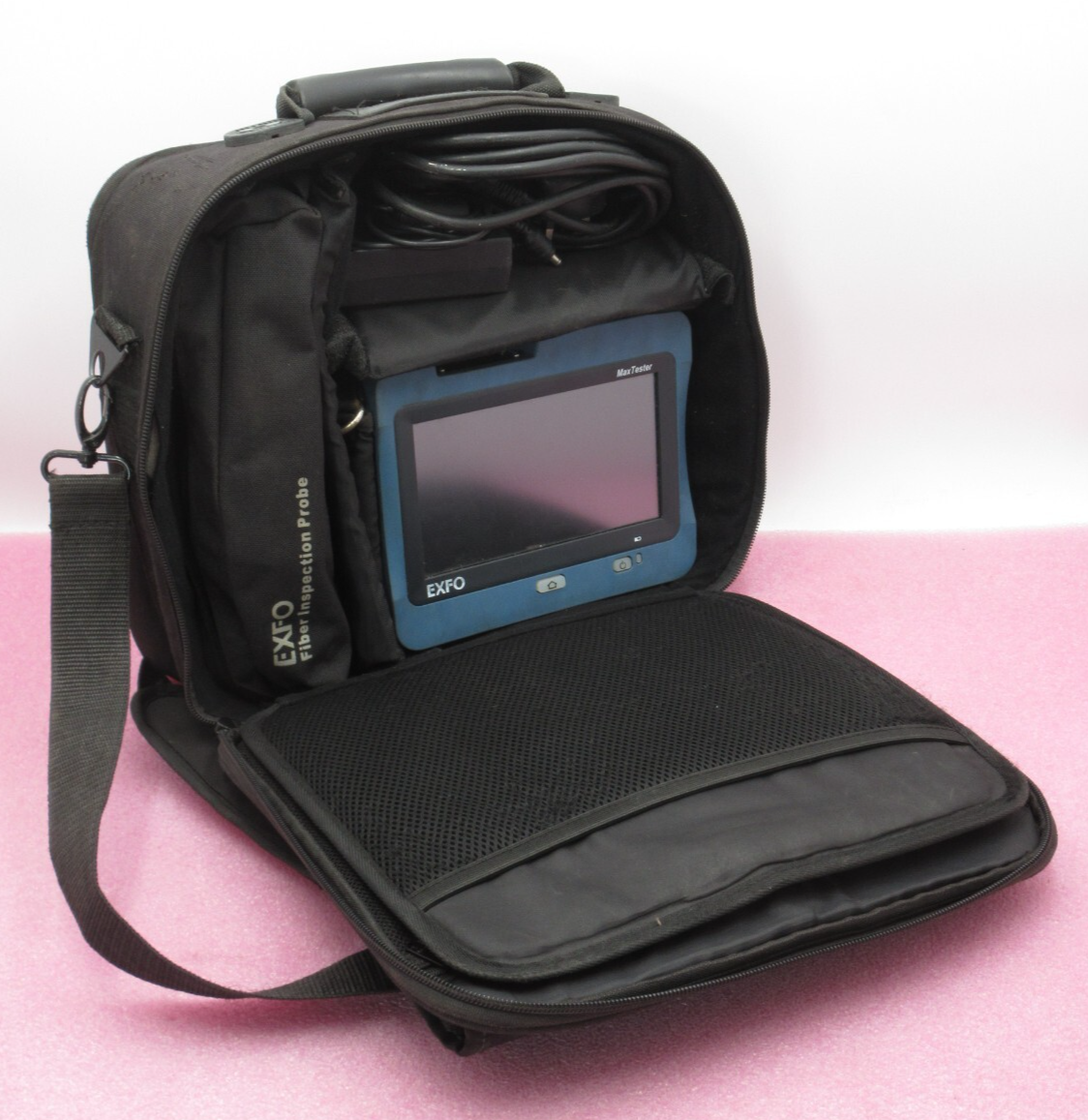

1 x Carrying Case
1 x AC Power Adapter
