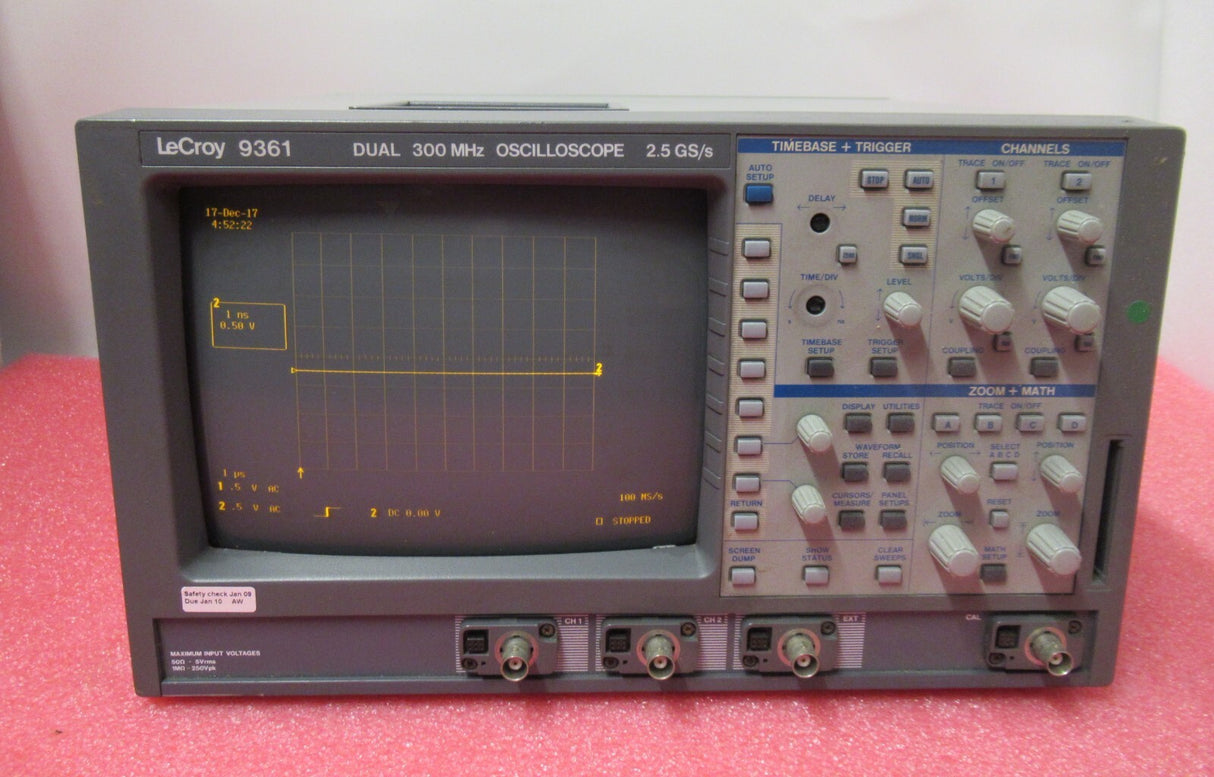

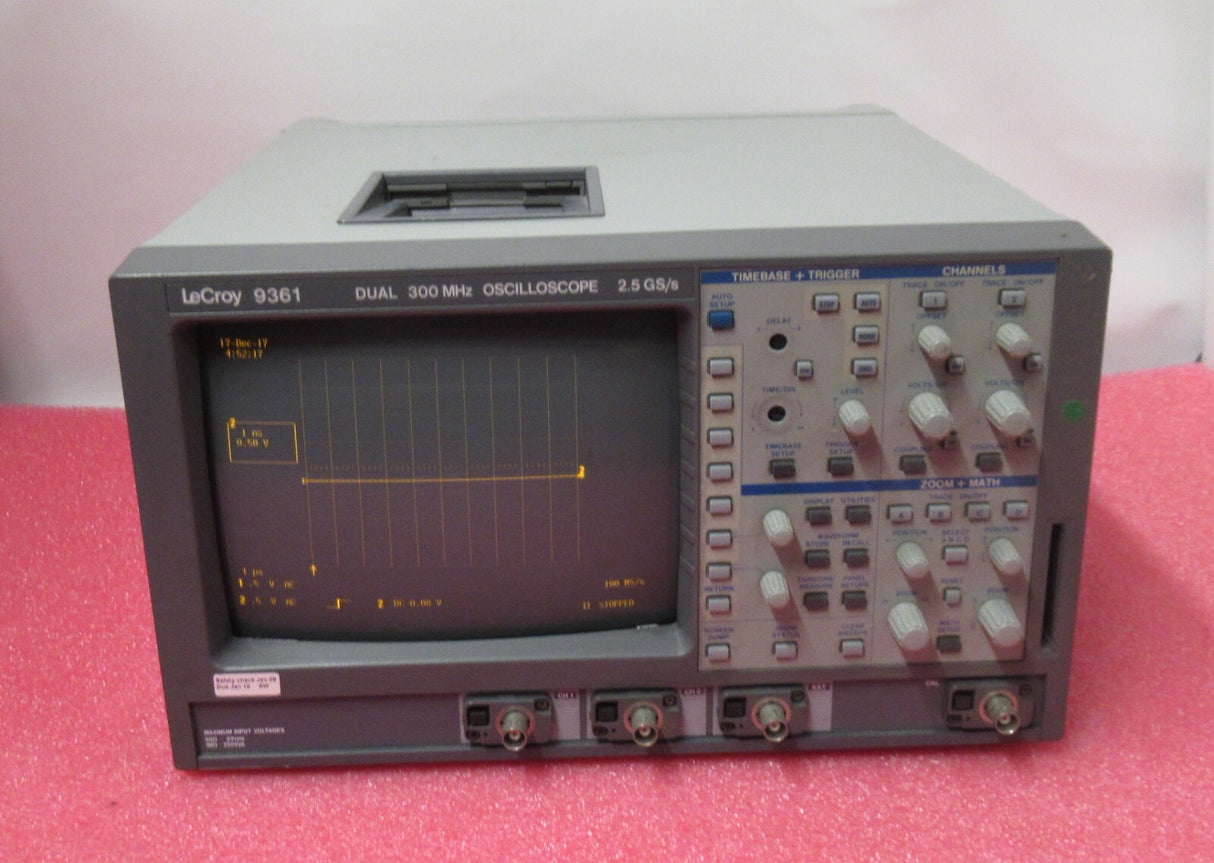

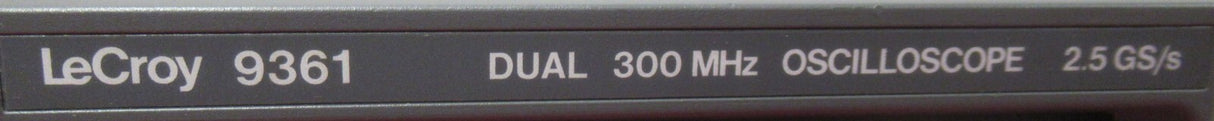

Lecroy 9361 Dual Stand Alone Digital Oscilloscope 300MHz 2.5GS/s
Pre-owned
Lecroy 9361 Dual Stand Alone Digital Oscilloscope 300MHz 2.5GS/s is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product overview
Product overview
Lecroy 9361 Dual Stand Alone Digital Oscilloscope 300MHz 2.5GS/s
Model Number: 9361
Mains Power Cable Included
Included:
1 x Lecroy 9361 Dual Stand Alone Digital Oscilloscope 300MHz 2.5GS/s
1 x Mains Power Cable
More Info:
LeCroy 9361 General Information
Product Description: Oscilloscope, Digital: 300MHz,2.5GSa/s,2ch (Stand alone)
LeCroy 9361 Performance Characteristics
Form Factor Benchtop
Bandwidth 300 MHz
Number of Channels 2 ch
Simultaneous Channels 2 ch
Simultaneous Maximum Sampling Rate/ch 2.5 GSa/s
One ch. only max. sampling rate 2.5 GSa/s
Max. Single Shot bandwidth 300 MHz
Max. Record Length 25000 pt/sec
Min. Vertical Sensitivity 2 mV/div
Maximum Vertical Sensitivity 5 V/div
Rise time 1.16 ns
Number of Bits 8 bits
Input Impedance 1 MOhm
Input Impedance (alternate) 50 Ohm
Input Coupling AC,DC,GND
Maximum Input Voltage 1 Vrms
Maximum Input#2 (for Impedance #2) 5 Vrms
Main time base -lowest 1 ns/div
Main time base -highest 1000 s/div
Timebase accuracy .07 %
Trigger Source External,Internal
Trigger Modes Auto,Edge,Normal,Pulse,Single,Slope,Stop,TV
Minimum Trigger Holdoff 25 ns Trigger Sensitivity 0.1 mV
Minimum Glitch Trigger 1 ns

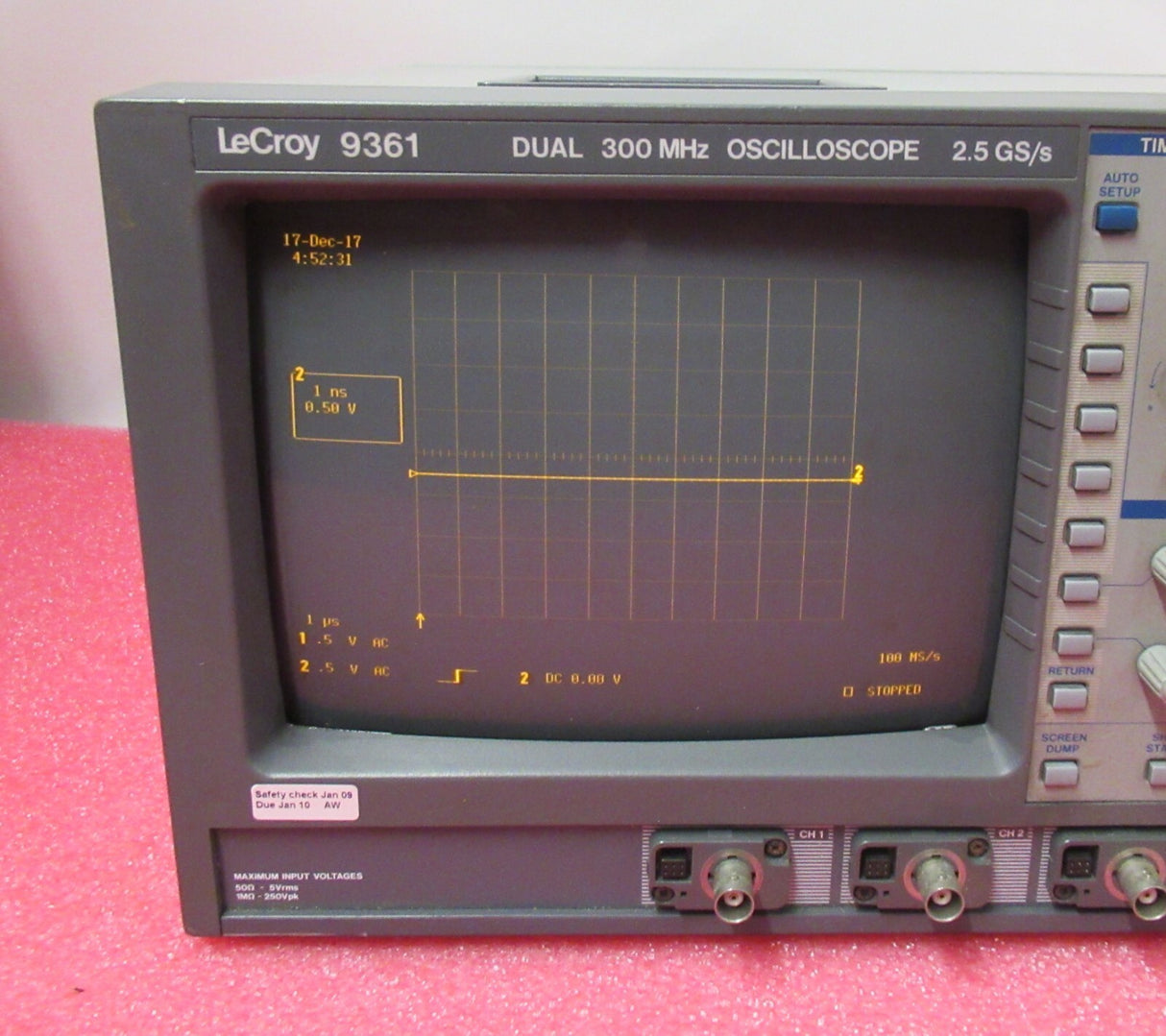

Display Type CRT Monochrome
Display Size 22.86 cm
Display modes Normal,Persistence,X/Y
LeCroy 9361 Programmability/Connectivity
User Interface Proprietary

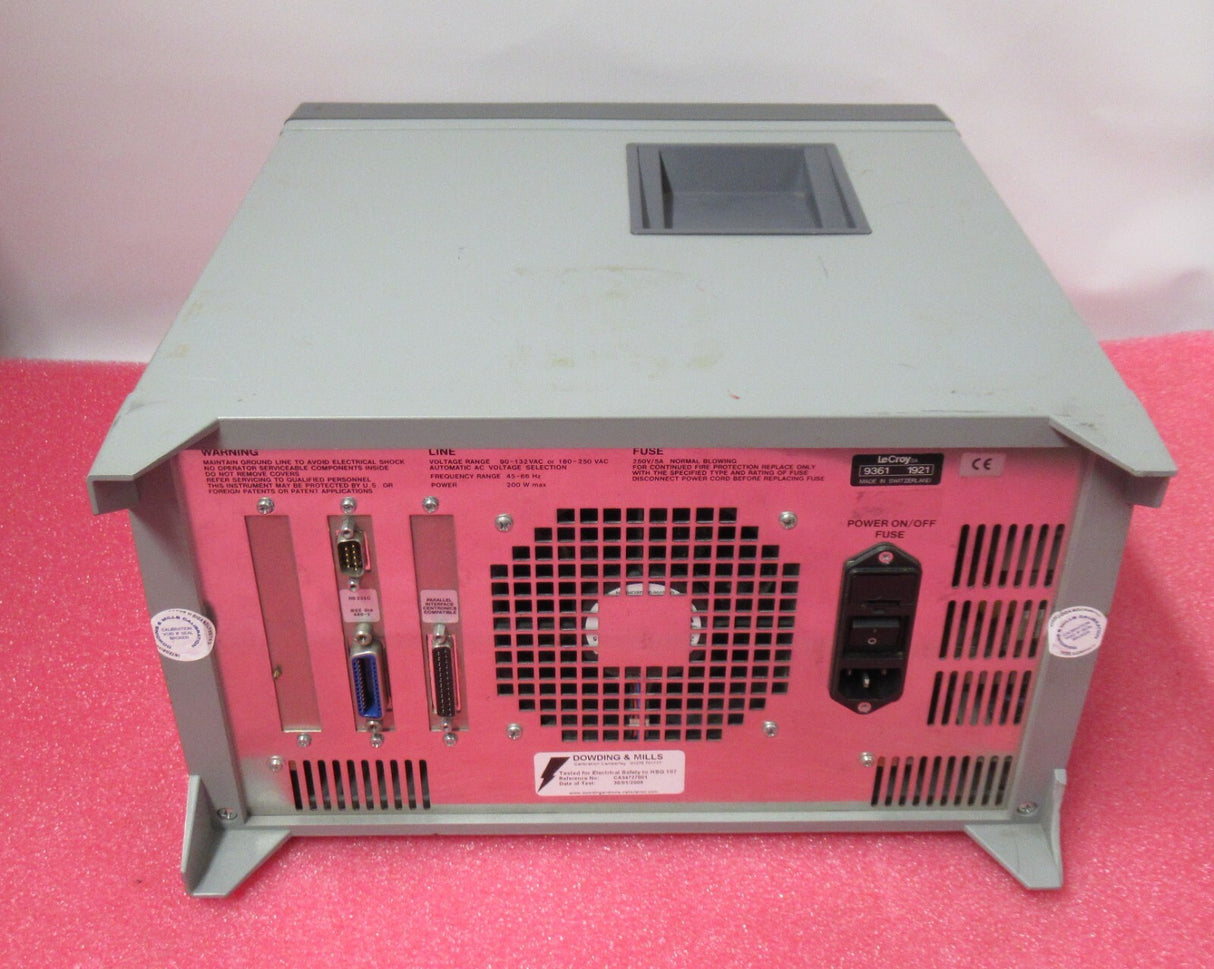

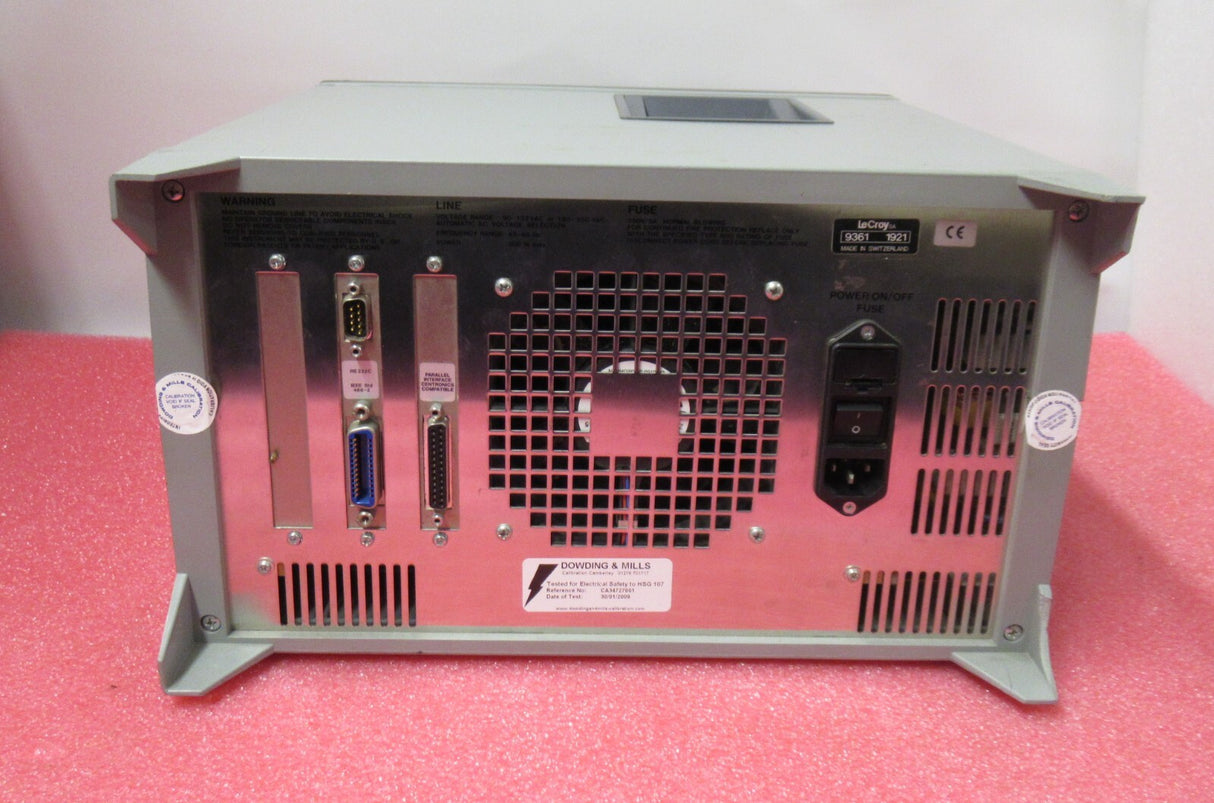

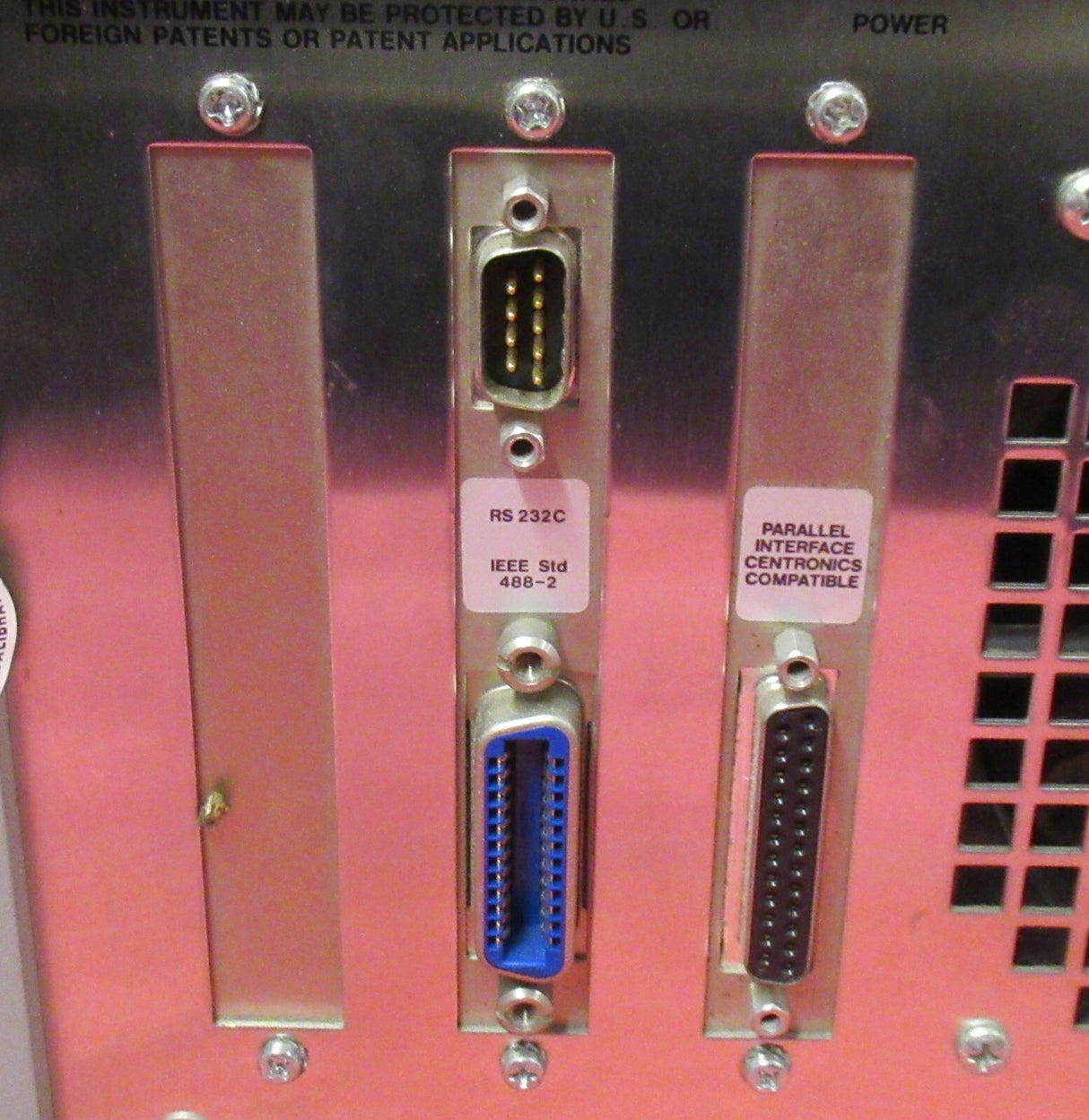

Ports to Peripheral Devices GPIB,RS232
Test Pattern Storage 4 Patterns
Novram data storage Yes
Data Storage Type FDD,PCMCIA
Programming Language GPIB
LeCroy 9361 Compliance
CE Compliance Not on file
UL Compliance Compliant
LeCroy 9361 Power Requirements

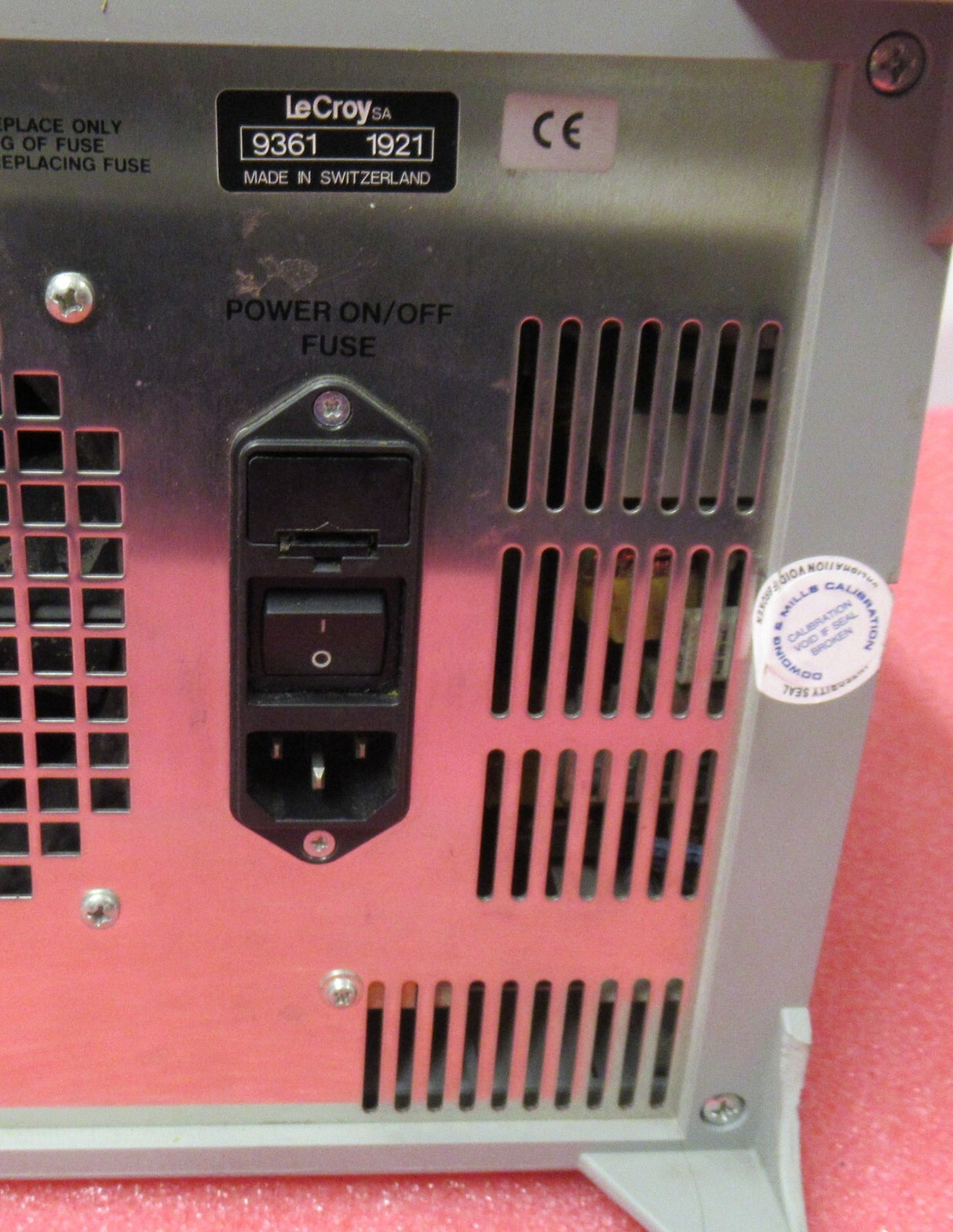

Input Power Universal (Auto Sense and Switch)
LeCroy 9361 Physical Dimensions
Width370 mm(14.56 in)
Height210 mm(8.26 in)
Length410 mm(16.14 in)
Weight10 kg(22.04 lb)
