Agilent N5742A & TDK Lambda GEN8 90 8V 90A 720W Matched Pair Power Supplies
£1,026.00
£855.00 ex VAT
Prix unitaire
/
Indisponible
Agilent N5742A & TDK Lambda GEN8 90 8V 90A 720W Matched Pair Power Supplies est en rupture de stock et sera expédié dès qu’il sera de retour en stock.
Impossible de charger la disponibilité pour le Service de retrait
Description
Description
Brand: Agilent
Type: Regulated Power Supply
MPN: N5742A GEN8-90
Country of Origin: China

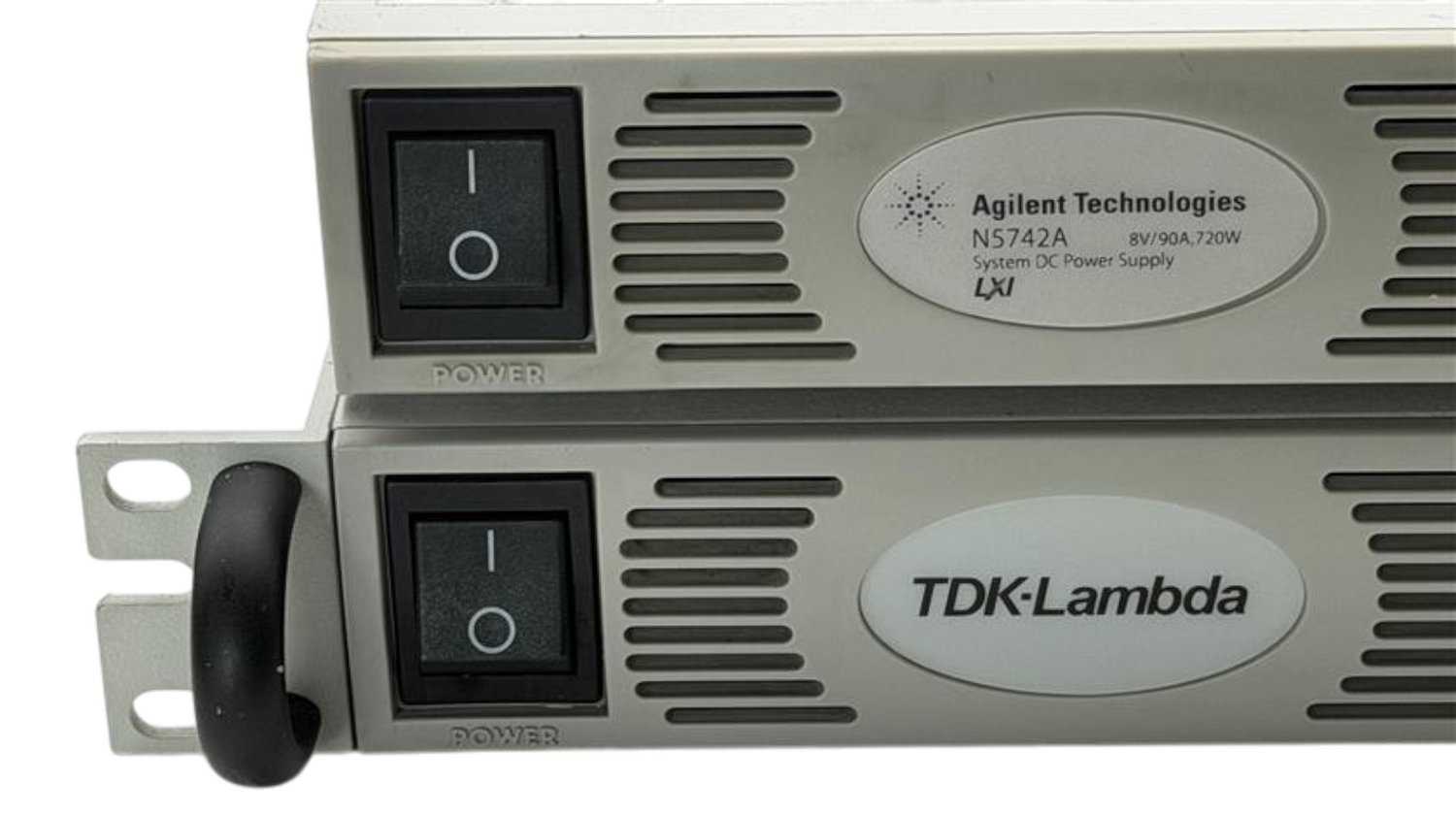

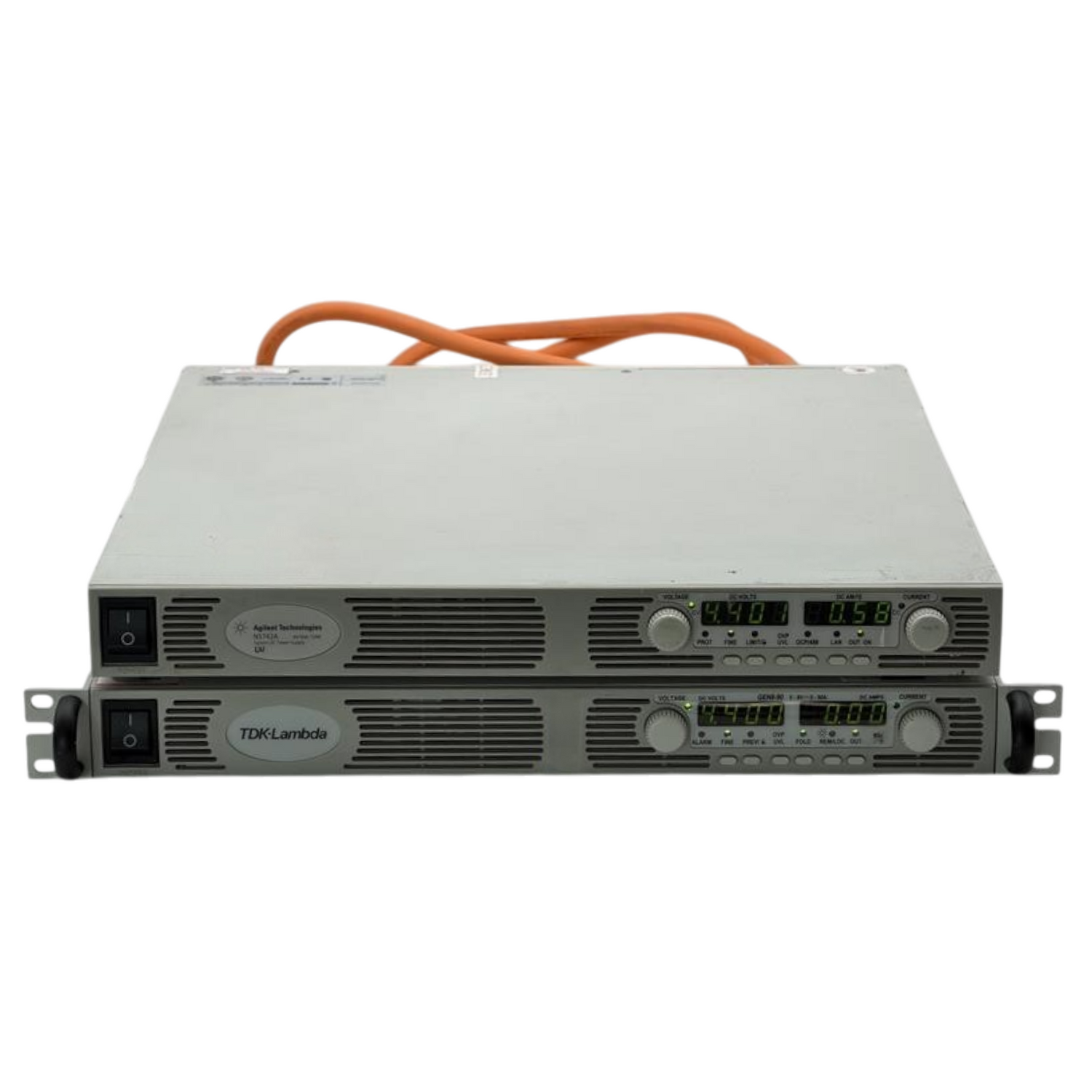

Agilent N5742A & TDK-Lambda GEN8-90 8V 90A 720W Matched Pair Power Supplies
Model: N5742A & GEN8-90
In Good Condition
Full Working Order
Tested
Included:
- 1 x Agilent N5742A & TDK-Lambda GEN8-90 8V 90A 720W Matched Pair Power Supplies

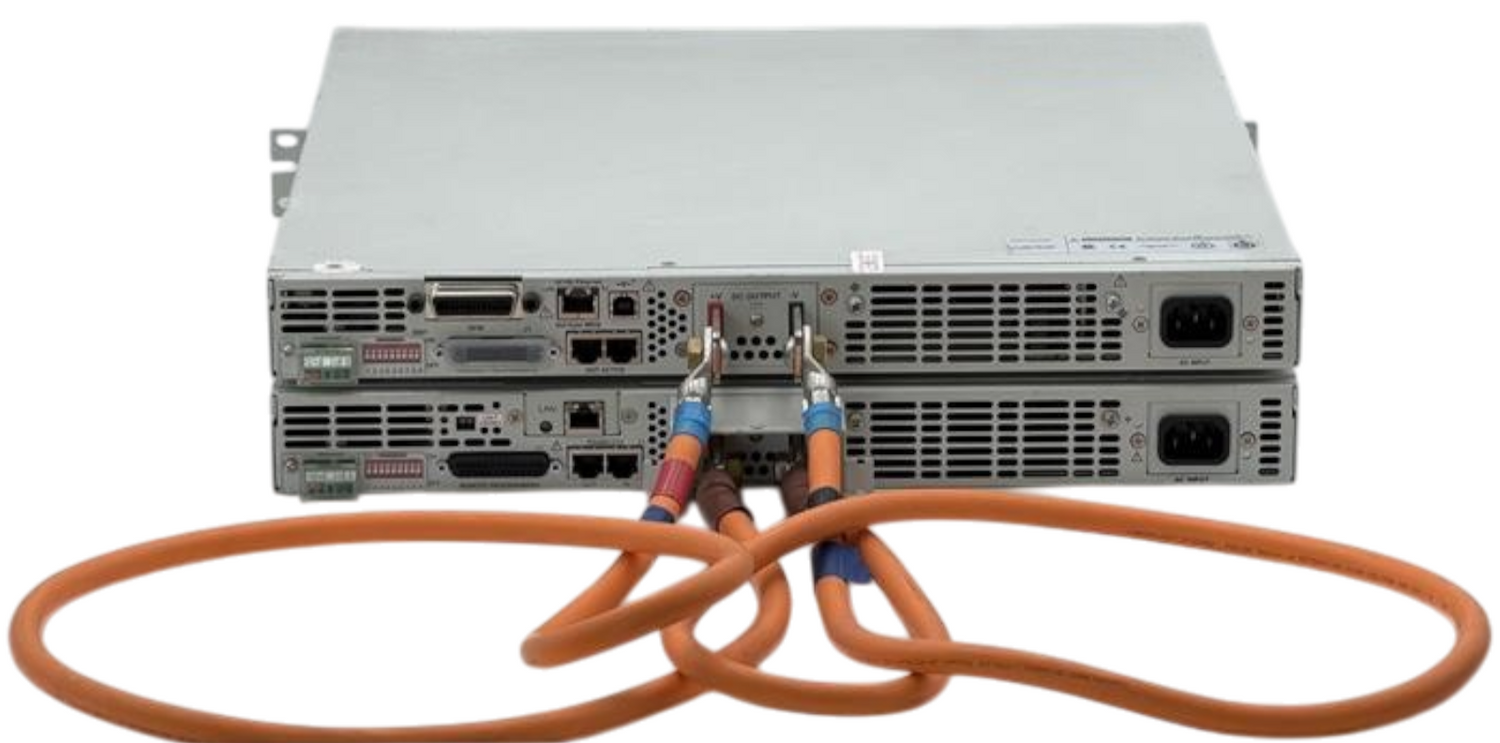

- 1 x Heavy-gauge DC output lead set
Specification:
- Output Voltage: 0-8 V DC
- Output Current: 0-90 A
- Output Power: 720 W
- Regulation: Constant voltage / constant current, automatic crossover
- Load Regulation: 2.8 mV
- Line Regulation: 2.8 mV

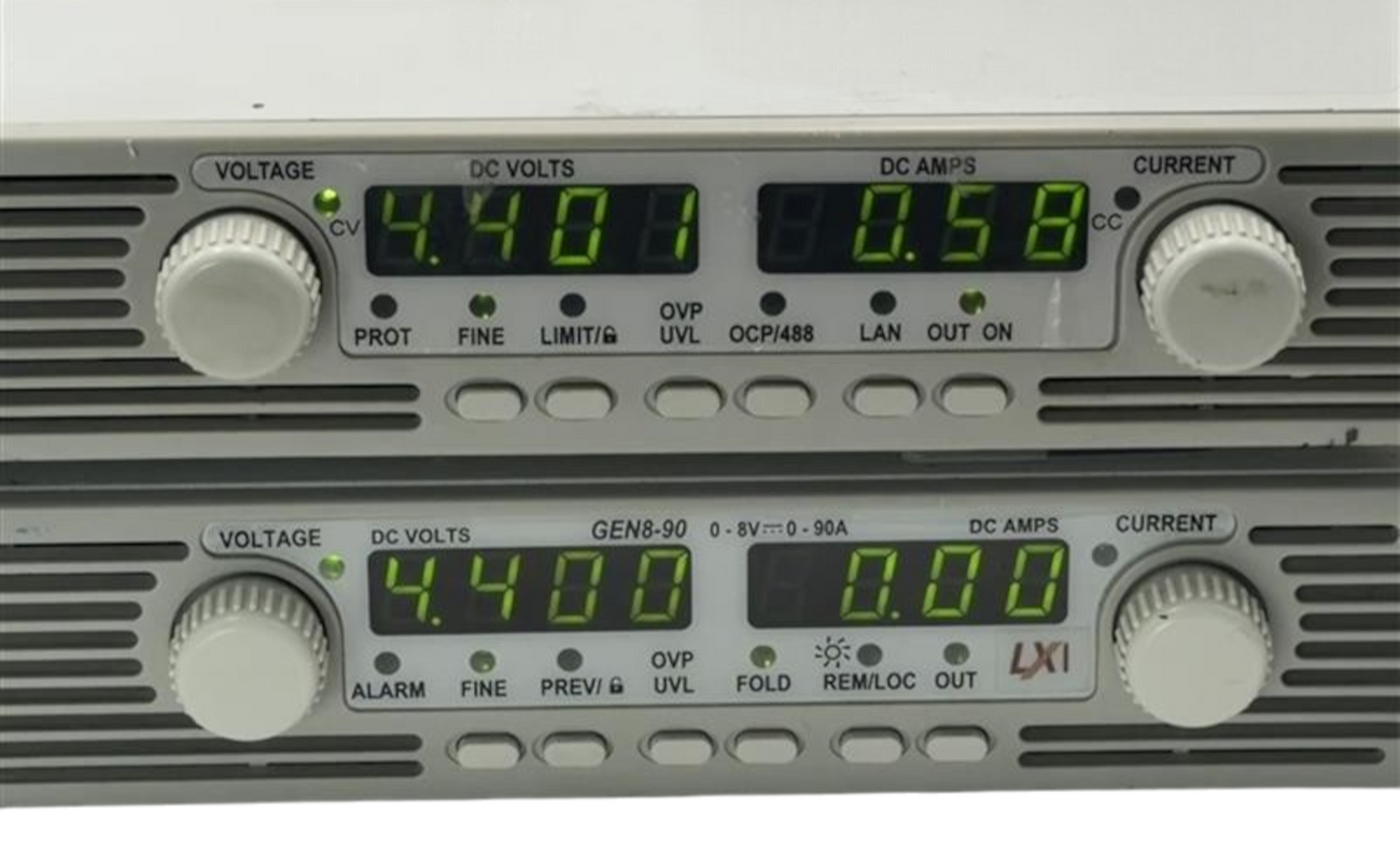

- Display: 4-digit voltage and current
- Analogue Programming: 0-5 V / 0-10 V, or 0-5 kOhm / 0-10 kOhm
- OVP Range: 0.5-10 V
- Protection: OVP, OCP, UVL, over-temperature
- Parallel Operation: Up to 4 units, master/slave
- Series Operation: Up to 2 units
- Remote Sense: 1 V compensation
- AC Input: 85-265 V AC, 47-63 Hz, 10.5 A at 100 V / 5 A at 200 V
- Power Factor: 0.99 with active correction
- Dimensions (W x H x D): 422.8 x 43.6 x 432.8 mm
- Form Factor: 1U full-rack x 2

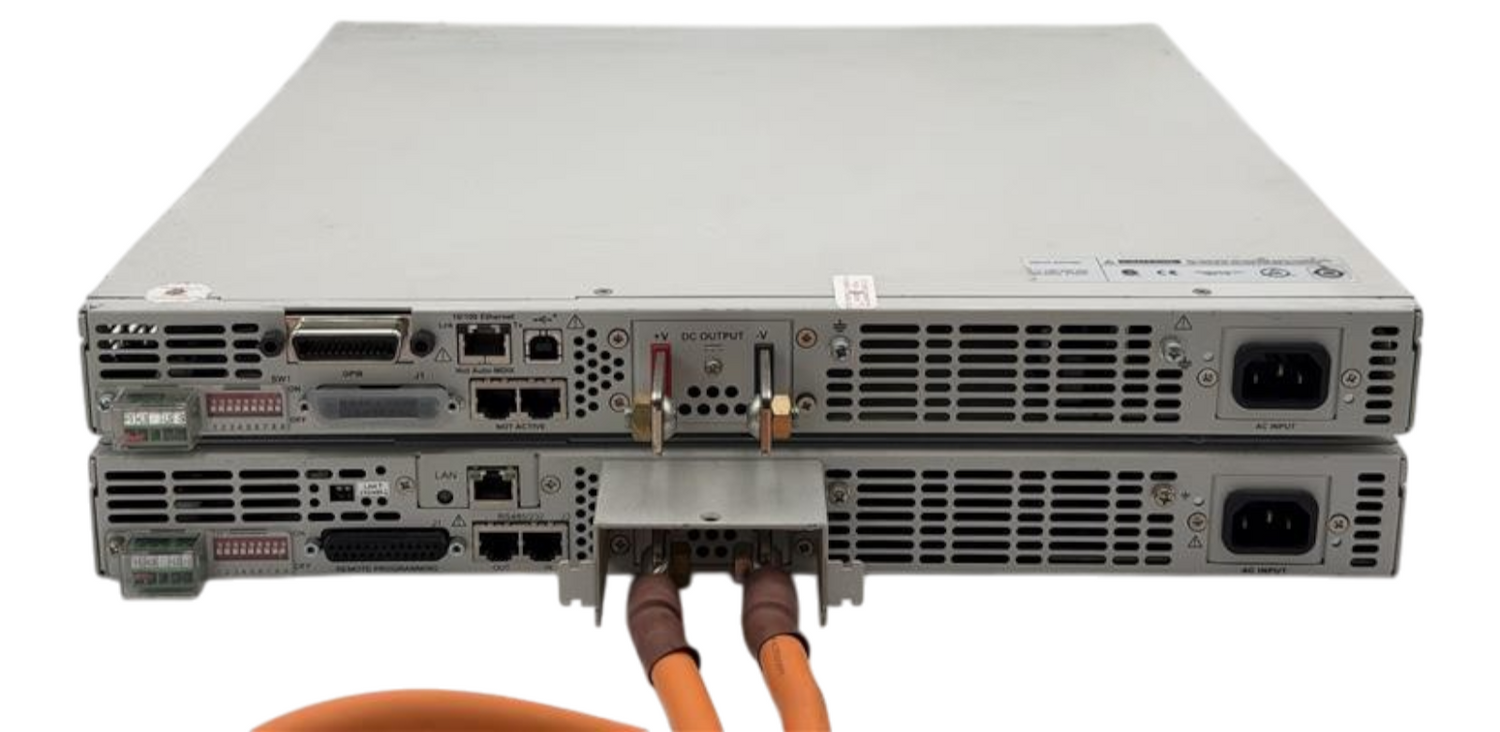

- Output Terminals: Bus-bars, 8.5 mm hole
- AC Connector: IEC C13 inlet
N5742A
- Ripple & Noise: 60 mV p-p, 8 mV rms
- Transient Recovery: 1.5 ms or less
- Interfaces: GPIB (IEEE 488.2), 10/100 Ethernet, USB 2.0 - all standard
- Memory: 16 store/recall states
GEN8-90
- Ripple & Noise: 50 mV p-p, 6 mV rms
- Transient Recovery: Less than 1 ms
- Programming Resolution: 16-bit, 0.16 mV / 1.80 mA
- Interfaces: RS-232 / RS-485 built in, LAN (LXI Class C) option fitted
- Efficiency: 77% at 100 V AC, 80% at 200 V AC
- Operating Temperature: 0-50 C at 100% load
VAT @ 20% INCLUDED IN PRICE - VAT INVOICE PROVIDED
£900 excluding VAT
VAT IS NOT PAYABLE BY PURCHASERS OUTSIDE OF THE UK
DJ N5742A-SET/REF - 1
