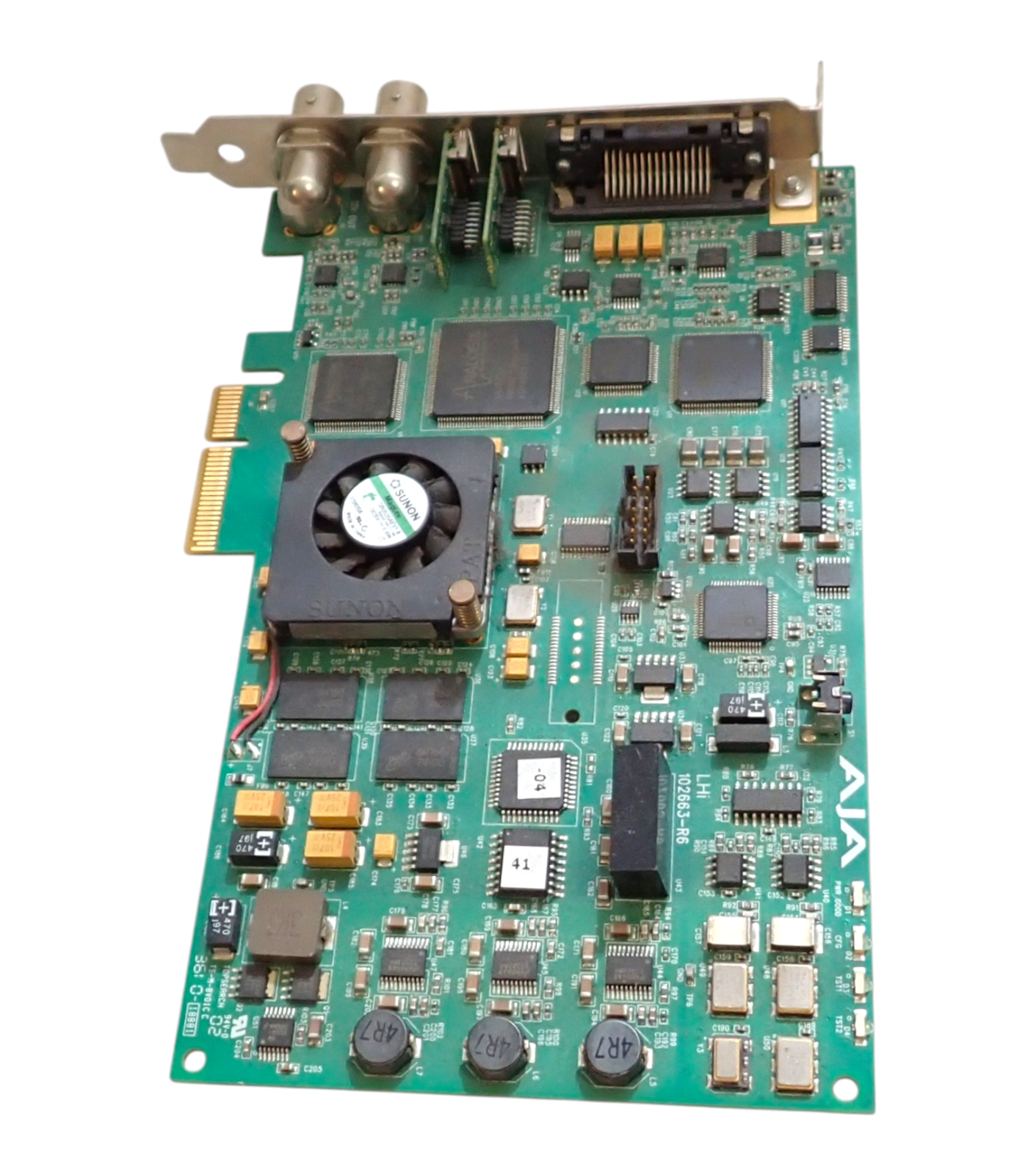

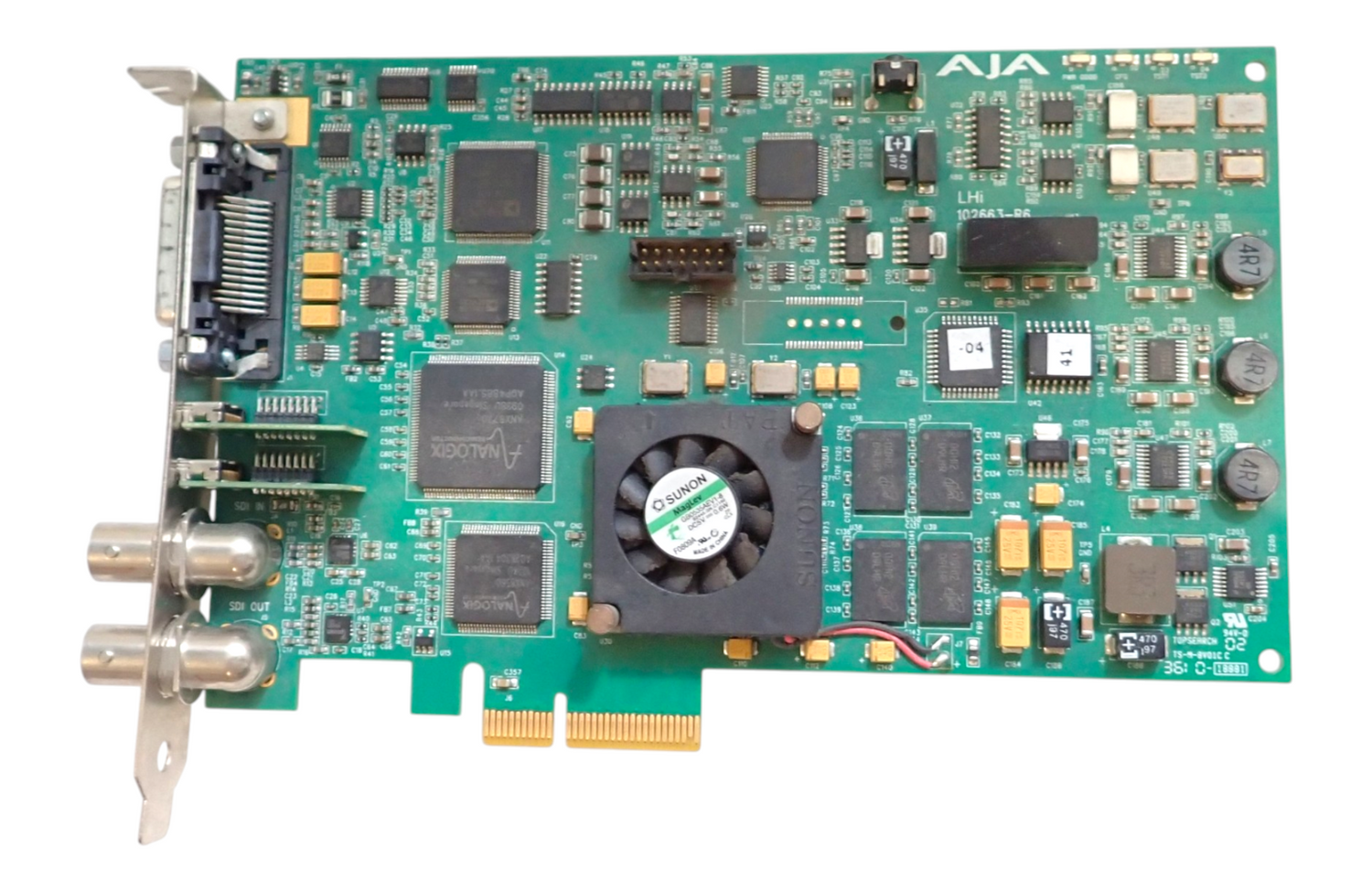

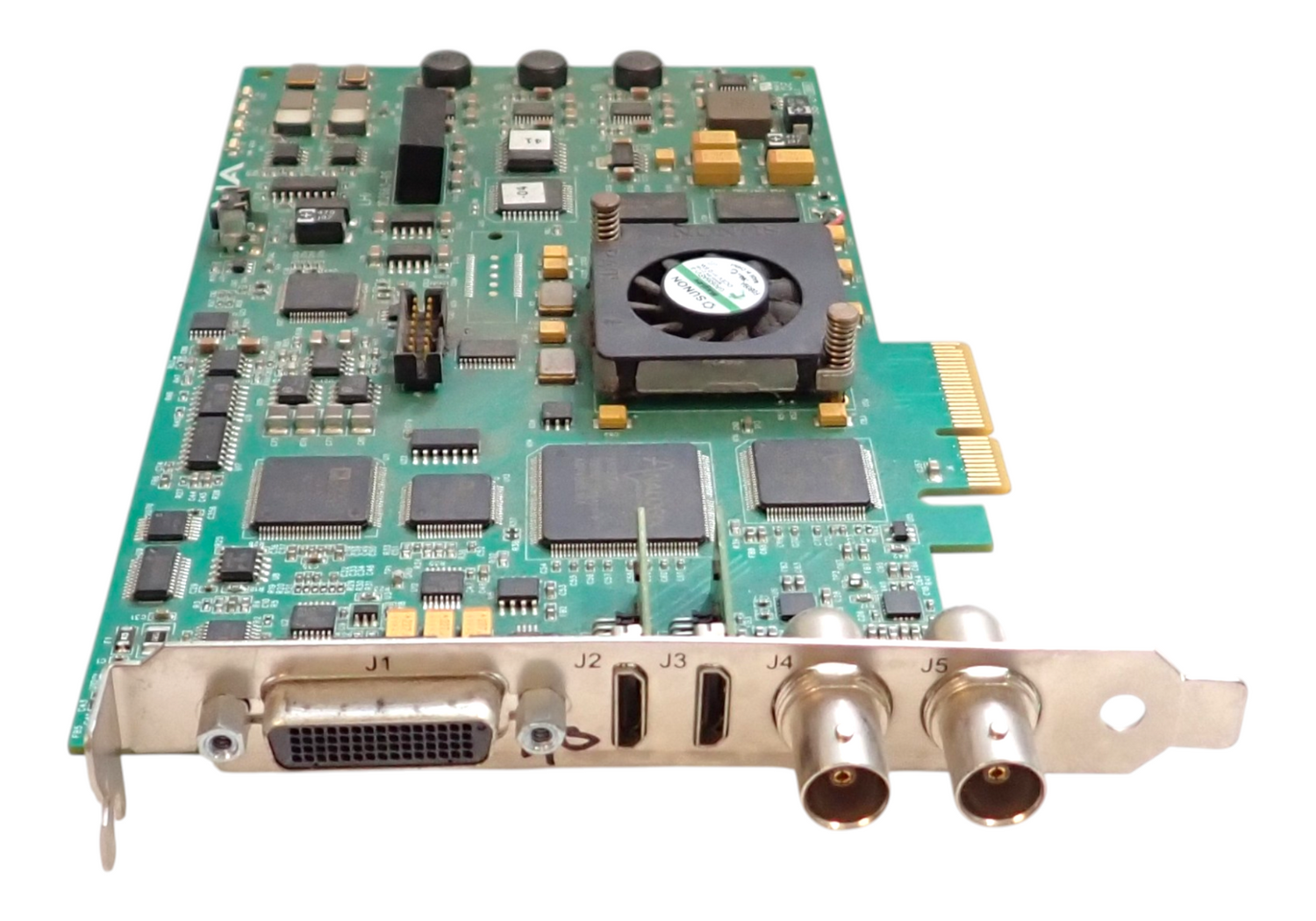

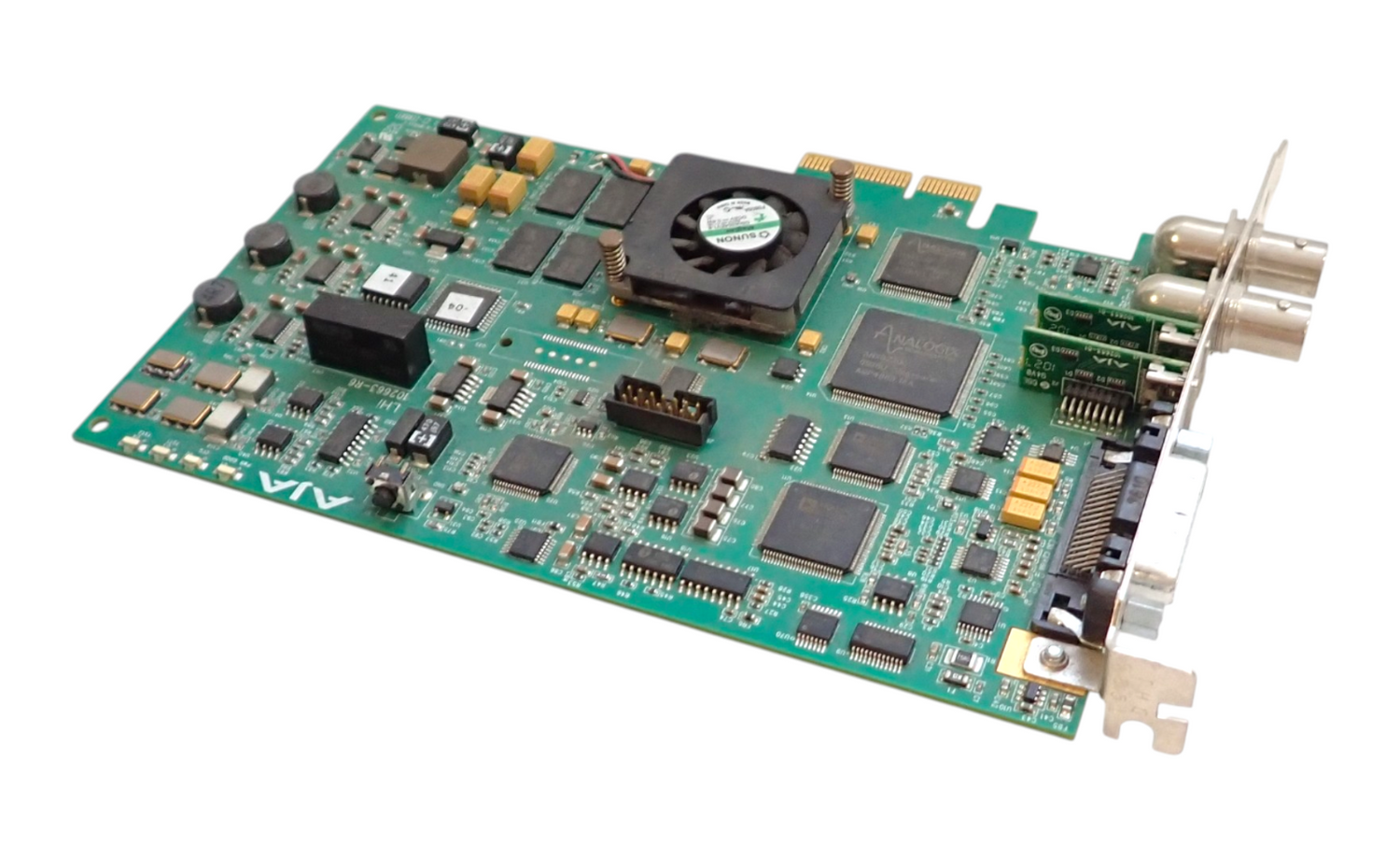

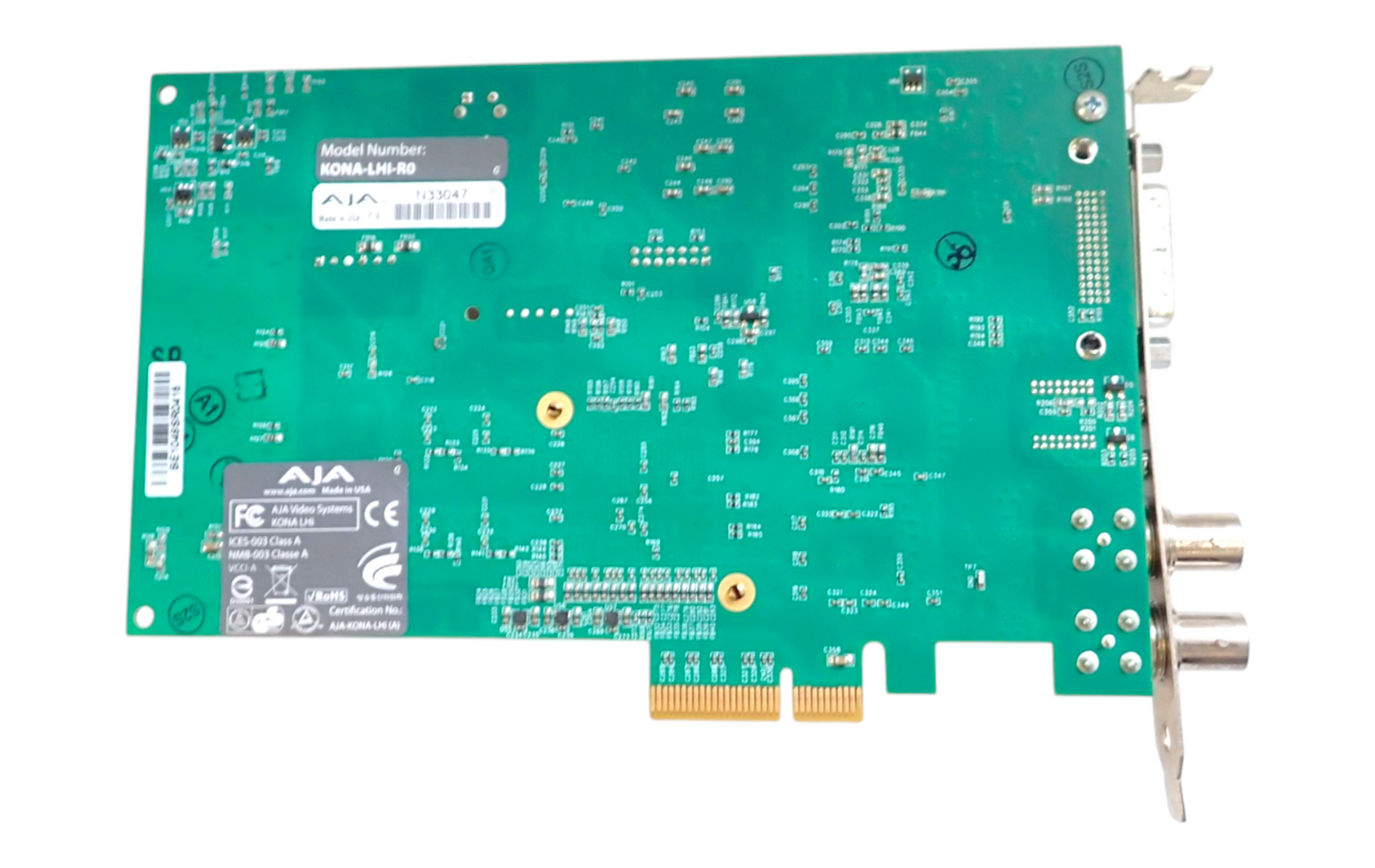

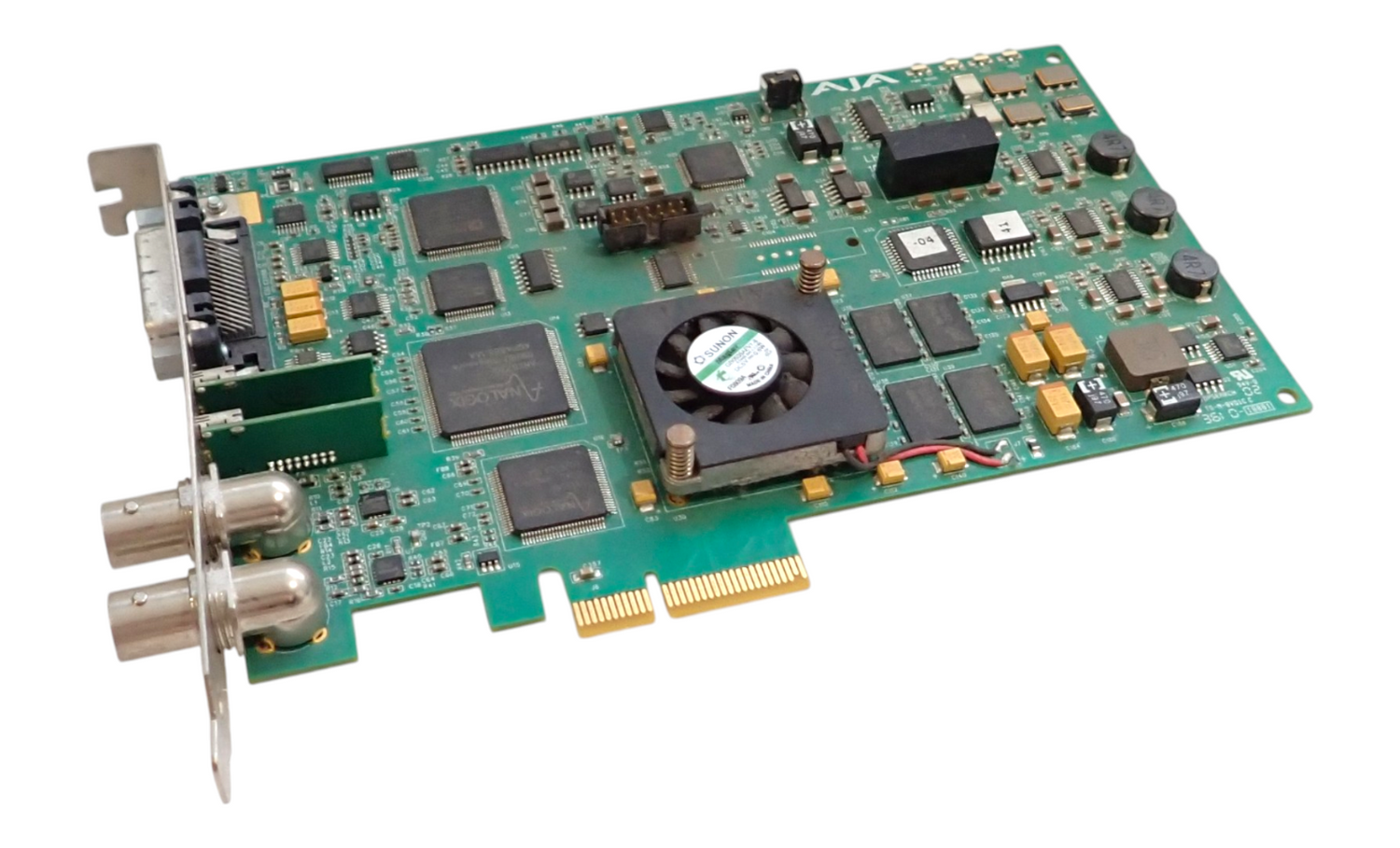

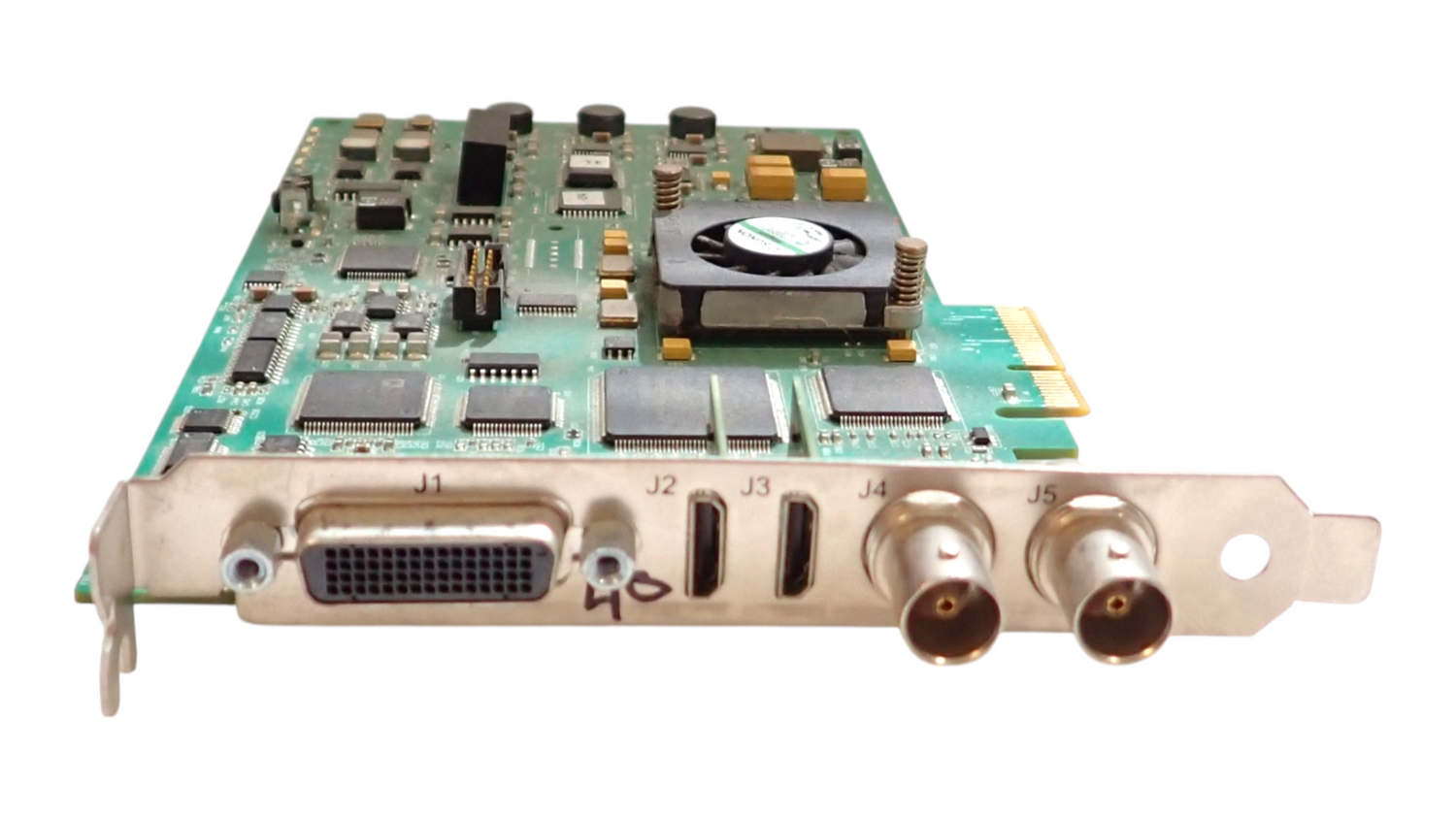

AJA KONA LHI RO HD SD 10 bit Digital & 12 bit Analog PCIe Video Capturing Card

• 1 x AJA KONA-LHI-RO HD SD 10-bit Digital & 12-bit Analog PCIe Video Capturing Card

The most flexible card for analog and digital Standard and High Definition workflows.

Flexible workflows

KONA LHi provides a wide variety of formats, frame rates and audio/video sources for the connectivity you need. It bridges the gap between analog devices and the latest 3G-SDI and HDMI-enabled products, delivering professional quality video editing, monitoring and mastering in an affordable and easy-to-use solution.

Versatile connectivity

Supports HDMI-enabled cameras, HD-SDI VTRs and more. Features include 10-bit/8-bit uncompressed video, 2-channel AES digital audio, 8-channel SDI embedded audio, analog composite/S-video/component I/O, and 2-channel balanced analog audio I/O.

HDMI integration

HDMI 1.3a support enables deep color 10-bit video output for smooth gradients and rich color. HDMI input can also be converted to SDI output for professional workflows.

AJA hardware conversion

Includes motion-adaptive SD to HD up-conversion, HD cross-conversion, HD to SD down-conversion, and automatic HD/SD analog output. Hardware-based conversion ensures real-time performance during both ingest and playback.

Outputs can be configured independently, allowing simultaneous HD and SD output or multiple HD formats.

RS-422 control

Includes 9-pin RS-422 connection via breakout cable or optional KLHi-BOX for frame-accurate device control.

Extensive software support

Compatible with a wide range of professional editing, VFX and graphics software. Also includes free AJA tools for flexible workflows without relying on third-party applications.

General Information

• Manufacturer: AJA Video Systems

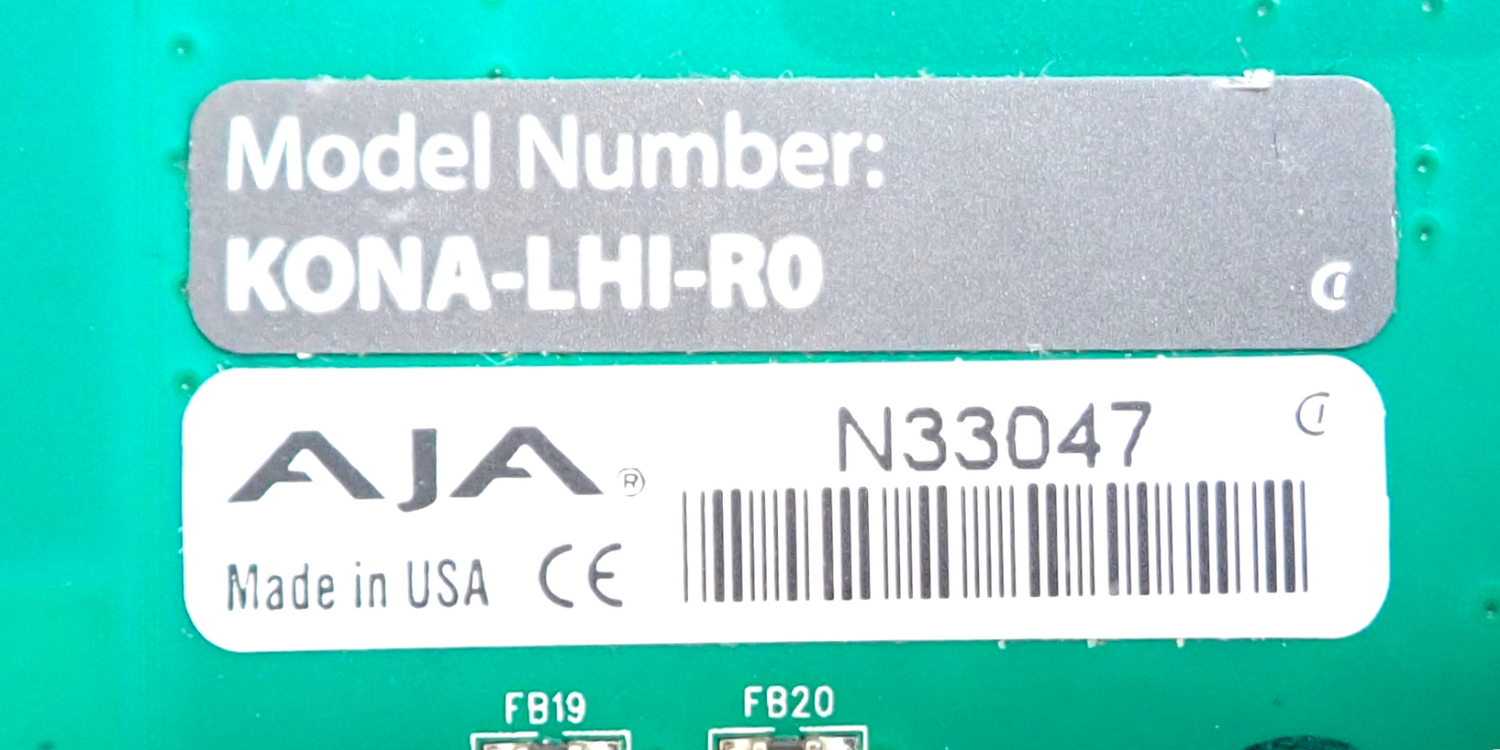

• Part Number: KONA-LHI
• Brand: AJA Video
• Product Line: KONA LHi
• Product Type: Video Editing Device

Technical Information

• Functions: Video Editing
• Video System: NTSC-J, NTSC, PAL
• Maximum Resolution: 2048 x 1080

Interfaces / Ports

• Host Interface: PCI Express x4
• HDMI: Yes

Physical Characteristics

• Form Factor: Plug-in Card
• Height: 5"
• Width: 0.8"
• Depth: 8.3"
• Weight: 11.20 oz
