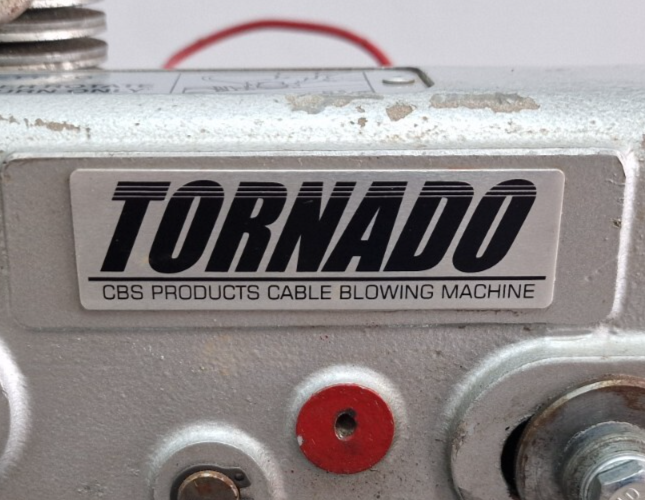

CBS Tornado Plus Cable Blowing Machine High-Performance Fibre Optic Installation Tool
In Good Condition Tested And In Full Working Order
Included
- 1 x CBS Tornado Plus Cable Blowing Machine High-Performance Fibre Optic Installation Tool
- 1 x Attached Tool Case including:
- 5 x Cable Seals Assorted Sizes
- 1 x High Performance Dry Chain Lube
- 1 x Alan Key Set
- 1 x RT80 Black Cyandracrylate 20g (RS 908-2802)
- 1 x Molykote 7 Release Compound
Product Overview:
The CBS Tornado Plus is a heavy-duty, modular cable blowing system capable of handling fiber‑optic cables from 6 mm to 32 mm into ducts from 25 mm to 63 mm. It delivers up to 100 kg of pushing force and 300 ft/min cable speed using combined pneumatic and hydraulic power. Fully portable, it includes precision controls, emergency safeguards, and a full accessory kit, making it suitable for robust telecom deployment environments.
Capacities & Performance:
- Cable diameter range: 6 mm – 32 mm (0.24”–1.34”)
- Duct/inner‑duct size: 25 – 63 mm OD (approx. 1″–2″ SDR)
- Pushing force: 0 – 100 kgf (0–220 lbf)
- Max speed: 90 m/min (300 ft/min)
Pneumatic System:
- Air hose min bore: 32 mm (1¼″)
- Operating pressure: 12 bar (175 psi)
Required airflow @12 bar:
- Up to 25 mm ID: 150 CFM (4 m³/min)
- 26–30 mm: 185 CFM (5 m³/min)
- 31–35 mm: 250 CFM (7 m³/min)
- 36–40 mm: 375 CFM (10 m³/min)
- 41–44 mm: 450 CFM (12 m³/min)
- 44–51 mm: 700 CFM (19 m³/min)
Hydraulic Drive System:
- Max operating pressure: up to 115 bar (1670 psi)
- Flow rate: approx. 15 L/min (4 gpm)
Pressure switch setpoint:
- 100 bar (1450 psi) for cables 12–34 mm
- 60 bar (870 psi) for cables 6–12 mm
Safety relief valves & check:
- Relief at 110 bar (1600 psi) for larger cables
- 70 bar (1015 psi) for smaller cables
- Initial start-up pressure range 20–40 bar (290–580 psi)
Hardware & Controls:

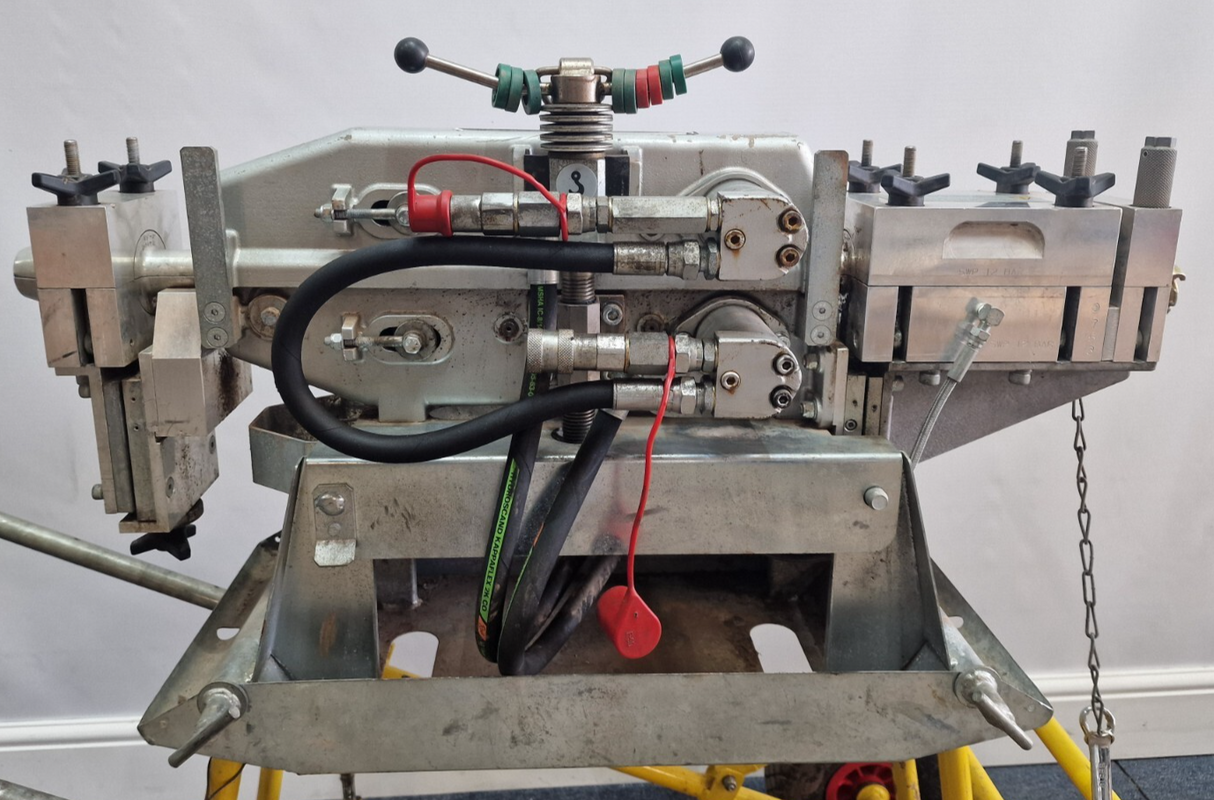

- Air box & cable pusher: aluminium air‑box; hydraulically driven belt feeder

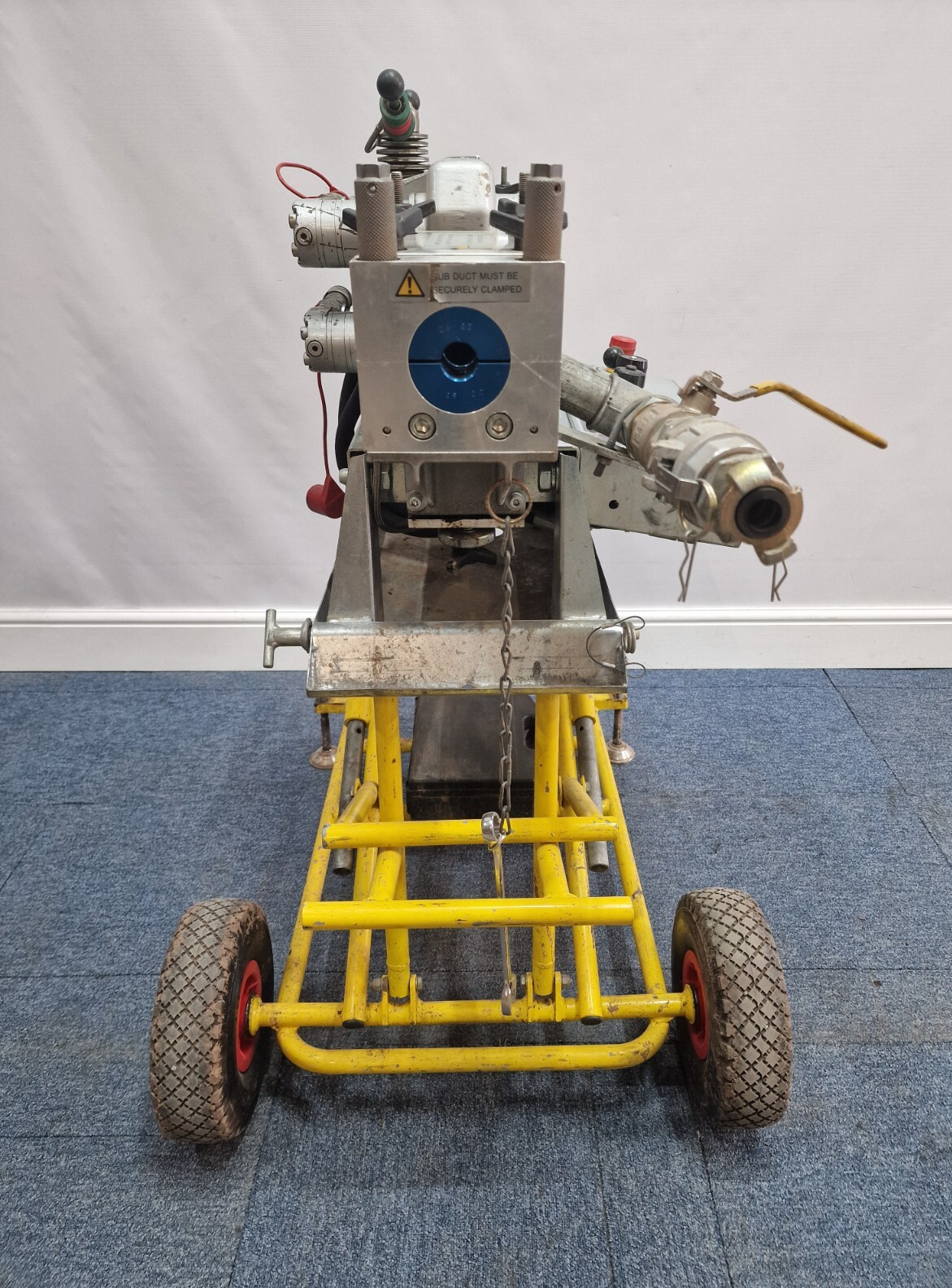

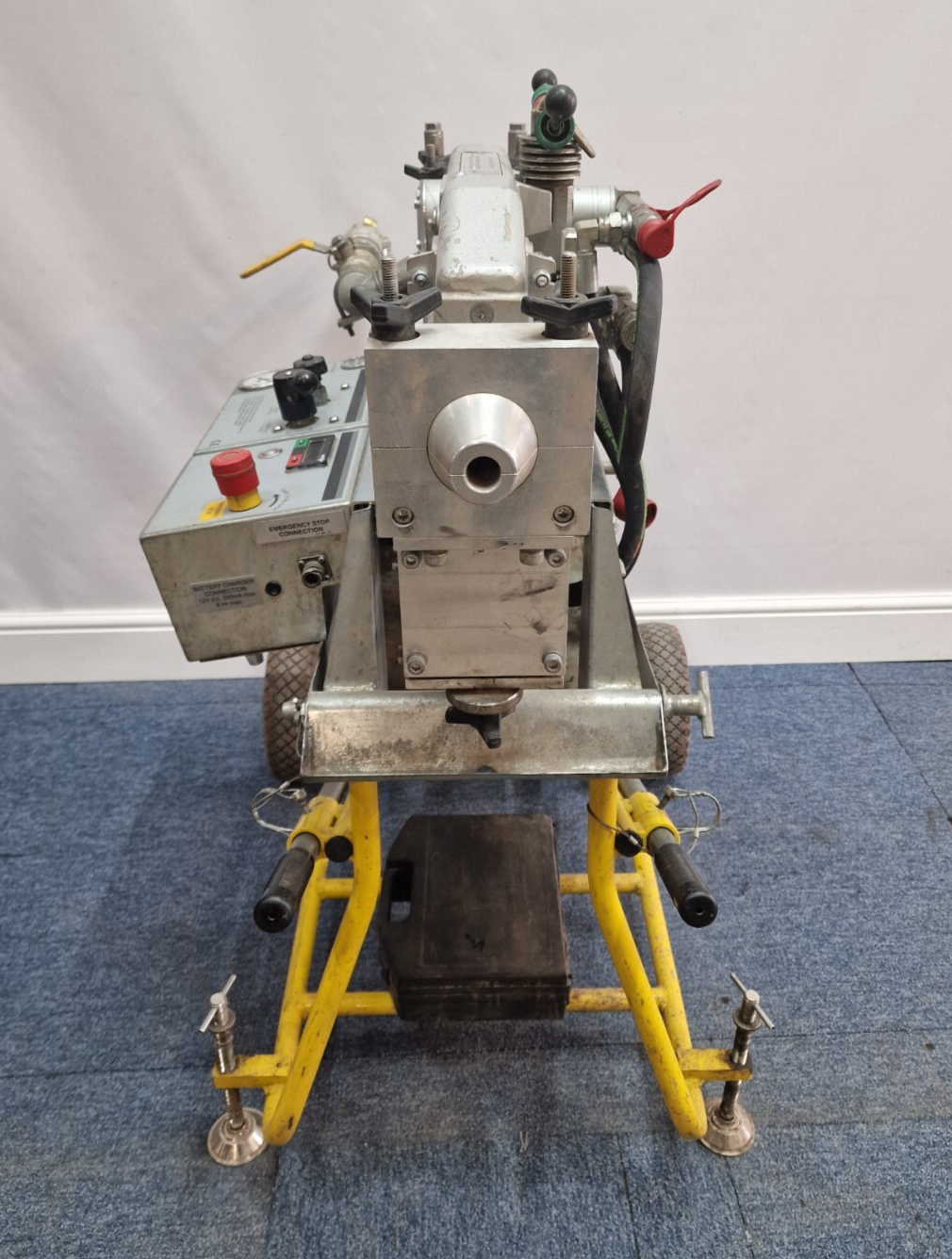

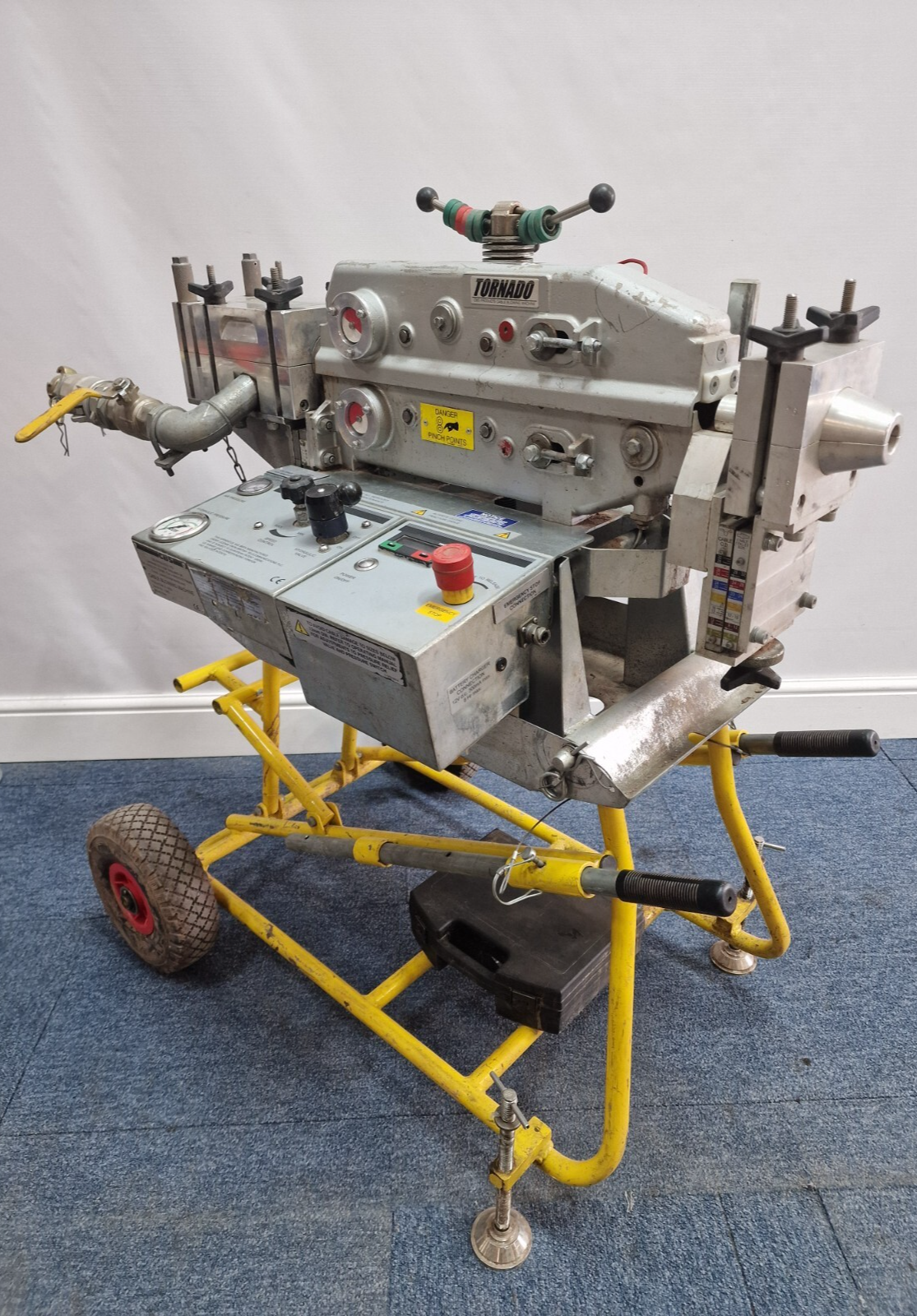

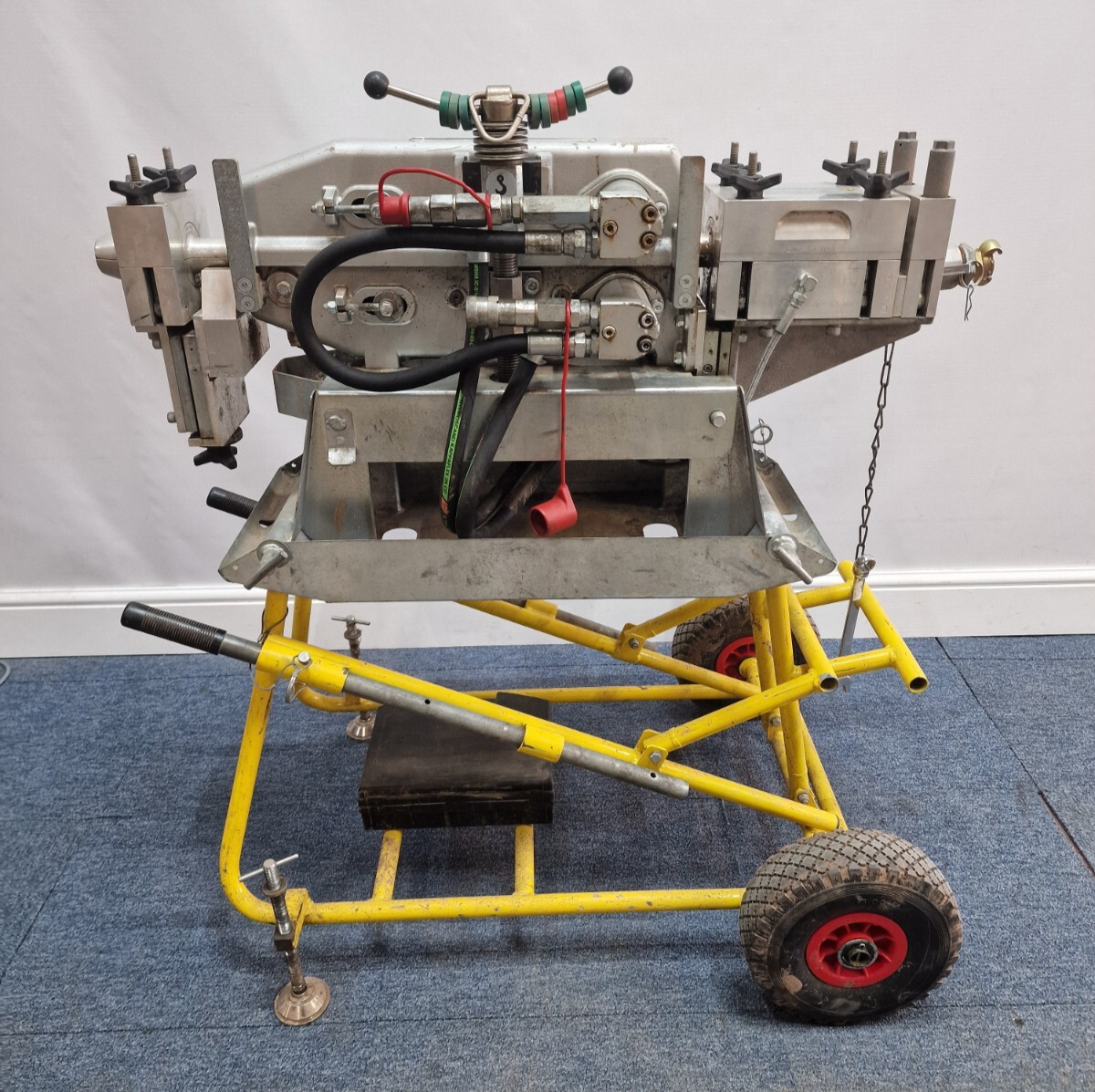

- Frame: tubular‑steel, with adjustable legs, tilt up to 30° to reduce bending; wheels & handles for mobility

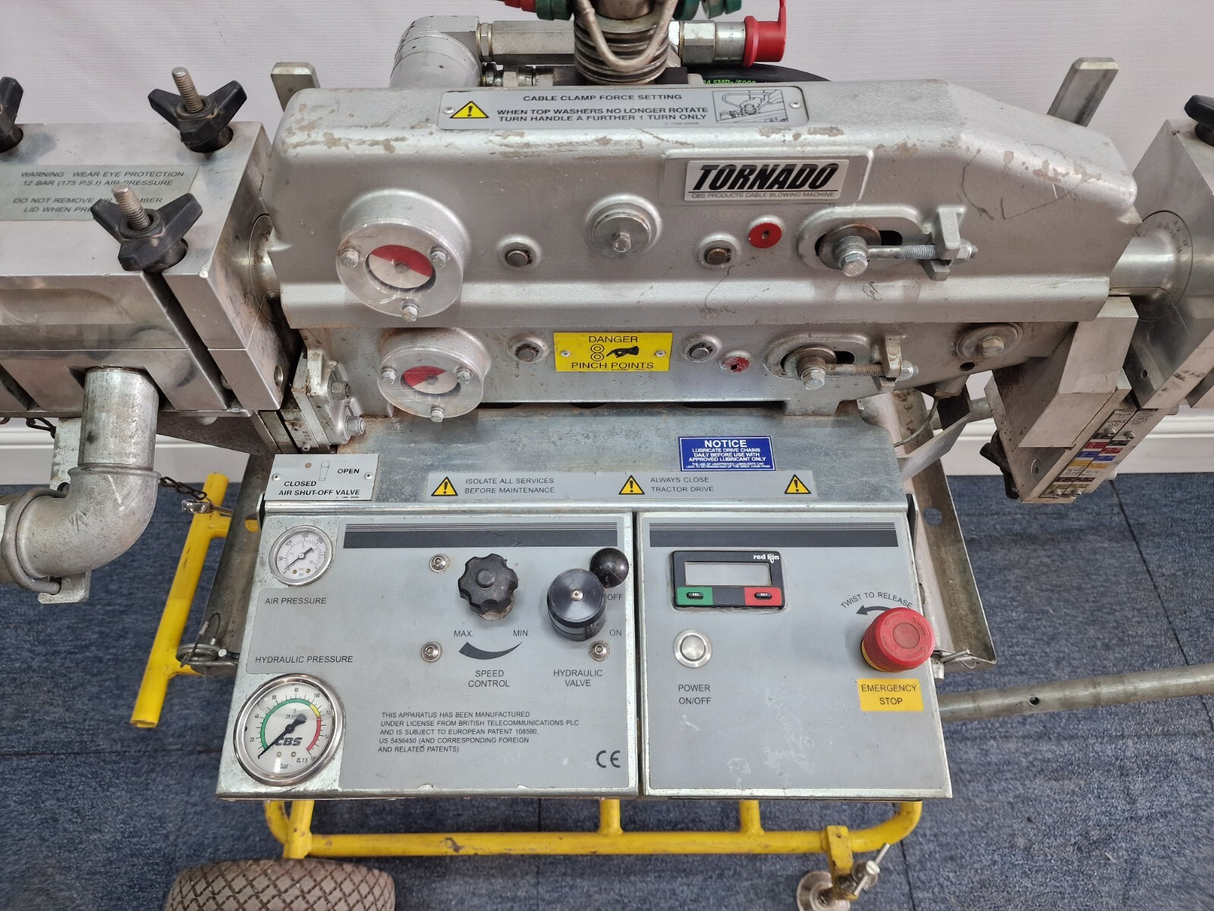

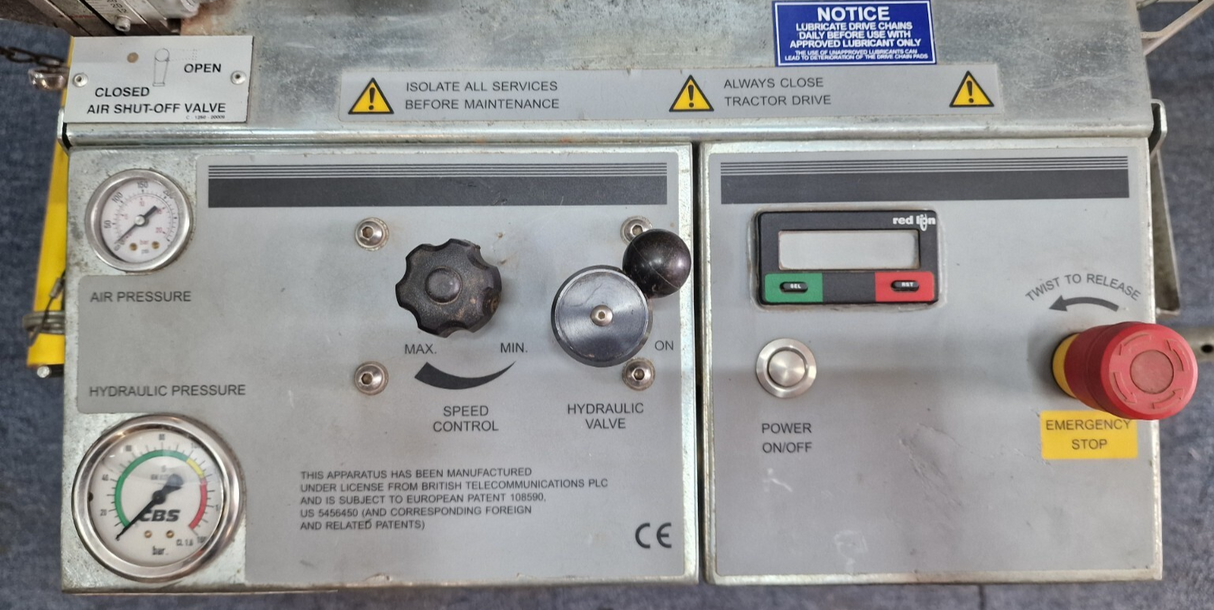

Control panel includes:
- Power on/off, emergency‑stop, reset

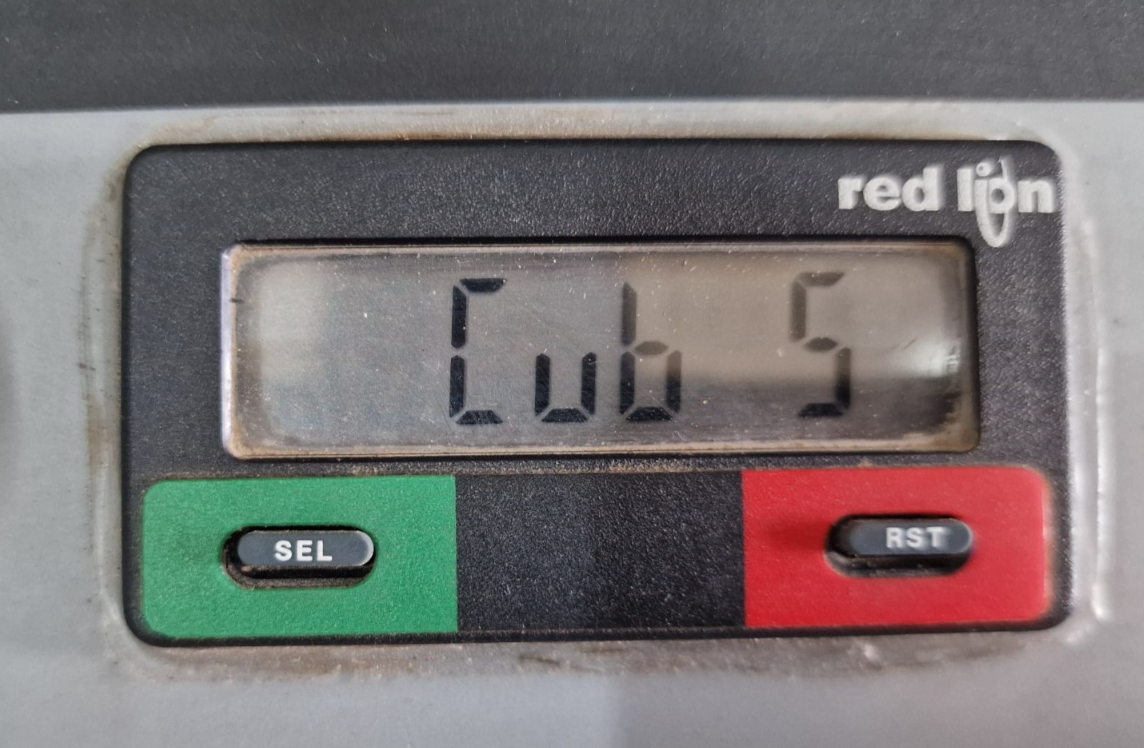

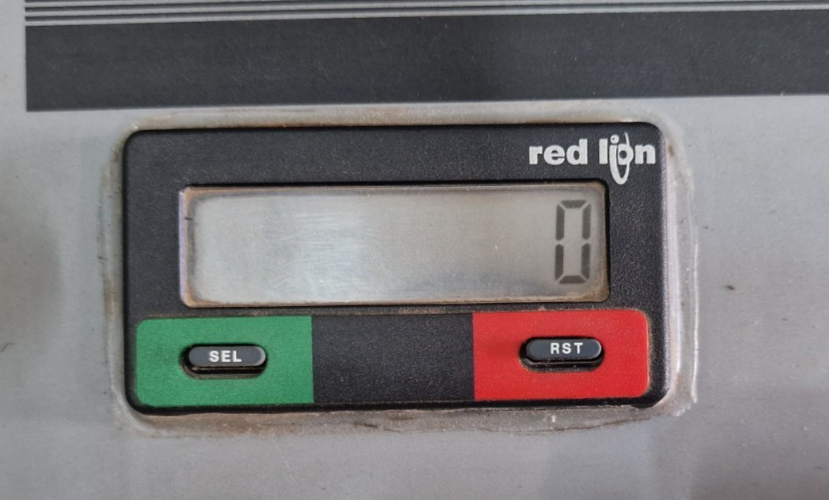

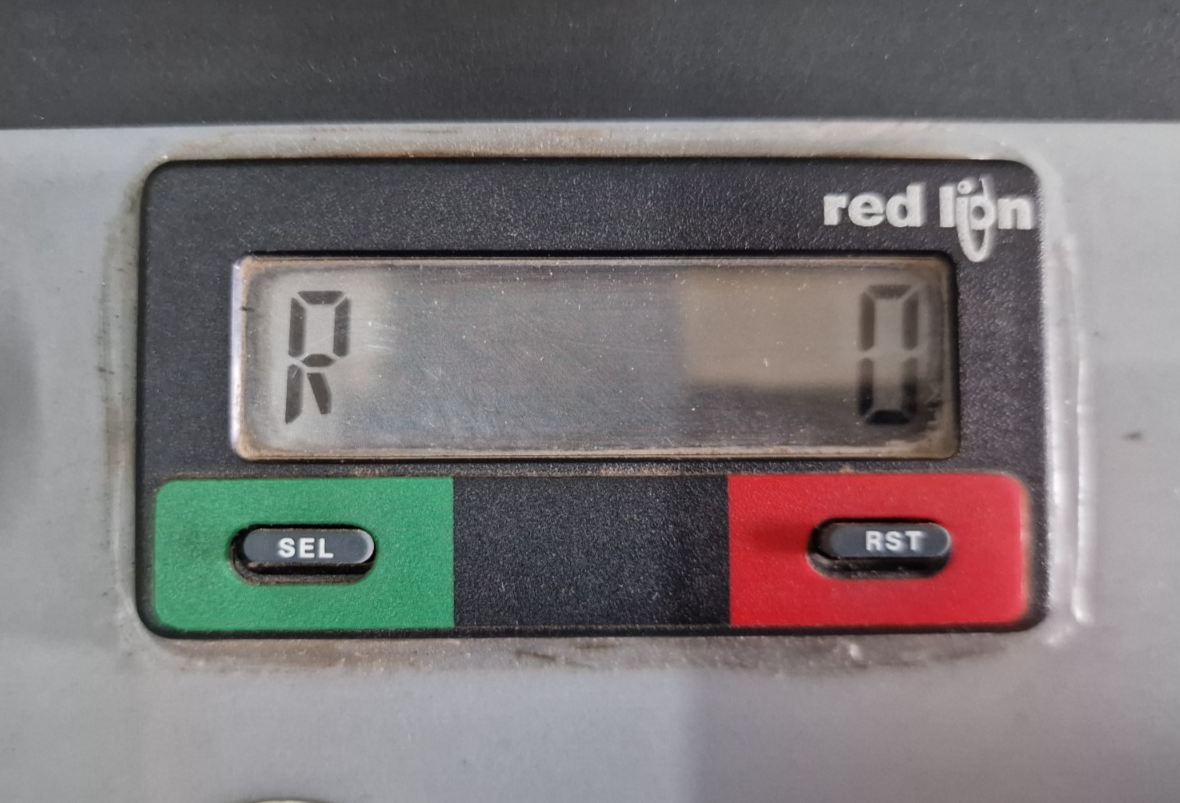

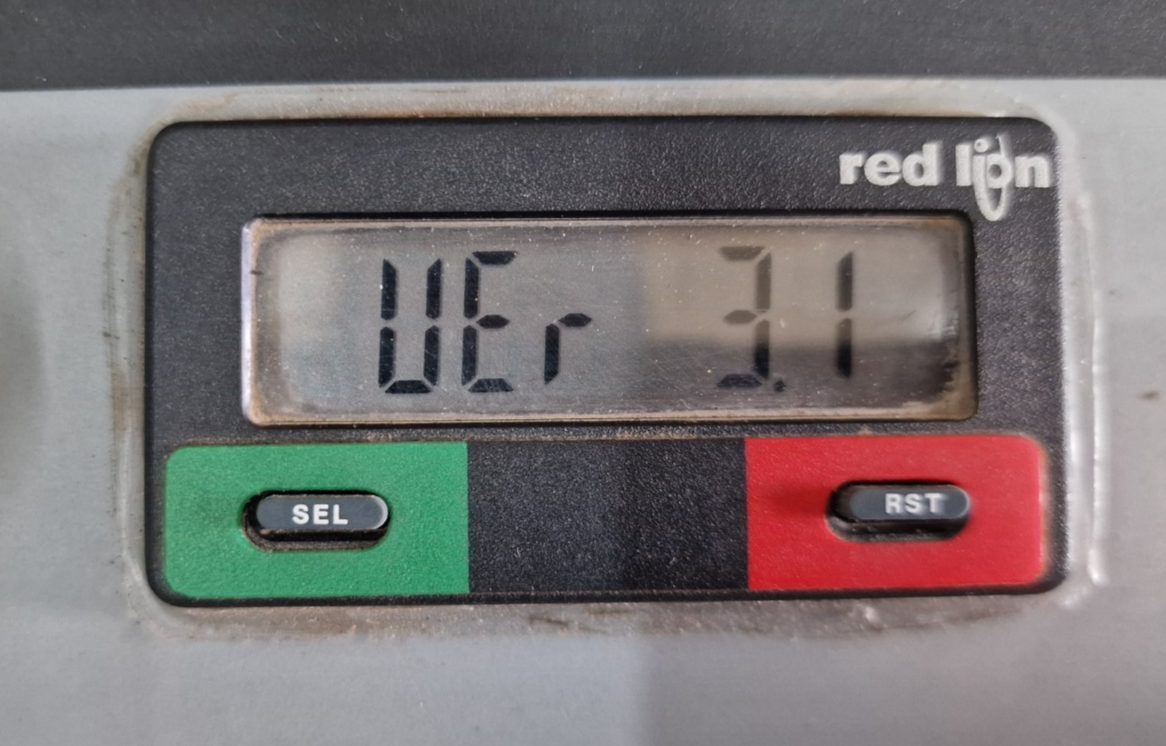

- Counters for length & speed (m/ft, m/min & ft/min)
- Hydraulic & air‑pressure dials, air‑valve, hydraulic‑valve
- Adjustable belt‑drive speed control
- Monitoring: real‑time display, obstruction protection
Why Choose the CBS Tornado Plus?
- Efficiency: Achieve rapid cable installations, reducing project timelines.
- Versatility: Compatible with a wide range of cable and duct sizes.
- Safety: Features protective systems to prevent damage during operation.
- Durability: Built to withstand demanding environments and heavy-duty use
VAT at 20% INCLUDED IN PRICE - VAT INVOICE PROVIDED
£7500 ex VAT
VAT IS NOT PAYABLE BY PURCHASERS OUTSIDE OF THE UK
MJ C-1250/REF 320320
