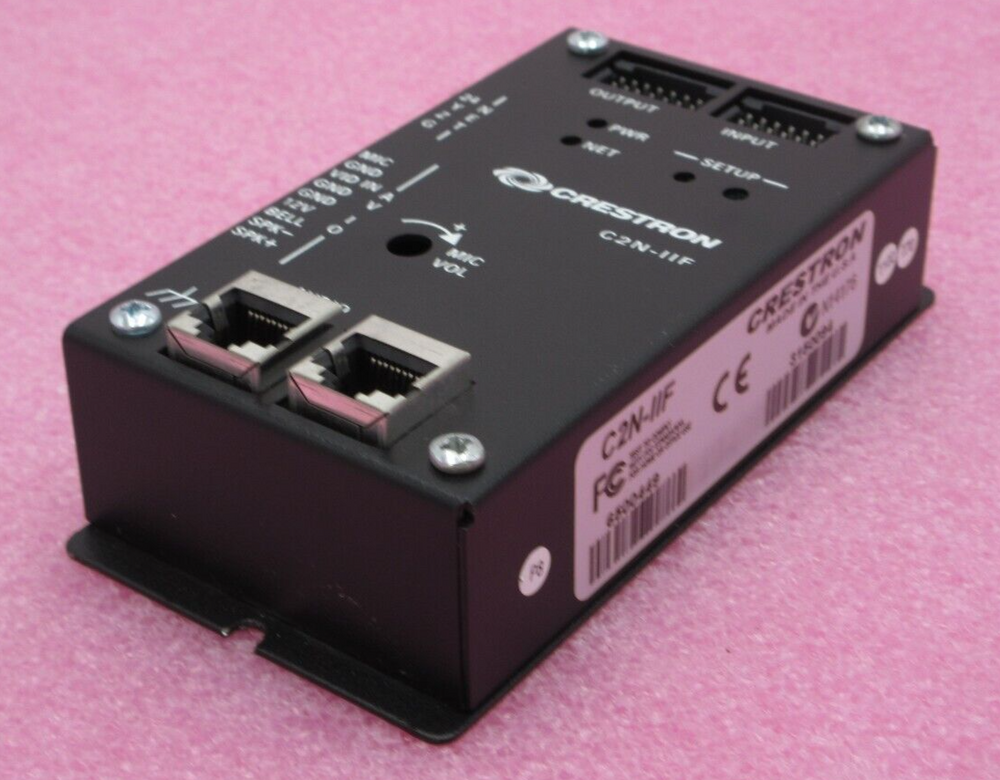

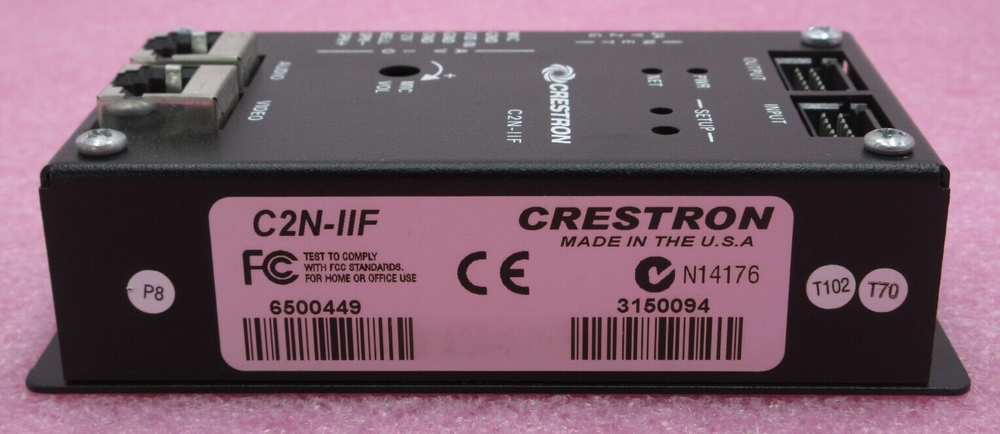

Crestron C2N-IIF Intercom Door Panel Control Interface 6500449

  • Pre-owned

£102.60
£85.50 ex VAT

Description

Brand: Crestron

Type: Intercom Interface

Connectivity: Terminal Block,RJ-45

Crestron C2N-IIF Intercom Door Panel Control Interface 6500449
Model: C2N-IIF
P/N: 6500449


In Good Condition
Full Working Order
Tested

No AC Adapters Included

Included:
  • 1 x Crestron C2N-IIF Intercom Door Panel Control Interface 6500449
Overview:

As part of a complete Crestron Home AV distribution system, the C2N-IIF provides an extremely flexible intercom interface solution for door station and entry gate applications. Its powerful amplifier and microphone preamp deliver high-quality 2-way (half-duplex) voice communication employing an electret condenser microphone and weather-resistant speaker (part of C2N-IIF-SPMK kit, sold separately). A door camera can also be connected to support full video intercom functionality. Extensive logic inputs and outputs are provided to accommodate a range of access control devices including push-to-call (doorbell) buttons, floor sensors, driveway sensors, keyless entry keypads, door strikes, motorized doors, gates, and more.

For a simple yet elegant door station solution, the C2N-IIF is designed to mate directly with Holovision brass plates including camera and keyless entry versions using the C2N-IIF-SPMK kit. It is equally well suited to accommodate completely custom or retrofit applications. The C2N-IIF is designed to be installed in a weatherproof housing or back box at the door station or gate location, and will tolerate temperatures from -22 to 140 degrees F (-30 to 60° C).

Additional features include built-in WAV sound file capability to enable customized door chime and voice prompts at the door station speaker. Volume, bass, and treble are individually adjustable for the intercom and WAV file signals.




Input/Output Modes
Essex Panel Mode (5) pulse inputs from Essex keypad plus (1) contact closure input and (8) electronic closure/24VDC outputs
Button Matrix Mode 4 X 4 switch matrix plus (2) contact closure inputs and (4) electronic closure/24VDC outputs
Discrete I/O Mode (6) contact closure inputs and (8) electronic closure/24VDC outputs
Audio – Speaker
Amplifier Output Power 13 watts at 8 ohms
Volume Gain Range -80dB to +20dB, 1.0dB steps
Mute Electronic
Bass Gain Range ±14dB, 2.0dB steps
Treble Gain Range ±14dB, 2.0dB steps
Frequency Response 100Hz to 20kHz, ±1dB
THD+N <0.5% @ 100Hz to 20kHz, full output
S/N Ratio 80dB @ 1kHz, full output
Audio – Microphone
Frequency Response 20Hz to 20kHz, ±0.5dB
Audio – WAV File
Storage Capacity 30 WAV files maximum, 30 seconds total time
WAV File 8-bit PCM, mono, 8 kHz sampling rate
Volume Gain Range -80dB to +20dB, 1.0dB steps
Bass Gain Range ±14dB, 2.0dB steps
Treble Gain Range ±14dB, 2.0dB steps
Wav file audio feeds local speaker output only
Connectors
AUDIO (1) 8-pin RJ45 female, shielded;
Bidirectional CAT5 balanced audio port;
Maximum Input Level: 4 Vrms;
Output Level: 1 Vrms nominal;
Connects to C2N-IADS30X24, CNX-BIPAD8, CNX-PBAR4, or any “CH” CAT5 audio port**
VIDEO (1) 8-pin RJ45 female, shielded;
CAT5 balanced video output port (composite only);
Output Impedance: 100 ohms;
Output Level: 1 Vp-p nominal;
Connects to C2N-IVDS24X24, CNX-PBVR4, or any “CH” CAT5 video input port**
AV IO (1) 9-pin 3.5mm detachable terminal block comprising:
    MIC/GND: Electret microphone input;
    Input Level: 34 mV nominal;
    Bias Voltage: 5 Volts DC, current limited;
    Use Panasonic WM-61B or equivalent electret microphone;

    VID IN/GND: Composite video input;
    Input Level: 1 Vp-p nominal;

    12V/GND: Camera power output;
    Maximum Load: 200 mA @ 12 Volts DC;

    BELL/GND: Doorbell button input;
    Contact closure/logic level input;
    Input Voltage: -0.5 to 5.5 Volts DC minimum/maximum;
    Logic “1” Threshold: ≥3.2 Volts DC;
    Logic “0” Threshold: ≤0.9 Volts DC;

    SPK-/+: Speaker-level output;
    Output Power: 13 watts @ 8 ohms
INPUT (1) 12-pin connector comprising (6) contact closure/logic level inputs referenced to GND;
(see “Input/Output Modes” above);
Input Voltage: -0.5 to 5.5 Volts DC minimum/maximum;
Logic "0" Threshold: 3.2 Volts DC maximum;
Logic "1" Threshold: 0.9 Volts DC minimum;
Internal Supply Voltage: +5 Volts DC;
Essex Lamp Control: Switched voltage output for keypad backlight;
Connect to Essex keypad, custom panel, or sensor using 12-inch long cable provided
OUTPUT (1) 14-pin connector comprising (8) electronic closures or switched 24 Volt DC output drivers referenced to GND;
(see “Input/Output Modes” above);
Maximum Load: 50 mA per output;
Maximum External Voltage: 24 Volts DC;
Internal Supply: 500 mA @ 24 Volts DC;
Connect to switched device(s) using 12-inch long cable provided

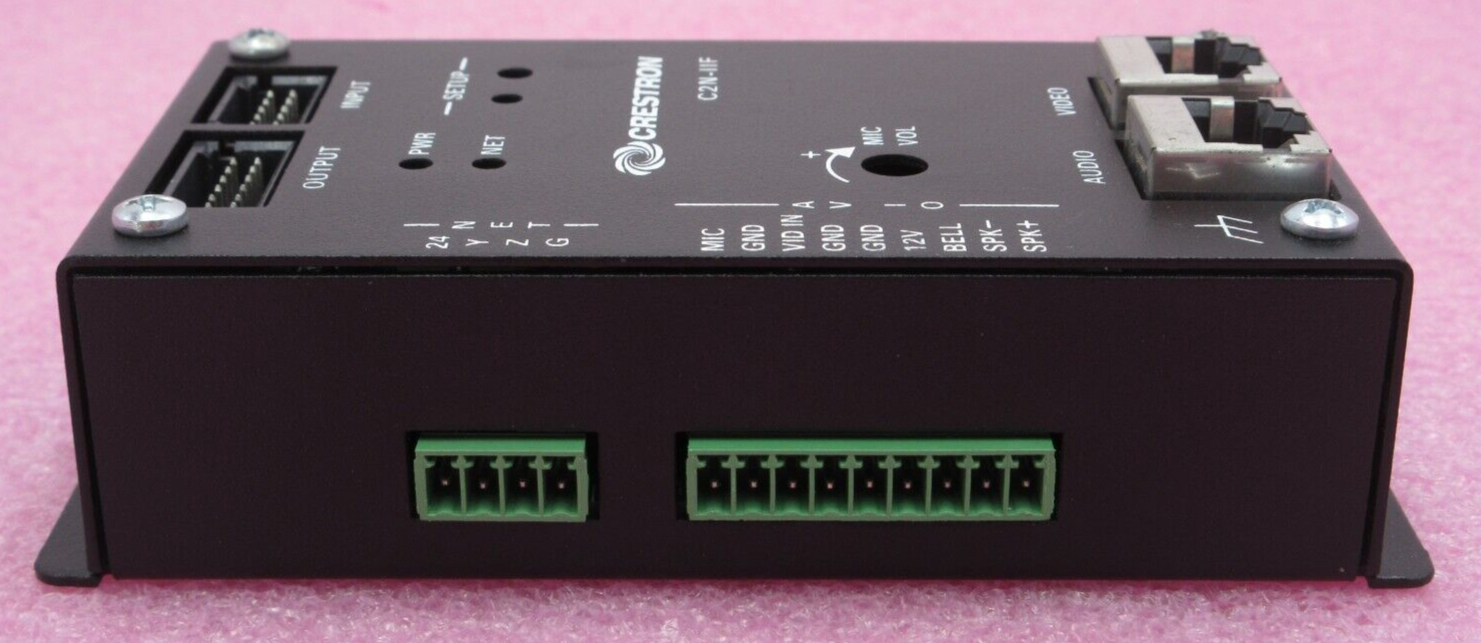

NET (1) 4-pin 3.5mm detachable terminal block;
Cresnet slave port, connects to Cresnet control network

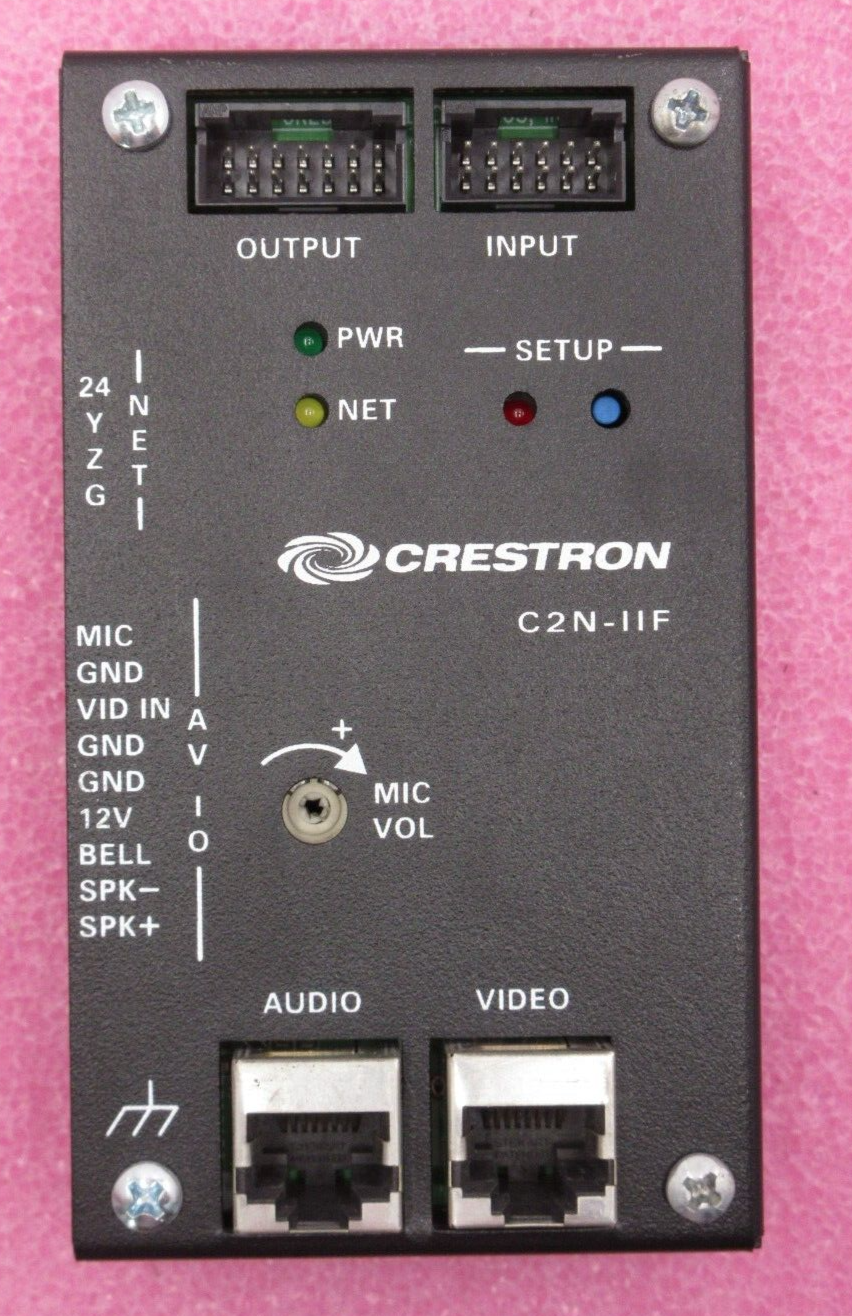

Controls & LED Indicators
PWR (1) green LED, indicates 24 Volts DC power supplied from Cresnet control network
NET (1) yellow LED, indicates communication with Cresnet system
SETUP (rear) (1) recessed miniature pushbutton and (1) red LED, used for touch-settable ID (TSID)
MIC VOL (1) screwdriver-adjustable pot for microphone level adjustment
Power Requirements
Cresnet Power Usage 20 Watts (1.25 Amps @ 24 Volts DC) plus up to 12 Watts (0.5 Amps) additional if using switched 24 Volt DC outputs
Environmental
Temperature -22° to 140°F (-30° to 60°C)
Humidity 10% to 90% RH (non-condensing)
Enclosure
Black metal, surface mount box with (2) integral mounting flanges
Dimensions
Height 5.14 in (13.06 cm)
Width 2.74 in (6.96 cm)
Depth 1.48 in (3.76 cm)
Weight
13.3 oz (0.38 kg)
