Crestron

Crestron DM-TX-401-C DigitalMedia 8G+ Transmitter 401 HDPI DP VGA 6505028

  • Pre-owned

£22.80
£19.00 ex VAT

Description

Brand: Crestron

Type: Transmitter

Connectivity: HDMI,Ethernet (RJ-45),VGA,Display Port,Stereo Audio L/R RCA

MPN: DM-TX-401-C,6505028

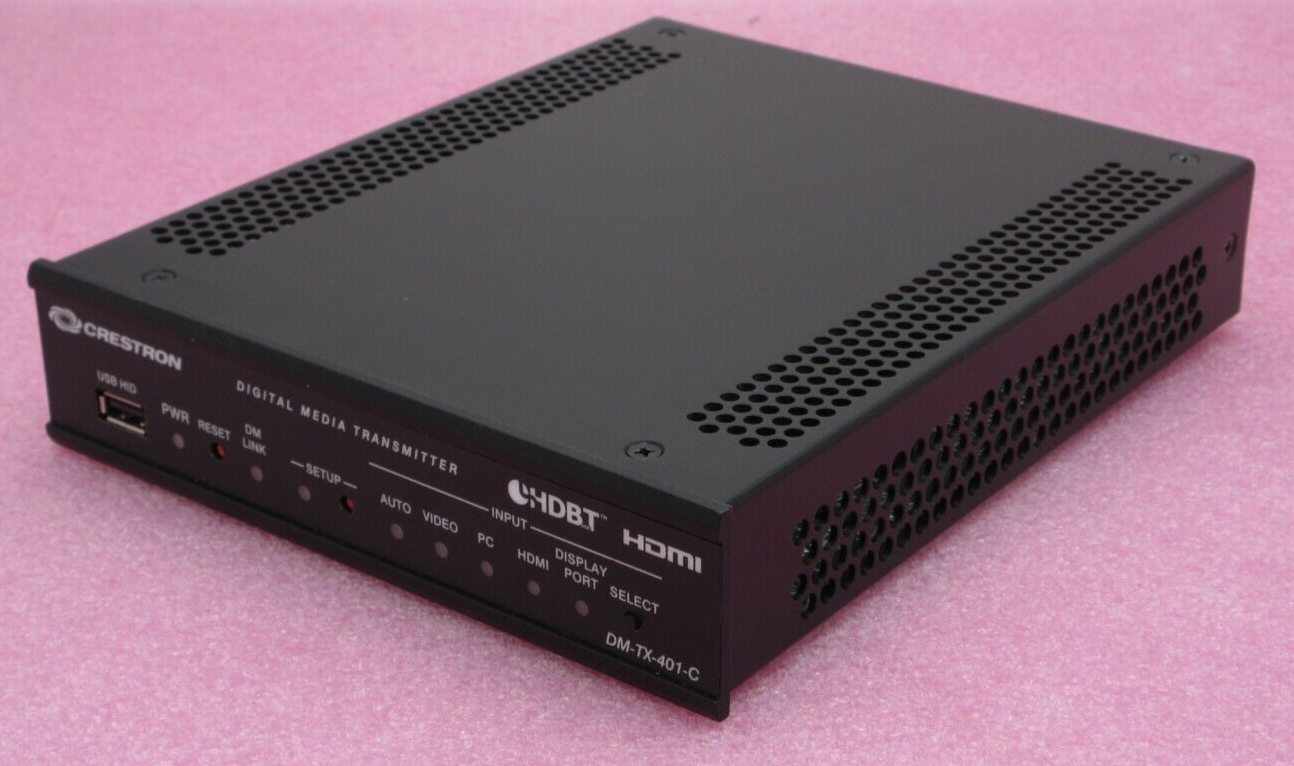

Crestron DM-TX-401-C DigitalMedia 8G+ Transmitter 401 HDPI DP VGA 6505028
Model: DM-TX-401-C

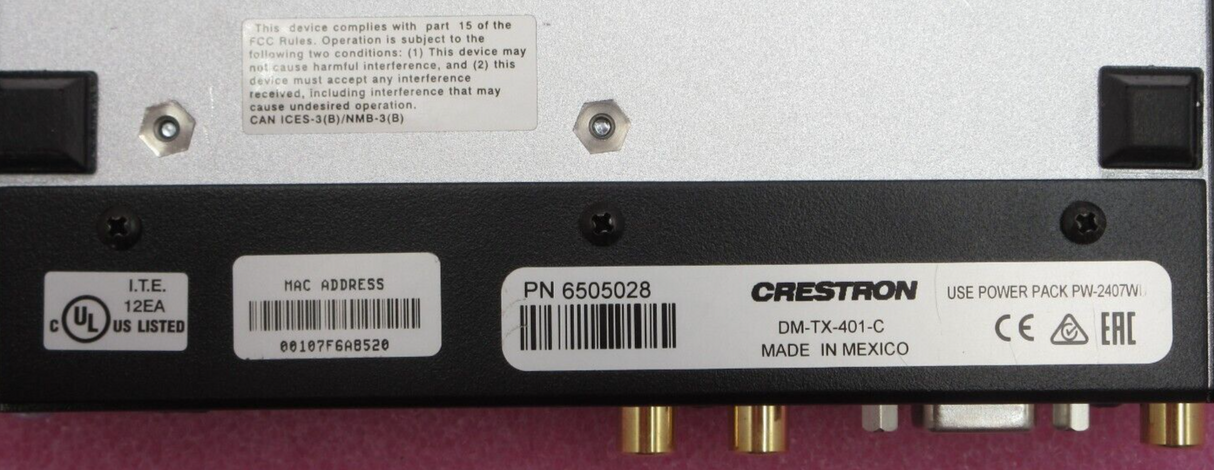

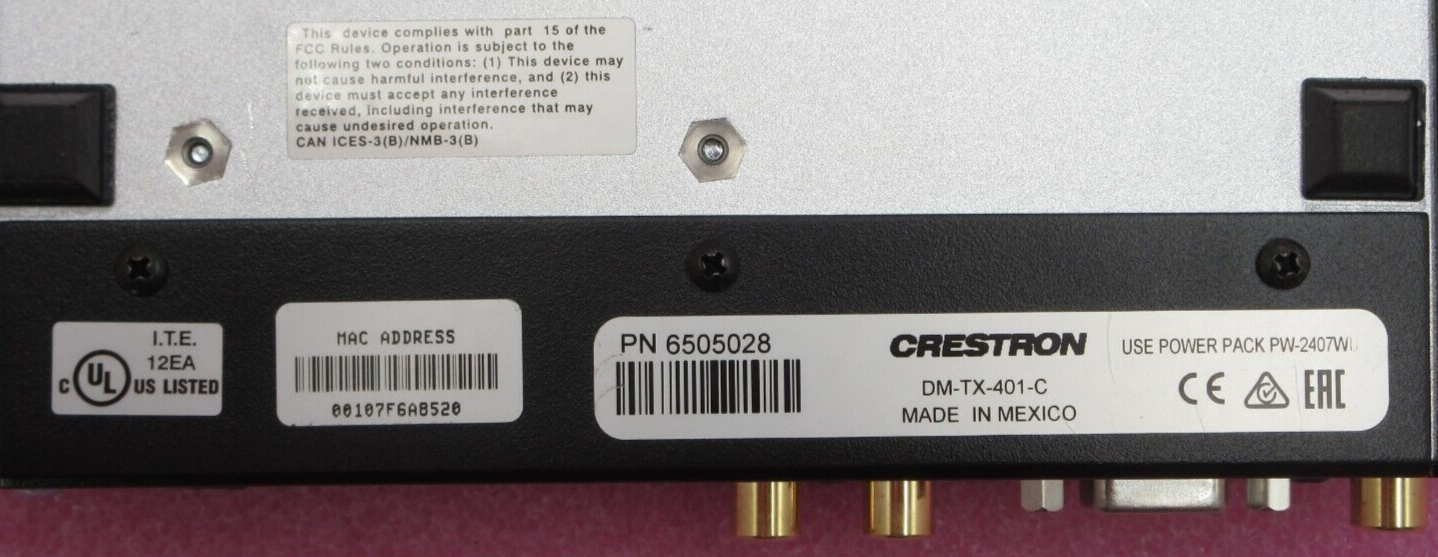

P/N: 6505028


In Good Condition
Full Working Order
Tested

No AC Adapters Included

Included:
  • 1 x Crestron DM-TX-401-C DigitalMedia 8G+ Transmitter 401 HDPI DP VGA 6505028
Overview:

The DM-TX-401-C provides a versatile interface for computers and high-definition AV sources as part of a complete Crestron DigitalMedia system. It functions as a DM 8G+ transmitter and switcher, providing DisplayPort, HDMI, VGA, composite video, and analog audio inputs. It also functions as a control module, providing RS-232 and IR control ports, plus Ethernet and USB HID ports for a total connectivity solution. In addition to DM 8G+, it is also compatible with HDBaseT®, allowing it to be connected directly to the input of an HDBaseT certified display device. It can be rack-mounted, placed on a shelf, or attached under a table [1], and connects to the head end or display location using a single CAT type twisted pair cable.[2]

Installed in a stationary podium or equipment rack, the DM-TX-401-C offers an ideal solution for integrating rack-mounted sources, switchers, and AV receivers into the DigitalMedia system. Mounted under a table or in a movable lectern or AV cart, it affords a simple means for connecting mobile devices, computers, cameras, and other "BYOD" sources. In a conference center or auditorium, a portable DM-TX-401-C can be connected to the system through wall plates and floor boxes as needed, requiring just a single DM 8G+ jack (MP-WP181-C or MPI-WP181-C) at each location.



Video
Switcher 4x1 auto-switching, auto-detecting multi-format digital/analog inputs; Crestron QuickSwitch HD technology
Input Signal Types DisplayPort, HDMI w/Deep Color & 3D (DVI & Dual-Mode DisplayPort compatible [4]), RGB/VGA (RGBHV, RGBS, RGsB), component (YPbPr), S-Video (Y/C), composite (NTSC, PAL) [5]
Output Signal Types DM 8G+ & HDBaseT w/Deep Color & 3D [2]
Resolutions, DisplayPort, Progressive 640x480@60Hz, 720x480@60Hz (480p), 720x576@50Hz (576p), 800x600@60Hz, 848x480@60Hz, 852x480@60Hz, 854x480@60Hz, 1024x768@60Hz, 1024x852@60Hz, 1024x1024@60Hz, 1280x720@50Hz (720p50), 1280x720@60Hz (720p60), 1280x768@60Hz, 1280x800@60Hz, 1280x960@60Hz, 1280x1024@60Hz, 1360x768@60Hz, 1365x1024@60Hz, 1366x768@60Hz, 1400x1050@60Hz, 1440x900@60Hz, 1600x900@60Hz, 1600x1200@60Hz, 1680x1050@60Hz, 1920x1080@50Hz (1080p50), 1920x1080@60Hz (1080p60), 1920x1200@60Hz, 2048x1152@60Hz, plus any other resolution allowed by DisplayPort up to 165 MHz pixel clock
Resolutions, DisplayPort, Interlaced 1920x1080@25Hz (1080i25), 1920x1080@30Hz (1080i30), plus any other resolution allowed by DisplayPort up to 165 MHz pixel clock
Resolutions, HDMI, Progressive 640x480@60Hz, 720x480@60Hz (480p), 720x576@50Hz (576p), 800x600@60Hz, 848x480@60Hz, 852x480@60Hz, 854x480@60Hz, 1024x768@60Hz, 1024x852@60Hz, 1024x1024@60Hz, 1280x720@50Hz (720p50), 1280x720@60Hz (720p60), 1280x768@60Hz, 1280x800@60Hz, 1280x960@60Hz, 1280x1024@60Hz, 1360x768@60Hz, 1365x1024@60Hz, 1366x768@60Hz, 1400x1050@60Hz, 1440x900@60Hz, 1600x900@60Hz, 1600x1200@60Hz, 1680x1050@60Hz, 1920x1080@24Hz (1080p24), 1920x1080@25Hz (1080p25), 1920x1080@50Hz (1080p50), 1920x1080@60Hz (1080p60), 1920x1200@60Hz, 2048x1080@24Hz, 2048x1152@60Hz, plus any other resolution allowed by HDMI up to 165 MHz pixel clock
Resolutions, HDMI, Interlaced 720x480@30Hz (480i), 720x576@25Hz (576i), 1920x1080@25Hz (1080i25), 1920x1080@30Hz (1080i30), plus any other resolution allowed by HDMI up to 165 MHz pixel clock
Resolutions, RGB 640x480@60Hz, 720x480@60Hz (480p), 720x576@50Hz (576p), 800x600@60Hz, 848x480@60Hz, 1024x768@60Hz, 1280x720@50Hz (720p50), 1280x720@60Hz (720p60), 1280x768@60Hz, 1280x800@60Hz, 1280x960@60Hz, 1280x1024@60Hz, 1360x768@60Hz, 1366x768@60Hz, 1400x1050@60Hz, 1440x900@60Hz, 1600x1200@60Hz, 1680x1050@60Hz, 1920x1080@50Hz (1080p50), 1920x1080@60Hz (1080p60), 1920x1200@60Hz, 2048x1152@60Hz
Resolutions, Component [5] 480i, 576i, 480p, 576p, 720p50, 720p60, 1080p24, 1080i25 (1125 lines), 1080i30, 1080p30, 1080p50 (1125 lines), 1080p60
Resolutions, Composite & S-Video [5] 480i, 576i
Analog-To-Digital Conversion 12-bit 170 MHz per each of 3 channels
Audio
Switcher 4x1 with auto-detecting digital/analog inputs and analog audio breakaway
Input Signal Types DisplayPort, HDMI (Dual-Mode DisplayPort compatible), analog stereo
Output Signal Types DM 8G+ & HDBaseT
Digital Formats, DisplayPort Dolby Digital®, Dolby Digital EX, DTS®, DTS-ES, DTS 96/24, LPCM up to 8 channels
Digital Formats, HDMI Dolby Digital, Dolby Digital EX, Dolby Digital Plus, Dolby® TrueHD, Dolby Atmos®, DTS, DTS-ES, DTS 96/24, DTS-HD High Res, DTS-HD Master Audio™, LPCM up to 8 channels
Analog Formats Stereo 2-channel
Analog-To-Digital Conversion 24-bit 48 kHz
Analog Input Level Compensation ±10 dB
Analog Performance Frequency Response: 20 Hz to 20 kHz ±0.75 dB;
S/N Ratio: >90 dB, 20 Hz to 20 kHz A-weighted;
THD+N: <0.05% @ 1 kHz;
Stereo Separation: >90 dB
Communications
Ethernet 10/100 Mbps, auto-switching, auto-negotiating, auto-discovery, full/half duplex, DHCP
USB Supports signal extension of USB HID class devices, expandable to support virtually any USB 1.1 or 2.0 device using Crestron USB-EXT-DM USB over Ethernet Extenders [8]; supports a TT-100 series cable caddy [9]
RS-232 2-way device control and monitoring up to 115.2k baud with hardware and software handshaking (via control system)
IR/Serial 1-way device control via infrared up to 1.1 MHz or serial TTL/RS-232 (0-5 Volts) up to 19.2k baud (via control system)
DigitalMedia DM 8G+, HDCP, EDID, CEC, PoDM, Ethernet
HDBaseT HDCP, EDID, PoE, Ethernet
DisplayPort HDCP, EDID, CEC
HDMI HDCP, EDID, CEC
NOTE: Supports management of HDCP and EDID; supports management of CEC between the connected HDMI device and a control system

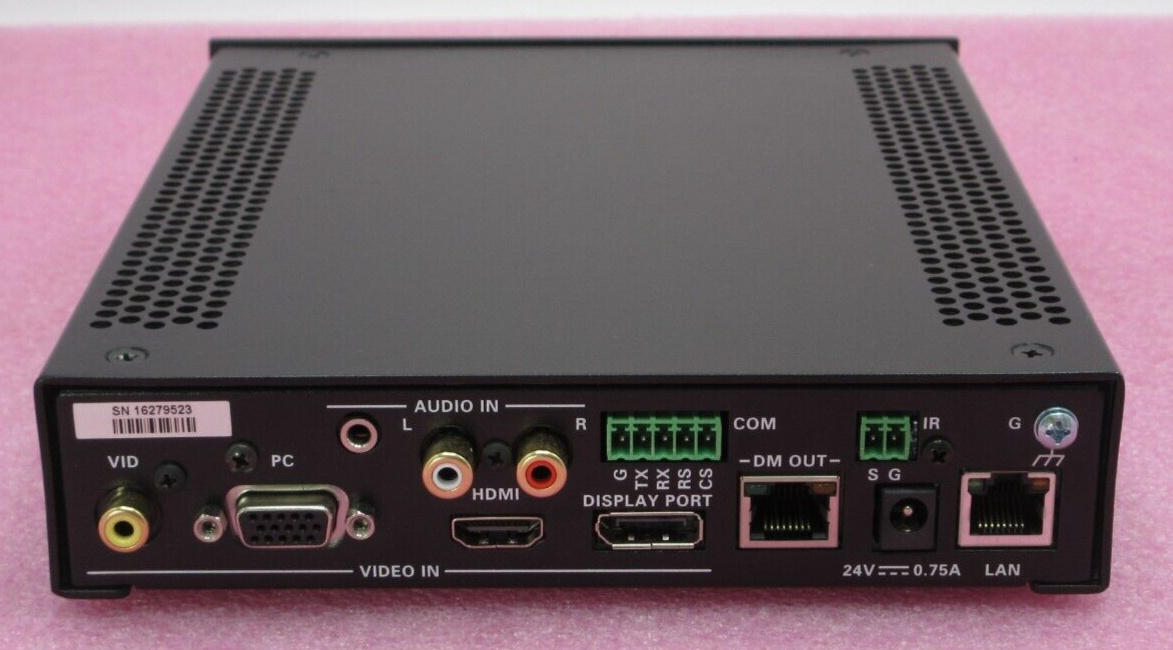

Connectors
VID (1) RCA female;
Composite video input;
Input Level: 1 Vp-p nominal;
Input Impedance: 75 Ohms nominal
PC (1) HD15 female;
Analog VGA/RGB/video input;
Signal Types: VGA, RGB, component, S-Video, or composite [5];
Formats: RGBHV, RGBS, RGsB, YPbPr, Y/C, NTSC, PAL;
Input Levels: 0.5 to 1.5 Vp-p with built-in DC restoration;
Input Impedance: 75 Ohms;
Sync Input Type: Autodetect RGBHV, RGBS, RGsB, YPbPr;
Sync Input Level: 3 to 5 Vp-p;
Sync Input Impedance: 510 Ohms
AUDIO IN (1) 3.5 mm TRS mini phone jack;
Unbalanced stereo line-level audio input;
Input Level: 2 Vrms maximum;
Input Impedance: 10k Ohms
AUDIO IN L, R (2) RCA female;
Unbalanced stereo line-level audio input;
Input Level: 2 Vrms maximum;
Input Impedance: 10k Ohms
HDMI (1) 19-pin Type A HDMI female;
HDMI digital video/audio input;
(DVI & Dual-Mode DisplayPort compatible [4])
DISPLAY PORT (1) 20-pin DisplayPort female;
DisplayPort digital video/audio input [3]
COM (1) 5-pin 3.5mm detachable terminal block;
Bidirectional RS-232 port;
Up to 115.2k baud, hardware and software handshaking support
IR (1) 2-pin 3.5mm detachable terminal block;
IR/Serial port;
IR output up to 1.1 MHz;
1-way serial TTL/RS-232 (0-5 Volts) up to 19200 baud
DM OUT (1) 8-pin RJ45 female, shielded;
DM 8G+ output, HDBaseT compliant;
PoDM PD port (HDBaseT PoE compatible) [6,7];
Connects to the DM 8G+ input of a DM switcher, receiver/room controller, or other DM device, or to an HDBaseT device, via CAT5e or Crestron DM-CBL-8G cable [2]
24VDC 0.75A (1) 2.1 x 5.5 mm DC power connector;
24 Volt DC power input;
PW-2407WU power pack (sold separately)
LAN (1) 8-pin RJ45 female;
10Base-T/100Base-TX Ethernet port
G (1) 6-32 screw;
Chassis ground lug
USB HID (front) (1) USB Type A female;
USB 2.0 host port for connection of a mouse/keyboard or other USB HID-compliant device, or for connection of a Crestron TT-100 series device (Crestron Connect It) [9]

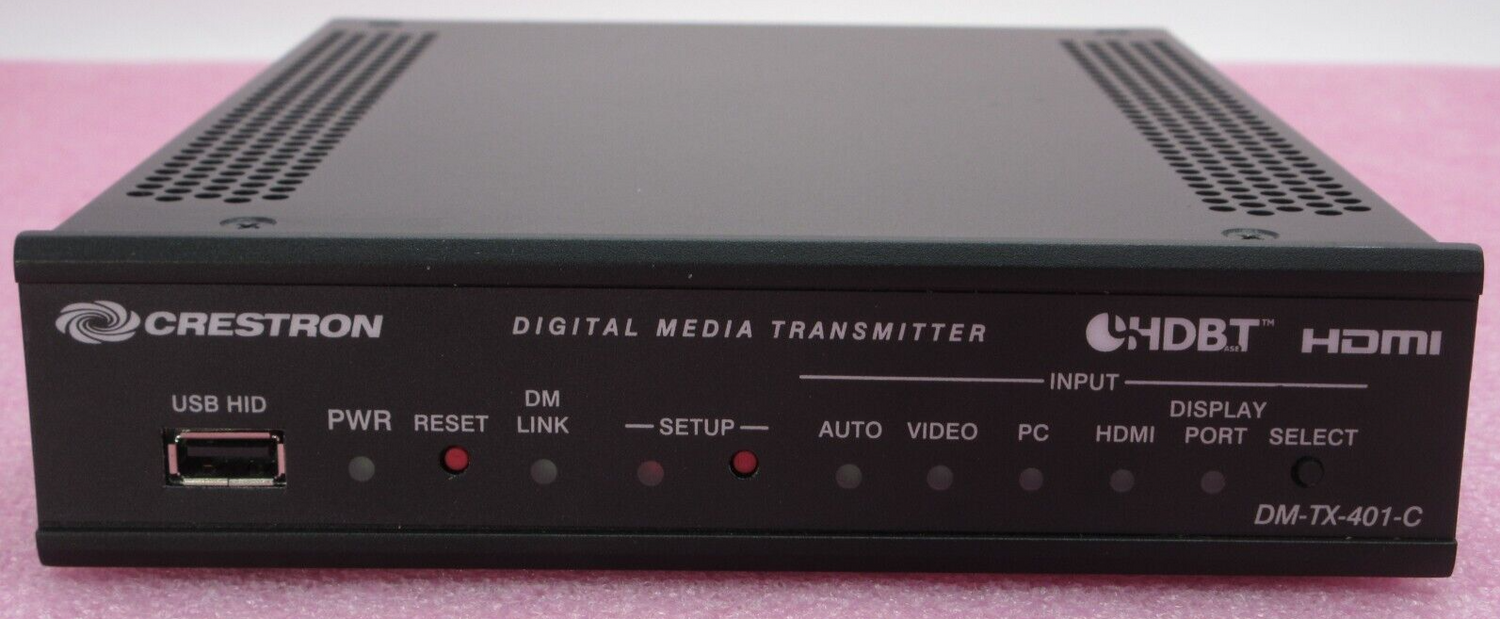

Controls & Indicators
PWR (1) Green LED, indicates operating power supplied via PoDM, HDBaseT PoE, or PW-2407WU power pack (sold separately)
RESET (1) Recessed pushbutton for hardware reset
DM LINK (1) Green LED, indicates DM link status
SETUP (1) Red LED and (1) recessed pushbutton for Ethernet setup
INPUT AUTO, VIDEO, PC, HDMI, DISPLAY PORT (5) Green LEDs, indicate which input is selected or if auto-switch mode is active
INPUT SELECT (1) Pushbutton for selecting inputs or activating auto-switch mode
DM OUT (rear) (2) LEDs, green LED indicates DM link status, amber LED indicates video and HDCP signal presence
LAN (rear) (2) LEDs, green LED indicates Ethernet link status, amber LED indicates Ethernet activity
Power
Power Pack (sold separately) Input: 100-240 Volts AC, 50/60 Hz;
Output: 0.75 Amps @ 24 Volts DC;
Model: PW-2407WU
Power over DM (PoDM) IEEE 802.3at Type 1 Class 3 (12.95 W) compliant PoDM PD (Powered Device), capable of being powered by a PoDM PSE (Power Sourcing Equipment) [6]
Power over HDBaseT IEEE 802.3at Type 1 Class 3 (12.95 W) compliant HDBaseT PoE PD (Powered Device), capable of being powered by an HDBaseT PoE PSE (Power Sourcing Equipment) [7]
Environmental
Temperature 32° to 104° F (0° to 40° C)
Humidity 10% to 90% RH (non-condensing)
Heat Dissipation 45 BTU/hr
Enclosure

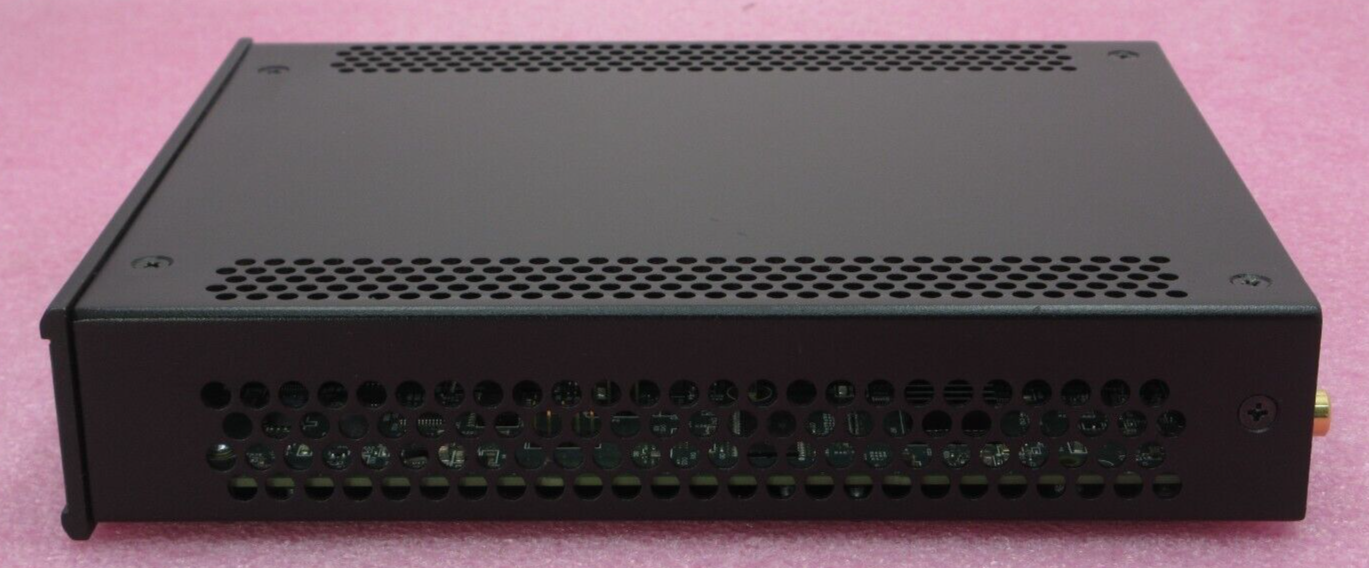

Chassis Metal, black finish, vented top and sides
Front Panel Metal, black finish with polycarbonate label overlay
Mounting Freestanding, under-table mountable, or 1 RU half-width 19-inch rack-mountable (adhesive feet attached, under-table and rack mounting kits sold separately)
Dimensions
Height 1.76 in (45 mm)
Width 7.07 in (180 mm)
Depth 8.75 in (223 mm)
Weight
2.0 lb (0.9 kg)
