FLIR E8 XT Wi Fi Thermal Imaging Camera High Res 320x240 MSX with Transport Case
FLIR E8 XT Wi Fi Thermal Imaging Camera High Res 320x240 MSX with Transport Case est en rupture de stock et sera expédié dès qu’il sera de retour en stock.
Impossible de charger la disponibilité pour le Service de retrait
Description
Description
Display Resolution: 320 x 240 Pixels
Date of Manufacture: 03 / 2020
Spectral Range: 7.5 µm to 13 µm
Wi-Fi: 802.11 b/g/n
IR Sensor Resolution: 320 x 240 Pixels
Product: Handheld Thermal Camera
MPN: 63908-0905
Battery Type: Rechargable Li-ion
Image Modes: MSX, Thermal, Picture-in-Picture, Digital Camera, Thermal Blend
Brand: Flir
Interfaces: Micro USB for Data Trasnfer

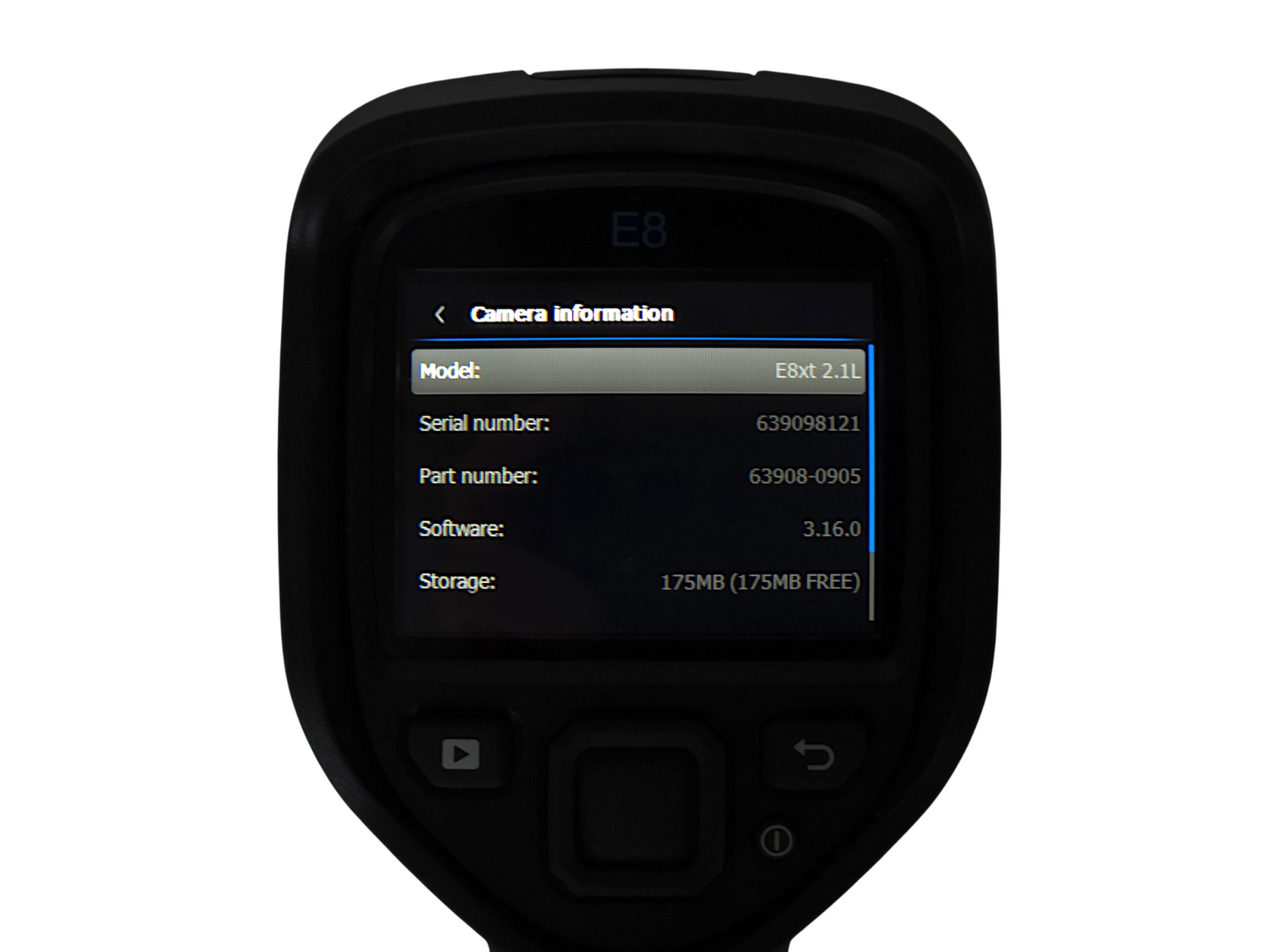

Software Version: 3.16.0
Thermal Sensitivity: 0.05°C (0.09°F) / 50 mK
Number of Batteries: 2
Colour Palettes: Iron, Rainbow, Greyscale (White Hot)
IP Rating: IP54
Temperature Range: -20°C to 550°C (-4°F to 1022°F)
Distance to Spot Ratio: 128:1 or 385:1
Field of View: 45° × 34°
Country of Origin: Estonia

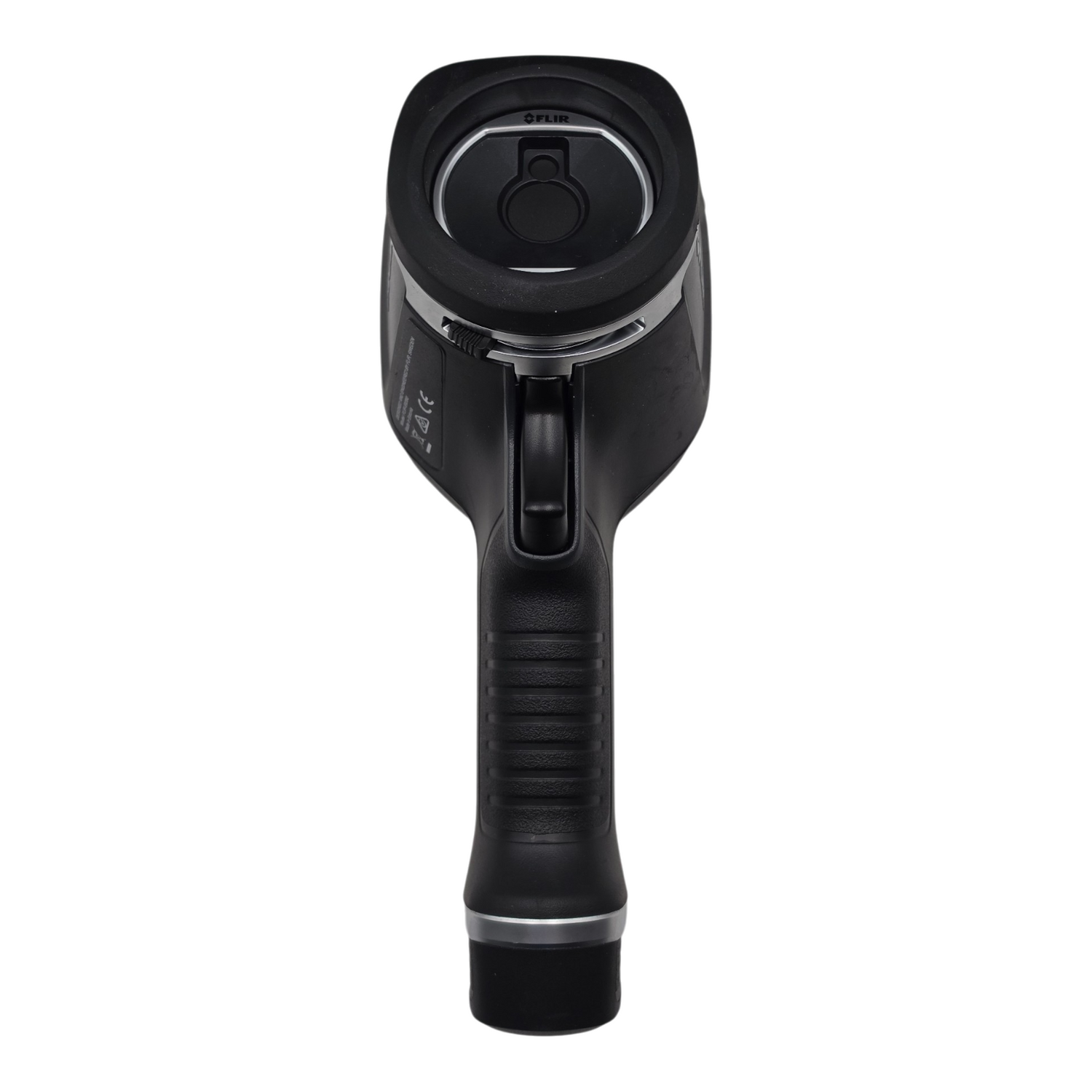

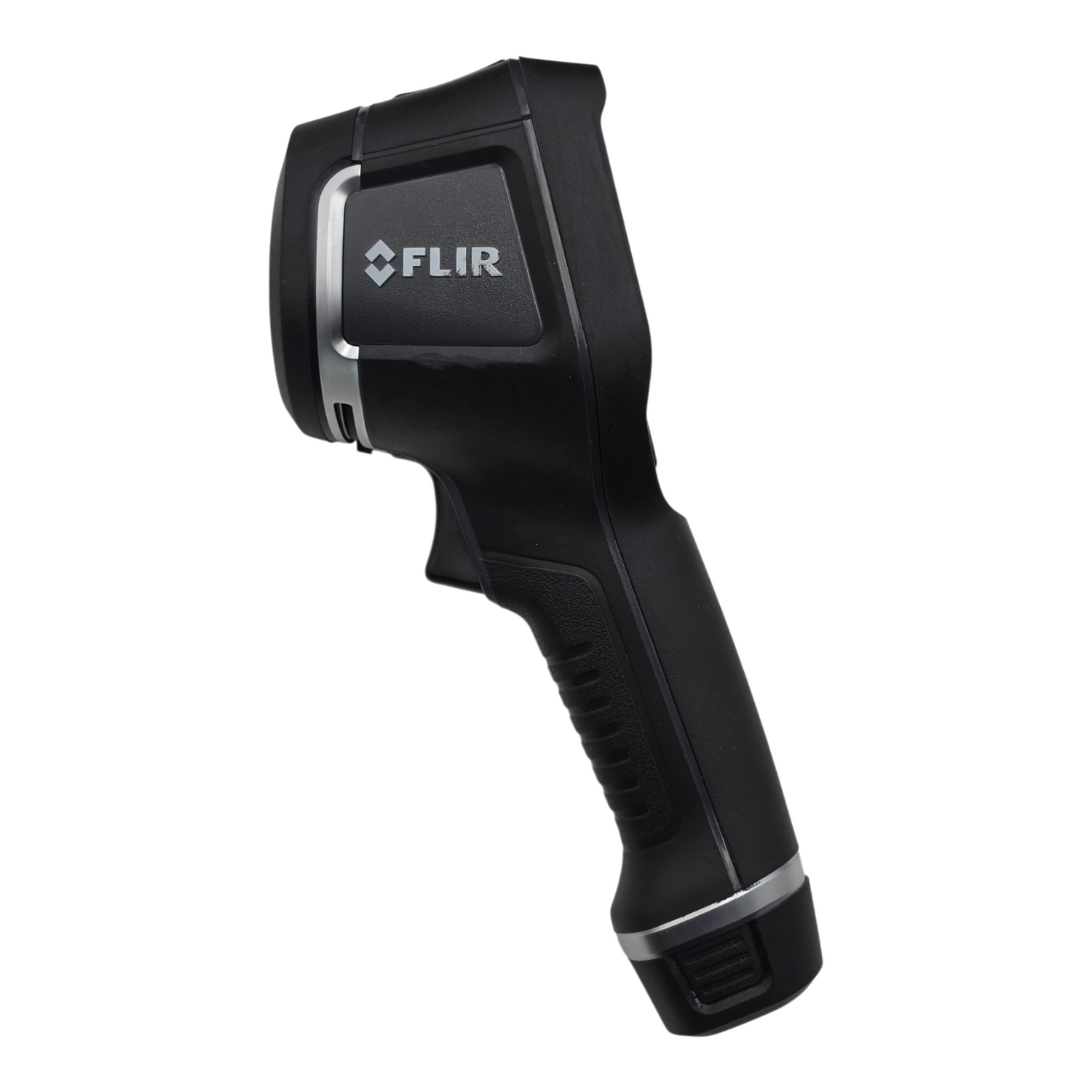

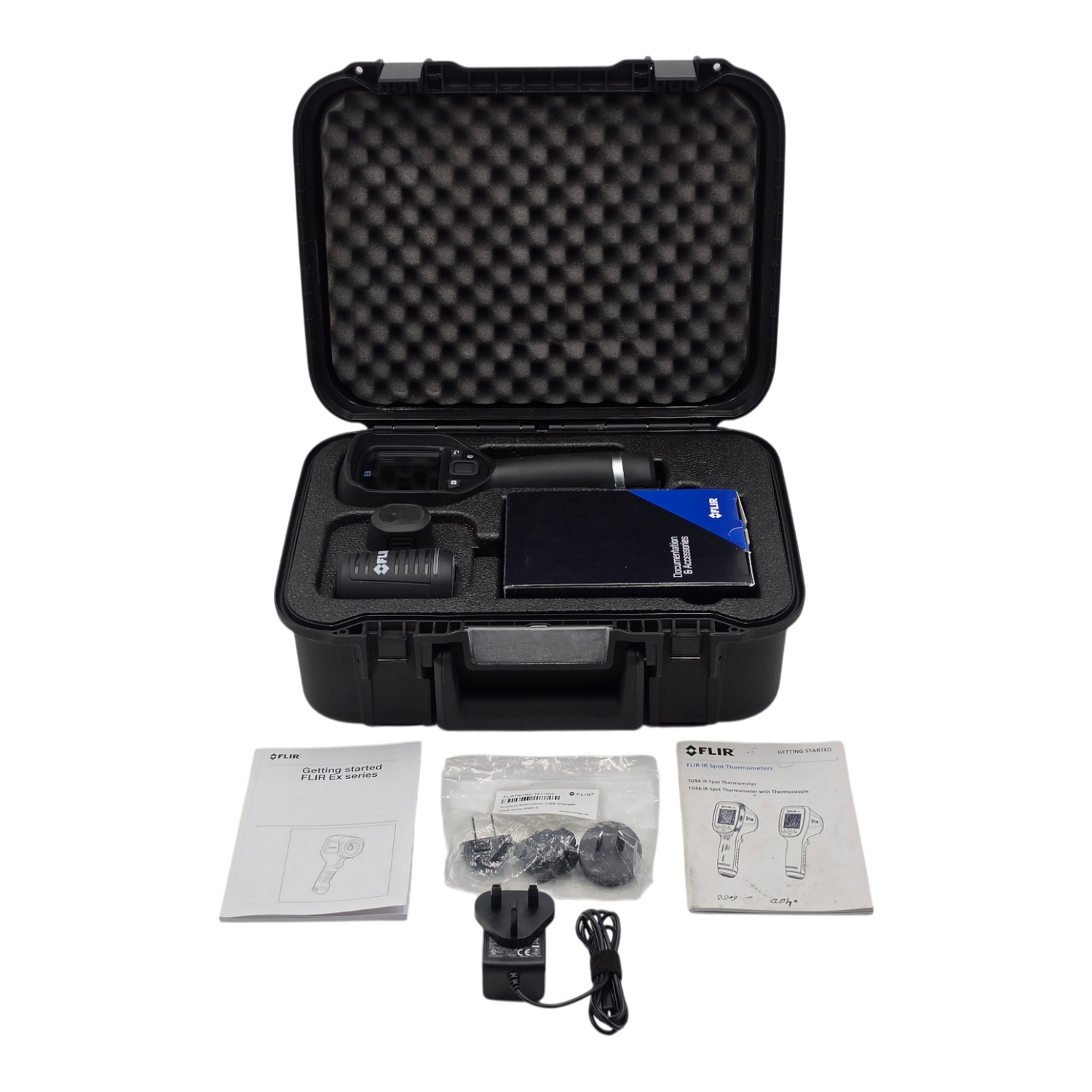

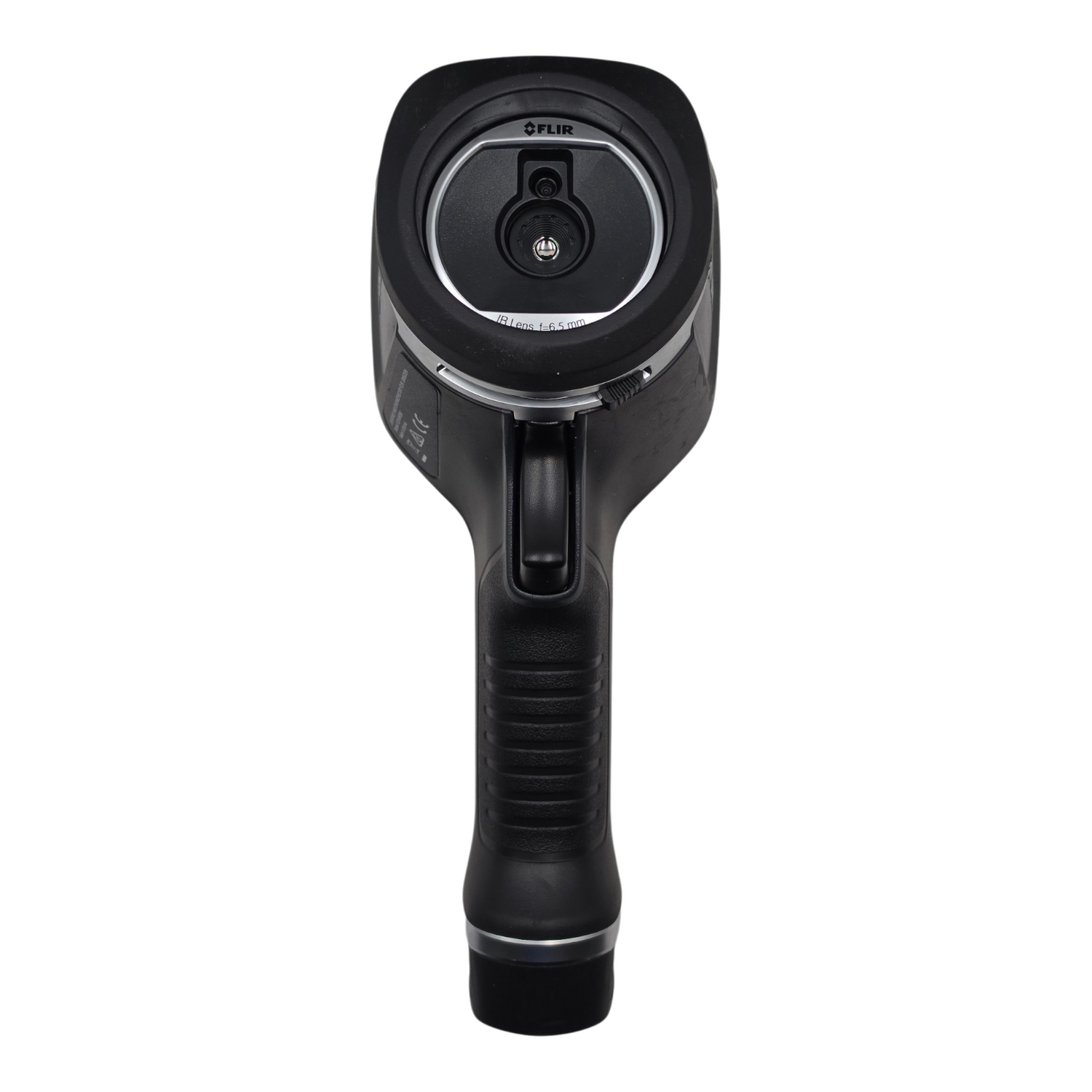

- 1 x FLIR E8-XT Advance Thermal Imagining Camera

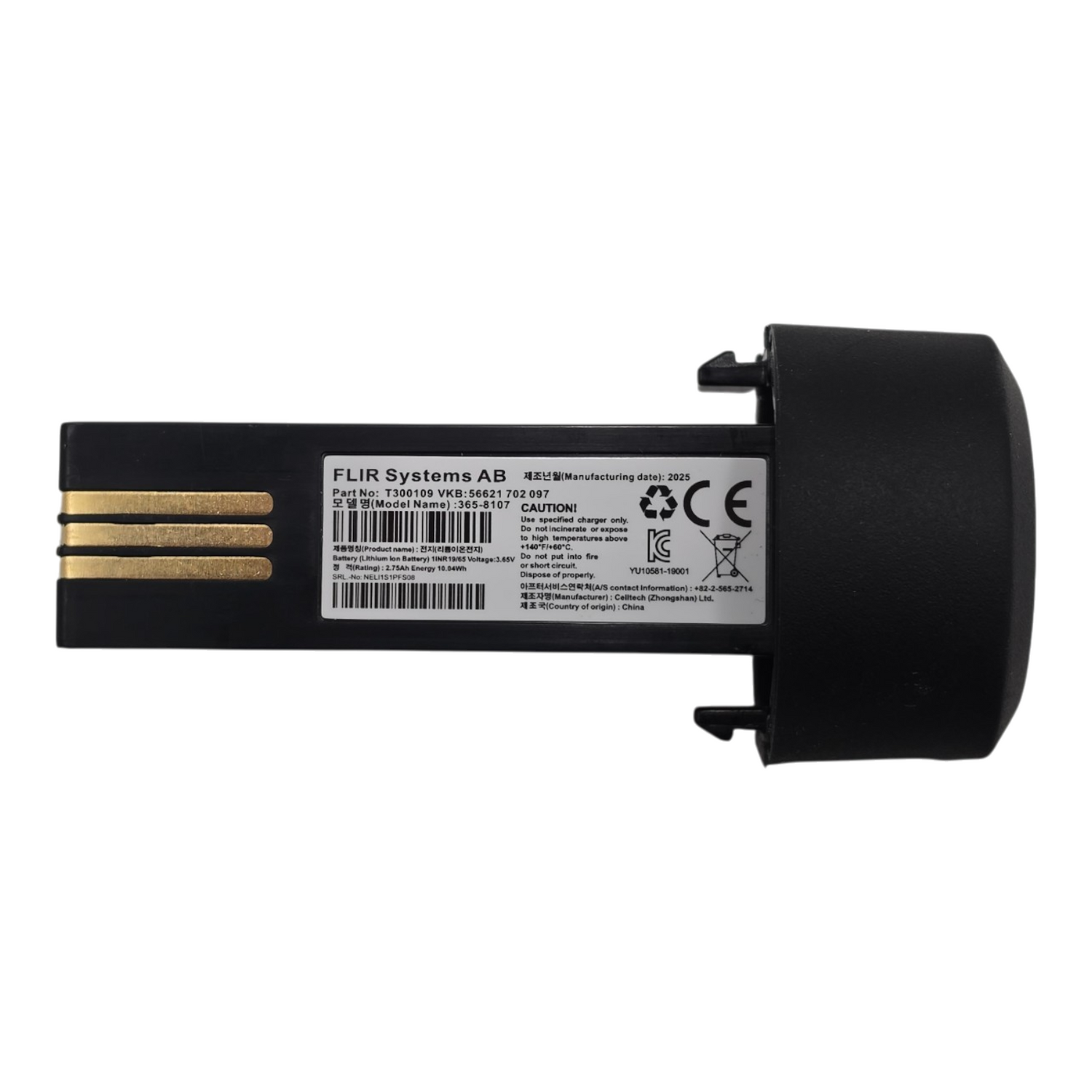

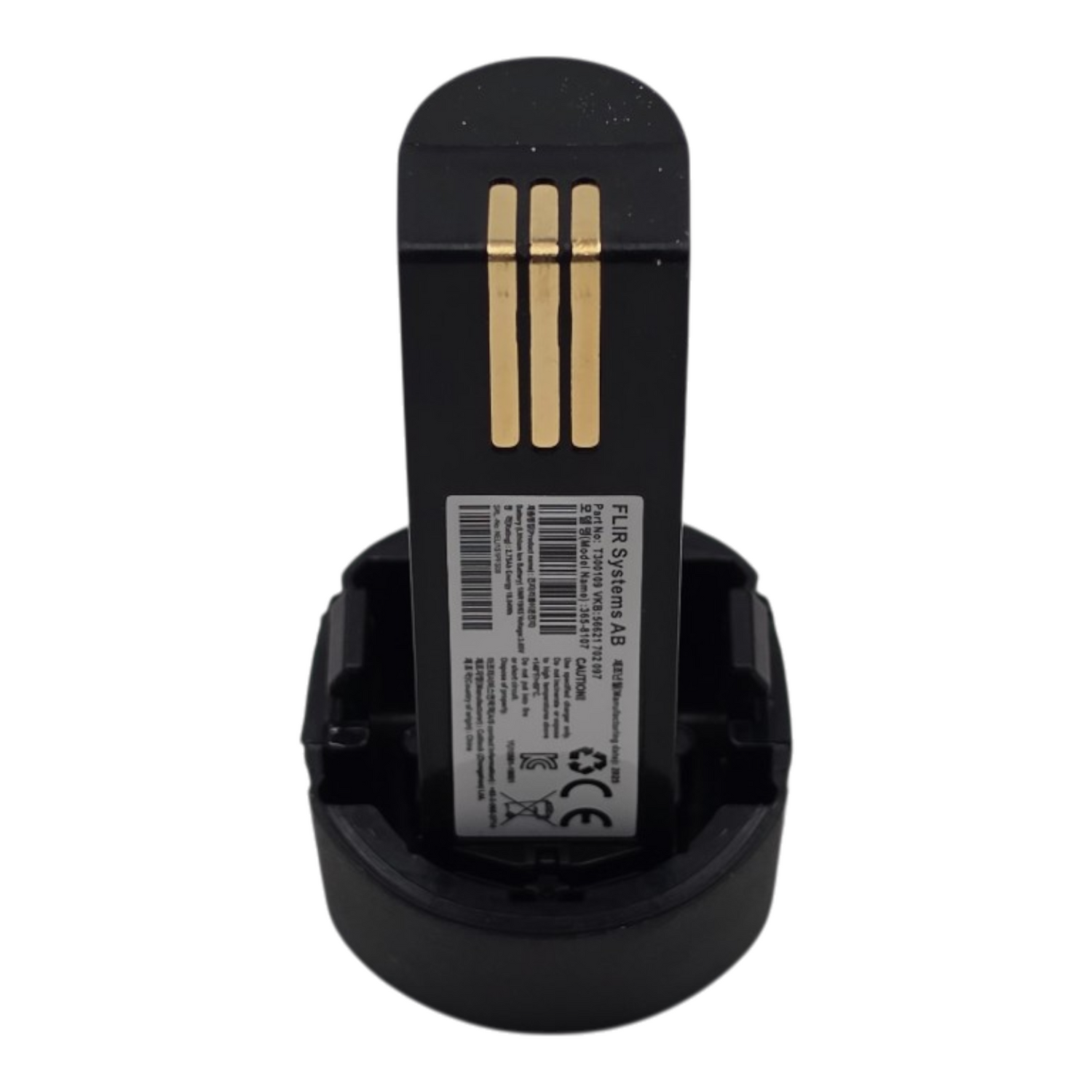

- 2 x Battery Li-ion 3.6 V, 2.6 Ah, 9.4 Wh

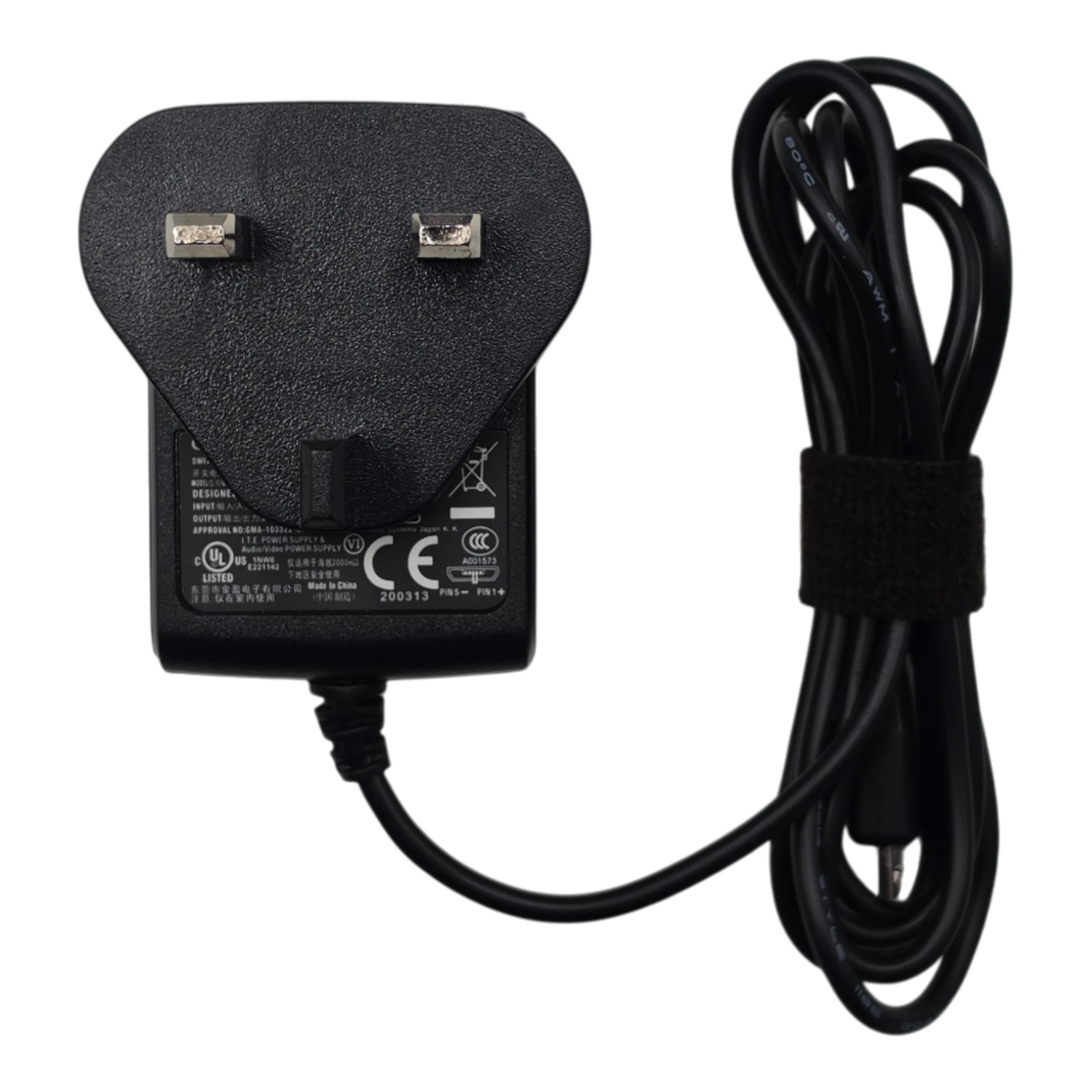

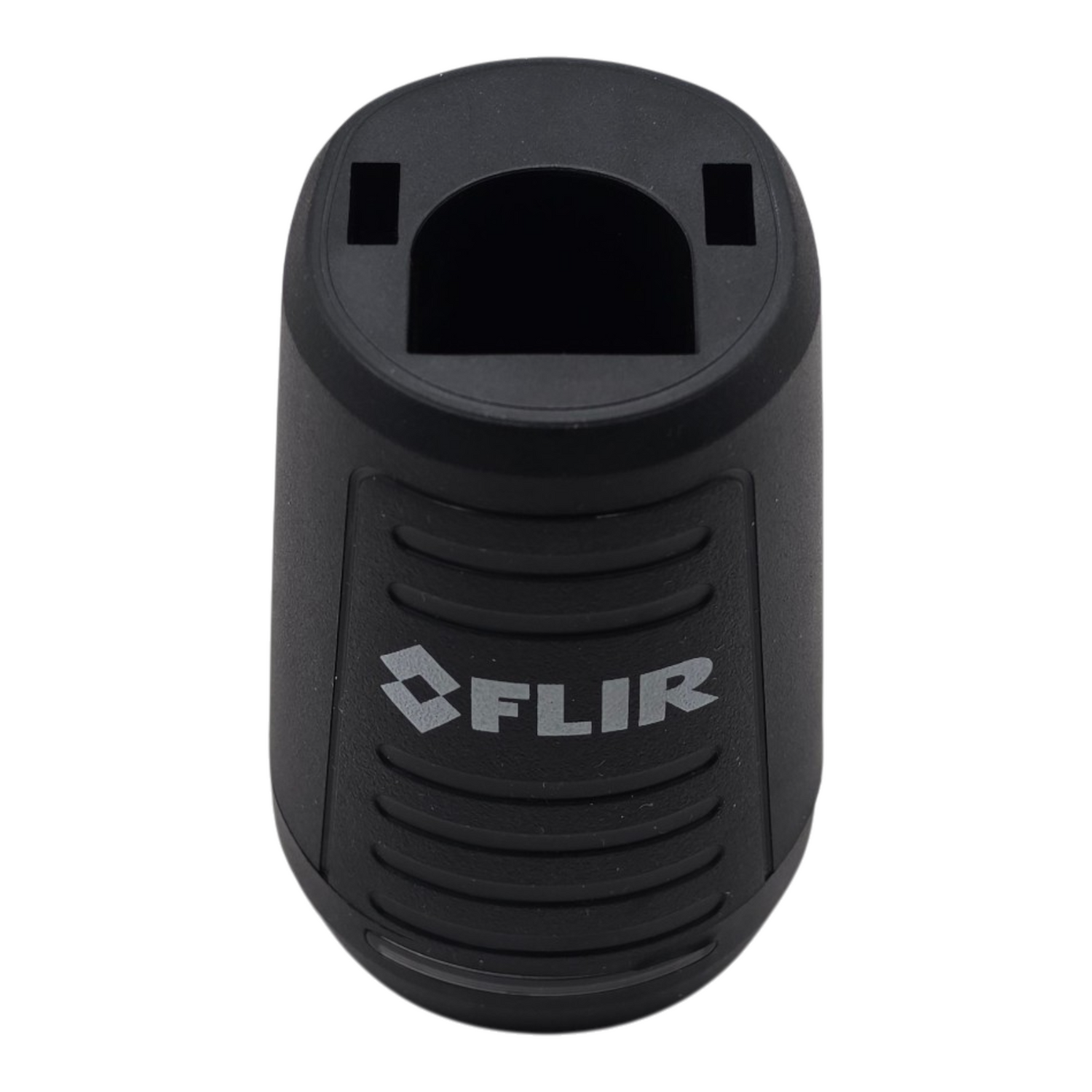

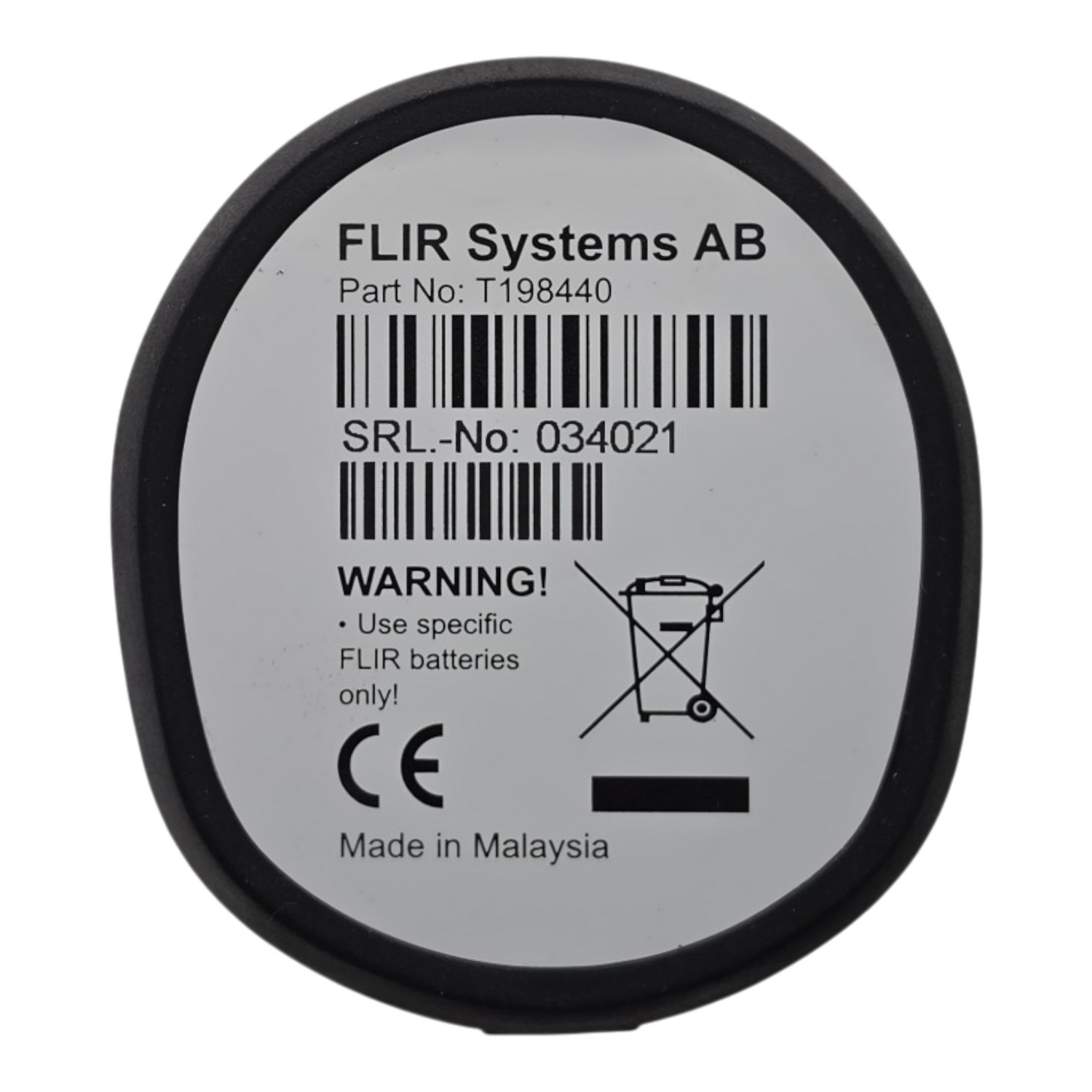

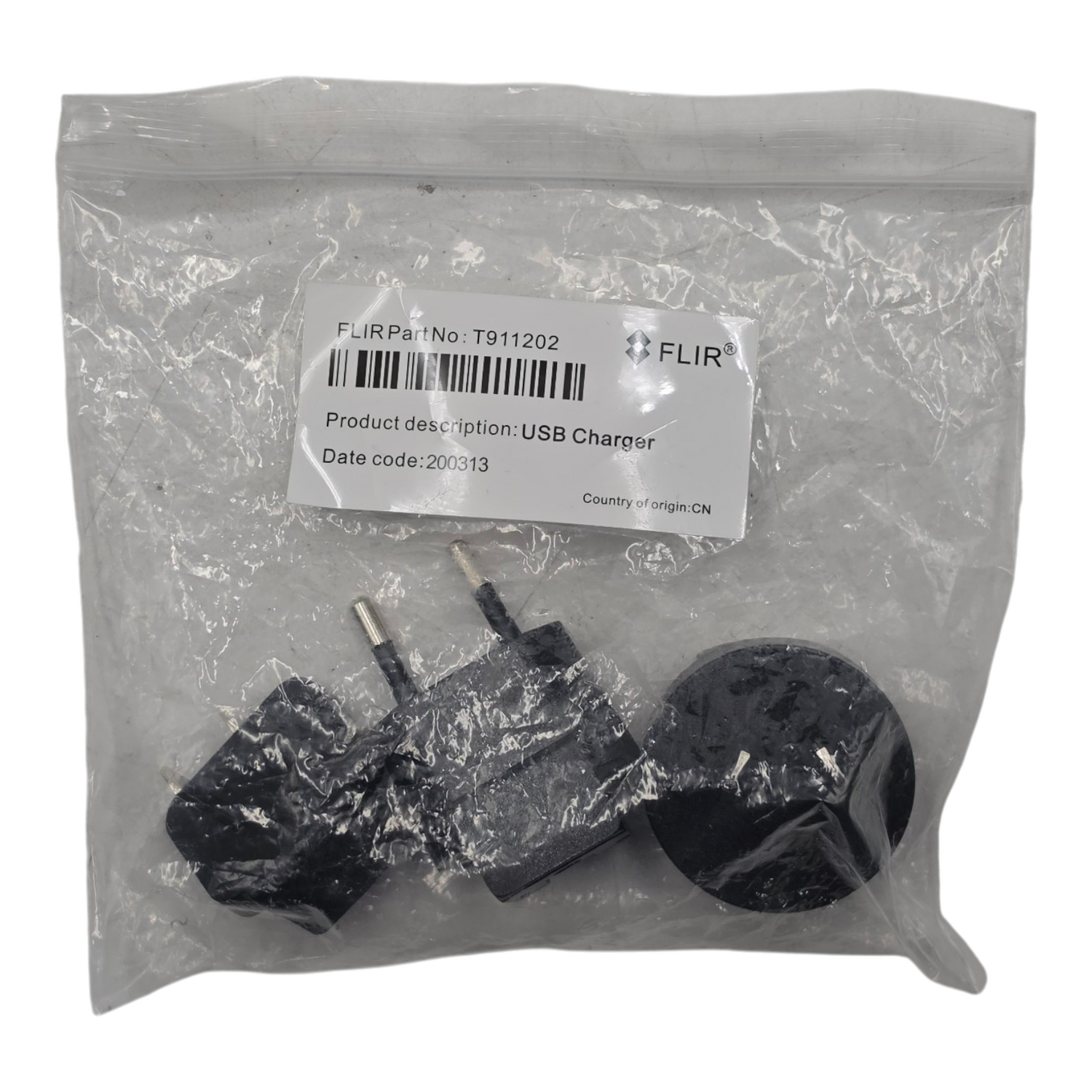

- 1 x Battery Charger & Power Supply
- 1 x Accessory Box for Ex-Series

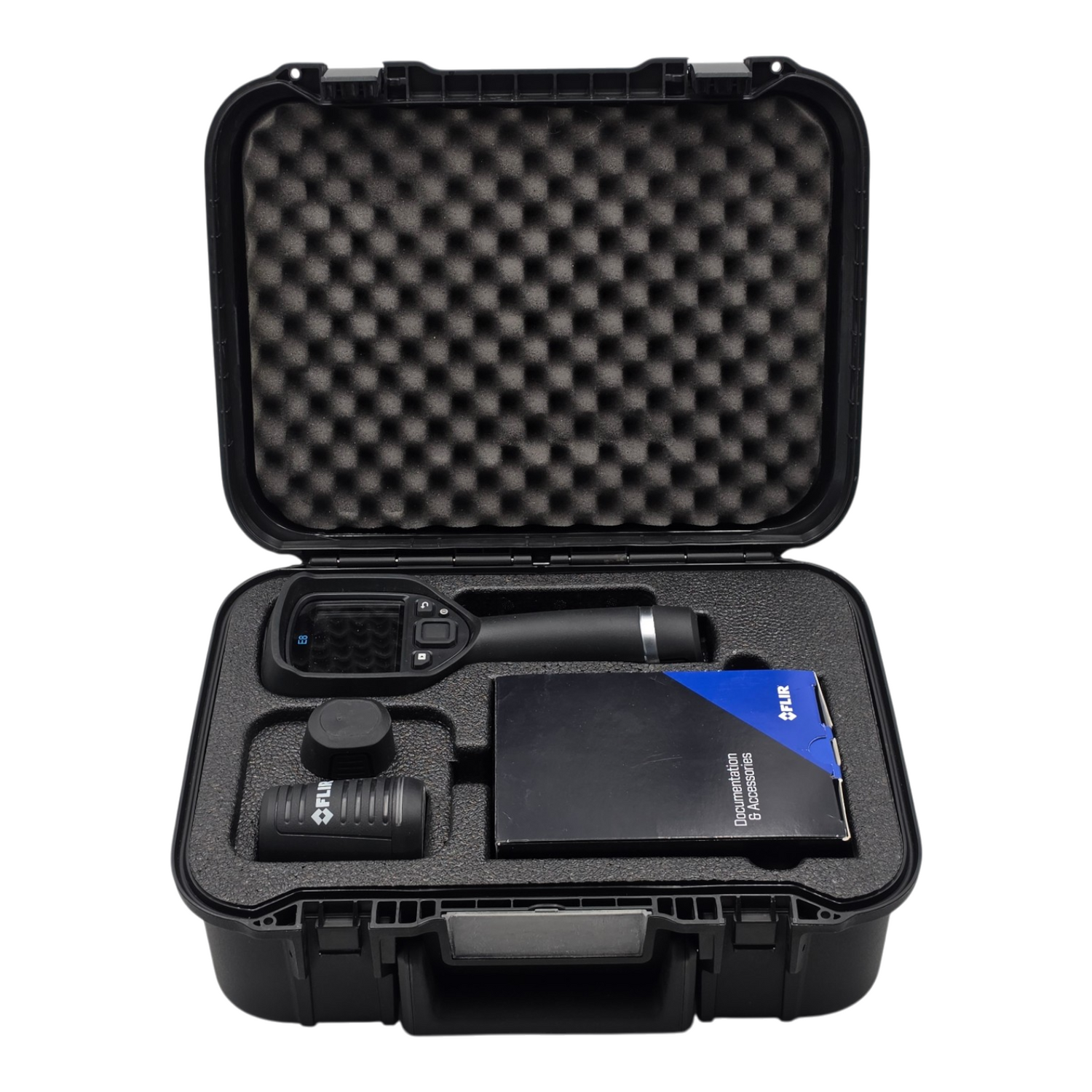

- 1 x Hard Transport Case
- IR Resolution: 320 × 240 Pixels
- Thermal Sensitivity/NETD: < 0.05°C (0.09°F) / < 50 mK
- Accuracy: ±2°C (±3.6°F) or ±2% of Reading
- Digital Camera: 640 × 480 Resolution

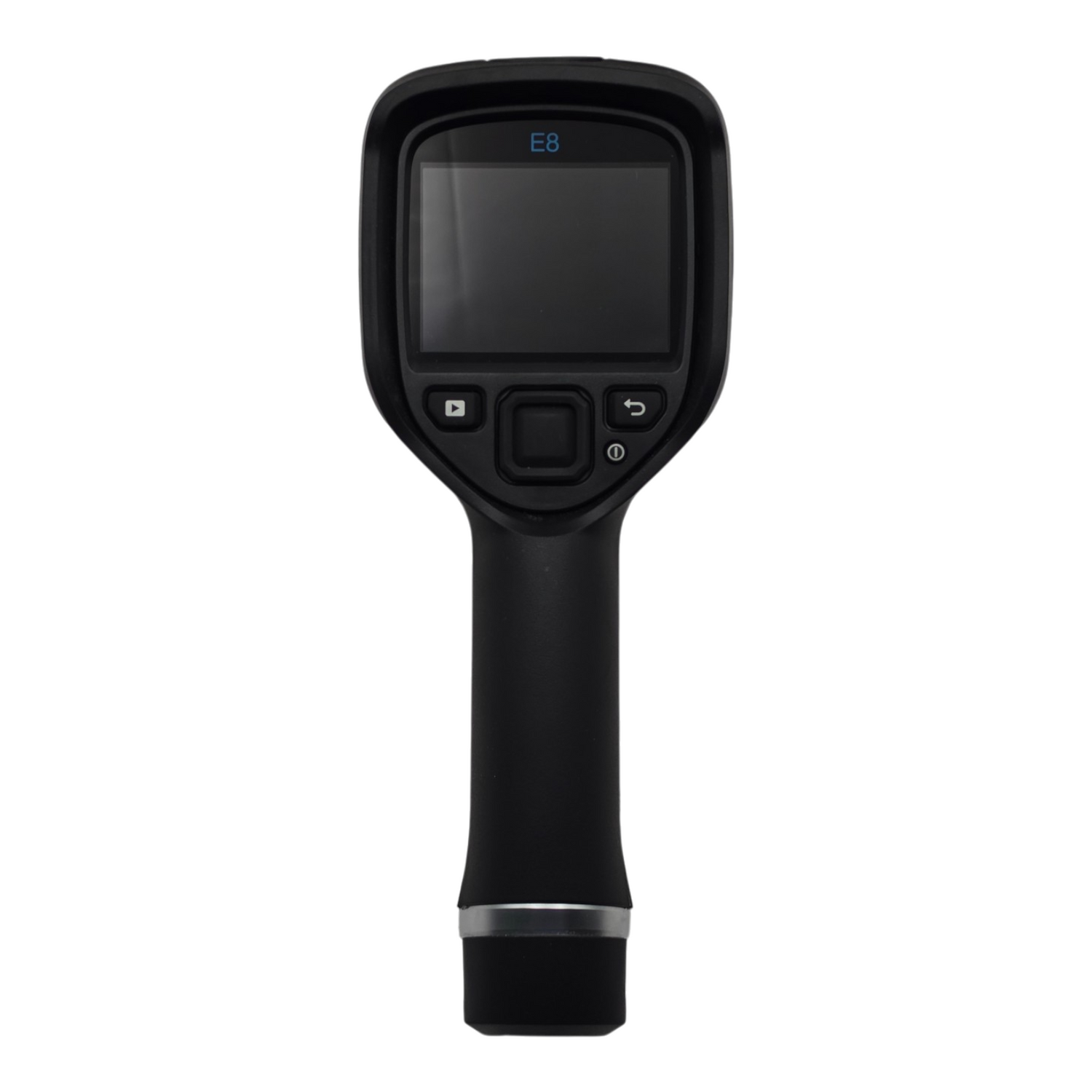

- Display: 3.0 in. 320 × 240 Colour LCD
- Storage Media: Internal Storage
Imaging & Optical
- Colour Palettes: Iron, Rainbow and Greyscale (White Hot)
- Detector Type and Pitch: Focal Plane Array (FPA), Uncooled Microbolometer
- Digital Camera: 640 × 480 Resolution, 55° × 43° FOV
- f-number: 1.5
- Focus: Focus Free
- Image Frequency: 9 Hz
- IR Resolution: 320 × 240 Pixels
- Minimum Focus Distance: 0.5 m (1.6 ft.)
- Non-radiometric IR Video Streaming: N/A
- Picture-in-Picture: IR Area on Visual Image
- Spectral Range: 7.5–13 µm
- Thermal Sensitivity/NETD: < 0.05°C (0.09°F) / < 50 mK
Measurement & Analysis
- Accuracy: ±2°C (±3.6°F) or ±2% of Reading, for Ambient Temperature 10°C to 35°C (+50°F to 95°F) and Object Temperature Above +0°C (+32°F)
- Measurement Presets: Isotherm (Above Alarm, Below Alarm), Area (Box with Max./Min.)
- Object Temperature Range: –20°C to +250°C (–4°F to +482°F) and 10°C to 550°C (50°F to +1022°F)
- Spot Meter: Center Spot
- Display: 3.0 in. 320 × 240 Colour LCD
- Text: Local Adaptation of Language
Communication & Data Storage
- Communication Interfaces: USB Micro, Wi-Fi (Peer-to-Peer or Infrastructure)
- Image File Format: Standard JPEG, 14-bit Measurement Data Included
- Image Storage Mode: Thermal MSX, Thermal, Picture-in-Picture, Thermal Blending, Digital Camera
Power
- Battery Operating Time: Approx. 4 Hours at +25°C (+77°F) Ambient Temperature and Typical Use
- Battery Type: Rechargeable Li-ion Battery (3.6 V)
Environmental & Certifications
- Operating Temperature Range: –15°C to +50°C (+5°F to +122°F)
- Safety: Camera: IEC/EN60950-1, Power Supply: UL, CSA, CE, PSE, CCC, and SAA
- Storage Temperature Range: –40°C to +70°C (–40°F to +158°F)
