SKC 210 1002MTX Pocket Air Sampling Pump Kit of 4 + 1 Faulty with 5 Unit Charger

Brand: SKC
Type: Air Sampling Pump
MPN: 210-1002MTX-K5, 210-1002MTX, 223-107A, 222-3-1
Country of Origin: United States
SKC 210-1002MTX Pocket Air Sampling Pump Kit of 4 + 1 Faulty with 5 Unit Charger
Model: 210-1002MTX

In good condition and In full working order
4 Working Pumps + 1 Faulty Pump
Tested

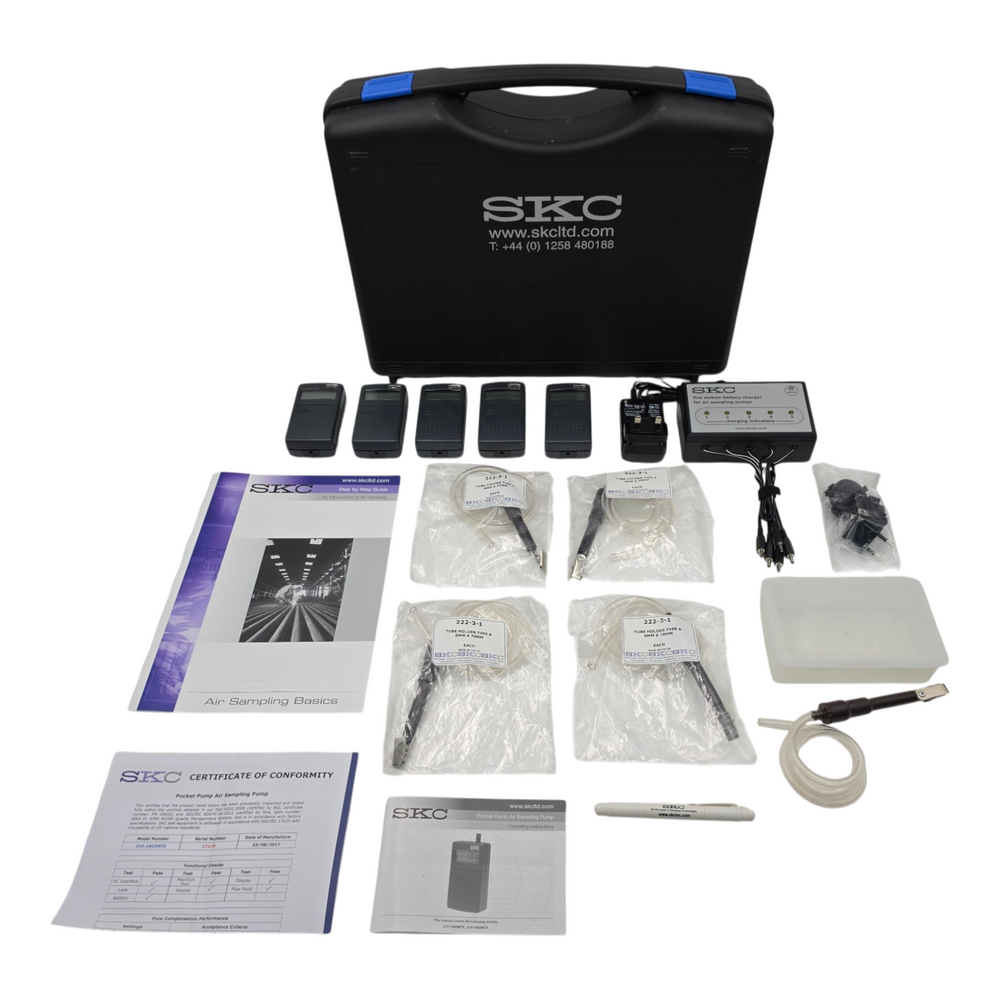

Included Items

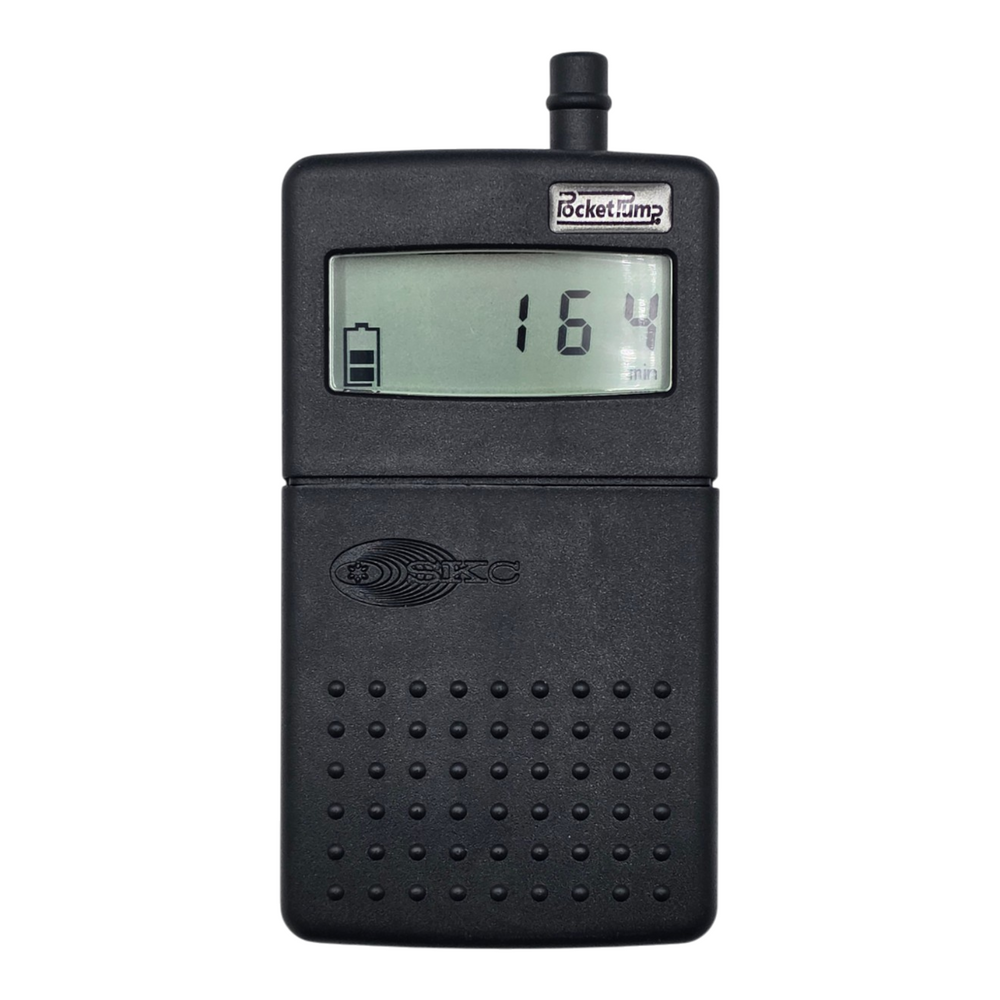

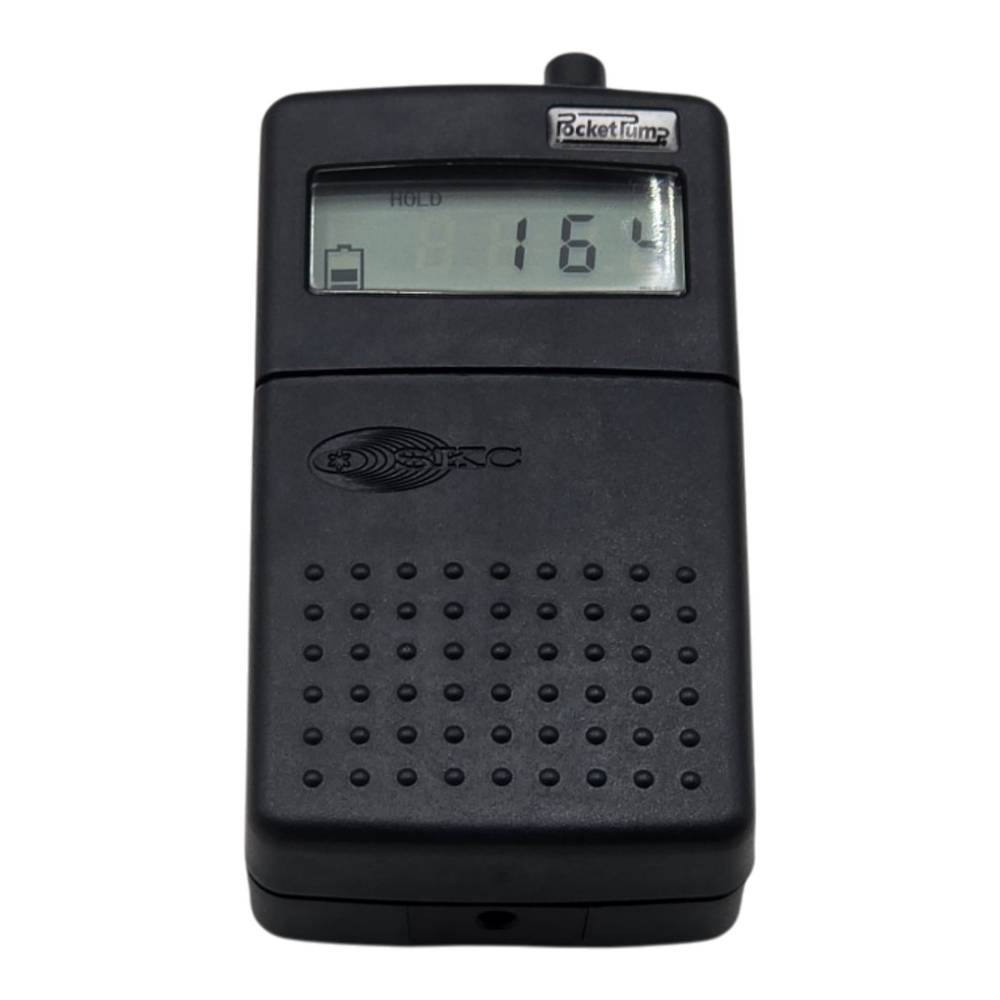

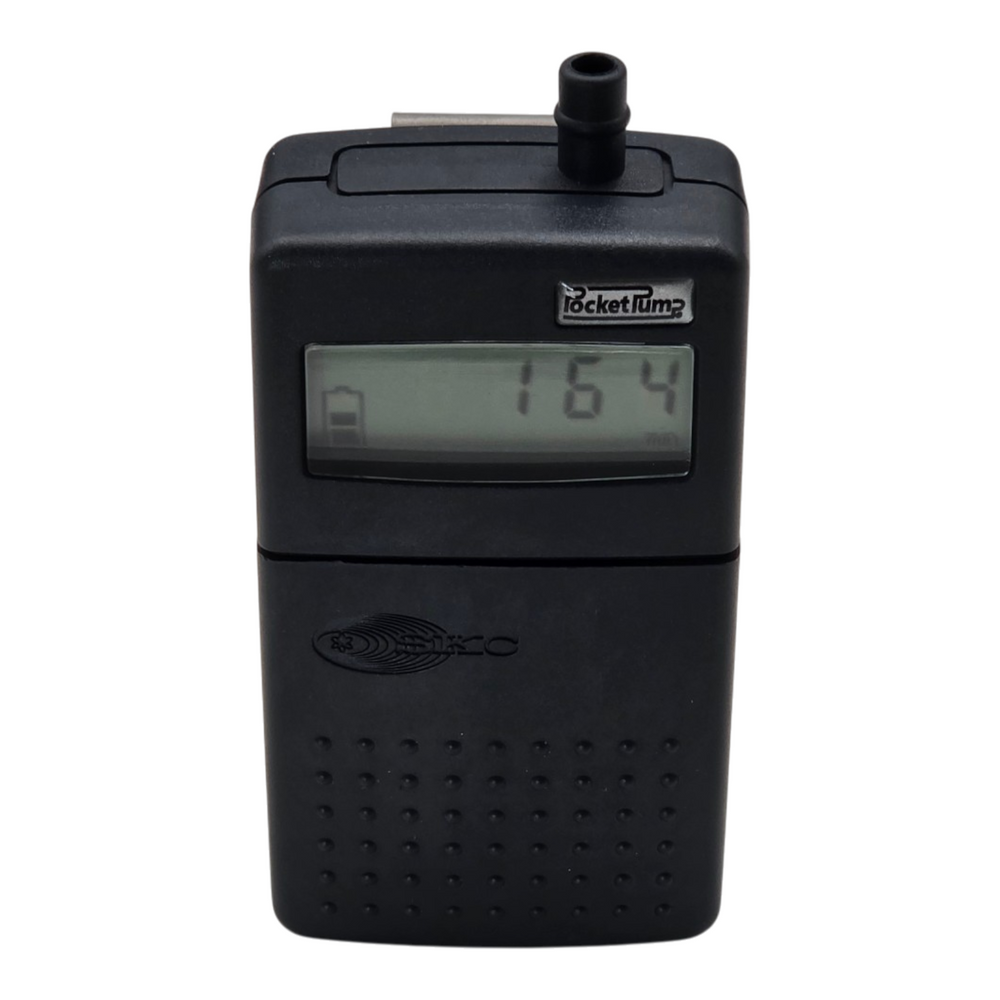

4 x 210-1002MTX Pocket Pump Air Sampling Pump
1 x FAULTY 210-1002MTX Pocket Pump Air Sampling Pump (Requires New Battery and Calibration Service)

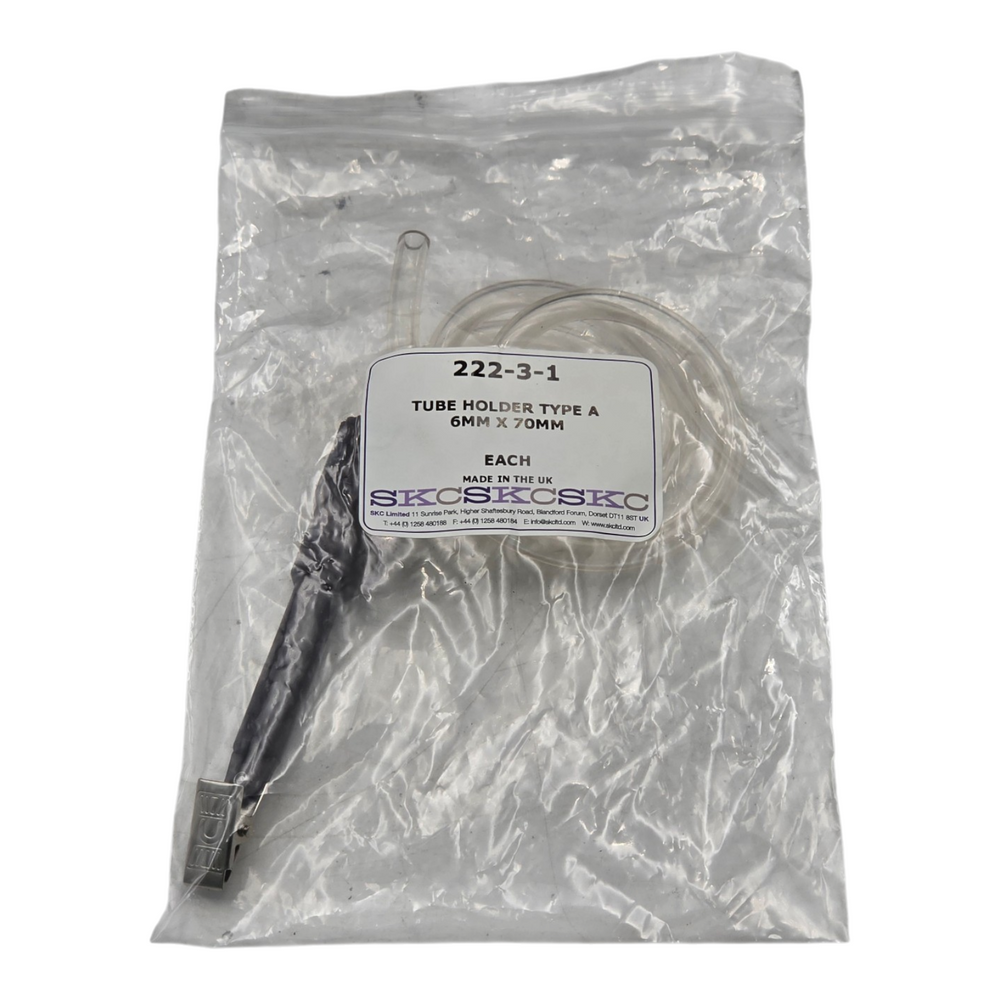

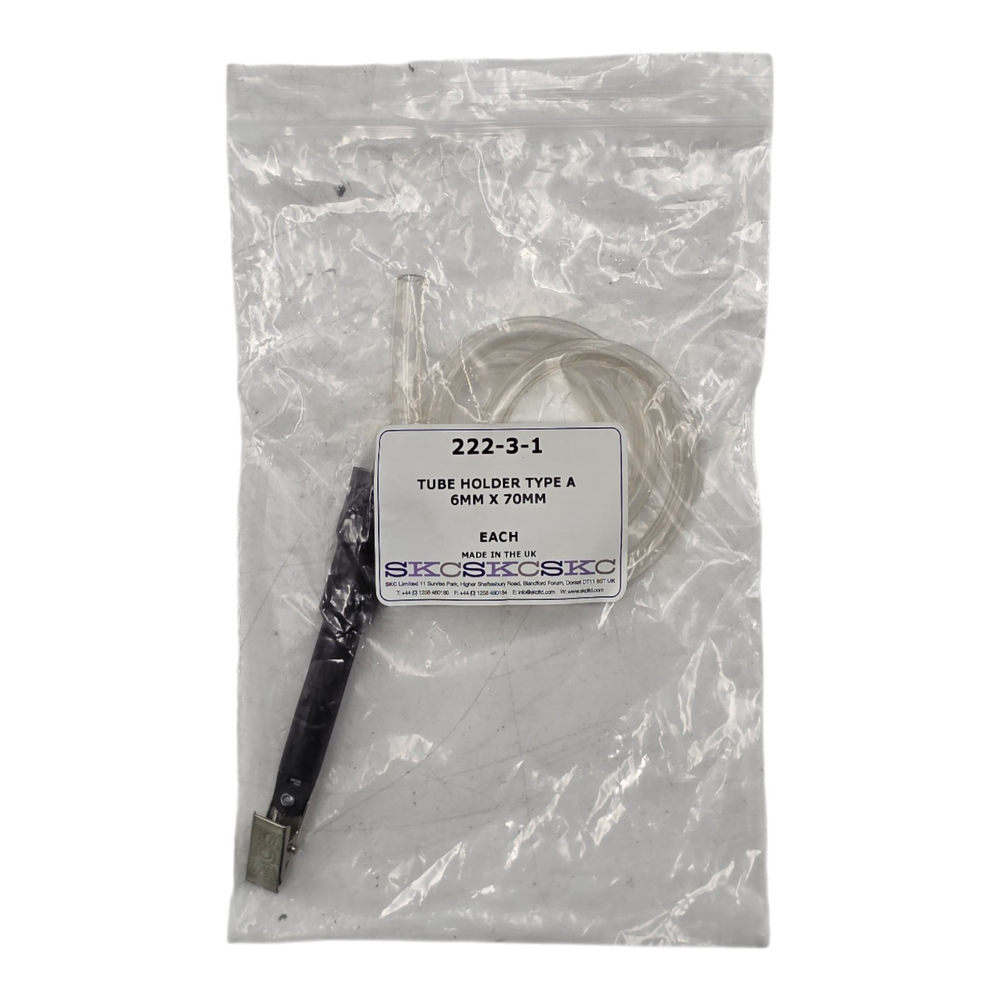

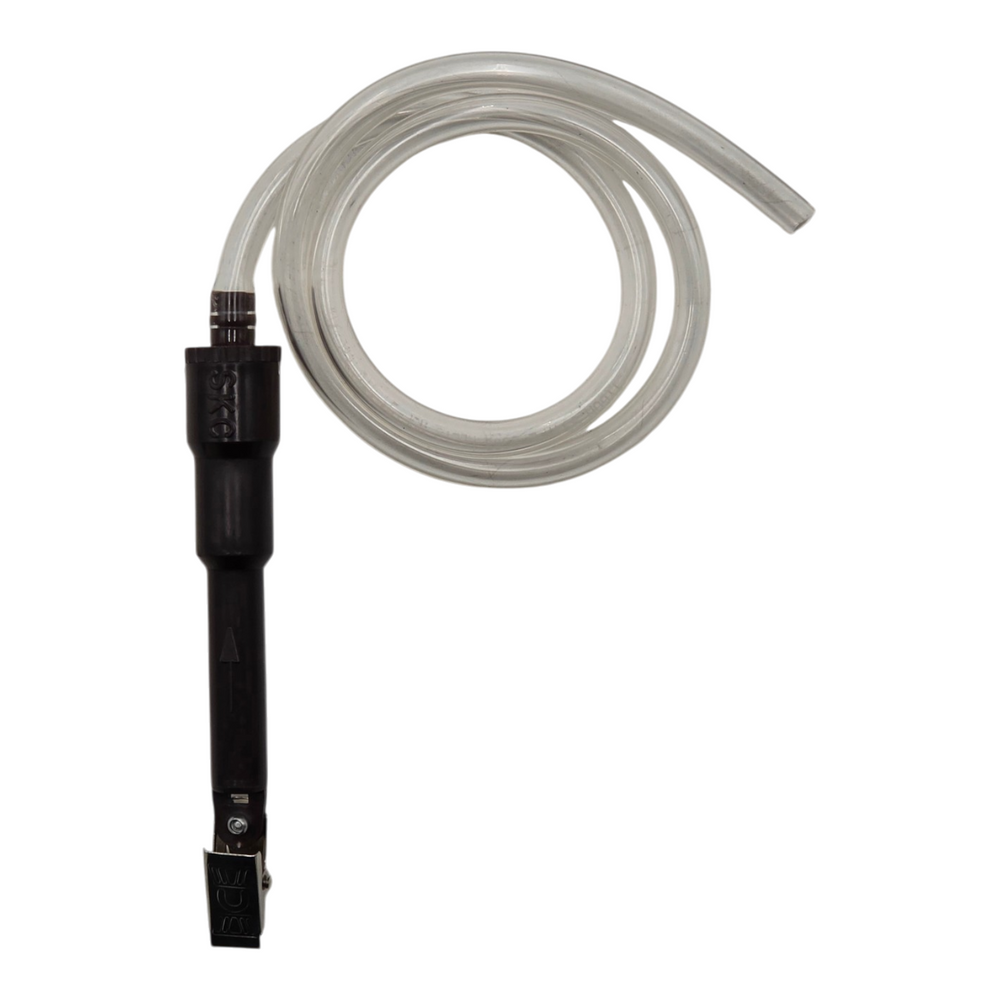

5 x Tube Holder Type A 6mm x 70mm

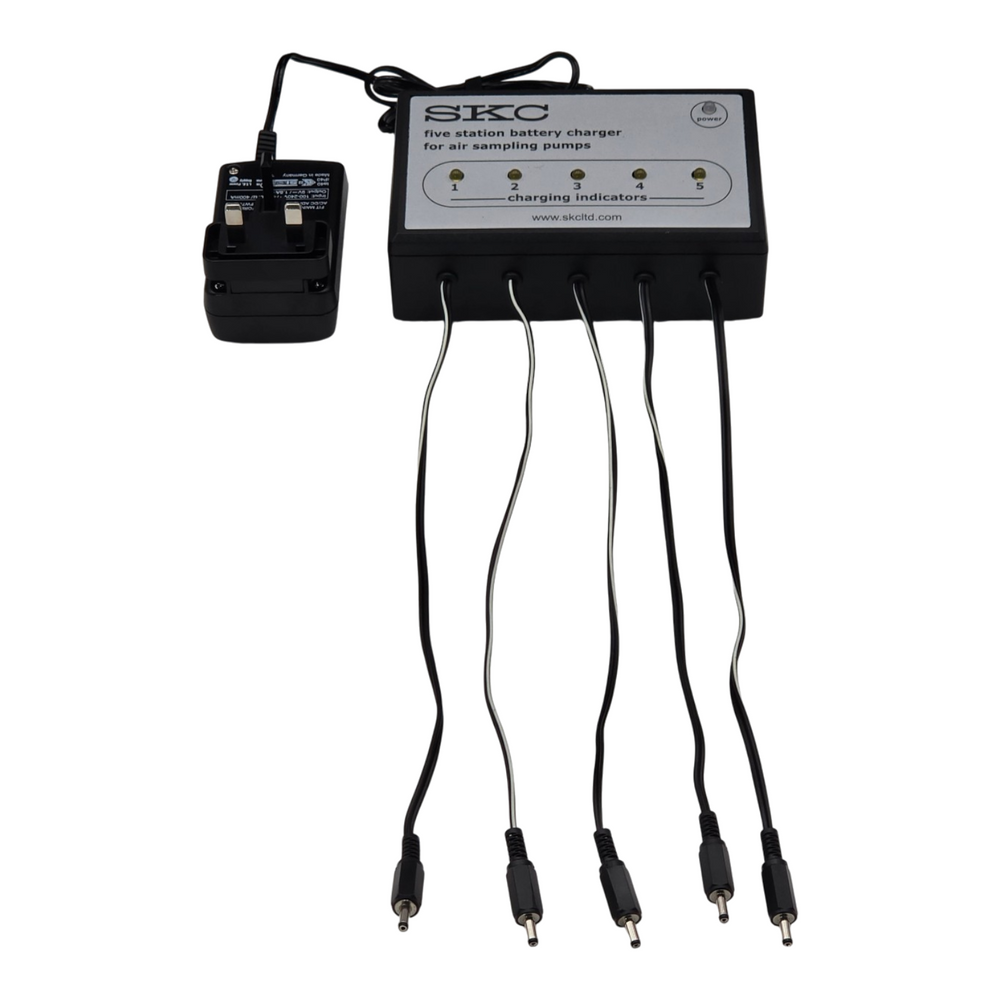

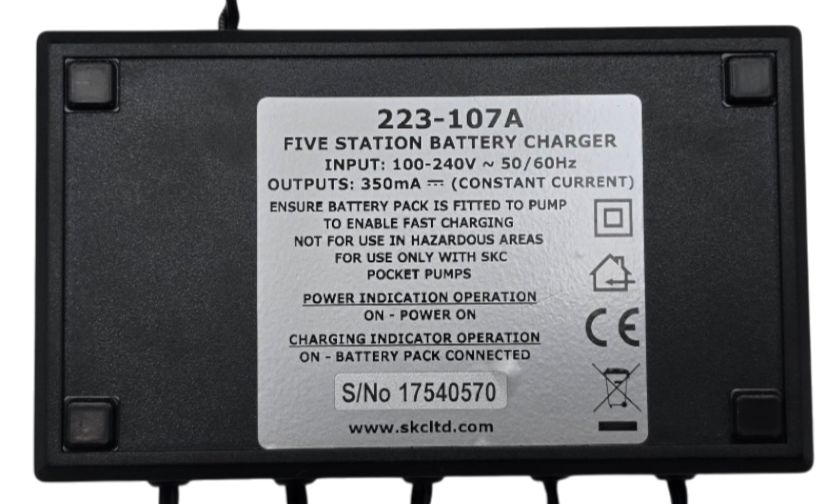

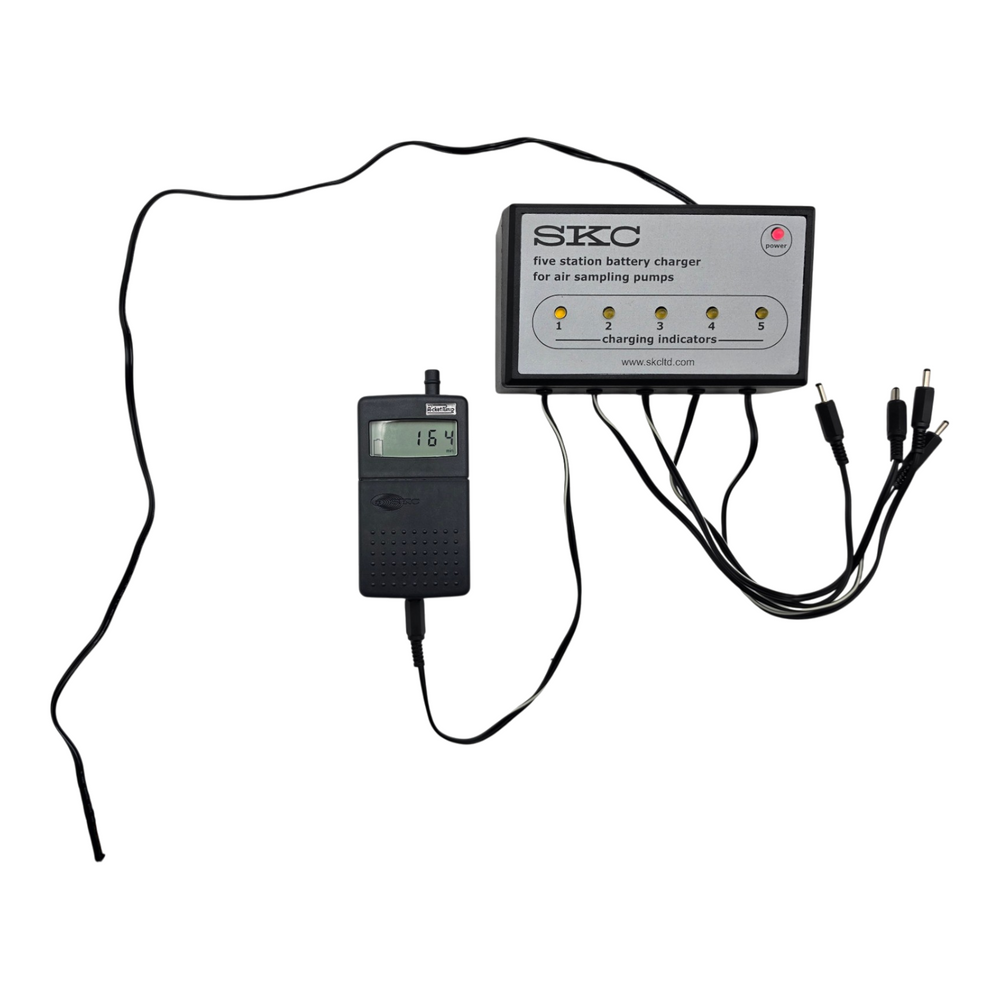

1 x Five Station Battery Charger

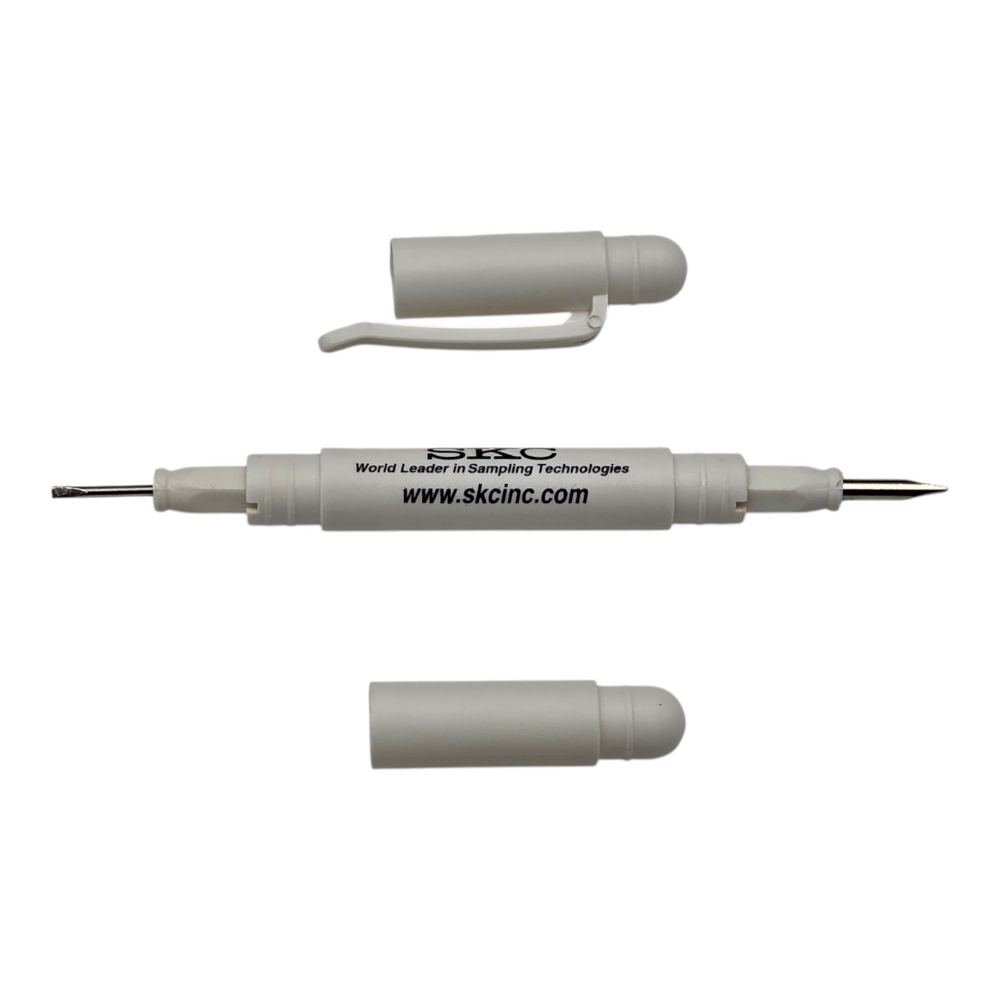

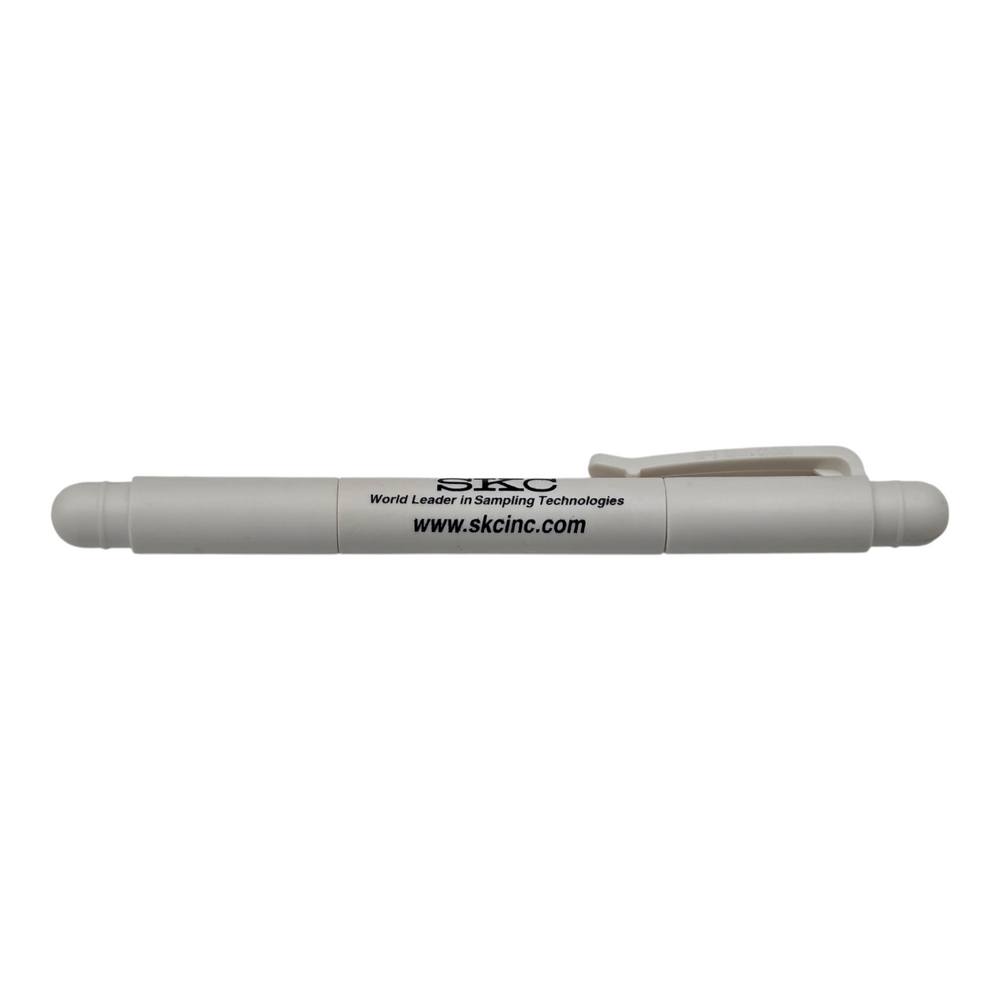

1 x SKC Double Ended Flathead Screwdriver Tool

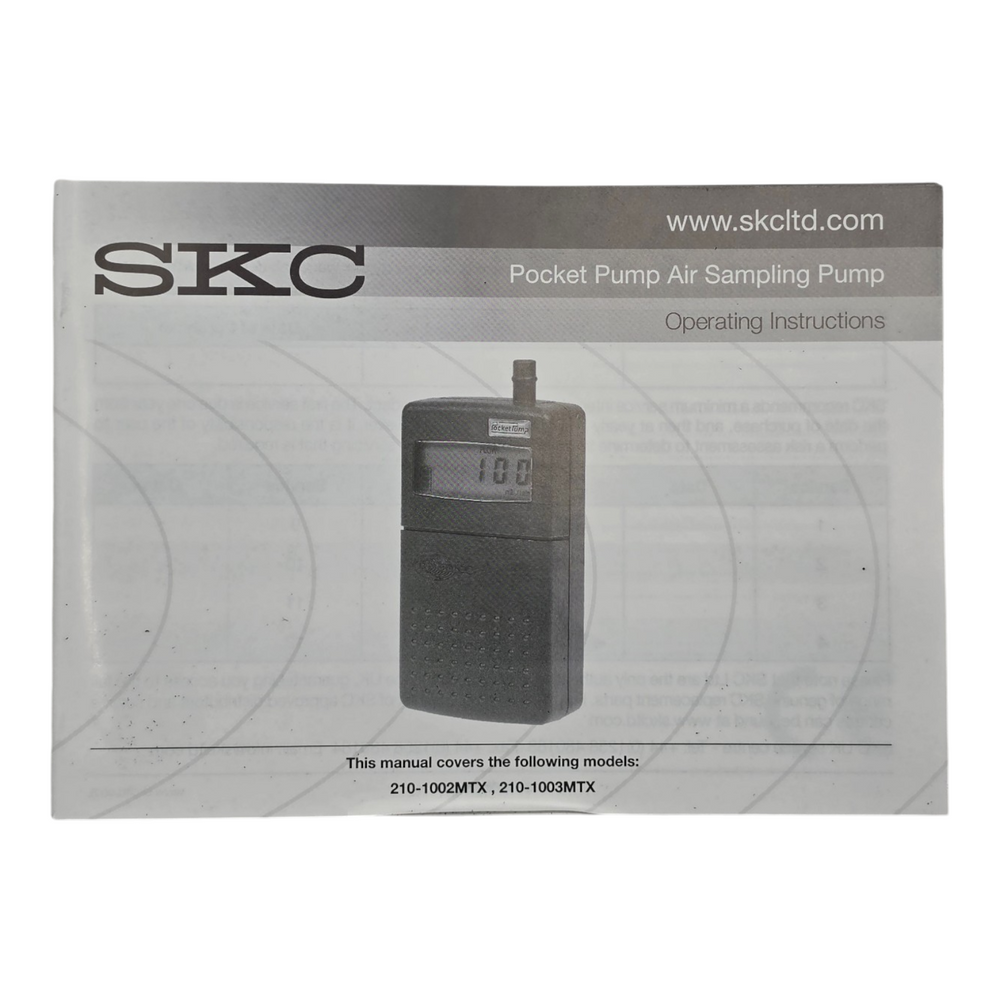

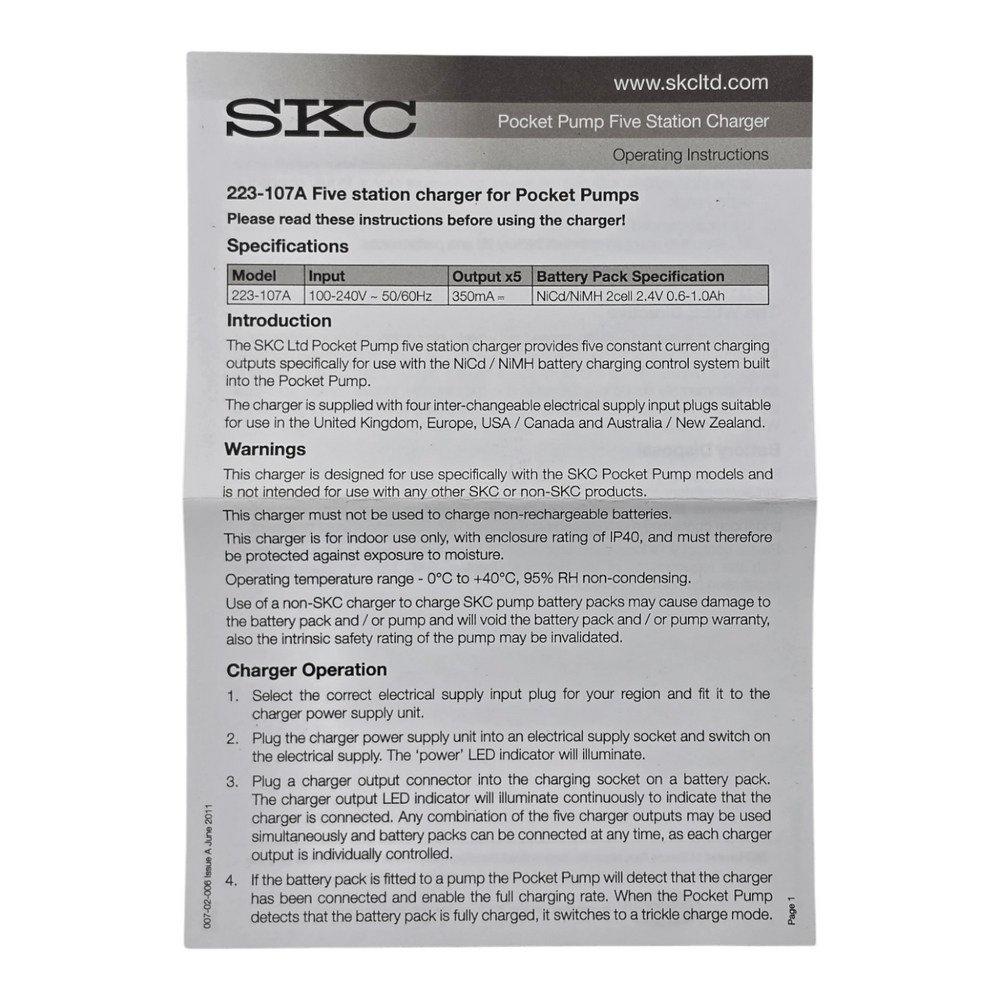

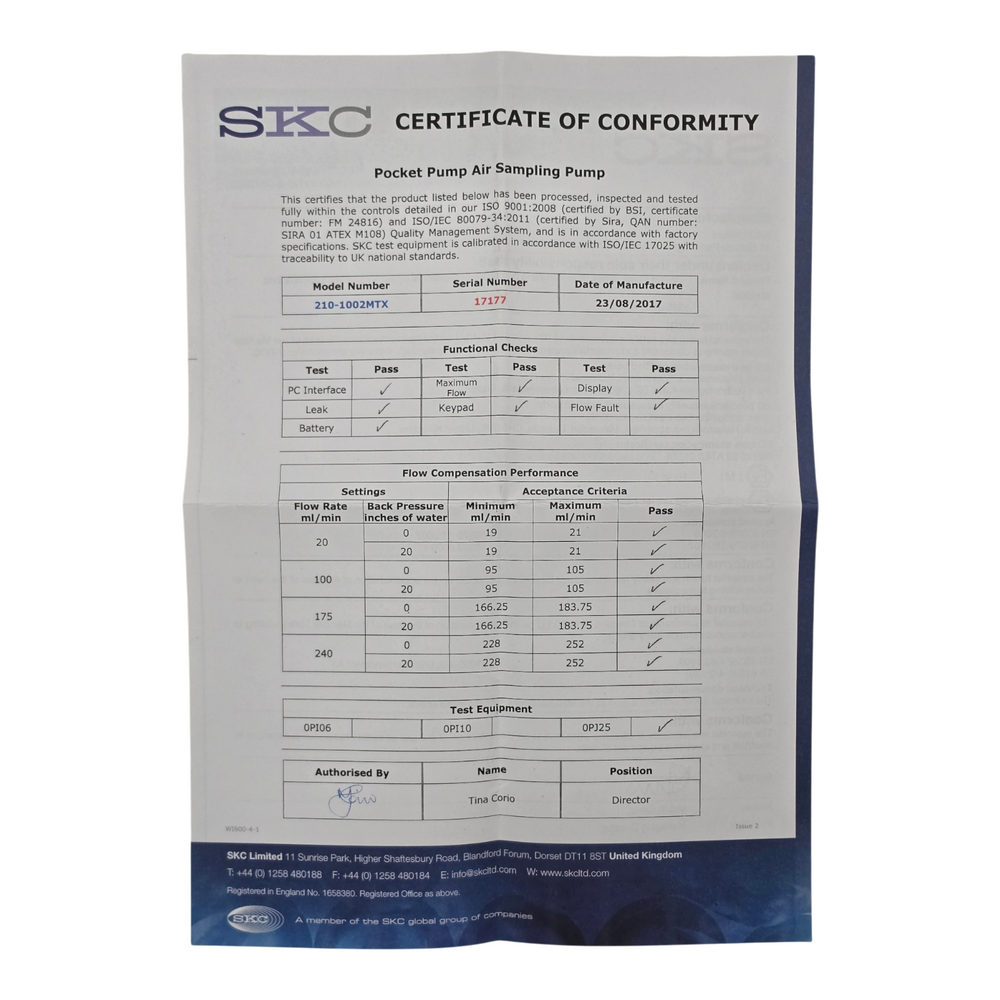

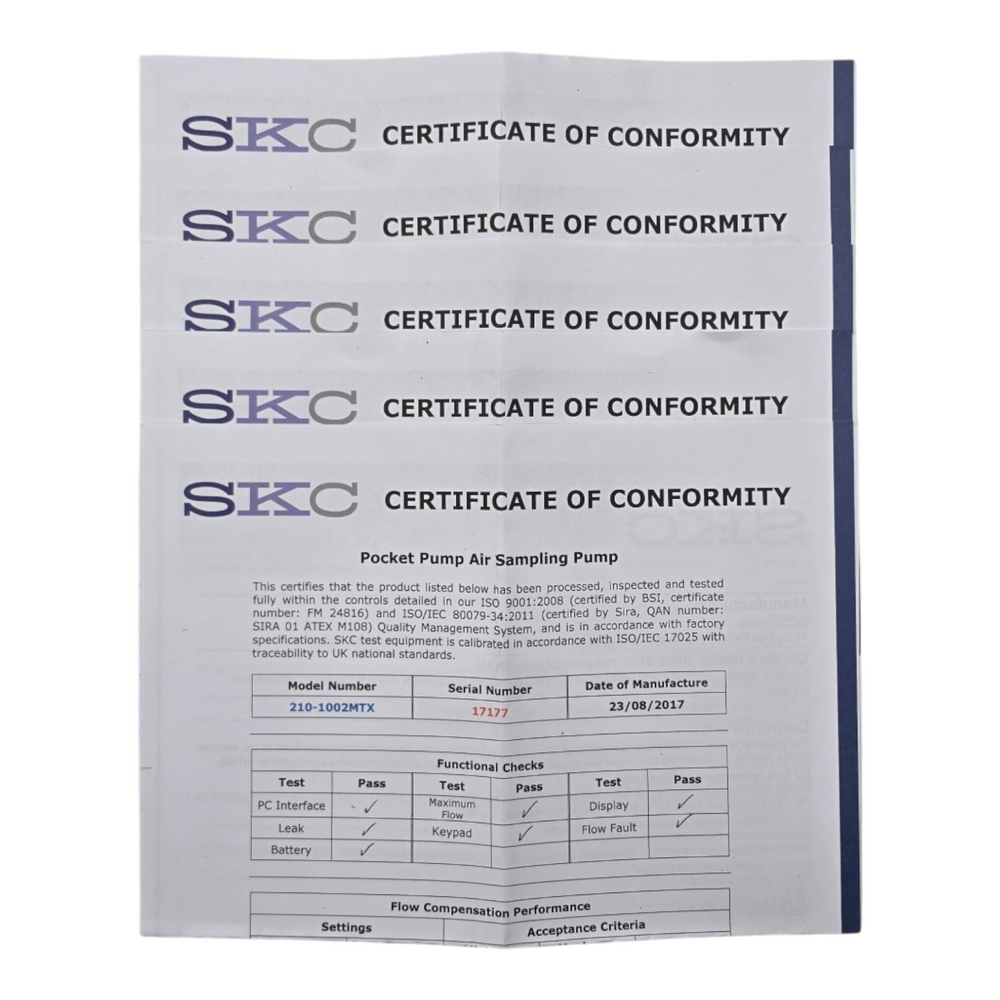

5 x Documentation Bundle (Certificate, Air Sampling Basics, Operating Instructions)
1 x Rugged Transport Case

Specifications
Manufacturer: SKC Ltd
Flow Compensation Accuracy: ±5% of flow set point after calibration
Constant Flow Compensation Range: 0 to 508 mm water (0 to 20 inches water) at 20 to 225 ml/min flow
Constant Pressure Range: 25.4 to 508 mm water (1 to 20 inches water)
Pressure Control Accuracy: ±12.7 mm water / ±0.25 mmHg (±0.5 inches water)
Timer Display Range: 0 to 9999 min display capacity
Timer Display Accuracy: ±1%
Casing Protection: IP54 rated housing
Weight per Pump: 170 grams (6 ounces)

Key Features
Low Flow Range: 20 to 225 ml/min constant flow
Multi-tube Sampling: Constant Pressure mode provides built-in control for multiple tubes
PC Connectivity: Programmable with optional DataTrac USB adapter cable and PC software
Advanced Programming: DataTrac enables timed sample runs, delayed starts, and intermittent sampling
Liquid Crystal Display: LCD screen indicates run-time data, operating modes, faults, and battery state
Keypad Protection: Controls situated beneath a sliding cover to prevent accidental actuation
Security Code: Protects operating parameters and flow settings from unauthorised changes

Power and Battery Profile
Battery Pack Type: Rechargeable NiMH (2.4 V, 1.0 Ah)
Run Time (Flow 20 ml/min): 14 hours at 254 mm water (10 inches water) back pressure
Run Time (Flow 100 ml/min): 13 hours at 254 mm water (10 inches water) back pressure
Run Time (Flow 200 ml/min): 11 hours at 254 mm water (10 inches water) back pressure
Maximum Load Run Time: 10 hours at 200 ml/min with 508 mm water (20 inches water) back pressure
Smart Charging Protection: Monitored system prevents overcharging and switches to trickle rate
Fast Charge Time: Up to 6 hours when battery pack is fitted to the pump
Trickle Charge Time: Up to 24 hours when battery pack is charged external to the pump
Low Battery Safety: Automatic shutdown prevents battery degradation and retains run-time data

Environmental Parameters
Operating Temperature Range: -20 to +40 C (-4 to +104 F) for certified intrinsically safe use
Storage Temperature Range: -20 to +40 C (-4 to +104 F)
Charging Temperature Range: +5 to +38 C (+41 to +100.4 F) for fast charge rate capability
Operating Humidity Limits: 0 to 95% RH non-condensing
Flow Fault Hold Safety: Enters HOLD mode after 15 seconds of blocked or restricted flow
Automatic Flow Restart: Attempts to restart every 5 minutes until restriction clears

Compliance and Certifications
ATEX Certification: II 1G Ex ia IIB T4 Ga for explosive atmospheres
Mining Approval: I M1 Ex ia I Ma certified for mines with firedamp or coal dust
ATEX Certificate Number: INERIS 03 ATEX 0177X
EU Directive Compliance: Complies with the EU ATEX Directive 2014/34/EU
Hazardous Zone Use: Suitable for zones 0, 1 and 2 (flammable gases, vapours and mists)
Apparatus Groups: Rated for groups IIA and IIB
Temperature Classes: Rated for T1, T2, T3, and T4
Equipment Protection Levels: EPL Ga, Gb, Gc, Ma, and Mb
Environmental Compliance: EU Directive 2002/96/EC (WEEE)
Battery Compliance: EU Directive 2006/66/EC
