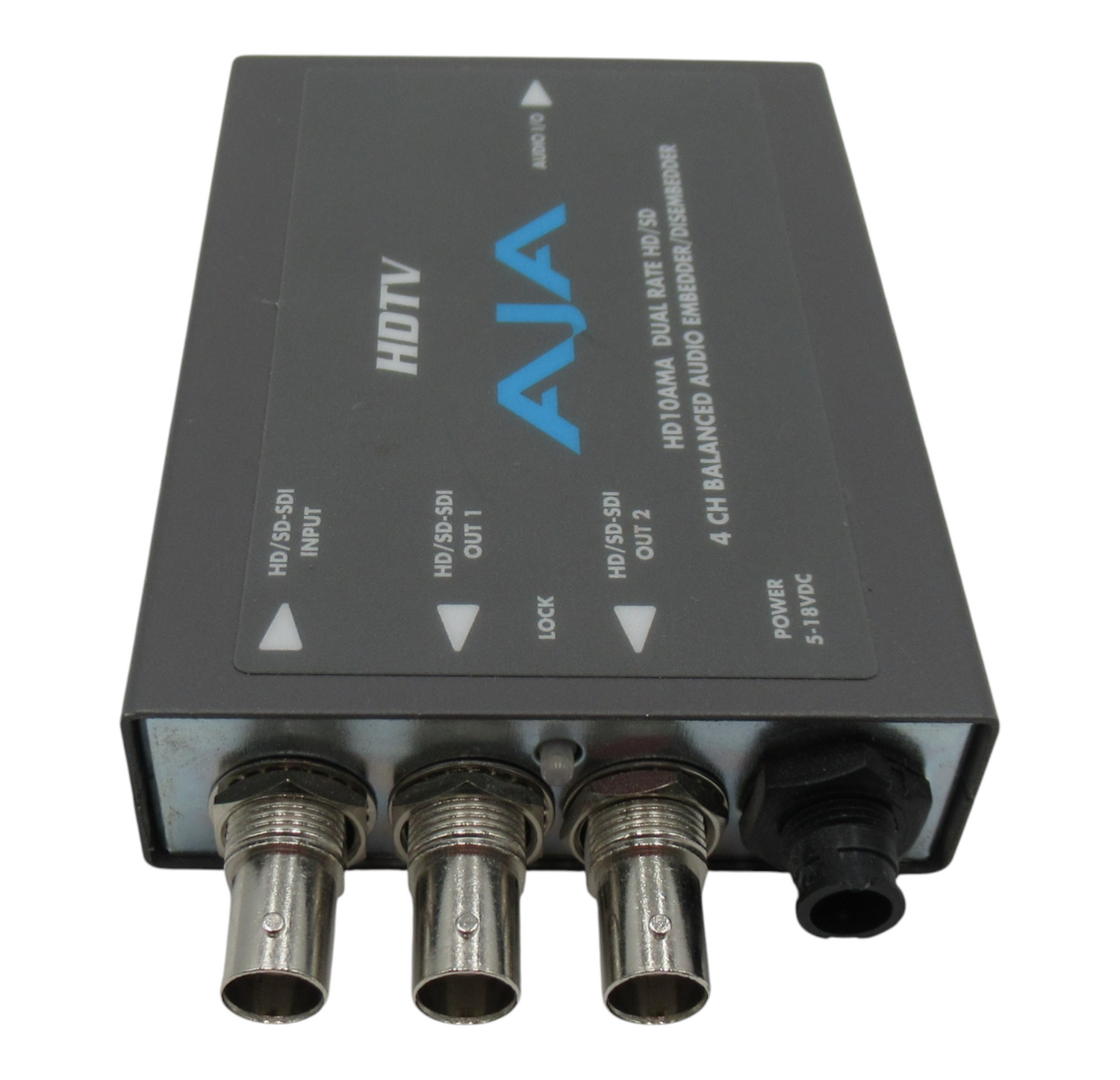

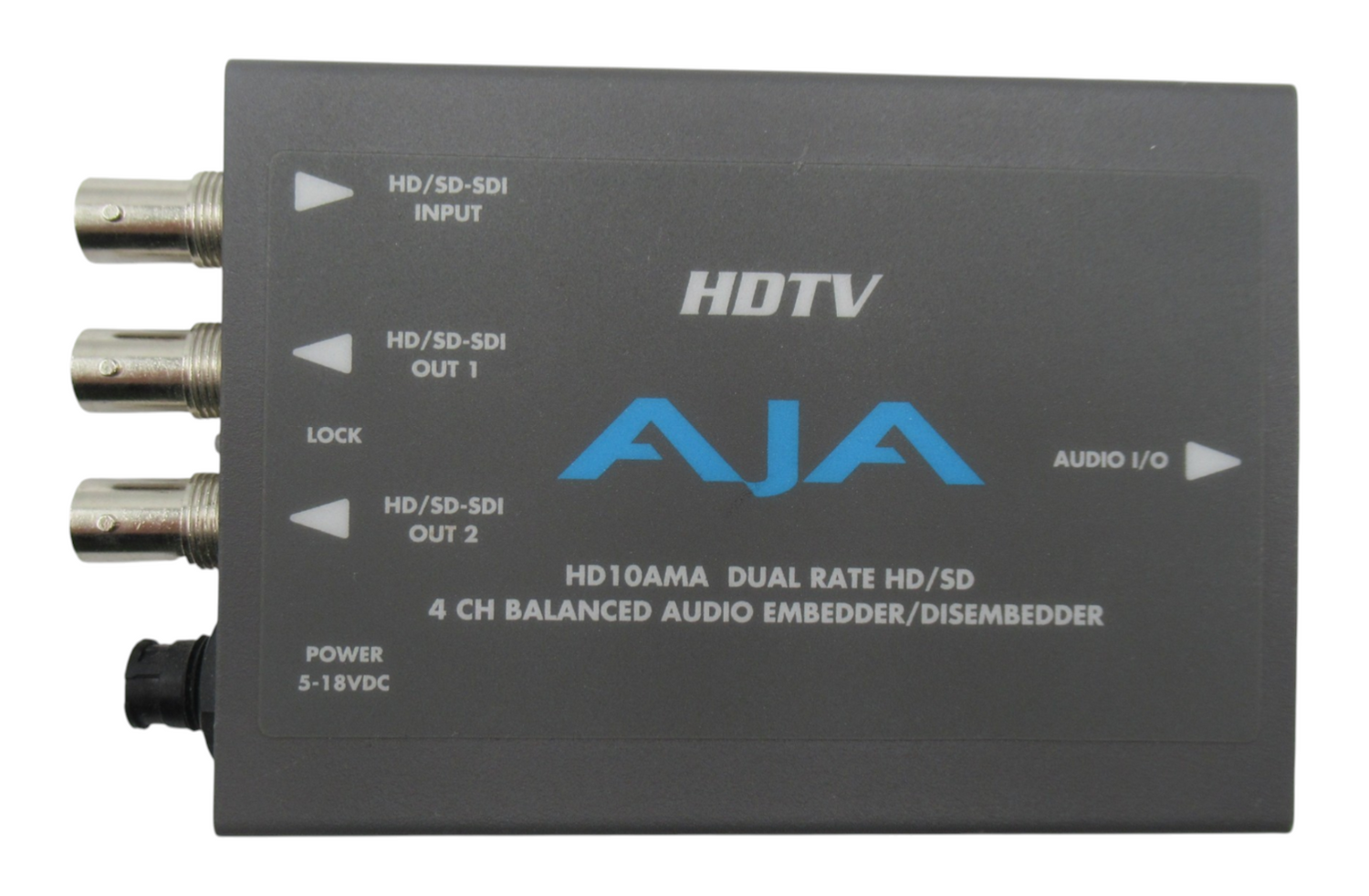

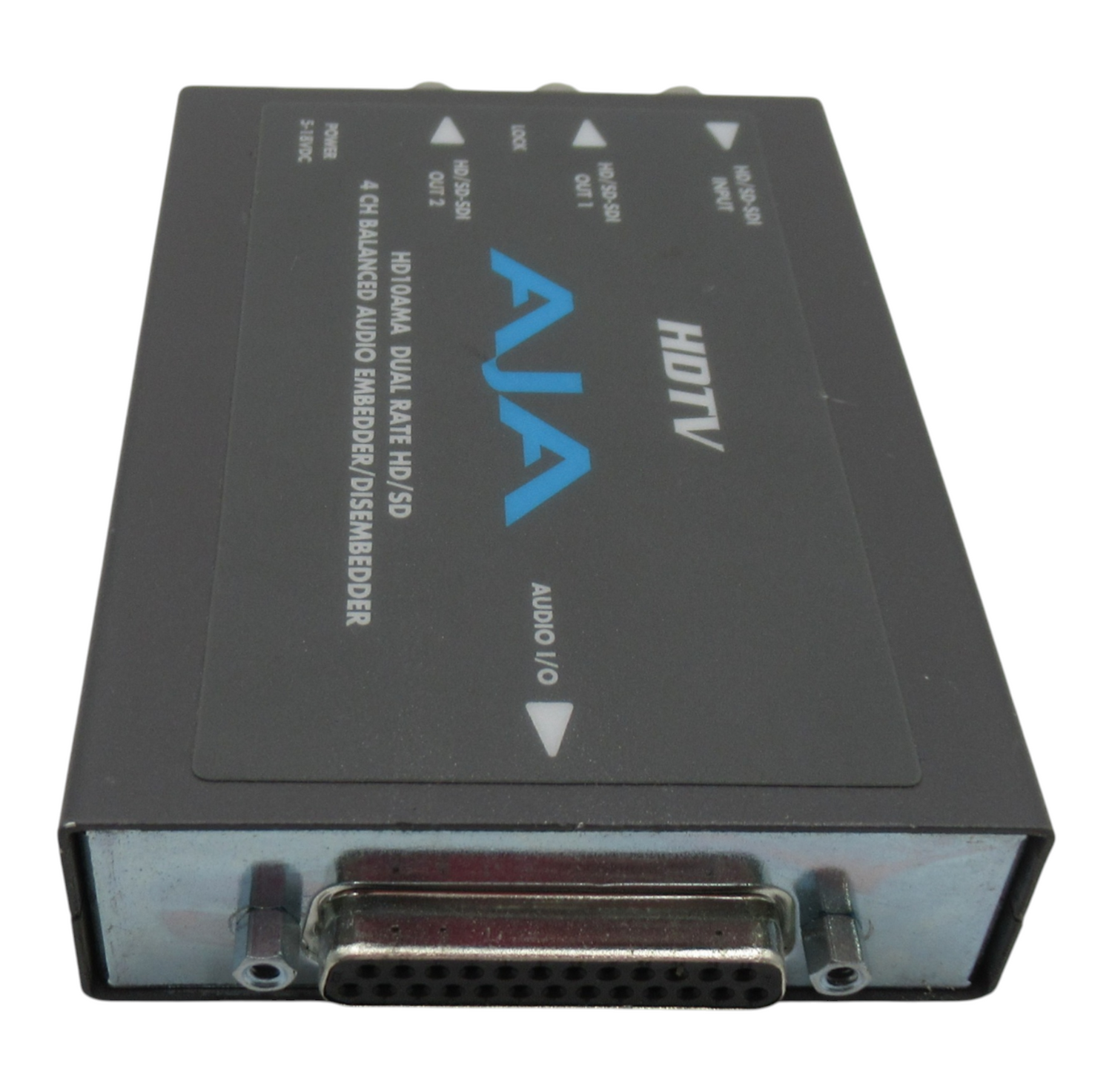

AJA HD10AMA HD/SD 4-Channel Analog Audio Embedder/Disembedder + AC Adapter

  • Pre-owned
£45.60
£38.00 ex VAT

Product overview

AJA HD10AMA HD/SD 4-Channel Analog Audio Embedder/Disembedder + AC Adapter
Model: HD10AMA

In Good Condition, Full Working Order
Tested
Includes AC Power Adapter

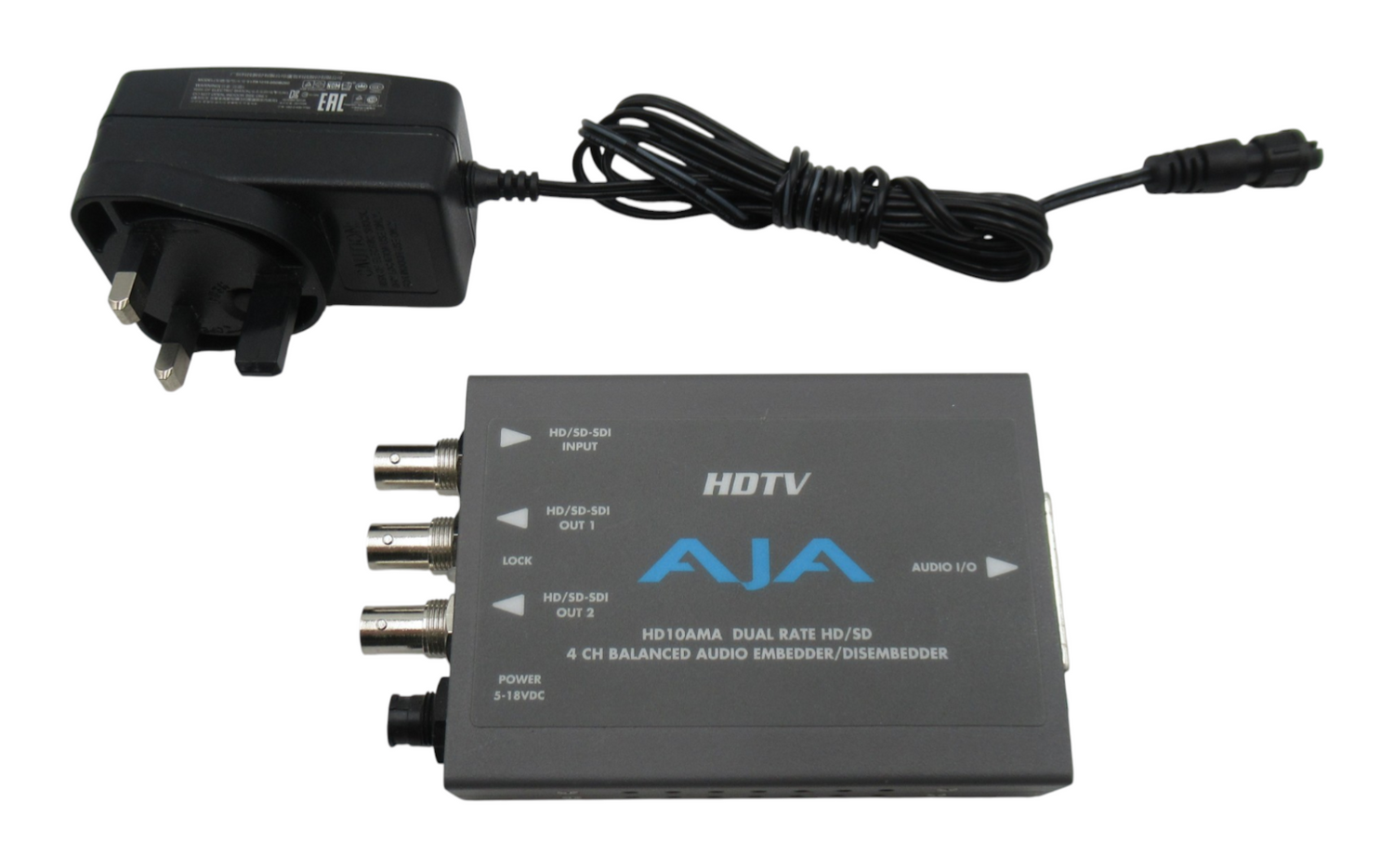

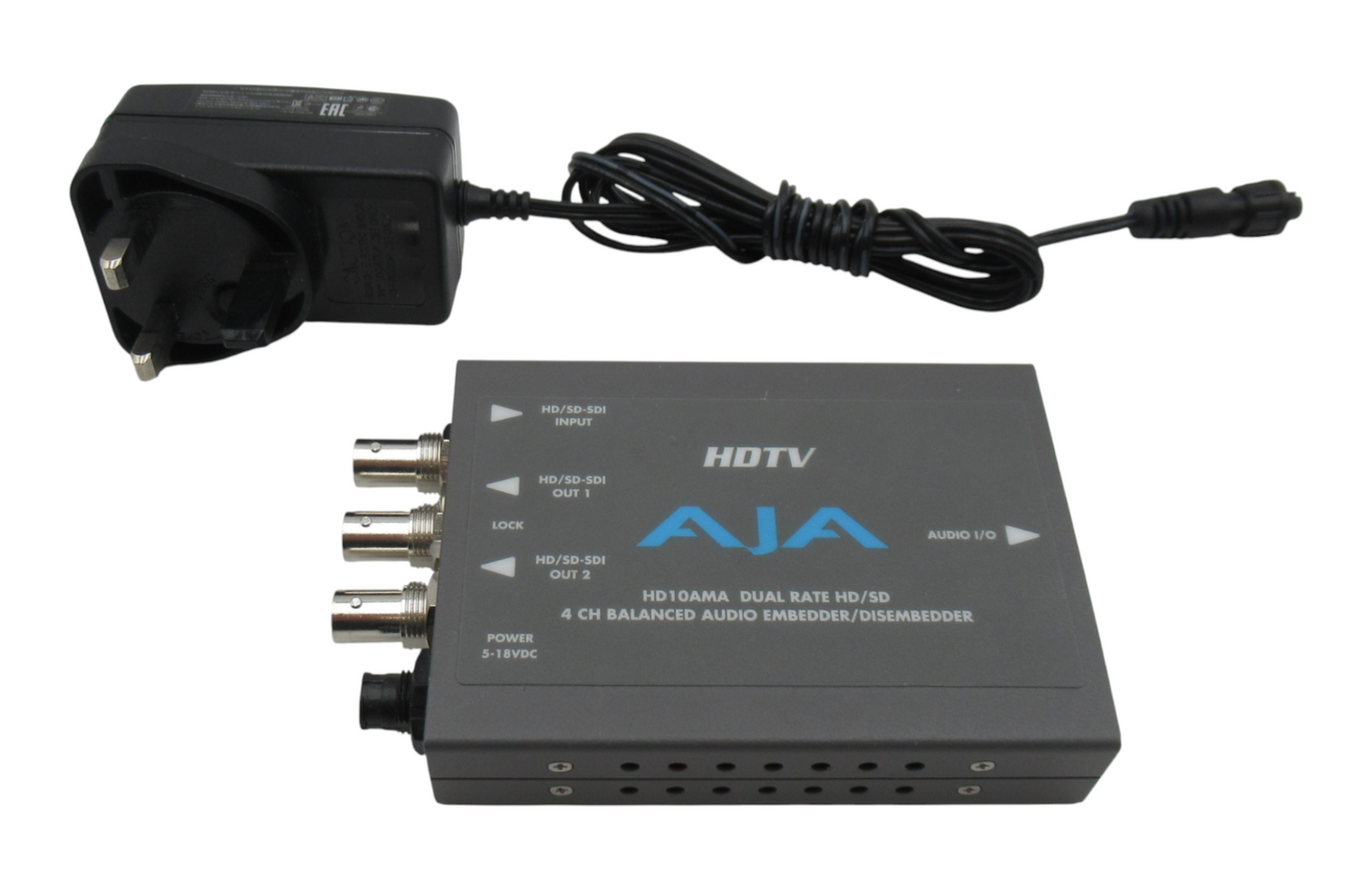

Included:

  • 1 x AJA HD10AMA HD/SD 4-Channel Analog Audio Embedder/Disembedder
  • 1 x AC Adapter
Overview

The HD10AMA is a dual rate 4-channel analog audio Embedder/Disembedder. The Disembedder is always functional providing 4 outputs. The Embedder is user selectable, on a channel pair basis, to either "pass" input audio or embed input audio from the breakout cable. Analog audio levels are selectable. The HD10AMA automatically detects and configures to the input video standard.

Specifications

Formats
  • HD SMPTE 292/296M
  • SD SMPTE 259M
(Automatic Configuration)

Video Inputs
  • HD-SDI or SDI BNC
Video Outputs
  • HD-SDI or SDI, 2 x BNC
Audio Inputs
  • 4 x Balanced analog audio, XLR
Audio Outputs
  • 4 x Balanced analog audio, XLR
Audio Converters
  • 24-bit
Embedded Audio
  • SMPTE 272M/299M, 24-bit, 48 kHz synchronous
User Controls
  • External dipswitch
  • Embedder on/off, Ch pairs 1/2 - 3/4
  • Input group select 1-4
  • Output group select 1-4
  • Audio Level: Pro/Consumer, High/Low
Size (w x d x h)
  • 5.8" x 3.1" x 1.0" (147mm x 79mm x 25mm)
Power
  • +5-18VDC, 5 watts. power supply required, included with purchase
Environment
  • Safe Operating Temperature: 0 to 40 degrees C (32 to 104 degrees F)
  • Safe Storage Temperature (Power OFF): -40 to 60 degrees C (-40 to 140 degrees F)
  • Operating Relative Humidity: 10-90% noncondensing
  • Operating Altitude: <3,000 meters (<10,000 feet)


VAT @ 20% INCLUDED IN PRICE - VAT INVOICE PROVIDED
£40 excluding VAT

VAT IS NOT PAYABLE BY PURCHASERS OUTSIDE OF THE UK

AJ  HD10AMA/REF -3
