2 x CMP BS6121 Part 1:1989 CMP 40 CW M40 Mexhanical Heavy Duty Cable Glands
Pre-owned
2 x CMP BS6121 Part 1:1989 CMP 40 CW M40 Mexhanical Heavy Duty Cable Glands is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product overview
Product overview
MPN: BS6121 Part 1:1989
Brand: CMP

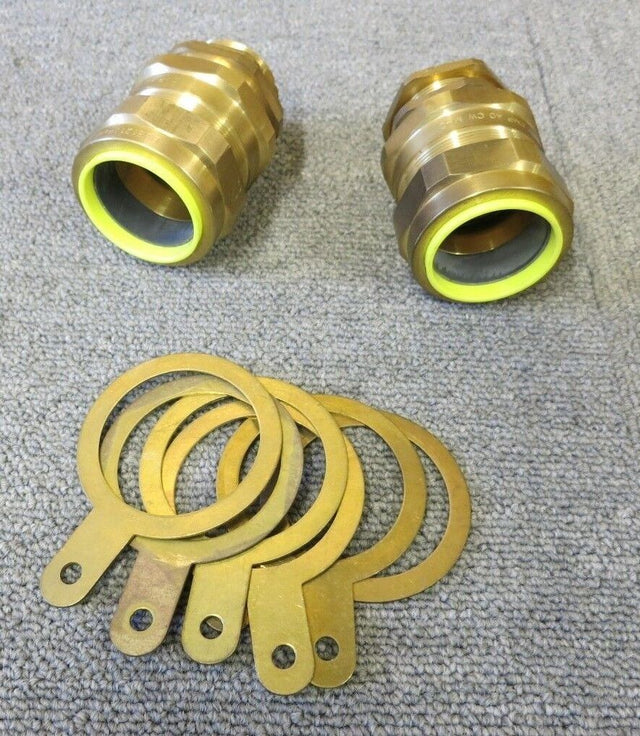

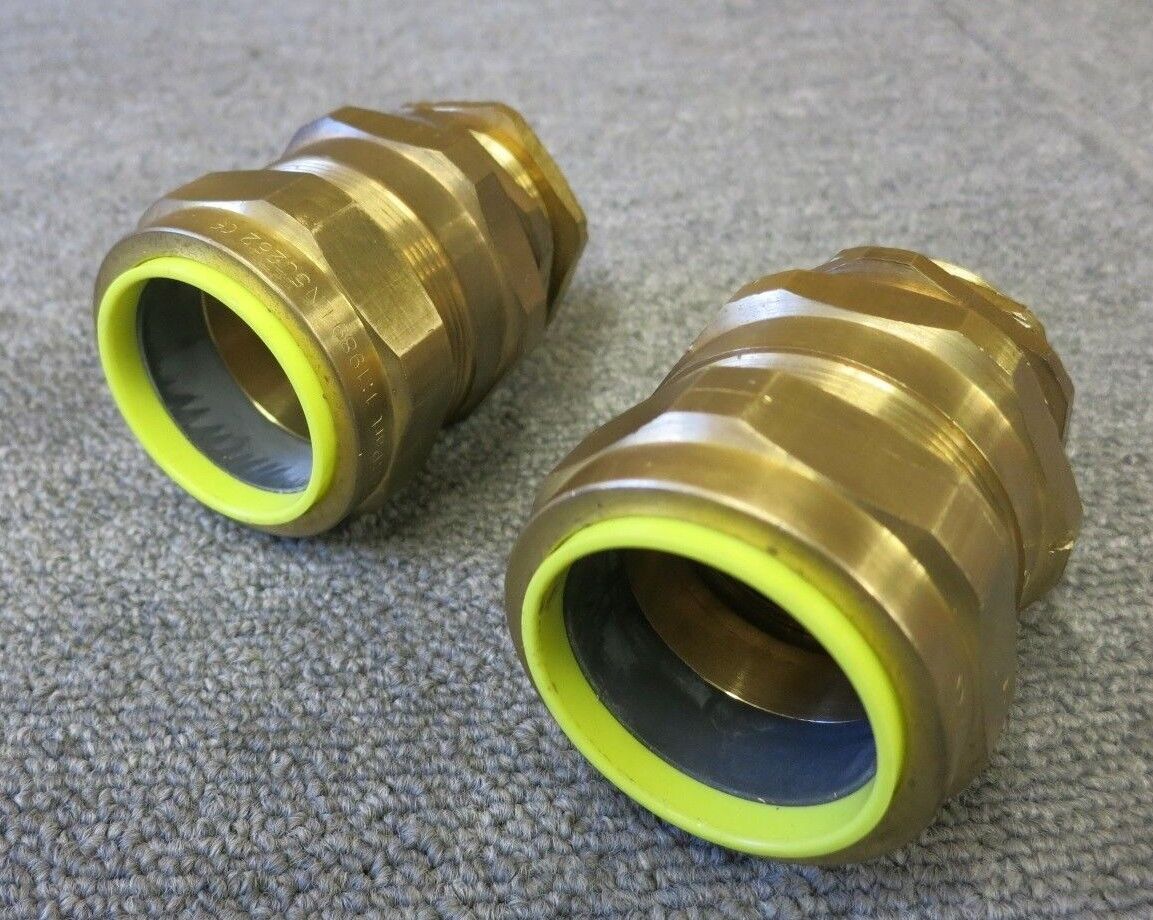

2x CMP BS6121 Part 1:1989 CMP 40 CW M40 Mechanical; Heavy Duty Cable Glands
Part Number: BS6121 Part 1:1989
In good condition and in full working order
Included:
2x CMP BS6121 Part 1:1989 CMP 40 CW M40 Mechanical; Heavy Duty Cable Glands
More Info:
CW CIEL Heavy Duty Industrial Cable Gland
CMP CW CIEL type brass cable gland for use with all types of Single Wire Armour (SWA) cable providing an environmental seal on the cable outer sheath, mechanical retention and electrical continuity via armour wire termination.
The CMP CW SOLO range of industrial cable glands is designed and tested to BS 6121:Part 1:1989,meets or surpasses the requirements of EN 50262 :1999, and is produced from Brass grade CuZn39Pb3
(CW614N) to EN12168.
The CW CIEL cable gland is complete with a CMP unique Cast Integral Earth Lug concept. This is particularly suitable for use with Medium and High Voltage systems where a high level of protection against short circuit earth fault currents is required.
Technical Data:
Type: CW CIEL
Design Specification: BS 6121:Part 1:1989, EN 50262:1999
GOST R Certificate Number: POCC GB. ГБ05.H00110
GOST K Certificate Number: KZ 7500052 05 01 00063
RoK Permit For Use Number: 08-067693
Continuous Operating Temperature: -60°C to +150°C
Ingress Protection Rating: IP66
Standard Cable Gland Material: Brass
Alternative Cable Gland Material: Aluminium, Electroless Nickel Plated Brass
Seal Material: CMP Formulated Thermoplastic Elastomer
Cable Type: Single Wire Armour (SWA), Aluminium Wire Armour (AWA)
Armour Clamping: Armour Cone & AnyWay Universal Clamping Ring
Sealing Technique: Unique CMP "LRS" TM Outer Seal (Load Retention Seal)
Sealing Area(s): Cable Outer Sheath
Accessories: Adaptor/Reducer, Locknut, Serrated Washer, Entry Thread Seal, Shroud
EN 50262 Mechanical Classifications - Retention = Class B, Impact = Level 8
EN 50262 Electrical Classifications - Category C
The Symmetrical Fault Current (kA) rating for 1 second applicable to the Cast Integral Earth Lug featured
in the CW CIEL products are as follows:-
26.0 kA for cable gland sizes up to 40
43.0 kA for cable gland sizes 50S and above.
