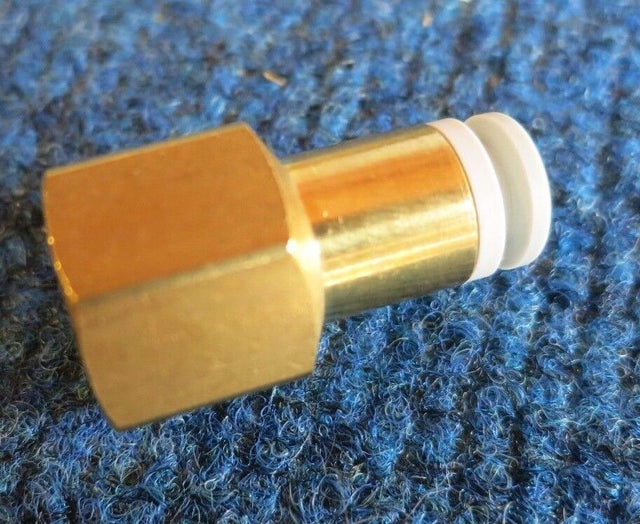

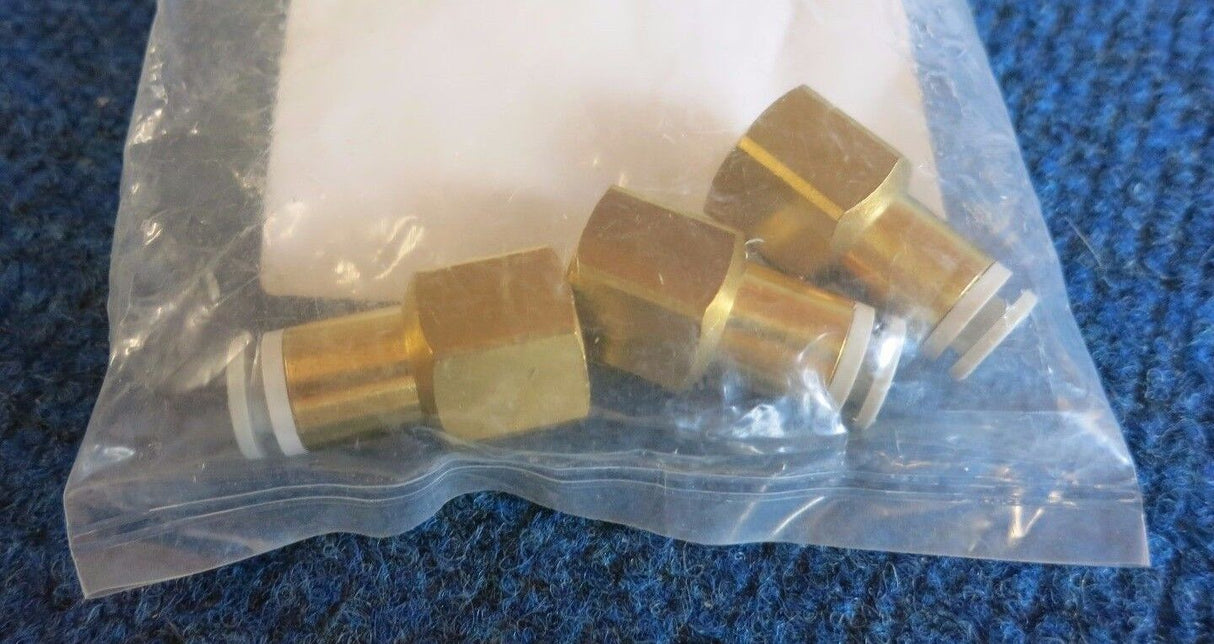

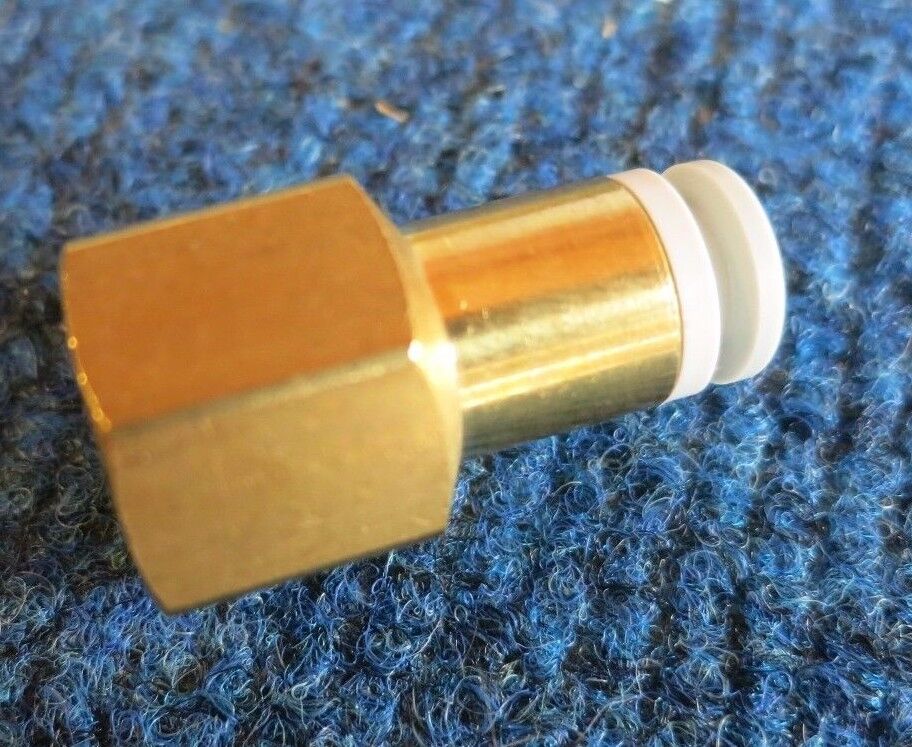

3 x SMC KQ2F06-02 371-9397 Stainless Steel Hydraulic Straight Compression Tube
Pre-owned
3 x SMC KQ2F06-02 371-9397 Stainless Steel Hydraulic Straight Compression Tube is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product overview
Product overview
Brand: SMC
Type: Pneumatic
MPN: KQ2F06-02 371-9397
3x SMC KQ2F06-02 371-9397; Stainless Steel Hydraulic Straight Compression Tube
Part Number: KQ2F06-02

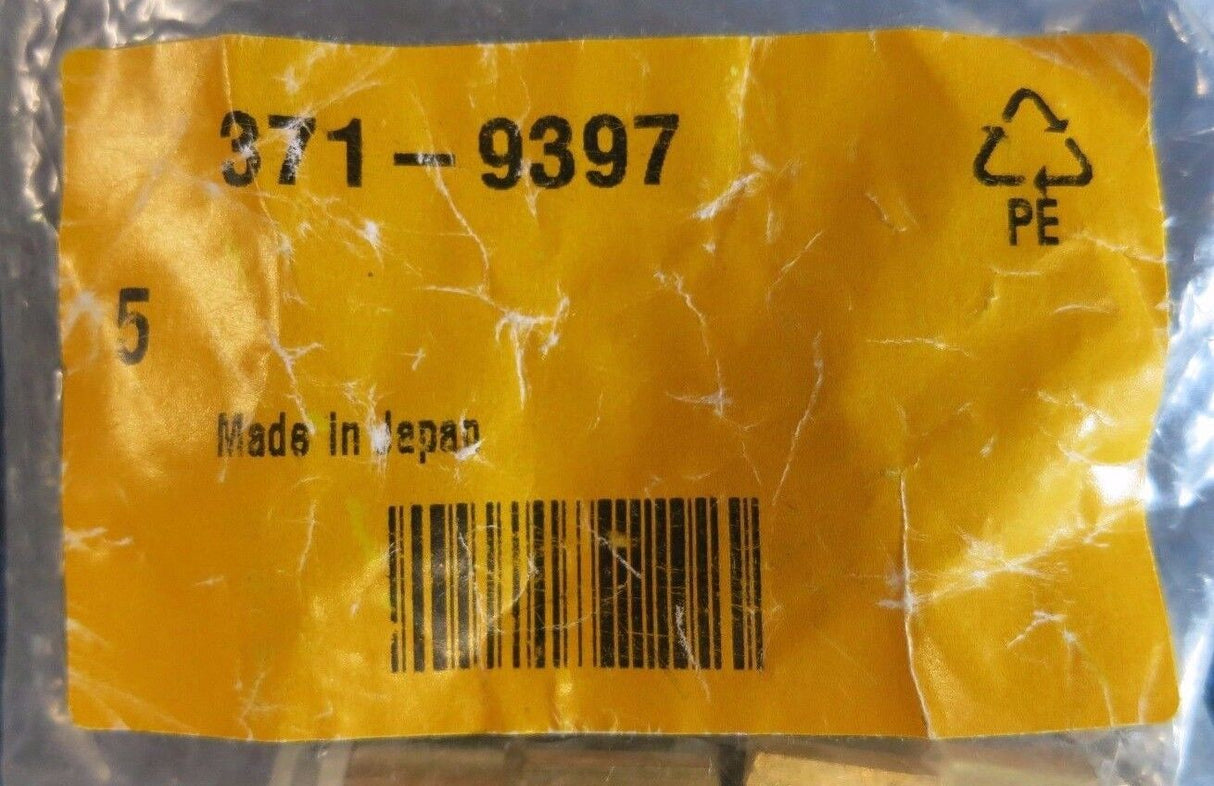

RS Stock Number:3 371-9397
NEW
Included:
3x SMC KQ2F06-02 371-9397 Stainless Steel Hydraulic Straight Compression Tube;
Product Details:
Female Straight Adaptor
The KQ2 one-touch female straight adaptors are used to pipe in the same direction from male thread and are suitable for use with nylon and polyurethane tubes. The special profile design of these fittings provides positive sealing under pressure without reducing the flow. When the adaptor is removed from the tube, the chuck and collet are released, thus preventing them from biting into the tube excessively.
Thread-to-tube adaptors
Easy installation in confined spaces as the body and threaded portion can rotate separately
Sealant coated threads minimise assembly time
The special profile design of the seal provides positive sealing under pressure without reduced flow
Release button allows tube to be removed easily without damage
Maximum operating pressure 10 bar
Maximum vacuum operating pressure -100kPa
Proof pressure 3MPa
Ambient and fluid temperature -5 to +60°C (water 0 to 40°C)
Note Models with a -X2 suffix in the Mfr Part No. are copper-free (electroless nickel plated) Thread-to-Tube Adaptors
Specifications:
Coupling Gender: Female
Threaded Connection: R 1/4 Female, Rc 1/4 Female
Manufacturer Series: KQ2
Connection Type: One Touch
Thread Size: 1/4in
Material: Brass, Nitrile Rubber, PBT, POM, PP, Stainless Steel
Thread Standard: R, Rc
Maximum Operating Pressure: 1 MPa
CAD Drawing: 3D CAD Model
Seal Material: Nitrile Rubber
Minimum Operating Temperature: -5°C
Maximum Operating Temperature: +60°C
