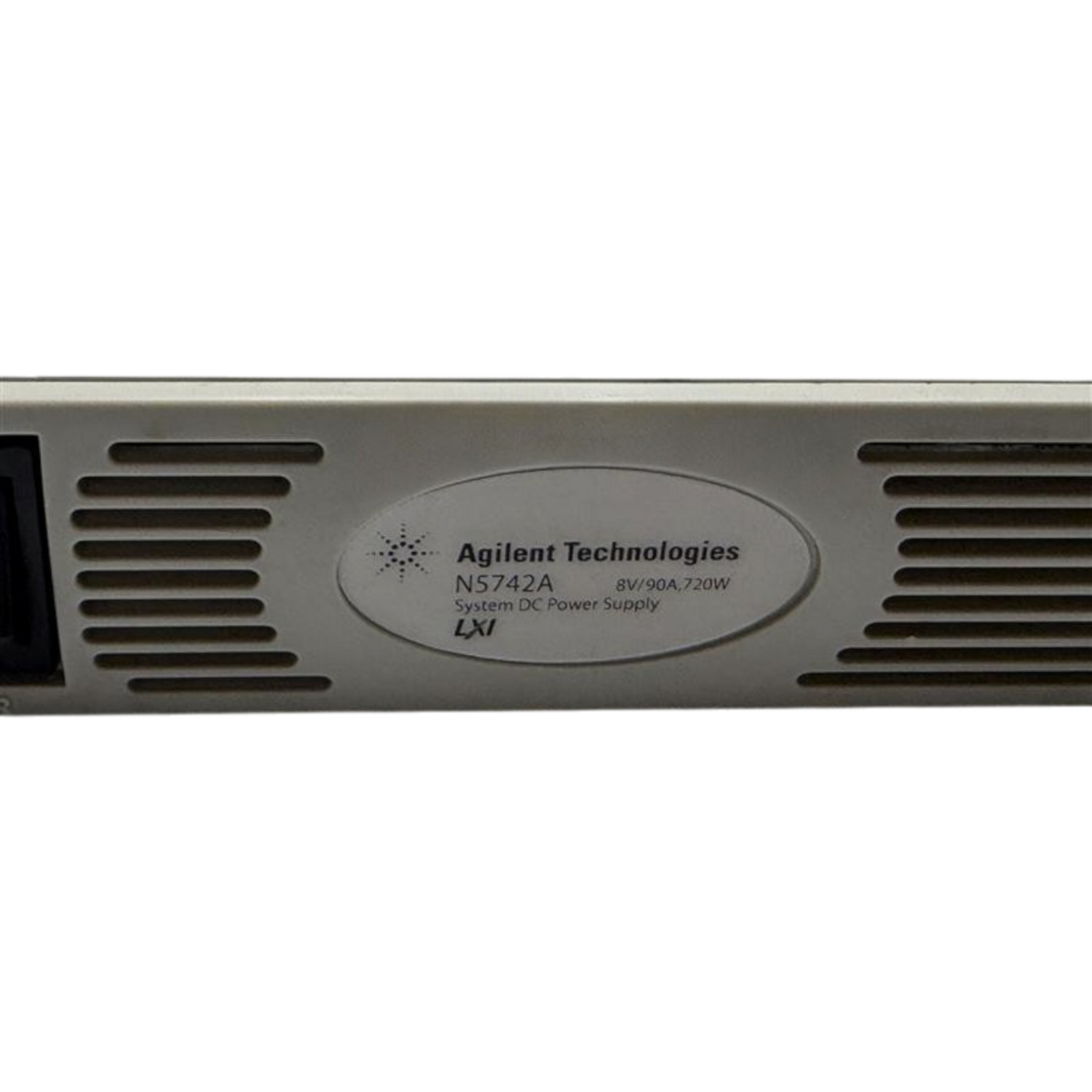

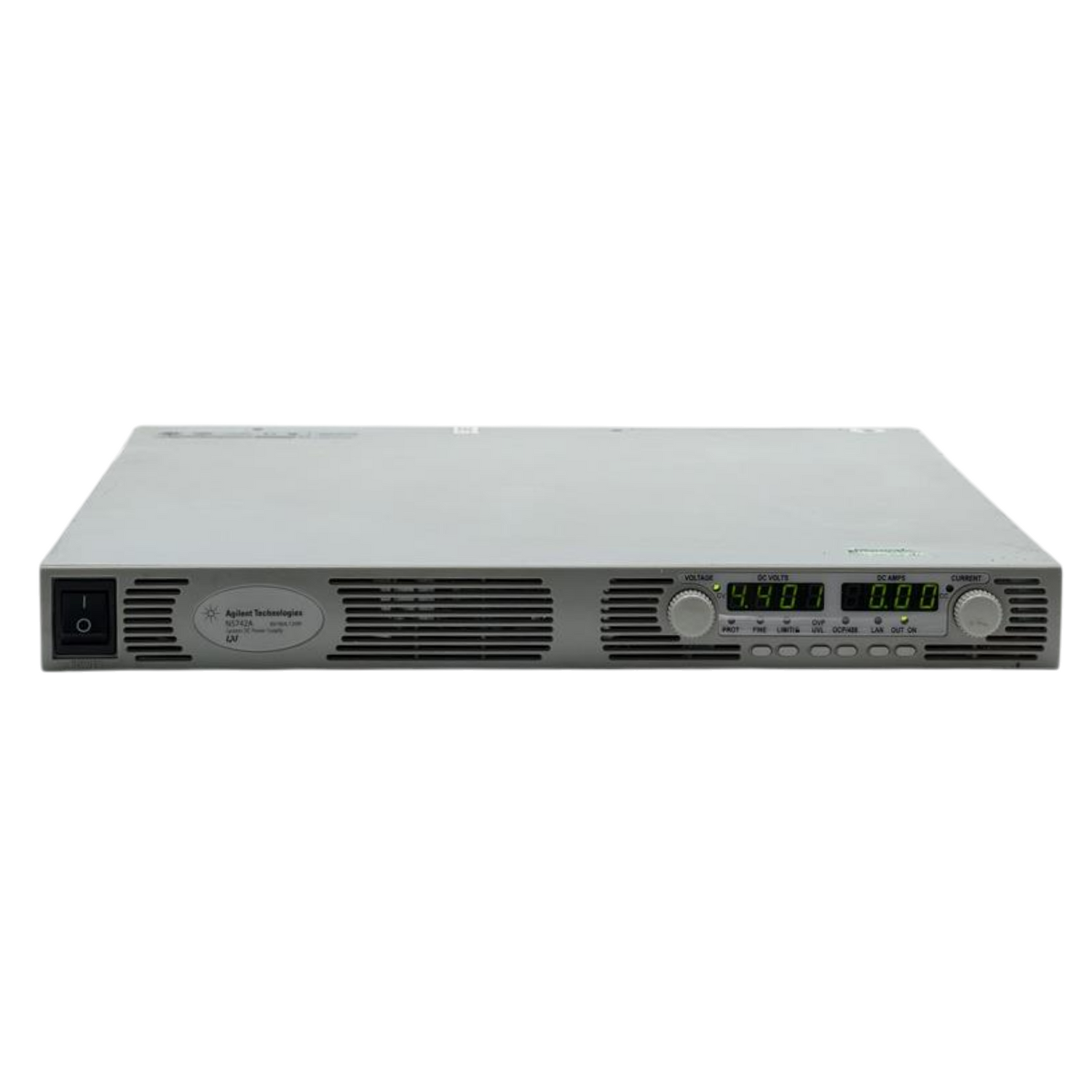

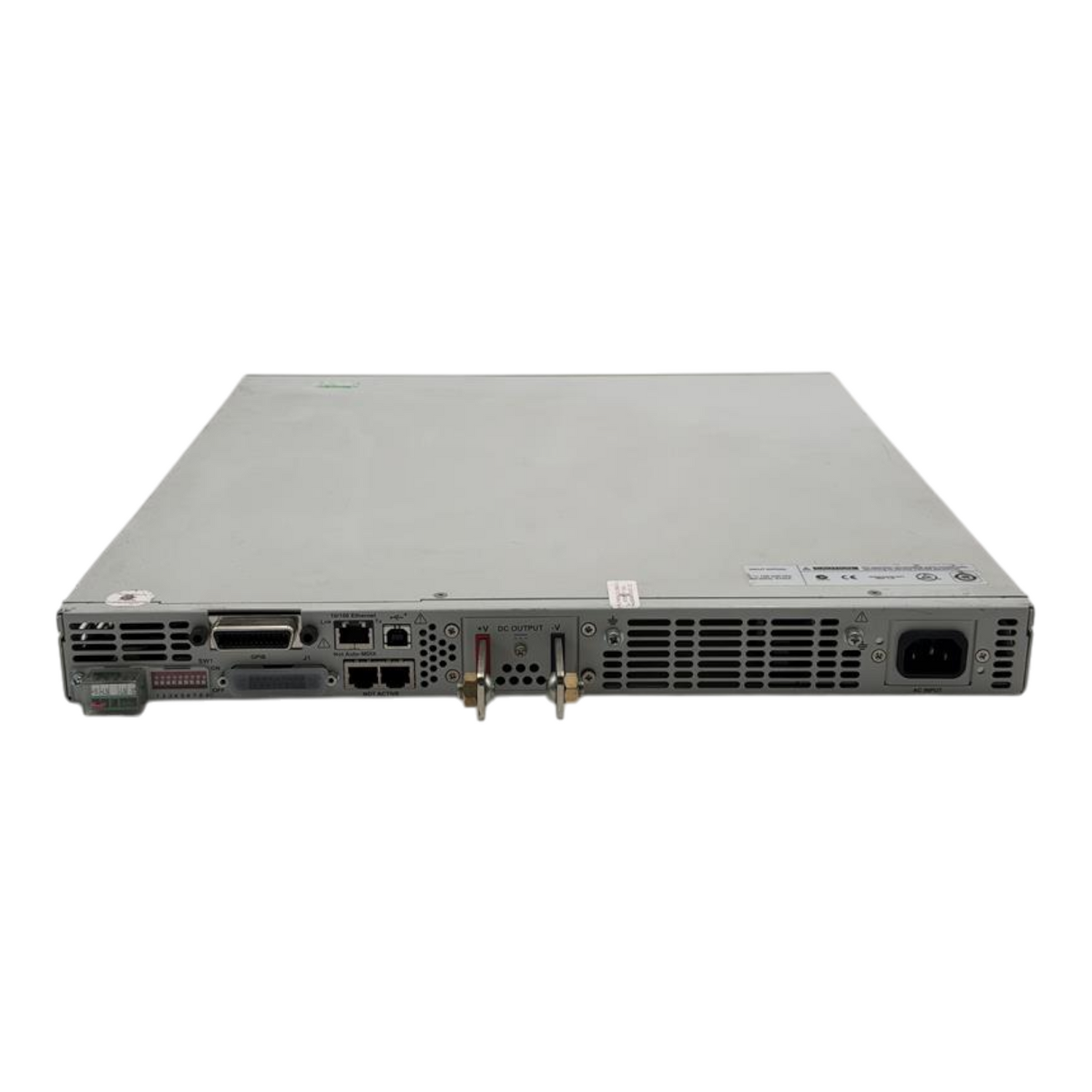

Agilent Keysight N5742A 8V 90A 720W 1U Programmable DC System Power Supply PSU
£798.00
£665.00 ex VAT
Unit price
/
Unavailable
Agilent Keysight N5742A 8V 90A 720W 1U Programmable DC System Power Supply PSU is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product overview
Product overview
Brand: Agilent
Series: N5700
Type: Regulated Power Supply
Output Power:: 720 W
Output Current: 0-90 A
MPN: N5742A
Output Voltage: 0-8 V DC
Country of Origin: China
Agilent Keysight N5742A 8V 90A 720W 1U Programmable DC System Power Supply PSU
Model: N5742A
In Good Condition
Full Working Order
Tested
Included:
- 1 x Agilent Keysight N5742A 8V 90A 720W 1U Programmable DC System Power Supply PSU
Specification:
- Manufacturer: Agilent
- Model: N5742A
- Series: N5700 System DC Power Supply: Output Voltage: 0-8 V DC
- Output Current: 0-90 A: Output Power: 720 W
- Load Regulation: 2.8 mV: Line Regulation: 2.8 mV
- Transient Recovery: 1.5 ms or less: Display: 4-digit voltage and current
- Digital Interfaces: GPIB (IEEE 488.2), 10/100 Ethernet, USB 2.0 Standards: LXI Class C compliant, built-in web server
- Analogue Programming: 0-5 V / 0-10 V, or 0-5 kOhm / 0-10 kOhm Protection: OVP (0.5-10 V), OCP, UVL, over-temperature
- Parallel Operation: Up to 4 units, master/slave: Series Operation: Up to 2 units
- AC Input: 85-265 V AC, 47-63 Hz, 10.5 A at 100 V / 5 A at 200 V Power Factor: 0.99 with active correction
- Efficiency: Up to 87%: Operating Temperature: 0-40 C at 100% load
- Dimensions (W x H x D): 422.8 x 43.6 x 432.8 mm: Weight: 7 kg
- Form Factor: 1U full-rack, 19-inch mountable
- AC Connector: IEC C13 inlet
VAT @ 20% INCLUDED IN PRICE - VAT INVOICE PROVIDED
£700 excluding VAT
VAT IS NOT PAYABLE BY PURCHASERS OUTSIDE OF THE UK
DJ N5742A/REF - 1
