AJA HD10AM HD/SD 8 Channel AES Embedder/Disembedder + Breakout Cable + Adapter
Pre-owned
AJA HD10AM HD/SD 8 Channel AES Embedder/Disembedder + Breakout Cable + Adapter is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product overview
Product overview
Brand: AJA
Video Outputs: Follows input, 2 x BNC
Type: Embedder/Disembedder
Audio Inputs: 4 x AES 110 ohm XLR
Size (w x d x h): 5.8" x 3.1" x 1.0" (147mm x 79mm x 25mm)
Video Inputs: HD-SDI or SDI BNC
Model: HD10AM
AES Audio: SMPTE 272M/299M, 48 kHz synchronous
MPN: HD10AM
Formats: HD SMPTE 292/296M, SD SMPTE 259M
Audio Outputs: 4 x AES 110 ohm XLR
Country of Origin: United States

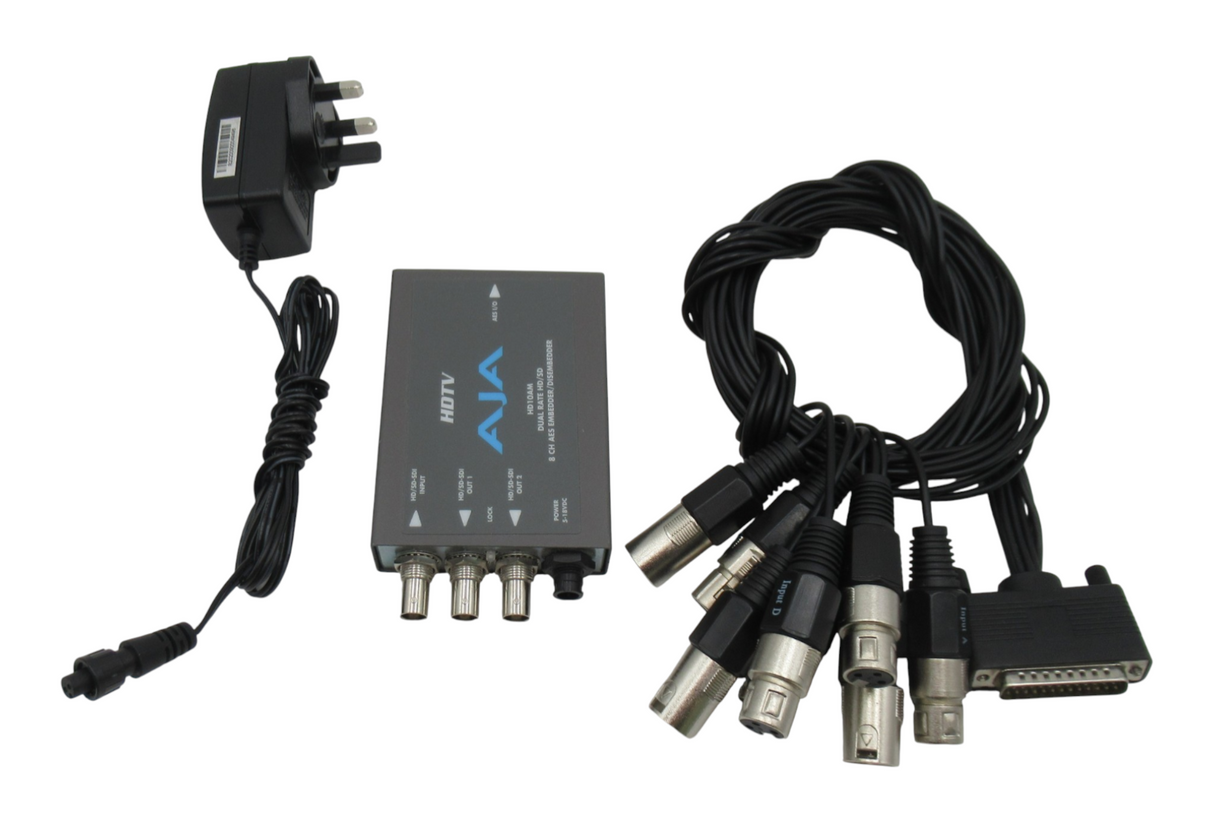

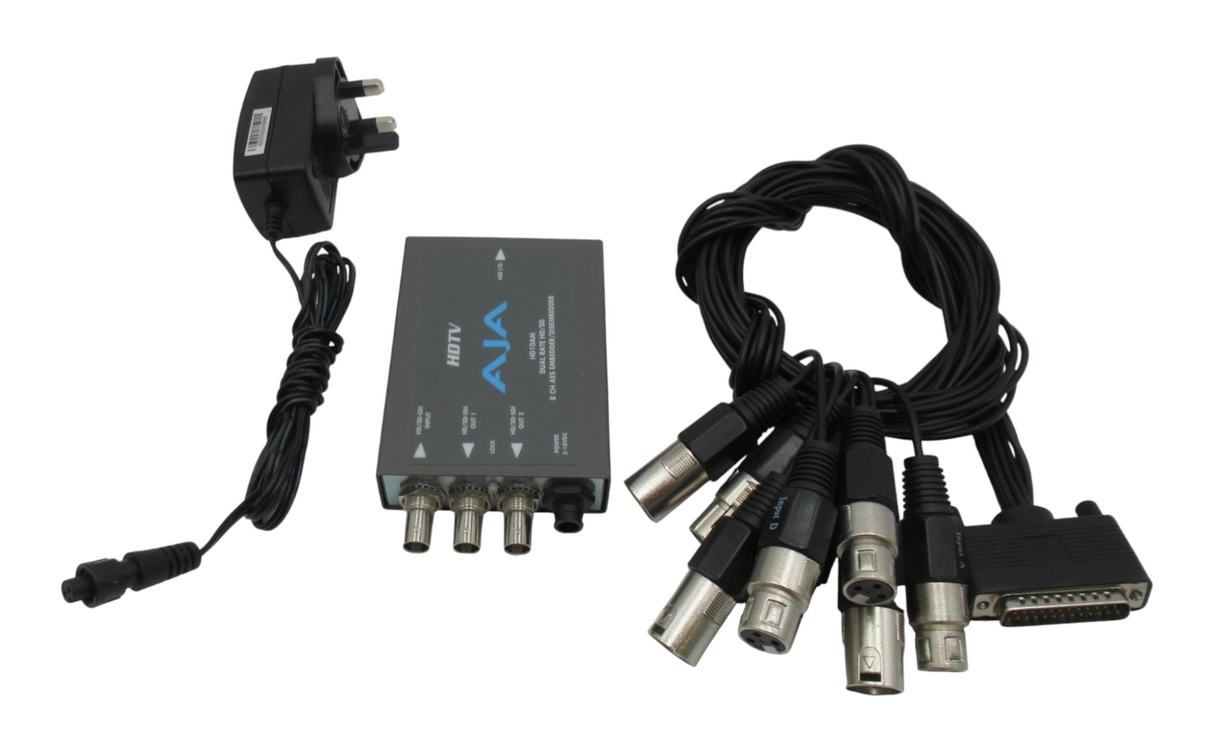

Included:

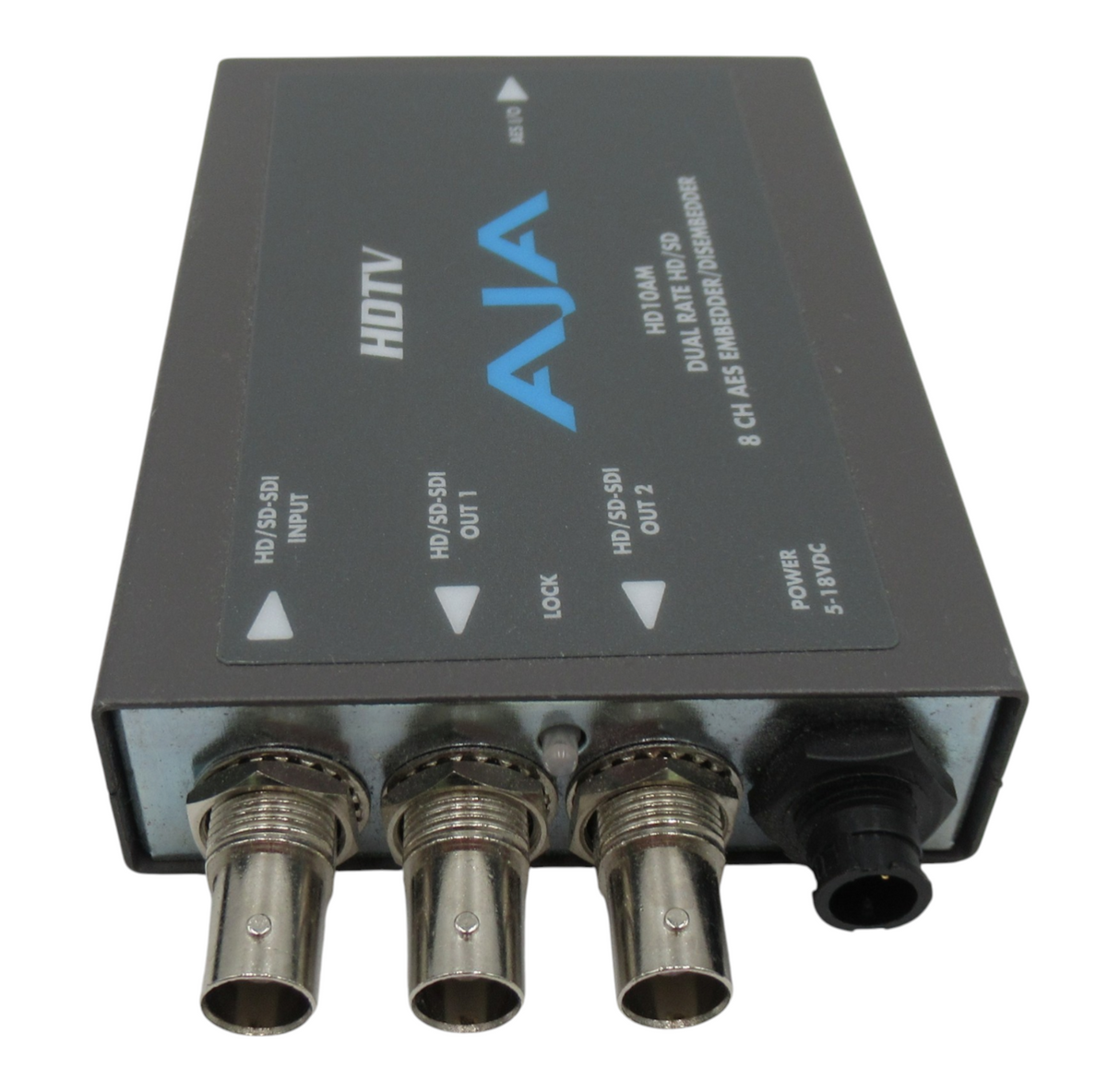

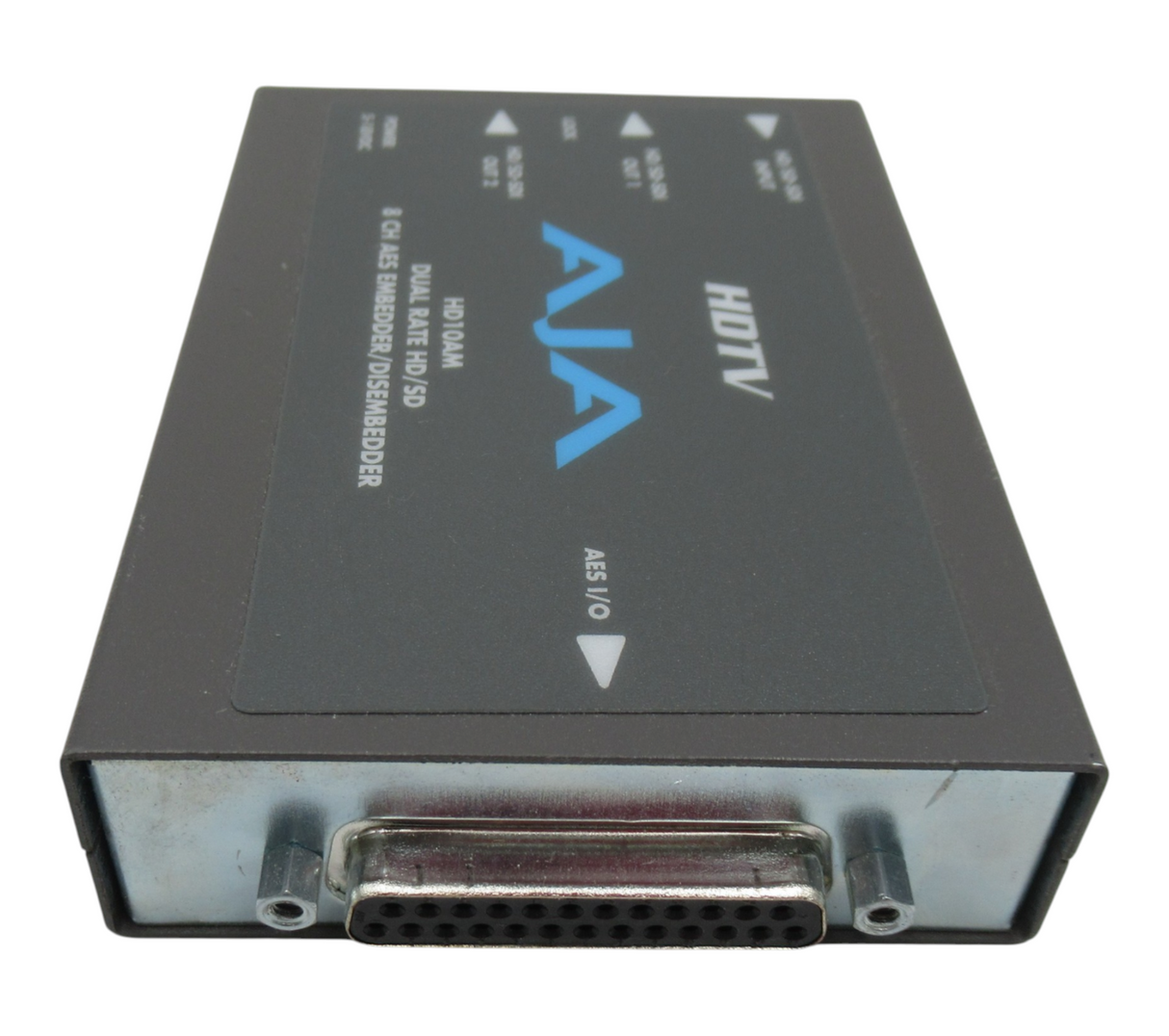

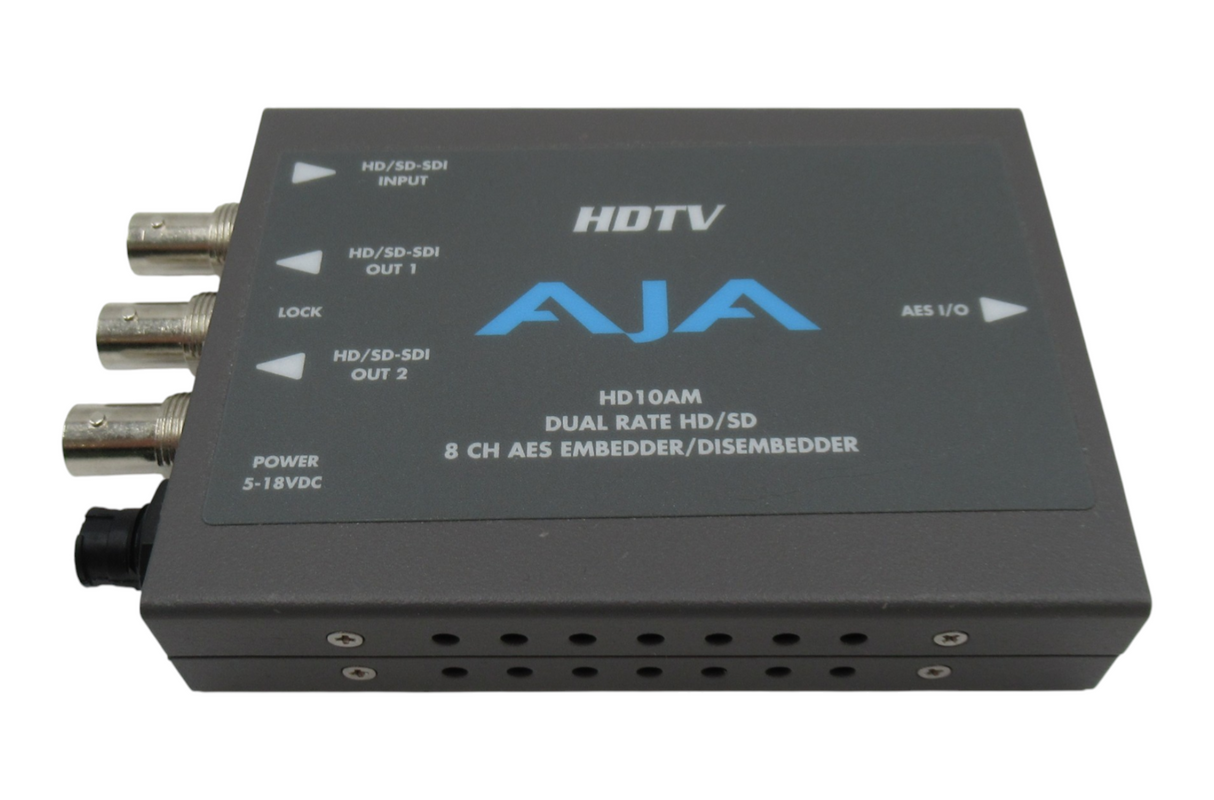

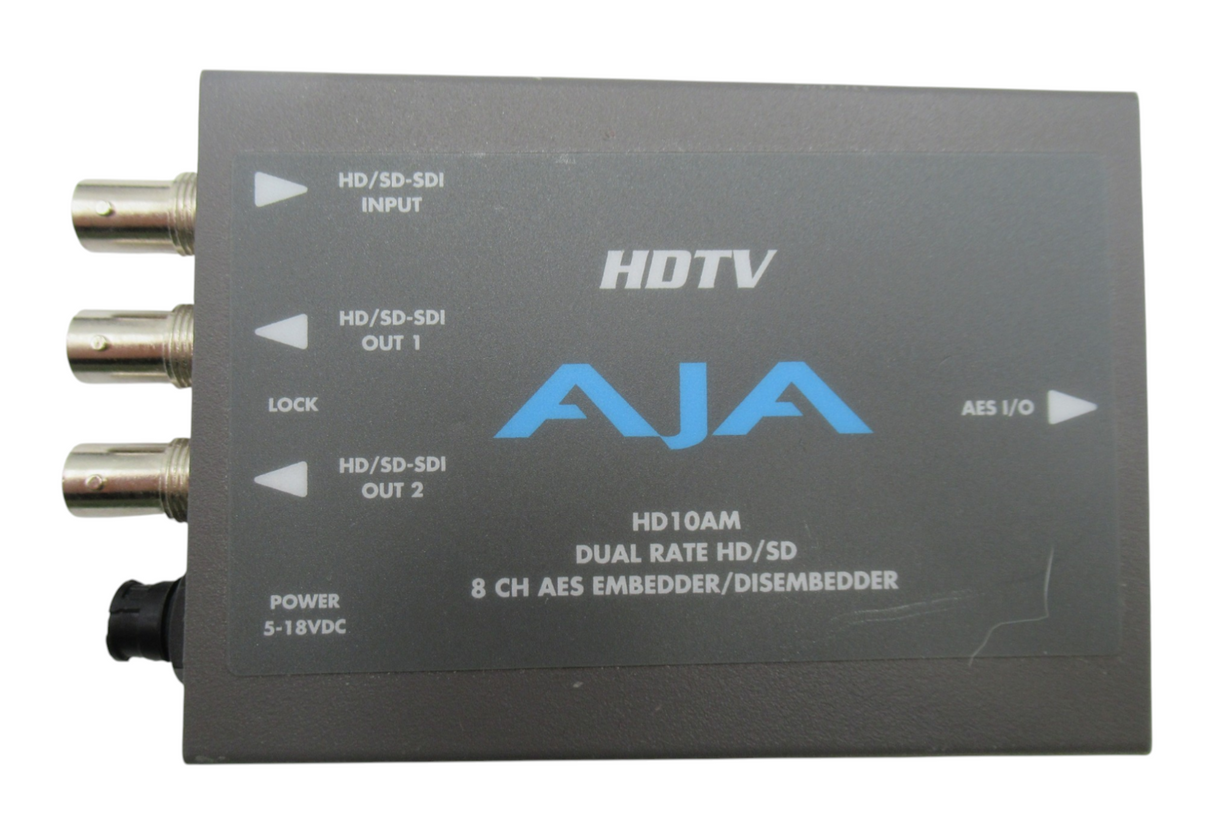

1 x AJA HD10AM HD/SD 8 Channel AES Embedder/Disembedder

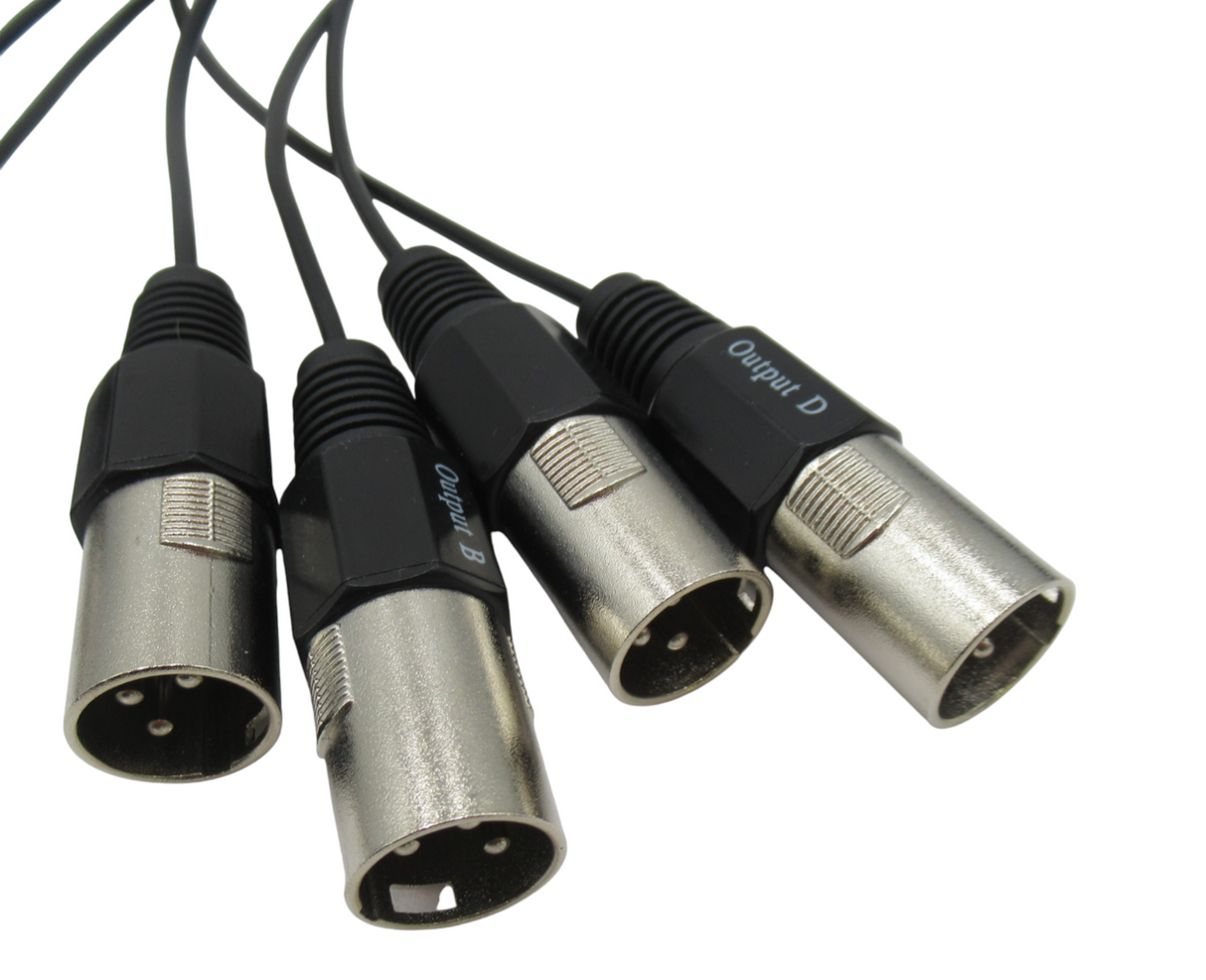

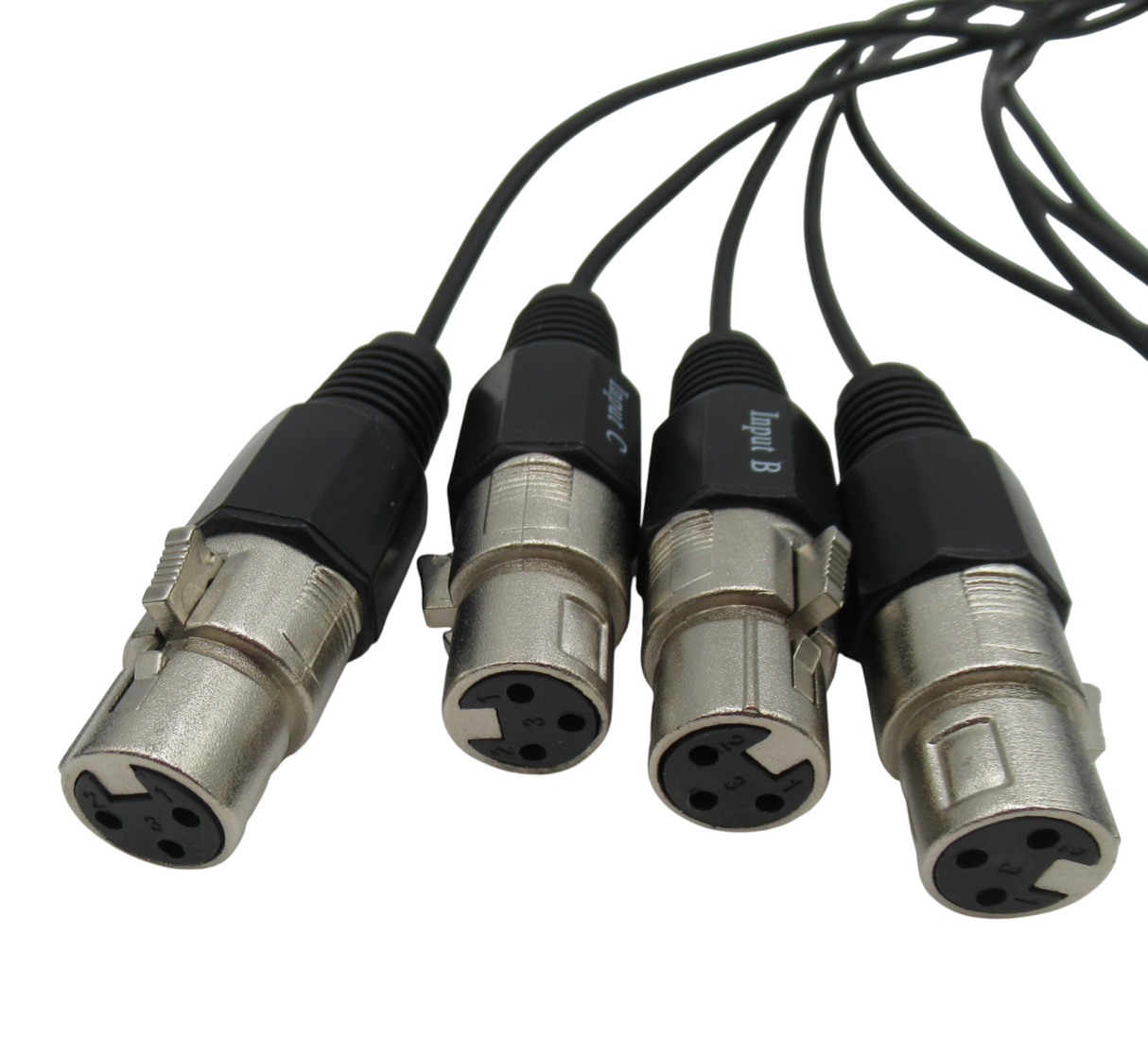

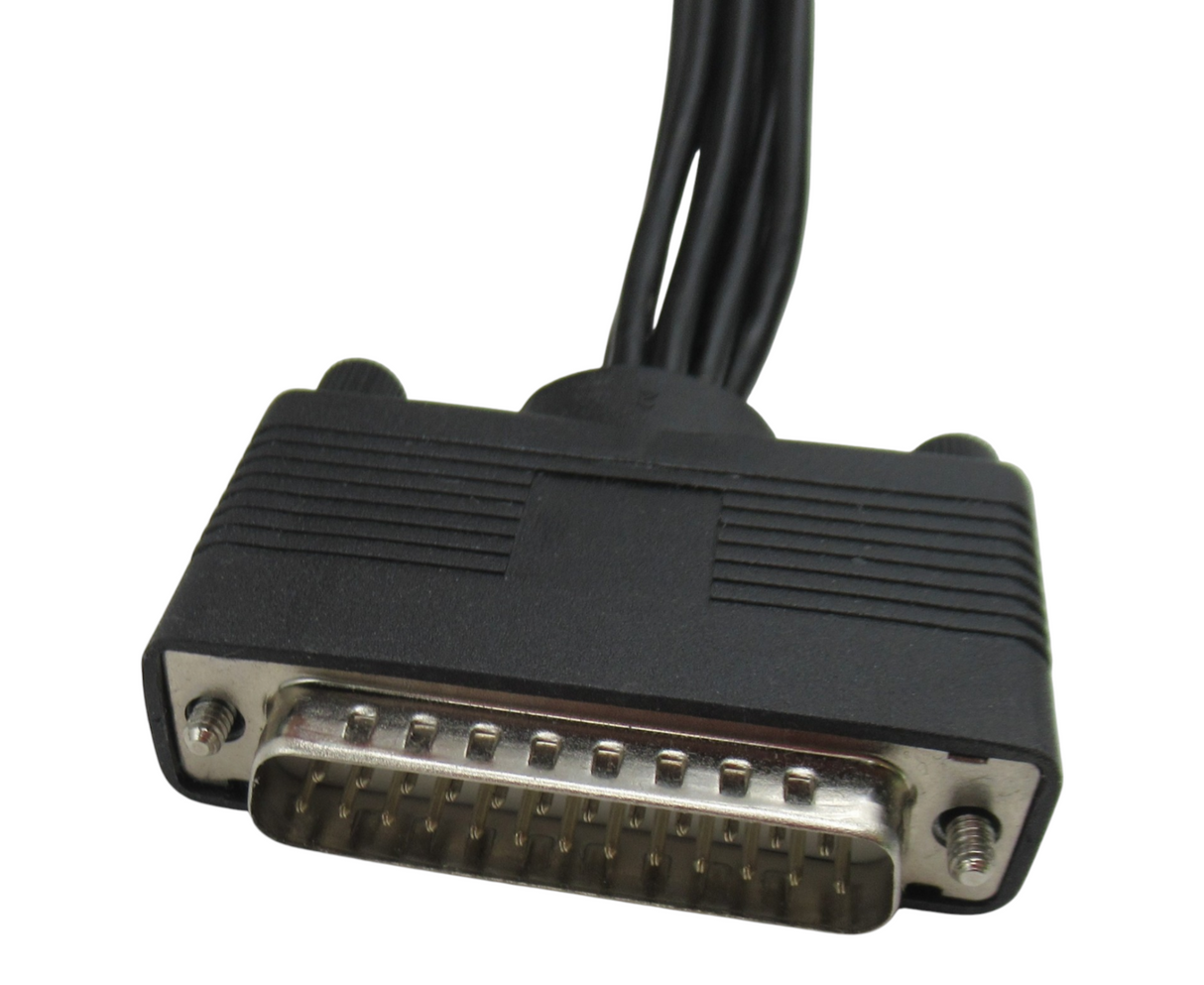

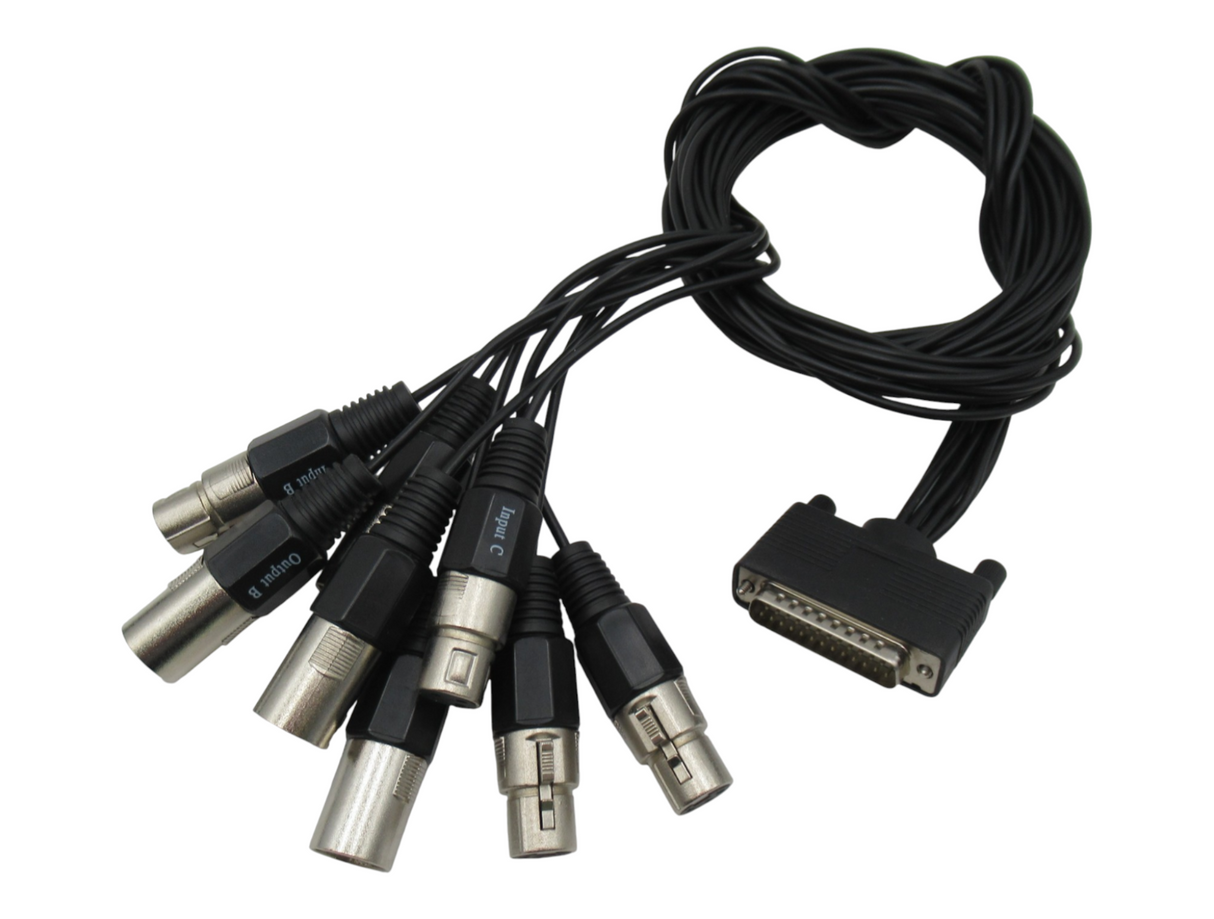

1 x Breakout Cable
1 x AC Power Adapter
Overview
AJA HD10AM HD/SD 8 Channel AES Embedder/Disembedder. The HD10AM is a dual rate 8 channel AES audio Embedder/Disembedder. The Disembedder is always functional providing 4 AES outputs. The Embedder is user selectable, on a channel pair basis, to either "pass" SDI input audio or to embed input AES audio from the breakout cable. AES inputs are sample rate converted to a 48KHz rate synchronous to the video input. The HD10AM automatically detects and configures to the input video standard.
Specifications
Formats
HD SMPTE 292/296M
SD SMPTE 259M
(Automatic Configuration)
Video Inputs
HD-SDI or SDI BNC
Video Outputs
Follows input, 2 x BNC
Audio Inputs
4 x AES 110 ohm XLR
Audio Outputs
4 x AES 110 ohm XLR
AES Audio
SMPTE 272M/299M, 48 kHz synchronous
User Controls
External dipswitch
Embedder on/off, Ch pairs 1/2 - 7/8
Input group select 1/2, 3/4
Output group Select 1/2, 3/4
SRC bypass
Size (w x d x h)
5.8" x 3.1" x 1.0" (147mm x 79mm x 25mm)
Power
+5-18VDC, 5 watts. power supply required, included with purchase
Environment
Safe Operating Temperature: 0 to 40 degrees C (32 to 104 degrees F)
Safe Storage Temperature (Power OFF): -40 to 60 degrees C (-40 to 140 degrees F)
Operating Relative Humidity: 10-90% noncondensing
Operating Altitude: <3,000 meters (<10,000 feet)
