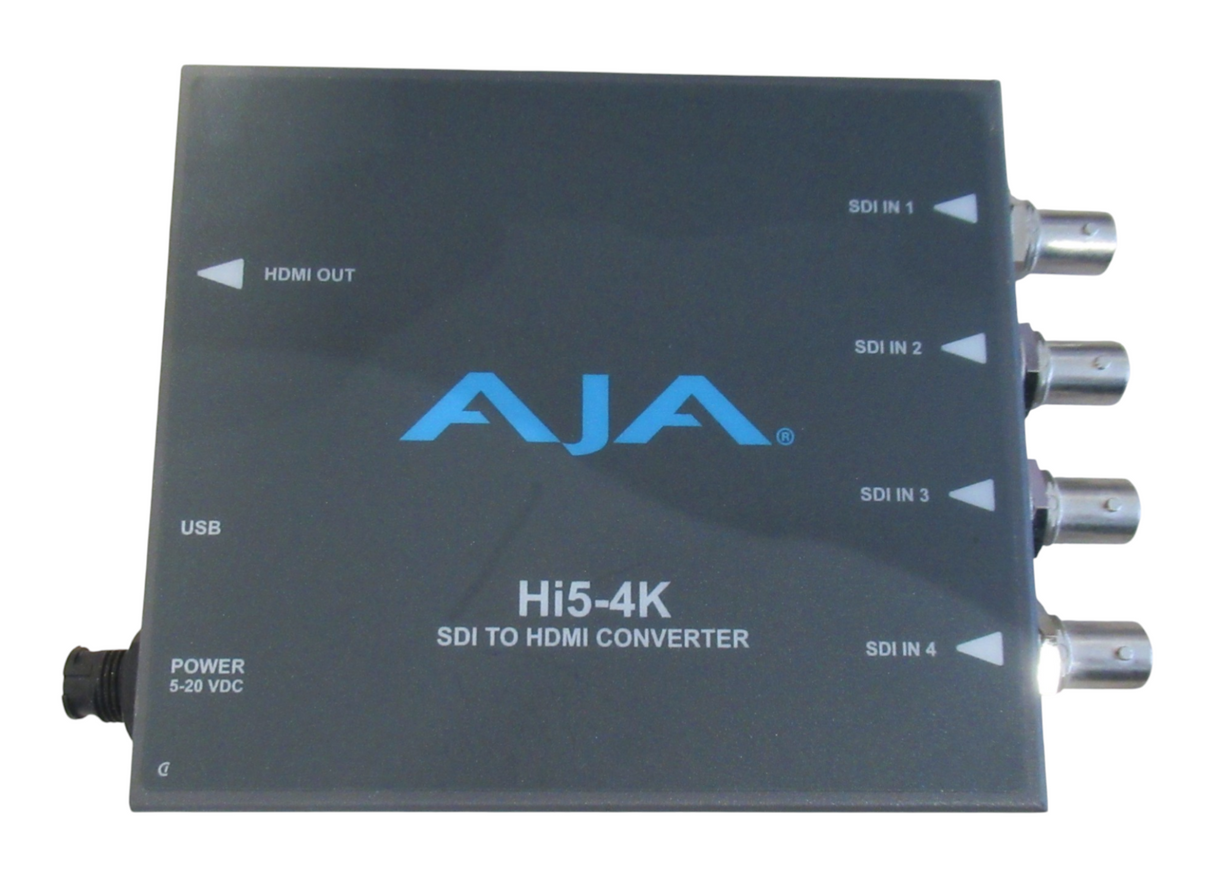

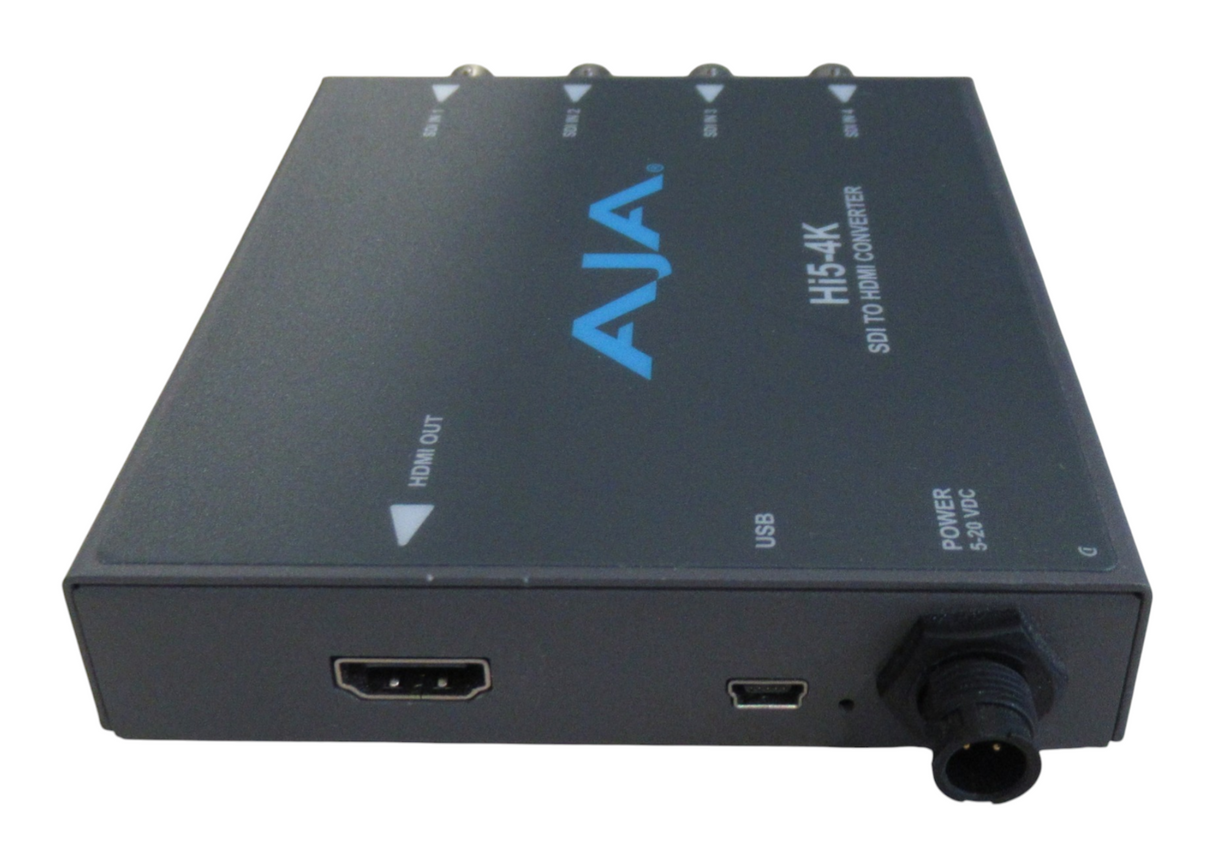

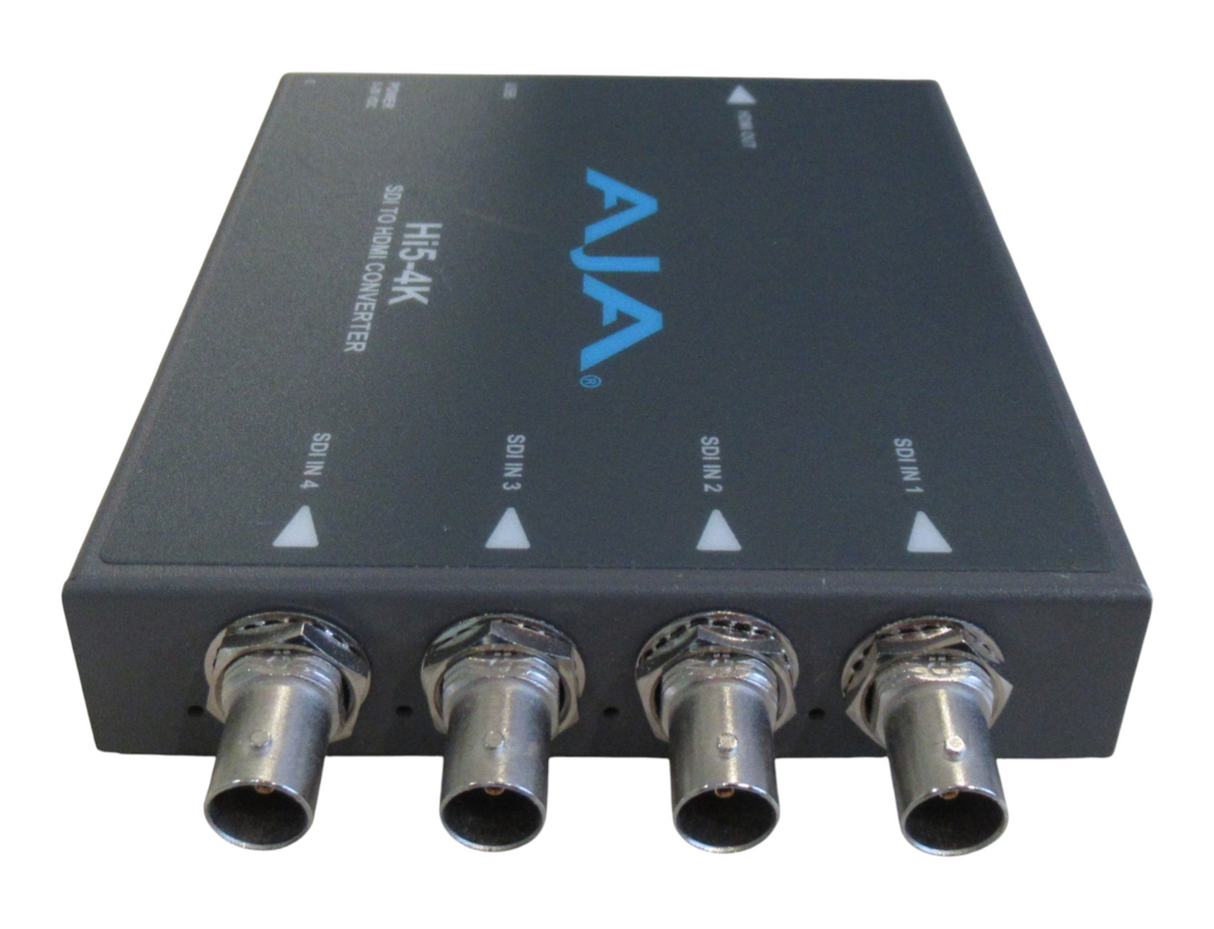

AJA Hi5-4K Quad 3G-SDI To HDMI v1.4 4K Video And Audio Converter With AC Adapter
Pre-owned
AJA Hi5-4K Quad 3G-SDI To HDMI v1.4 4K Video And Audio Converter With AC Adapter is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product overview
Product overview
AJA Hi5-4K Quad 3G-SDI To HDMI v1.4 4K Video And Audio Converter With AC Adapter
Model: Hi5-4K
In good condition and In full working order
Tested

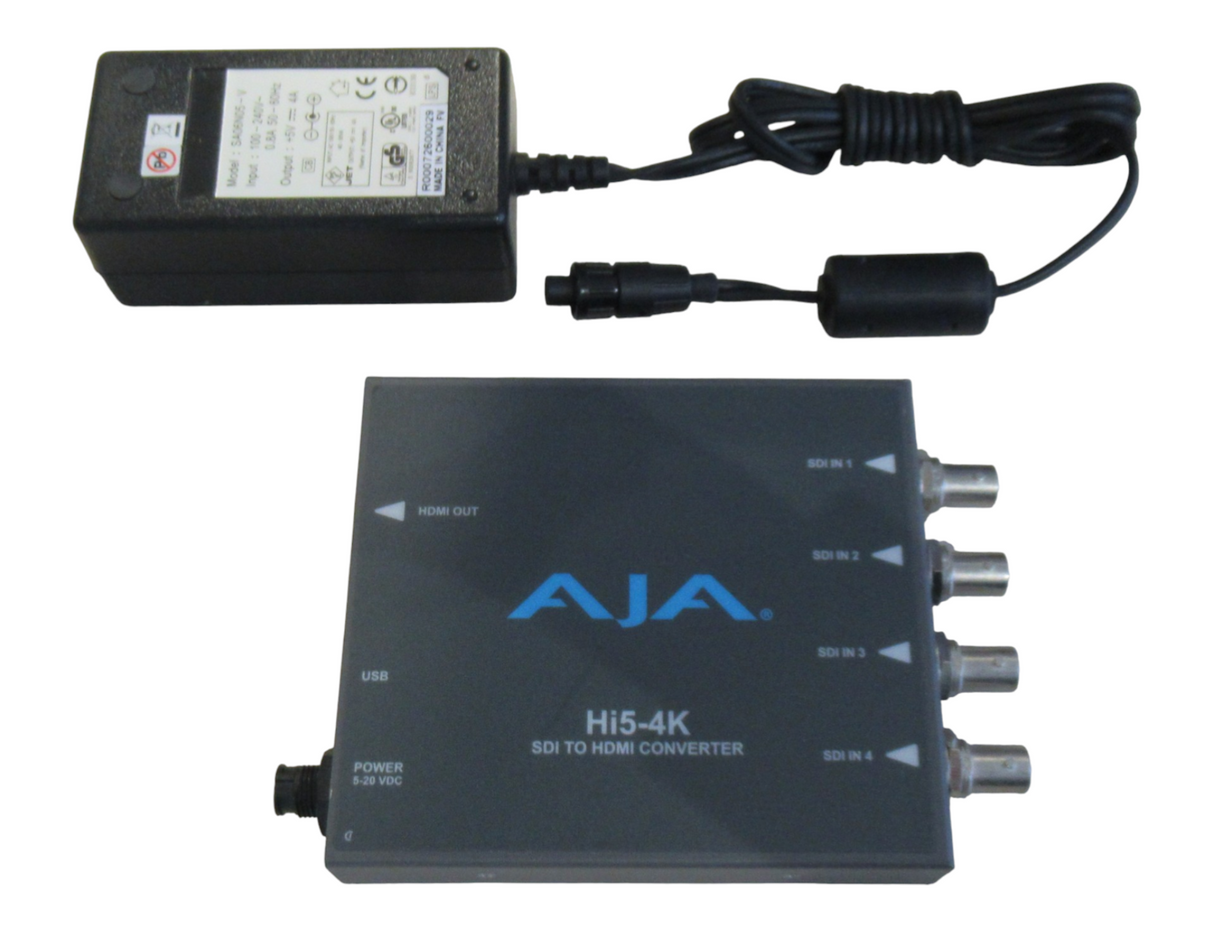

Includes AC Power Adapter
Included:
1 x AJA Hi5-4K Quad 3G-SDI To HDMI v1.4 4K Video And Audio Converter
1 x AC Power Adapter
Specifications
Video Format
(4K) 4096 x 2160p
(UltraHD) 3840 x 2160p
(2K) 2048 x 1080p
(HD) 1920 x 1080p
(HD) 1920 x 1080i
(HD) 1280 x 720p
(SD) 720 x 576i
(SD) 720 x 480i
Video Input Digital
4 x 3G-SDI BNC, SMPTE-259/292/424
YCbCr 4:2:2/4:4:4
RGB 4:4:4, SMPTE or Full level
8 or 10-bit
Two Sample Interleave (2SI) or Square Division (Quadrant) source mapping
4x 3 Gb SDI (Level A or B-Dual Link)
(4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(4K) 4096 x 2160PsF* 23.98, 24, 25, 29.97, 30
(UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(Ultra HD) 3840 x 2160PsF* 23.98, 24, 25, 29.97, 30
4x 1.5 Gb SDI
(4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30
(4K) 4096 x 2160PsF 23.98, 24, 25, 29.97, 30
(UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30
(UltraHD) 3840 x 2160PsF 23.98, 24, 25, 29.97, 30
2x 3 Gb SDI (Level B-Dual Stream)
(4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30
(4K) 4096 x 2160PsF 23.98, 24, 25, 29.97, 30
(UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30
(UltraHD) 3840 x 2160PsF 23.98, 24, 25, 29.97, 30
1x 3 Gb SDI (Level A or B-Dual Link)
(2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30
(HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(HD) 1920 x 1080PsF 23.98, 24, 25, 29.97, 30
(HD) 1920 x 1080i 50, 59.94, 60
(HD) 1280 x 720p** 50, 59.94, 60
1x 1.5 Gb SDI
(2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30
(2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30
(HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30
(HD) 1920 x 1080PsF 23.98, 24, 25, 29.97, 30
(HD) 1920 x 1080i 50, 59.94, 60
(HD) 1280 x 720p 50, 59.94, 60
1x 270 Mb SDI
(SD) 625i 50
(SD) 525i 59.94
Video Output Digital
1x HDMI Type A connector*, HDMI v1.4
YCbCr 4:2:2/4:4:4
YCbCr 4:2:0 (for HFR 4K/UltraHD)
RGB 4:4:4, SMPTE or Full level
8 or 10-bit (4:4:4 and 4:2:0 limited to 8 bit)
HDR Infoframe generation as defined in CTA-861.3 and HDMI v2.0a
(4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 (HFR 4:2:0 only)
(UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 (HFR 4:2:0 only)
(2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(HD) 1920 x 1080i 50, 59.94, 60
(HD) 1280 x 720p 50, 59.94, 60
(SD) 720 x 576i 50
(SD) 720 x 480i 59.94
Audio Input Digital
SDI embedded audio, 24-bit, 16-channel
Audio Output Digital
HDMI embedded audio, 24-bit, 8-channel
User Interface
USB port used with supplied cable and Mini-Config software application to configure device via Mac or Windows.
Size (w x d x h)
5.76" x 4.02" x 0.90" (146.31 x 102.11 x 22.86 mm)
Weight
0.6 lb (0.3 kg)
Power
5-20VDC regulated, 8 watts, power supply required, included with purchase
AC Adapter: 100-240VAC, 50/60 Hz, universal input
Environment
Safe Operating Temperature: 0 to 40 C (32 to 104 F)
Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
Operating Relative Humidity: 10-90% noncondensing
Operating Altitude: <3,000 meters (<10,000 feet)
