Anritsu MS371A MS371A1 PCM Analog Digital Channel Analyser ITU-T Measuring
Pre-owned
Anritsu MS371A MS371A1 PCM Analog Digital Channel Analyser ITU-T Measuring is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product overview
Product overview
MPN: MS371A1
Brand: Anritsu

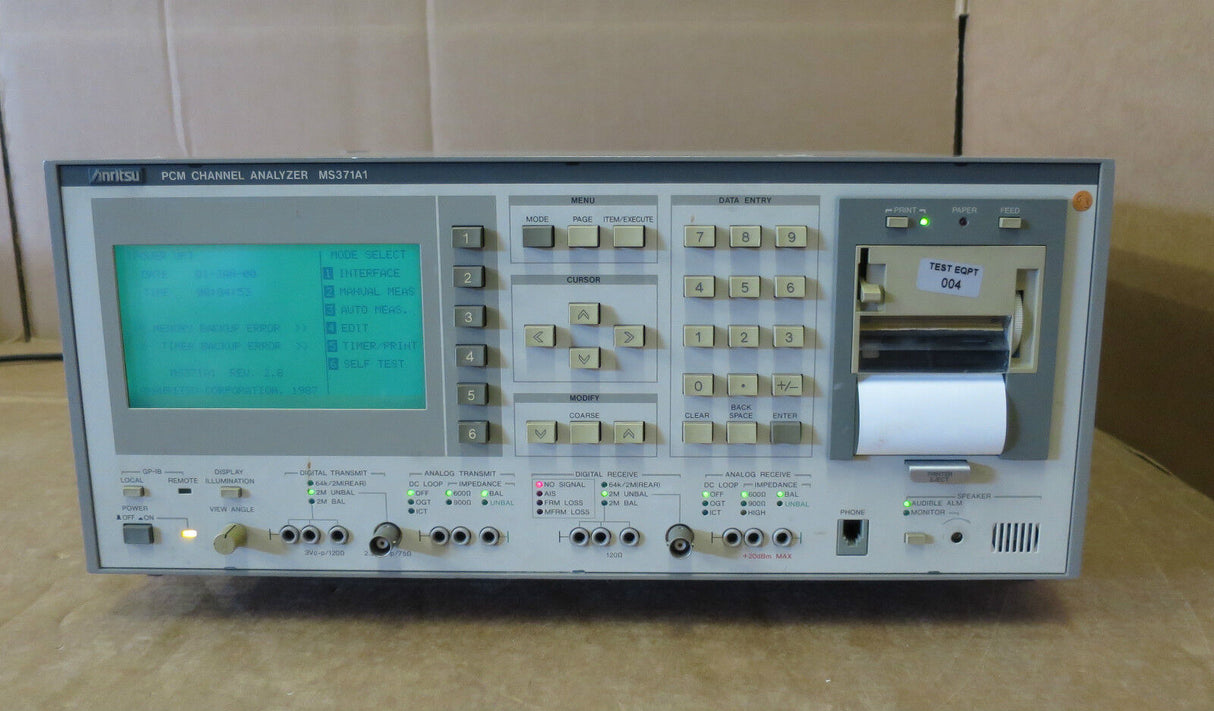

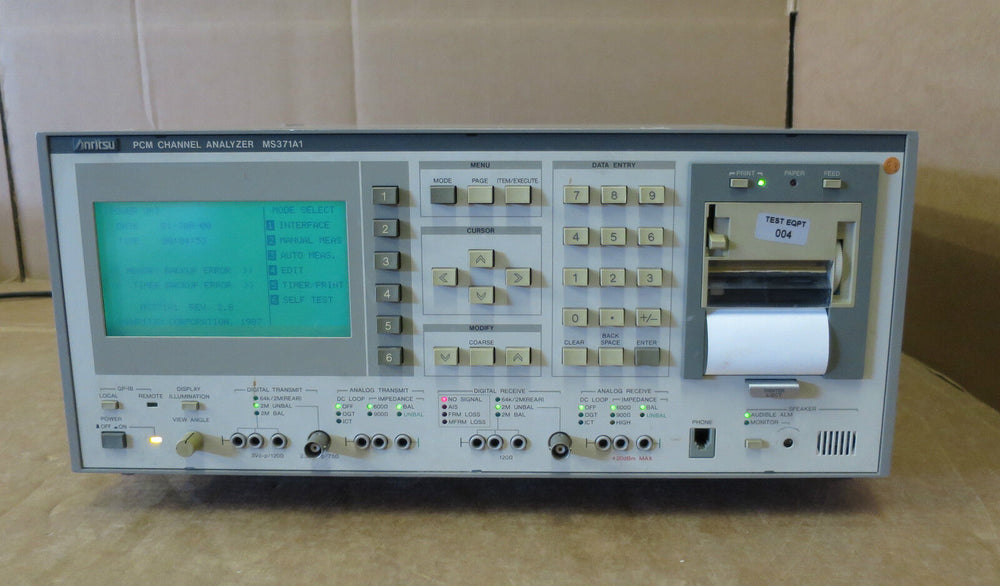

Anritsu MS371A1 PCM Analog Digital Channel Analyser ITU-T Measuring Instrument
In good condition and full working order
Product Description:
Anritsu MS371A1 PCM Channel Analyzer
The MS371A/A1 is an overall measuring instrument with many measuring functions for digital primary hierarchy transmission. It can be used to measure (1) voice encode/decode performance characteristics, (2) frame alignment/alarm test, (3) bit, code, and frame errors, (4) timing jitter, and (5) signalling, etc. The Anritsu MS371A/A1 has most of the functions required to measure PCM systems. It is an all-purpose measuring instrument designed to improve measurement efficiency. Measurements of PCM voice encode/decode performance require much time and labour. The MS371A/ A1 stores the measurement sequence and parameters in its internal memory and makes automatic measurements to markedly improve efficiency. It has a GPIB control function, which will allow measurements of 30 channels in one sequence when combined with channel selector. It also compares the measured results to a reference value, judges them, and displays GOOD or NO GOOD automatically. The measured results can then be printed out on the built-in printer. Another special feature is that the report of the measured results can also be printed out an external printer. In conventional measuring systems, the results are edited with a personal computer or some other external device. However, the MS371A/A1 performs this function internally and prints out to the external printer. This unique function can instantaneously prepare test performance sheets during installation and report the results of periodic maintenance without the need for manual or computer evaluation.

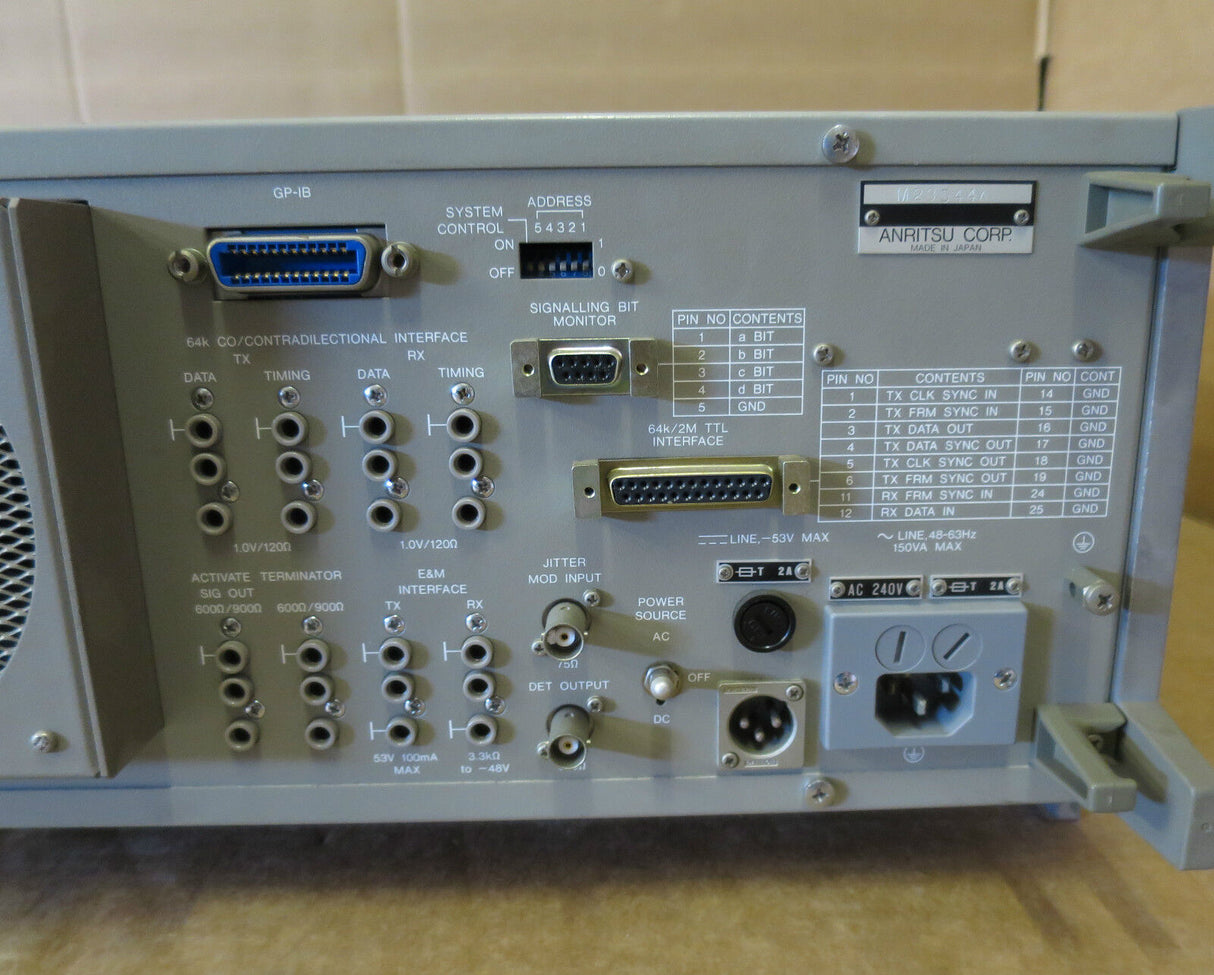

The MS371A1 is the same as the MS371A but also has a 64 kb/s co-contra-directional interface.
Features:
Automatic measurement of A-A, A-D, D-A and D-D (A: analog, D: digital)
This analyzer automatically measures most of the items in ITU-T Recommendations - G.712/713/714. The test sequence and parameters are stored internally, and new test sequences or parameters can be entered by the operator. Also, measurement can be done manually or via GPIB
Frame alignment/alarm test - Frame alignment and alarm tests stipulated in ITU-T Rec. G.704/ O.162 can be performed
Error measurement- Error rate, error count, error second, and % error-free second can be measured by detecting the bit, frame, and code errors
Timing jitter measurement - Jitter modulation is available. Also jitter amplitude and jitter immunity can be measured
Signalling measurement - Manipulation/monitoring of the signalling bit and EM signalling distortion can be measured
GPIB controller - A GPIB controller function has been incorporated. One to thirty channels can be tested automatically and continuously through the channel selector
Built-in printer - Results are printed out by the built-in printer. In automatic measurement, all results can be printed out or the printout can be limited to results failing the evaluation
External printer - Test results from channels 1 to 30 can be edited according to measuring item and printed out. A report, such as a test performance sheet, can be prepared immediately after the completion of measurements
