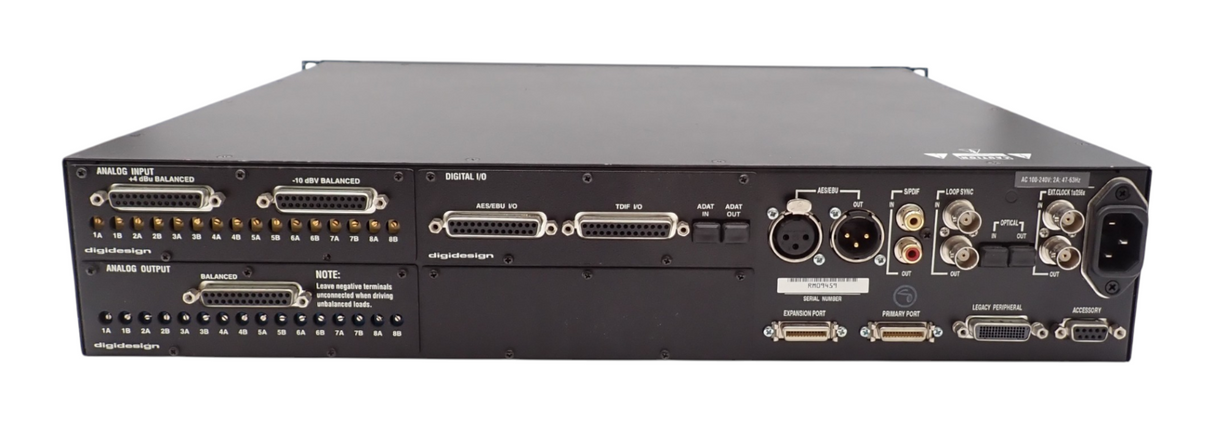

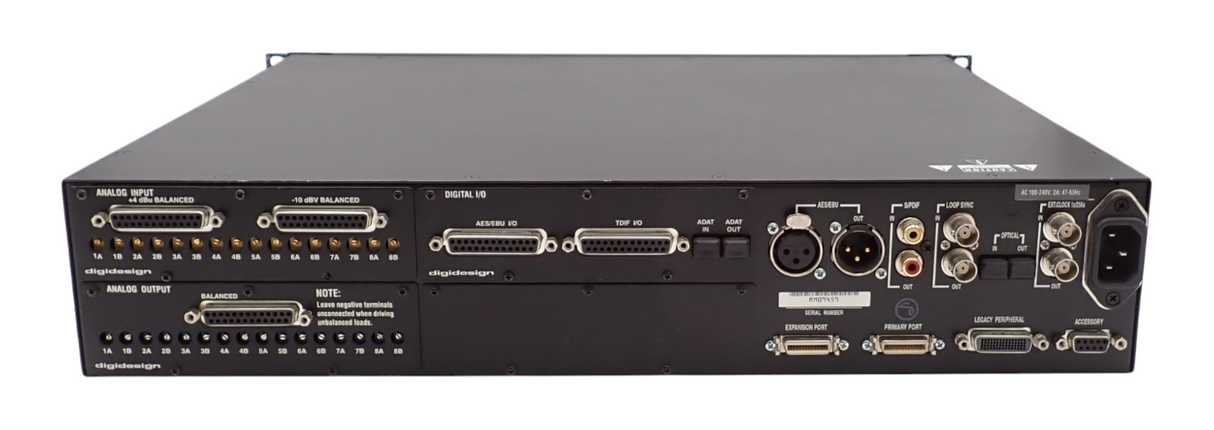

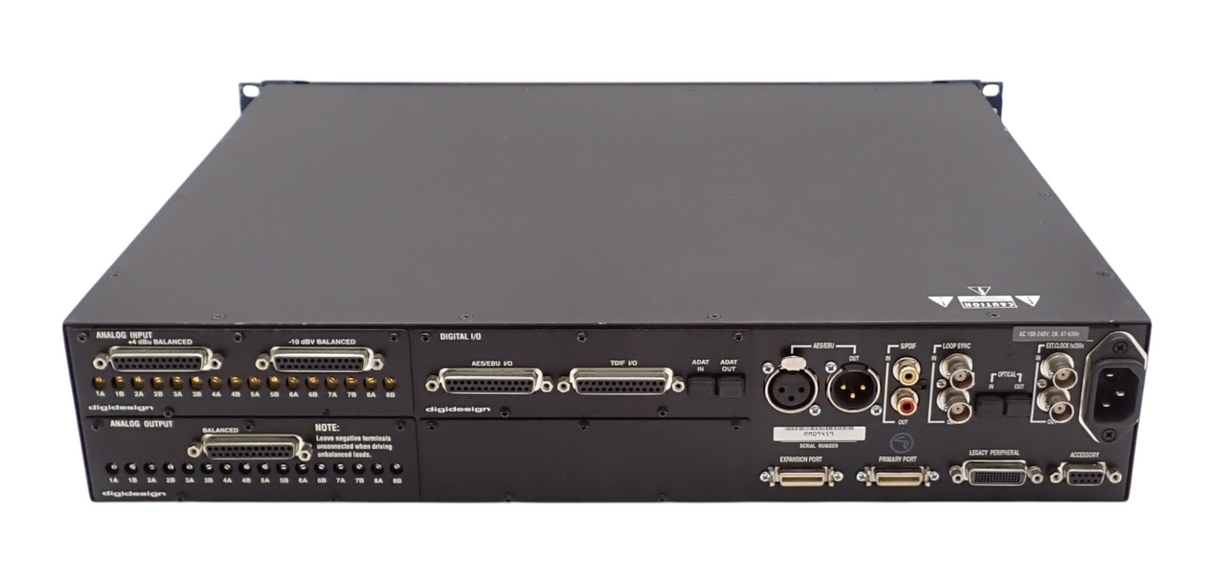

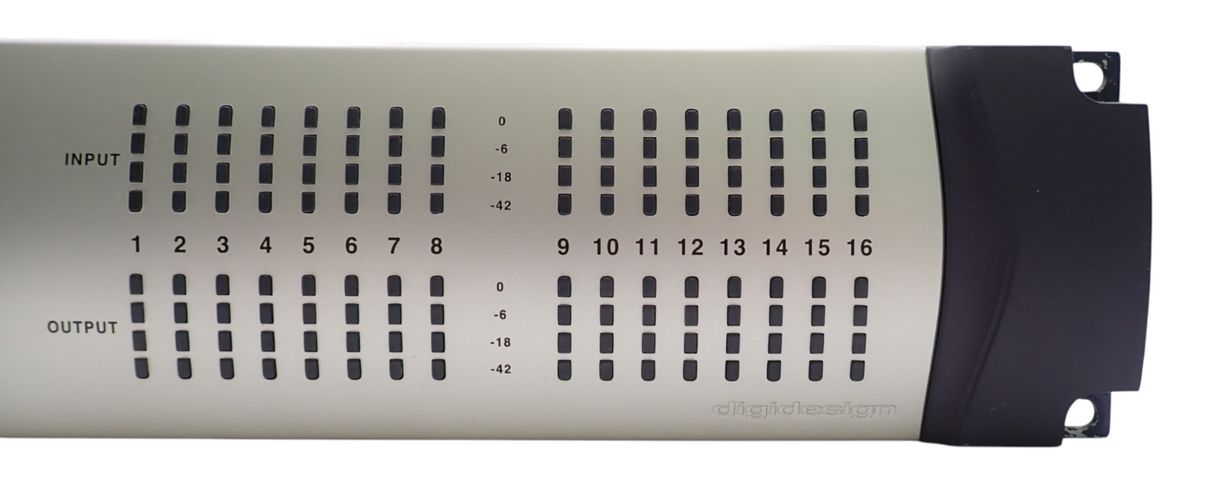

Avid Digidesign 192 I/O MH192 Analog Digital Audio Interface Unit + 3x Cards
Pre-owned
Avid Digidesign 192 I/O MH192 Analog Digital Audio Interface Unit + 3x Cards is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product overview
Product overview

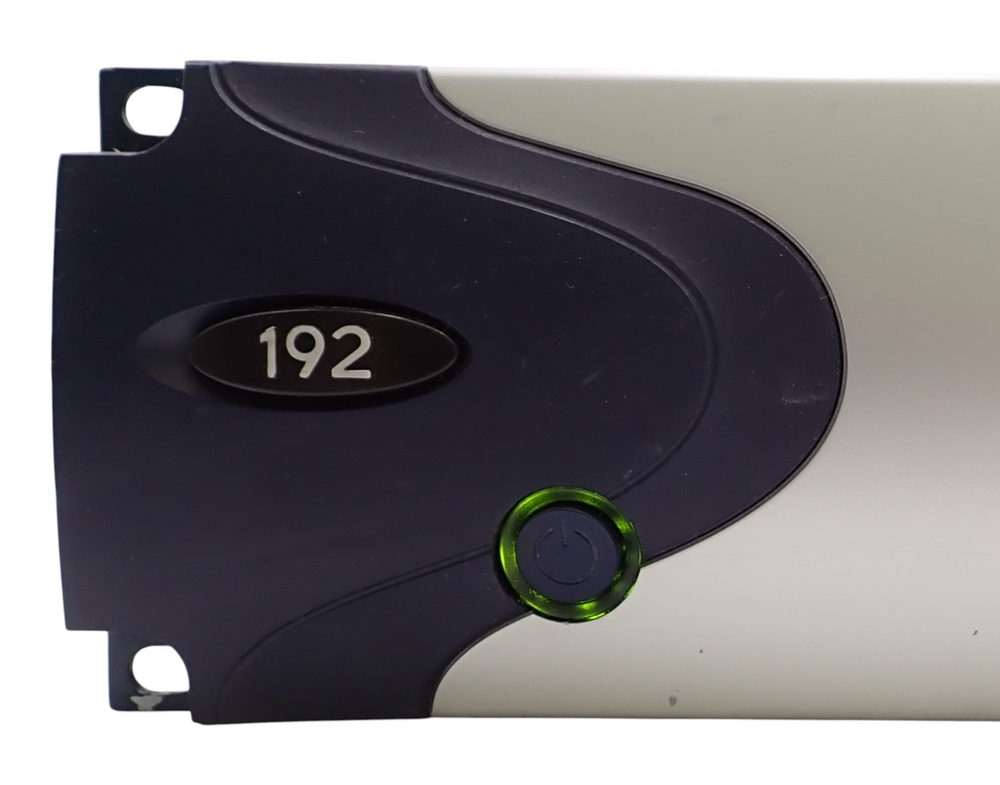

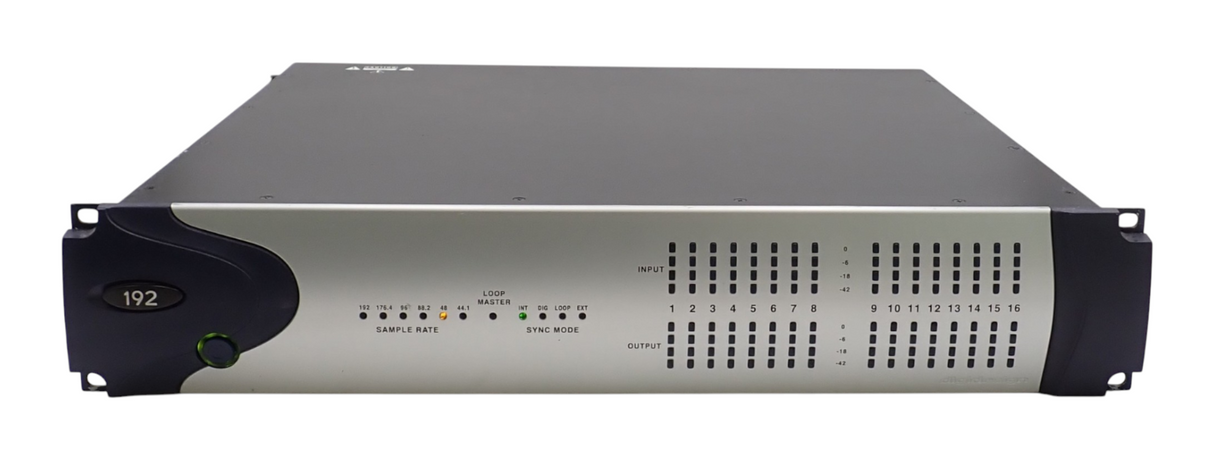

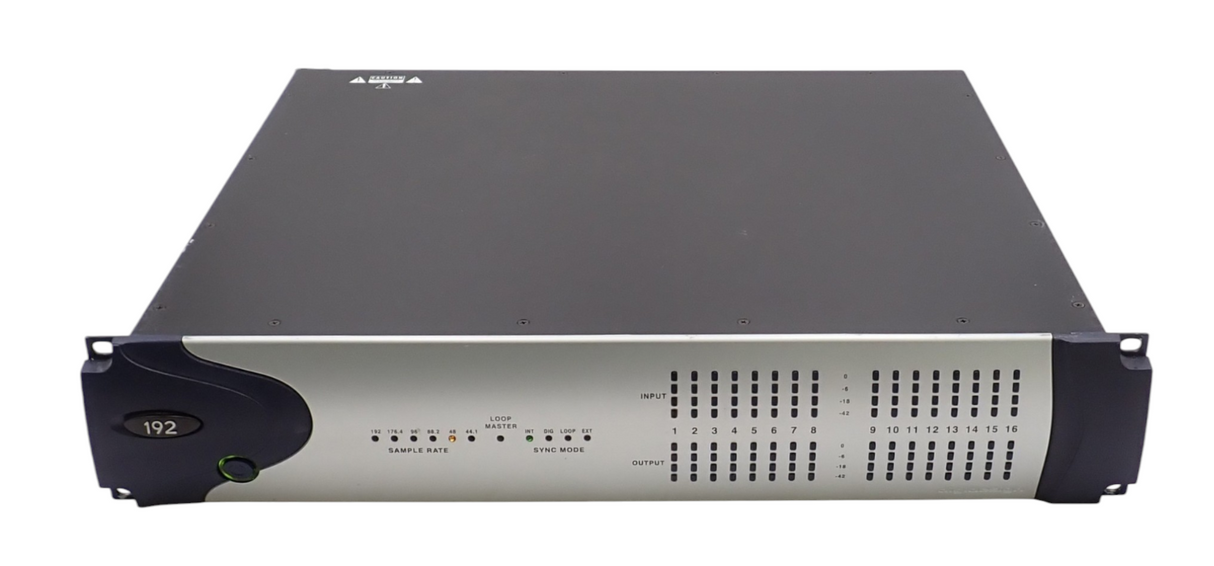

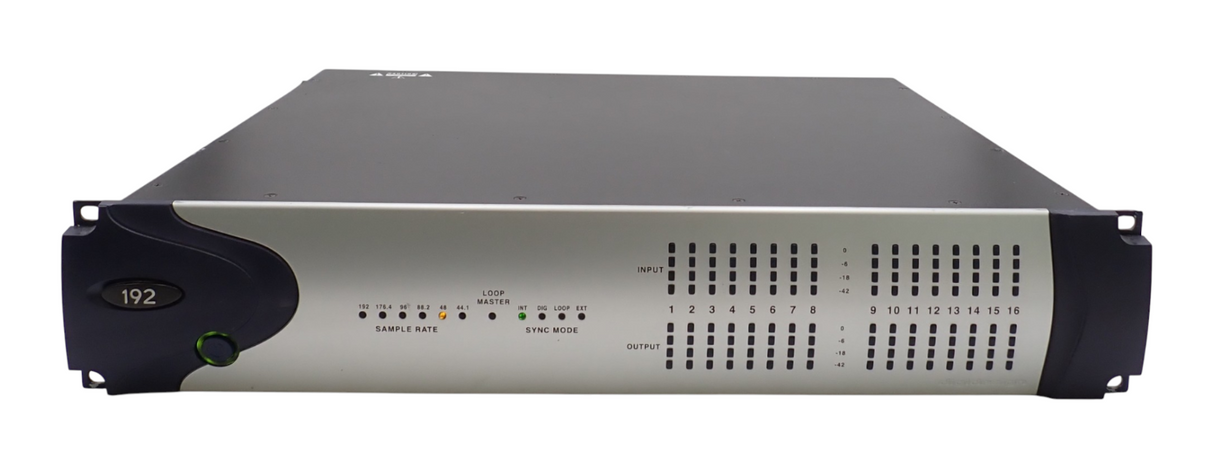

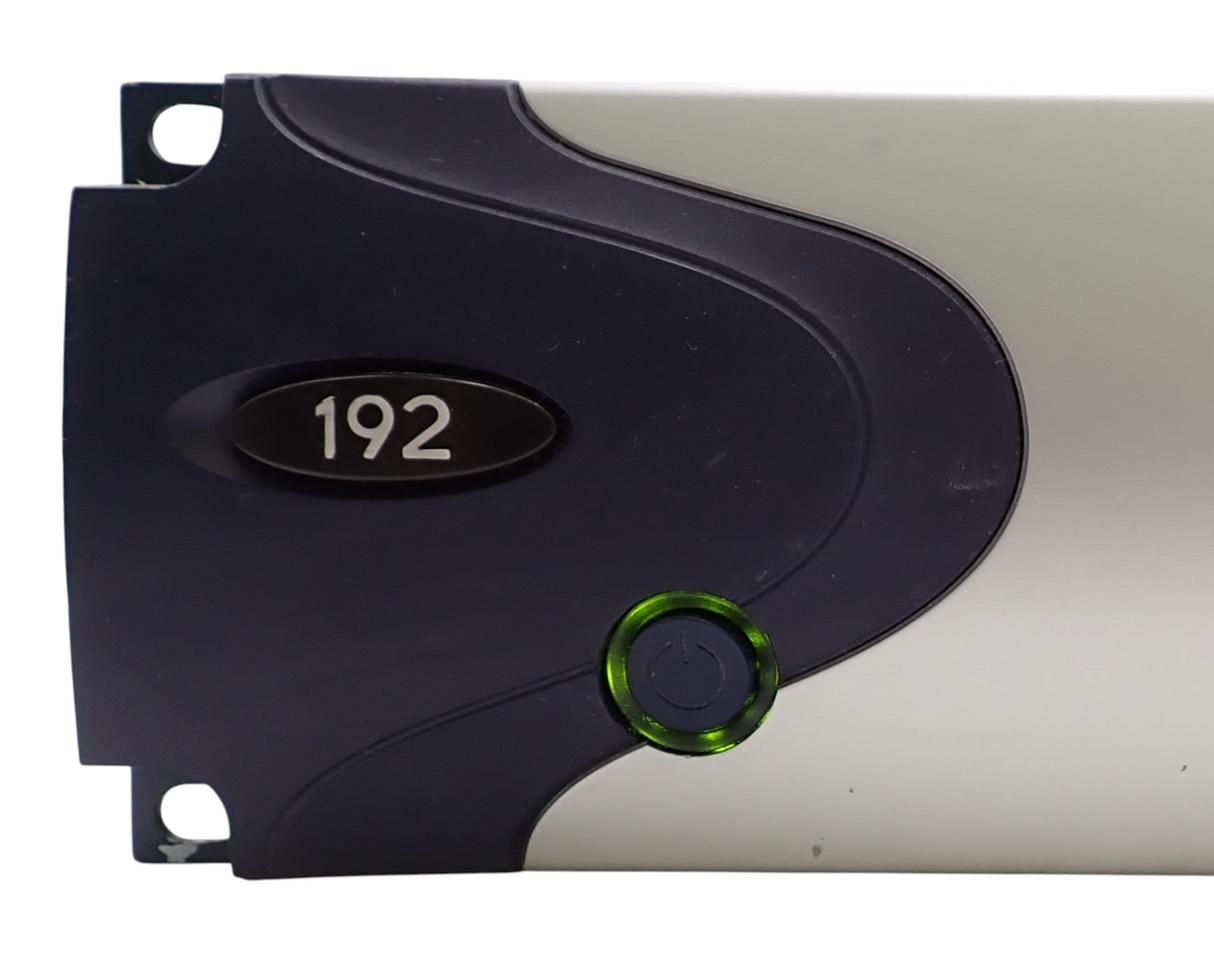

Avid Digidesign 192 I/O MH192 Analog Digital Audio Interface Unit + 3x Cards

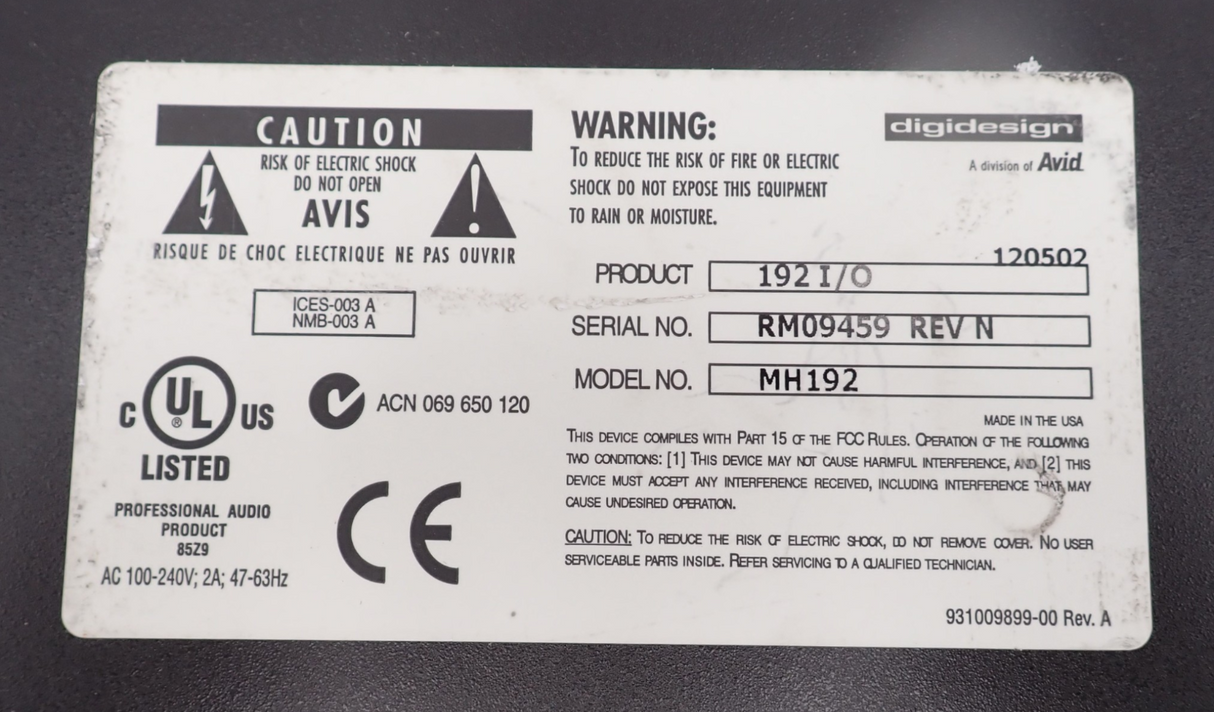

P/N:MH192
Model: 192 I/O
In good condition and In full working order
Tested
Included:
1 x Avid Digidesign 192 I/O MH192 Analog Digital Audio Interface Unit

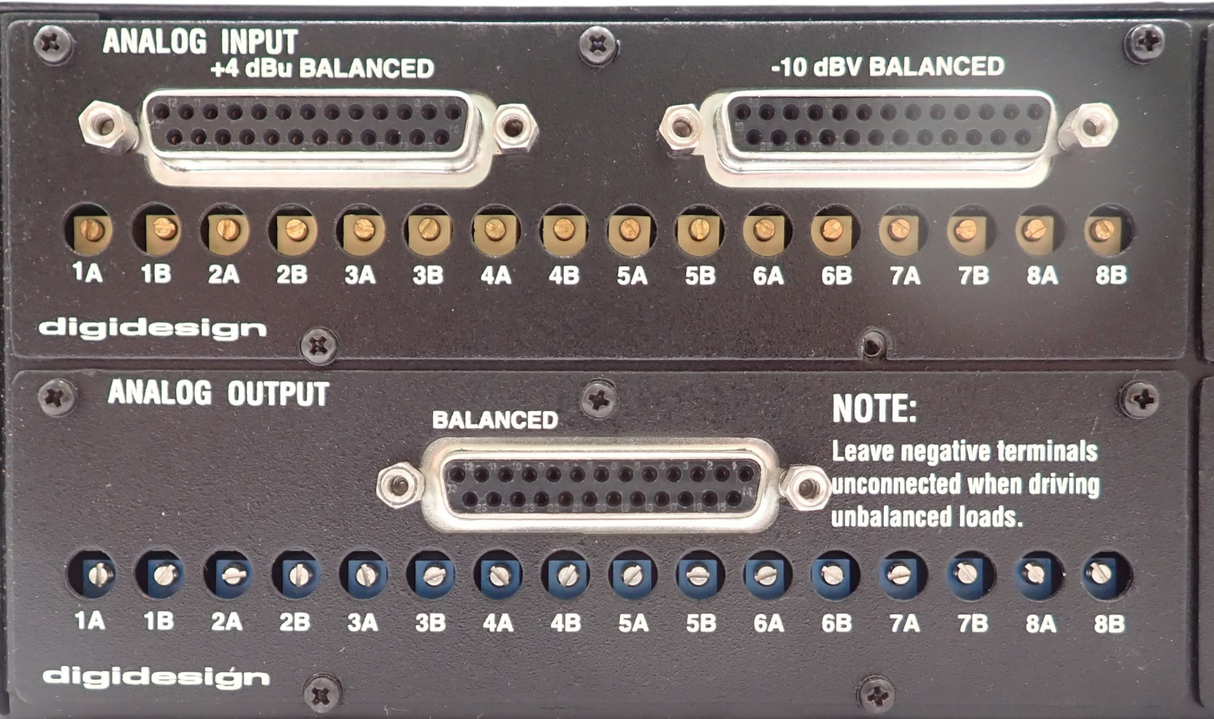

1 x Analog Input Card
1x Analog Output Card
1 x Digital I/O Card
Specifications
Inputs: 8 channels of balanced analog line-level inputs
Outputs: 8 channels of balanced analog line-level outputs
Resolution: 24-bit
Sample Rate: Up to 192 kHz
Maximum Input Level: +24 dBu
Maximum Output Level: +24 dBu
Impedance: 10 kΩ (balanced)

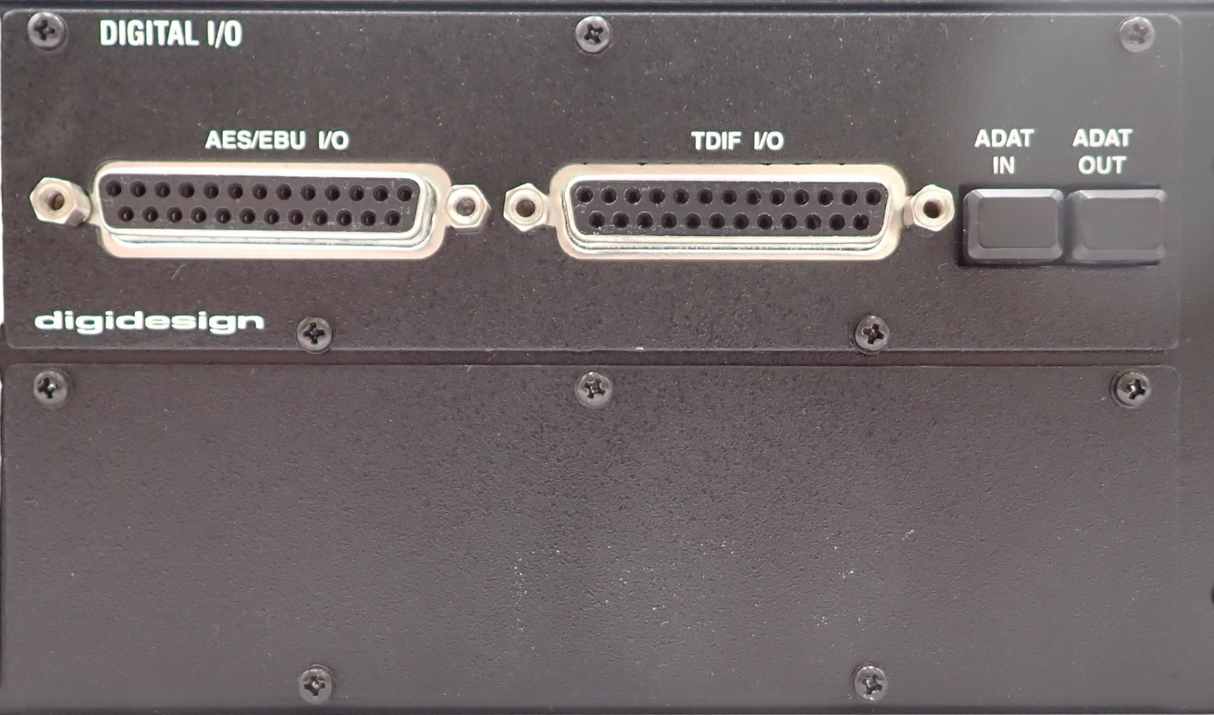

Digital I/O (Standard Configuration)
AES/EBU: 8 channels (via DB-25 connectors)
TDIF: 8 channels (via DB-25 connectors)
ADAT Optical: 16 channels (via 2× ADAT optical ports)
S/PDIF: 2 channels (via coaxial RCA)
Word Clock: Input and output via BNC connectors
Expansion Capabilities
Card Slots: 2 expansion card slots for additional I/O options
Available Cards:
192 AD: Adds 8 analog inputs
192 DA: Adds 8 analog outputs
192 Digital: Adds 8 channels of digital I/O (AES/EBU, TDIF, ADAT, S/PDIF)
Physical Specifications
Form Factor: 2U rackmount chassis
Power Supply: Internal, auto-switching 100–240V AC

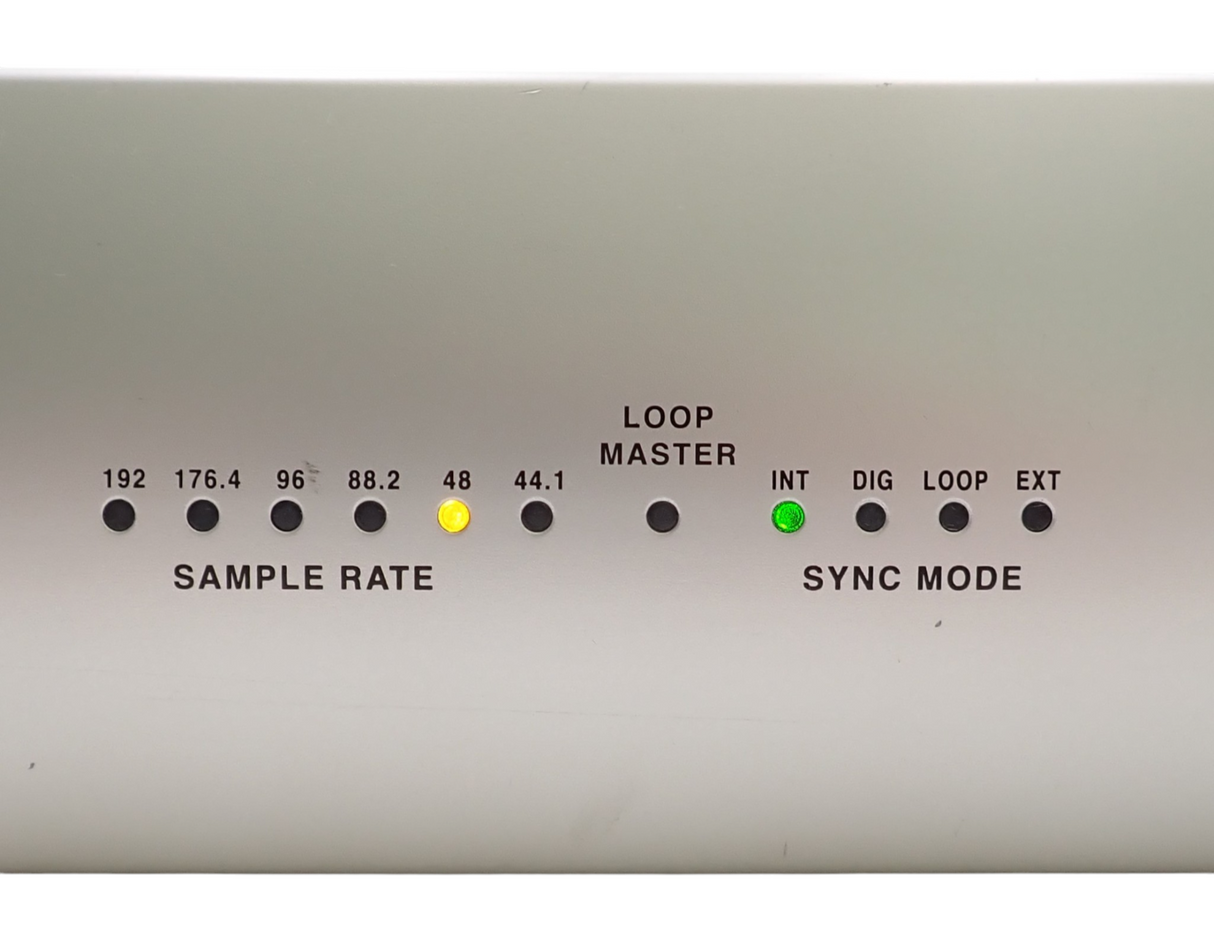

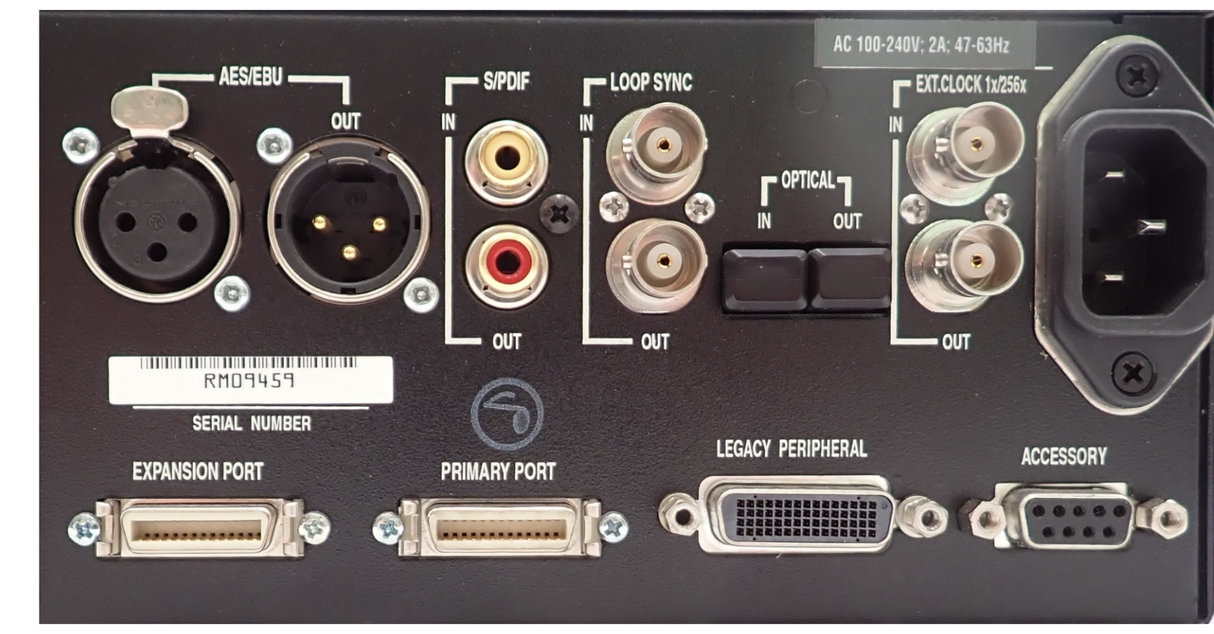

Synchronization & Clocking
Clock Sources: Internal, Word Clock, AES/EBU, S/PDIF, Optical
Sync Modes: Master, Slave, Loop Sync
Loop Sync: Supports multiple units in a synchronized setup
Compatibility & Drivers
Pro Tools|HD: Fully supported
Core Audio: Compatible with macOS systems using Avid HD CoreAudio drivers
