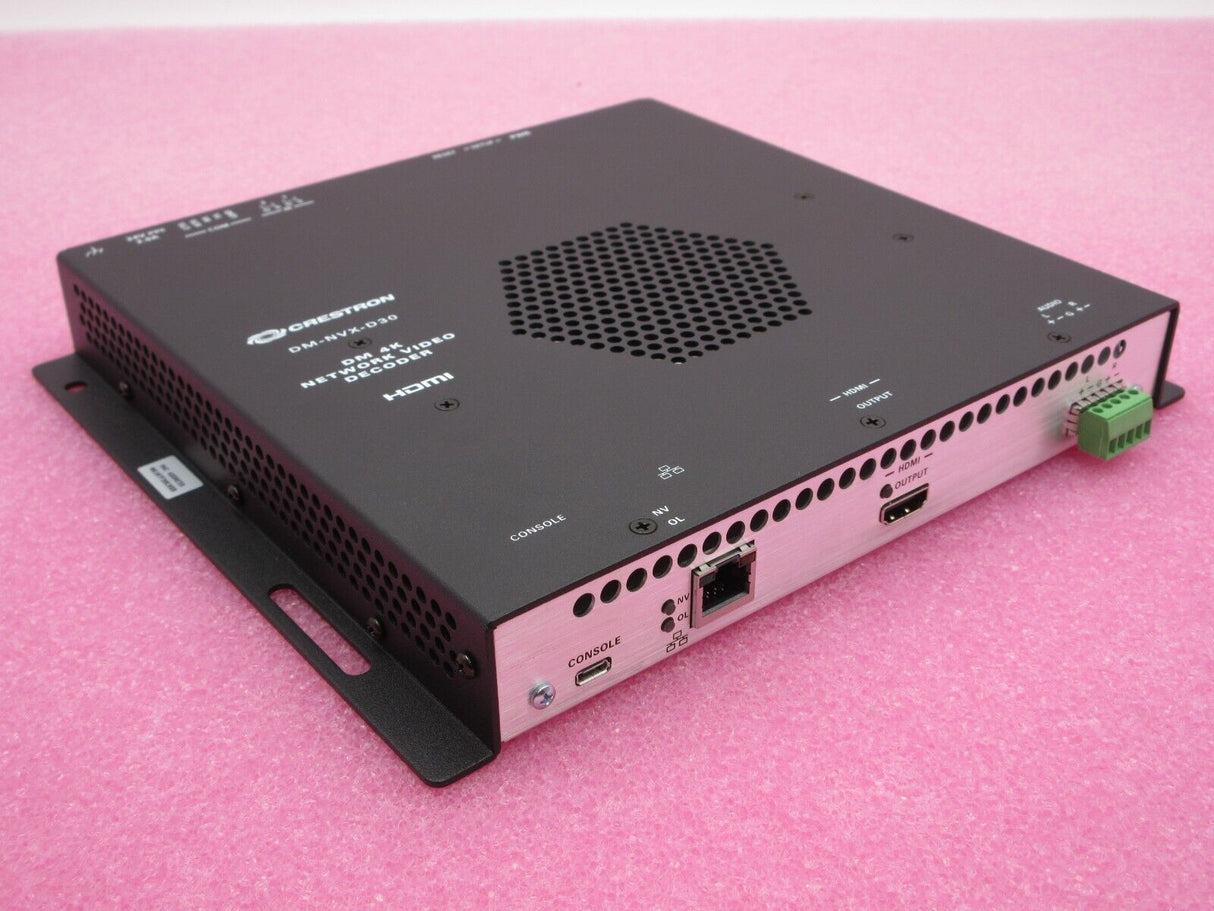

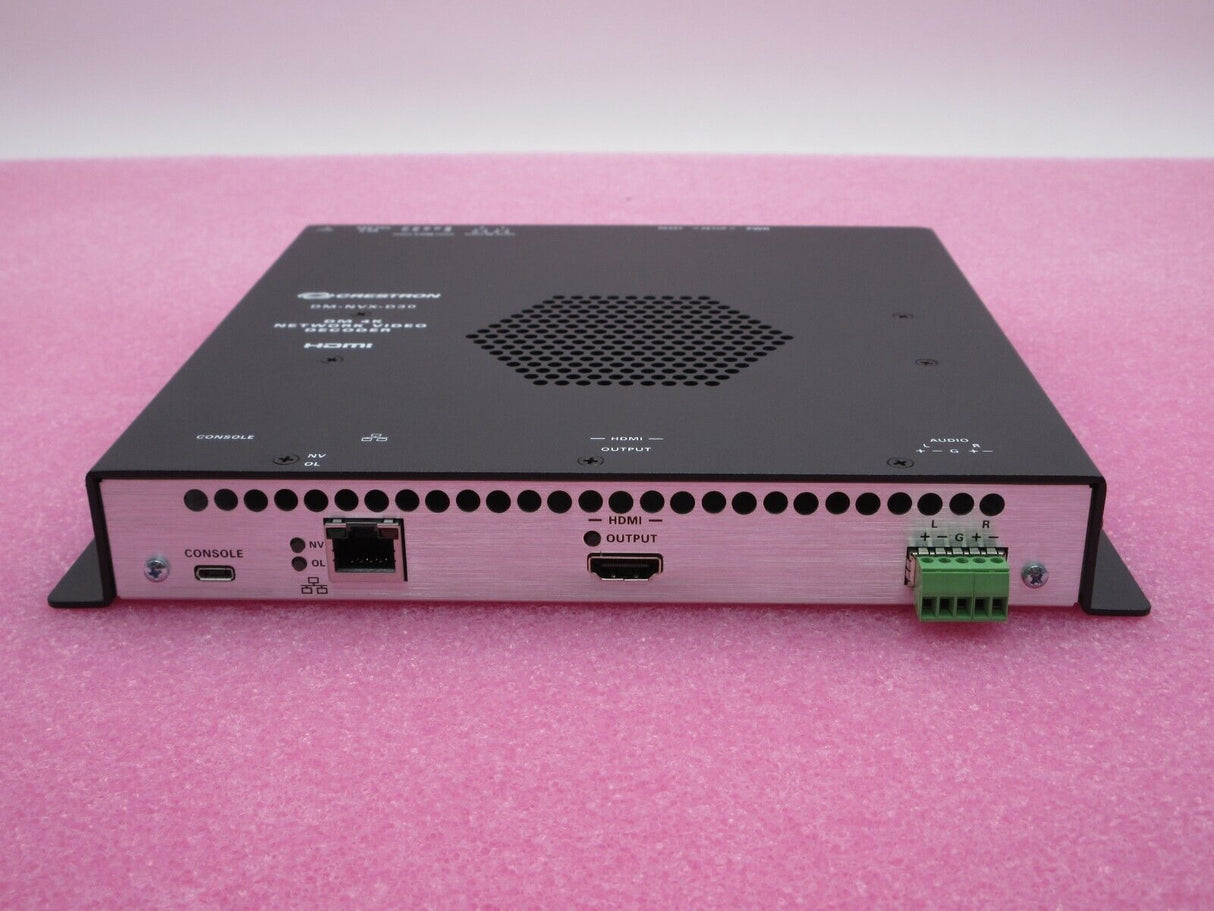

Crestron DM-NVX-D30 DM NVX 4K60 4:4:4 HDR HDCP 2.3 Network AV over IP Decoder

Brand: Crestron
Type: Network AV Decoder
Model: DM-NVX-D30
Connectivity: HDMI,RJ-45,Terminal Block

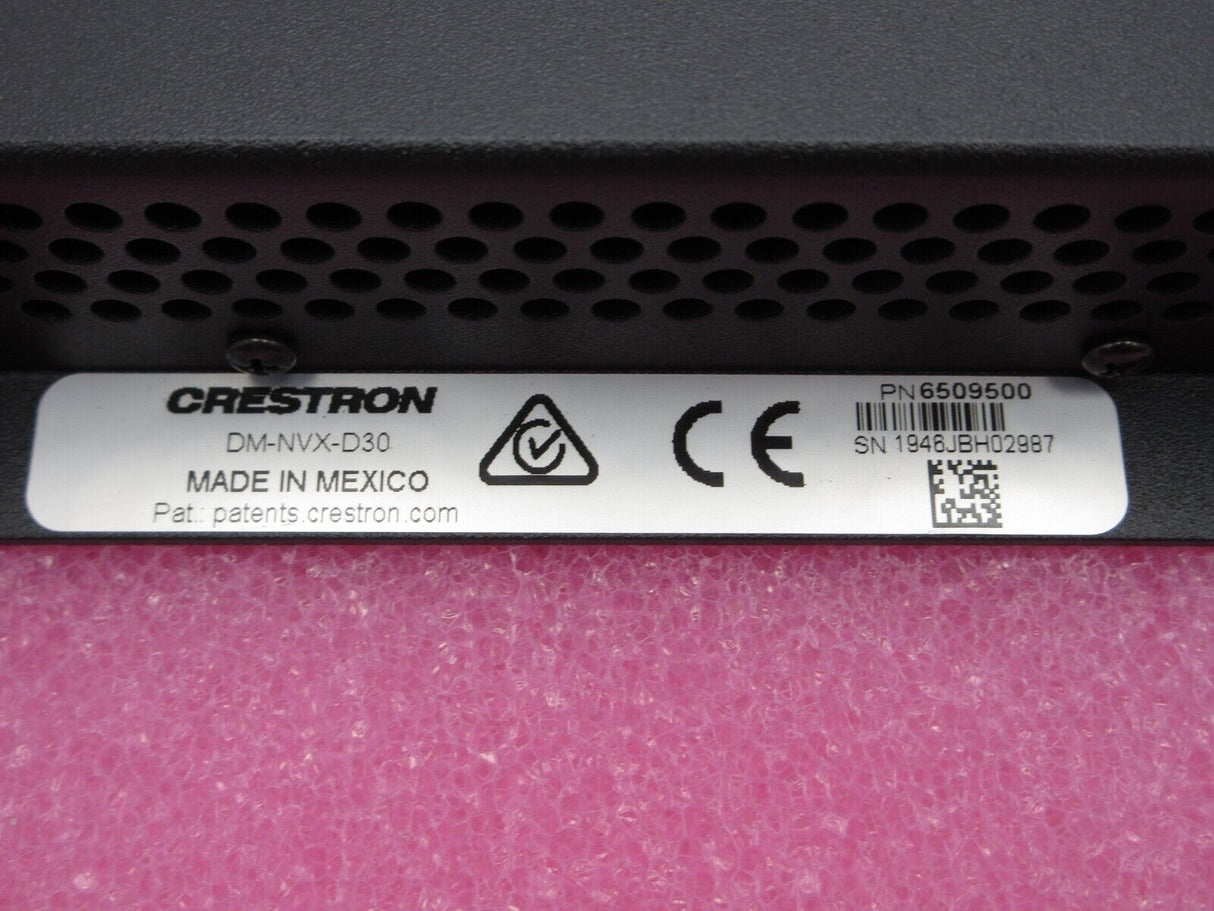

MPN: DM-NVX-D30,6509500
Number of Outputs: 1

Crestron DM-NVX-D30 DM NVX 4K60 4:4:4 HDR HDCP 2.3 Network AV over IP Decoder

In good condition and full working order

Included:
1x Crestron DM-NVX-D30 DM NVX 4K60 4:4:4 HDR HDCP 2.3 Network AV over IP Decoder

Description:
DM NVX® technology transports ultra high‑definition 4K60 4:4:4 video over standard Gigabit Ethernet with no perceptible latency or loss of quality. Using standard network switches and CAT5e UTP wiring, a DM NVX system delivers a high‑performance virtual matrix routing solution for any enterprise or campus‑wide 4K content distribution application. Support for HDR (High Dynamic Range) and HDCP 2.3 compliance ensures the ultimate in picture quality and compatibility for all of today’s varied media sources.1, 2

The Crestron® DM-NVX-D30 is a compact AV over IP decoder designed to function as a receiver. Featuring secure web‑based control and management, an HDMI® output, an analog audio output, AES67 transmit and receive capability, and copper Ethernet connectivity with PoE+ support, the DM-NVX-D30 offers a decoder solution for a DM NVX network AV installation of any size.2

Real‑Time 4K60 Video Distribution:
Engineered for demanding conference room and classroom applications, DM NVX technology ensures real‑time, full‑motion 4K60 video performance for the presentation of multimedia, videoconferencing, and live camera images. Interactive functions such as gameplay and the use of a mouse are fluid and natural.

A DM NVX system is engineered for stability and ultimate reliability. Line‑synchronized outputs ensure perfect synchronization of content across multiple displays for applications such as digital signage. Variable Multicast TTL (Time To Live) enables traversing multiple network routers for optimal flexibility.

Key Features:
4K60 4:4:4 video over standard Gigabit Ethernet
HDR10, HDR10+, and Dolby Vision® video support
Real‑time video performance over the network
Pixel Perfect Processing technology
Enterprise‑grade security including 802.1X, Active Directory® credential management, TLS, and AES‑128
HDCP 2.3 compliant
Decoder functionality for use with DM NVX® products that can function as encoders
One HDMI® output
Image preview
Background image for on-screen display
Analog audio de-embedding
7.1 surround sound audio
AES67 audio embedding and de-embedding
Copper Ethernet connectivity with PoE+ support
Automatic point-to-point connectivity
Device control via RS‑232, IR, and CEC
Easy setup via built‑in web pages
Compatibility with Crestron® 3‑Series® or later control systems
Streamlined management using DM NVX Director® virtual switching appliances
.AV Framework™ technology support
XiO Cloud® service support
Crestron Home® OS support
API for full control of the DM-NVX-D30
Compact, surface‑mountable design

Specifications:
Decoding
Stream Type    Pixel Perfect Processing or DM-NVX-E10/E20 Series5
Video Resolutions    Up to 4096x2160@60Hz (DCI 4K60), 4:4:4 color sampling, HDR10, HDR10+, Dolby Vision®, and Deep Color support
Audio Formats    Multichannel (up to 8-channel LPCM or encoded HBR 7.1 surround sound)
Bit Rates    Based on the stream received from the encoder6
Streaming Protocols    RTP, SDP
Container    MPEG-2 transport stream (.ts)
Session Initiation    Multicast via secure RTSP
Copy Protection    HDCP 2.3, AES-128, PKI
Video
Output Signal Types    HDMI with HDR10, HDR10+, Dolby Vision, Deep Color, and 4K60 4:4:4 support1 (DVI compatible6)
Copy Protection    HDCP 2.3
Resolutions    Common resolutions are listed in the following table.
Scan
Type    Resolution    Frame
Rate    Color
Sampling    Color
Depth
Progressive    4096x2160 DCI 4K and 3840x2160 4K UHD    30 Hz    4:4:4    12 bit
60 Hz    4:2:0    12 bit
60 Hz    4:2:2    12 bit
60 Hz    4:4:4    8 bit
2560x1600 WQXGA Reduced Blanking    60 Hz    4:4:4    8 bit
2560x1440 WQHD Reduced Blanking    60 Hz    4:4:4    8 bit
120 Hz    4:4:4    8 bit
2560x1080 UWFHD    60 Hz    4:4:4    8 bit
2048x1152 QWXGA    60 Hz    4:4:4    12 bit
2048x1080 DCI 2K    60 Hz    4:4:4    12 bit
1600x1200 UXGA    60 Hz    4:4:4    12 bit
1920x1200 WUXGA    60 Hz    4:4:4    12 bit
1920x1080 FHD 1080p    60 Hz    4:4:4    12 bit
120 Hz    4:4:4    8 bit
240 Hz    4:4:4    8 bit
Interlaced    1920x1080 HD 1080i    30 Hz    4:4:4    12 bit
NOTE: The maximum supported resolution is 4096x2160 at 60 Hz with 4:4:4 color sampling. Custom resolutions are supported at pixel clock rates up to 600 MHz.
Audio
Output Signal Types    HDMI, analog stereo3
Digital Formats    Dolby Digital®, Dolby Digital EX, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS®, DTS ES, DTS 96/24, DTS HD High Res, DTS HD Master Audio, DTS:X, LPCM up to 8 channels
Analog Formats    Stereo 2-channel
Digital-To-Analog Conversion    24-bit 48 kHz
AES67    24-bit 48 kHz
Analog Performance    Frequency Response: 20 Hz to 20 kHz ±0.5 dB;
S/N Ratio: >95 dB 20 Hz to 20 kHz A-weighted;
THD+N: <0.005% @ 1 kHz;
Stereo Separation: >90 dB
Analog Output Volume Adjustment    −80 to +20 dB
Communications
Ethernet    100/1000 Mbps, auto-switching, auto-negotiating, auto-discovery, full/half duplex, TCP/IP, UDP/IP, CIP, DHCP, SSL, TLS, SSH, SFTP (SSH File Transfer Protocol), IEEE 802.1X, IPv4 only or both IPv4 and IPv6, Active Directory authentication, variable Multicast TTL, HTTPS web browser setup and control, Crestron 3-Series or later control system integration
USB    USB 2.0 computer console (for setup)
RS-232    2-way device control and monitoring up to 115.2k baud with hardware and software handshaking (via control system); computer console (for setup)
IR/Serial    1-way device control via infrared up to 1.1 MHz or serial TTL/RS-232 (0-5 V) up to 19.2k baud (via control system)
HDMI    HDCP 2.3, EDID, CEC
DM NVX (via Ethernet)    HDCP 2.3, AES-128 AV content encryption with PKI authentication, RTP, secure RTSP, SDP, ONVIF, IGMPv2, IGMPv3, SMPTE 2022, FEC (Forward Error Correction)
Connectors
Ethernet    (1) 8-pin RJ-45 connector, female;
100BASE-TX/1000BASE-T Ethernet port;2
PoE+ PD (powered device) port,
IEEE 802.3at Type 2 PoE+ Class 4 (25.5 W) compliant;
Compatible with Crestron DM-PSU-ULTRA-MIDSPAN, PoE+ compliant Ethernet switch, or approved third-party PSE4
HDMI OUTPUT    (1) HDMI Type A connector, female;
HDMI digital video/audio output1
(DVI compatible7)
AUDIO    (1) 5-pin 3.5 mm detachable terminal block;
Balanced/unbalanced stereo line-level audio output3;
Output Impedance: 200 Ohms balanced, 100 Ohms unbalanced;
Maximum Output Level: 4 Vrms balanced, 2 Vrms unbalanced
CONSOLE, USB    (1) Micro USB connector, female;
USB 2.0 computer console port (for setup)
IR 1 – 2    (1) 4-pin 3.5 mm detachable terminal block;
Comprises (2) IR/Serial ports;
IR output up to 1.1 MHz;
1-way serial TTL/RS-232 (0-5 V) up to 19200 baud;
IRP2 emitter sold separately
COM    (1) 5-pin 3.5 mm detachable terminal block;
Bidirectional RS-232 port;
Up to 115.2k baud, hardware and software handshaking support
24VDC 1.25A    (1) 2.1 x 5.5 mm DC power connector;
24 VDC power input;
PW-2412WU power pack (sold separately)
G    (1) 6-32 screw;
Chassis ground lug
Controls and Indicators
NV    (1) Green LED, indicates unit is decoding (receiving) network video
OL    (1) Green LED, indicates an online connection to a control system via Ethernet
Ethernet    (2) LEDs, green indicates Ethernet link status, amber indicates Ethernet activity
HDMI OUTPUT    (1) Green LED, indicates video signal transmission at the HDMI output
PWR    (1) Bi-color green/amber LED, indicates operating power supplied via PoE+ or optional power pack (sold separately), lights amber while booting and green when operating
SETUP    (1) Red LED and (1) push button, displays onscreen IP address
RESET    (1) Recessed push button, reboots the device
Power
PoE+    IEEE 802.3at Type 2 Class 4 (25.5 W) compliant;
Compatible with Crestron DM-PSU-ULTRA-MIDSPAN, PoE+ compliant Ethernet switch, or approved third-party PSE
Power Pack (Optional)    Input: 0.8 A maximum @ 100-240 VAC, 50/60 Hz;
Output: 1.25 A @ 24 VDC;
Model: PW-2412WU (sold separately)
Power Consumption    16 W typical
Environmental
Temperature    32° to 104° F (0° to 40° C)
Humidity    10% to 90% RH (non-condensing)
Heat Dissipation    48 BTU/hr
Acoustic Noise    33 dBA typical
Enclosure
Chassis    Metal, black finish, integral mounting flanges, fan cooled; vented top, front, rear, and sides
Mounting    Freestanding, surface mount, or attach to a single rack rail
Dimensions
Height    5.41 in. (138 mm)
Width    9.27 in. (236 mm)
Depth    1.15 in. (30 mm)
Weight
1.7 lb (0.77 kg)
