Evertz AESIMP12M AES XLR BNC Bulk Impedance Converters 1U Rackmount
Pre-owned
Evertz AESIMP12M AES XLR BNC Bulk Impedance Converters 1U Rackmount is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product overview
Product overview
Evertz AESIMP-12M AES XLR BNC Bulk Impedance Converters 1U Rackmount

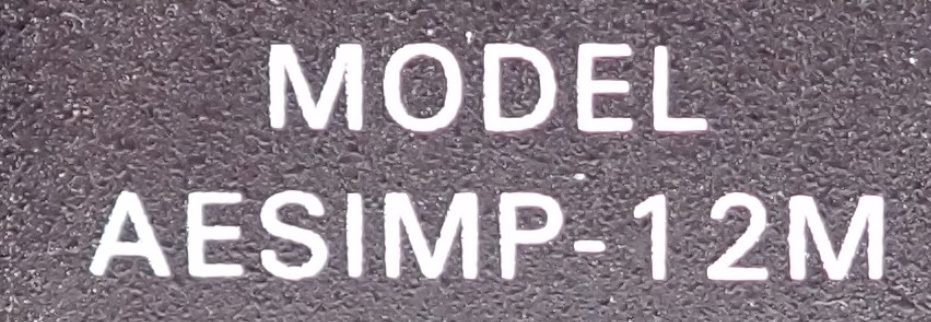

Model: AESIMP-12M
In Good Condition, Full Working Order
Tested
Included:
1 x Evertz AESIMP-12M AES XLR BNC Bulk Impedance Converters 1U Rackmount
Description
The AESIMP-12 series impedance converters allow transmission of AES/EBU digital
audio signals, with sampling rates ranging from 22kHz to 96kHz, over 75Ω coaxial
cables. The conversion transformer changes a balanced 110Ω transmission line to an
unbalanced 75Ω transmission line.

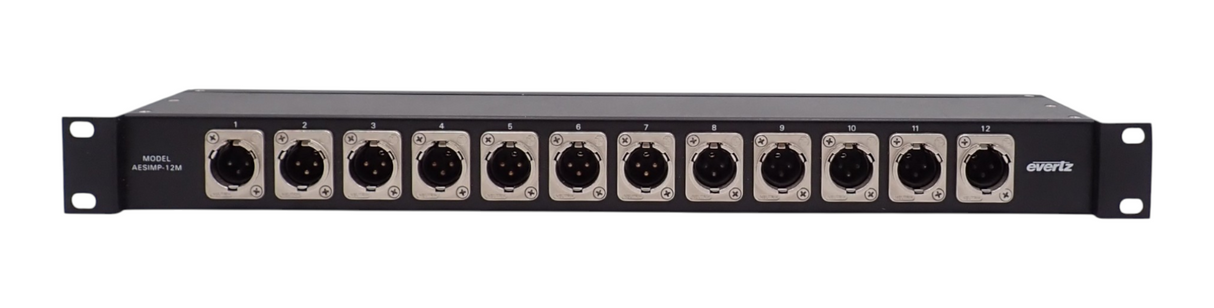

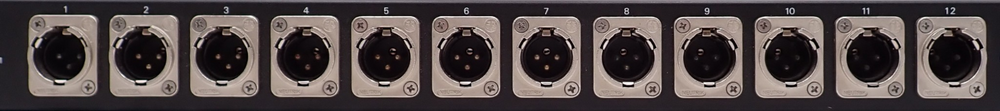

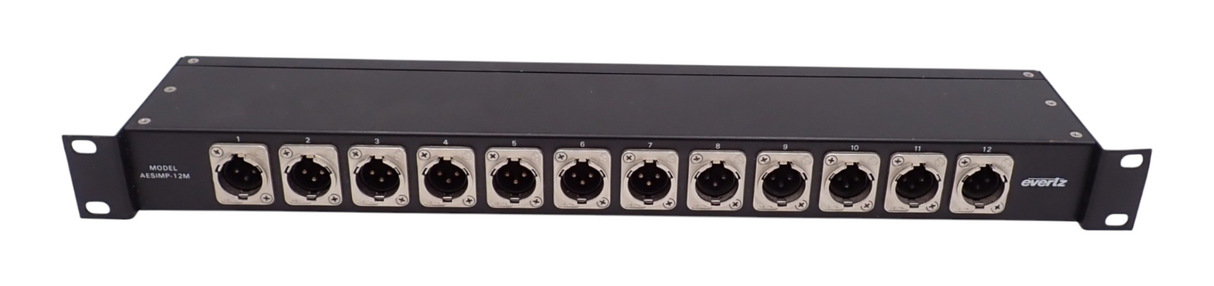

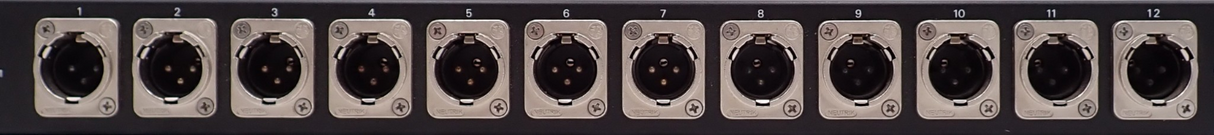

The AESIMP-12 series provides twelve XLR-3 type connectors (male or female) on

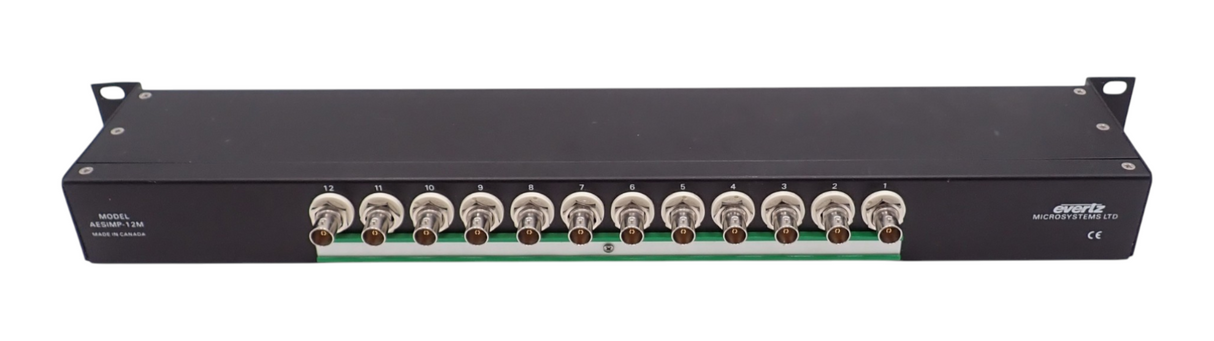

the balanced side and BNC type connector on the unbalanced side. Two versions of
the AESIMP-12 are available. The AESIMP-6F6M gives 6 converters in each direction.
The AESIMP-1M is a single channel converter.

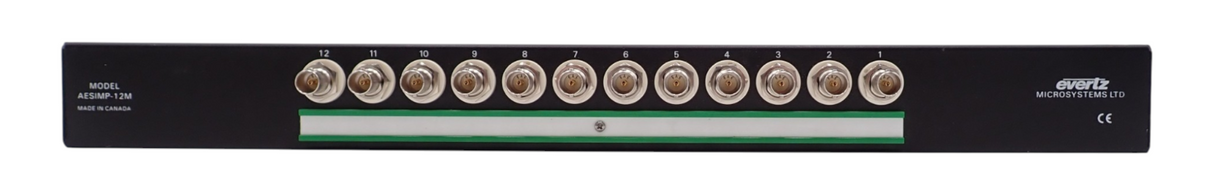

The rack mounting ears may be reversed to orient the panel for the greatest ease of

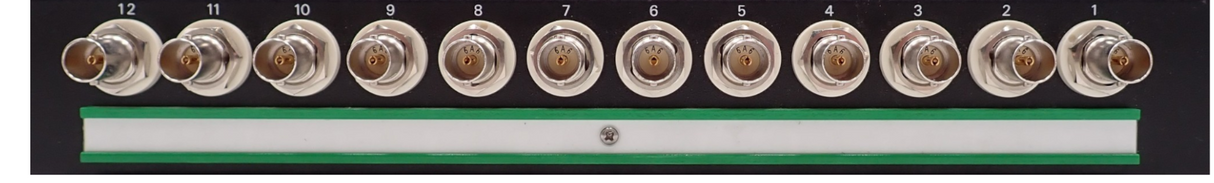

installation. An identification strip holder is provided over the BNC connectors to assist
in labeling sources and/or destinations.
Specifications
Number of Channels: 12
Coupling: Transformer
Turns Ratio: 1.22:1
Unbalanced AES:
Standard: SMPTE 276M, single ended AES
Connectors: BNC per IEC 61169-8 Annex A
Signal Level: Approx. balanced level x 0.8,
5V p-p maximum
Impedance: 75Ω unbalanced
Balanced AES:
Standard: AES3-1992 balanced AES
Connectors: 3-pin Male XLR
Signal Level: Approx. unbalanced level x 1.22,
5V p-p maximum
Impedance: 110Ω balanced
Physical:
Dimensions: 17”W x 1.75”H x 3.75”D
(483mm W x 45mm H x 95mm D)
Depth Including
Connectors: 4.5”
