New arrival
FLIR E54 Advanced Thermal Imaging Camera 320x240 Exx Series with Transport Case
£3,990.00
£3,325.00 ex VAT
Unit price
/
Unavailable
FLIR E54 Advanced Thermal Imaging Camera 320x240 Exx Series with Transport Case is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product overview
Product overview
Brand: Flir
Thermal Sensitivity: 40 mK (0.04°C)
Display Resolution: 640 x 480 Pixels
IR Sensor Resolution: 320 x 240 Pixels
Product: Handheld Thermal Camera
Temperature Range: -20°C to 650°C (-4°F to 1202°F)
Distance to Spot Ratio: 504:1
MPN: 845121201
Field of View: 24° x 18°
FLIR E54 Advanced Thermal Imaging Camera 320x240 Exx-Series Infrared IR w/ Case
P/N: 84512-1201
In Good Condition and Full Working Order
Tested

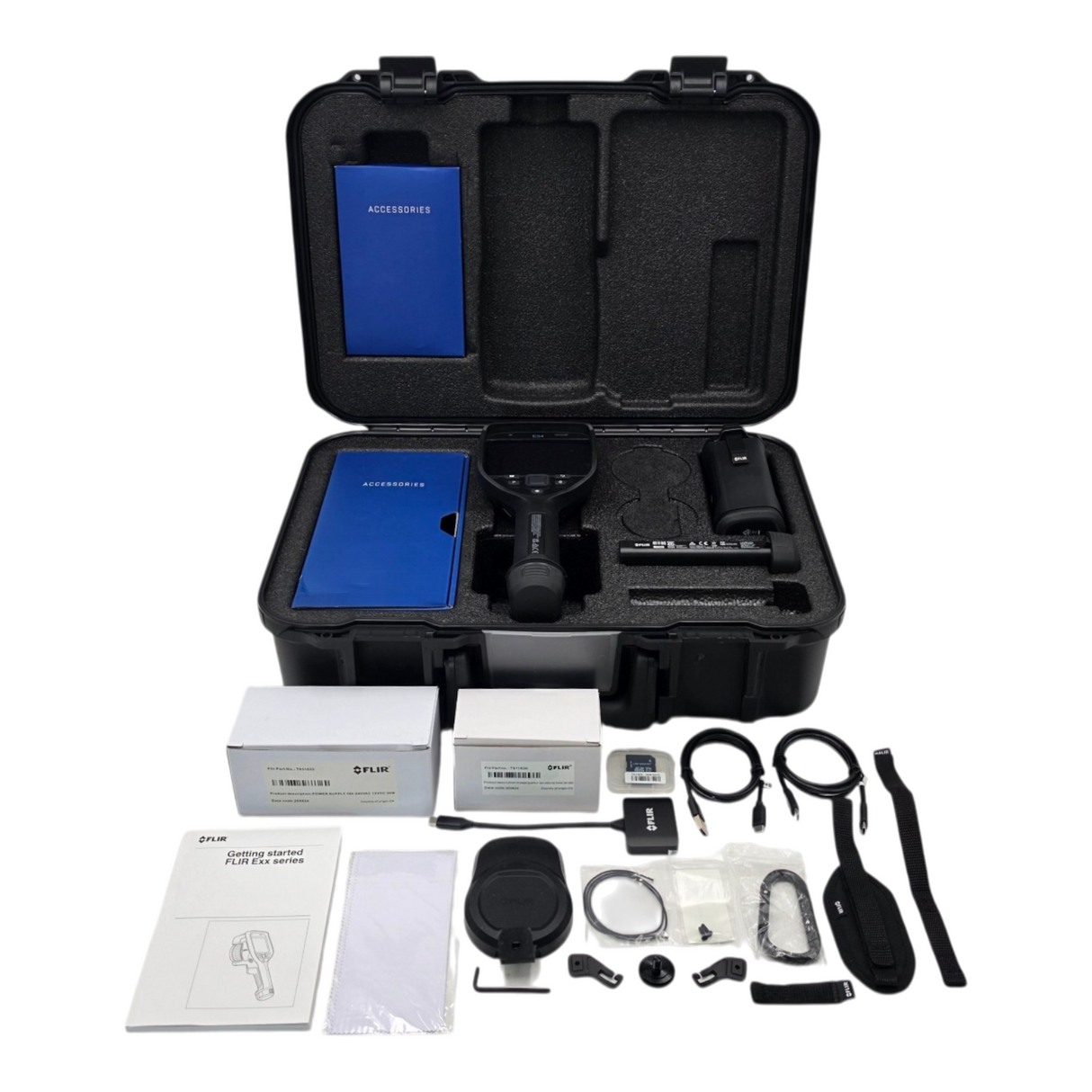

Included Items:

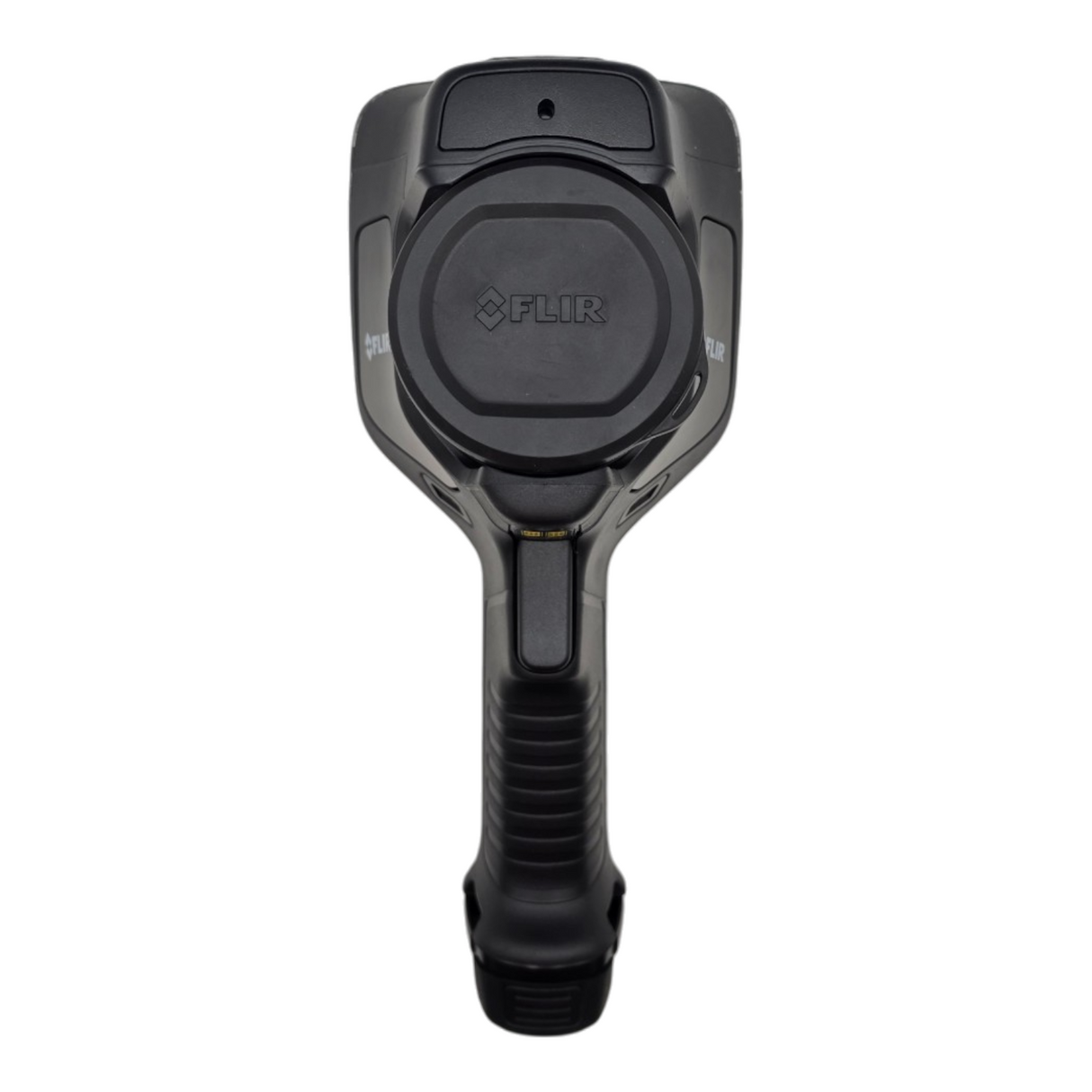

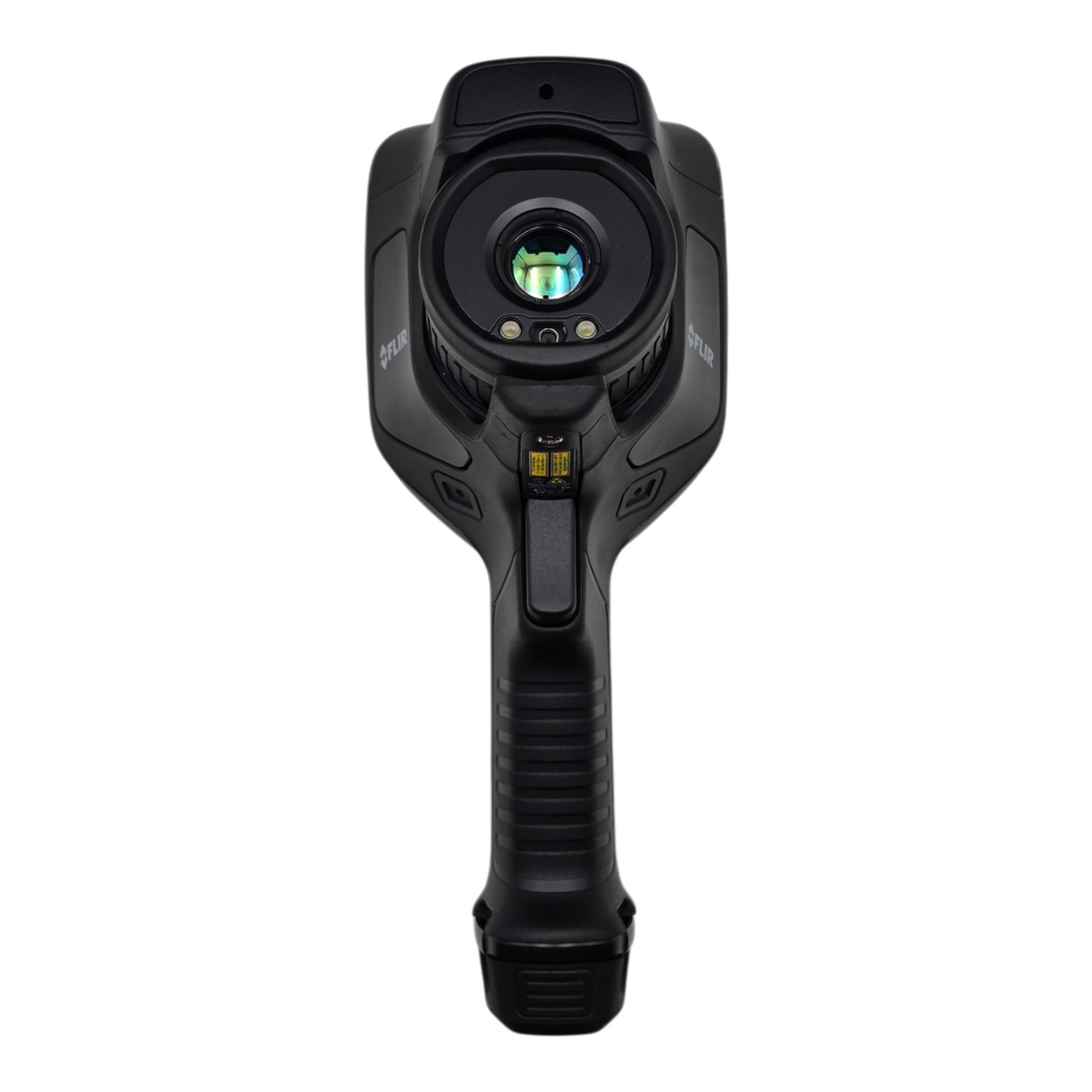

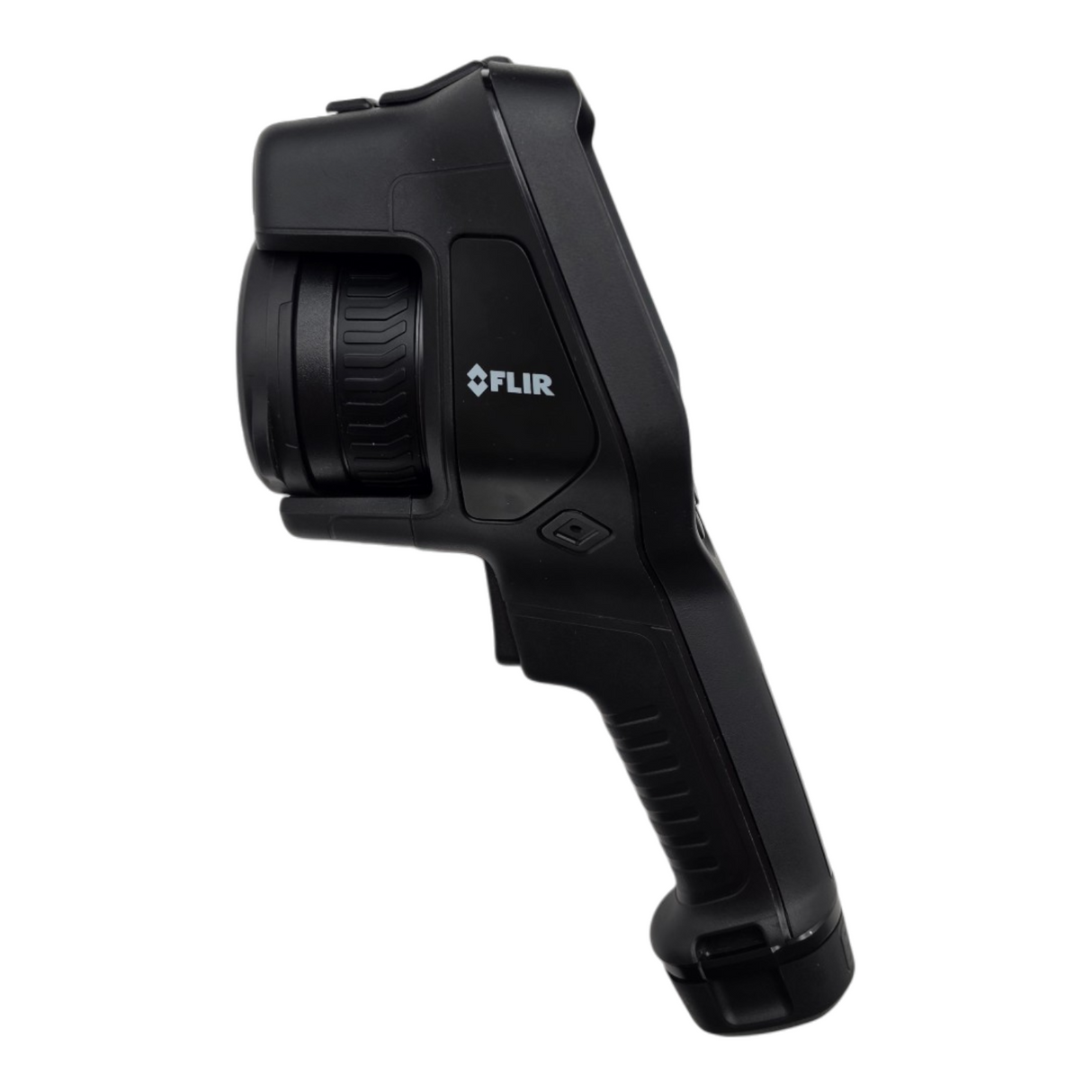

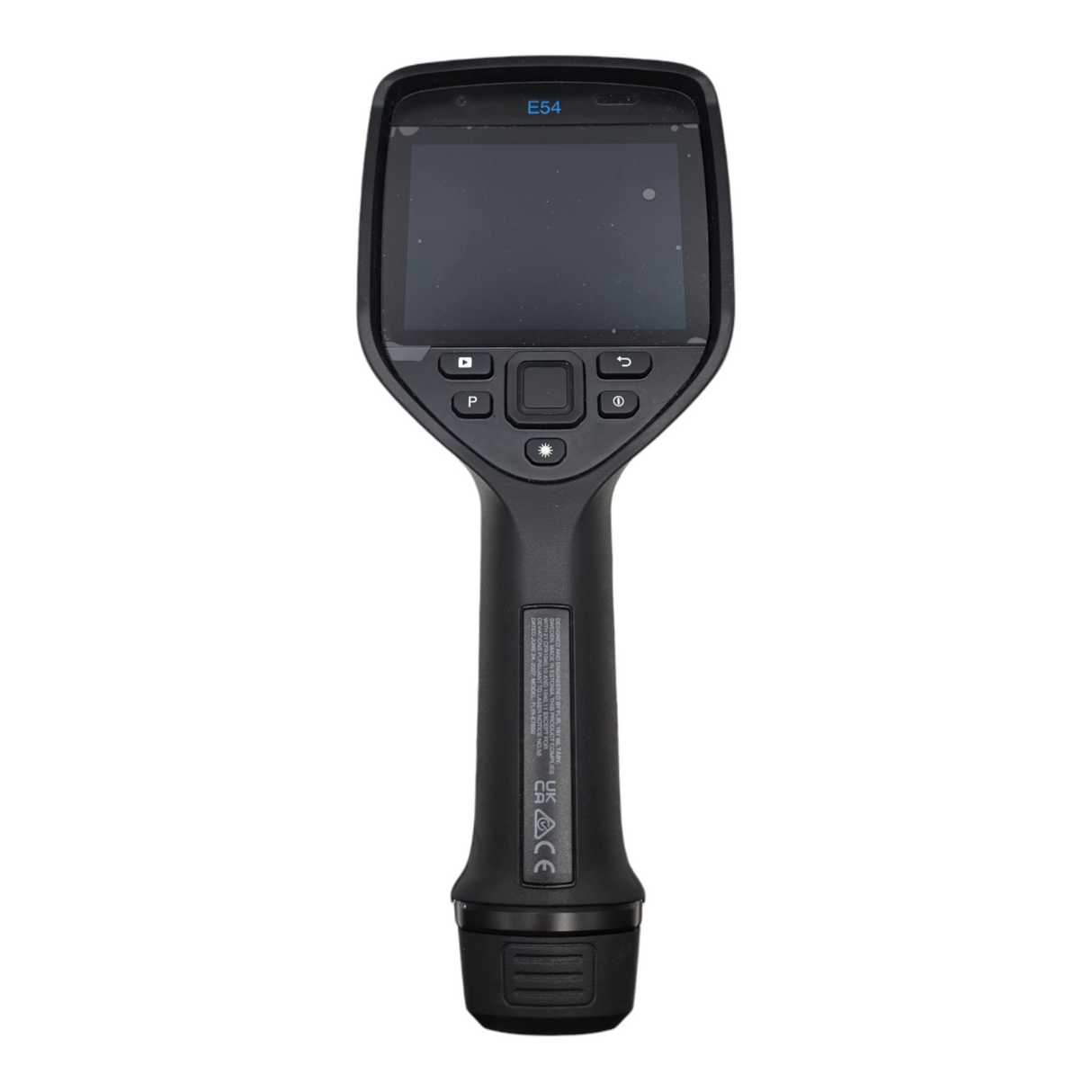

- 1 x FLIR E54 Advance Thermal Imagining Camera
- 2 x Battery for iXX-, Exx-, and VS290-Series (T301002ACC)

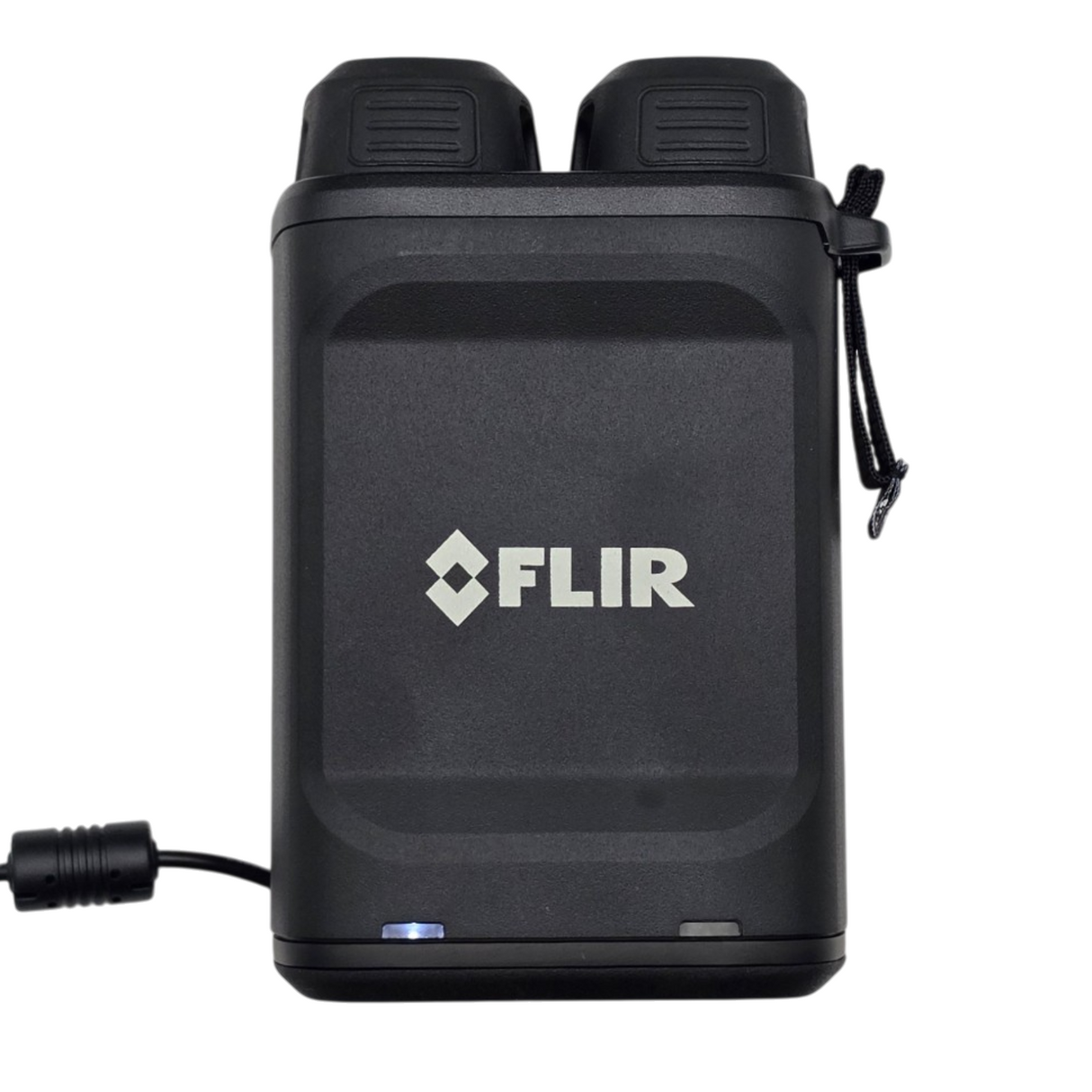

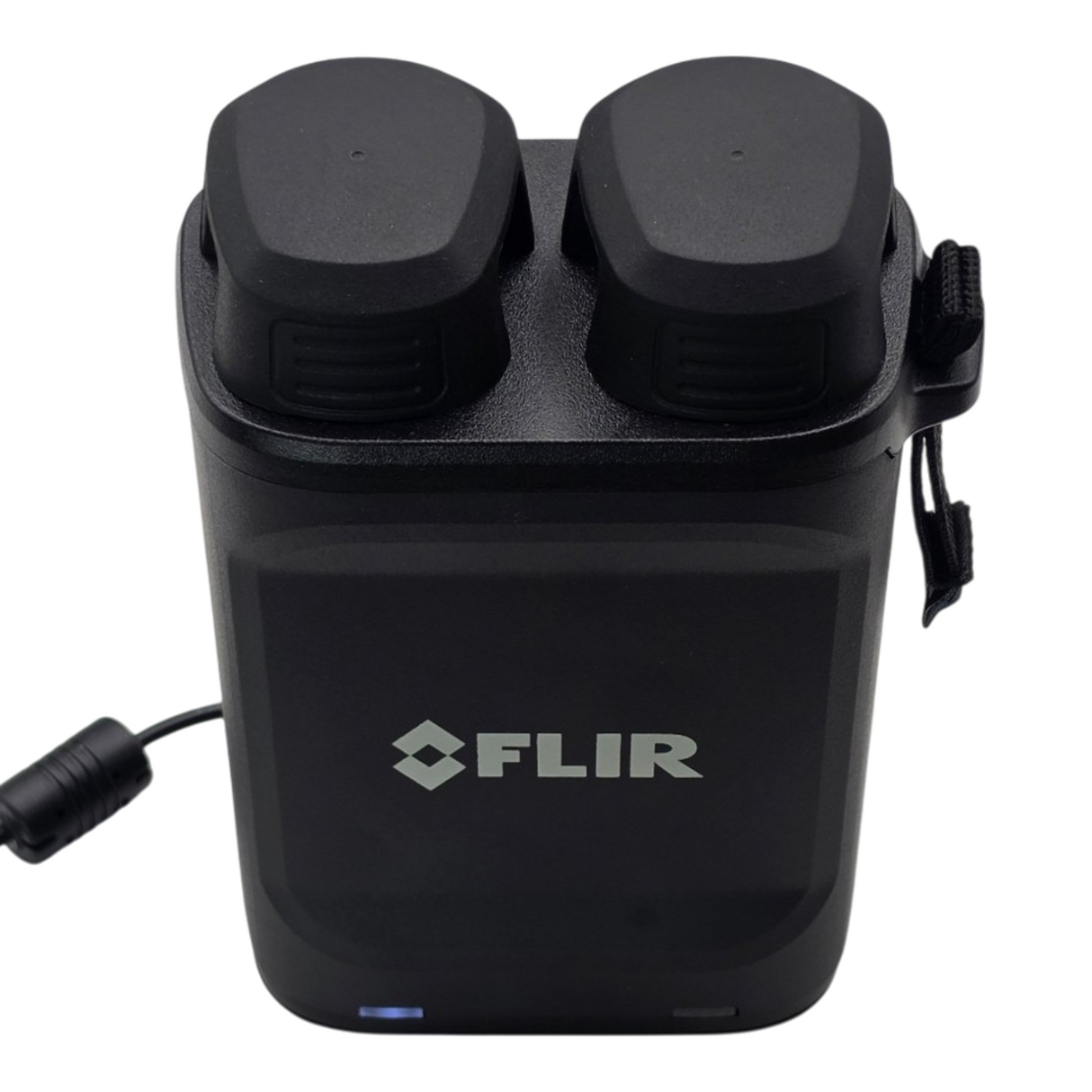

- 1 x Battery Charger (T199425ACC)

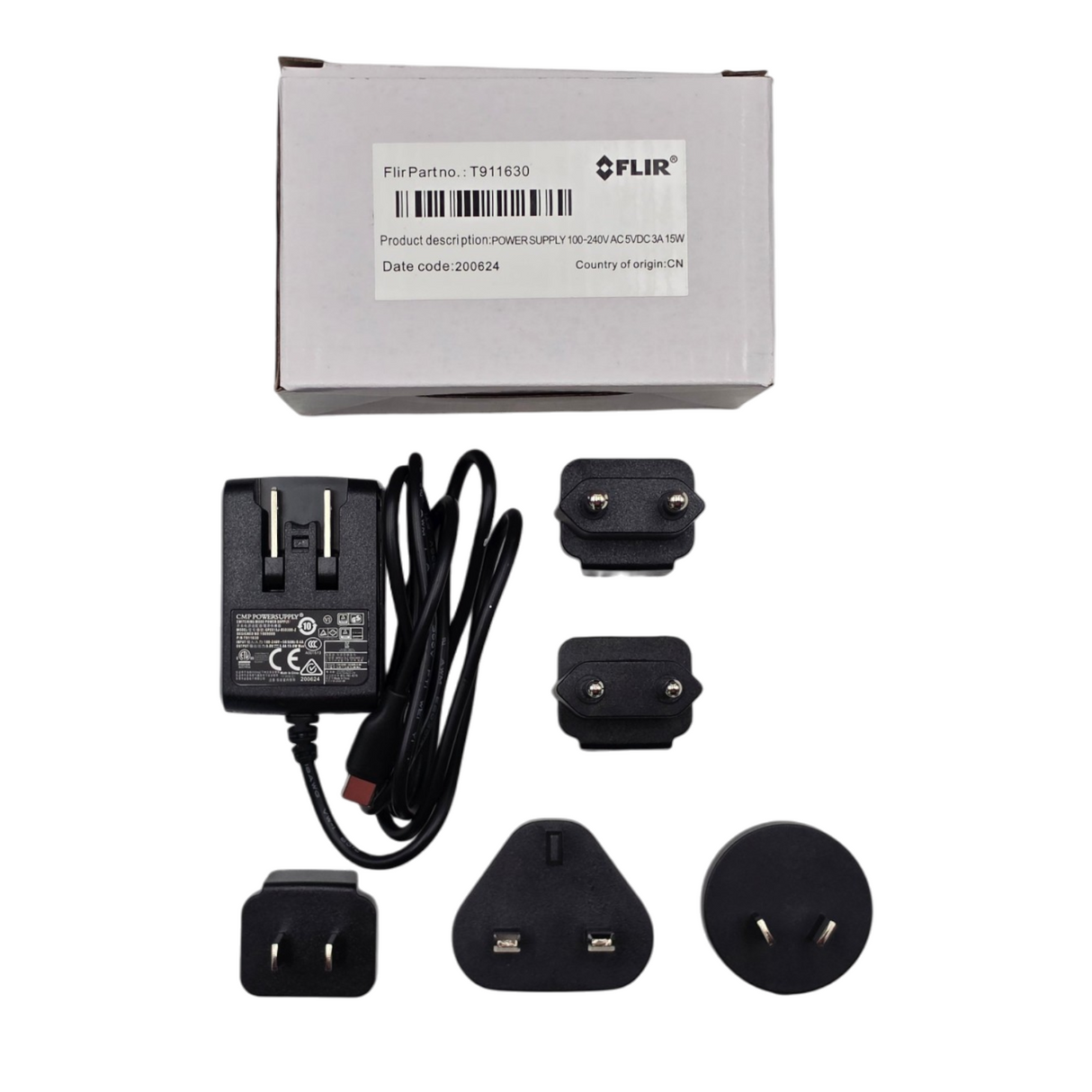

- 1 x Power Supply, 15 W/3 A (T911630ACC)

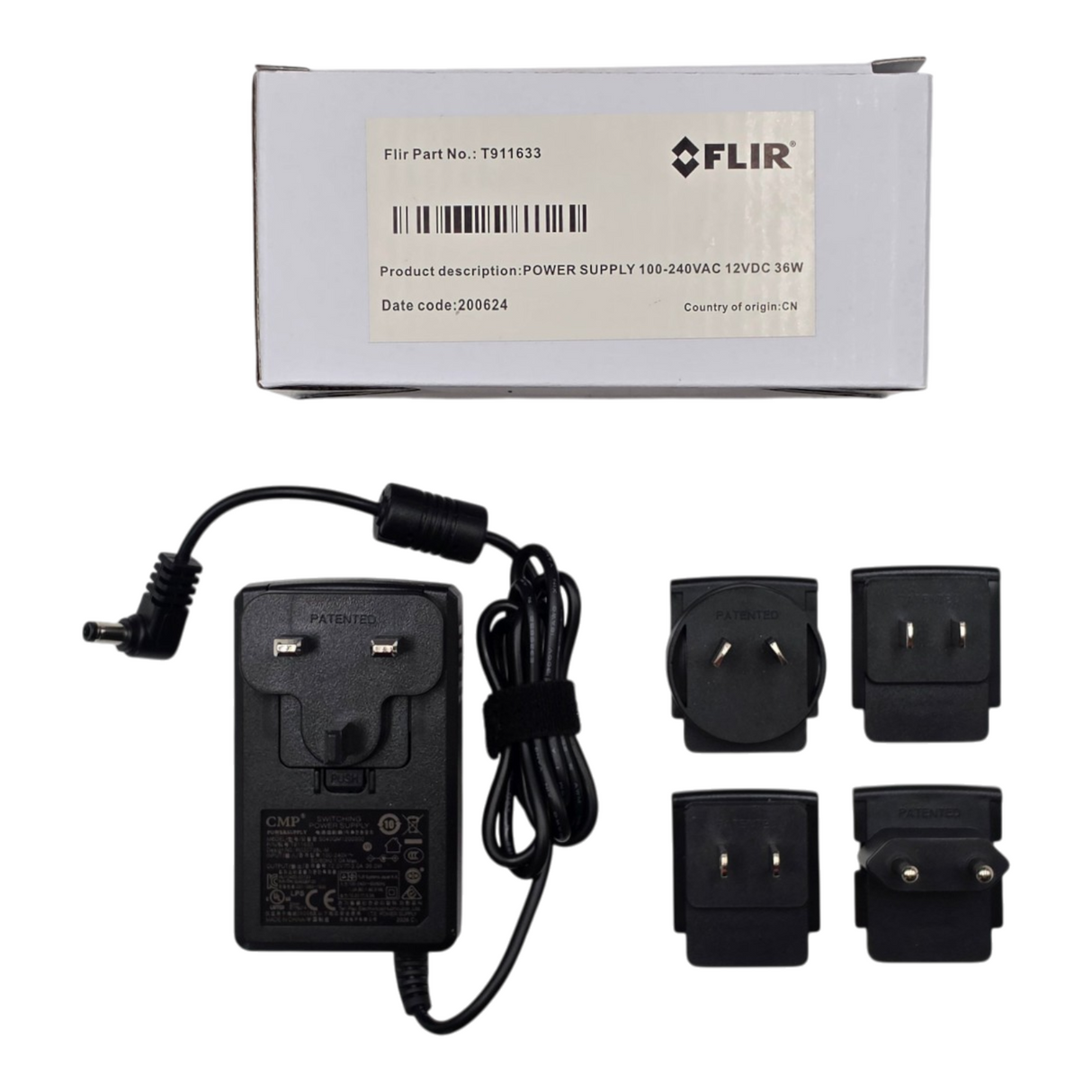

- 1 x Power Supply for Battery Charger (T911633ACC)

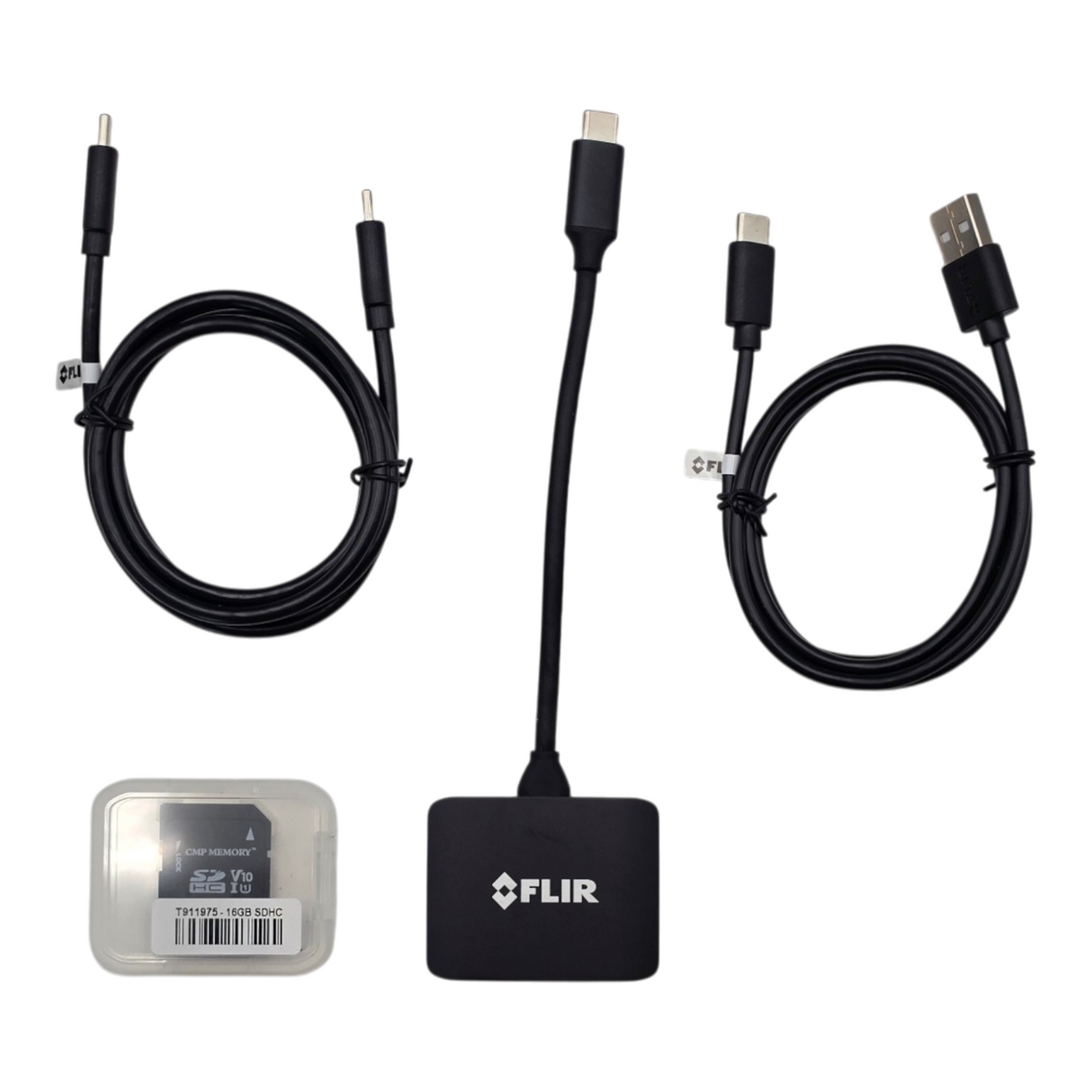

- 1 x USB Type-C to HDMI and PD adapter (T911845ACC)
- 1 x Cable USB 2.0 Type A - Type C 1.0 m Black (T911940ACC)
- 1 x USB Type-C to USB Type-C Cable (T911705ACC)

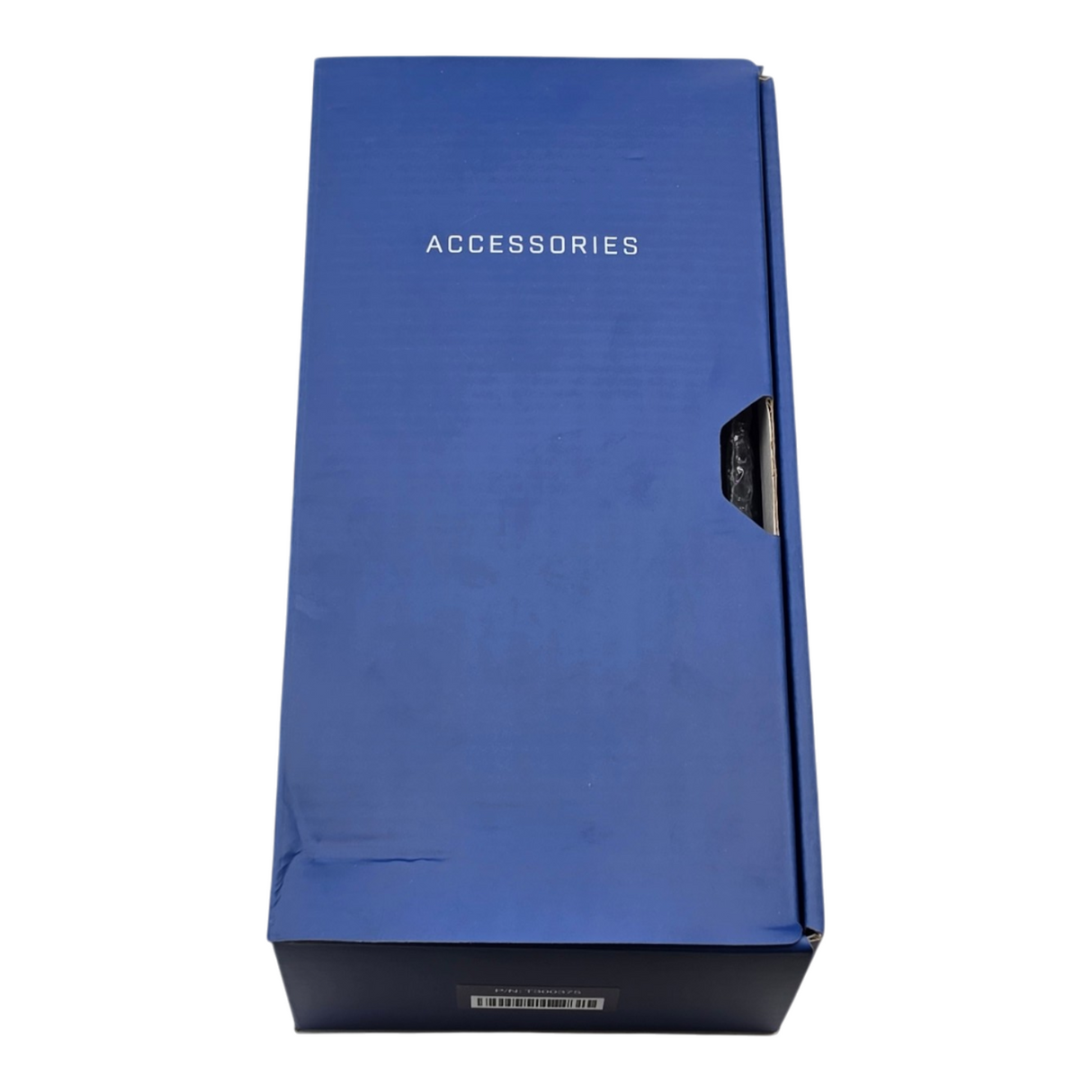

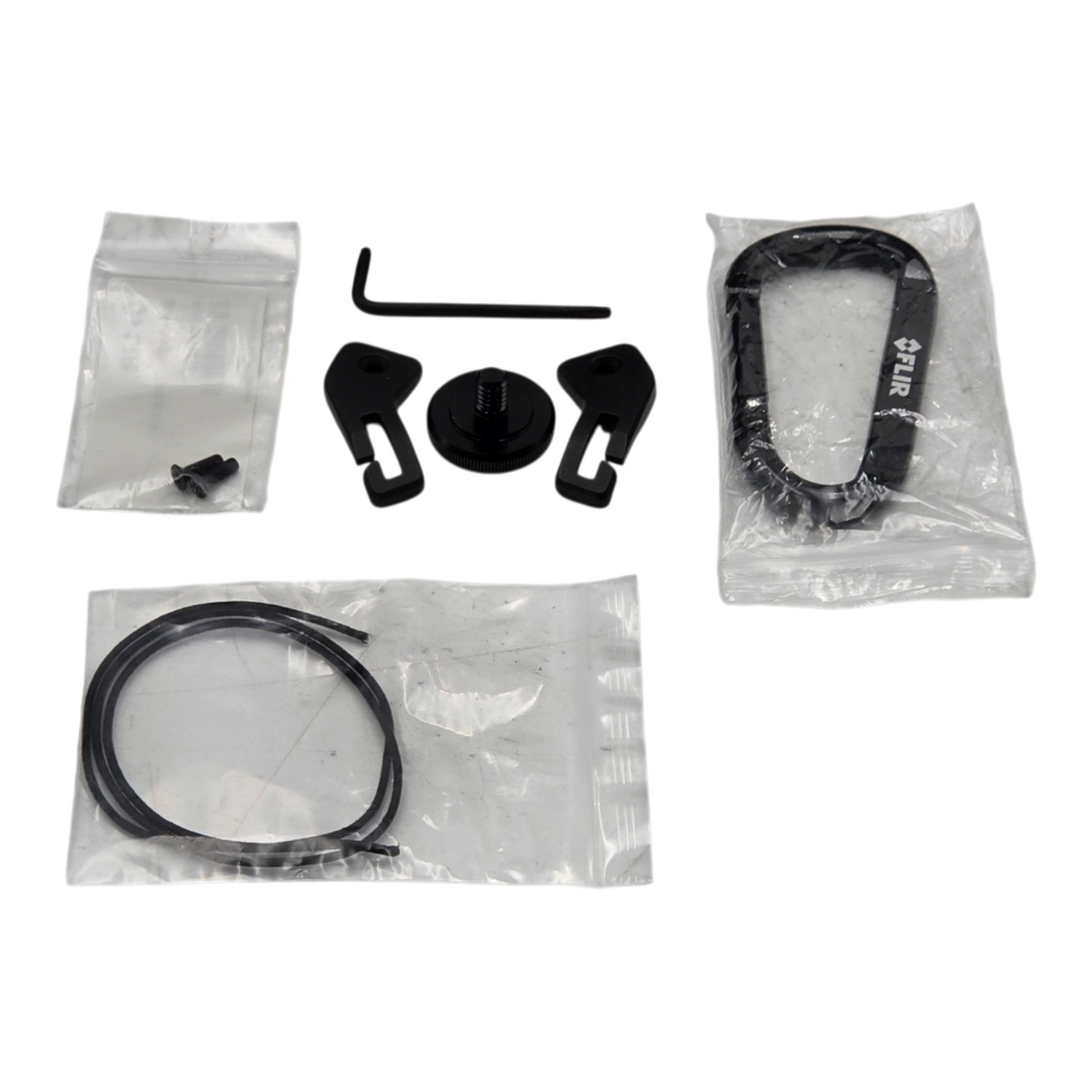

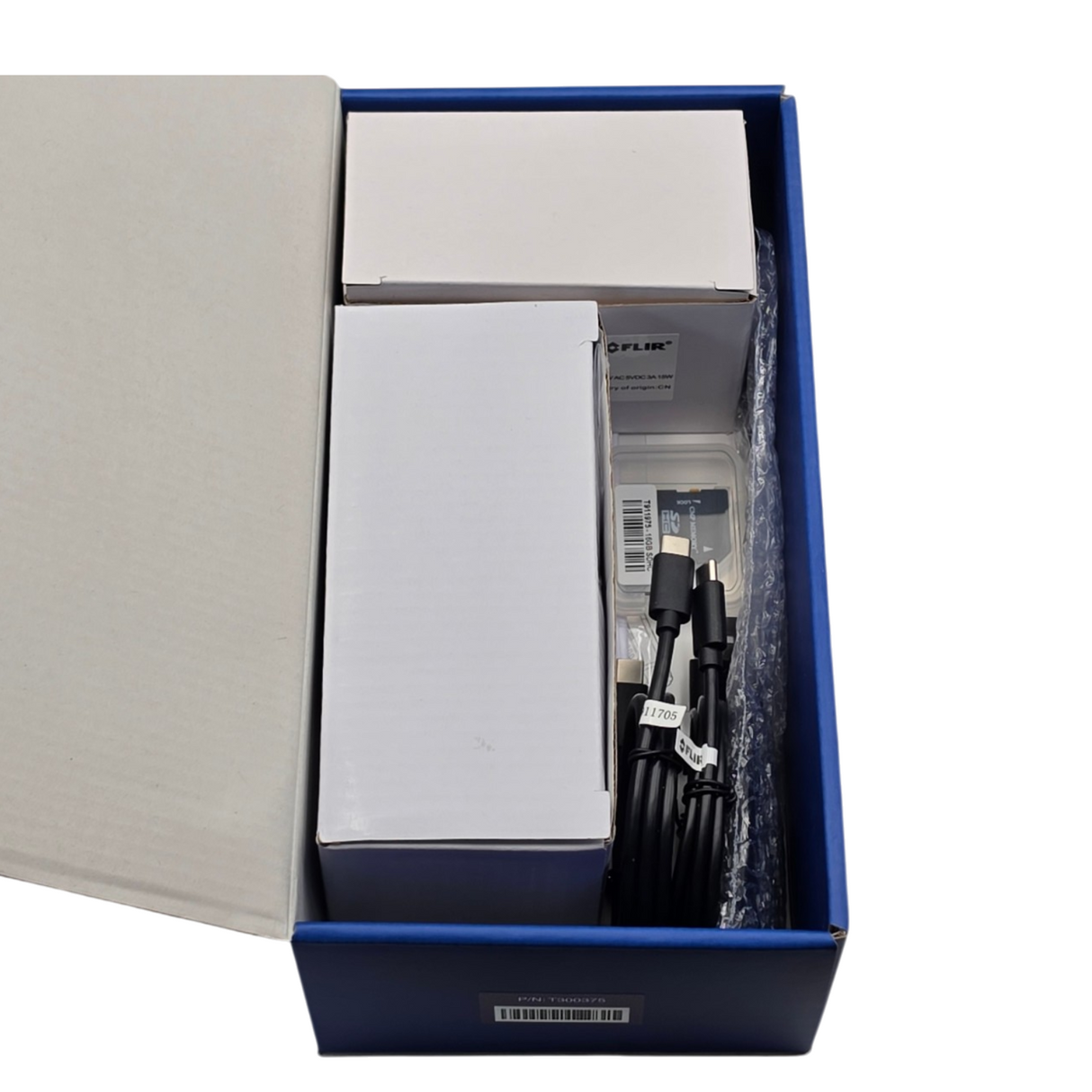

- 1 x Accessory Box II for Exx-Series (T199557ACC)

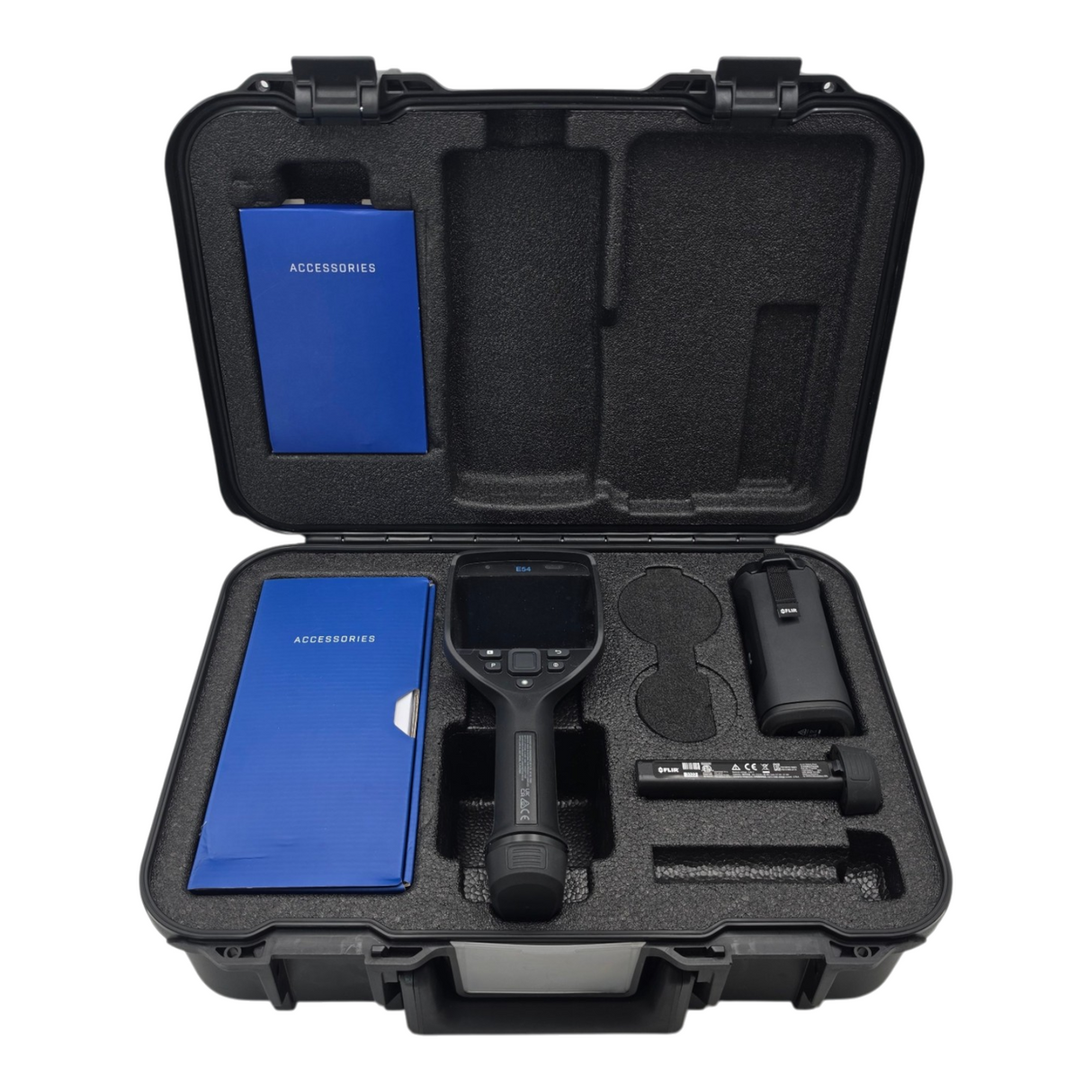

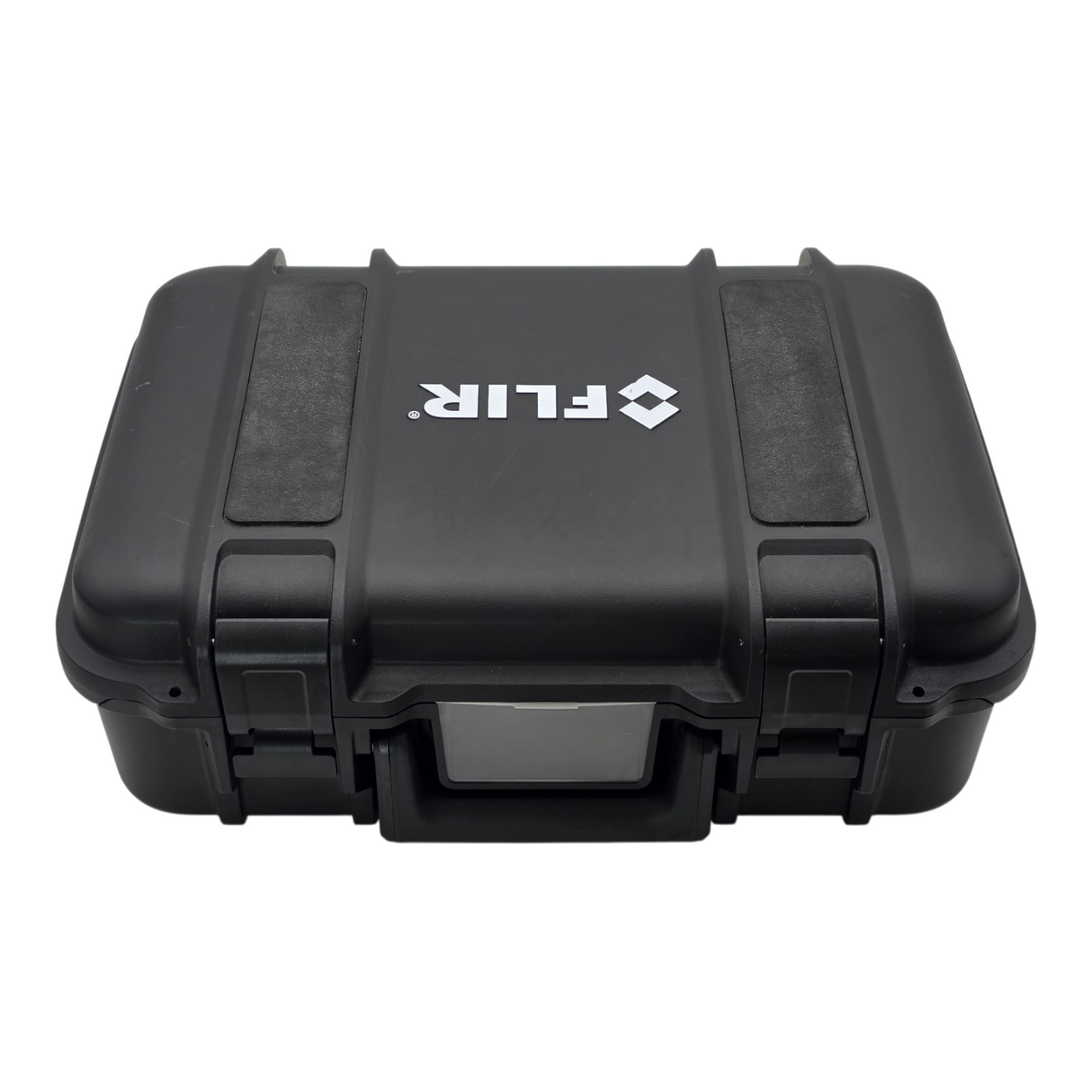

- 1 x Hard Transport Case (T199346ACC)
Specifications
- IR Resolution: 320 × 240 pixels
- Thermal Sensitivity/NETD: <40 mK at 30°C (86°F)
- Accuracy: ±2°C (±3.6°F) or ±2% of the reading
- Digital Camera: 5 MP, with built-in LED photo/video lamp

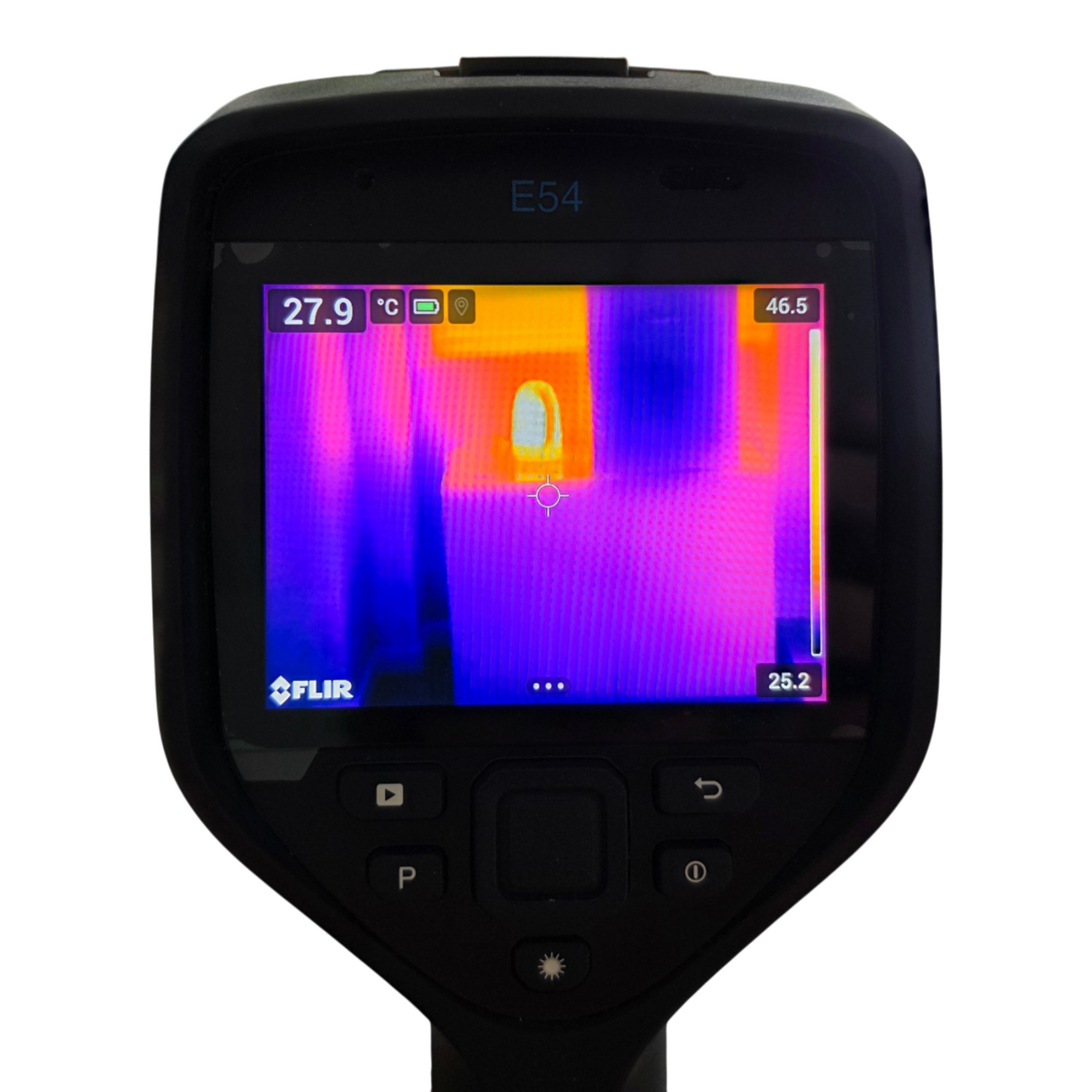

- Display: 4", 640 × 480 pixel touchscreen LCD with auto-rotation
- Storage Media: Removable SD card
Imaging & Optical
- Color Palettes: Iron, Rainbow, Rainbow HC, White hot, Black hot, Arctic, Lava
- Detector Type and Pitch: Uncooled microbolometer, 17 µm
- Digital Camera: 5 MP, with built-in LED photo/video lamp
- Digital Zoom: 1-4× continuous
- f-number: 1.3
- Focus: Manual
- Image Frequency: 30 Hz
- IR Resolution: 320 × 240 pixels
- Lens Identification: NA
- Minimum Focus Distance: 0.15 m
- Non-radiometric IR video streaming: H.264 or MPEG-4 over Wi-Fi MJPEG over UVC or Wi-Fi
- Picture-in-Picture: Centered infrared area on the visual image
- Radiometric IR video recording: Real-time radiometric recording (.csq)
- Radiometric IR video streaming: Yes, over UVC
- Spectral Range: 7.5–14 µm
- Thermal Sensitivity/NETD: <40 mK at 30°C (86°F)
- UltraMax: No
- Viewfinder: No
Measurement & Analysis
- Accuracy: ±2°C (±3.6°F) or ±2% of the reading
- Measurement Presets: No measurements, Center spot, Hot spot, Cold spot, 3 spots, Hot spot–Spot
- Object Temperature Range: 20 to 120°C (-4 to 248°F); 0 to 650°C (32 to 1202°F)
- Spot Meter: 3 ea. in live mode
- User Interface
- Display: 4", 640 × 480 pixel touchscreen LCD with auto-rotation
- Text: Predefined list or touchscreen keyboard
- Voice: 60 sec. recording added to still images or video via built-in mic (has speaker) or via Bluetooth
- Communication Interfaces: USB 2.0, Bluetooth®, Wi-Fi, DisplayPort
- Image File Format: Standard JPEG with measurement data included. Infrared-only mode
- Image Storage Mode: Infrared, Visual, MSX®, Picture-in-Picture, Gallery
- METERLiNK: Yes
- Storage Media: Removable SD card
- Time Lapse: NA
- Video Out: DisplayPort over USB Type-C
- Power
- Battery operating time: >2.5 hours at 25°C (68°F) and typical use
- Battery type: Rechargeable Li-ion battery
Environmental & Certifications
- Operating Temperature Range: 15 to 50°C (5 to 122°F)
- Safety: EN/UL/CSA/PSE 60950-1
- Storage Temperature Range: 40 to 70°C (-40 to 158°F)
- General
- FLIR Inspection Route: Enabled in camera
- Laser Pointer: Yes
VAT @ 20% INCLUDED IN PRICE - VAT INVOICE PROVIDED
£3500 + VAT
VAT IS NOT PAYABLE BY PURCHASERS OUTSIDE OF THE UK
AH FLIR-E54-ATIC/REF 84512708
