Frozen In Time Lablyo 5L Benchtop Freeze Dryer FIT/LYO/49/1 +Welch CRVpro 8 Pump
Pre-owned
Frozen In Time Lablyo 5L Benchtop Freeze Dryer FIT/LYO/49/1 +Welch CRVpro 8 Pump is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product overview
Product overview
Brand: Frozen In Time
Condenser capacity (l) :: 5
MPN: FIT/LYO/49/1, 3082-00
Deep Ice Condenser: 20cm diameter x 35cm
For solvents that condense above -50°C :: Yes
Country of Origin: United Kingdom
Ice Capacity: 5KG
Frozen In Time Lablyo 5L Benchtop Freeze Dryer FIT/LYO/49/1 +Welch CRVpro 8 Pump
In good condition and In full working order
Tested

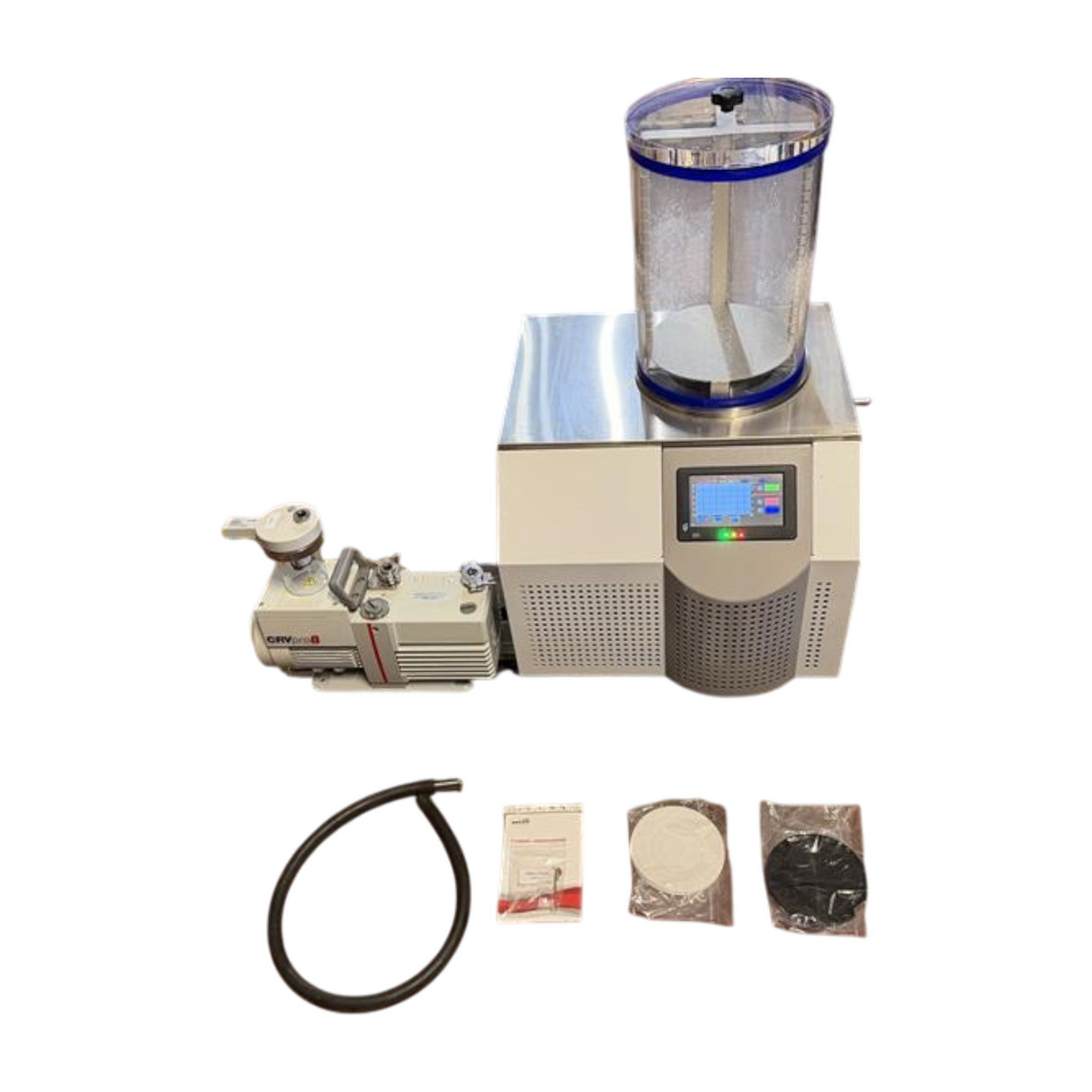

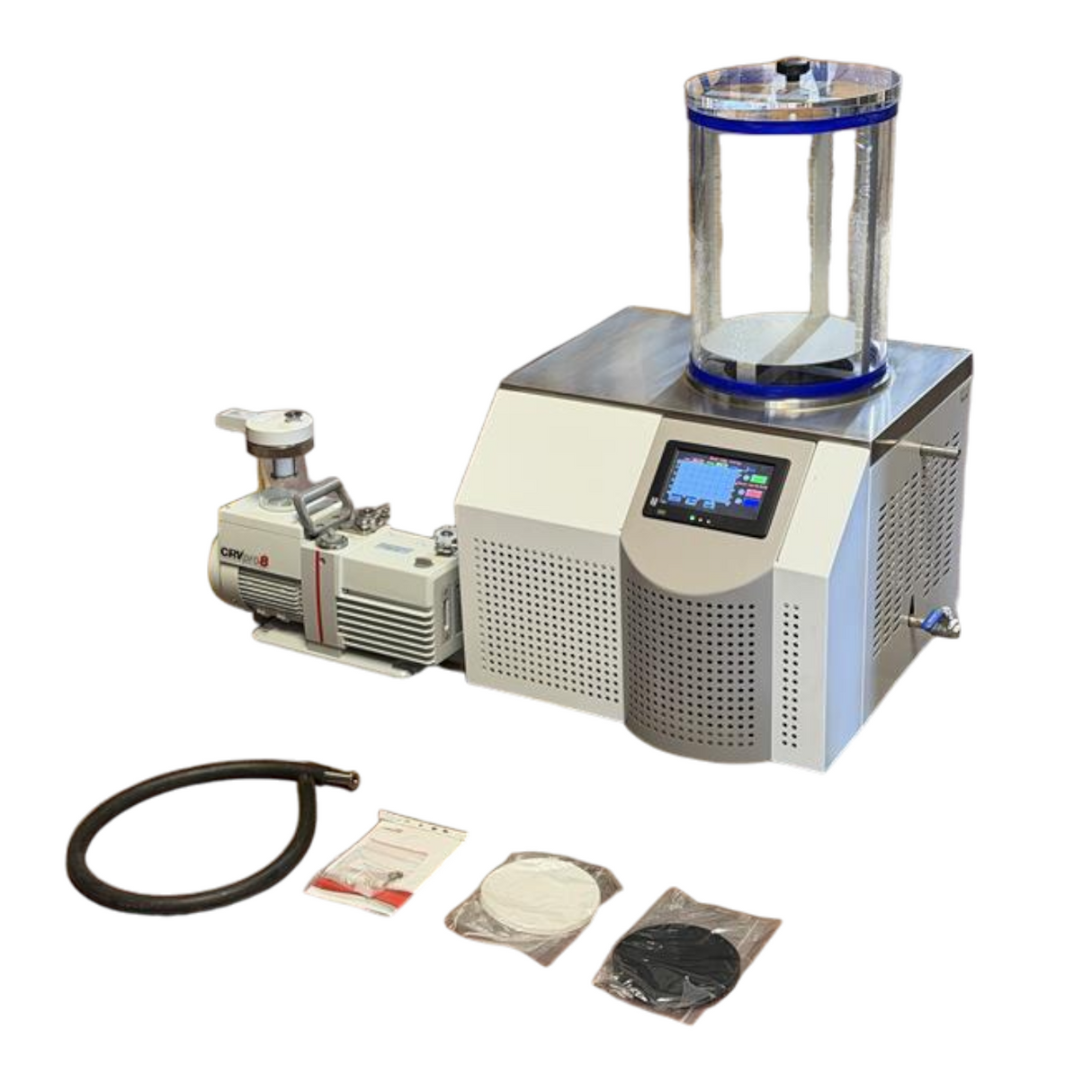

Included:

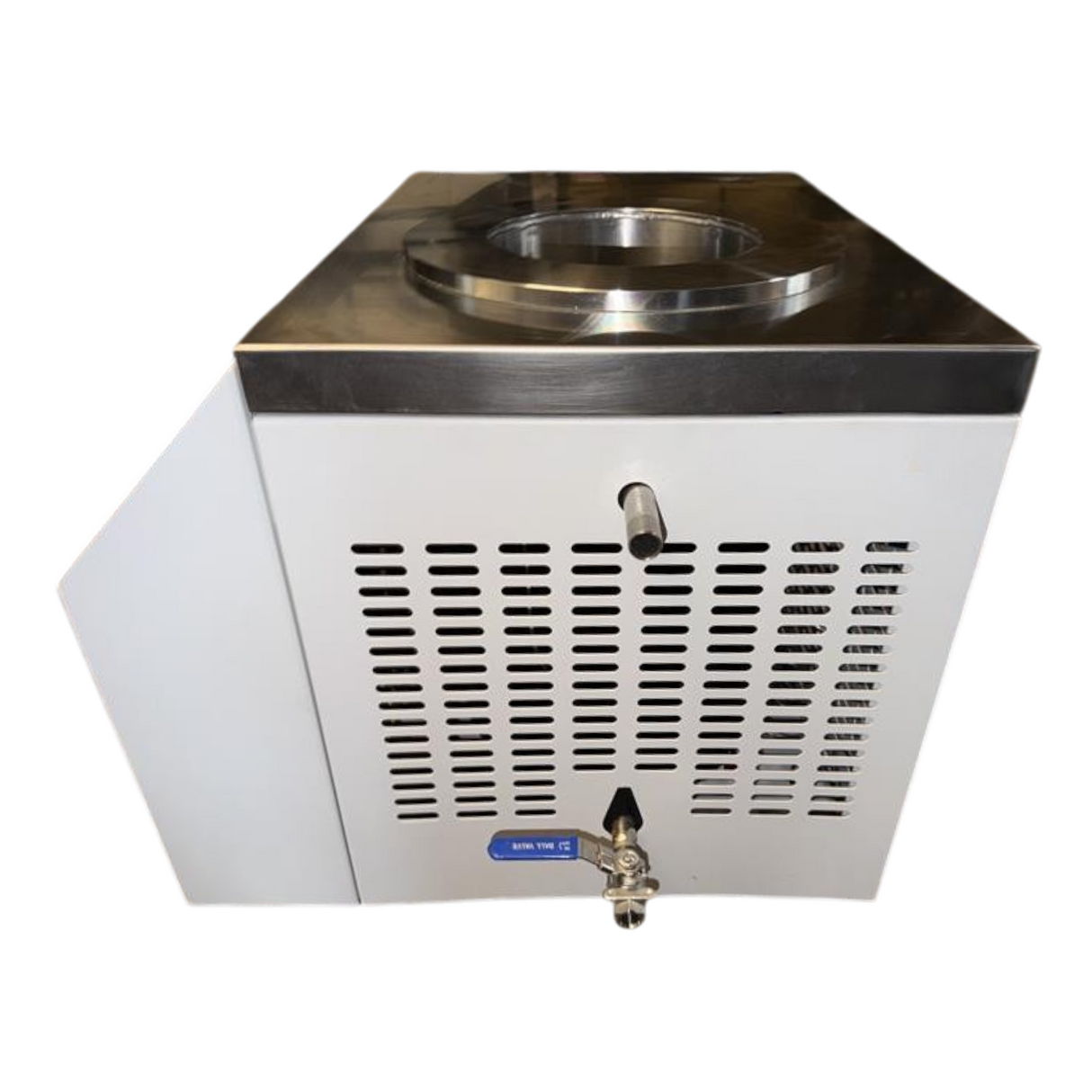

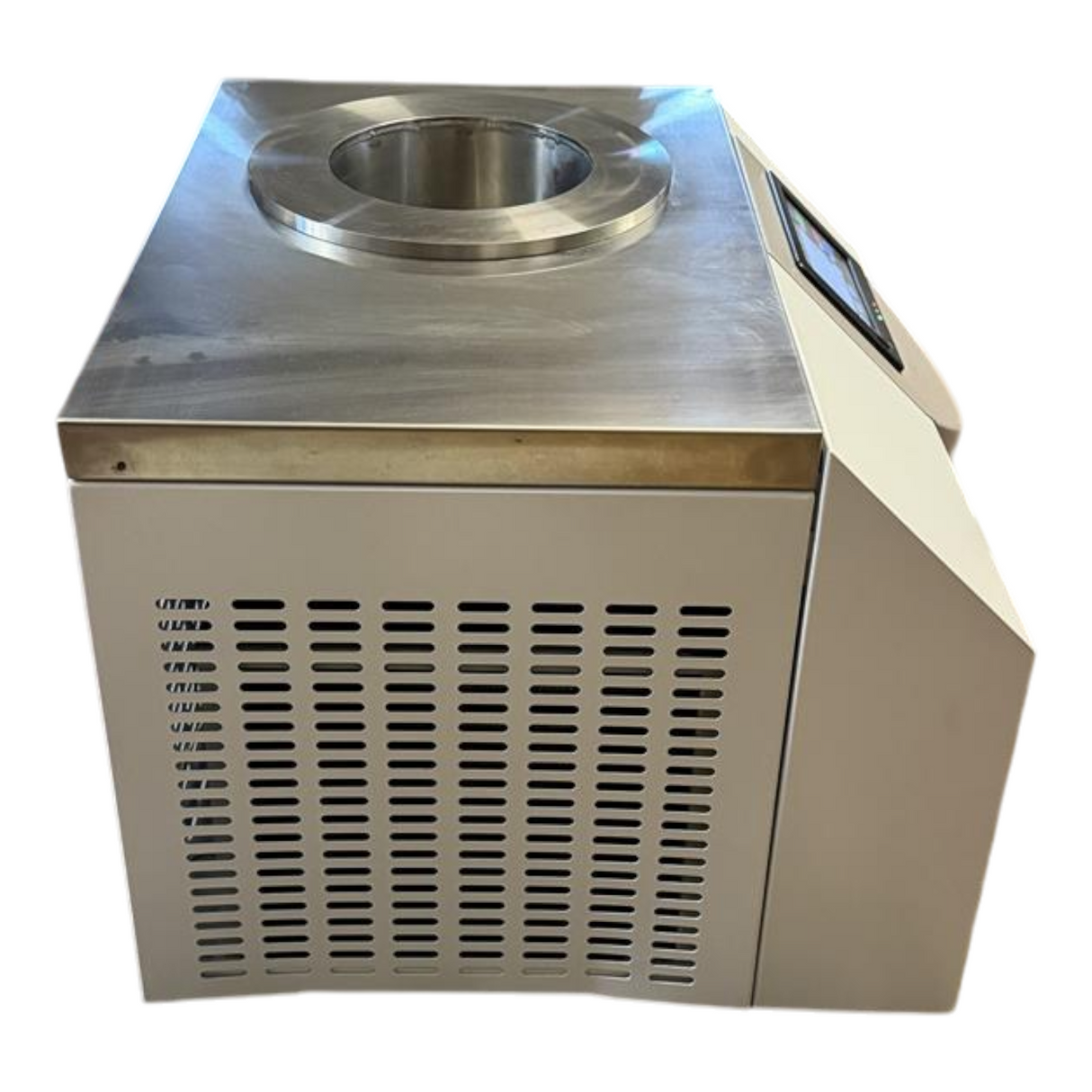

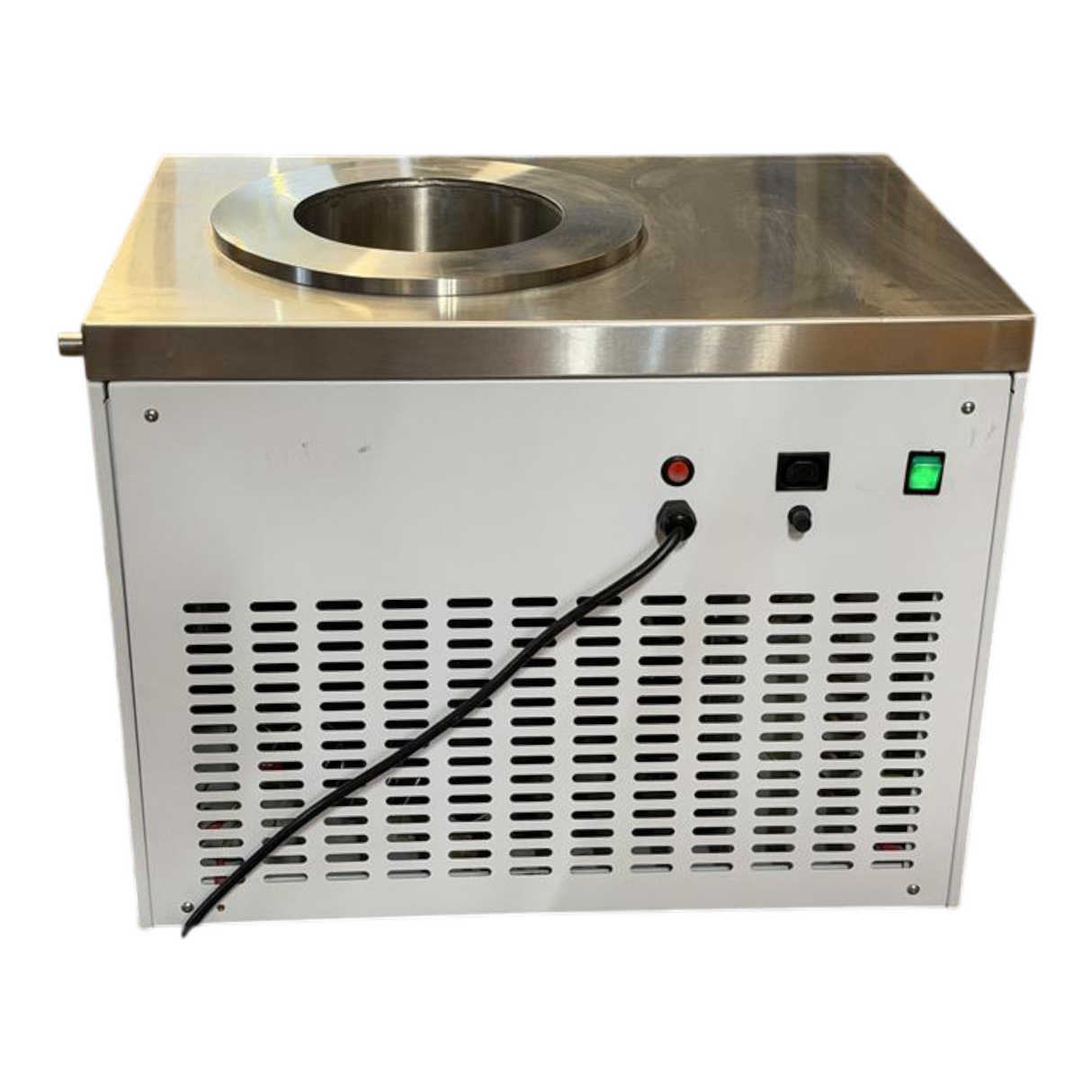

1 x Frozen In Time Lablyo 5L Benchtop Freeze Dryer Lyophilizer - FIT/LYO/49/1

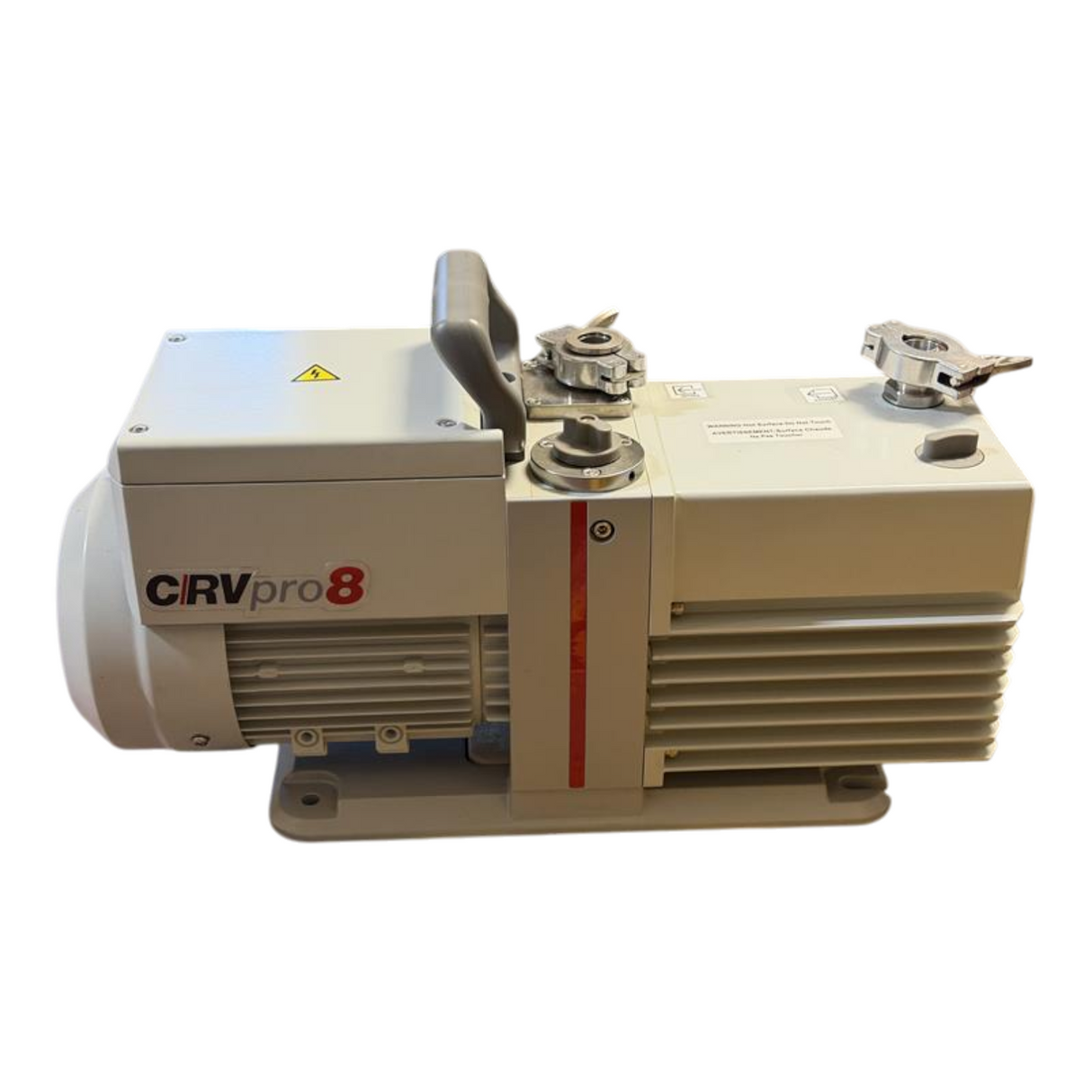

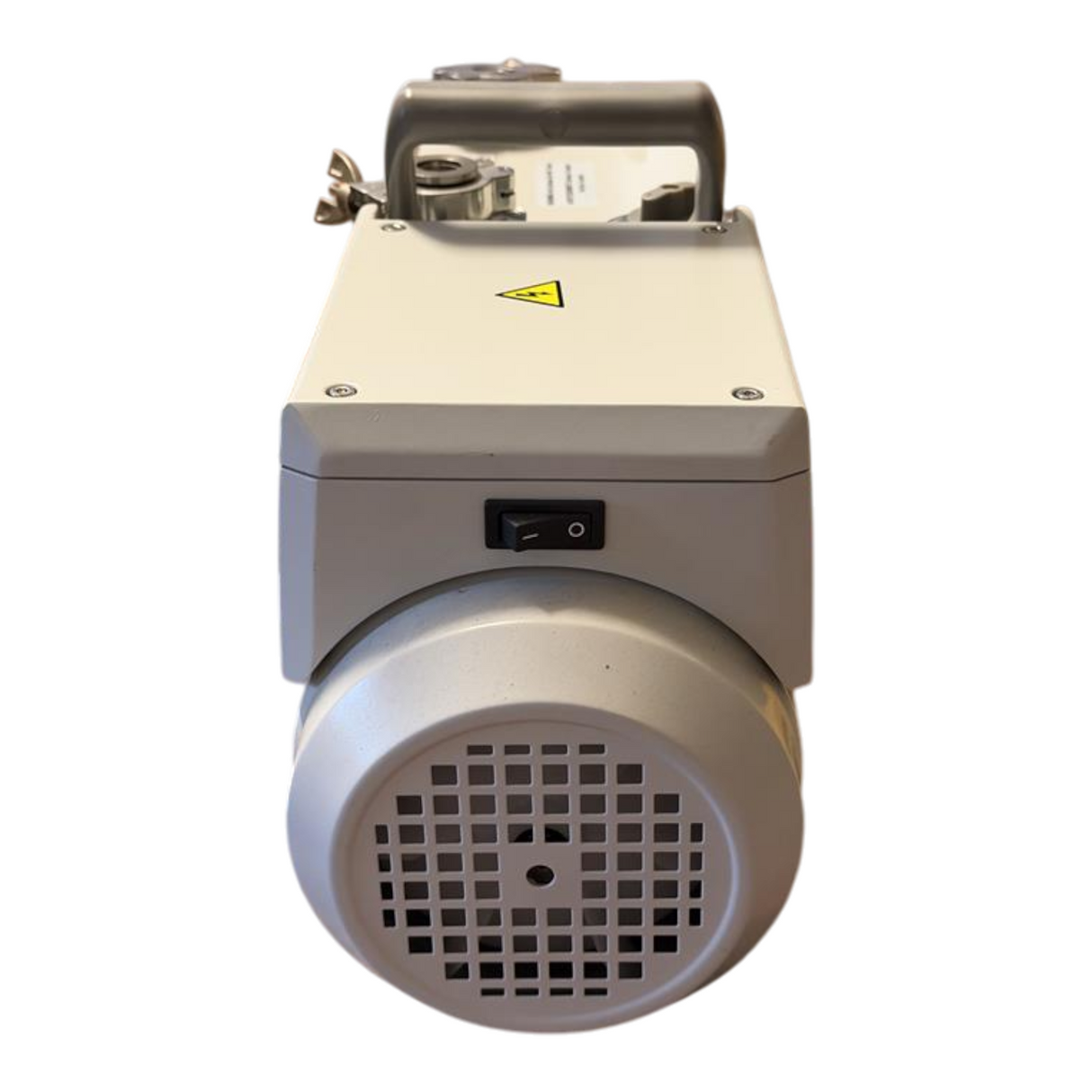

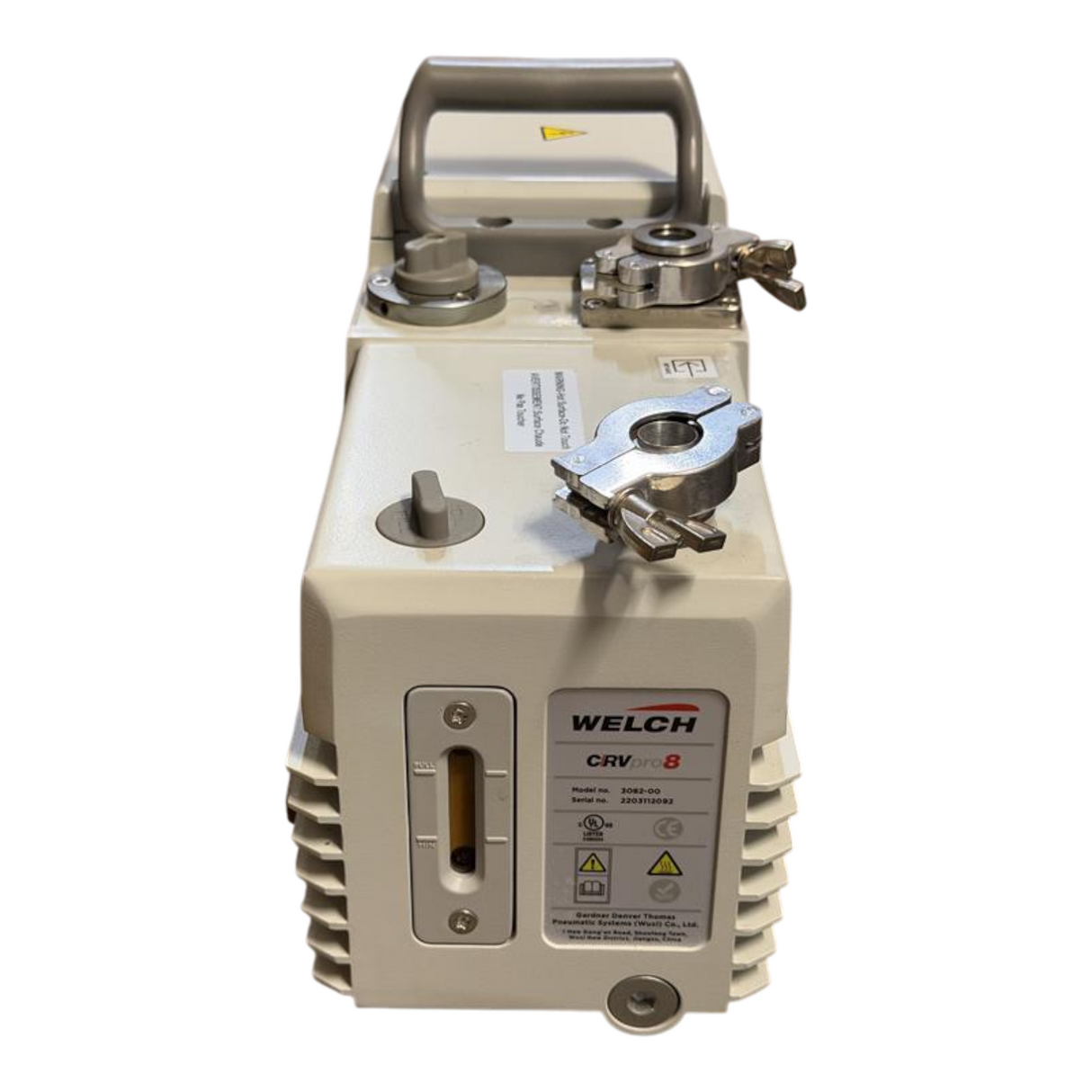

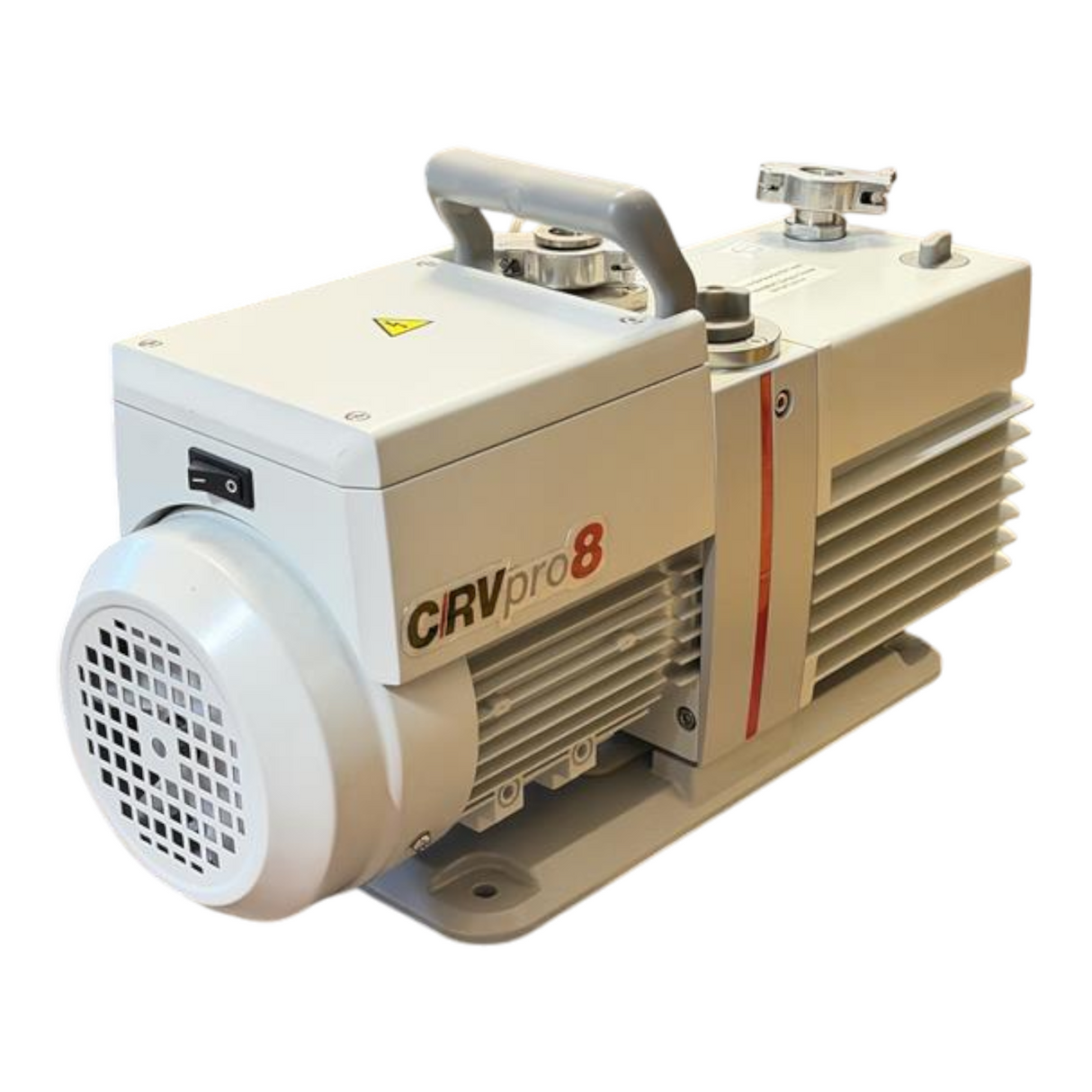

1 x Welch CRVpro 8 Direct Drive Rotary Vane Vacuum Pump - 3082-00

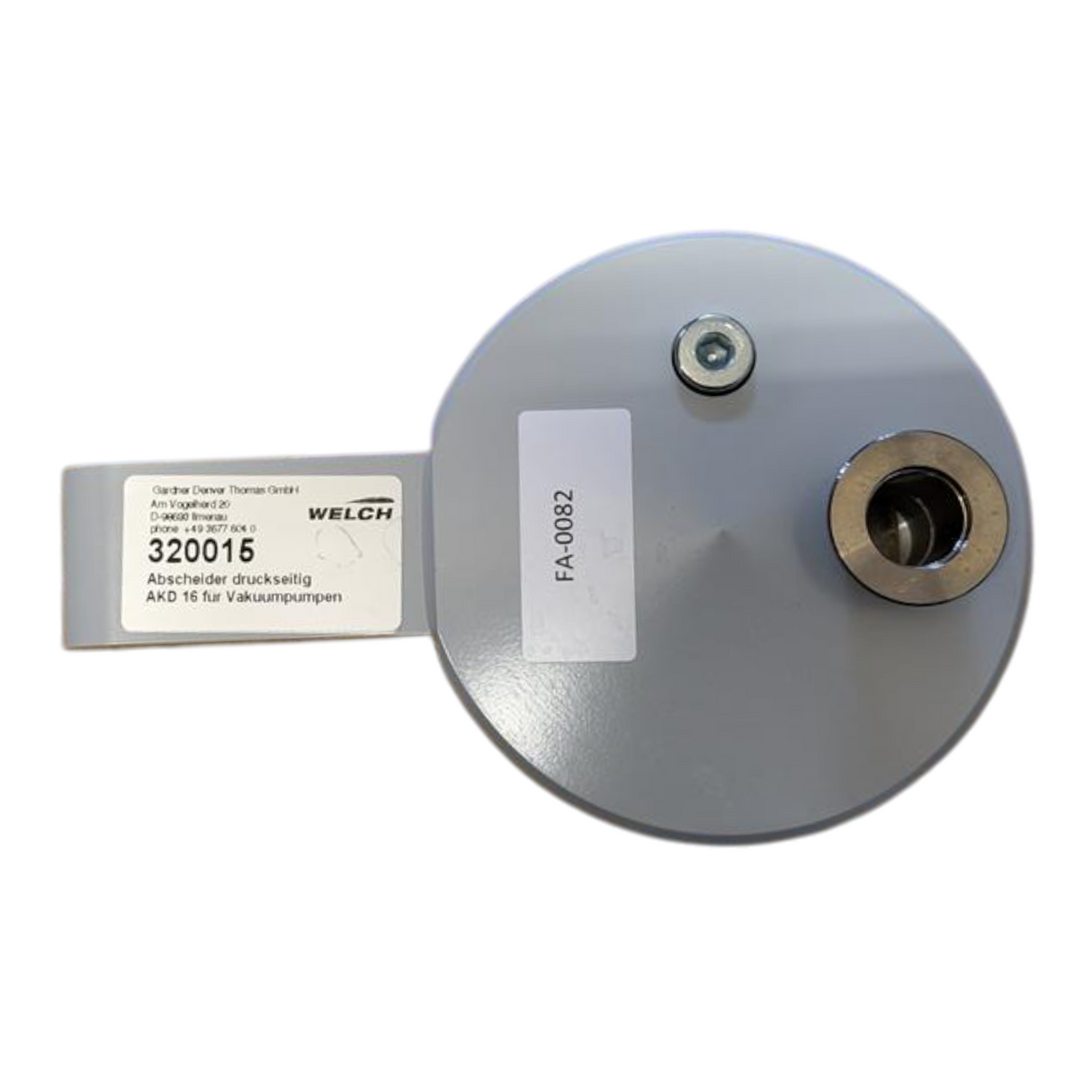

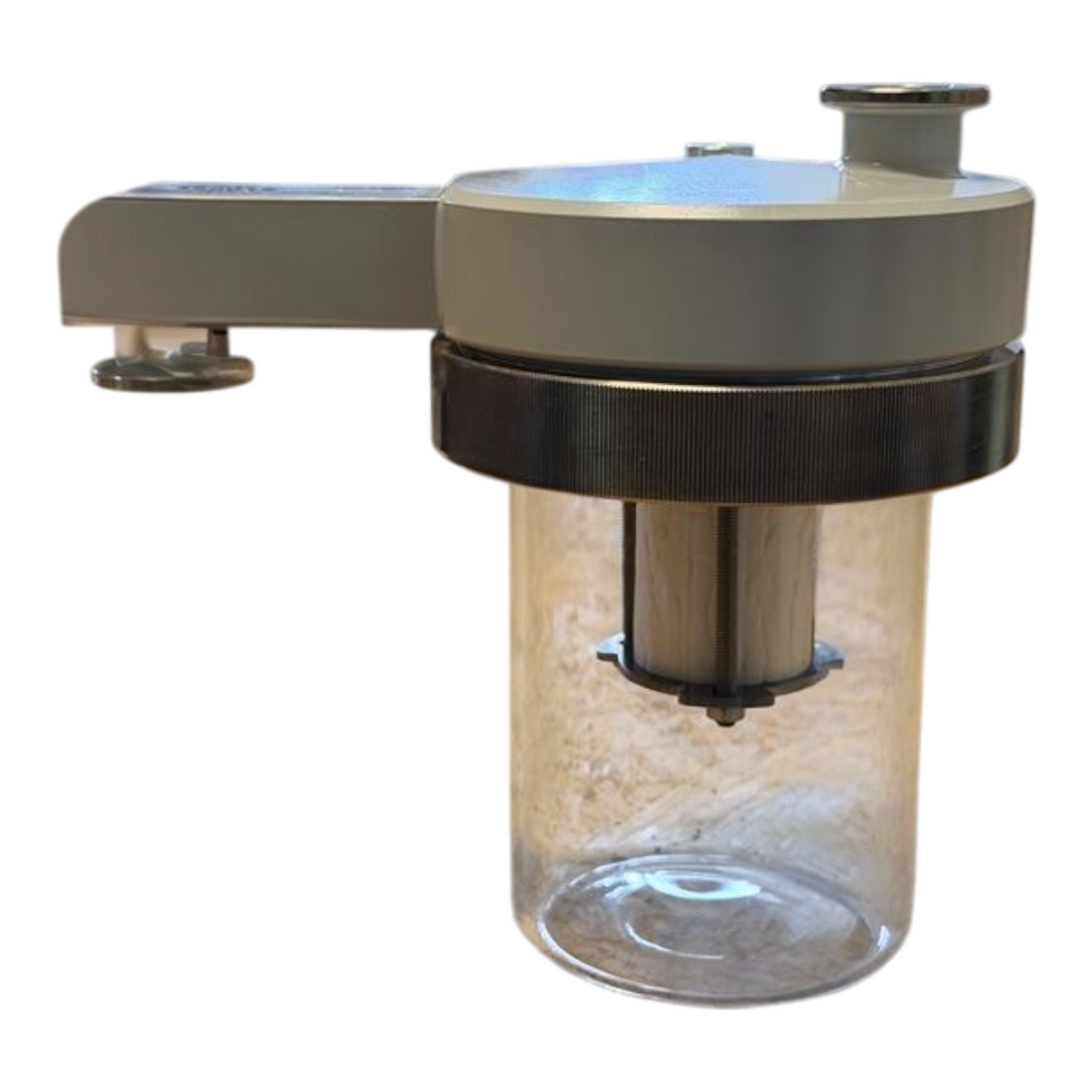

1 x Welch-Ilmvac Oil mist separator AKD16 - 3200-15

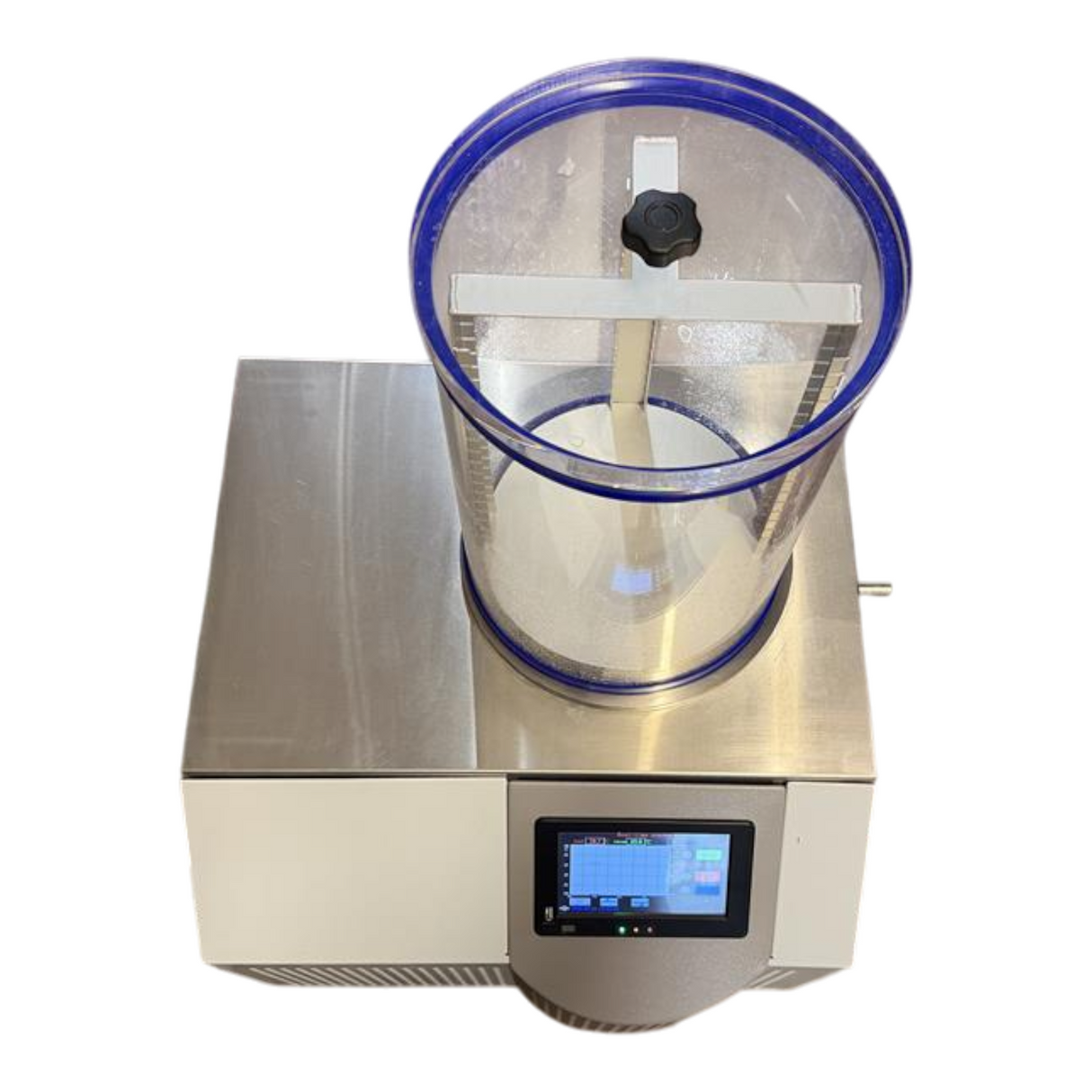

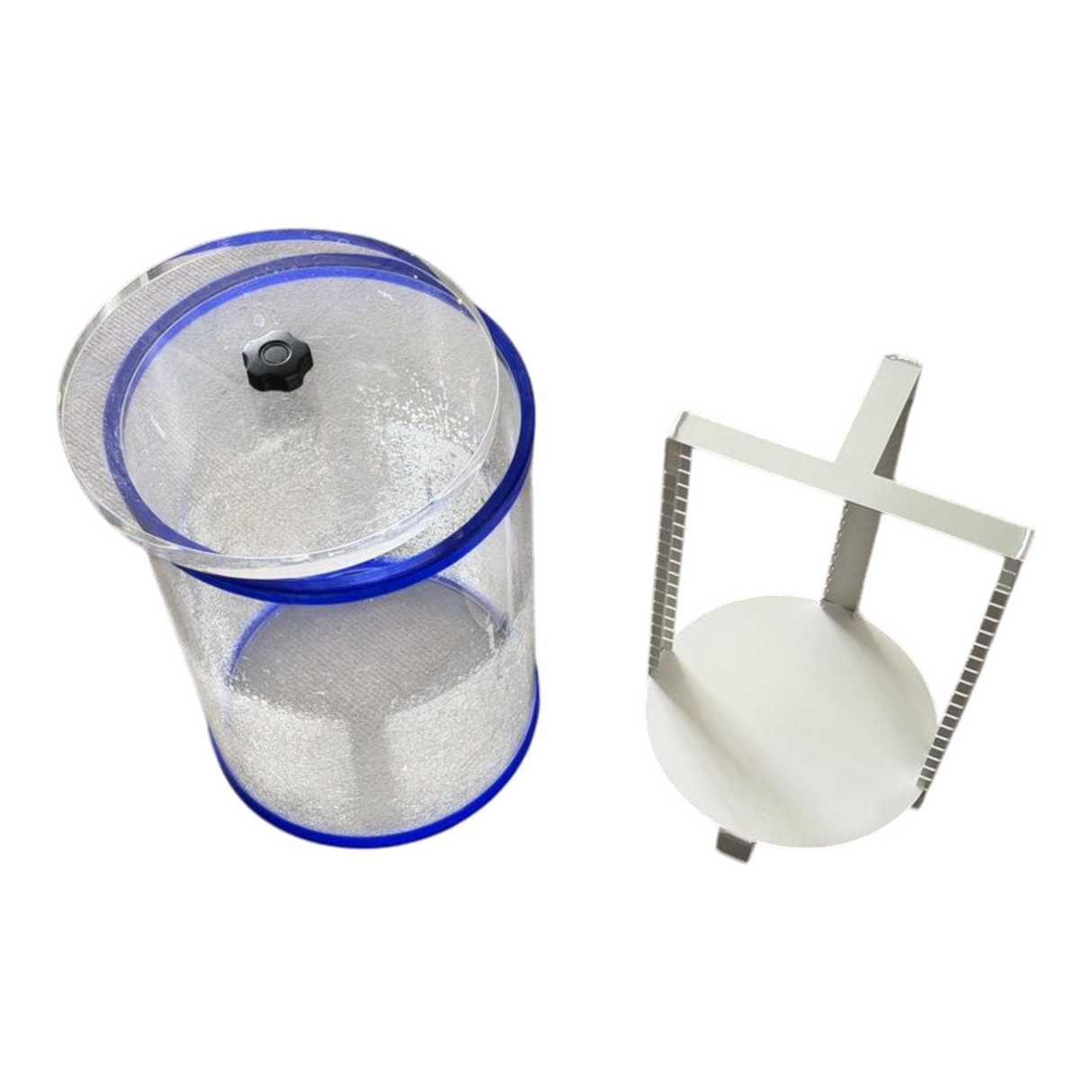

1 x Frozen In Time Acrylic Drying Chamber - FIT/LYO/01/0 + Lid
1 x Frozen In Time 6 height shelf rack - FIT/LYO/03/0

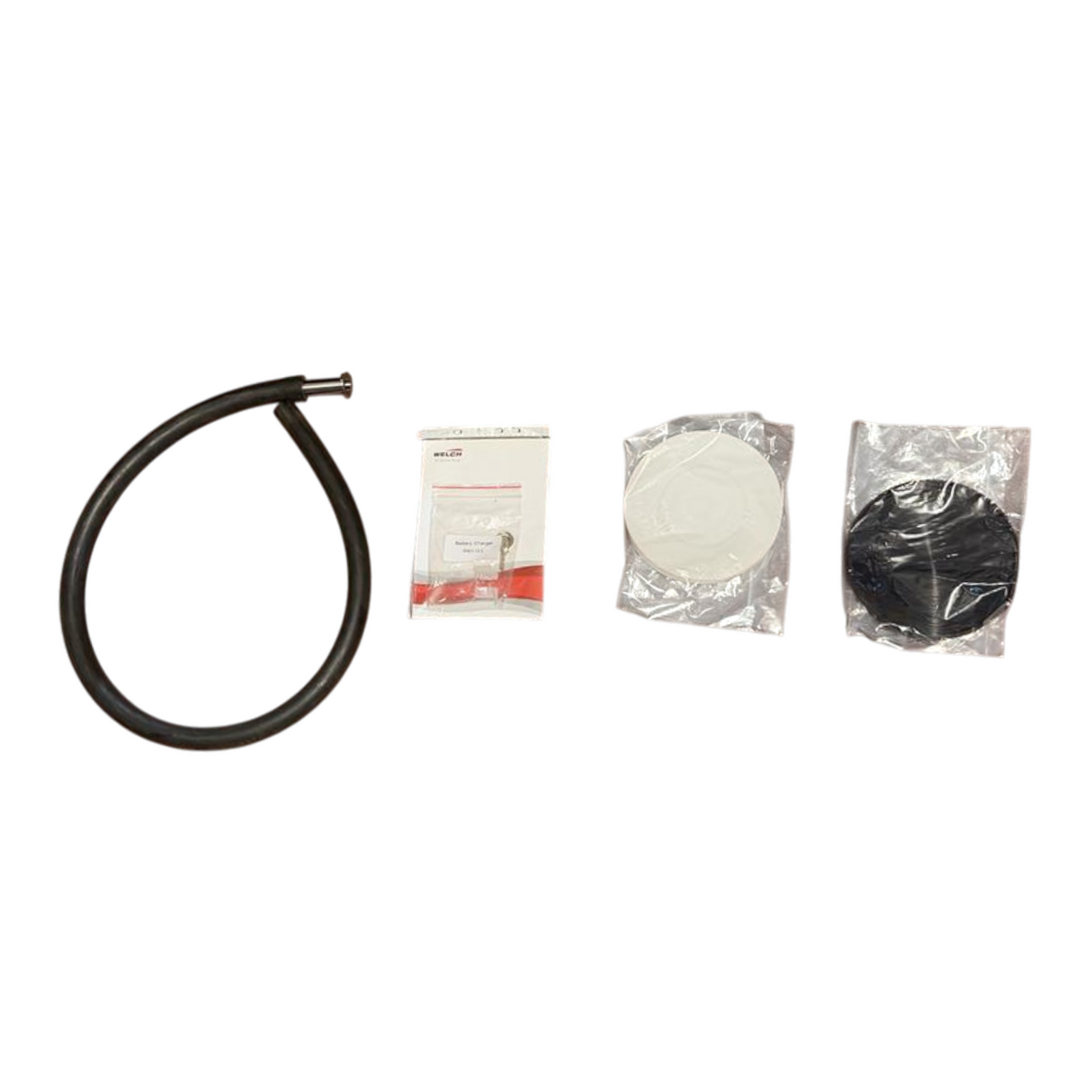

1 x Vacuum Connector
1 x CRV Welch Manual
1 x Gel Discs
1 x AC Adapter
Specification For Lablyo:
For solvents that condense above -50°C: Yes
For solvents that condense between -50°C & -70°C: No
For solvents that condense between -70°C & -85°C: No
For solvents that condense between -85°C & -100°C: No
Condenser capacity (l): 5
Control of process: Advanced
Negative shelf temperature uniformity: No
Package system: No
Self sterilizing: No
Shelf area (m sq): 0
External height (mm): 530
External width (mm): 610
External depth (mm): 680
Specification For CRV Pro 8 Pump:
Free air displacement @ 50 Hz: 8 m³/h (133 l/min) — 4.7 CFM
Free air displacement @ 60 Hz: 5.6 CFM (158 l/min)
Pumping speed @ 50 Hz: 7.3 m³/h (122 l/min)
Pumping speed @ 60 Hz: 5.1 CFM (143 l/min)
Ultimate pressure — partial, no gas ballast: 5×10⁻⁴ mbar (4×10⁻⁴ Torr)
Ultimate pressure — total, no gas ballast: 2×10⁻³ mbar (1.5×10⁻³ Torr)
Ultimate pressure — total, with gas ballast: 7×10⁻² mbar (5×10⁻² Torr)
Inlet flange: DN 16 KF
Noise level (50 Hz): ≤50 dB(A)
Oil capacity: 1000 ml
Motor speed: 1450 / 1740 rpm (50/60 Hz)
Motor power: 0.37 / 0.4 kW (50/60 Hz)
Weight: 22.5 kg
Dimensions: 463 × 157 × 230 mm (without handle) — shared 4/6/8 chassis
Ambient temp range: 10–40 °C
