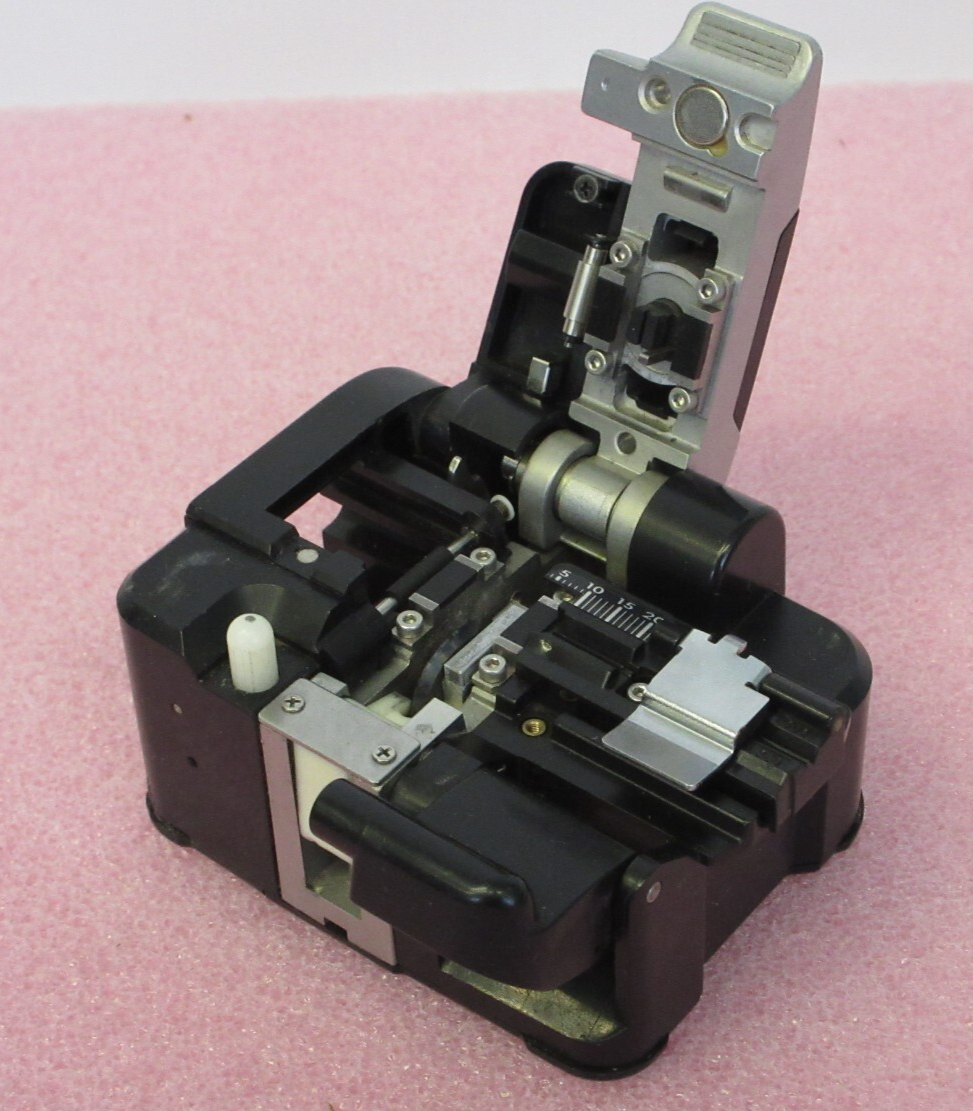

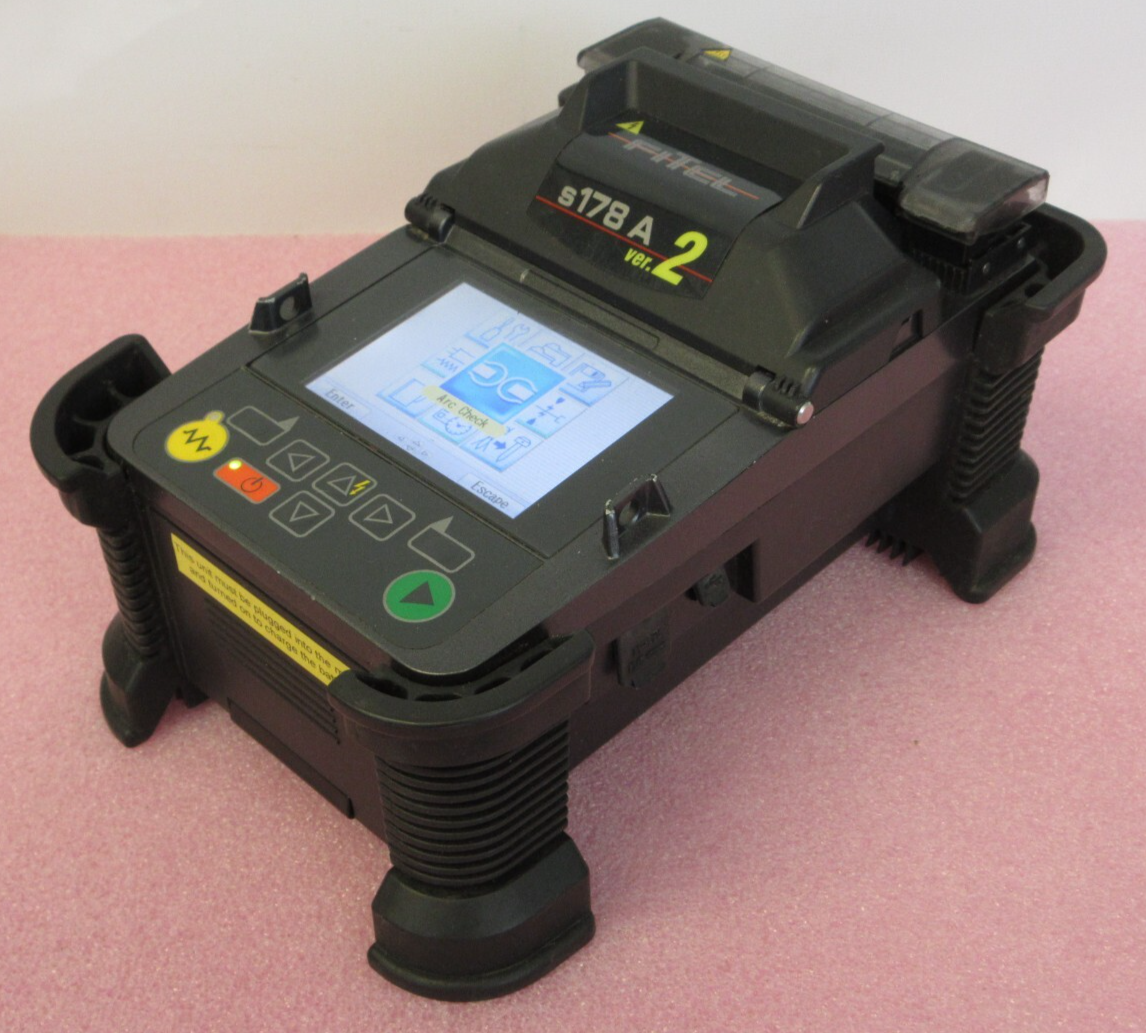

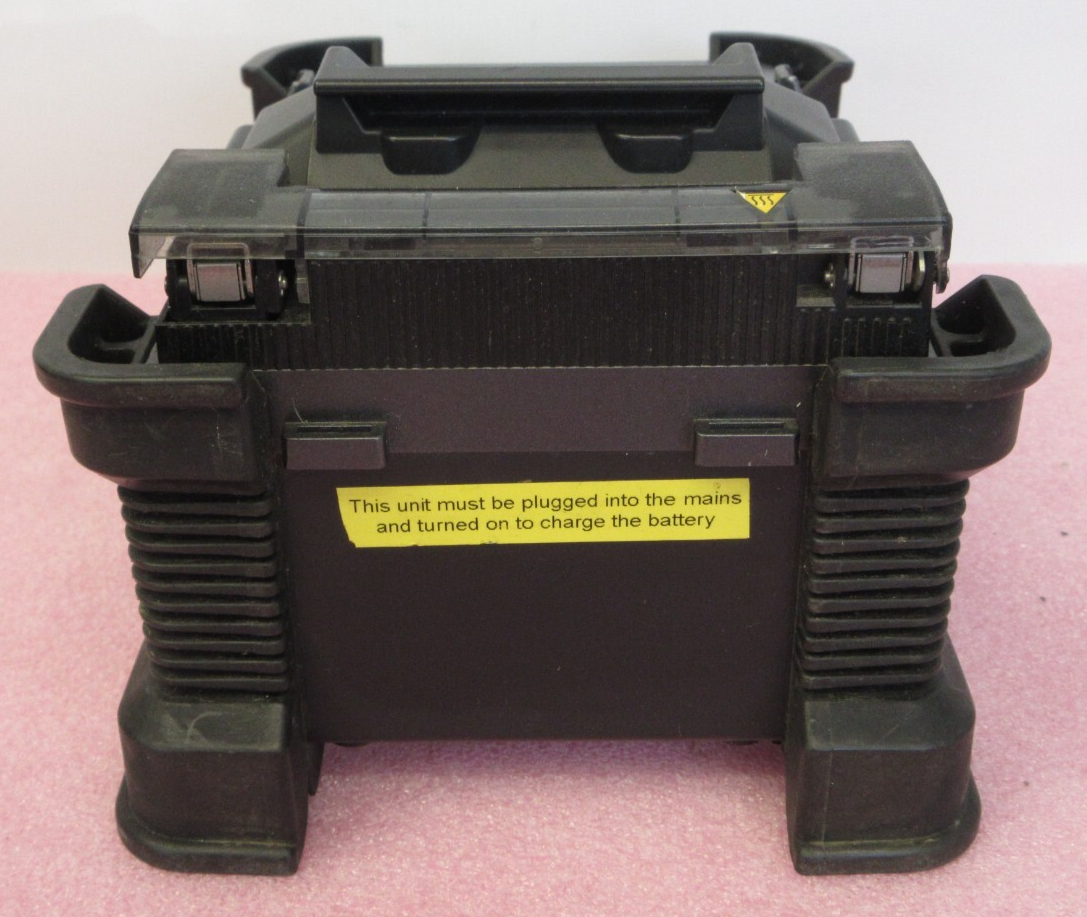

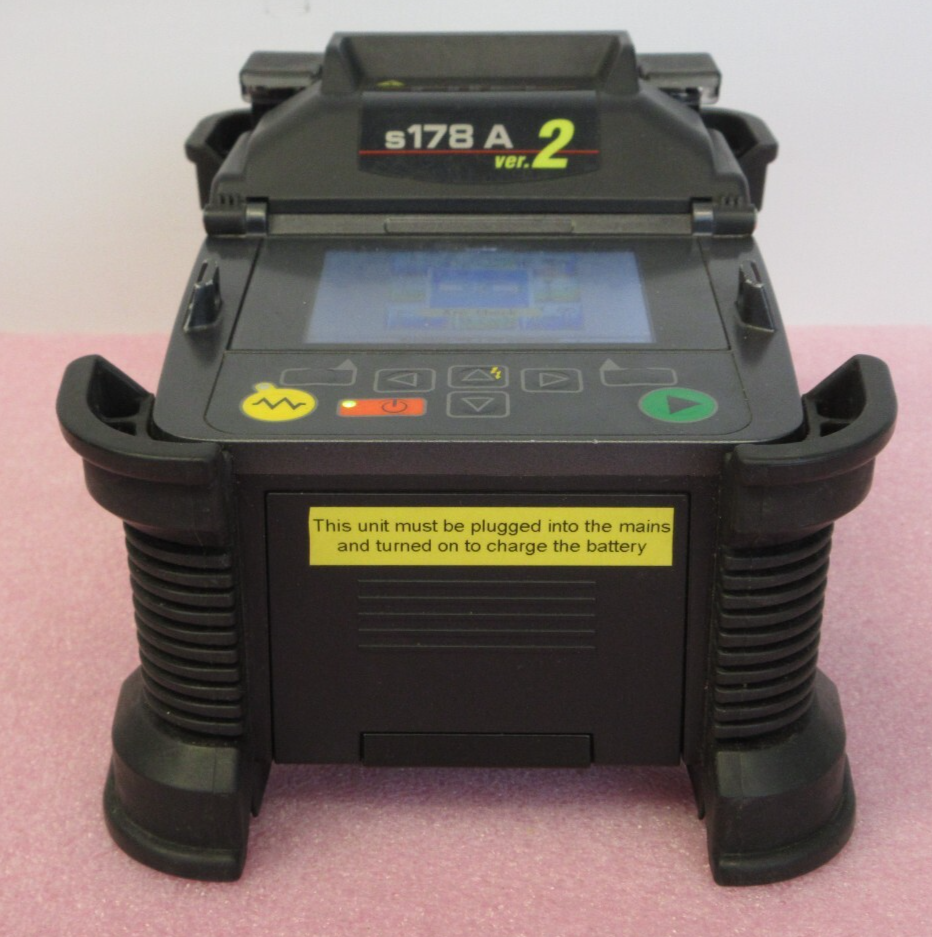

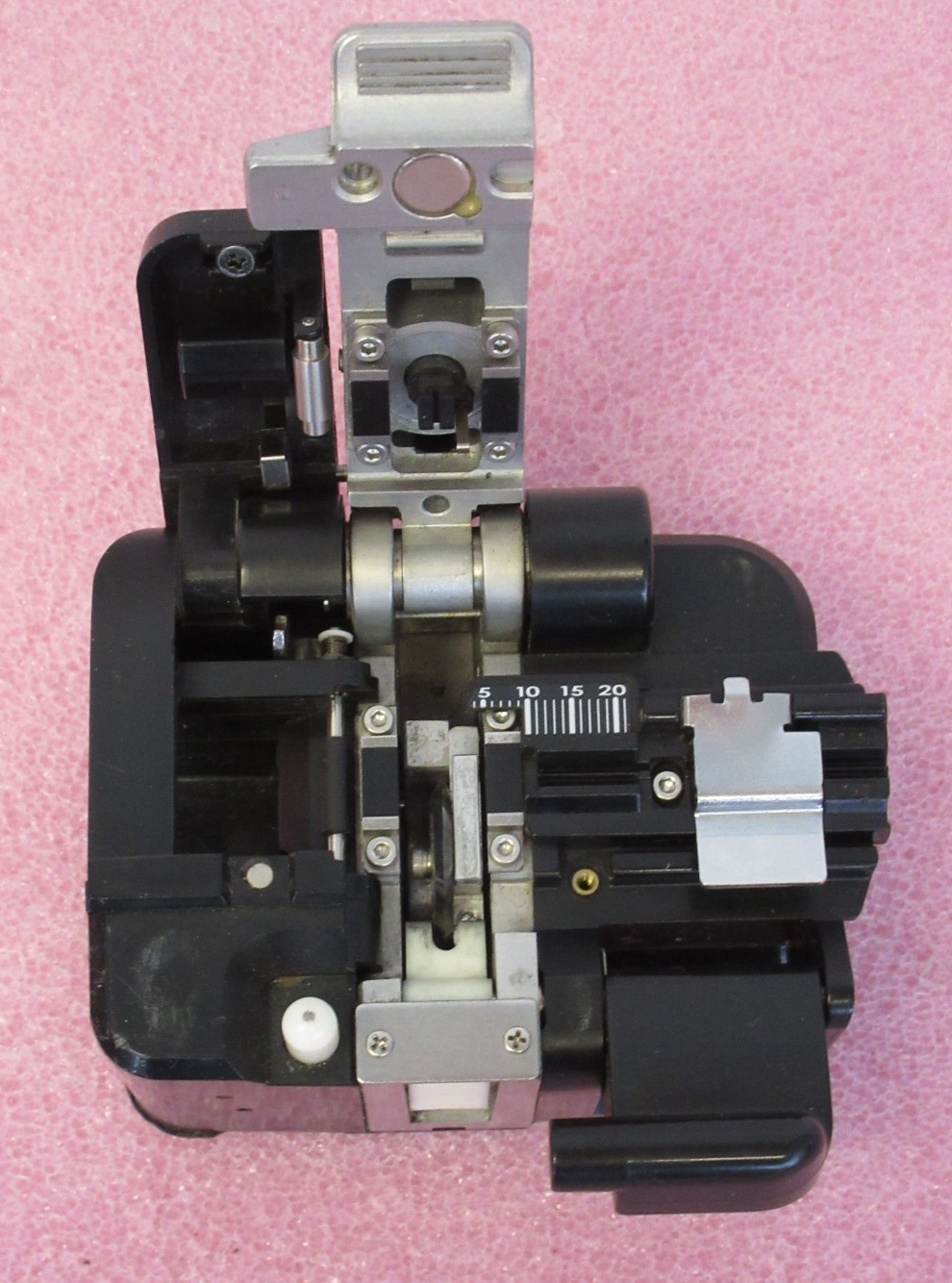

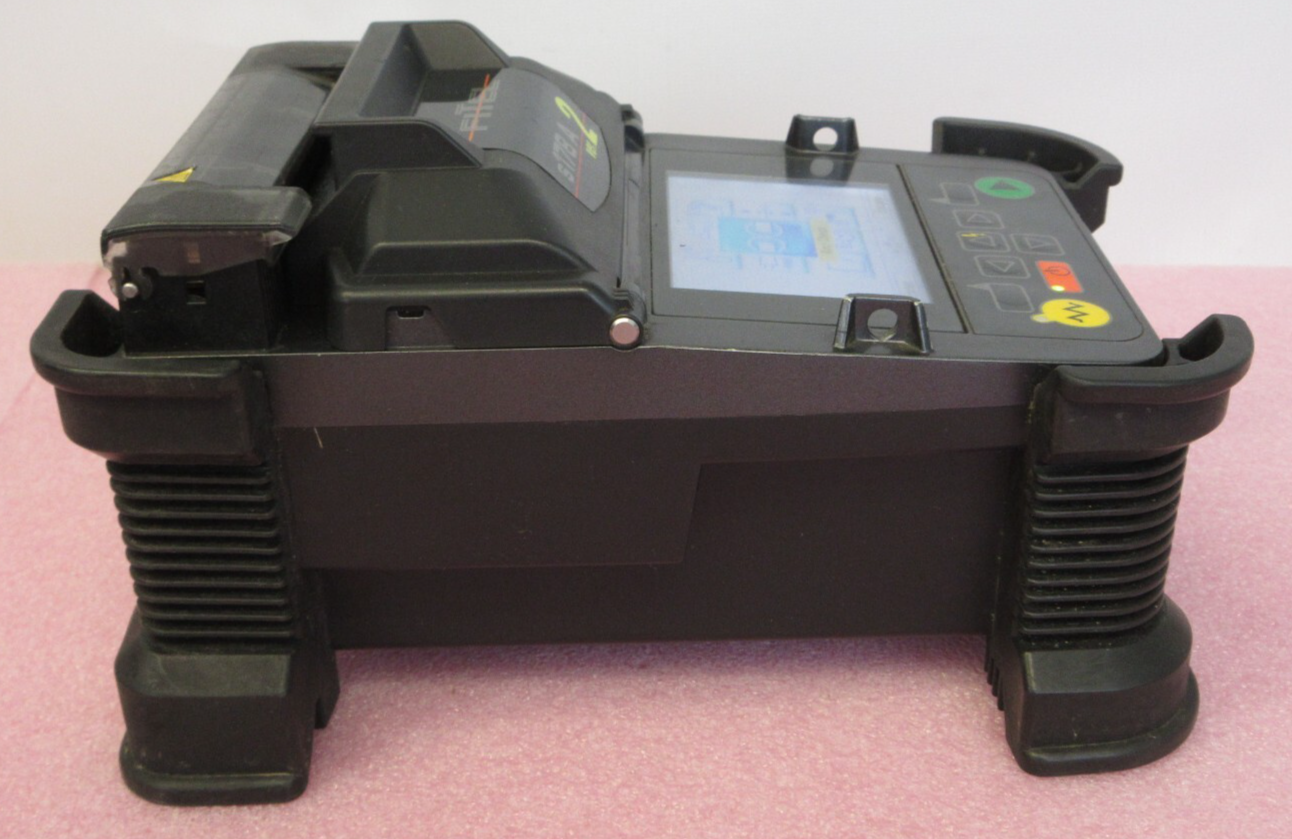

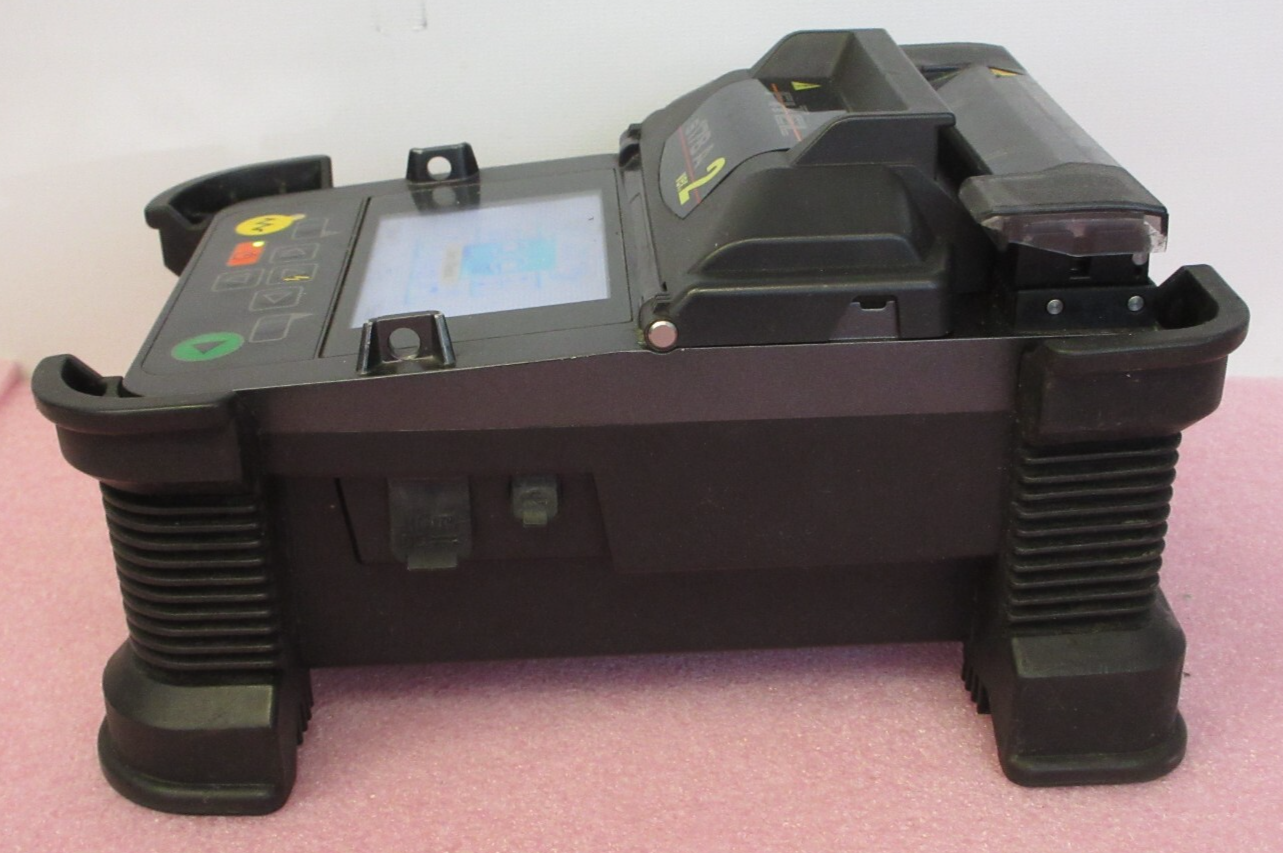

Furukawa FiTeL Core Alignment Fusion Splicer S178A V2 Optical Fiber Cleaver S326
Pre-owned
Furukawa FiTeL Core Alignment Fusion Splicer S178A V2 Optical Fiber Cleaver S326 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product overview
Product overview
Brand: FiTeL

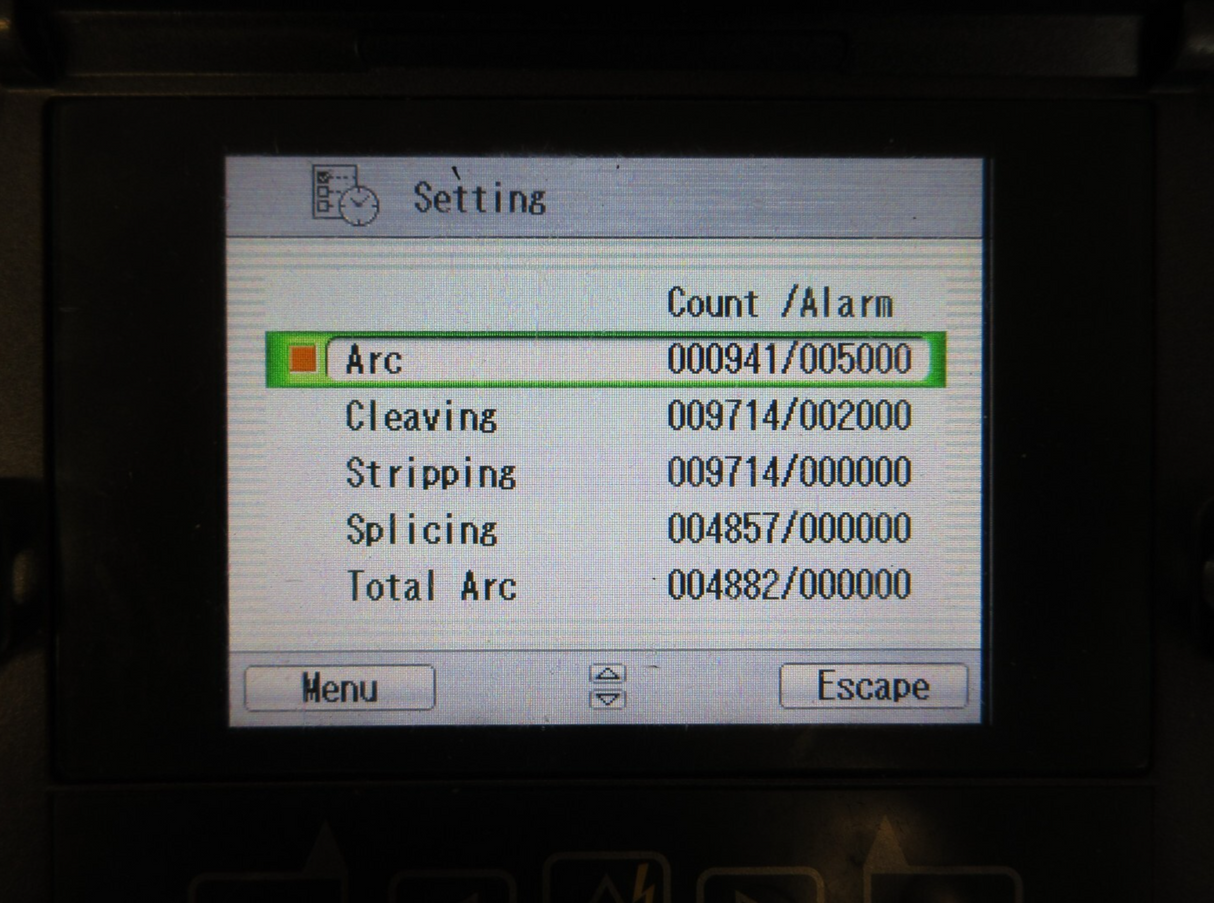

Stripping Count: 9714
MPN: S178A V2, S178A, S326
Total Arc Count: 4882
Splicing Count: 4857
Cleaving Count: 9714
Arc Count: 941

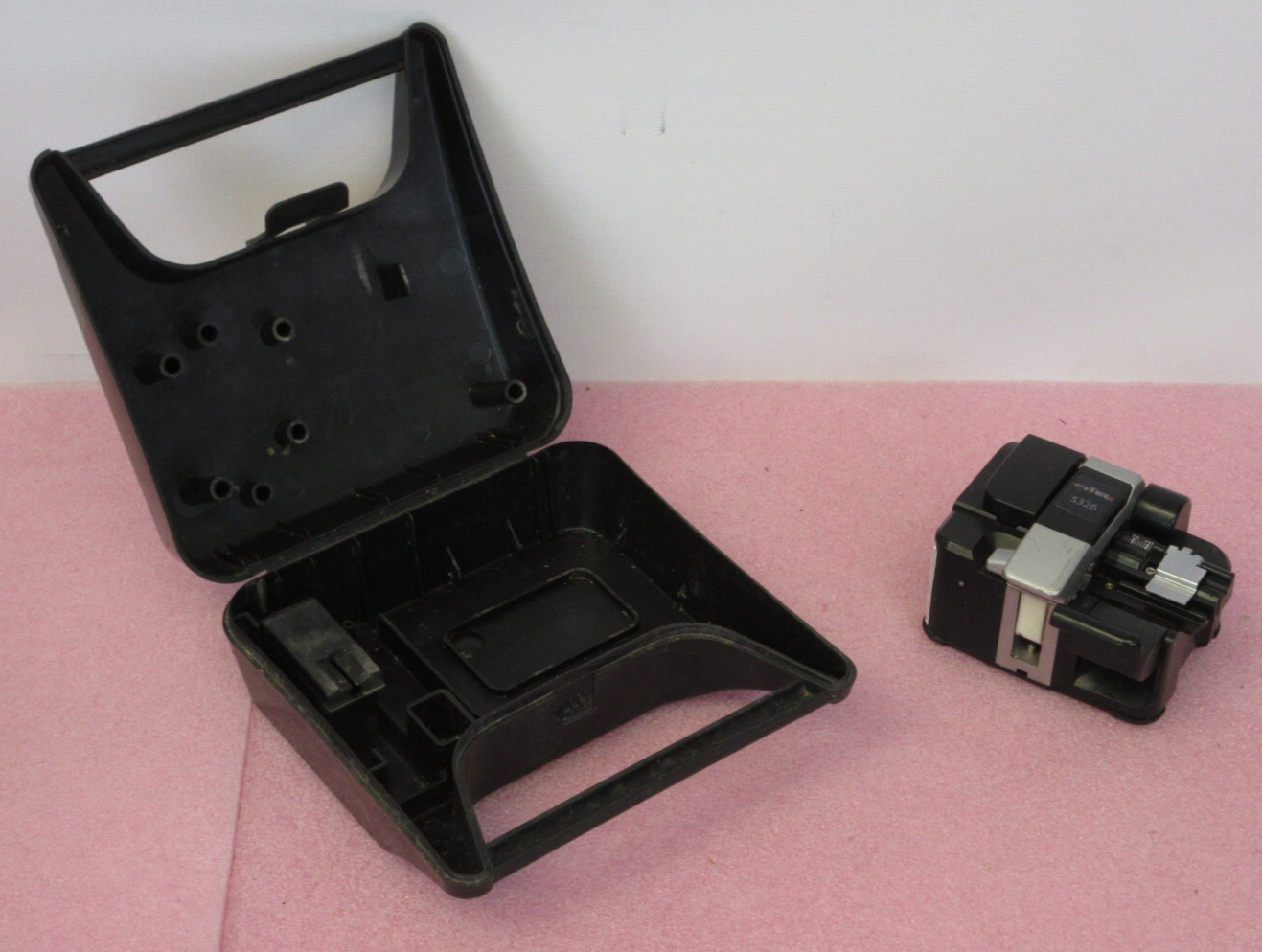

Furukawa FiTeL Core Alignment Fusion Splicer S178A V2 Optical Fiber Cleaver S326
Model: S178A V2

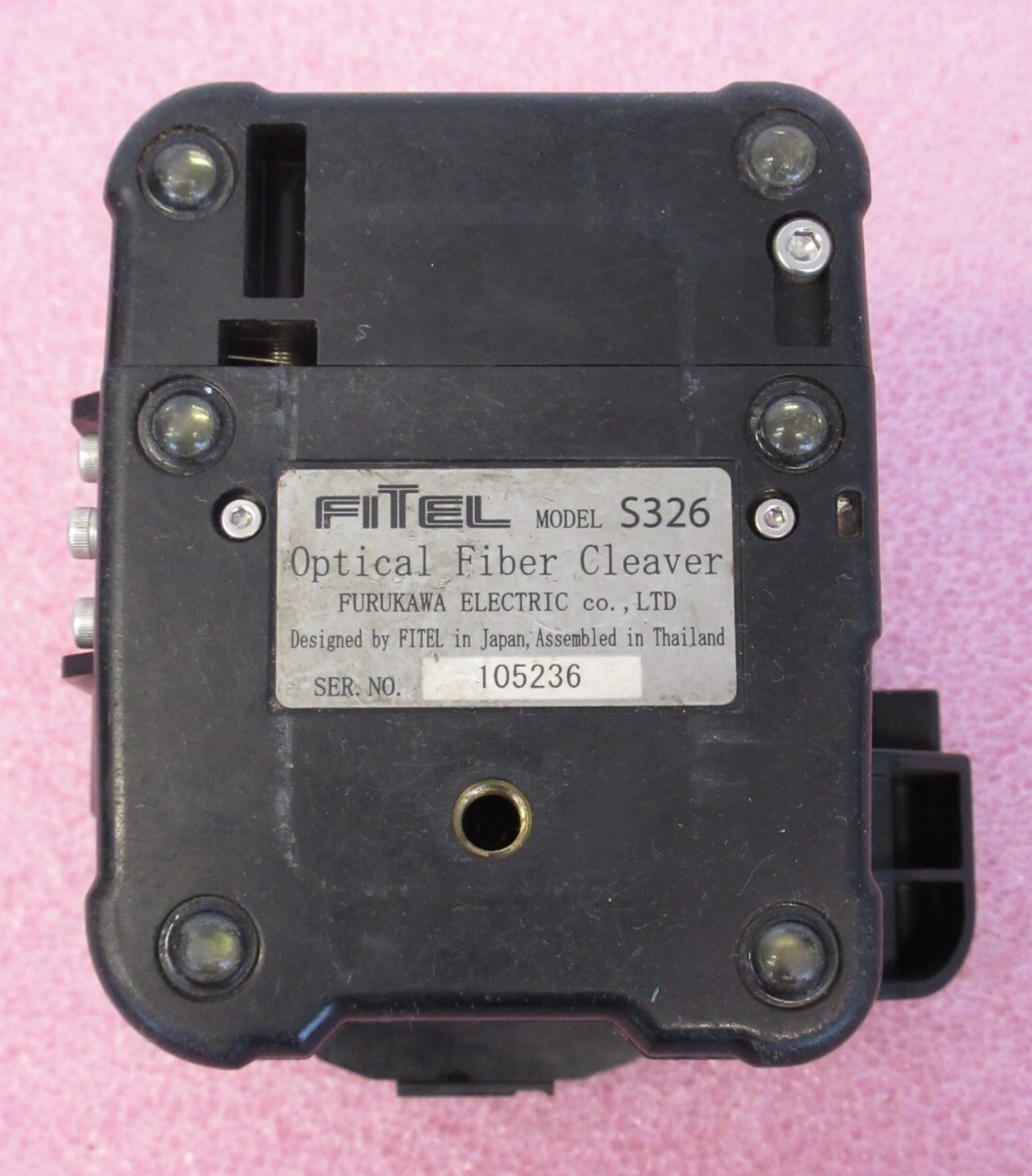

Splicer Model: S326
In good condition full working order
Details:
Furukawa Fitel S178A is the latest addition to the S17x series of fusion splicers, which can work with any type of fiber-optic communication lines. Equipped with a new alignment system that can save up to 20% splicing time, the Furukawa Fitel S178A fusion splicer's improved heating mechanism can also reduce protection sleeve shrink time by more than 30%.
Specification:
licable fibers: SM (ITU-T G.652)
MM (ITU-T G.651)
DS (ITU-T G.653)
NZDS (ITU-T G.655)
BIF/UBIF (Bend insensitive fiber)
Coating diameter: 160 ~ 900 µm
Cladding diameter: 80 ~ 150 μm
Average splice loss: SM: typ. 0.02 dB
MM: typ. 0.01 dB
DS: typ. 0.04 dB
NZDS: typ. 0.04 dB
Return loss: ≥ 60 dB
Splice time: 7 seconds (semi-auto mode)
9 seconds (regular mode)
Fibers cleave length: 5 ~ 16 mm
Protection sleeve length: 20 mm, 40 mm, 60 mm
Power source: AC Input 100 - 240 V (50/60 Hz), DC Input 11 - 17 V
Tube heating time: 25 seconds (S922: 40 mm Sleeve, S921: 60 mm Sleeve) (Pre-heat mode)
31 seconds (S922: 40 mm Sleeve, S921: 60 mm Sleeve) (regular mode)
Splicing programs: max. 150
Storage of splice results: max. 2.000 results
Interface: USB 2.0 (mini)
Display: 3.5 inch LCD
Operation conditions: -10 ~ +50 °C (temperature), 0 ~ 95% (humidity), 0 ~ 5000 m (altitude)
Storage environment: -40 ~ +60 °C (temperature), 0 ~ 95% (humidity)
Dimensions (W × D × H): 127 × 199 × 105 mm
Weight: 2.3 kg

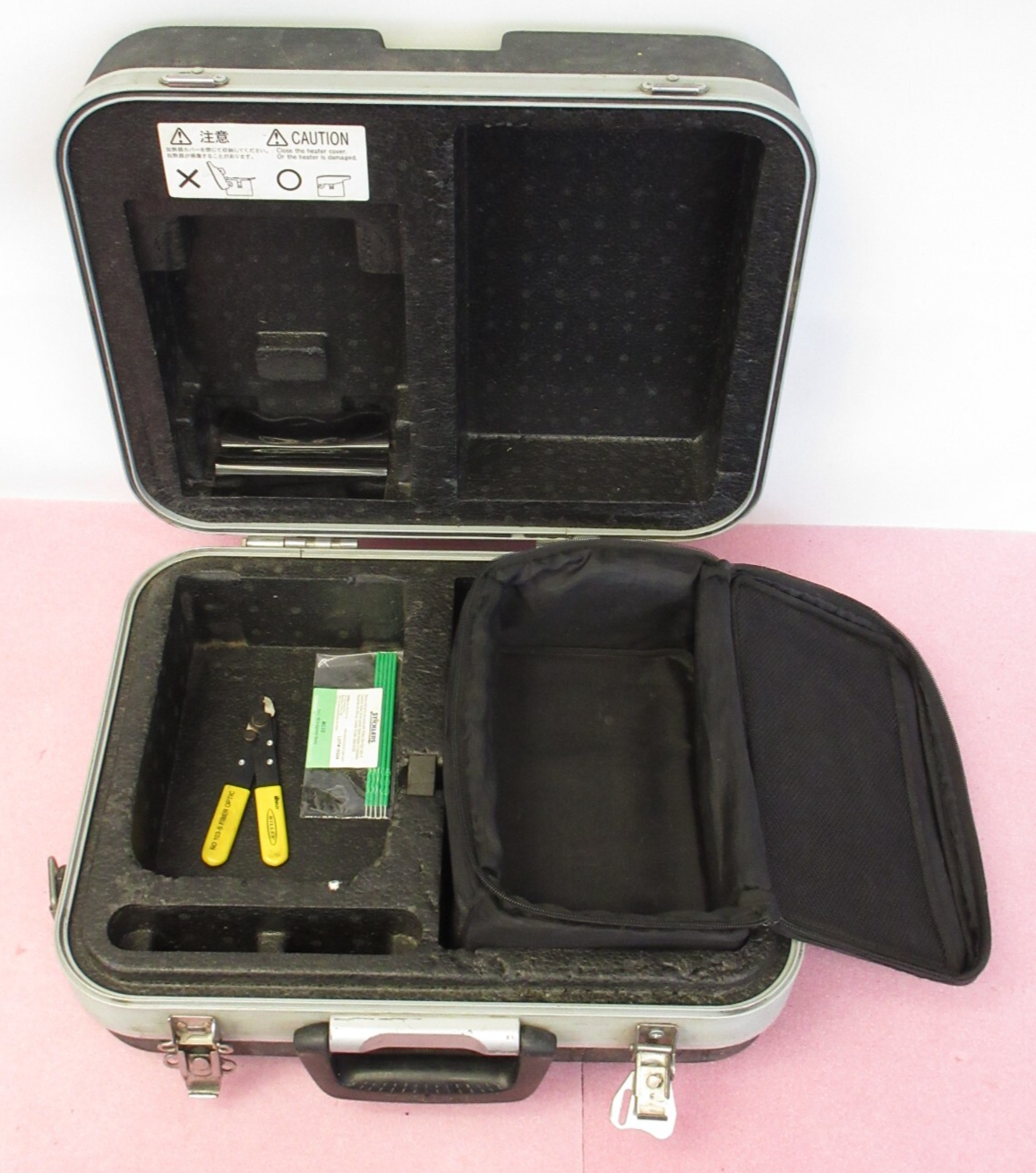

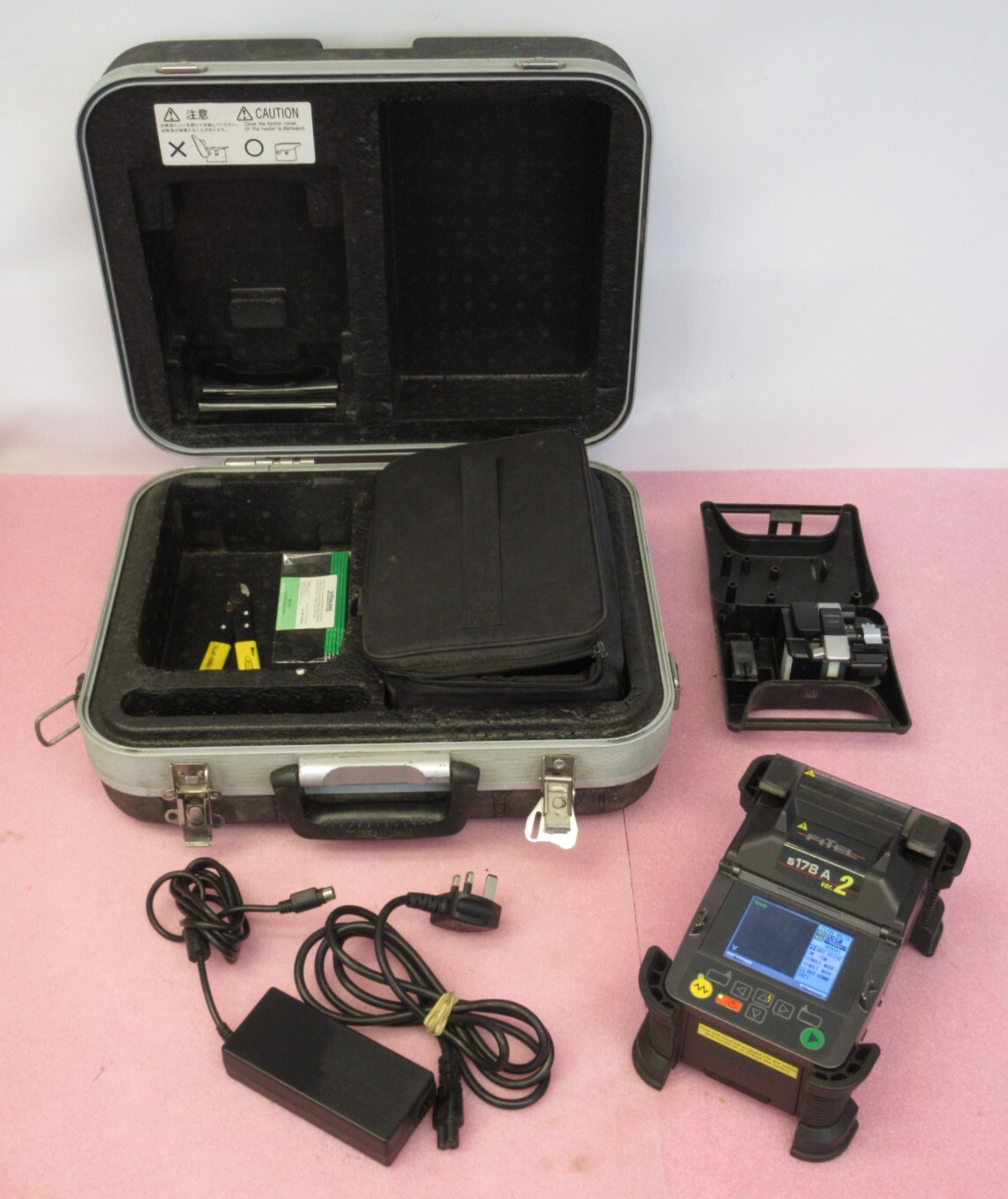

What's Included
What's Included
Furukawa FiTeL Core Alignment Fusion Splicer S178A V2 Optical Fiber...
